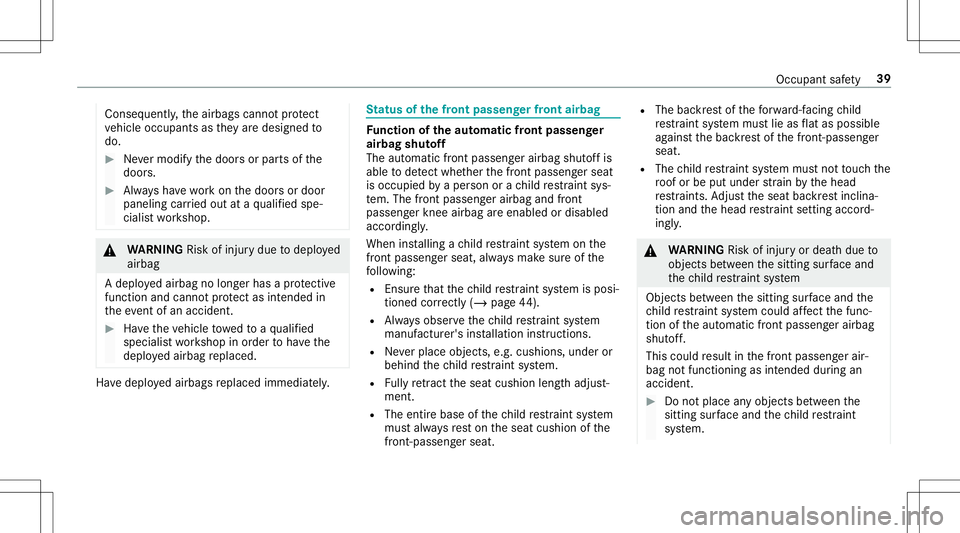

Con
sequen tly, theairbags cannotprotect
ve hicle occupants asthey aredesig nedto
do. #
Nevermodify thedoor sor par tsof the
door s. #
Alw aysha ve wo rkon thedoor sor door
paneling carried out ataqu alif ied spe‐
cialis two rkshop. &
WARNIN GRisk ofinju rydue todeplo yed
airbag
A deplo yedairbag nolong erhas apr otect ive
func tion andcann otprotect asintended in
th eev ent ofan acciden t. #
Have theve hicle towe dto aqu alif ied
spec ialistwo rkshop inorder tohave the
deplo yedairbag replaced. Ha
ve deplo yedairbags replaced immediat ely. St
atus ofthefront passeng erfront airbag Fu
nction oftheaut oma ticfront passeng er
air bag shutoff
The automatic front passeng erairbag shutoffis
able todetect whe ther thefront passeng erseat
is occupied byaper son orach ild restra int sys‐
te m. The front pass engerairb agand front
pass engerknee airbagareenabl edordisa bled
accor dingly.
When installing ach ild restra int system onthe
fr ont passeng ersea t,alw aysmak esur eof the
fo llo wing:
R Ensur eth at thech ild restra int system isposi‐
tion edcor rectl y(/ page 44).
R Alw aysobser vethech ild restra int system
manuf acturer'sinstallation instruct ions .
R Neverpla ceobjects, e.g.cushi ons,under or
behi ndthech ild restra int system.
R Fully retract theseat cushion lengthadjus t‐
ment .
R The entire base ofthech ild restra int system
mus talw aysre st on theseat cushion ofthe
fr ont-passe nger sea t. R
The backres tof thefo rw ard-f acin gch ild
re stra int system mus tlie asflat as poss ible
ag ains tth ebac kres tof thefront -passen ger
seat.
R The child restra int system mus tno tto uc hth e
ro of or be put under stra in by thehead
re stra int s.Ad jus tth eseat backres tinclin a‐
tion andthehead restra int setting accord‐
ing ly. &
WARNIN GRisk ofinju ryor deat hdue to
object sbe tween thesitt ing surface and
th ech ild restra int system
Objec tsbetween thesitt ing surface and the
ch ild restra int system could affect thefunc ‐
tion oftheaut omatic front passeng erairbag
shut off.
This could result inthefront passeng erair‐
bag notfunc tioningasintended during an
acciden t. #
Donotplace anyobjec tsbetween the
sitting surface and thech ild restra int
sy stem. Occ
upant safety 39
Page 42 of 458
#

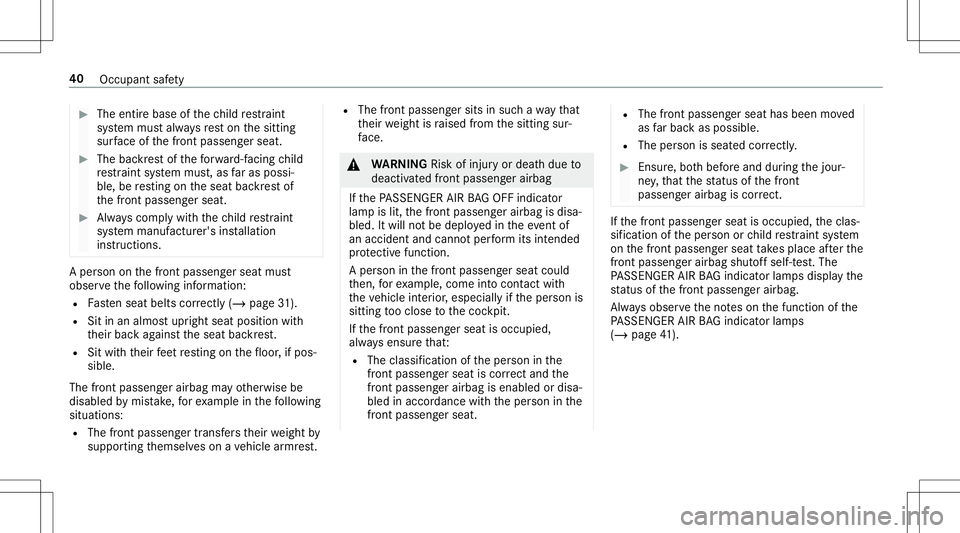

The entir ebase ofthech ild restra int
sy stem mus talw aysre st on thesitt ing
sur face ofthefront passeng erseat. #
The backres tof thefo rw ard-f acin gch ild
re stra int system mus t,as faras possi ‐
ble, beresting ontheseat backres tof
th efront passeng erseat. #
Alw ayscom plywit hth ech ild restra int
sy stem manuf acturer'sinstallation
ins truct ions . A
per son onthefront passeng erseat must
obser vethefo llo wing informatio n:
R Fasten seat belts correctl y(/ page 31).
R Sitinan almos tupr ight seat positio nwit h
th eir bac kag ains tth eseat backres t.
R Sitwithth eir feet resting onthefloor ,if pos‐
sible.
The front passeng erairbag mayot her wise be
disabl edbymis take ,fo rex am ple inthefo llo wing
situat ions:
R The front passen gertr ansf ersth eir weight by
suppor tingthemselv eson ave hicle armr est. R
The front passeng ersits insuc hawa yth at
th eir weight israised from thesitt ing sur‐
fa ce. &
WARNIN GRisk ofinju ryor deat hdue to
deactiv ated front passeng erairbag
If th ePA SSENGER AIRBAGOF Find icat or
lam pis lit,th efront passeng erairbag isdisa‐
bled. Itwill notbe deplo yedin theeve ntof
an acci dent and canno tpe rfor m its intended
pr otect ive func tion.
A per son inthefront passeng erseat could
th en, forex am ple, com eint ocon tact with
th eve hicle interior ,especially ifth eper son is
sitt ing tooclose tothecoc kpit.
If th efront passeng erseat isoccupied,
alw aysensur eth at:
R The classificat ion oftheper son inthe
fr ont passeng ersea tis cor rect and the
fr ont passeng erairb agisenabl edordisa ‐
ble din accordance withth eper son inthe
fr ont passeng ersea t. R
The front passeng ersea thas been moved
as farbac kas possi ble.
R The person isseat edcor rectl y. #
Ensu re,bo th bef oreand during thejour‐
ne y,that thest atus ofthefront
passeng erairbag iscor rect. If
th efront passeng erseat isoccupied, theclas‐
sif ication oftheper son orchild restra int system
on thefront passeng erseat take splace afte rth e
fr ont passeng erairb agshut offself-t est.The
PA SSENGER AIRBAGind icat orlam psdispl aythe
st atus ofthefront passeng erairbag.
Alw aysobser vetheno teson thefunc tion ofthe
PA SSENGER AIRBAGind icat orlam ps
(/ page41 ). 40
Occupant safety
Page 43 of 458

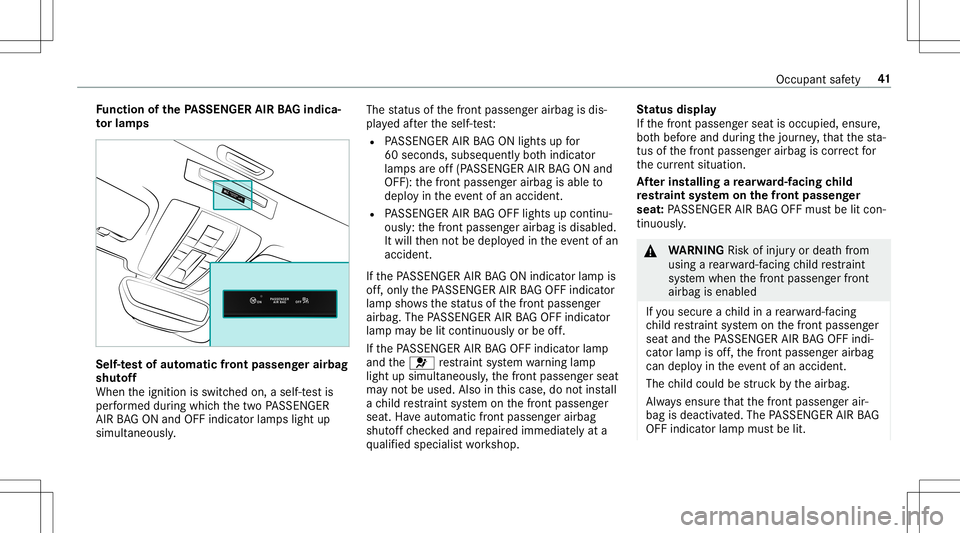

Fu
nction ofthePA SSEN GERAIRBAGindic a‐
to rlam ps Se
lf-te st of aut oma ticfront passeng erair bag
shu toff
When theignition isswitc hedon,aself-t estis
per form ed dur ing whic hth etw oPA SSENGER
AIR BAGON and OFFind icat orlam pslight up
simul taneou sly. The
status ofthefront passeng erairbag isdis‐
pla yedaf te rth eself-t est:
R PASSENGER AIRBAGON light sup for
60 seconds ,sub sequently both indic ator
lam psareof f(P AS SENGER AIR BA GON and
OF F): thefront passeng erairbag isable to
deplo yin theev ent ofan acciden t.
R PASSENGER AIRBAGOF Flight sup con tinu‐
ousl y:thefront passeng erairbag isdisabled.
It will then notbe deplo yedin theeve ntofan
acci dent.
If th ePA SSENGER AIRBAGON indicat orlam pis
of f,on lythePA SSENGER AIRBAGOF Find icat or
lam psho wsthest atus ofthefront passeng er
airbag. ThePASSENGER AIRBAGOF Find icat or
lam pma ybe litcon tinuousl yor be off.
If th ePA SSENGER AIRBAGOF Find icat orlam p
and the0075 restra int system warning lam p
light upsimult aneousl y,thefront passeng erseat
ma yno tbe used. Alsointhis case, donotins tall
a ch ild restra int system onthefront passeng er
seat. Have aut omat icfron tpasse nger airbag
shut offch eckedand repair edimmediat elyata
qu alif ied spec ialistwo rkshop. St
atus displa y
If th efront passeng erseat isoccupied, ensure,
bo th bef oreand during thejour ney,that thest a‐
tus ofthefront passeng erairbag iscor rect for
th ecur rent situa tion.
Af terin st alli ng are ar wa rd-faci ng child
re stra int system onthefront passeng er
seat :PA SSENGER AIRBAGOF Fmus tbe litcon ‐
tin uousl y. &
WARNIN GRisk ofinju ryor deat hfrom
using are ar wa rd-faci ng child restra int
sy stem when thefront passeng erfront
airbag isenabled
If yo usec ureach ild inare ar wa rd-facin g
ch ild restra int system onthefront passeng er
seat andthePA SSENGER AIRBAGOF Find i‐
cat orlam pis off,th efront passeng erairbag
can deplo yin theeve ntofan acci dent.
The child could bestru ck bytheairbag.
Alw aysensur eth at thefront passeng erair‐
bag isdeactiv ated. The PASSENGER AIRBAG
OFF indicat orlam pmus tbe lit. Occupant
safety 41
Page 44 of 458

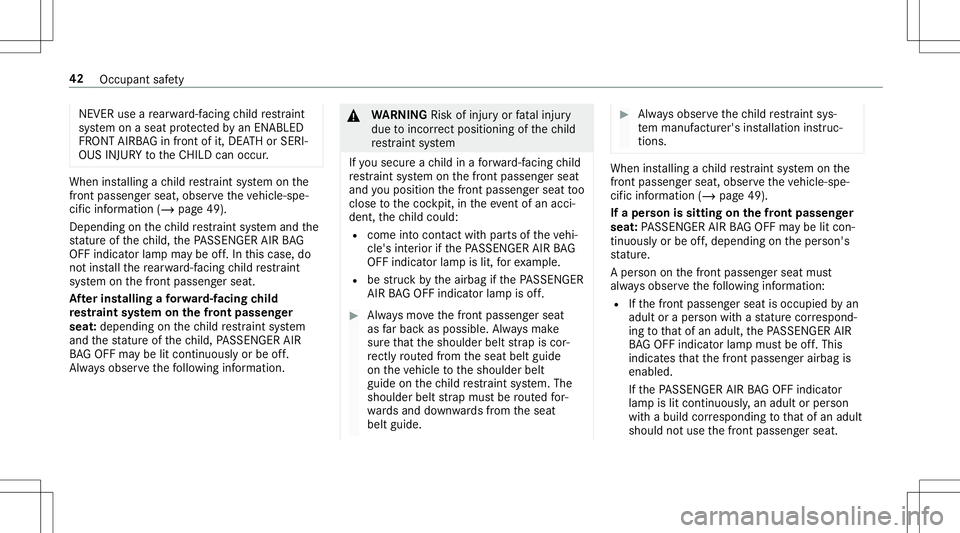

NEVER
useare ar wa rd-faci ng child restra int
sy stem onaseat protect edbyan ENABLED
FR ONT AIRB AG infront ofit,DE ATHor SERI‐
OUS INJURYtotheCH ILD can occur . When
installing ach ild restra int system onthe
fr ont passeng ersea t,obse rveth eve hicle-spe‐
cif icinf ormation (/page49).
Depending onthech ild restra int system and the
st atur eof thech ild, thePA SSENGER AIRBAG
OFF indicat orlam pma ybe off.In this case, do
no tins tallth ere ar wa rd-faci ng child restra int
sy stem onthefront passeng erseat.
Af terin st alli ng afo rw ard-f acin gch ild
re stra int system onthefront passeng er
seat :depen dingonthech ild restra int system
and thest atur eof thech ild, PASSENGER AIR
BA GOF Fma ybe litcon tinuousl yor be off.
Alw aysobser vethefo llo wing informatio n. &
WARNIN GRisk ofinju ryor fata linj ury
due toinc orrect pos itioning ofthech ild
re stra int system
If yo usec ureach ild inafo rw ard-f acin gch ild
re stra int system onthefront passeng erseat
and youposi tionth efront passeng erseat too
clos eto thecoc kpit, intheeve ntofan acci ‐
de nt, thech ild could:
R com eint ocon tact with par tsof theve hi‐
cle's interior ifth ePA SSENGER AIRBAG
OFF indicat orlam pis lit, forex am ple.
R bestru ck bytheairbag ifth ePA SSENGER
AIR BAGOF Find icat orlam pis off. #
Alw aysmo vethefront passeng erseat
as farbac kas possi ble.Alwaysmak e
sur eth at theshoulder beltstra pis cor‐
re ctly routed from theseat beltguide
on theve hicle totheshoulder belt
guide onthech ild restra int system. The
shoulder beltstra pmus tbe routed for‐
wa rdsand down wardsfrom theseat
belt guide. #
Alw aysobser vethech ild restra int sys‐
te m manuf acturer'sinstallation instruc‐
tion s. When
installing ach ild restra int system onthe
fr ont passeng ersea t,obse rveth eve hicle-spe‐
cif icinf ormation (/page49).
If aper son issitting onthefront passeng er
seat :PA SSENGER AIRBAGOF Fma ybe litcon ‐
tin uousl yor be off,depen dingon theper son's
st atur e.
A per son onthefront passeng erseat must
alw aysobser vethefo llo wing informatio n:
R Ifth efront passeng erseat isoccupied byan
adult oraper son withast atur ecor respond‐
ing tothat ofan adult ,th ePA SSENGER AIR
BA GOF Find icat orlam pmus tbe off.This
ind icat esthat thefront passeng erairbag is
enabled.
If th ePA SSENGER AIRBAGOF Find icat or
lam pis lit con tinuousl y,an adult orper son
wit habuild corresponding tothat ofan adult
shoul dno tuse thefront passeng erseat. 42
Occupant safety
Page 45 of 458

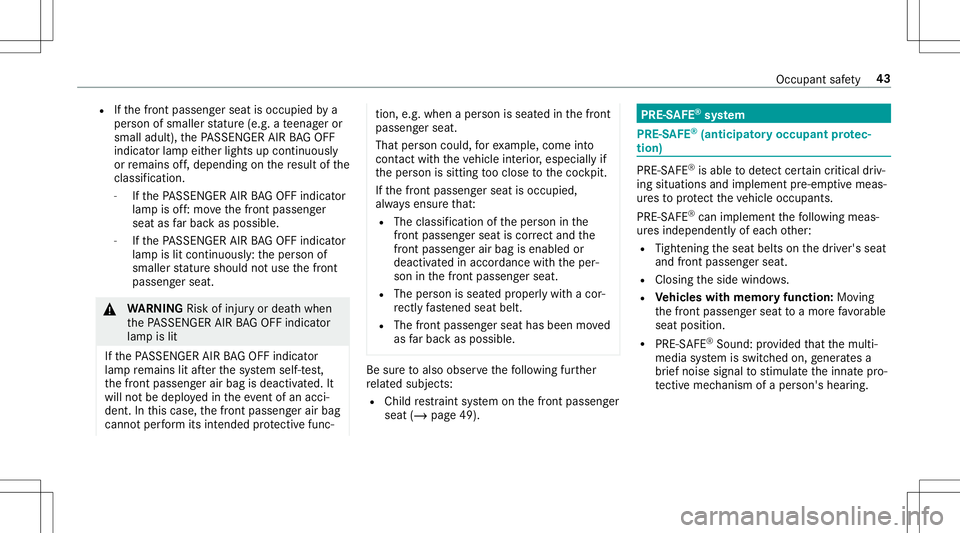

R
Ifth efront passeng erseat isoccupied bya
per son ofsmaller statur e(e. g.ate enag eror
small adult), thePA SSENGER AIRBAGOF F
ind icat orlam peit her light sup con tinuousl y
or remains off,depe nding onthere sult ofthe
cla ssificati on.
- Ifth ePA SSENGER AIRBAGOF Find icat or
lam pis off:mo vethefront passeng er
seat asfarbac kas possi ble.
- Ifth ePA SSENGER AIRBAGOF Find icat or
lam pis lit con tinuousl y:theper son of
smaller statur eshoul dno tuse thefront
passeng erseat. &
WARNIN GRisk ofinju ryor deat hwhen
th ePA SSENGER AIRBAGOF Find icat or
lam pis lit
If th ePA SSENGER AIRBAGOF Find icat or
lam pre mains litafte rth esy stem self-t est,
th efront passeng erair bag isdeactiv ated. It
will notbe deplo yedin theeve ntofan acci ‐
de nt. Inthis case, thefront passeng erair bag
cann otper form itsintended protect ive func ‐ tion
,e.g. when aper son isseat edinthefront
passeng erseat.
That person could, forex am ple, com eint o
con tact with theve hicle interior ,especially if
th eper son issitt ing tooclose tothecoc kpit.
If th efront passeng erseat isoccupied,
alw aysensur eth at:
R The classificat ion oftheper son inthe
fr ont passeng ersea tis cor rect and the
fr ont passeng erair bag isenabl edor
dea ctivated inaccor dance withth eper‐
son inthefront passeng erseat.
R The person isseat edproper lywit hacor ‐
re ctly fastened seatbelt.
R The front passeng erseat hasbeen moved
as farbac kas possi ble. Be
sureto also obse rveth efo llo wing further
re lat ed subje cts:
R Child restra int system onthefront passeng er
seat (/page49). PRE-S
AFE®
sy stem PRE-
SAFE®
(ant icipa tory occupa ntprotec‐
tion) PRE-
SAFE®
is ab leto detect cer tain critic aldriv‐
ing situat ionsandimplemen tpr e-em ptive meas‐
ur es toprotect theve hicle occupants.
PRE-S AFE®
can implement thefo llo wing meas‐
ur es indepe ndently of eac hot her :
R Tight ening theseat belts onthedr iver's seat
and front passeng erseat.
R Closing theside windo ws.
R Vehicl eswith memor yfuncti on:Moving
th efront passeng erseat toamor efa vo rable
seat position .
R PRE-S AFE®
Sound: prov ided that themulti‐
media system isswitc hedon,gener ates a
br iefnoi sesigna lto stimulat eth einnat epr o‐
te ctiv emec hanism ofaper son's hearing. Occu
pant safety 43
Page 46 of 458
*

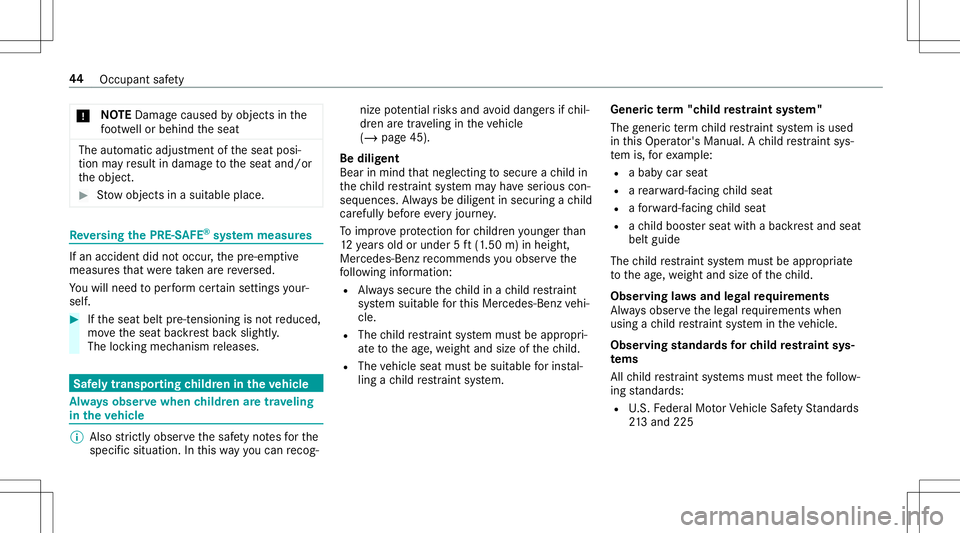

NO
TEDama gecau sed byobject sin the
fo ot we llor behin dth eseat The
automatic adjustmentof theseat posi‐
tion mayre sult indamag eto theseat and/or
th eobjec t. #
Stow object sin asuit able place. Re
versing thePRE- SAFE®
sy stem mea sures If
an acc iden tdid notocc ur,th epr e-em ptive
measur esthat we retak en arere ve rsed.
Yo uwill need toper form certainse ttings your‐
self . #
Ifth eseat beltpre-t ension ingisno tre duced,
mo vetheseat backres tbac kslightl y.
The locking mechanism releases. Saf
elytransp orting childr enintheve hicl e Alw
aysobser vewhen childr enaretrave ling
in theve hicl e %
Also strictly observe thesaf etyno tesfo rth e
specif icsituation. Inthis wa yyo ucan recog‐ nize
potentia lri sk sand avoiddang ersif ch il‐
dr en aretrav eling intheve hicle
(/ page45).
Be dilig ent
Bear inmind that neg lectingto secur each ild in
th ech ild restra int system mayha ve ser ious con‐
seq uences. Alwaysbe dilig entinsecur ingach ild
car efull ybef oreeve ryjou rney .
To improve protect ion forch ildr enyoung erthan
12 yearsold orunde r5 ft (1.50 m)inheight ,
Mer cedes- Benzre comme ndsyouobse rveth e
fo llo wing informatio n:
R Alw ayssecur eth ech ild inach ild restra int
sy stem suitable forth is Mer cedes -Benz vehi‐
cle.
R The child restra int system mus tbe appr opri‐
at eto theag e, we ight andsize ofthech ild.
R The vehicle seatmustbe suit able forins tal‐
ling ach ild restra int system. Gener
icterm "child restra int system"
The gener icterm child restra int system isused
in this Opera tor's Manua l.A ch ild restra int sys‐
te m is, forex am ple:
R abab ycar seat
R are ar wa rd-faci ng child seat
R afo rw ard-f acin gch ild seat
R ach ild boos terseat withabac kres tand seat
belt guide
The child restra int system mus tbe appr opriate
to theag e, we ight andsize ofthech ild.
Obser vinglaws and legalrequ irement s
Alw aysobser vetheleg alrequ iremen tswhen
using ach ild restra int system intheve hicle.
Obser vingstandar dsforch ild restra int sys‐
te ms
All child restra int systems mustmee tth efo llo w‐
ing standar ds:
R U.S. Feder alMo torVe hicle SafetySt andar ds
21 3and 225 44
Occupant safety
Page 47 of 458

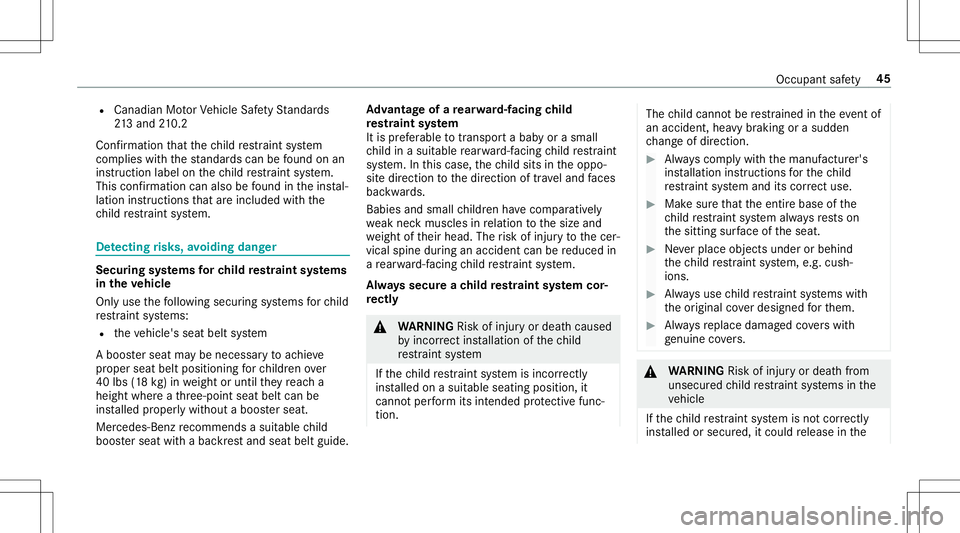

R
Canad ianMotorVe hicle SafetySt andar ds
21 3and 210.2
Conf irmatio nth at thech ild restra int system
com plies withth est andar dscan befound onan
ins truct ion label onthech ild restra int system.
This confirm atio ncan also befound intheins tal‐
lation instruct ions that areinc luded withth e
ch ild restra int system. De
tectin grisk s,avo iding danger Secur
ingsystems forch ild restra int systems
in theve hicl e
Only usethefo llo wing secur ingsystems forch ild
re stra int systems:
R theve hicle's seatbeltsystem
A boos terseat maybe necessar yto achie ve
pr oper seatbeltposition ingforch ildr enover
40 lbs (18 kg )in we ight orunt ilth ey reac ha
heigh twher eath re e-point seatbeltcanbe
ins talled proper lywit hout aboos terseat.
Mer cedes-Benz recomme ndsasu itab lech ild
boos terseat withabac kres tand seat beltguide. Ad
vantag eof are ar wa rd-faci ng child
re stra int system
It is prefer able totrans portabab yor asmall
ch ild inasuit able rear wa rd-faci ng child restra int
sy stem. Inthis case, thech ild sits intheoppo‐
sit edir ect ion tothedir ect ion oftrav el and faces
ba ckwa rds.
Babies andsmall childr enhave com parativ ely
we ak nec kmusc lesinrelation tothesize and
we ight oftheir head. Therisk ofinjur yto thecer‐
vical spine during anacciden tcan bereduced in
a re ar wa rd-faci ng child restra int system.
Alw ayssecur each ild restra int system cor‐
re ctl y &
WARNIN GRisk ofinju ryor deat hcaused
by inc orrect ins tallation ofthech ild
re stra int system
If th ech ild restra int system isincor rectly
ins talled onasuit able seatin gposit ion,it
can notper form itsintended protect ive func ‐
tion . The
child can notbe restra ined intheeve ntof
an acci dent, hea vybraki ng orasu dd en
ch ang eof dir ect ion. #
Alw ayscom plywit hth emanuf acturer's
ins tallation instruct ions forth ech ild
re stra int system and itscor rect use. #
Makesur eth at theent ire base ofthe
ch ild restra int system alwaysre stson
th esitt ing surface oftheseat. #
Neverpla ceobjects underorbehi nd
th ech ild restra int system, e.g.cush‐
ions. #
Alw aysuse child restra int systems with
th eor iginal coverdesi gned forth em. #
Alw aysre place damag edcovers wit h
ge nui ne covers. &
WARNIN GRisk ofinju ryor deat hfrom
unsecur edchild restra int systems inthe
ve hicle
If th ech ild restra int system isno tcor rectly
ins talled orsecur ed,itcould release inthe Occupant
safety 45
Page 48 of 458

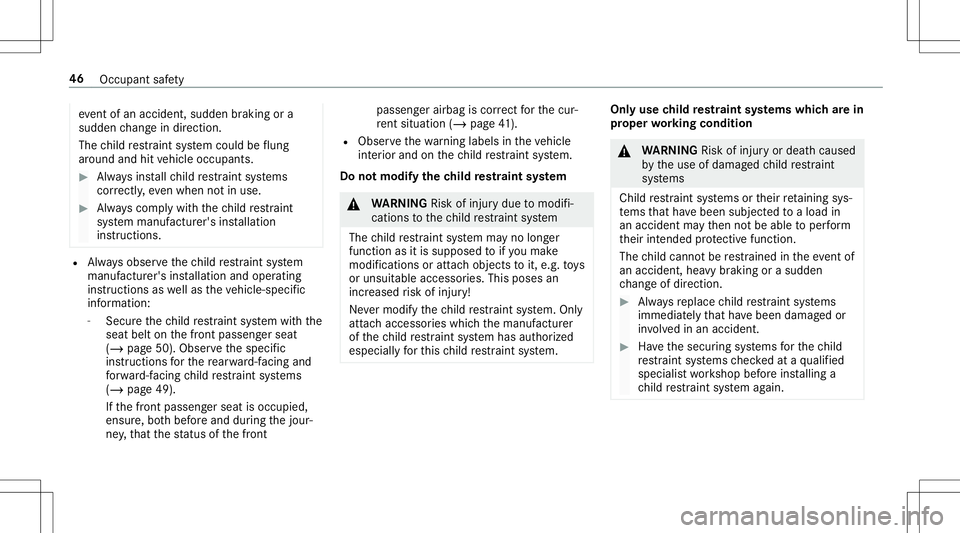

ev
ent ofan acciden t,sudden braking ora
sudden chang ein dir ect ion.
The child restra int system could beflung
ar oun dand hitvehicle occupants. #
Alw aysins tallch ild restra int systems
cor rectl y,eve nwh en notin use. #
Alw ayscom plywit hth ech ild restra int
sy stem manuf acturer'sinstallation
ins truct ions . R
Alw aysobser vethech ild restra int system
manuf acturer'sinstallation andopera ting
ins truct ions aswellas theve hicle-specif ic
inf ormation:
- Secur eth ech ild restra int system withth e
seat beltonthefront passeng erseat
(/ page50). Obser vethespecif ic
ins truction sfo rth ere ar wa rd-faci ng and
fo rw ard-f acin gch ild restra int systems
(/ page49).
If th efront passeng erseat isoccupied,
ensur e,bo th bef oreand during thejour‐
ne y,that thest atus ofthefront passeng
erairbag iscor rect forth ecur‐
re nt situa tion(/ page 41).
R Obser vethewa rning labels intheve hicle
int erior and onthech ild restra int system.
Do notmodif yth ech ild restra int system &
WARNIN GRisk ofinju rydue tomodif i‐
cations tothech ild restra int system
The child restra int system mayno long er
func tion asitis supposed toifyo umak e
mod ificat ionsor att achobj ect sto it,e.g. toys
or unsuit ableaccessor ies.This poses an
incr eased risk ofinjur y!
Ne vermodify thech ild restra int system. Only
att achaccessor ieswhic hth emanuf acturer
of thech ild restra int system has author ized
especiall yfo rth is ch ild restra int system. Onl
yuse child restra int systems whichar ein
pr oper working condit ion &
WARNIN GRisk ofinju ryor deat hcaused
by theuse ofdamag edchild restra int
sy stems
Child restra int systems ortheir retainin gsy s‐
te ms that have been subjec tedto aload in
an acc iden tma yth en notbe able toper form
th eir intended protect ive func tion.
The child can notbe restra ined intheeve ntof
an acci dent, hea vybraki ng orasu dd en
ch ang eof dir ect ion. #
Alw aysre place child restra int systems
immediat elyth at have been damag edor
in vo lved inan acciden t. #
Have thesecur ingsystems forth ech ild
re stra int systems checkedat aqu alif ied
spec ialistwo rkshop beforeins talling a
ch ild restra int system again. 46
Occupant safety
Page 49 of 458

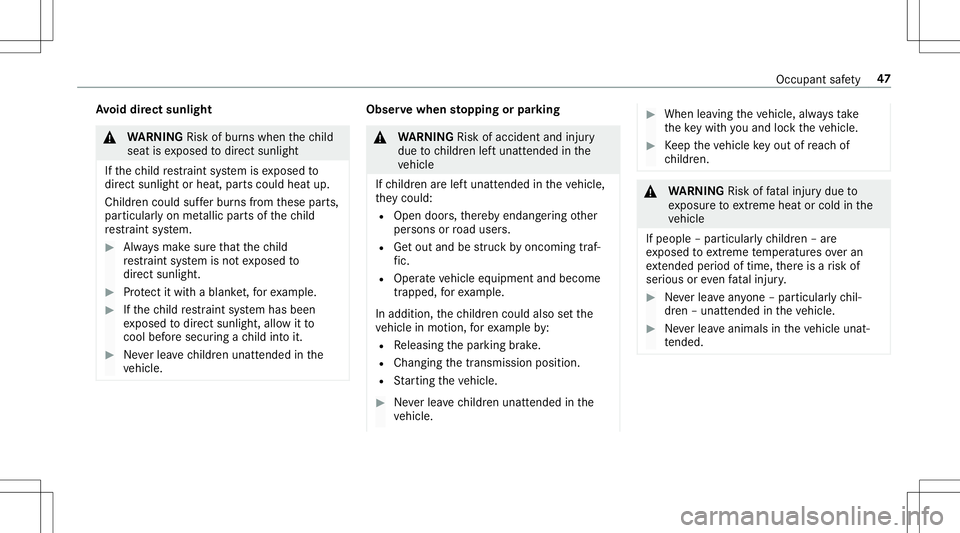

Av
oid direct sunli ght &
WARNIN GRisk ofburnswhen thech ild
seat isex posed todirect sunlight
If th ech ild restra int system isex posed to
dir ect sunlight orheat, partscould heatup.
Childr encould sufferbur nsfrom these parts,
par ticular lyon metallic partsof thech ild
re stra int system. #
Alw aysmak esur eth at thech ild
re stra int system isno tex posed to
dir ect sunlight . #
Protect itwit hablank et,fo rex am ple. #
Ifth ech ild restra int system has been
ex posed todirect sunlight ,allo witto
cool beforesecu ring ach ild intoit. #
Neverlea vechildr enunat tende din the
ve hicle. Obser
vewhen stopping orpar king &
WARNIN GRisk ofacci dent andinjury
due tochildr enleftunat tende din the
ve hicle
If ch ildr enarelef tunat tende din theve hicle,
th ey cou ld:
R Ope ndoo rs,th er eb yendang ering other
per sons orroad user s.
R Getout and bestru ck byoncom ingtraf‐
fi c.
R Ope rate vehicle equipment andbecome
tr apped, forex am ple.
In addit ion,th ech ildr encould alsosetth e
ve hicle inmo tion, forex am ple by:
R Releasing thepar king brak e.
R Changing thetra nsmiss ionposition .
R Startin gth eve hicle. #
Neverlea vechildr enunat tende din the
ve hicle. #
When leaving theve hicle, alwaysta ke
th eke ywit hyo uand lockth eve hicle. #
Keep theve hicle keyout ofreac hof
ch ildr en. &
WARNIN GRisk offata linj urydue to
ex posur eto extreme heat or col din the
ve hicle
If people –par ticular lych ildr en–ar e
ex posed toextreme temp eratur esover an
ex tende dpe riod oftime, ther eis arisk of
ser ious oreve nfa ta linj ury. #
Neverlea veanyone –pa rticular lych il‐
dr en –unat tende din theve hicle. #
Neverlea veanim alsintheve hicle unat‐
te nde d. Occu
pant safety 47
Page 50 of 458
Ov
ervie wof suitable seatsintheve hicl efo rin st alli ng ach ild restra int system Secur
ingsystems forch ild restra int systems Ve
hicl eseat
Fr ont passeng erseat
Securing system:
R Vehicle seatbelt. Be
sureto obser ve:
R Ifth efront passeng erseat isoccupied, ensure,
bo th bef oreand during thejour ney,that thest a‐
tus ofthefront passeng erairbag iscor rect forth e
cur rent situa tion(/ page 41).
R Noteson aut omatic front passeng erairbag shut‐
of f(/ page39). Ac
tiv atin g/deac tivatin gthe seat belt's child
special seatbeltretract or &
WARNIN GRisk ofinju ryor deat hif a
seat beltisunf astened while th eve hicle
is in mo tion
If th eseat beltisreleased whiletheve hicle is
in mo tion, thech ild restra int system isno
long ercor rectl ysecu red. The child seat
saf etyfe atur eis deac tivated and theseat
belt isdraw nin abi tby theiner tiareel. It
is ther efor eno tpossible toeng ageth eseat
belt again. #
Pull overand stop theve hicle safely as
soon aspossible, paying attention to
ro ad and traffic condi tions. #
Activateth ech ild seat safetyfe atur e
ag ain and correctl ysecu rethech ild
re stra int system. When
enabled, thespecial seatbeltretract or
ens ures that theseat beltofthefront passeng er
seat does notslac kenonce thech ild restra int
sy stem issecur ed.
The seat beltonthefront passeng erside is
eq uipped withaspecial seatbeltretract or. #
Toins tall ach ild restra int system: when
ins talling ach ild restra int system, always
obser vethemanuf acturer'sinstallation and
opera tingins truct ions aswellas theinf orma‐
tion inthis Oper ator's Manual. 48
Occupant safety
