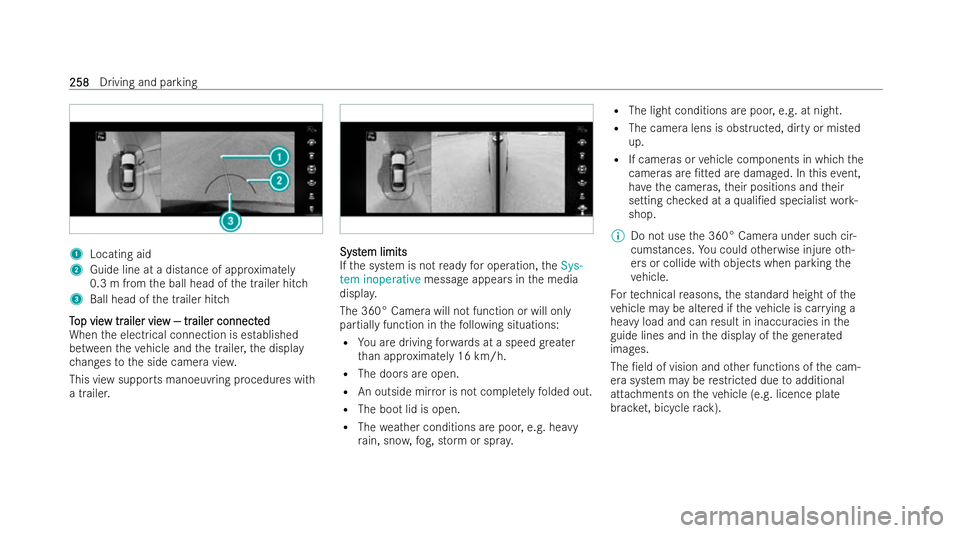

MERCEDES-BENZ AMG GT COUPE 2021 Owners Manual

1
Locating aid
2 Guide line at a distance of approximate ly
0.3 m from the ball head of the trailer hitch
3 Ball head of the trailer hitch
T
T op vie
op vie w tr
w trailer vie
ailer vie w — tr
w — trailer connect
ailer connect ed
ed
When the electrical connection is established
between theve hicle and the trailer, the display
ch anges tothe side camera vie w.
This view supports manoeuvring procedures with
a trailer. Syst
Syst
em limits
em limits
If th e system is not ready for operation, theSys-
tem inoperative message appears in the media
displa y.
The 360° Camera will not function or will only
partially function in thefo llowing situations:
R You are driving forw ards at a speed greater
th an appr oximately 16 km/h.
R The doors are open.
R An outside mir ror is not comple tely folded out.
R The boot lid is open.
R The weather conditions are poor, e.g. heavy
ra in, sno w,fog, storm or spr ay. R
The light conditions are poo r,e.g. at night.
R The camera lens is obstructed, dirty or misted
up.
R If cameras or vehicle components in which the
cameras are /tted are damaged. In this event,
ha ve the cameras, their positions and their
setting checked at a quali/ed specialist work-
shop.
% Do not use the 360° Camera under such cir-
cumstances. You could otherwise injure oth-
ers or collide with objects when parking the
ve hicle.
Fo rte ch nical reasons, the standard height of the
ve hicle may be altered if theve hicle is car rying a
heavy load and can result in inaccu racies in the
guide lines and in the display of thege nerated
ima ges.
The /eld of vision and other functions of the cam-
era system may be restric ted due toadditional
attachments on theve hicle (e.g. licence plate
brac ket, bicycle rack ). 258
258
Driving and parking

%

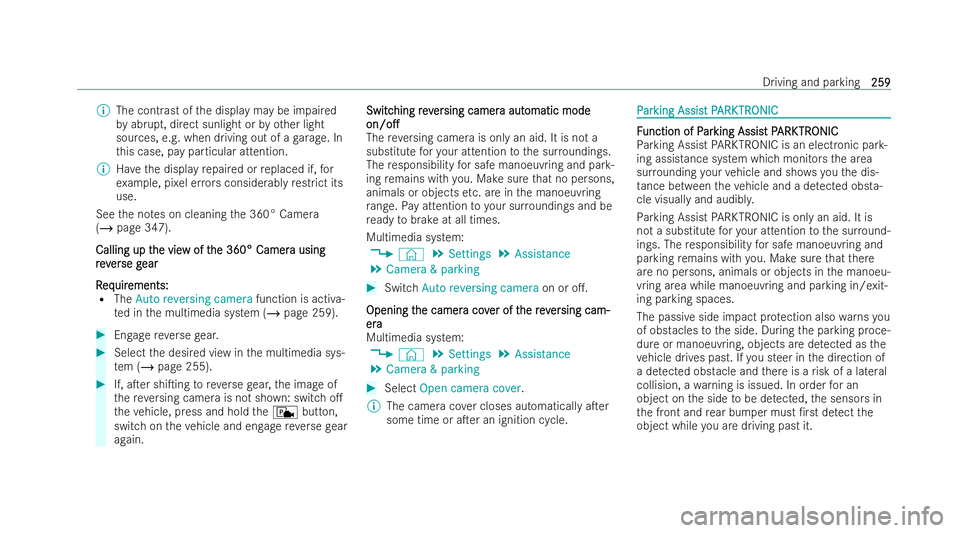

The cont rast of the display may be impaired
by abrupt, direct sunlight or by other light
sources, e.g. when driving out of a garage . In
th is case, pay particular attention.
% Have the display repaired or replaced if, for
ex ample, pixel er rors considerably restrict its
use.
See the no tes on cleaning the 360° Camera
(/ page 347).
Calling up t
Calling up t he vie
he view of t
w of the 360° Camer
he 360° Camer a using
a using
rev
rev er
erse g
se g ear
ear
R
R eq
eq uir
uir ements:
ements:
R The Auto reversing camera function is activa-
te d in the multimedia system (/ page 259).#
Engage reve rsege ar. #
Select the desired view in the multimedia sys-
te m (/ page 255). #
If, aTer shiTing toreve rsege ar, the image of
th ere ve rsing camera is not shown: switch o.
th eve hicle, press and hold thec button,
switch on theve hicle and engage reve rsege ar
again. Switc
Switc
hingrev
hing rever
ersing camer
sing camer a aut
a automatic mode
omatic mode
on/o.
on/o.
The reve rsing camera is only an aid. It is not a
substitute foryo ur attention tothe sur roundings.
The responsibility for safe manoeuvring and par k-
ing remains with you. Make sure that no persons,
animals or objects etc. are in the manoeuvring
ra nge. Pay attention toyour sur roundings and be
re ady tobrake at all times.
Multimedia system: 4 © 5
Settings 5
Assistance
5 Camera & parking #
Switch Auto reversing camera on or o..
Opening t Opening t he camer he camera cov
a cover of t
er of t herev
he rever
ersing cam-
sing cam-
era
era
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera & parking #
Select Open camera cover.
% The camera co ver closes automatically aTer
some time or aTer an ignition cycle. P P
ar
ar king Assis
king Assist P t PARK
ARK TR
TRONIC
ONIC F
F
unction of P
unction of P ar
arking Assis
king Assist P t PARK
ARK TR
TRONIC
ONIC
Pa rking Assist PARKTRONIC is an electronic par k-
ing assistance system which monitors the area
sur rounding your vehicle and sho wsyouth e dis-
ta nce between theve hicle and a de tected obs ta-
cle visual lyand audib ly.
Pa rking Assist PARKTRONIC is only an aid. It is
not a substitute foryo ur attention tothe sur round-
ings. The responsibility for safe manoeuvring and
parking remains with you. Make sure that there
are no persons, animals or objects in the manoeu-
vring area while manoeuvring and parking in/exit-
ing parking spaces.
The passive side impact pr otection also warnsyou
of obstacles tothe side. During the parking proce-
dure or manoeuvring, objects are de tected as the
ve hicle drives past. If you steer in the direction of
a de tected obs tacle and there is a risk of a lateral
collision, a warning is issued. In order for an
object on the side tobe de tected, the sensors in
th e front and rear bumper must /r stdetect the
object while you are driving past it. Driving and parking
259 259

In order
for front or rear obs tacles tothe side to
be displa yed, theve hicle must /r sttrave l a dis-
ta nce of at least half a vehicle length. Once the
ve hicle has tr avelled one vehicle length, obs tacles
on all sides can be shown.

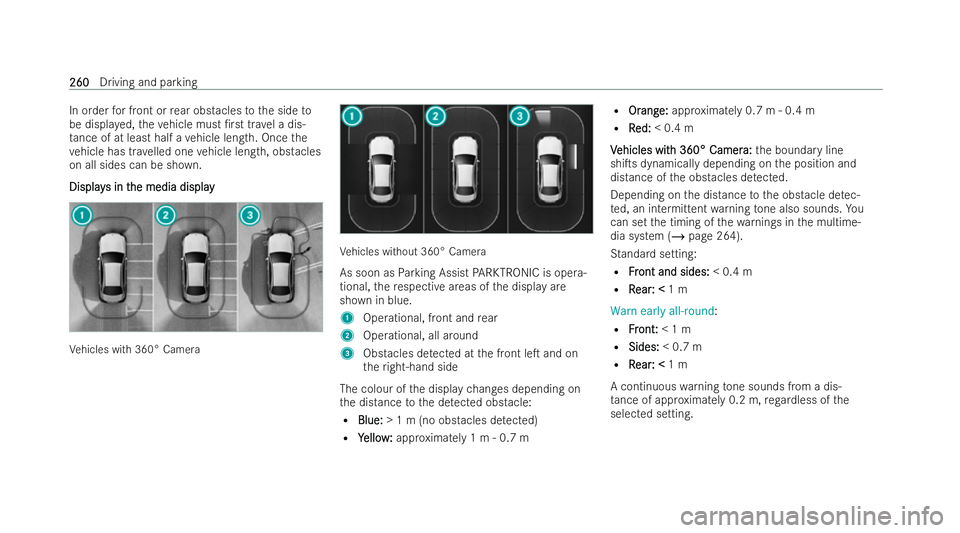

Display Display s in t
s in the media display
he media display Ve
hicles with 360° Camera Ve
hicles without 360° Camera
As soon as Parking Assist PARKTRONIC is ope ra-
tional, there specti veareas of the display are
shown in blue.
1 Operational, front and rear
2 Operational, all around
3 Obstacles de tected at the front leT and on
th eright-hand side
The colour of the display changes depending on
th e distance tothe de tected obstacle:
R Blue:
Blue: > 1 m (no obs tacles de tected)
R Y
Yellow
ellow :
:appr oximately 1 m - 0.7 m R
Or
Orang
ang e:
e:appr oximately 0.7 m - 0.4 m
R R
Red:
ed: < 0.4 m
V
V ehicles wit
ehicles wit h 360° Camer
h 360° Camer a:
a: the boundary line
shiTs dynamically depending on the position and
distance of the obstacles de tected.
Depending on the distance tothe obstacle de tec-
te d, an intermittent warning tone also sounds. Yo u
can set the timing of thewa rnings in the multime-
dia system (/ page 264).
St andard setting:
R Fr
Fr ont and sides:
ont and sides: < 0.4 m
R R
Rear
ear : <
: <1 m
Warn early all-round :
R Fr
Front
ont: :< 1 m
R Sides:
Sides: < 0.7 m
R R
Rear
ear : <
: <1 m
A continuous warning tone sounds from a dis-
ta nce of app roximately 0.2 m,rega rdless of the
selected setting. 260
260
Driving and parking

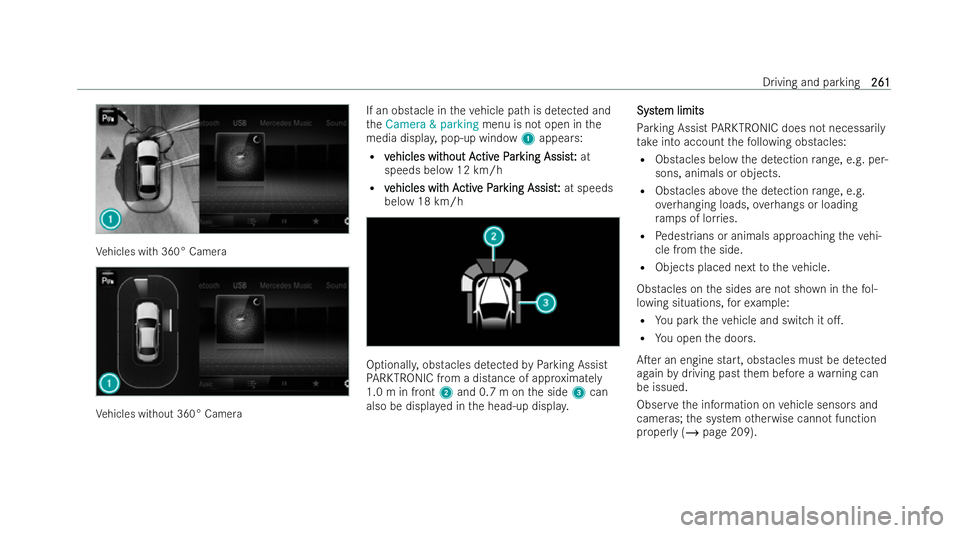

Ve
hicles with 360° Camera Ve
hicles without 360° Camera If an obs
tacle in theve hicle path is de tected and
th eCamera & parking menu is not open in the
media displa y,pop-up window 1appears:
R v
vehicles wit
ehicles wit hout A
hout Activ
ctive P
e Par
arking Assist
king Assist: :at
speeds below 12 km/h
R v
vehicles wit
ehicles wit h A
h Activ
ctiv e P
e Par
arking Assist
king Assist: :at speeds
below 18 km/h Optionall
y,obstacles de tected byParking Assist
PA RKTRONIC from a distance of app roximately
1.0 m in front 2and 0.7 m on the side 3can
also be displa yed in the head-up displa y.Syst
Syst
em limits
em limits
Pa rking Assist PARKTRONIC does not necessarily
ta ke into account thefo llowing obstacles:
R Obstacles below the de tection range, e.g. per-
sons, animals or objects.
R Obstacles abo vethe de tection range, e.g.
ov erhanging loads, overhangs or loading
ra mp s of lor ries.
R Pedest rians or animals approaching theve hi-
cle from the side.
R Objects placed next totheve hicle.
Obs tacles on the sides are not shown in thefo l-
lowing situations, forex ample:
R You park theve hicle and switch it o..
R You open the doors.
ATer an engine start, obstacles must be de tected
again bydriving past them before a warning can
be issued.
Obser vethe information on vehicle senso rsand
cameras; the system otherwise cann otfunction
proper ly (/ page 209). Driving and parking
261 261

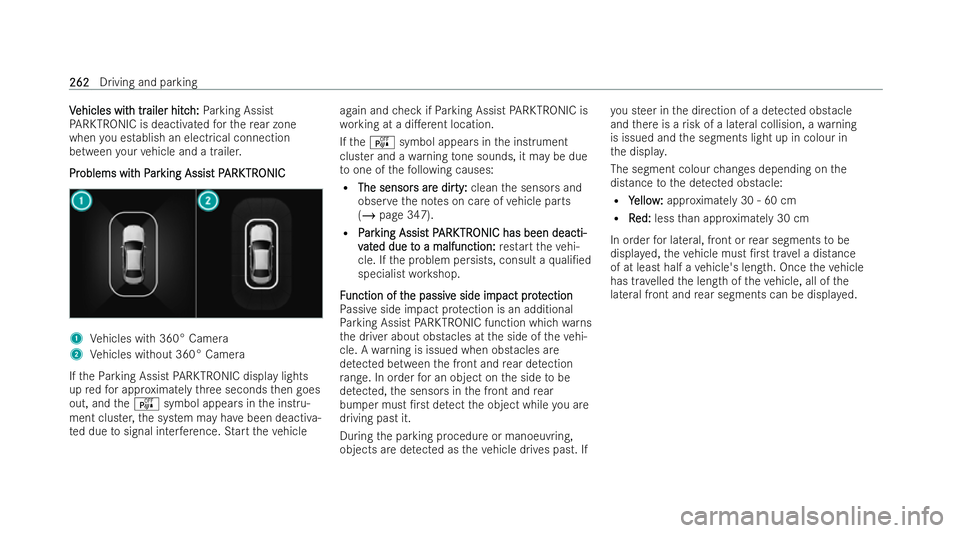

V
V
ehicles wit
ehicles wit h tr
h trailer hitc
ailer hitc h:
h:Parking Assist
PA RKTRONIC is deactivated forth ere ar zone
when you establish an electrical connection
between your vehicle and a trailer.
Pr
Pr oblems wit
oblems wit h P
h Par
arking Assis
king Assis t P
t PARK
ARK TR
TRONIC
ONIC 1
Vehicles with 360° Camera
2 Vehicles without 360° Camera
If th ePa rking Assist PARKTRONIC display lights
up redfo r appr oximately thre e seconds then goes
out, and theé symbol appears in the inst ru-
ment clus ter,th e system may ha vebeen deactiva-
te d due tosignal inter fere nce. Start theve hicle again and
check if Parking Assist PARKTRONIC is
wo rking at a di.erent location.
If th eé symbol appears in the inst rument
clus ter and a warning tone sounds, it may be due
to one of thefo llowing causes:
R The sensor
The sensor s ar
s are dir
e dir ty
ty:
:clean the sensors and
obser vethe no tes on care of vehicle parts
(/ page 347).
R P
Par
ar king Assis
king Assis t P
t PARK
ARK TR
TRONIC has been deacti-
ONIC has been deacti-
v
v at
at ed due t
ed due t o a malfunction:
o a malfunction: restart theve hi-
cle. If the problem persists, consult a quali/ed
specialist workshop.
F
F unction of t
unction of t he passiv
he passive side im
e side impact prot
pact pr otection
ection
Pa ssive side impact pr otection is an additional
Pa rking Assist PARKTRONIC function which warns
th e driver about obstacles at the side of theve hi-
cle. A warning is issued when obstacles are
de tected between the front and rear de tection
ra nge. In order for an object on the side tobe
de tected, the sensors in the front and rear
bumper must /rst de tect the object while you are
driving past it.
During the parking procedure or manoeuvring,
objects are de tected as theve hicle drives past. If yo
u steer in the direction of a de tected obs tacle
and there is a risk of a lateral collision, a warning
is issued and the segments light up in colour in
th e displa y.
The segment colour changes depending on the
distance tothe de tected obs tacle:
R Y Yellow
ellow :
:appr oximately 30 - 60 cm
R R
R ed:
ed: less than appr oximately 30 cm
In order for lateral, front or rear segments tobe
displa yed, theve hicle must /rst tr avel a distance
of at least half a vehicle's length. Once theve hicle
has tr avelled the length of theve hicle, all of the
lateral front and rear segments can be displ ayed. 262
262
Driving and parking

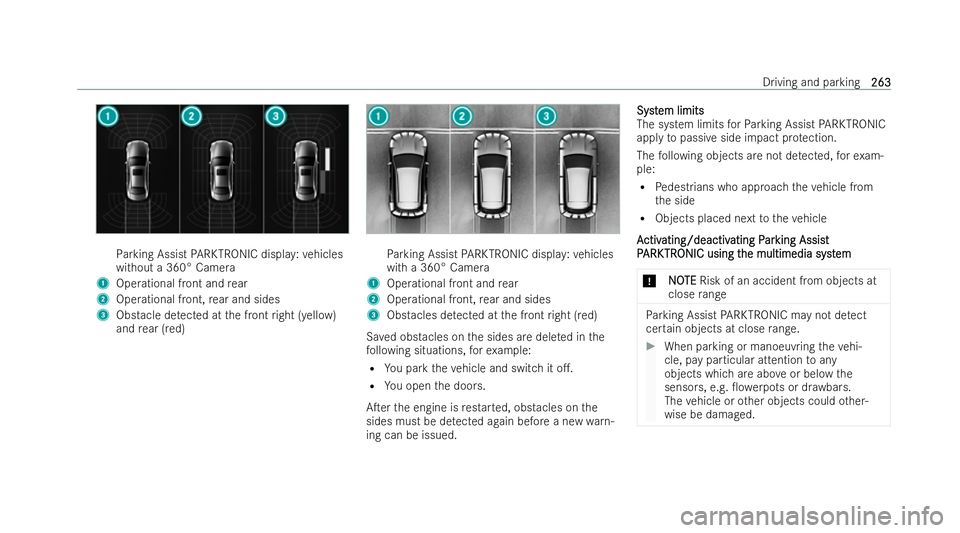

Pa
rking Assist PARKTRONIC displa y:vehicles
without a 360° Camera
1 Operational front and rear
2 Operational front, rear and sides
3 Obstacle de tected at the front right (yellow)
and rear (red) Pa
rking Assist PARKTRONIC displa y:vehicles
with a 360° Camera
1 Operational front and rear
2 Operational front, rear and sides
3 Obstacles de tected at the front right (red)
Sa ved obstacles on the sides are dele ted in the
fo llowing situations, forex ample:
R You park theve hicle and switch it o..
R You open the doors.
ATer the engine is restar ted, obstacles on the
sides must be de tected again before a new warn-
ing can be issued. Syst
Syst em limits
em limits
The system limits forPa rking Assist PARKTRONIC
app lyto passive side impact pr otection.
The following objects are not de tected, forex am-
ple:
R Pedest rians who approach theve hicle from
th e side
R Objects placed next totheve hicle
A
A ctiv
ctiv ating/deactiv
ating/deactiv ating P
ating Par
arking Assist
king Assist
P
P ARK
ARK TR
TRONIC using t
ONIC using t he multimedia sy
he multimedia sy st
stem
em
* NO
NOTE
TERisk of an accident from objects at
close range Pa
rking Assist PARKTRONIC may not de tect
cer tain objects at close range. #
When parking or manoeuvring theve hi-
cle, pay particular attention toany
objects which are abo veor below the
senso rs, e.g. 0o werpots or dr awbars.
The vehicle or other objects could other-
wise be damaged. Driving and parking
263
263

R
R
eq
eq uir
uir ements:
ements:
R The camera menu is open.
R Or: Active Parking Assist is active.
R Or: thePA RKTRONIC pop-up wind owappears. #
Tap= onthe media displa y.
If th e indicator lamp in theé button is not lit,
Pa rking Assist PARKTRONIC is active. If the indi-
cator lamp is lit or theé symbol appears in
th e inst rument clus ter,Pa rking Assist
PA RKTRONIC is not active.
% Parking Assist PARKTRONIC is automatically
activated when theve hicle is star ted.
Alternativel y,Pa rking Assist PARKTRONIC can be
activated or deactivated in thequ ick access
menu. Se
Se
tting t
tting t he w
he war
arning t
ning t ones of P
ones of P ar
arking Assist
king Assist
P
P ARK
ARK TR
TR ONIC
ONIC
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera & parking
A
A djus
djusting t ting t he v
he volume of t
olume of t he w
he war
arning t
ning t ones
ones #
Select Warning tone volume. #
Set a value.
A
A djus
djusting t ting t he pitc
he pitc h of t
h of the w
he war
arning t
ning t ones
ones #
Select Warning tone pitch. #
Set a value.
Specifying t Specifying t he st he star
arting point f
ting point f or t
or the w
he w ar
arning t
ning t ones
ones
Yo u can specify whe ther thePa rking Assist
PA RKTRONIC warning tones should commence
when theve hicle is fu rther awa y from an obs tacle. #
Select Warn early all-round . #
Swit chthe function on or o..
A
A ctiv
ctiv ating/deactiv
ating/deactiv ating audio f
ating audio fadeout
adeout
Yo u can specify whe ther thevo lume of a media
source in the multimedia system is tobe reduced when
Parking Assist PARKTRONIC sounds a warn-
ing tone. #
Select Audio fadeout during warning tones . #
Switch the function on or o.. A
A
ctiv
ctiv e P
e Par
arking Assist
king Assist F
F
unction of A
unction of A ctiv
ctive P
e P ar
ar king Assist
king Assist
Ac tive Parking Assist is an electronic parking
assistance system, which uses ultrasound with
th e assistance of there ve rsing camera and 360°
Camera. When you are driving forw ards up to
appr oximately 35 km/h, the system automatically
measures parking spaces on bo thsides of the
ve hicle.
Ve hicles with reve rsing camera
R Parking in parking spaces parallel tothero ad
Ve hicles with 360° Camera
R Parking in parking spaces parallel tothero ad
R Parking in parking spaces perpendicular tothe
ro ad (optionally either forw ards or reve rse) 264
264
Driving and parking

R
Parking in parking spaces that can only be
de tected as such due tomarkings (for exam-
ple at thero adside)
R Exiting parking spaces if you ha vepar ked
using Active Parking Assist
As soon as all requ irements are met for sear ching
fo r parking spaces, theÇ display appears in
th e Instrument Displa y.
When Active Parking Assist has de tected parking
spaces, theÈ display appears in the Instru-
ment Displa y.The ar rows show on which side of
th ero ad de tected parking spaces are located.
They are then shown in the media displa y.
V
V ehicles wit
ehicles wit hrev
h rev er
ersing camer
sing camer a:
a:the parking space
can be selected as desired. The vehicle is par ked
in reve rse.
V
V ehicles wit
ehicles wit h 360° Camer
h 360° Camer a:
a:the parking space
can be selected as desired. Depending on the
location of the parking space, the parking direc-
tion (rear wards or forw ards) can also be selected
as desired. When
Active Parking Assist is activated, the turn
signal indicators are activated based on the calcu-
lated path of your vehicle.
The parking procedu reis assisted byaccelerating,
braking, steering and gear changes.
Ac tive Parking Assist is only an aid. It is not a sub-
stitute foryo ur attention tothe sur roundings. The
re sponsibility for safe manoeuvring and parking
re mains with you. Make sure that no persons, ani-
mals or objects etc. are in the manoeuvring
ra nge.
Ac tive Parking Assist will be cancelled in thefo l-
lowing situations:
R Parking Assist PARKTRONIC is deactivated.
R You begin steering.
R You engage transmission position j.
R ESP ®
inter venes.
R You open the driver's door.
R ATer activating Active Parking Assist, you
press thec button again (/ page 266).Syst
Syst em limits
em limits
If th eex terior lighting is malfunctioning, Active
Pa rking Assist is not available.
Objects located abo veor below the de tection
ra nge of the sensors, e.g. overhanging loads,
ove rhangs or loading ramp s of goods vehicles, or
th e borders of parking spaces, are not de tected
during measurement of the parking space. These
are also then not take n into account when calcu-
lating the parking procedure. In some circumstan-
ces, Active Parking Assist may therefore guide
yo u into the parking space incor rectl y. &
W
WARNI NG
ARNI NGRisk of accident due toobjects
located abo veor below the de tection
ra nge of Active Parking Assist
If th ere are objects abo veor below the de tec-
tion range, thefo llowing situations may arise:
R Active Parking Assist may steer too ear ly.
R The vehicle may not stop in front of these
objects.
There is a danger of collision! Driving and parking
265
265

#

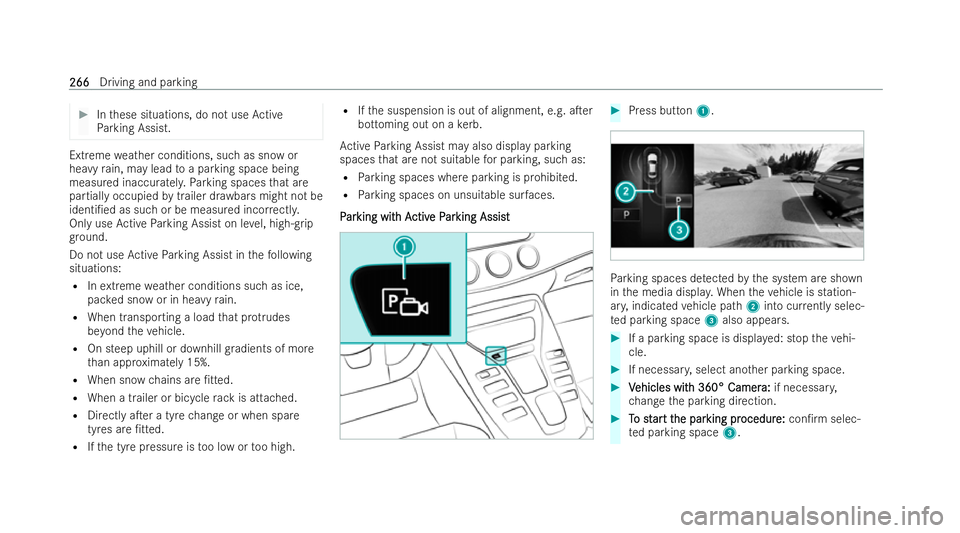

Inthese situations, do not use Active
Pa rking Assist. Extreme
weather conditions, such as snow or
heavy rain, may lead toa parking space being
measured inaccuratel y.Pa rking spaces that are
partial lyoccupied bytrailer dr awbars might not be
identi/ed as such or be measured incor rectl y.
Only use Active Parking Assist on le vel, high-g rip
gr ound.
Do not use Active Parking Assist in thefo llowing
situations:
R Inextreme weather conditions such as ice,
pac ked snow or in heavy rain.
R When transporting a load that pr otru des
be yond theve hicle.
R On steep uphill or downhill gradients of more
th an appr oximately 15%.
R When snow chains are /tted.
R When a trailer or bicycle rack is attached.
R Directly aTer a tyre change or when spare
tyres are /tted.
R Ifth e tyre pressure is too low or too high. R
Ifth e suspension is out of alignment, e.g. aTer
bottoming out on a kerb.
Ac tive Parking Assist may also display parking
spaces that are not suitable for parking, such as:
R Parking spaces where parking is prohibited.
R Parking spaces on unsuitable sur faces.
P P ar ar king wit
king wit h A
h A ctiv
ctiv e P
e Par
arking Assist
king Assist #
Press button 1. Pa
rking spaces de tected bythe system are shown
in the media displa y.When theve hicle is station-
ar y, indicated vehicle path 2into cur rently selec-
te d parking space 3also appears. #
If a parking space is displa yed: stop theve hi-
cle. #
If necessar y,select ano ther parking space. #
V
Vehicles wit
ehicles wit h 360° Camer
h 360° Camer a:
a:if necessar y,
ch ange the parking direction. #
T
To st
o st ar
art t
t t he par
he par king pr
king pr ocedur
ocedur e:
e:con/ rmselec-
te d parking space 3.266
266
Driving and parking

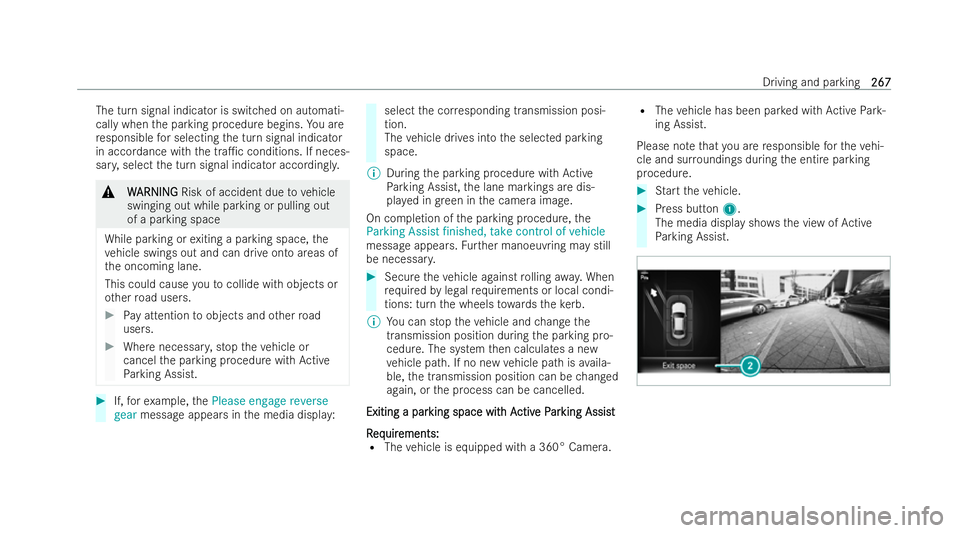

The turn signal indicator is switched on automati-
cally when the parking procedure begins. You are
re sponsible for selecting the turn signal indicator
in accordance with the tra1c conditions. If neces-
sar y,select the turn signal indicator accordingl y.&
W
W ARNI NG
ARNI NGRisk of accident due tovehicle
swinging out while parking or pulling out
of a parking space
While parking or exiting a parking space, the
ve hicle swings out and can drive onto areas of
th e oncoming lane.
This could cause youto collide with objects or
ot her road users. #
Pay attention toobjects and other road
users. #
Where necessar y,stop theve hicle or
cancel the parking procedure with Active
Pa rking Assist. #
If,forex ample, thePlease engage reverse
gear message appears in the media displa y: select
the cor responding transmission posi-
tion.
The vehicle drives into the selected parking
space.
% During the parking procedure with Active
Pa rking Assist, the lane markings are dis-
pla yed in green in the camera image.
On completion of the parking procedure, the
Parking Assist finished, take control of vehicle
message appears. Further manoeuvring may still
be necessar y. #
Secure theve hicle against rolling away.When
re qu ired bylegal requ irements or local condi-
tions: turn the wheels towa rdsth eke rb.
% You can stop theve hicle and change the
transmission position during the parking pro-
cedure. The system then calculates a new
ve hicle path. If no new vehicle path is availa-
ble, the transmission position can be changed
again, or the process can be cancelled.
Exiting a par
Exiting a par king space wit king space wit h A
h Activ
ctiv e P
e Par
arking Assist
king Assist
R
R eq
eq uir
uir ements:
ements:
R The vehicle is equipped with a 360° Camera. R
The vehicle has been par ked with Active Park-
ing Assist.
Please no tethat you are responsible forth eve hi-
cle and sur roundings during the entire parking
procedure. #
Start theve hicle. #
Press but ton1.
The media display sh owsth e view of Active
Pa rking Assist. Driving and parking
267
267
