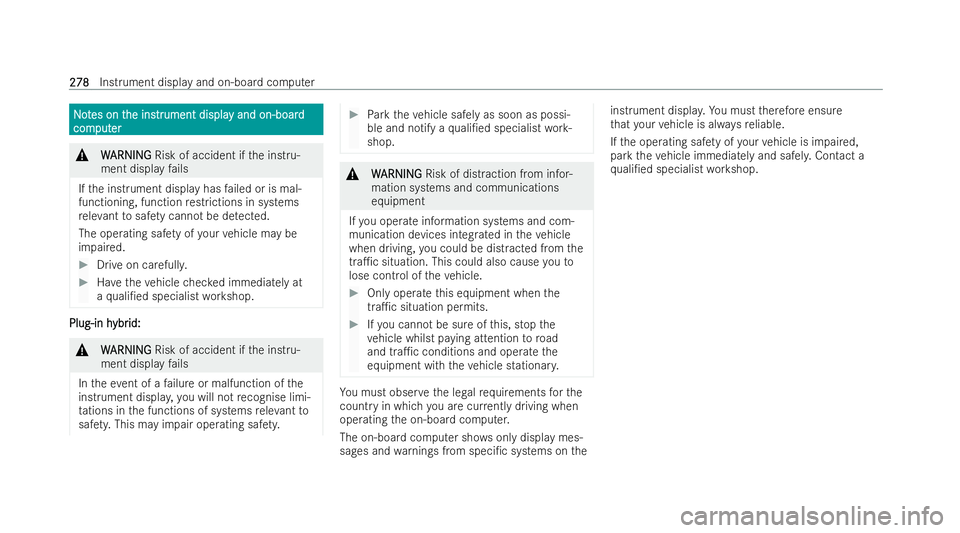

MERCEDES-BENZ AMG GT COUPE 2021 Owners Manual

N
N
o
ot
tes on t
es on t he ins
he instrtrument displa
ument displa y and on-board
y and on-board
com
com put
puter
er &
W
WARNING
ARNING Risk of accident if the inst ru-
ment display fails
If th e inst rument display has failed or is mal-
functioning, function restrictions in systems
re leva nt tosaf ety cann otbe de tected.
The operating saf ety of your vehicle may be
impaired. #
Drive on carefull y.#
Have theve hicle checked immediately at
a qu ali/ed specialist workshop. Plug-in h
Plug-in h
ybr
ybrid:
id: &
W
WARNING
ARNING Risk of accident if the inst ru-
ment display fails
In theeve nt of a failure or malfunction of the
inst rument displa y,yo u will not recognise limi-
ta tions in the functions of systems releva nt to
saf ety. This may impair ope rating saf ety. #
Park theve hicle safely as soon as possi-
ble and notify a quali/ed specialist work-
shop. &
W
WARNING
ARNING Risk of distraction from infor-
mation systems and communications
equipment
If yo u operate information systems and com-
munication devices integ rated in theve hicle
when driving, you could be distracted from the
tra1c situation. This could also cause youto
lose control of theve hicle. #
Only operate this equipment when the
tra1c situation pe rmits. #
Ifyo u cannot be sure of this, stop the
ve hicle whilst paying attention toroad
and tra1c conditions and operate the
equipment with theve hicle stationar y. Yo
u must obser vethe legal requ irements forthe
count ryin which you are cur rently driving when
ope rating the on-board computer.
The on-board computer sho wsonly display mes-
sages and warnings from speci/c systems on theinst
rument displa y.Yo u must therefore ensure
th at your vehicle is alw aysre liable.
If th e operating saf ety of your vehicle is impaired,
park theve hicle immediately and safel y.Contact a
qu ali/ed specialist workshop. 278 278

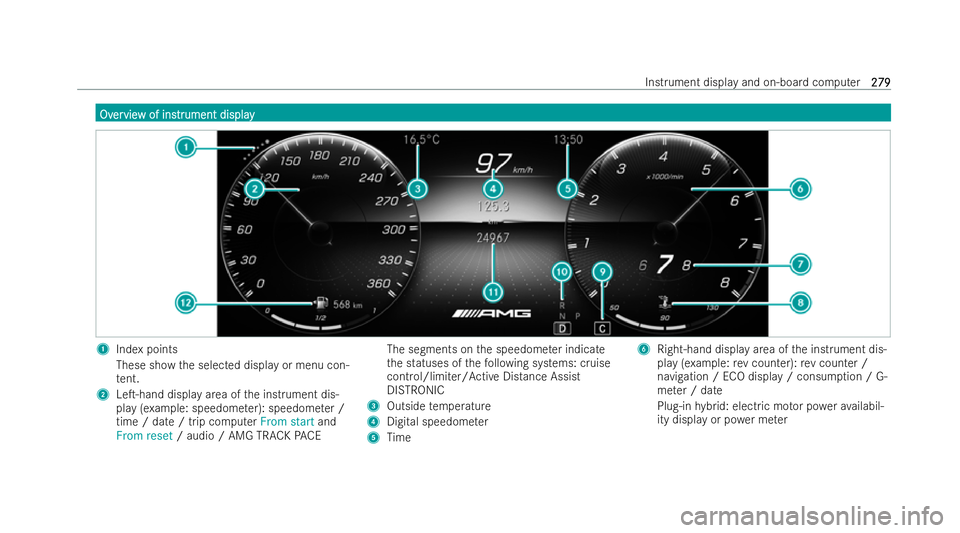

Instrument display and on-board computer

Ov
Ov
er
ervie
vie w of ins
w of ins tr
trument display
ument display 1
Index points
These show the selected display or menu con-
te nt.
2 LeT-hand display area of the inst rument dis-
play (e xample: speedome ter): speedome ter /
time / date / trip computer From startand
From reset / audio / AMG TRACK PACE The segments on
the speedome ter indicate
th e statuses of thefo llowing systems: cruise
control/limiter/Active Distance Assist
DISTRONIC
3 Outside temp erature
4 Digital speedome ter
5 Time 6
Right-hand display area of the inst rument dis-
play (e xample:rev counter): rev counter /
navigation / ECO display / consum ption / G-
me ter / date
Plug-in hybrid: electric mo tor po werav ailabil-
ity displ ayor po wer me ter Instrument displ
ayand on-board computer
279 279

The fuel supply will be inter
rupted toprotect
th e engine when there d mark on therev
counter (o verrev ving range) is reached.
7 Gear displ ay
8 Coolant temp erature display
The coolant temp erature display is permitted
to rise to120°C during normal operation.
Ve hicles with 48 V on-board elect rical system:
POWER and CHARGE displa ys(electrical drive
support and recuperation po wer of the elec-
tric mo tor)
Plug-in hybrid: cur rent state of charge ofthe
high- voltage battery
9 Selected drive prog ram
A Selected transmission position
B Centre display area of the inst rument display
(e xamp le: standard display for a trip): assis-
ta nce / telephone / navigation / trip / per-
fo rm ance / media / radio / styles and dis-
pla ys/ service / settings for head-up display
Plug-in hybrid: Powe r me ter

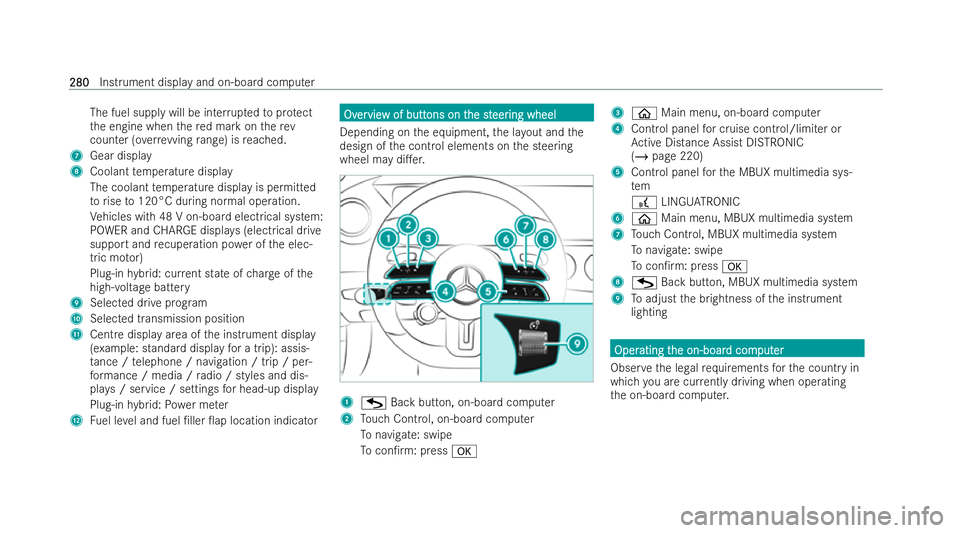

C Fuel le vel and fuel /ller 0ap location indicator Ov
Ov
er
ervie
vie w of butt
w of butt ons on t
ons on the st
he steer
eer ing wheel
ing wheel
Depending on the equipment, the la yout and the
design of the control elements on the steering
wheel may di.er. 1
G Back button, on-board computer
2 Touch Control, on-board computer
To navigate: swipe
To con/rm: press a 3
ò Main menu, on-board computer
4 Cont rol panel for cruise control/limiter or
Ac tive Distance Assist DISTRONIC
(/ page 220)
5 Control panel forth e MBUX multimedia sys-
tem
£ LINGU ATRO NIC
6 ò Main menu, MBUX multimedia system
7 Touch Control, MBUX multimedia system
To navigate: swipe
To con/rm: press a
8 G Back button, MBUX multimedia system
9 Toadjust the brightness of the inst rument
lighting Oper Oper
ating t
ating t he on-boar
he on-boar d com
d comput
puter
er
Obser vethe legal requ irements forth e country in
which you are cur rently driving when ope rating
th e on-board computer. 280
280
Instrument display and on-board computer

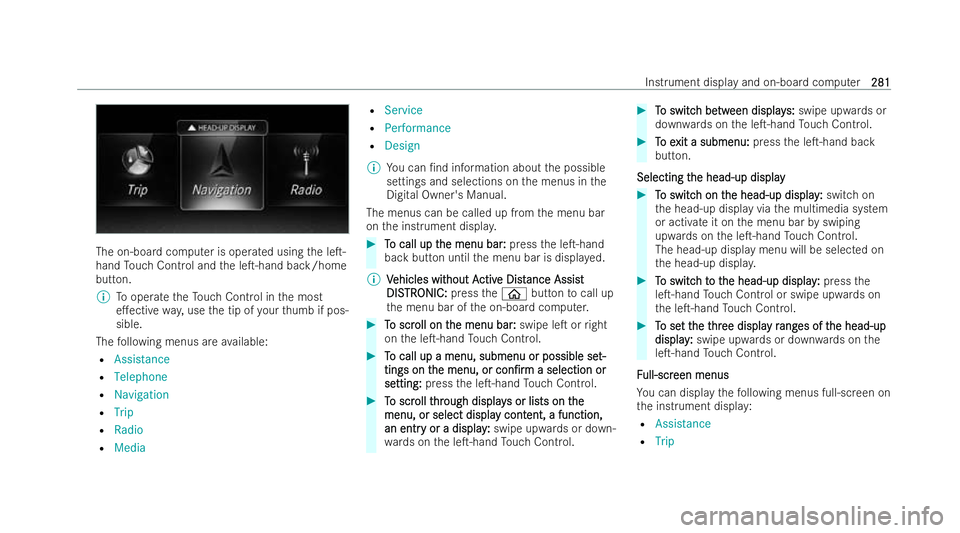

The on-board computer is ope
rated using the leT-
hand Touch Control and the leT-hand back/home
button.
% Tooperate theTo uch Control in the most
e.ective way,use the tip of your thumb if pos-
sible.
The following menus are available:
R Assistance
R Telephone
R Navigation
R Trip
R Radio
R Media R
Service
R Performance
R Design
% You can /nd information about the possible
settings and selections on the menus in the
Digital Owner's Manual.
The menus can be called up from the menu bar
on the inst rument displa y. #
T To call up t
o call up t he menu bar:
he menu bar: pressthe leT-hand
back button until the menu bar is displa yed.
% V
Vehicles wit
ehicles wit hout A
hout Activ
ctive Dist
e Dist ance Assis
ance Assist t
DIS
DIS TR
TRONIC:
ONIC: presstheò button tocall up
th e menu bar of the on-board computer. #
T
To scr
o scr oll on t
oll on t he menu bar
he menu bar :
:swipe leT or right
on the leT-hand Touch Control. #
T
To call up a menu, submenu or possible se
o call up a menu, submenu or possible se t-
t-
tings on t
tings on t he menu, or
he menu, or con/rm
con/rma selection or
a selection or
se
se tting:
tting: press the leT-hand Touch Control. #
T
To scr
o scr oll t
oll thr
hrough display
ough display s or lis
s or lists on tts on the
he
menu, or select displa
menu, or select displa y cont
y content, a function,
ent, a function,
an entr
an entr y or a display
y or a display :
:swipe upwards or down-
wa rds on the leT-hand Touch Control. #
T
To switc
o switc h be
h betw
tw een display
een display s:
s: swipe upwards or
down wards on the leT-hand Touch Control. #
T
To e
o e xit a submenu:
xit a submenu: pressthe leT-hand back
button.
Selecting t
Selecting t he head-up display
he head-up display #
T
To switc
o switc h on t
h on the head-up display
he head-up display :
:switch on
th e head-up display via the multimedia system
or activate it on the menu bar byswiping
upwards on the leT-hand Touch Control.
The head-up display menu will be selected on
th e head-up displa y. #
T To switc
o switc h t
h to t
o t he head-up display
he head-up display :
:press the
leT-hand Touch Control or swipe upwards on
th e leT-hand Touch Control. #
T
To se
o se t t
t the t
he t hr
hree displa
ee displa y r
y rang
ang es of t
es of t he head-up
he head-up
display
display :
:swipe upwards or down wards on the
leT-hand Touch Control.
F
F ull-scr
ull-scr een menus
een menus
Yo u can display thefo llowing menus full-screen on
th e inst rument displa y:
R Assistance
R Trip Instrument displ
ayand on-board computer
281
281

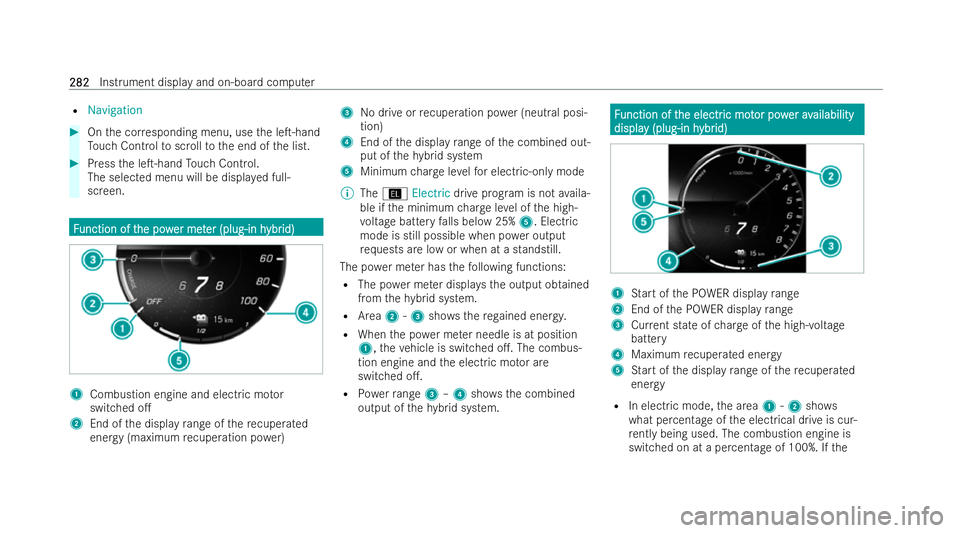

R
Navigation #
Onthe cor responding menu, use the leT-hand
To uch Control toscroll tothe end of the list. #
Press the leT-hand Touch Control.
The selected menu will be displa yed full-
screen. F
F
unction of t
unction of t he pow
he power met
er meter (plug-in h
er (plug-in h ybr
ybrid)
id) 1
Combustion engine and electric mo tor
switched o.
2 End of the display range of there cuperated
energy (maximum recuperation po wer) 3
No drive or recuperation po wer (neutral posi-
tion)
4 End of the display range of the combined out-
put of thehy brid system
5 Minimum charge leve lfo r electric-only mode
% The Î Electric drive prog ram is not availa-
ble if the minimum charge leve l of the high-
vo ltage battery falls below 25% 5. Electric
mode is still possible when po wer output
re qu ests are low or when at a standstill.
The po wer me ter has thefo llowing functions:
R The po wer me ter displa ys the output obtained
from thehy brid system.
R Area 2-3 shows th ere ga ined energy.
R When the po wer me ter needle is at position
1, theve hicle is switched o.. The combus-
tion engine and the electric mo tor are
switched o..
R Powe rra nge 3–4 show sth e combined
output of thehy brid system. F
F
unction of t
unction of t he electr
he electric mot
ic motor pow
or pow erav
er availability
ailability
displa
displa y (plug-in h
y (plug-in h ybr
ybrid)
id) 1
Start of the POWER display range
2 End of the POWER display range
3 Current state of charge ofthe high-voltage
battery
4 Maximum recuperated energy
5 Start of the display range of there cuperated
energy
R In elect ric mode, the area 1-2 shows
what percentage of the electrical drive is cur-
re ntly being used. The combustion engine is
switched on at a percentage of 100%. If the282
282
Instrument display and on-board computer

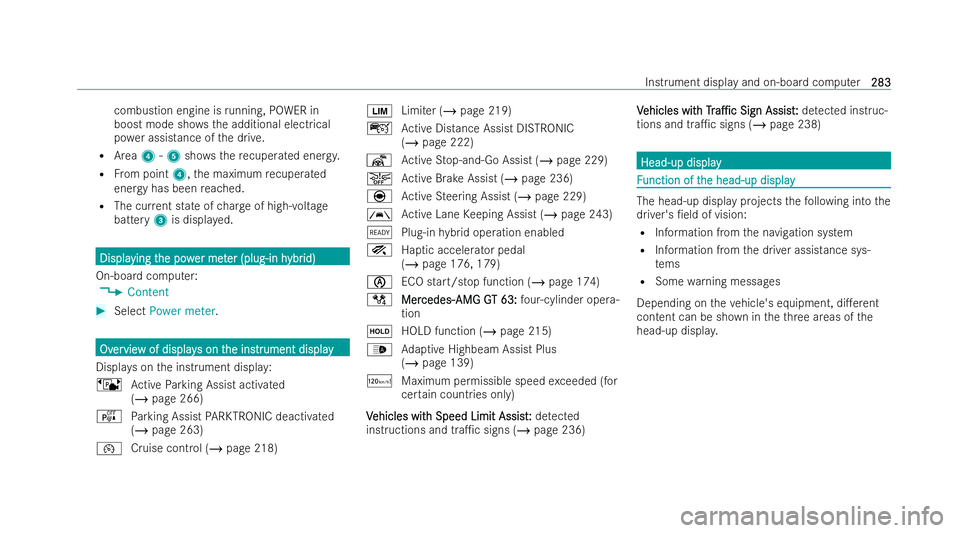

combustion engine is
running, POWER in
boost mode sh owsth e additional electrical
po we r assistance of the drive.
R Area 4-5 shows th ere cuperated energy.
R From point 4,the maximum recuperated
energy has been reached.
R The cur rent state of charge of high-voltage
battery 3is displa yed. Displa
Displa
ying t
ying t he pow
he pow er met
er meter (plug-in h
er (plug-in h ybr
ybrid)
id)
On-board computer: 4 Content #
Select Power meter. Ov
Ov
er
ervie
vie w of display
w of display s on t
s on the ins
he ins tr
trument display
ument display
Displa yson the inst rument displa y:
ë Active Parking Assist activated
(/ page 266)
é Parking Assist PARKTRONIC deactivated
(/ page 263)
¯ Cruise control (/ page 218) È
Limiter (/ page 219)
ç Active Distance Assist DISTRONIC
(/ page 222)
¬ Active Stop-and-Go Assist (/ page 229)
æ Active Brake Assist (/ page 236)
è Active Steering Assist (/ page 229)
à Active Lane Keeping Assist (/ page 243)
õ Plug-in hybrid operation enabled
° Haptic accelerator pedal
(/page 176, 179)
è ECO start/s top function (/ page 174)
/ Mer Mercedes- cedes- AMG G
AMG G T 63:
T 63: four-cylinder opera-
tion
ë HOLD function (/ page 215)
_ Adaptive Highbeam Assist Plus
(/ page 139)
ð Maximum permissible speed exceeded (for
cer tain countries only)
V
V ehicles wit
ehicles wit h Speed Limit Assist:
h Speed Limit Assist: detected
instructions and tra1c signs (/ page 236)V V
ehicles wit ehicles wit h
hTr
Tra1c
a1c Sign Assist:
Sign Assist: detected instruc-
tions and tra1c signs (/ page 238) Head-up display
Head-up display
F
F
unction of t
unction of t he head-up display
he head-up display The head-up display projects
thefo llowing into the
driver's /eld of vision:
R Information from the navigation system
R Information from the driver assistance sys-
te ms
R Some warning messages
Depending on theve hicle's equipment, di.erent
content can be shown in theth re e areas of the
head-up displ ay. Instrument displ
ayand on-board computer
283
283

Displa
Displa
y cont
y content
ent 1
Protection from reaching theove rrev ving
ra nge
2 Detected instructions and tra1c signs
3 Current speed
4 Currently selected gear; gearshiT options for
manual shiTing
5 Current engine speed
Depending on theve hicle's equipment, you can
select fur ther AMG displa ysin addition tothe
standa rddispla yson theDisplay content menu.In
vehicles with AMG TR ACKPA CE, you can dis-
play fur ther content depending on the setting,
e.g.:
R Speed and gear displ ay
R Lap and sector times
R Acceleration and braking
R Track la yout graphics
% The content that can be displ ayed will vary
depending on the settings.
When youre ceive a call, the6 Incoming call
message will appear on the head-up displa y.
In audio mode, the station name or track will be
shown temp orarily when the audio source is being
actively operated.
Syst
Syst em limits em limits
The visibility is in0uenced bythefo llowing condi-
tions:
R Seat position
R Image position setting
R Light conditions
R Wetro ad sur faces R
Objects on the display co ver
R Polarisation in sunglasses
% Inextreme sunlight, sections of the display
may appear washed out. You can cor rect this
by switching the head-up display o. and on
again. Se
Se
tting t
tting t he head-up displa
he head-up displa y using t
y using the on-board
he on-board
com
com put
puter
er On-board computer:
4 HEAD-UP DISPLAY
The following head-up display settings or displa ys
can be selected or shown:
R Position
R Brightness
R Messages
R Assis tance status
R Telephone
R Audio
R LINGU ATRO NIC 284
284
Instrument displ
ayand on-board computer

#
T
To select t
o select t he Se
he Settings menu:
ttings menu: swipetotheright
on the leT-hand Touch Control.
The Settings menu 5will be selected. #
T
To call up t
o call up t he Se
he Settings menu:
ttings menu: pressthe leT-
hand Touch Control. #
T
To adjus
o adjust t t the position:
he position: swipe upwards or
down wards on the leT-hand Touch Control. #
T To adjus o adjust t t the br
he br ightness:
ightness: swipetothe leT or
ri ght on the leT-hand Touch Control.
Se
Se tting messag
tting messag es, assist
es, assistance st
ance status, t
atus, telephone,
elephone,
audio and LIN
audio and LIN GUA
GUATR
TRONIC
ONIC #
Press the leT-hand Touch Control.
The list of setting options will be displa yed. #
Swipe upwards or down wards on the leT-hand
To uch Control and select a setting bypressing

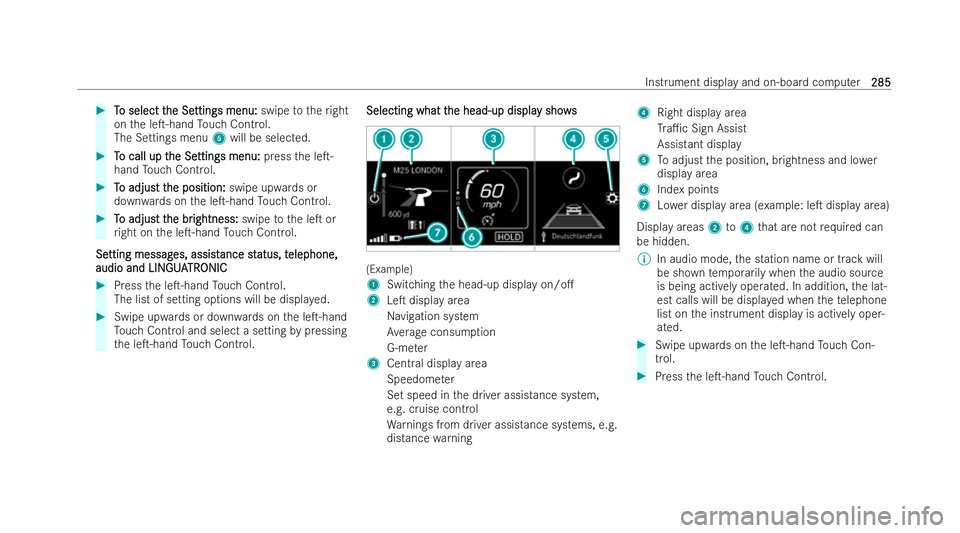

th e leT-hand Touch Control. Selecting what t
Selecting what t he head-up displa
he head-up displa y shows
y sho ws (Example)
1
Switching the head-up display on/o.
2 LeT display area
Na vigation system
Av erage consum ption
G-me ter
3 Central display area
Speedome ter
Set speed in the driver assistance system,
e.g. cruise control
Wa rnings from driver assistance systems, e.g.
distance warning 4
Right display area
Tra1c Sign Assist
Assis tant display
5 Toadjust the position, brightness and lo wer
display area
6 Index points
7 Lowe r display area (e xample: leT display area)
Display areas 2to4 that are not requ ired can
be hidden.
% In audio mode, the station name or track will
be shown temp orarily when the audio source
is being actively operated. In addition, the lat-
est calls will be displa yed when thete lephone
list on the inst rument display is actively oper-
ated. #
Swipe upwards on the leT-hand Touch Con-
trol. #
Press the leT-hand Touch Control. Instrument display and on-board computer
285 285

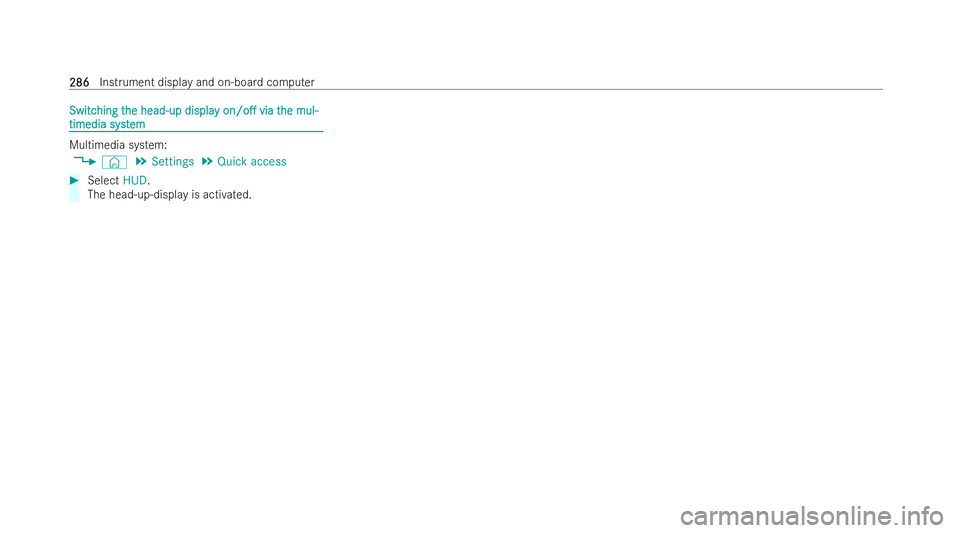

Switc
Switc
hing t
hing t he head-up displa
he head-up displa y
yon /o.
on/o. via t
via the mul-
he mul-
timedia sy st
timedia syst em
em Multimedia system:
4 © 5
Settings 5
Quick access #
Select HUD.
The head-up-display is acti vated. 286
286
Inst
rument display and on-board computer

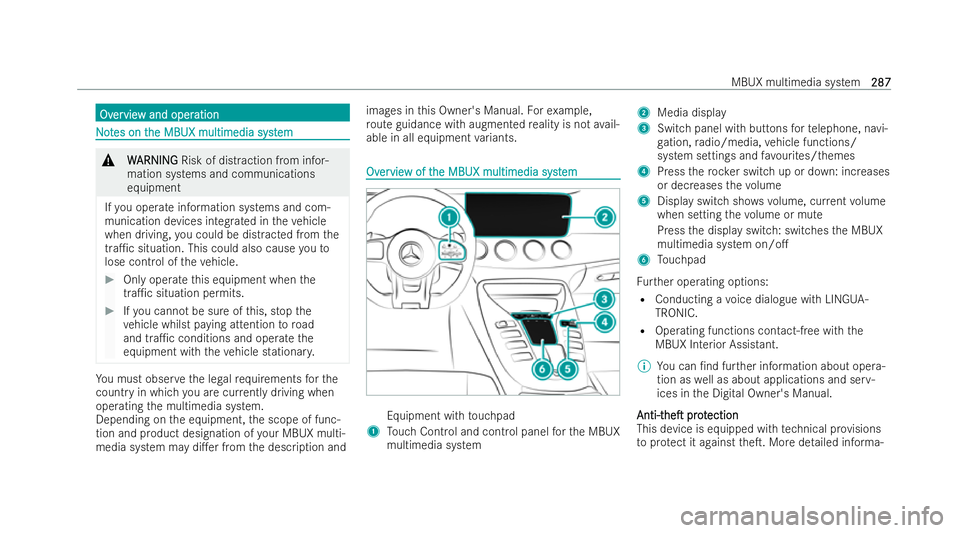

Ov
Ov
er
ervie
vie w and oper
w and oper ation
ation N
No
ot
tes on t
es on t he MBUX multimedia syst
he MBUX multimedia syst em
em&
W
W ARNING
ARNING Risk of dist raction from infor-
mation systems and communications
equipment
If yo u operate information systems and com-
munication devices integ rated in theve hicle
when driving, you could be distracted from the
tra1c situation. This could also cause youto
lose control of theve hicle. #
Only operate this equipment when the
tra1c situation pe rmits. #
Ifyo u cannot be sure of this, stop the
ve hicle whilst paying attention toroad
and tra1c conditions and operate the
equipment with theve hicle stationar y. Yo
u must obser vethe legal requ irements forthe
count ryin which you are cur rently driving when
ope rating the multimedia system.
Depending on the equipment, the scope of func-
tion and product designation of your MBUX multi-
media system may di.er from the description and images in
this Owner's Manual. Forex ample,
ro ute guidance with augmented reality is not avail-
able in all equipment variants. Ov Ov
er
ervie
vie w of t
w of t he MBUX multimedia sy
he MBUX multimedia sy st
stem
em Equipment with
touchpad
1 Touch Control and control panel forth e MBUX
multimedia system 2
Media display
3 Switch panel with buttons forte lephone, navi-
ga tion, radio/media, vehicle functions/
system settings and favo urites/themes
4 Press thero ck er switch up or down: increases
or decreases thevo lume
5 Display switch sho wsvolume, cur rent volume
when setting thevo lume or mute
Press the display switch: switches the MBUX
multimedia system on/o.
6 Touchpad
Fu rther operating options:
R Conducting a voice dialogue with LINGU A-
TRONIC.
R Ope rating functions contact-free with the
MBUX Interior Assistant.
% You can /nd fur ther information about opera-
tion as well as about applications and ser v-
ices in the Digital Owner's Manual.
Anti-t
Anti-theT heTprot
pr otection
ection
This device is equipped with tech nical pr ovisions
to protect it against theT. More de tailed informa- MBUX multimedia system
287
287
