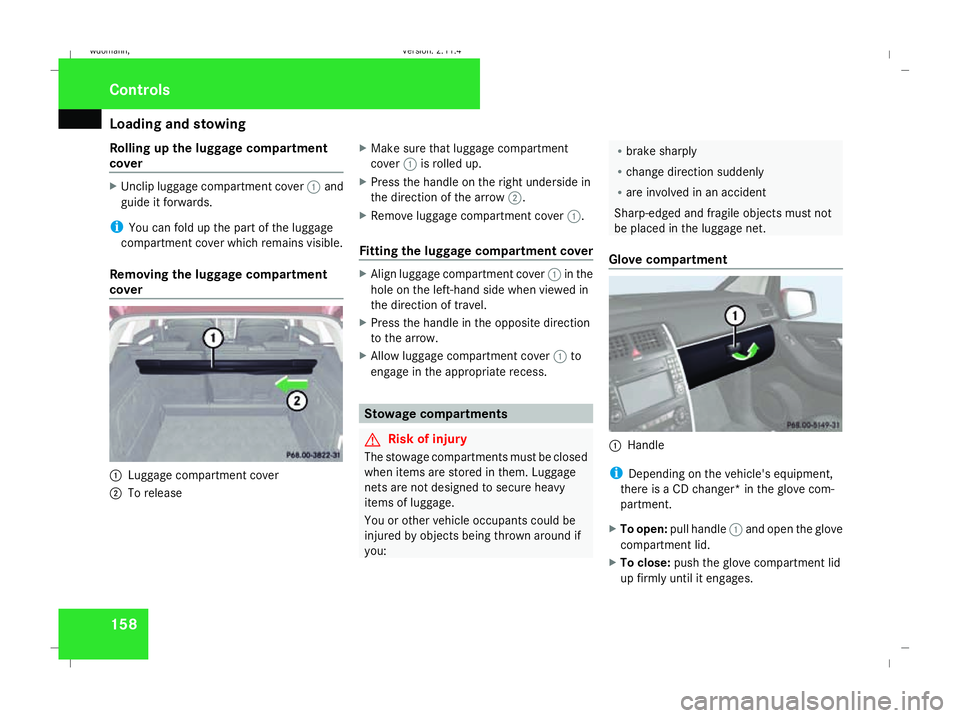

Loading and stowing
158
Rolling up the luggage compartment
cover X
Unclip luggage compartment cover 1and
guide it forwards.
i You can fold up the part of the luggage
compartment cover which remains visible.
Removing the luggage compartment
cover 1
Luggage compartment cover
2 To release X
Make sure that luggage compartment
cover 1is rolled up.
X Press the handle on the right underside in
the direction of the arrow 2.
X Remove luggage compartment cover 1.
Fitting the luggage compartment cover X
Align luggage compartment cover 1in the
hole on the left-hand side when viewed in
the direction of travel.
X Press the handle in the opposite direction
to the arrow.
X Allow luggage compartment cover 1to
engage in the appropriate recess. Stowage compartments
G
Risk of injury
The stowage compartments must be closed
when items are stored in them. Luggage
nets are not designed to secure heavy
items of luggage.
You or other vehicle occupants could be
injured by objects being thrown around if
you: R
brake sharply
R change direction suddenly
R are involved in an accident
Sharp-edged and fragile objects must not
be placed in the luggage net.
Glove compartment 1
Handle
i Depending on the vehicle's equipment,
there is a CD changer* in the glove com-
partment.
X To open: pull handle 1and open the glove
compartment lid.
X To close: push the glove compartment lid
up firmly until it engages. Controls
245_AKB; 2; 7, en-GB
wdomann
,V ersion: 2.11.4
2008-10-17T11:22:31+02:00 - Seite 158 Dateiname: 6515_1640_02_buchblock.pdf; preflight

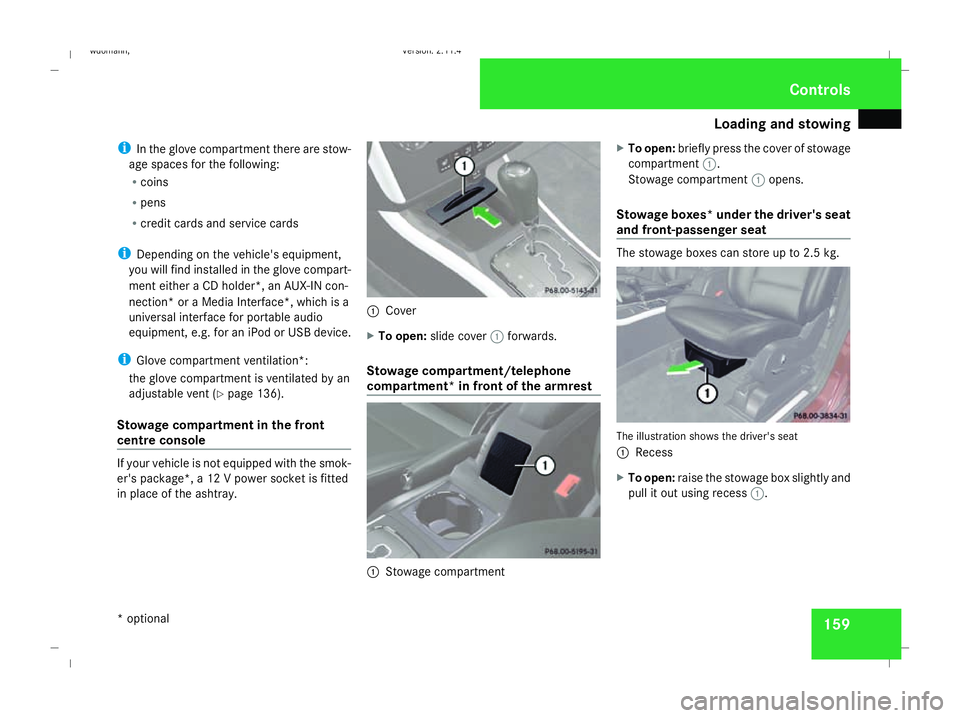

Loading and stowing
159
i
In the glove compartment there are stow-
age spaces for the following:
R coins
R pens
R credit cards and service cards
i Depending on the vehicle's equipment,
you will find installed in the glove compart-
ment either a CD holder*, an AUX-IN con-
nection* or a Media Interface*, which is a
universal interface for portable audio
equipment, e.g. for an iPod or USB device.
i Glove compartment ventilation*:
the glove compartment is ventilated by an
adjustable vent (Y page 136).
Stowage compartment in the front
centre console If your vehicle is not equipped with the smok-
er's package*, a 12 V power socket is fitted
in place of the ashtray. 1
Cover
X To open: slide cover 1forwards.
Stowage compartment/telephone
compartment* in front of the armrest 1
Stowage compartment X
To open: briefly press the cover of stowage
compartment 1.
Stowage compartment 1opens.
Stowage boxes* under the driver's seat
and front-passenger seat The stowage boxes can store up to 2.5 kg.
The illustration shows the driver's seat
1
Recess
X To open: raise the stowage box slightly and
pull it out using recess 1. Controls
* optional
245_AKB; 2; 7, en-GB
wdomann
,V ersion: 2.11.4
2008-10-17T11:22:31+02:00 - Seite 159 ZDateiname: 6515_1640_02_buchblock.pdf; preflight

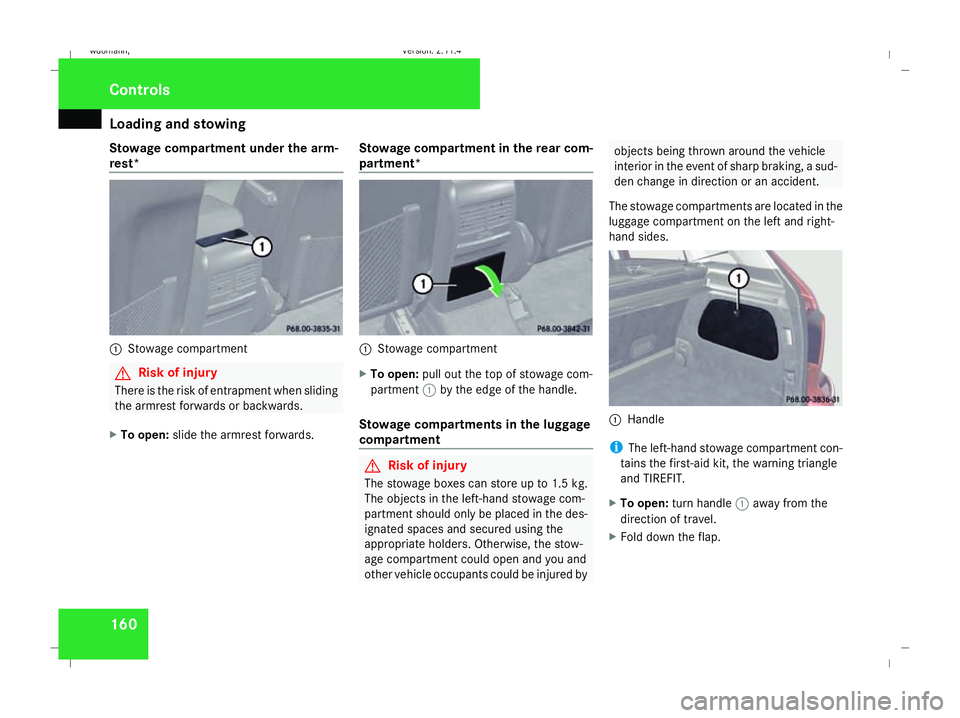

Loading and stowing
160
Stowage compartment under the arm-
rest* 1
Stowage compartment G
Risk of injury
There is the risk of entrapment when sliding
the armrest forwards or backwards.
X To open: slide the armrest forwards. Stowage compartment in the rear com-
partment* 1
Stowage compartment
X To open: pull out the top of stowage com-
partment 1by the edge of the handle.
Stowage compartments in the luggage
compartment G
Risk of injury
The stowage boxes can store up to 1.5 kg.
The objects in the left-hand stowage com-
partment should only be placed in the des-
ignated spaces and secured using the
appropriate holders. Otherwise, the stow-
age compartment could open and you and
other vehicle occupants could be injured by objects being thrown around the vehicle
interior in the event of sharp braking, a sud-
den change in direction or an accident.
The stowage compartments are located in the
luggage compartment on the left and right-
hand sides. 1
Handle
i The left-hand stowage compartment con-
tains the first-aid kit, the warning triangle
and TIREFIT.
X To open: turn handle 1away from the
direction of travel.
X Fold down the flap. Controls
245_AKB; 2; 7, en-GB
wdomann
,V ersion: 2.11.4
2008-10-17T11:22:31+02:00 - Seite 160 Dateiname: 6515_1640_02_buchblock.pdf; preflight

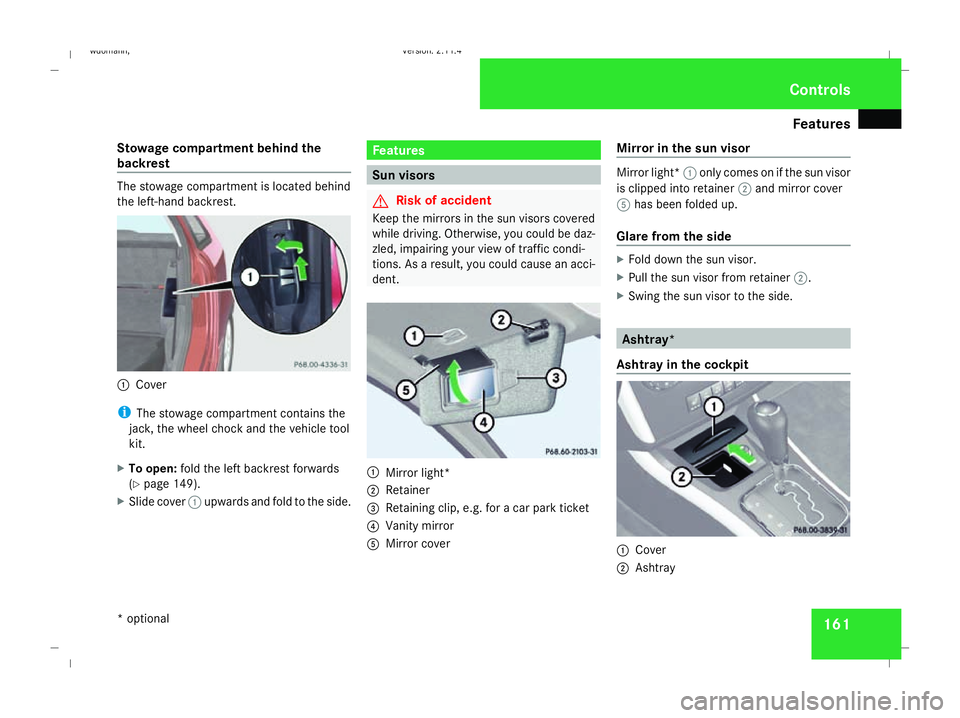

Features
161
Stowage compartment behind the
backrest The stowage compartment is located behind
the left-hand backrest.
1
Cover
i The stowage compartment contains the
jack, the wheel chock and the vehicle tool
kit.
X To open: fold the left backrest forwards
(Y page 149).
X Slide cover 1upwards and fold to the side. Features
Sun visors
G
Risk of accident
Keep the mirrors in the sun visors covered
while driving. Otherwise, you could be daz-
zled, impairing your view of traffic condi-
tions. As a result, you could cause an acci-
dent. 1
Mirror light*
2 Retainer
3 Retaining clip, e.g. for a car park ticket
4 Vanity mirror
5 Mirror cover Mirror in the sun visor Mirror light*
1only comes on if the sun visor
is clipped into retainer 2and mirror cover
5 has been folded up.
Glare from the side X
Fold down the sun visor.
X Pull the sun visor from retainer 2.
X Swing the sun visor to the side. Ashtray*
Ashtray in the cockpit 1
Cover
2 Ashtray Cont
rols
* optional
245_AKB; 2; 7, en-GB
wdomann,
Version: 2.11.4 2008-10-17T11:22:31+02:00 - Seite 161 ZDateiname: 6515_1640_02_buchblock.pdf; preflight

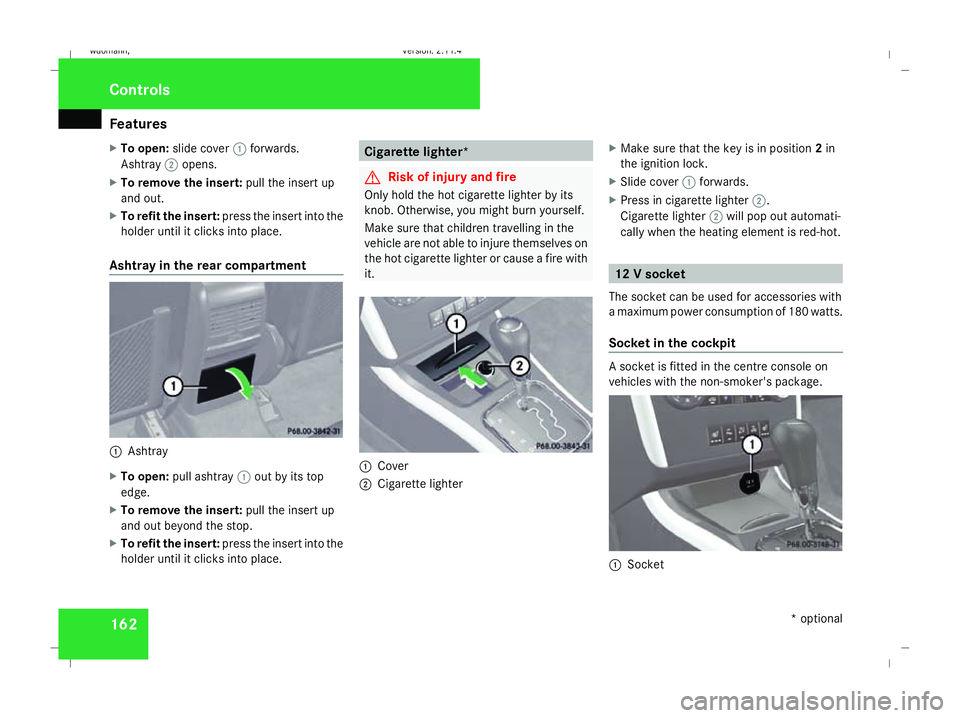

Features
162
X
To open: slide cover 1forwards.
Ashtray 2opens.
X To remove the insert: pull the insert up
and out.
X To refit the insert: press the insert into the
holder until it clicks into place.
Ashtray in the rear compartment 1
Ashtray
X To open: pull ashtray 1out by its top
edge.
X To remove the insert: pull the insert up
and out beyond the stop.
X To refit the insert: press the insert into the
holder until it clicks into place. Cigarette lighter*
G
Risk of injury and fire
Only hold the hot cigarette lighter by its
knob. Otherwise, you might burn yourself.
Make sure that children travelling in the
vehicle are not able to injure themselves on
the hot cigarette lighter or cause a fire with
it. 1
Cover
2 Cigarette lighter X
Make sure that the key is in position 2in
the ignition lock.
X Slide cover 1forwards.
X Press in cigarette lighter 2.
Cigarette lighter 2will pop out automati-
cally when the heating element is red-hot. 12 V socket
The socket can be used for accessories with
a maximum power consumption of 180 watts.
Socket in the cockpit A socket is fitted in the centre console on
vehicles with the non-smoker's package.
1
Socket Cont
rols
* optional
245_AKB; 2; 7, en-GB
wdomann,
Version: 2.11.4 2008-10-17T11:22:31+02:00 - Seite 162Dateiname: 6515_1640_02_buchblock.pdf; preflight

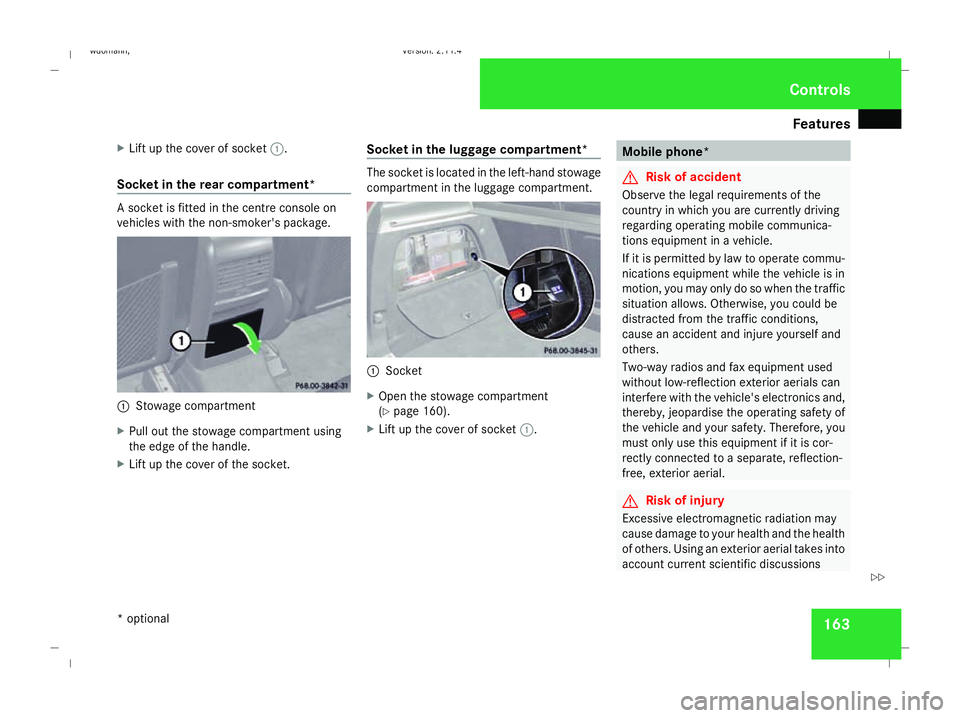

Features
163
X
Lift up the cover of socket 1.
Socket in the rear compartment* A socket is fitted in the centre console on
vehicles with the non-smoker's package. 1
Stowage compartment
X Pull out the stowage compartment using
the edge of the handle.
X Lift up the cover of the socket. Socket in the luggage compartment* The socket is located in the left-hand stowage
compartment in the luggage compartment.
1
Socket
X Open the stowage compartment
(Y page 160).
X Lift up the cover of socket 1. Mobile phone*
G
Risk of accident
Observe the legal requirements of the
country in which you are currently driving
regarding operating mobile communica-
tions equipment in a vehicle.
If it is permitted by law to operate commu-
nications equipment while the vehicle is in
motion, you may only do so when the traffic
situation allows. Otherwise, you could be
distracted from the traffic conditions,
cause an accident and injure yourself and
others.
Two-way radios and fax equipment used
without low-reflection exterior aerials can
interfere with the vehicle's electronics and,
thereby, jeopardise the operating safety of
the vehicle and your safety. Therefore, you
must only use this equipment if it is cor-
rectly connected to a separate, reflection-
free, exterior aerial. G
Risk of injury
Excessive electromagnetic radiation may
cause damage to your health and the health
of others. Using an exterior aerial takes into
account current scientific discussions Cont
rols
* optional
245_AKB; 2; 7, en-GB
wdomann,
Version: 2.11.4 2008-10-17T11:22:31+02:00 - Seite 163 ZDateiname: 6515_1640_02_buchblock.pdf; preflight

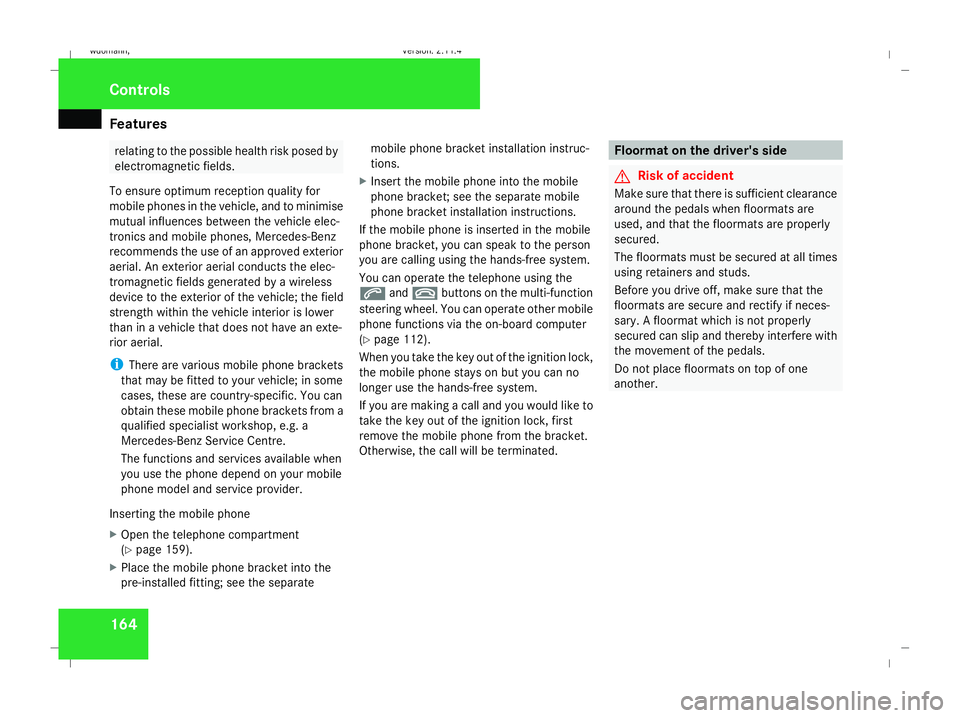

Features
164 relating to the possible health risk posed by
electromagnetic fields.
To ensure optimum reception quality for
mobile phones in the vehicle, and to minimise
mutual influences between the vehicle elec-
tronics and mobile phones, Mercedes-Benz
recommends the use of an approved exterior
aerial. An exterior aerial conducts the elec-
tromagnetic fields generated by a wireless
device to the exterior of the vehicle; the field
strength within the vehicle interior is lower
than in a vehicle that does not have an exte-
rior aerial.
i There are various mobile phone brackets
that may be fitted to your vehicle; in some
cases, these are country-specific. You can
obtain these mobile phone brackets from a
qualified specialist workshop, e.g. a
Mercedes-Benz Service Centre.
The functions and services available when
you use the phone depend on your mobile
phone model and service provider.
Inserting the mobile phone
X Open the telephone compartment
(Y page 159).
X Place the mobile phone bracket into the
pre-installed fitting; see the separate mobile phone bracket installation instruc-
tions.
X Insert the mobile phone into the mobile
phone bracket; see the separate mobile
phone bracket installation instructions.
If the mobile phone is inserted in the mobile
phone bracket, you can speak to the person
you are calling using the hands-free system.
You can operate the telephone using the
s andt buttons on the multi-function
steering wheel. You can operate other mobile
phone functions via the on-board computer
(Y page 112).
When you take the key out of the ignition lock,
the mobile phone stays on but you can no
longer use the hands-free system.
If you are making a call and you would like to
take the key out of the ignition lock, first
remove the mobile phone from the bracket.
Otherwise, the call will be terminated. Floormat on the driver's side
G
Risk of accident
Make sure that there is sufficient clearance
around the pedals when floormats are
used, and that the floormats are properly
secured.
The floormats must be secured at all times
using retainers and studs.
Before you drive off, make sure that the
floormats are secure and rectify if neces-
sary. A floormat which is not properly
secured can slip and thereby interfere with
the movement of the pedals.
Do not place floormats on top of one
another. Cont
rols
245_AKB; 2; 7, en-GB
wdomann,
Version: 2.11.4
2008-10-17T11:22:31+02:00 - Seite 164 Dateiname: 6515_1640_02_buchblock.pdf; preflight

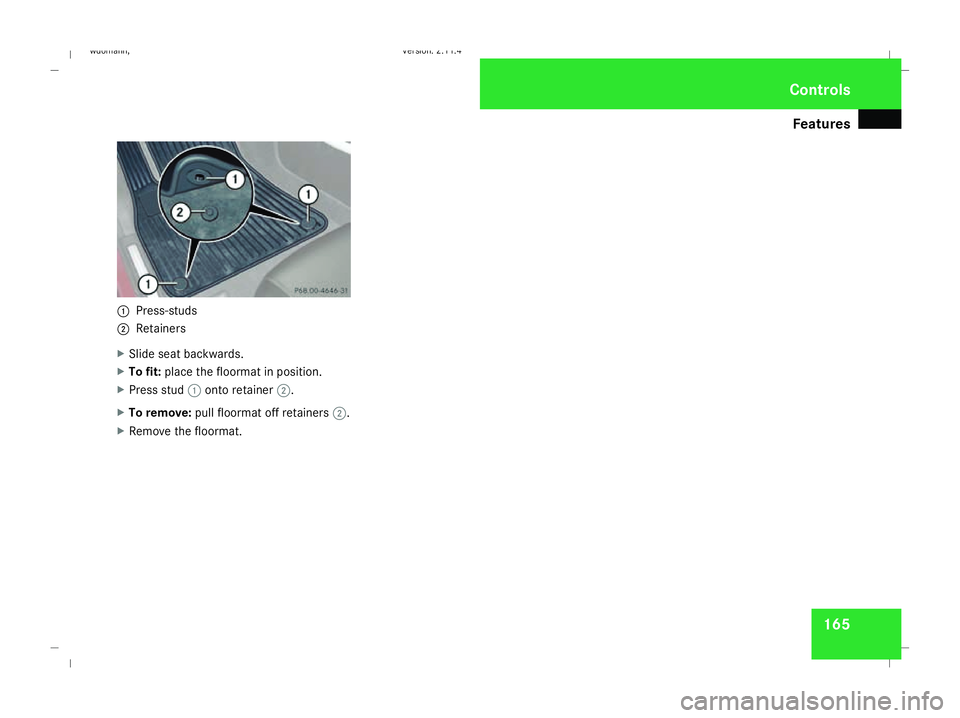

Features
1651
Press-studs
2 Retainers
X Slide seat backwards.
X To fit: place the floormat in position.
X Press stud 1onto retainer 2.
X To remove: pull floormat off retainers 2.
X Remove the floormat. Controls
245_AKB; 2; 7, en-GB
wdomann
, Version: 2.11.4 2008-10-17T11:22:31+02:00 - Seite 165 ZDateiname: 6515_1640_02_buchblock.pdf; preflight

166245_AKB; 2; 7, en-GB
wdomann ,V ersion: 2.11.4
2008-10-17T11:22:31+02:00 - Seite 166 Dateiname: 6515_1640_02_buchblock.pdf; preflight

167

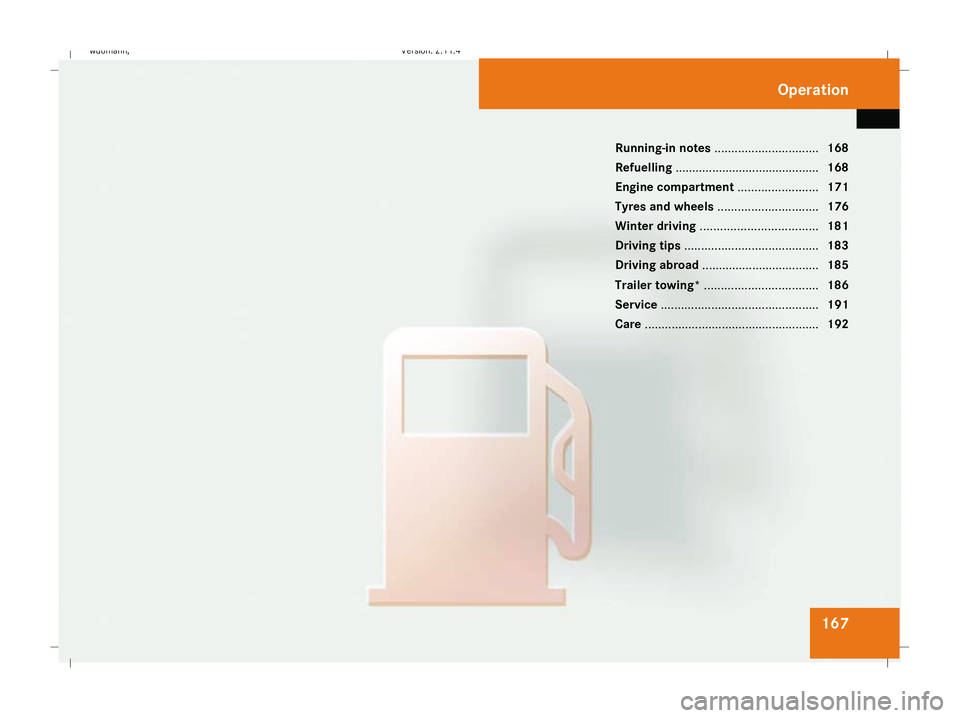

Running-in notes
............................... 168
Refuelling ........................................... 168
Engine compartment ........................171
Tyres and wheels .............................. 176
Winter driving ................................... 181
Driving tips ........................................ 183
Driving abroad ................................... 185
Trailer towing* .................................. 186
Service ............................................... 191
Care .................................................... 192 Operation
245_AKB; 2; 7, en-GB
wdomann
, Version: 2.11.4 2008-10-17T11:22:31+02:00 - Seite 167Dateiname: 6515_1640_02_buchblock.pdf; preflight
