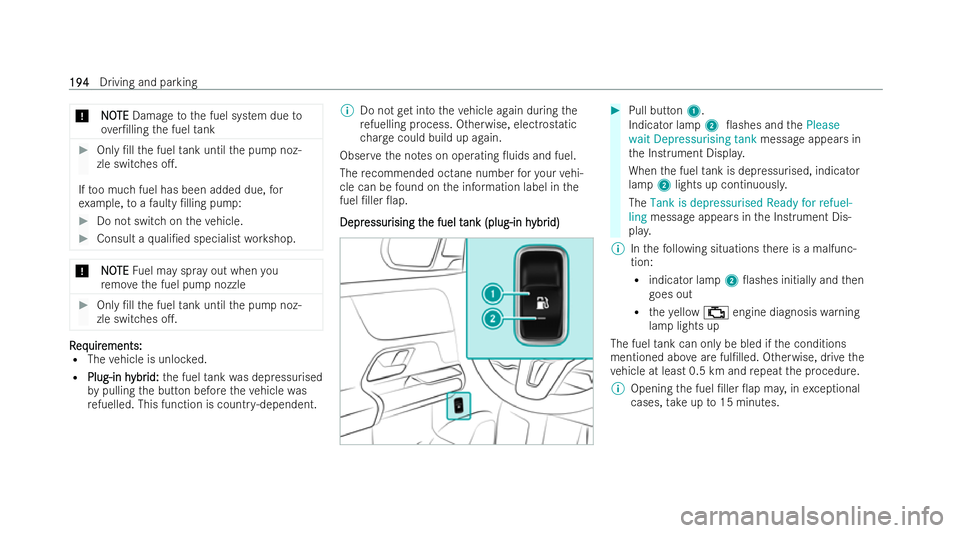

lights MERCEDES-BENZ B-CLASS HATCHBACK 2021 Owner's Manual

*
N
NO
OTE
TE Damage tothe fuel system due to
ove r/lling the fuel tank #
Only /ll the fuel tank until the pump noz-
zle switches o..
If to o much fuel has been added due, for
ex ample, toafa ulty /lling pump: #
Do not switch on theve hicle. #
Consult a quali/ed specialist workshop. *
N
NOOTE
TE Fuel may spr ayout when you
re mo vethe fuel pump nozzle #
Only /ll the fuel tank until the pump noz-
zle switches o.. R
R
eq
eq uir
uir ements:
ements:
R The vehicle is unloc ked.
R Plug-in h
Plug-in h ybr
ybrid:
id:the fuel tank was depressurised
by pulling the button before theve hicle was
re fuelled. This function is countr y-dependent. %
Do not getinto theve hicle again during the
re fuelling process. Othe rwise, electrostatic
ch arge could build up again.
Obser vethe no tes on operating 0uids and fuel.
The recommended octane number foryo ur vehi-
cle can be found on the information label in the
fuel /ller 0ap.
Depr
Depr essur
essur ising t
ising t he fuel t
he fuel t ank (plug-in h
ank (plug-in h ybr
ybrid)
id) #
Pull but ton1.
Indica tor lamp 20ashes and thePlease
wait Depressurising tank message appears in
th e Instrument Displa y.
When the fuel tank is dep ressurised, indicator
lamp 2lights up continuousl y.
The Tank is depressurised Ready for refuel-
ling messa geappears in the Instrument Dis-
pla y.
% Inthefo llowing situations there is a malfunc-
tion:
R indicator lamp 20ashes initially and then
goes out
R theye llow 00B9 engine diagnosis warning
lamp lights up
The fuel tank can only be bled if the conditions
mentioned abo veare ful/lled. Otherwise, drive the
ve hicle at least 0.5 km and repeat the procedure.
% Opening the fuel /ller 0ap ma y,in exceptional
cases, take up to15 minutes. 194
194
Driving and parking

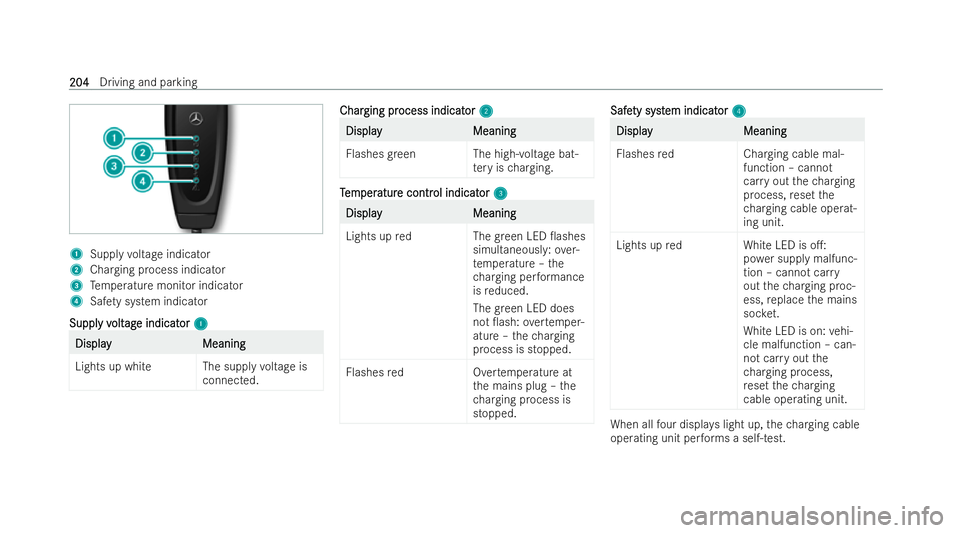

1
Supply voltage indicator
2 Charging process indicator
3 Temp erature monitor indicator
4 Safety sy stem indicator
Suppl
Suppl y v
y v olt
oltag
age indicat
e indicat or
or1
1 Display
Display
Meaning
Meaning
Lights up whit eThe supplyvoltage is
connected. Char
Char
ging pr
ging pr ocess indicat
ocess indicat or
or2
2 Display
Display
Meaning
Meaning
Flashes green The high-voltage bat-
tery isch arging. T T
em
em per per atur
atur e contr
e contr ol indicat
ol indicat or
or3
3 Displ
ay
Display Meaning
Meaning
Lights up redT hegreen LED 0ashes
simultaneousl y:ove r-
te mp erature – the
ch arging per form ance
is reduced.
The green LED does
not 0ash: overtemper-
ature – thech arging
process is stopped.
Flashes redO vertemperature at
th e mains plug – the
ch arging process is
stopped. Safe
Safe
ty syst
ty syst em indicat
em indicat or
or4
4 Displ
ay
Display Meaning
Meaning
Flashes redC harging cable mal-
function – cann ot
car ryout thech arging
process, reset the
ch arging cable operat-
ing unit.
Lights up redW hite LED is o.:
po we r supply malfunc-
tion – cannot car ry
out thech arging proc-
ess, replace the mains
soc ket.
White LED is on: vehi-
cle malfunction – can-
not car ryout the
ch arging process,
re set thech arging
cable operating unit. When all
four displa yslight up, thech arging cable
operating unit per form s a self-test. 204 204
Driving and parking

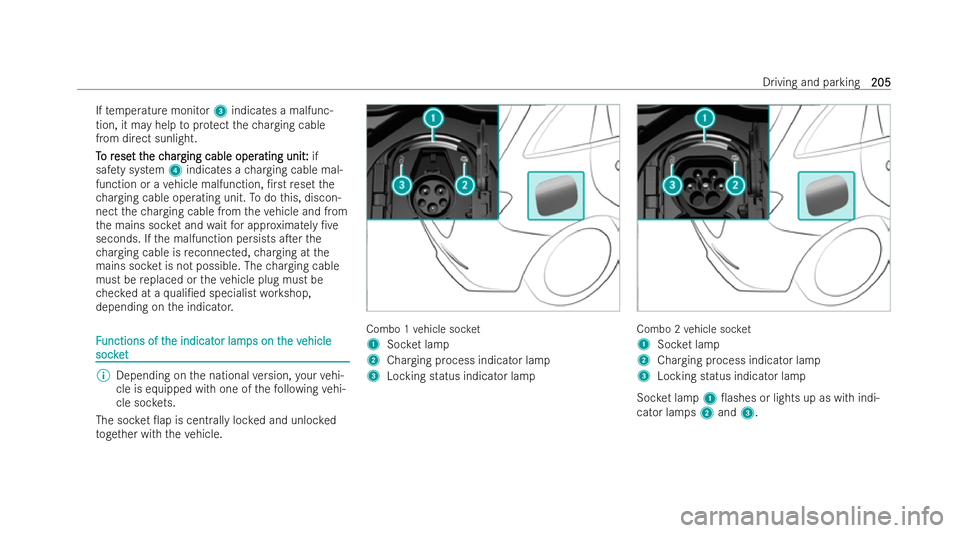

If
te mp erature monitor 3indicates a malfunc-
tion, it may help toprotect thech arging cable
from direct sunlight.
T T o r
o r ese
ese t t
t the c
he c har
harging cable oper
ging cable oper ating unit:
ating unit:if
saf ety sy stem 4indicates a charging cable mal-
function or a vehicle malfunction, /rst reset the
ch arging cable operating unit. Todo this, discon-
nect thech arging cable from theve hicle and from
th e mains soc ket and waitfor appr oximately /ve
seconds. If the malfunction persists aTer the
ch arging cable is reconnected, charging at the
mains soc ket is not possible. The charging cable
must be replaced or theve hicle plug must be
ch ecked at a quali/ed specialist workshop,
depending on the indicator. F
F
unctions of t
unctions of t he indicat
he indicator lam
or lamps on t
ps on t he v
he vehicle
ehicle
soc ket
soc ket %
Depending on the national version, your vehi-
cle is equipped with one of thefo llowing vehi-
cle soc kets.
The soc ket 0ap is centrally loc ked and unloc ked
to get her with theve hicle. Combo 1
vehicle soc ket
1 Socket lamp
2 Charging process indicator lamp
3 Locking status indicator lamp Combo 2
vehicle soc ket
1 Socket lamp
2 Charging process indicator lamp
3 Locking status indicator lamp
Soc ket lamp 10ashes or lights up as with indi-
cator lamps 2and 3. Driving and parking
205
205

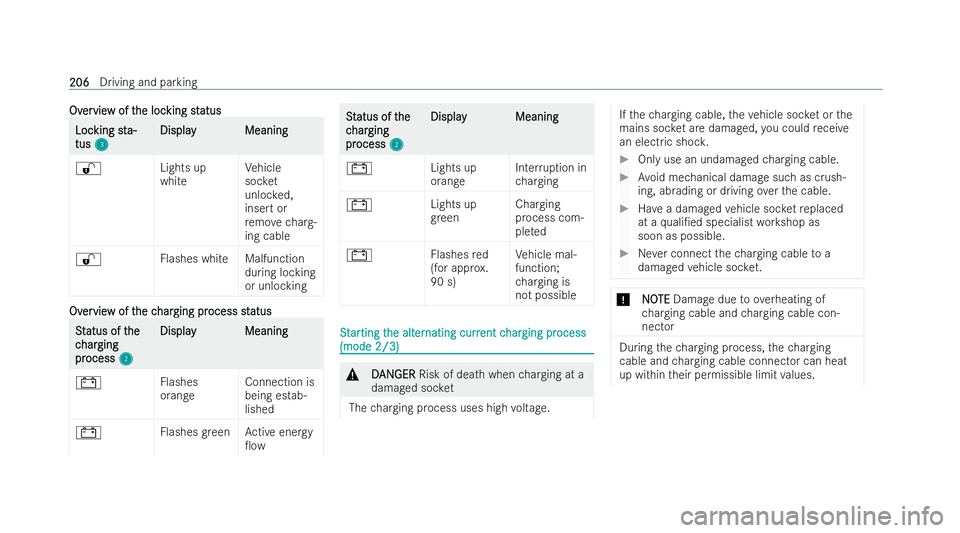

Ov
Ov
er
ervie
vie w of t
w of t he loc
he loc king st
king st atus
atus Loc
Loc
king st
king st a-
a-
tus
tus 3
3 Display
Display Meaning
Meaning
0036 Lights up
whiteVe
hicle
soc ket
unloc ked,
insert or
re mo vecharg-
ing cable
0036 Flashes whiteMalfunction
during locking
or unlocking Ov Ov
er
ervie
vie w of t
w of t he c
he char
harging pr
ging pr ocess st
ocess st atus
atus S
S
t
tatus of t
atus of t he
he
c
c har
har ging
ging
pr
pr ocess
ocess 2
2 Displ
ay
Display Meaning
Meaning
003D Flashes
orangeConnection is
being estab-
lished
003D Flashesgreen Active energy
0ow S S
t
tatus of t
atus of t he
he
c
c har
har ging
ging
pr
pr ocess
ocess 2
2 Display
Display
Meaning
Meaning
003D Lights up
orangeInter
ruption in
ch arging
003D Lights up
green Charging
process com-
ple
ted
003D Flashesred
(for appr ox.
90 s) Ve
hicle mal-
function;
ch arging is
not possible S S
t
tar
ar ting t
ting t he alt
he alt er
ernating curr
nating curr ent c
ent c har
harging pr
ging pr ocess
ocess
(mode 2/3)
(mode 2/3) &
D
DAN
AN GER
GER Risk of death when charging at a
damaged soc ket
The charging process uses high voltage. If
th ech arging cable, theve hicle soc ket or the
mains soc ket are damaged, you could receive
an elect ric shoc k. #
Only use an undamaged charging cable. #
Avoid mechanical damage such as crush-
ing, abrading or driving overth e cable. #
Have a damaged vehicle soc ketre placed
at a quali/ed specialist workshop as
soon as possible. #
Never connect thech arging cable to a
damaged vehicle soc ket. *
N
NOOTE
TE Damage due toove rheating of
ch arging cable and charging cable con-
nector During
thech arging process, thech arging
cable and charging cable connector can heat
up within their permissible limit values. 206
206
Driving and parking

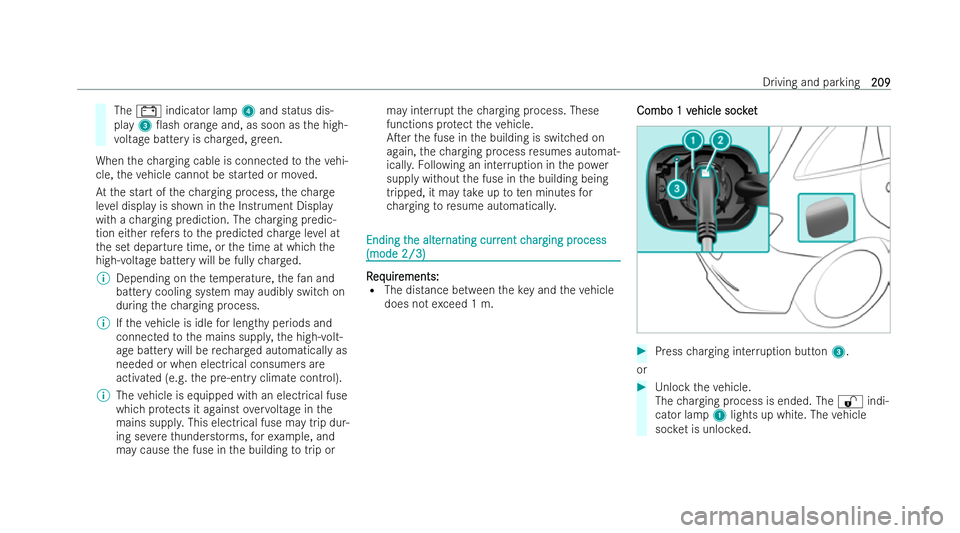

The
003D indicator lamp 4and status dis-
play 30ash orange and, as soon as the high-
vo ltage battery is charge d, green.
When thech arging cable is connected totheve hi-
cle, theve hicle cann otbe star ted or mo ved.
At the start of thech arging process, thech arge
le ve l display is shown in the Instrument Display
with a charging prediction. The charging predic-
tion either refers to the predicted charge leve l at
th e set departure time, or the time at which the
high- voltage battery will be fully charge d.
% Depending on thete mp erature, thefa n and
bat tery cooling system may audibly switch on
during thech arging process.
% Ifth eve hicle is idle for lengt hyperiods and
connected tothe mains suppl y,the high-volt-
age battery will be rech arge d automatically as
needed or when electrical consumers are
activated (e.g. the pre-entry climate control).
% The vehicle is equipped with an elect rical fuse
which pr otects it against overvoltage in the
mains suppl y.This electrical fuse may trip dur-
ing se vere thunderstorms, forex ample, and
may cause the fuse in the building totrip or may inter
rupt thech arging process. These
functions pr otect theve hicle.
ATer the fuse in the building is switched on
again, thech arging process resumes automat-
icall y.Fo llowing an inter ruption in the po wer
supply without the fuse in the building being
tripped, it may take up to te n minutes for
ch arging toresume automaticall y. Ending t
Ending t
he alt
he alter
ernating curr
nating curr ent c
ent char
harging pr
ging pr ocess
ocess
(mode 2/3)
(mode 2/3) R
R
eq
eq uir
uir ements:
ements:
R The dis tance between theke y and theve hicle
does not exceed 1 m. Combo 1 v
Combo 1 v ehicle socket
ehicle soc ket #
Press charging inter ruption button 3.
or #
Unlock theve hicle.
The charging process is ended. The 0036indi-
cator lamp 1lights up white. The vehicle
soc ket is unloc ked. Driving and parking
209
209

%

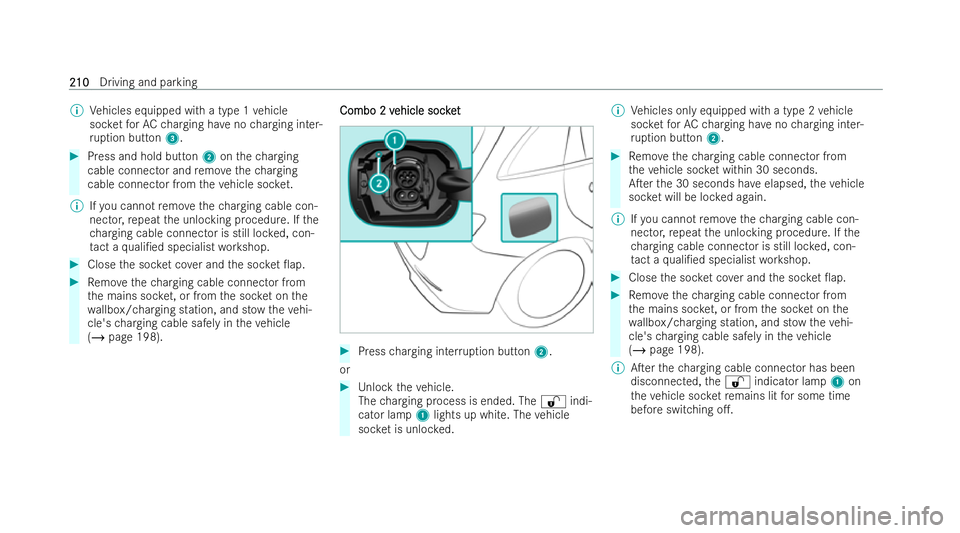

Vehicles equipped with a type 1 vehicle
soc ketfo rAC charging ha veno charging inter-
ru ption button 3. #
Press and hold button 2onthech arging
cable connector and remo vethech arging
cable connector from theve hicle soc ket.
% Ifyo u cannot remo vethech arging cable con-
nector, repeat the unlocking procedure. If the
ch arging cable connector is still loc ked, con-
ta ct a quali/ed specialist workshop. #
Close the soc ket co ver and the soc ket 0ap. #
Remo vethech arging cable connector from
th e mains soc ket, or from the soc ket on the
wa llbox/charging station, and st owtheve hi-
cle's charging cable safely in theve hicle
(/ page 198). Combo 2 v Combo 2 v
ehicle socket
ehicle soc ket #
Press charging inter ruption button 2.
or #
Unlock theve hicle.
The charging process is ended. The 0036indi-
cator lamp 1lights up white. The vehicle
soc ket is unloc ked. %
Vehicles only equipped with a type 2 vehicle
soc ketfo rAC charging ha veno charging inter-
ru ption button 2. #
Remo vethech arging cable connector from
th eve hicle soc ket within 30 seconds.
ATer the 30 seconds ha veelapsed, theve hicle
soc ket will be loc ked again.
% Ifyo u cannot remo vethech arging cable con-
nector, repeat the unlocking procedure. If the
ch arging cable connector is still loc ked, con-
ta ct a quali/ed specialist workshop. #
Close the soc ket co ver and the soc ket 0ap. #
Remo vethech arging cable connector from
th e mains soc ket, or from the soc ket on the
wa llbox/charging station, and st owtheve hi-
cle's charging cable safely in theve hicle
(/ page 198).
% ATer thech arging cable connector has been
disconnected, the0036 indicator lamp 1on
th eve hicle soc ketre mains lit for some time
before switching o.. 210 210
Driving and parking

%
When theve hicle is switched on (the õ
displ ayis lit in the Instrument Display), soc ket
0ap 1cannot be opened. #
Press cat ch7 tothe leT and fold open
soc ket co ver5.
% The CCS charging cable connector requ ires
connections 6and 8. Therefore, it is nec-
essary toopen bo thparts of soc ket co ver5. #
Insert the CCS charging cable connector into
th eve hicle soc ketto the stop.
Make sure that thech arging cable is not taut
when inser ted.
The 003D indicator lamp 4and status dis-
play 30ash orange and, as soon as the high-
vo ltage battery is charge d, green.
When thech arging cable is connected totheve hi-
cle, theve hicle cann otbe star ted or mo ved.
At the start of thech arging process, thech arge
le ve l display is shown in the Instrument Display
with a charging prediction. The charging predic-
tion either refers to the predicted charge leve l at
th e set departure time, or the time at which the
high- voltage battery will be fully charge d. %
Depending on thete mp erature, thefa n and
bat tery cooling system may audibly switch on
during thech arging process.
% Ifth eve hicle is idle for lengt hyperiods and
connected tothe mains suppl y,the high-volt-
age battery will be rech arge d automatically as
needed or when electrical consumers are
activated (e.g. the pre-entry climate control). Ending t Ending t
he dir
he direct curr
ect curr ent c
ent c har
harging pr
ging pr ocess (mode
ocess (mode
4)
4) R
R
eq
eq uir
uir ements:
ements:
R The distance between theke y and theve hicle
does not exceed 1 m. Combo 1 v
Combo 1 v ehicle socket
ehicle soc ket #
Press charging inter ruption button 3.
The charging process is ended. The 0036indi-
cator lamp 1lights up white. The vehicle
soc ket is unloc ked. #
Press and hold button 2onthech arging
cable connector and remo vethech arging
cable connector from theve hicle soc ket. Driving and parking
213
213

%

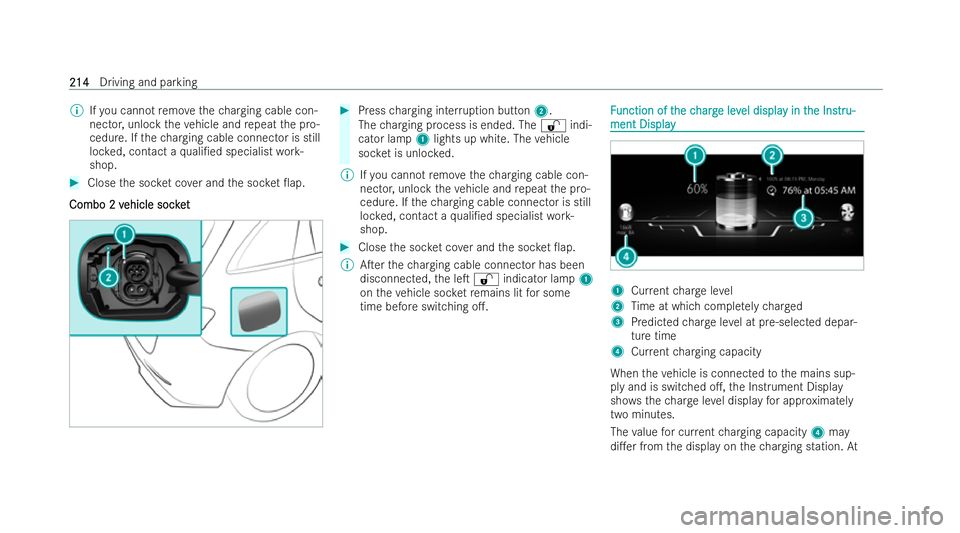

Ifyo u cannot remo vethech arging cable con-
nector, unlock theve hicle and repeat the pro-
cedure. If thech arging cable connector is still
loc ked, contact a quali/ed specialist work-
shop. #
Close the soc ket co ver and the soc ket 0ap.
Combo 2 v
Combo 2 v ehicle socket
ehicle soc ket #
Press charging inter ruption button 2.
The charging process is ended. The 0036indi-
cator lamp 1lights up white. The vehicle
soc ket is unloc ked.
% Ifyo u cannot remo vethech arging cable con-
nector, unlock theve hicle and repeat the pro-
cedure. If thech arging cable connector is still
loc ked, contact a quali/ed specialist work-
shop. #
Close the soc ket co ver and the soc ket 0ap.
% ATer thech arging cable connector has been
disconnected, the leT 0036 indicator lamp 1
on theve hicle soc ketre mains lit for some
time before switching o.. F
F
unction of t
unction of t he c
he charg
harg e lev
e lev el displa
el displa y in t
y in the Ins
he Instr tru-
u-
ment Display
ment Display 1
Current charge level
2 Time at which comple tely ch arged
3 Predicted charge leve l at pre-selected depar-
ture time
4 Current charging capacity
When theve hicle is connected tothe mains sup-
ply and is switched o., the Instrument Display
sho ws th ech arge leve l display for appr oximately
two minutes.
The value for cur rent charging capacity 4may
di.er from the display on thech arging station. At214 214
Driving and parking

#

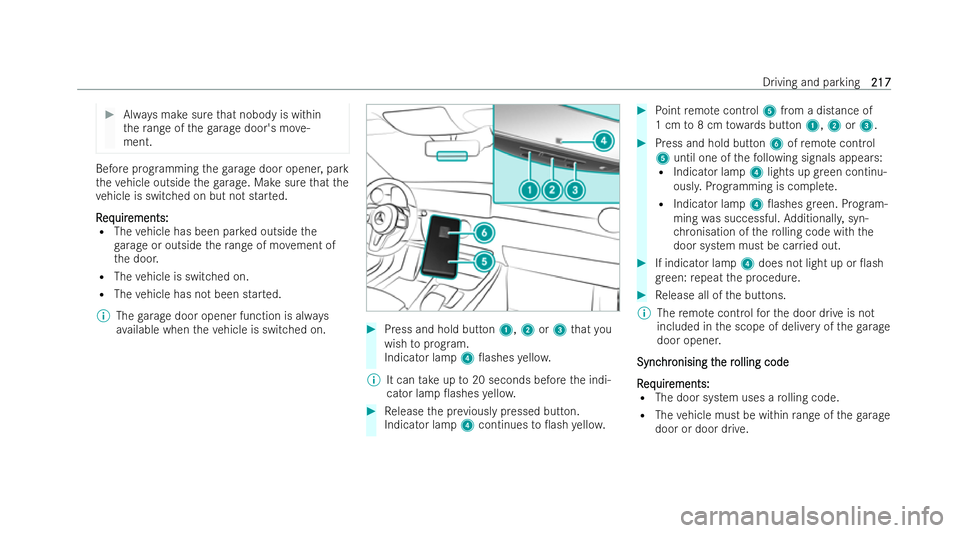

Always make sure that nobody is within
th era nge of thega rage door's mo ve-
ment. Before prog
ramming thega rage door opener, park
th eve hicle outside thega rage . Make sure that the
ve hicle is switched on but not star ted.
R
R eq
eq uir
uir ements:
ements:
R The vehicle has been par ked outside the
gar age or outside thera nge of mo vement of
th e door.
R The vehicle is switched on.
R The vehicle has not been star ted.
% The garage door opener function is alw ays
av ailable when theve hicle is switched on. #
Press and hold but ton1, 2or3 that you
wish toprog ram.
Indicator lamp 40ashes yello w.
% It can take up to20 seconds before the indi-
cator lamp 0ashes yello w. #
Release the pr eviously pressed button.
Indicator lamp 4continues to0ash yello w. #
Point remo tecont rol5 from a distance of
1 cm to8 cm towa rds button 1,2or3. #
Press and hold button 6ofremo tecont rol
5 until one of thefo llowing signals appears:
R Indicator lamp 4lights up green continu-
ousl y.Prog ramming is comple te.
R Indicator lamp 40ashes green. Prog ram-
ming was successful. Additionall y,syn-
ch ronisation of thero lling code with the
door system must be car ried out. #
If indicator lamp 4does not light up or 0ash
gr een: repeat the procedure. #
Release all of the buttons.
% The remo tecont rolfo rth e door drive is not
included in the scope of delivery of thega rage
door opener.
Sync
Sync hr
hronising t
onising t he r
he rolling code
olling code
R
R eq
eq uir
uir ements:
ements:
R The door system uses a rolling code.
R The vehicle must be within range of thega rage
door or door drive. Driving and parking
217
217

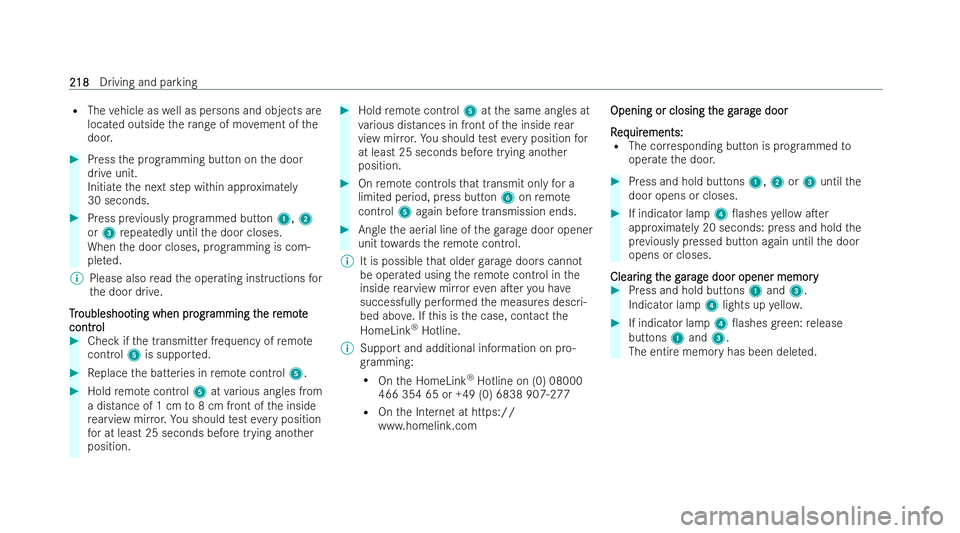

R
The vehicle as well as persons and objects are
located outside thera nge of mo vement of the
door. #
Press the prog ramming button on the door
drive unit.
Initiate the next step within appr oximately
30 seconds. #
Press pr eviously prog rammed button 1,2
or 3 repeatedly until the door closes.
When the door closes, prog ramming is com-
ple ted.
% Please also read the operating inst ructions for
th e door drive.
T
T r roubleshoo
oubleshoo ting when pr
ting when progr ogramming t
amming t he r
he remo te
emo te
contr
contr ol
ol #
Check if the transmitter frequency of remo te
cont rol5 is suppor ted. #
Replace the batteries in remo tecont rol5. #
Hold remo tecont rol5 atvarious angles from
a distance of 1 cm to8 cm front of the inside
re arview mir ror.Yo u should test every position
fo r at least 25 seconds before trying ano ther
position. #
Hold remo tecont rol5 atthe same angles at
va rious distances in front of the inside rear
view mir ror.Yo u should test every position for
at least 25 seconds before trying ano ther
position. #
Onremo tecont rolsth at transmit only for a
limited period, press button 6onremo te
cont rol5 again before transmission ends. #
Angle the aerial line of thega rage door opener
unit towa rdsth ere mo tecont rol.
% It is possible that older garage doors cannot
be operated using there mo tecont rol in the
inside rearview mir roreve n aTer you ha ve
successfully per form ed the measures descri-
bed abo ve. If this is the case, contact the
HomeLink ®
Hotline.
% Support and additional information on pro-
gr amming:
R Onthe HomeLink ®
Hotline on (0) 08000
466 354 65 or +49 (0) 6838 907-277
R Onthe Internet at https://
www.homelink.com Opening or closing t
Opening or closing t he g
he gar
arag
ag e door
e door
R
R eq
eq uir
uir ements:
ements:
R The cor responding button is prog rammed to
operate the door. #
Press and hold buttons 1,2or3 until the
door opens or closes. #
If indicator lamp 40ashes yellow aTer
appr oximately 20 seconds: press and hold the
pr ev iously pressed button again until the door
opens or closes.
Clear
Clear ing t
ing the g
he gar
arag
ag e door opener memory
e door opener memory #
Press and hold buttons 1and 3.
Indicator lamp 4lights up yello w. #
If indicator lamp 40ashes green: release
buttons 1and 3.
The entire memory has been dele ted. 218
218
Driving and parking
