Page 160 of 399
157
Climate control
Te ch n i c a l
data
Instruments
and controls Operation
DrivingInstrument
cluster display Practical hints Car care Index
Defrosting
Press the P
button. The indicator lamp in the button
illuminates.
Switch off air recirculation, if selected. Press
button O, the indicator lamp in the button will go
out.
Close center air outlets.
Turn wheels (8, page 152) up to open left and right side
air outlets (9, page 152). Adjust side air outlets upward.
Pressing the switch again returns the system to the
previous setting. Windows fogged up on the inside
Switch off the economy mode, if selected. Press
button
S. The indicator lamp in the button will go
out.
Switch off air recirculation, if selected. Press
button O. The indicator lamp in the button will go
out.
Set blower to the maximum blower speed.
Press the P button. The indicator lamp in the button
illuminates.
Increase temperature setting.
Open the side air outlets (9, page 152) and direct them
onto the side windows.
Windshield fogged up on the outside
Switch on the windshield wiper.
Close air outlet at dashboard top center.
Switch to manual mode.
Turn air distribution control switch to position h
or k .
ProCarManuals.com
Page 164 of 399
161
Automatic climate control
Te ch n i c a l
data
Instruments
and controls Operation
DrivingInstrument
cluster display Practical hints Car care Index
1
Display and controls
2 Air volume control for left center air outlet
3 Center air outlet, left, adjustable
4 Thumbwheel for adding outside air at air outlets for
center, left and right sides, as well as dashboard top
center and rear passenger compartment
5 Center air outlet, right, adjustable 6
Air volume control for right center air outlet
7 Air volume control and air outlet on dashboard top
center
8 Air volume control for side air outlet
9 Side air outlet, adjustable
10 Side defroster outlet, fixed
ProCarManuals.com
Page 167 of 399
164
Automatic climate control
Te ch n i c a l
data
Instruments
and controls Operation
DrivingInstrument
cluster display Practical hints Car care Index
Notes:
Do not obstruct the air flow by placing objects on the air
flow-through exhaust slots below the rear window.
Also keep the air intake grill in front of the windshield
free of snow and debris.
The storage compartment between the front seats can be
ventilated. See page 171 for notes on ventilating the
storage space under the armrest in the center console.
The air conditioner switches itself off for its own
protection if refrigerant is lost. No cooling will then take
place. Economy mode S cannot be switched off. Have
the air conditioner checked by a Mercedes-Benz Center
should this happen.
If the vehicle interior has been heated by direct sunlight
and is very hot, ventilate the interior (open door or
windows for a short period) before driving off.
Dust filter
Nearly all dust particles and pollen are filtered out
before outside air enters the passenger compartment
through the air distribution system. Basic setting – automatic mode
In the automatic mode the automatic climate control
cools or heats the interior depending on the direction
and strength of the sunlight, outside temperature and
the selected interior temperature of the vehicle. With
the automatic mode switched off, the air volume and
distribution can still be set manually.
Briefly press left or right
U button. The h, j
and k symbols will no longer be visible.
The economy mode and air recirculation functions will
be switched off. The automatic blower will be activated
at the same time.
We recommend to set the temperature switches on the
left and right to 72
°F (22
°C). Please make changes from
this setting to suit your personal requirements.
Heating mode:
To lower headroom temperature, use thumbwheel
(4, page 160).
Air conditioning mode:
Open air outlets at dashboard top center (7, page 160)
for an even air distribution.
ProCarManuals.com
Page 168 of 399
165
Automatic climate control
Te ch n i c a l
data
Instruments
and controls Operation
DrivingInstrument
cluster display Practical hints Car care Index
Special settings
(use only for short duration)
Air distribution, manual
Press left or right U button. The button pops out, the
h , j and k symbols are visible. Turn the
button to select the air distribution desired.
h Air from the center, side, dashboard top center
and rear passenger compartment air outlets.
j Air from the windshield, side defroster and rear
passenger compartment air outlets.
k Air from the center, side, footwell, rear footwell
and rear passenger compartment air outlets.
To return to automatic mode:
Press left or right U button. The h, j
and k symbols will no longer be visible. Air volume, manual
Seven blower speeds are available.
Press right
Q or left M side of air volume control
switch until the requested blower speed is attained.
The display “AUTO” disappears and the automatic mode
is switched off. The selected blower speed is shown in
the display.
To return to automatic mode:
Press left or right U button until it clicks in. The
h , j andk symbols will no longer be visible.
ProCarManuals.com
Page 169 of 399
166
Automatic climate control
Te ch n i c a l
data
Instruments
and controls Operation
DrivingInstrument
cluster display Practical hints Car care Index
Defrosting
Press the P button. The indicator lamp in the button
illuminates.
Maximum heated and automatically controlled amount
of air is directed to the defroster and windshield air
outlets.
Switch off air recirculation, if selected: Press
button O. The indicator lamp in the button will go
out.
Pressing the P button again returns the system to
the previous setting. Windows fogged up on the inside
Switch off the economy mode, if selected:
Press button
S. The indicator lamp in the button will
go out.
Switch off air recirculation, if selected:
Press button O. The indicator lamp in the button will
go out.
Set blower to the maximum blower speed.
Increase temperature setting.
Open the side air outlets and direct them onto the side
windows.
Windshield fogged up on the outside
Switch on the windshield wiper.
Close air outlet at dashboard top center (7, page 161).
Switch to manual mode.
Turn air distribution control switch to position h
or k .
ProCarManuals.com
Page 174 of 399
171
Automatic climate control
Te ch n i c a l
data
Instruments
and controls Operation
DrivingInstrument
cluster display Practical hints Car care Index

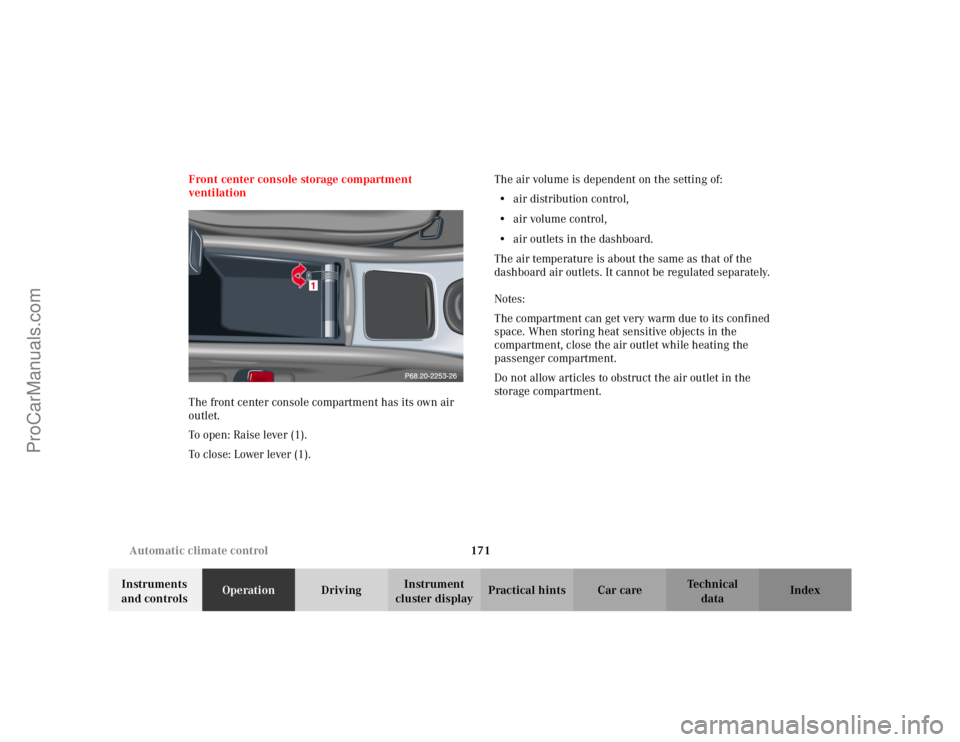

Front center console storage compartment
ventilation
The front center console compartment has its own air
outlet.
To open: Raise lever (1).
To close: Lower lever (1).
The air volume is dependent on the setting of:
• air distribution control,
• air volume control,
• air outlets in the dashboard.
The air temperature is about the same as that of the
dashboard air outlets. It cannot be regulated separately.
Notes:
The compartment can get very warm due to its confined
space. When storing heat sensitive objects in the
compartment, close the air outlet while heating the
passenger compartment.
Do not allow articles to obstruct the air outlet in the
storage compartment.
ProCarManuals.com
Page 175 of 399
172
Automatic climate control
Te ch n i c a l
data
Instruments
and controls Operation
DrivingInstrument
cluster display Practical hints Car care Index

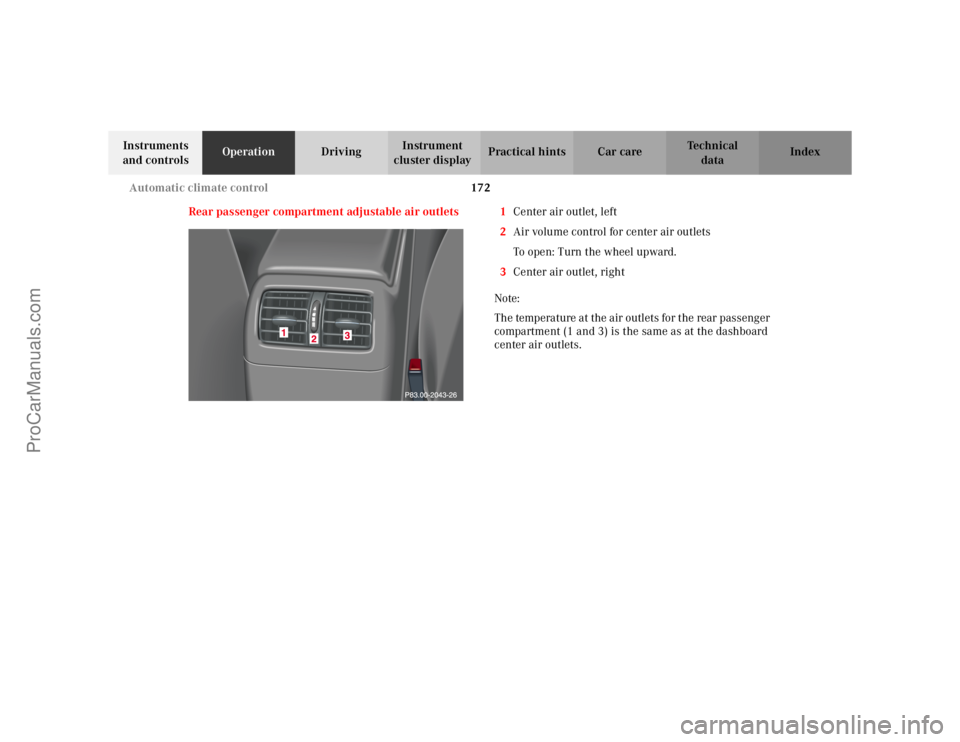

Rear passenger compartment adjustable air outlets 1 Center air outlet, left
2 Air volume control for center air outlets
To open: Turn the wheel upward.
3 Center air outlet, right
Note:
The temperature at the air outlets for the rear passenger
compartment (1 and 3) is the same as at the dashboard
center air outlets.
ProCarManuals.com
Page 390 of 399
387
Index
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints Car care
Index
Coolant temperature gauge .......................................... 137
Cruise control ................................................................. 268
Cup holder ...................................................................... 210
DDashboard ......................................................................... 22
Door control panel ........................................................... 20
Drive sensibly - Save Fuel ............................................ 257EEasy-entry/exit feature ................................................... 47
Electronic key ................................................................... 29
Electronic main key
Changing batteries ................................................... 351
Synchronizing remote control ................................ 353
Electronic stability program (ESP).............................. 274
Emergency call See Tele Aid ............................................................... 228
Emergency engine shut-down ..................................... 353
Emergency operation of sliding/pop-up roof ............ 354
Emergency tensioning retractor (ETR)......................... 71
Emergency unlocking in case of accident ................... 40
Engine oil consumption ................................................ 142 Engine oil level indicator .............................................. 141
Express opening and closing (power windows) ........ 197
Exterior lamp switch ..................................................... 143
Daytime running lamp mode .................................. 145
Exterior lamps ............................................................... 345 Additional turn signals on the exterior mirror ... 350
Bulbs for high and low beam ................................. 347
Headlamp assembly ................................................. 346
High mounted stop lamp ......................................... 350
License plate lamps ................................................. 349
Parking and standing lamp .................................... 347
Replacing bulbs ........................................................ 345
Side marker lamp, front .......................................... 350
Taillamp assemblies ................................................ 348
Turn signal lamp ...................................................... 347
Exterior mirror adjustment ............................................ 90
Exterior mirror, front passenger side, parking position .......................................................... 91
FFirst aid kit ...................................................................... 310
Flat tire
See Changing wheels .............................................. 327
Flexible service system (FSS) ...................................... 138
ProCarManuals.com
Page 392 of 399
389
Index
Te ch n i c a l
data
Instruments
and controls Operation Driving
Instrument
cluster display Practical hints Car care
Index
Center console ............................................................. 24
Dashboard .................................................................... 22
Door control panel ...................................................... 20
Overhead control panel.............................................. 21
Interior............................................................................. 206
Interior lighting.............................................................. 203
JJack................................................................................... 323
Jump starting .................................................................. 338KKeys, changing battery.................................................. 351LLamps, exterior Side marker lamp, front ........................................... 350
Layout of poly-V-belt drive............................................ 371
Lighter ............................................................................. 213
Loading instructions (Vehicle with enlarged cargo area) ........................ 218
Locator lighting .............................................................. 147 Locking the vehicle with remote control...................... 33
Low beams
See Exterior lamp switch ......................................... 143
Luggage cover – removal and installation ................. 217
MMaintenance .................................................................. 227
Malfunction/warning message memory .................... 119
Manual seat................................................................. 51, 55
Manual transmission.................................................... 244
Mechanical key................................................................. 35
Memory function.............................................................. 93
Mirror, exterior, parking position, front passenger side ................................................... 91
Multifunction display .................................................... 102 Coolant temperature ................................................. 106
Engine oil level indicator ......................................... 106
FSS............................................................................... 106
Individual settings .................................................... 121
Tire inflation pressure monitor .............................. 106
Trip and main odometer .......................................... 106
Vehicle speed ............................................................. 106
Multifunction steering wheel ....................................... 102
ProCarManuals.com
