15 At a glance
Quick reference COMAND
Selecting a station
Automatic seek tuning
Press g or h on the rocker
switch briefly.
FM- and AM-Bands, Weather Band WB
The radio will tune in to the next recei-
vable station (FM/AM) or channel (WB)
with descending/ascending frequency.
Switching another system on

Press any system key, e.g. d.
COMAND will switch to CD mode.
You will find more information regarding
this topic in section “Radio operation” in
chapter “Audio” (
page 28).Switching on

Press d.
The main CD menu will appear.
Playback will begin in

CD drive with the first track on the
CD


CD changer with the first track on
the first CD detected in the magazi-
ne.Loading a CD into the CD drive and loading
CDs in the CD changer (
page 45).
Track select

Press the rocker switch g/h.
You will hear the previous or next track.
If more than 9 seconds of playing time
has elapsed, the CD changes back to
the start of the current track.
Selecting a CD

Press one of the number keys
Key 0 select the CD drive
Keys 1 - 6 select the corresponding
magazine slot of the
CD changer
The message “Loading CD ...” appears
on the display. Playback then will begin
with track 1.
CD operation
P82.85-9063-31

20 At a glanceQuick reference COMAND“Route mode
” selection menu
Select a route and then a traffic route
Turn the right-hand rotary/push-
button v to move the cursor on the
entry you want and press to confirm.
A checkmark appears P.Route types available:


Fast Route


Short Route
Including P/avoiding traffic routes Q


Freeway


Ferry


Toll

Press the right-hand rotary/push-
button v to confirm “OK”.
The selected route and the destination
you have entered will appear on the
display.
You will hear the message “The route is
being calculated”.
Symbol displayAfter a few seconds, you will see the sym-
bol display.
CALC. ROUTE Calculation of route
2.9 miles Distance to destination
(as the crow flies)
P82.85-7484-31P82.85-9071-31
P82.85-9072-31

31 Audio
Radio operation
Seek tuning at the multifunction stee-
ring wheel
If the multifunctional display shows the
station frequency, then:
Press F or G to select a higher/
lower frequency preset.Manual tuning (FM, AM)

Press g or h on the rocker
switch longer than 2 seconds.
The menu fields will appear in light grey
lettering.FM Band
The frequency displayed will change in in-
crements of 0.2 MHz.
AM Band
Tuning will take place in increments of
10 kHz.
iThe up/down arrows have different
functions depending on which mode the
seek function in the multifunction dis-
play is programmed to.
The two available options are Memory
Scan or Frequency Scan (Station
search). Refer to the vehicle operator’s
manual on how to program this option.
P82.85-9081-31
iActivating the AM Band (
page 29).

59 Audio
CD operation
CDs Scan (CD changer only)
Select this function to scan all of the CDs
in the magazine slots 1-6 for 8 seconds
each (track 1).Switching off playback mode

Turn the right-hand rotary/push-button
v to highlight the current playback
mode and press to confirm.
The checkmark disappears. Playback
automatically changes to “Standard”
P.Return to the main CD menu

Press *.
The playback mode selected appears in
the main CD menu below the track
number, e.g. “Magazine Mix”.
iThis function will begin with the CD fol-
lowing the CD currently playing.
Scan function will end

automatically after all CDs have
been scanned


if you press g/h.
P82.85-9110-31

63 Audio
Sound settings
Sound settings
COMAND is equipped with a standard am-
plifier.
You can set

the sound Bass/Treble individually


the sound-center (Fader and Balance)


select predefined sound optimization.
See individual audio mode descriptions for
instructions on this feature.
Adjustments to the sound have a different
effect on the audio and service sources.
The predefined sound optimizations are
available for the audio sources only.Audio sources include:


Radio FM, AM, WB


CD (CD drive, CD changer)


auxiliary audio source, e.g. tape deck (if
connected)
You can activate the main Sound menu in
the audio sources through the menu field
“Sound”.
Service sources include:


Telephone


Voice output in the navigation


Voice recognition system
See separate operating instructions for te-
lephone and voice recognition system.
You can activate the main Sound menu in
the “NAVI Settings” menu (
page 181),
through the menu field “Sound”. Activating the main sound menu
For audio sources
Main sound menu1Radio (FM) is switched on
2Actual sound settings (Bass/Treble)
3Actual sound-center (Fader and Balan-
ce)
4Slider switch to alter the value
5Reset Bass/Treble to “0”, and the Ba-
lance to the middle of the vehicle
6Activate predefined sound optimizati-
ons
Adjusting sound settings

103 Telephone
SMS function
SMS function
With this function you can receive, read
and delete short text messages
1.
1 If available from your carrier.
1The symbol M will appear when a new
SMS message arrives, symbol “RM”
(roaming mode) that may have been
displayed before will be replaced
2Activates the SMS list

Turn the right-hand rotary/push-button
v to highlight “V” in the main tele-
phone menu and press to confirm.
Other menu fields will appear.

Turn the right-hand rotary/push-button
v to highlight 2 and press to confirm.
The SMS list will appear.
iCOMAND may have to read in SMS
messages first. The message “SMS loa-
ding...” will appear. The reading operati-
on may take up to 30 seconds.
Activating
P82.85-9150-31
1
2

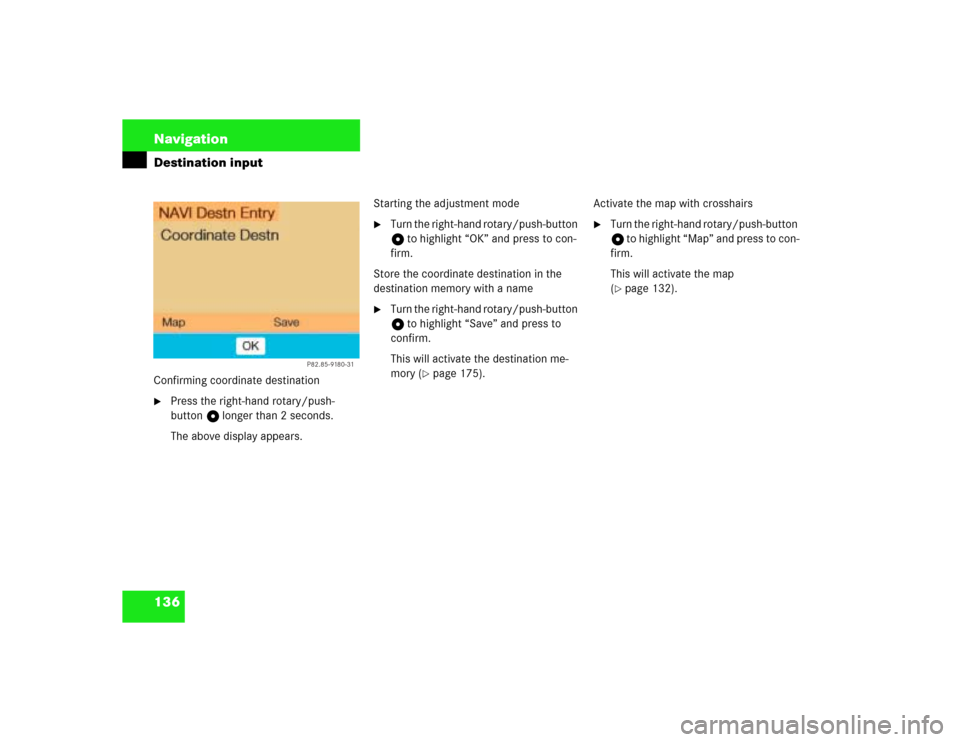

136 NavigationDestination inputConfirming coordinate destination
Press the right-hand rotary/push-
button v longer than 2 seconds.
The above display appears.Starting the adjustment mode

Turn the right-hand rotary/push-button
v to highlight “OK” and press to con-
firm.
Store the coordinate destination in the
destination memory with a name

Turn the right-hand rotary/push-button
v to highlight “Save” and press to
confirm.
This will activate the destination me-
mory (
page 175).Activate the map with crosshairs

Turn the right-hand rotary/push-button
v to highlight “Map” and press to con-
firm.
This will activate the map
(page 132).
P82.85-9180-31

142 NavigationDestination inputSelecting a route mode P
1Route calculated for optimum driving
time
2Route calculated for optimum driving
route
Turn the right-hand rotary/push-button
v to highlight the desired route mode
and press to confirm.Including P or avoiding Q traffic rou-
tes, several selections are available
3Calculate the route with/without free-
ways
4Calculate the route with/without ferry
connections, car trains
5Calculate the route with/without toll
roads
6COMAND calculates the route with the
selected settings

Turn the right-hand rotary/push-button
v to highlight the desired type of road
and press the button.Calculating the route

Press the right-hand rotary/push-
button v longer than 2 seconds.
or

Turn the right-hand rotary/push-button
v to highlight “OK” and press to con-
firm.
As soon as calculation begins, you will
see a corresponding message and hear
the voice output “The route is being
calculated”.
iToll roads appear in green on the map.
iIn the event that no reasonable alterna-
te route for that destination exists,
COMAND will calculate the route inclu-
ding 3 to 5 even if these selections are
to be avoided.

150 NavigationRoute guidanceDisplaying current destination
Turn the right-hand rotary/push-button
v in the selection menu “Destination
Info” to highlight “Current Destination”
and press to confirm.
You will see the current destination.
Switching back to the symbol or map dis-
play

Press *.Requesting route mode
1Settings for route calculation mode

Turn the right-hand rotary/push-button
v in the selection menu “Destination
Info” to highlight “Options” and press
to confirm.
The settings for the current route are
displayed. Switching back to the symbol or map dis-
play
After 15 seconds, COMAND will return au-
tomatically to the symbol or map display.
or

Press *.
P82.85-9200-31
1
iSelecting calculation mode
(page 141)
Selecting a detour during destination
guidance (
page 163)
Marking a way point (
page 160)

172 NavigationRoute guidanceRemoving the window
This is done automatically after 3 seconds.
or
Press *.
The radio is active


Selecting a memorized station from the
respective memory (FM, AM or WB)
Press number keys 1 through 0.


Performing station seek
Press g or h briefly.


Starting manual search
Press g or h longer than
2 seconds.
The search run will start in the desi-
red direction - frequency ranges
FM, AM or WB.CD mode is active


Selecting CD with number keys
0 CD drive
1 - 6 CD changer


Selecting previous/next track
Press g or h briefly.


Skipping backwards/forwards
Hold g or h longer than
2 seconds.
