technical data MERCEDES-BENZ C CLASS 2019 Owners Manual

Technical data..........................................421Notes ontechnical data.............................. 421Vehicle electronics ...................................... 421Vehicle identification plate, VIN andengine numberoverview ............................ 423Operatingfluids .......................................... 425Vehicle data ................................................ 431
Display messages andwarning/indi‐cator lamps..............................................433Display messages .......................................433Warning and indicator lamps ......................479
Index.........................................................493
4Contents

Assistance Center (USA) atthe hotline number1-800-FOR-MERCedes (1-800-367-6372)or Cus‐tomer Service (Canada) at 1-800-387-0100.
Operating safety
\nWARNINGRisk of accident duetomal‐functions or systemfailures
Ifyou do not havethe prescribed service/maintenanceworkor anyrequiredrepairscarried out,this couldresult in malfunctionsor systemfailures.
Always havethe prescribed service/maintenanceworkaswell anyrequiredrepairs carried out at aqualified spe‐cialistworkshop.
\nWARNINGRisk of accident or injuryduetoincorrect modifications on electroniccomponent parts
Modification of electronic components,theirsoftware or wiring could impairtheir function
and/orthe function ofother networked com‐ponent parts. In particular, systemsrelevanttosafety could also be affected.
As aresult,these may no longer functionproperlyand/or jeopardizethe operatingsafety ofthevehicle.
Nevertamper withthe wiring and elec‐tronic component parts ortheir soft‐ware.
You should haveallworkon electricaland electronic components carried outat aqualified specialistworkshop.
Observethe "On-board electronics" section in"Technical data".
\nWARNINGRisk offireduetoflammablematerials on hot parts oftheexhaustsystem
Flammable material such as leaves, grass ortwigs may ignite iftheycome into contactwithhot parts oftheexhaust system.
When driving on unpavedroads or off-road,regularlycheckthevehicle under‐side.
Removetrapped plants orotherflam‐mable material.
Ifthere is damage, consult aqualifiedspecialistworkshop immediately.
NOTEDamagetothevehicle
Inthefollowing situations, in particular,thereis arisk of damagetothevehicle:
RThevehicle becomes grounded, e.g. on ahigh curb or an unpavedroad
RThevehicle is driventoofastover anobstacle, e.g. a curb, speed bumpor pot‐hole
RA heavy objectstrikesthe underbody orchassis components
In situations such asthis,the body,theunderbody,chassis components, wheels ortires could be damaged withoutthe damagebeing visible. Components damaged inthis
24General notes

\nWARNINGRisk of accident duetoobjects inthe driver'sfootwell
Objects inthe driver'sfootwell may impedepedal travel or block a depressed pedal.
This jeopardizesthe operating androadsafety ofthevehicle.
Stowall objects inthevehicle securelysothattheycannotgetintothe driver'sfootwell.
Always installthefloor mats securelyand as prescribed in ordertoensurethatthere is always sufficientroomforthe pedals.
Do not use loosefloor mats and do notplacefloor mats ontop of one another.
NOTEBattery discharging from usingdevices connectedtothe diagnosticsconnection
Using devices atthe diagnostics connectiondrainsthe battery.
Checkthechargelevel ofthe battery.
Ifthechargelevel is low,chargethebattery,e.g.bydriving a considerabledistance.
Connecting equipmenttothe diagnostics con‐nection can leadtoemissions monitoring infor‐mation beingreset,forexample. This may leadtothevehiclefailingtomeettherequirements ofthe next emissions inspection duringthe maininspection.
Qualified specialistworkshop
An authorized Mercedes-Benz Center is aquali‐fied specialistworkshop. It hasthe necessaryspecial skills,tools andqualificationstocor‐rectly carryouttheworkrequired onyourvehi‐cle. This particularlyappliestosafety-relevantworks.
Forthefollowing, always haveyourvehiclechecked at an authorized Mercedes-Benz Cen‐ter:
Rsafety-relevantworks
Rservice and maintenancework
Rrepairwork
Rmodifications aswell as installations andconversions
Rworkon electronic components
Mercedes‑Benzrecommends a Mercedes‑Benzservice center.
Correct use ofthevehicle
Ifyouremoveanywarningstickers,you orotherscouldfailtorecognize certain dangers. Leavewarningstickersin position.
Observethefollowing information in particularwhen drivingyourvehicle:
Rthe safety notes inthis manual
Rtechnical dataforthevehicle
Rtrafficrules andregulations
Rlawsand safetystandards pertainingtomotorvehicles
26General notes

QR codeforrescue card
The QR code is secured inthe fuelfillerflap andonthe opposite side onthe B-pillar. Intheeventof an accident,rescue services can usethe QRcodetoquicklyfindthe appropriaterescue cardforyourvehicle. The currentrescue card con‐tainsthe most important information aboutyourvehicle in a compactform, e.g.therouting oftheelectric lines.
Further information can be obtained at http://www.mercedes-benz.de/qr-code.
Datastorage
Electronic control units
Electronic control units are installed inyourvehi‐cle. Some ofthese are necessaryforthe safeoperation ofyourvehicle, while some assistyouwhen driving (driver assistance systems). Inaddition,yourvehicle provides comfortandentertainment functions, which are also madepossiblebyelectronic control units.
Electronic control units contain datamemorieswhichcantemporarily or permanentlystore
technical information aboutthevehicle's operat‐ingstate, component loads, maintenancerequirements andtechnicalevents or malfunc‐tions.
Ingeneral,this information documentsthestateof a component part, a module, a system orthesurroundings such as:
Roperatingstatus of system components (e.g.fill levels, batterystatus, tire pressure)
Rstatus messages concerningthevehicle orits individual components (e.g. number ofwheelrevolutions/speed, longitudinal accel‐eration, lateral acceleration, display offas‐tened seat belts)
Rmalfunctions orfaults in important systemcomponents (e.g. lights, brakes)
Rinformation onevents leadingtovehicledamage
Rsystemreactions in special driving situations(e.g. airbag deployment, intervention ofsta‐bility control systems)
Rambient conditions (e.g.temperature,rainsensor)
In additiontoprovidingthe actual control unitfunction,this data assiststhe manufacturer indetecting andrectifying malfunctions and opti‐mizingvehicle functions. The majority ofthisdata istemporary and is only processed inthevehicle itself. Only a small portion ofthe data isstored intheevent or malfunction memory.
Whenyourvehicle is serviced,technical datafromthevehicle can beread outbyservice net‐workemployees (e.g.workshops, manufactur‐ers) orthird parties (e.g. breakdown services).Services includerepair services, maintenanceprocesses,warranty claims andquality assur‐ance measures,forexample. Theread out is per‐formed viathe legally prescribed portforthediagnostics connection inthevehicle. Therespective service network locations orthirdparties collect, process and usethe data. Theydocumenttechnicalstatuses ofthevehicle,assist infinding malfunctions and improvingquality and are transmittedtothe manufacturer,if necessary.Furthermore,the manufacturer issubjecttoproduct liability.Forthis,the manu‐facturerrequirestechnical datafromvehicles.
28General notes

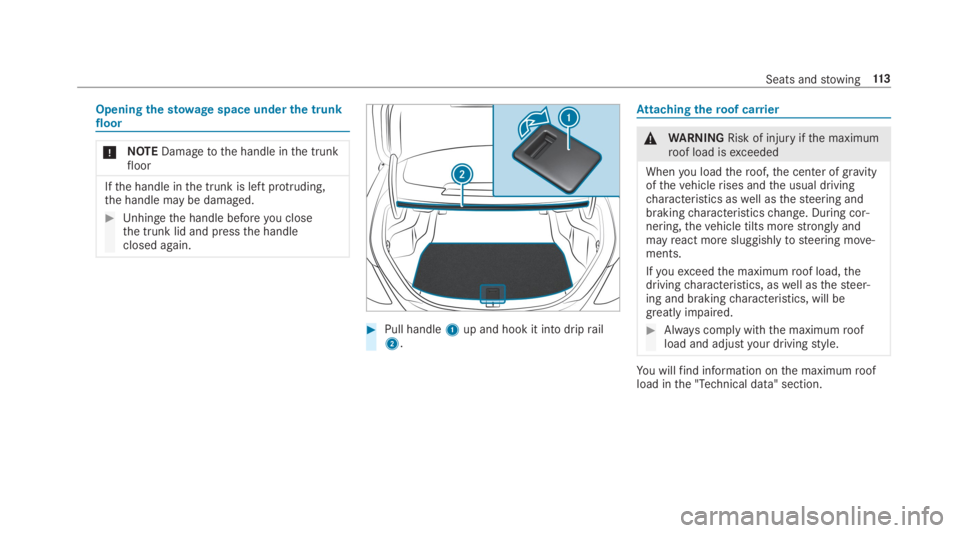

Openingthestowagespace underthe trunkfloor
NOTEDamagetothe handle inthe trunkfloor
Ifthe handle inthe trunk is left protruding,the handle may be damaged.
Unhingethe handle beforeyou closethe trunk lid and pressthe handleclosed again.
Pull handle1up and hook it into driprail2.
Attachingtheroof carrier
\nWARNINGRisk of injuryifthe maximumroof load isexceeded
Whenyou loadtheroof,the center of gravityofthevehiclerises andthe usual drivingcharacteristics aswell asthesteering andbrakingcharacteristicschange. During cor‐nering,thevehicle tilts morestrongly andmayreact more sluggishlytosteering move‐ments.
Ifyouexceedthe maximumroof load,thedrivingcharacteristics, aswell asthesteer‐ing and brakingcharacteristics, will begreatlyimpaired.
Always comply withthe maximumroofload and adjustyour drivingstyle.
You willfind information onthe maximumroofload inthe "Technical data" section.
Seats andstowing11 3

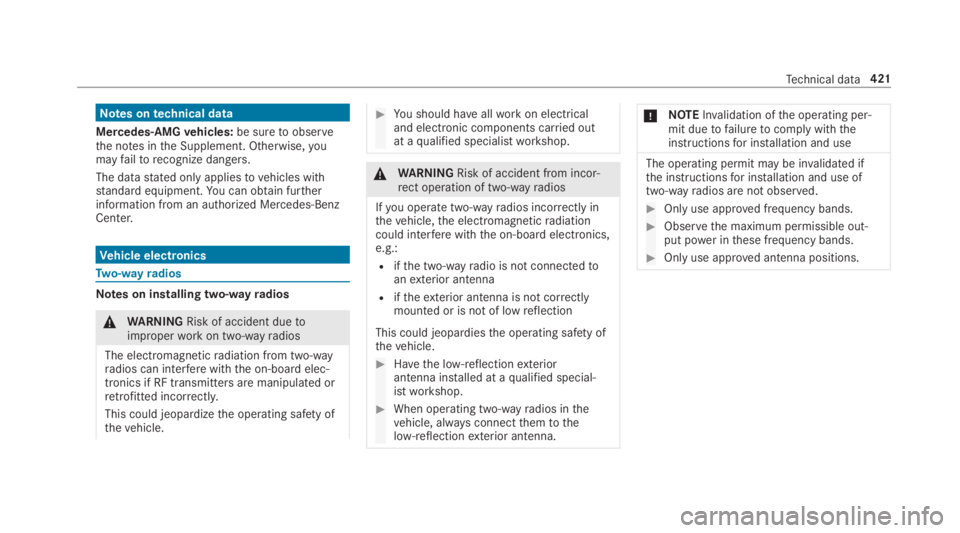

Notes ontechnical data
Mercedes-AMGvehicles:be suretoobservethe notes inthe Supplement. Otherwise,youmayfailtorecognize dangers.
The datastated onlyappliestovehicles withstandard equipment.You can obtain furtherinformation from an authorized Mercedes-BenzCenter.
Vehicle electronics
Two-wayradios
Notes on installing two-wayradios
\nWARNINGRisk of accident duetoimproperworkon two-wayradios
The electromagneticradiation from two-wayradios can interferewiththe on-board elec‐tronics if RF transmittersare manipulated orretrofitted incorrectly.
This could jeopardizethe operating safety ofthevehicle.
You should haveallworkon electricaland electronic components carried outat aqualified specialistworkshop.
\nWARNINGRisk of accident from incor‐rect operation of two-wayradios
Ifyou operate two-wayradios incorrectly inthevehicle,the electromagneticradiationcould interferewiththe on-board electronics,e.g.:
Rifthe two-wayradio is not connectedtoanexterior antenna
Riftheexterior antenna is not correctlymounted or is not of lowreflection
This could jeopardiesthe operating safety ofthevehicle.
Havethe low-reflectionexteriorantenna installed at aqualified special‐istworkshop.
When operating two-wayradios inthevehicle, always connectthemtothelow-reflectionexterior antenna.
NOTEInvalidation ofthe operating per‐mit duetofailuretocomply with theinstructionsfor installation and use
The operating permit may be invalidated ifthe instructionsfor installation and use oftwo-wayradios are not observed.
Only use approved frequency bands.
Observethe maximum permissible out‐put power inthese frequency bands.
Only use approved antenna positions.
Technical data421

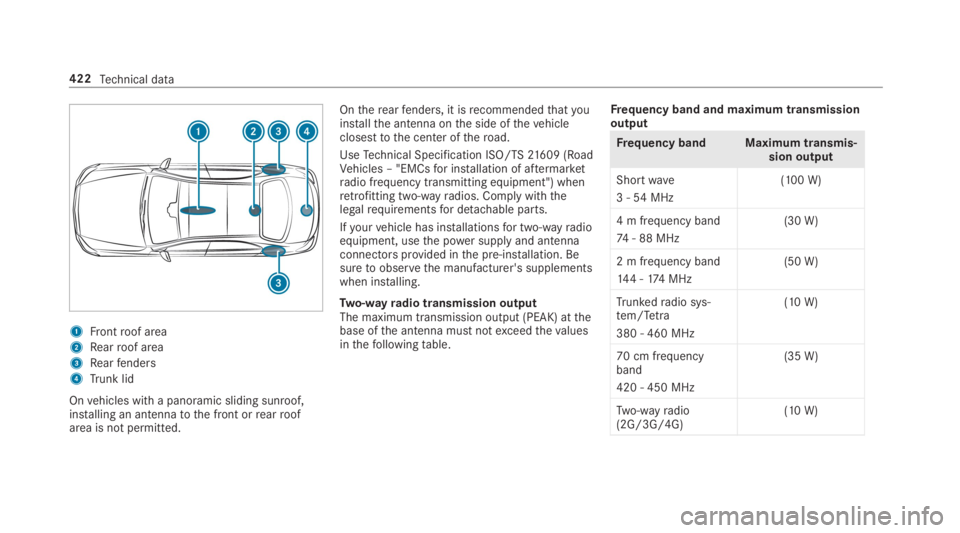

1Frontroof area
2Rearroof area
3Rearfenders
4Trunk lid
Onvehicles with a panoramic sliding sunroof,installing an antennatothe front orrearroofarea is not permitted.
Ontherearfenders, it isrecommendedthatyouinstallthe antenna onthe side ofthevehicleclosesttothe center oftheroad.
UseTechnical Specification ISO/TS21609 (RoadVehicles – "EMCsfor installation of aftermarketradio frequency transmitting equipment") whenretrofitting two-wayradios. Comply withthelegalrequirementsfor detachable parts.
Ifyourvehicle has installationsfor two-wayradioequipment, usethe power supplyand antennaconnectorsprovided inthe pre-installation. Besuretoobservethe manufacturer's supplementswhen installing.
Two-wayradio transmission outputThe maximum transmission output (PEAK) atthebase ofthe antenna must notexceedthevaluesinthefollowingtable.
Frequency band and maximum transmissionoutput
Frequency band Maximum transmis‐sion output
Shortwave
3 -54MHz
(100 W)
4 m frequency band
74- 88 MHz
(30 W)
2 m frequency band
144 -174 MHz
(50 W)
Trunkedradio sys‐tem/Tetra
380 - 460 MHz
(10 W)
70 cm frequencyband
420 - 450 MHz
(35 W)
Two-wayradio(2G/3G/4G)(10 W)
422Technical data

Thefollowing devices can be used inthevehiclewithoutrestrictions:
RTwo-wayradios with a maximum transmis‐sion output of upto100 mW
RTwo-wayradios with transmitter frequenciesinthe 380 -410 MHz frequency band and amaximum transmission output of upto2 W(trunkedradio system/Tetra)
RMobile phones (2G/3G/4G)
There are norestrictions when positioningtheantenna onthe outside ofthevehicleforthefol‐lowing frequency bands:
RTrunkedradio system/Tetra
R70 cm frequency band
R2G/3G/4G
Vehicle identification plate, VIN and enginenumberoverview
Vehicle identification plate
Vehicle identification plate (USA only)
1Permissiblegrossweight
2Permissible front axle load
3Permissiblerear axle load
4Paint code
5VIN (vehicle identification number)
Technical data423

Vehicle identification plate (Canada only)
1Permissiblegrossweight
2Permissible front axle load
3Permissiblerear axle load
4Paint code
5VIN (vehicle identification number)
The permissible grossvehicleweight is made upofthevehicleweight, allvehicle occupants,thefuel andthe load. The maximum gross axleweightrating isthe maximumweightthat can becarried on one axle (front orrear axle).
Neverexceedthe permissible grossvehicleweight orthe maximum gross axleweightratingforthe front orrear axle.
VIN in front oftheright-hand front seat
1Imprinted VIN (vehicle identification number)
2Floor covering
Additional plates
1Engine numberstamped intothe crankcase
2Plate with information about emissionstest‐ing, including confirmation of emissionsguidelines attheU.S.federal level aswell asfor California
3VIN (vehicle identification number) as a labelatthe lower edge ofthe windshield
424Technical data

Operatingfluids
Notes on operatingfluids
Mercedes-AMGvehicles:be suretoobservethe information inthe Supplement. Otherwise,you mayfailtorecognize dangers.
\nWARNINGRisk of injuryfrom operatingfluids harmfulto your health
Operatingfluids may be poisonous and harm‐fulto your health.
Observethetext onthe original con‐tainers when using,storing or disposingof operatingfluids.
Alwaysstore operatingfluids sealed intheir original containers.
Alwayskeepchildrenawayfrom operat‐ingfluids.
ENVIRONMENTALNOTEEnvironmentalpollution causedbyenvironmentally irre‐sponsible disposal
Dispose of operatingfluids in an envi‐ronmentallyresponsible manner.
Operatingfluids includethefollowing:
RFuels
RLubricants
RCoolant
RBrakefluid
RWindshieldwasherfluid
RClimate control systemrefrigerant
Only use products approvedbyMercedes-Benz.Damage causedbythe use of productsthat havenot been approved is not coveredbytheMercedes-Benzwarranty or goodwillgestures.
You can identify operatingfluids approvedbyMercedes-Benzbythefollowing inscriptions onthe container:
RMB-Freigabe (e.g. MB-Freigabe 229.51 )
RMB-Approval (e.g. MB-Approval 229.51)
Further information on approved operatingfluidsisavailable atthefollowing locations:
Rinthe Mercedes-Benz SpecificationsforOperating Fluidsbyenteringthe designation
-at http://bevo.mercedes-benz.com
-inthe Mercedes-Benz BeVo App
Rat aqualified specialistworkshop
\nWARNINGRisk offireorexplosion fromfuel
Fuels are highlyflammable.
Fire, openflames, smoking and creationof sparksmust beavoided.
Switchoffthe ignition and, ifavailable,thestationary heater, before and whilerefuelingthevehicle.
\nWARNINGRisk of injuryfrom fuels
Fuels are poisonous and hazardousto yourhealth.
Technical data425
