MERCEDES-BENZ C CLASS COUPE 2003 Owners Manual

121
Controls in detail
Control system
To select delayed shut-off period:
Move the selection marker with
the
æ
or
ç
button to the
LIGHT-
ING
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
HEADLAMPS DELAYED SHUT-OFF
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the de-
sired lamp-on period.
You can select:


0 s
, the delayed shut-off feature is
deactivated


15 s
, 30 s
, 45 s
or
60 s
, the delayed
shut-off feature is activated You can temporarily deactivate the de-
layed shut-off feature:

Before leaving the vehicle turn the key
in the starter switch to position
0.

Then turn it to position 2 and back
to 0.
The delayed shut-off feature is deacti-
vated. It will reactivate as soon as you
reinsert the key in the starter switch.
Interior lighting delayed shut-off
Use this function to set whether and for
how long you would like the interior light-
ing to remain lit during darkness after the
key is removed from the starter switch.

Move the selection marker with
the
æ
or
ç
button to the
LIGHT-
ING
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
INT. LIGHTING DELAYED SHUT-
OFF. The selection marker is on the current
setting.

Press
æ
or
ç
to select the de-
sired lamp-on time period. You can se-
lect:


0 s
, the delayed shut-off feature is
deactivated


5 s,
10 s
, 15 s
or
20 s
, the delayed
shut-off feature is activated

122 Controls in detailControl systemVehicle submenu
Access the
VEHICLE
submenu via the
SET-
TINGS
menu. Use the
VEHICLE
submenu to
make general vehicle settings. The follow-
ing functions are available:
Setting station selection mode
Use the
PRESS BUTTON IN AUDIO MODE
function to select the manual or memory
station selection mode for the radio
(page 111).

Move the selection marker with
the
æ
or
ç
button to the
VEHI-
CLE
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
PRESS BUTTON IN AUDIO MODE
. The selection marker is on the current
setting.

Press
æ
or
ç
to select the de-
sired station selection mode. You can
select:


STATION SEARCH


MEMORY
selects next stored station
Setting automatic locking
Use this function to activate or deactivate
the automatic central locking. With the au-
tomatic central locking system activated,
the vehicle is centrally locked at vehicle
speeds of approximately 9 mph
(15 km/h).

Move the selection marker with
the
æ
or
ç
button to the Vehicle
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
AUTOMATIC DOOR LOCK
.
The selection marker is on the current
setting.

Press
æ
or
ç
to switch
AUTOMAT-
IC DOOR LOCK
ON or
OFF
.
Function
Page
Set station selection mode
(radio)
see be-
low
Set automatic locking
see
below

123
Controls in detail
Control system
Convenience submenu
Access the
CONVENIENCE
submenu via the
SETTINGS
menu. Use the
CONVENIENCE
sub-
menu to change the settings for a number
of convenience features. The following
functions are available:
Activating easy-entry/exit feature
Use this function to activate and deacti-
vate the easy-entry/exit feature. When the
feature is activated, the steering wheel and
driver’s seat will move back to facilitate ex-
iting when you


remove the key from the starter switch


open the driver’s door
However, the engine must be turned off. After entering the vehicle, the steering
wheel and seat will move into the position
stored in memory when


the driver’s door is closed


you put the key in the starter switch
and


press the appropriate stored position
button on the memory switch
(page 94)

Move the selection marker with
the
æ
or
ç
button to the
CONVE-
NIENCE
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
EASY-ENTRY FEATURE ACTIVATE
.
The selection marker is on the current
setting.

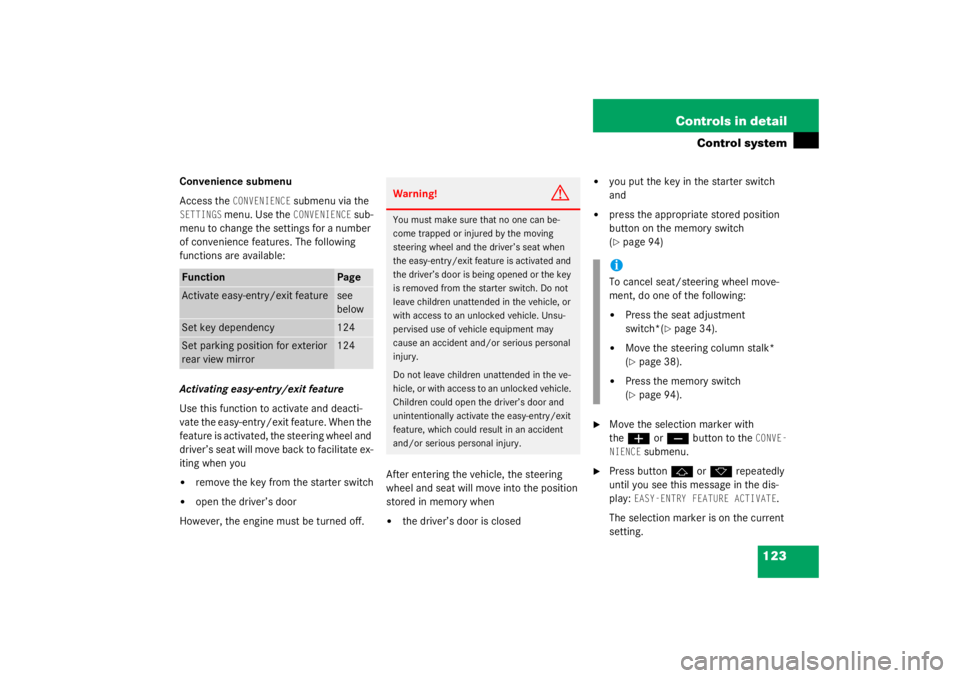

Function
Page
Activate easy-entry/exit feature
see
below
Set key dependency
124
Set parking position for exterior
rear view mirror
124
Warning!
G
You must make sure that no one can be-
come trapped or injured by the moving
steering wheel and the driver’s seat when
the easy-entry/exit feature is activated and
the driver’s door is being opened or the key
is removed from the starter switch. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/ or serious personal
injury.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.
iTo cancel seat/steering wheel move-
ment, do one of the following:

Press the seat adjustment
switch*(
page 34).


Move the steering column stalk*
(page 38).


Press the memory switch
(page 94).

124 Controls in detailControl system

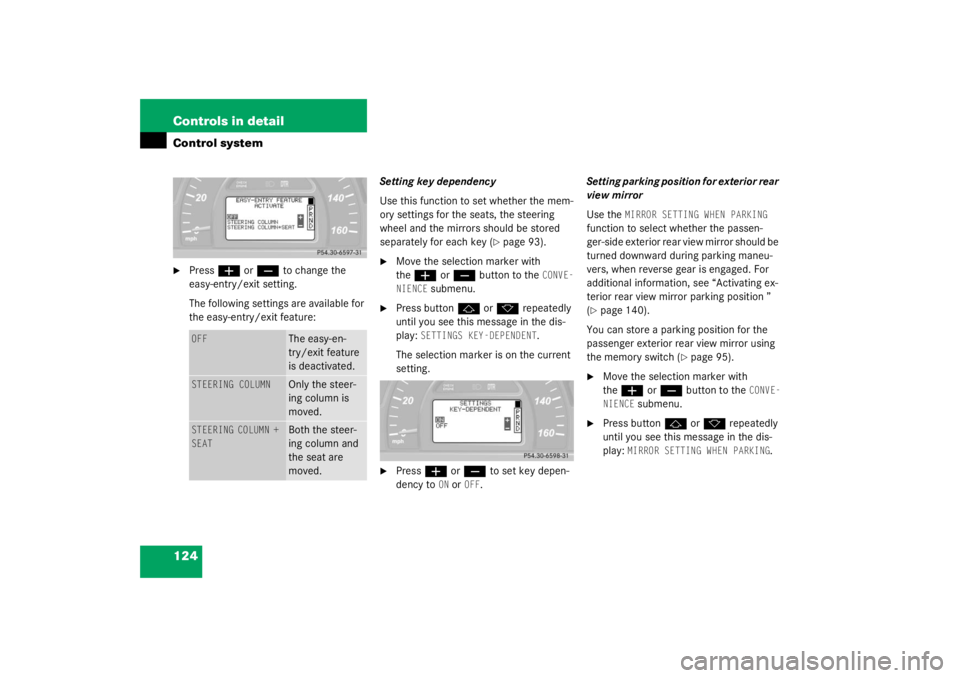

Press
æ
or
ç
to change the
easy-entry/exit setting.
The following settings are available for
the easy-entry/exit feature: Setting key dependency
Use this function to set whether the mem-
ory settings for the seats, the steering
wheel and the mirrors should be stored
separately for each key (
page 93).

Move the selection marker with
the
æ
or
ç
button to the
CONVE-
NIENCE
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
SETTINGS KEY-DEPENDENT
.
The selection marker is on the current
setting.

Press
æ
or
ç
to set key depen-
dency to
ON or
OFF
. Setting parking position for exterior rear
view mirror
Use the
MIRROR SETTING WHEN PARKING

function to select whether the passen-
ger-side exterior rear view mirror should be
turned downward during parking maneu-
vers, when reverse gear is engaged. For
additional information, see “Activating ex-
terior rear view mirror parking position ”
(
page 140).
You can store a parking position for the
passenger exterior rear view mirror using
the memory switch (
page 95).

Move the selection marker with
the
æ
or
ç
button to the
CONVE-
NIENCE
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:

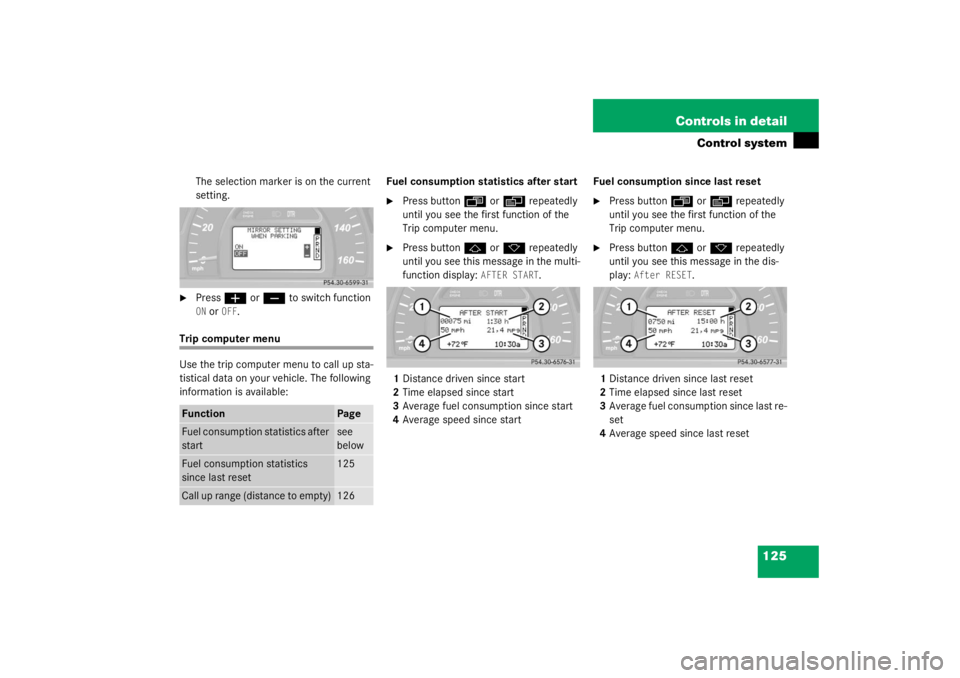

MIRROR SETTING WHEN PARKING
.
OFF
The easy-en-
try/exit feature
is deactivated.
STEERING COLUMN
Only the steer-
ing column is
moved.
STEERING COLUMN +
SEAT
Both the steer-
ing column and
the seat are
moved.

125
Controls in detail
Control system
The selection marker is on the current
setting.

Press
æ
or
ç
to switch function
ON or
OFF
.
Trip computer menu
Use the trip computer menu to call up sta-
tistical data on your vehicle. The following
information is available:
Fuel consumption statistics after start

Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see this message in the multi-
function display:
AFTER START
.
1 Distance driven since start
2 Time elapsed since start
3 Average fuel consumption since start
4 Average speed since start Fuel consumption since last reset

Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
After RESET
.
1 Distance driven since last reset
2 Time elapsed since last reset
3 Average fuel consumption since last re-
set
4 Average speed since last reset
Function
Page
Fuel consumption statistics after
start
see
below
Fuel consumption statistics
since last reset
125
Call up range (distance to empty)
126

126 Controls in detailControl systemResetting fuel consumption statistics
Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see the reading that you want
to reset in the display.

Press and hold the reset knob in the in-
strument cluster (
page 22) until the
value is reset to
0. Call up range (distance to empty)

Press button
ÿ
or
è
repeatedly
until you see the firs t function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
RANGE
.
In the display you will see the calculat-
ed range based on the current fuel tank
level.
TEL menu*
iAll statistics stored since the last en-
gine start will be reset approximately
four hours after the key in the starter
switch is turned to position 0 or re-
moved from the starter switch.
Resetting will not occur if you turn the
key back to position 1 or 2 within this
time period.
Warning!
G
A driver’s attention to the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we rec-
o m m e n d t h a t y o u p u l l o v e r t o a s a f e l o c a t i o n
and stop before placing or taking a tele-
phone call. If you choose to use the tele-
phone while driving, please use the
hands-free device and only use the tele-
phone when weather, road and traffic condi-
tions permit.
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a ve-
hicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of approximately
44 feet (approximately 13.5 m) every sec-
ond.

127
Controls in detail
Control system
You can use the functions in the
TEL
menu
to operate your telephone, provided it is
connected to a hands-free system and
switched on.

Switch on the telephone and
COMAND*.

Press button
ÿ
or
è
on the
steering wheel repeatedly until you see
the
TEL
menu in the display. Which messages will appear in the display
field depends on whether your telephone is
switched on or off:


If the telephone is off, the message in
the multifunction display is:
TEL OFF
.


If the telephone is on:
The telephone will then search for a
network. During this time the display is
empty.
As soon as the telephone has found a
network,
READY
is indicated in the dis-
play.
1 Signal strength This standby message indicates that your
telephone is ready for use and you can op-
erate it using the control system.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or
personal injury.
iVehicles with audio system:
In top right corner; the higher the num-
ber, the stronger the signal received
from the net.
Vehicles with COMAND:
In top left corner;
the higher the num-
ber of bars, the stronger the signal re-
ceived from the net.

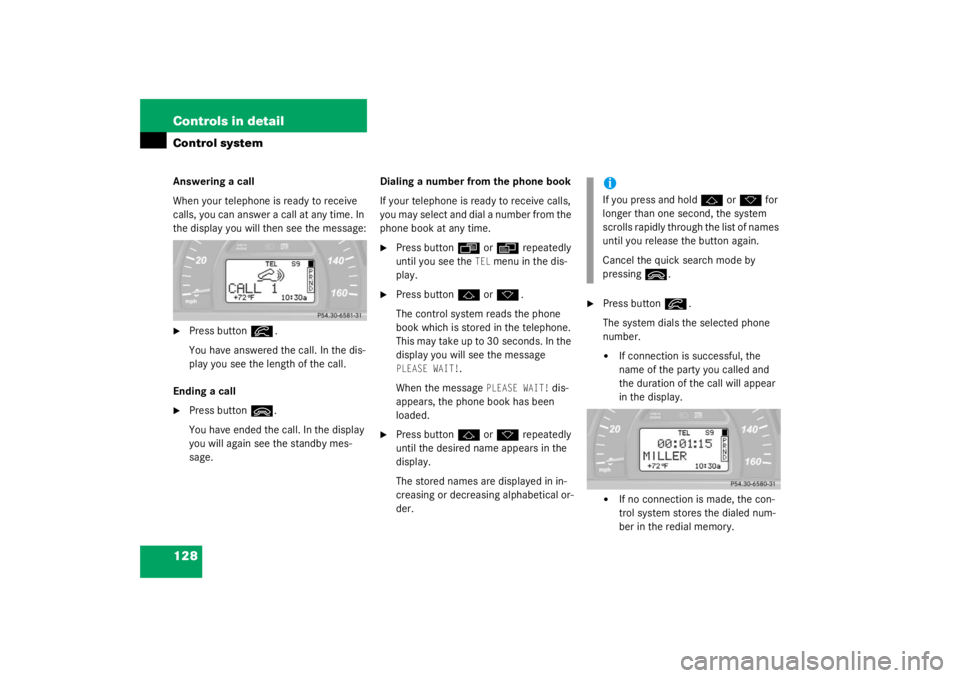

128 Controls in detailControl systemAnswering a call
When your telephone is ready to receive
calls, you can answer a call at any time. In
the display you will then see the message:
Press button
í
.
You have answered the call. In the dis-
play you see the length of the call.
Ending a call

Press button
ì
.
You have ended the call. In the display
you will again see the standby mes-
sage. Dialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.

Press button
ÿ
or
è
repeatedly
until you see the
TEL
menu in the dis-
play.

Press button
j
or
k
.
The control system reads the phone
book which is stored in the telephone.
This may take up to 30 seconds. In the
display you will see the message
PLEASE WAIT!
.
When the message
PLEASE WAIT!
dis-
appears, the phone book has been
loaded.

Press button
j
or
k
repeatedly
until the desired name appears in the
display.
The stored names are displayed in in-
creasing or decreasing alphabetical or-
der.

Press button
í
.
The system dials the selected phone
number.


If connection is successful, the
name of the party you called and
the duration of the call will appear
in the display.


If no connection is made, the con-
trol system stores the dialed num-
ber in the redial memory.
iIf you press and hold
j
or
k
for
longer than one second, the system
scrolls rapidly through the list of names
until you release the button again.
Cancel the quick search mode by
pressing
ì
.

129
Controls in detail
Control system
Redialing
The control system stores the most recent-
ly dialed phone numbers. This eliminates
the need to search through your entire
phone book.
Press button
ÿ
or
è
repeatedly
until you see the
TEL
menu in the dis-
play.

Press button
í
.
In the display you see the first number
in the redial memory.

Press button
j
or
k
repeatedly
until the desired name appears in the
display.

Press button
í
.
The control system dials the selected
phone number.

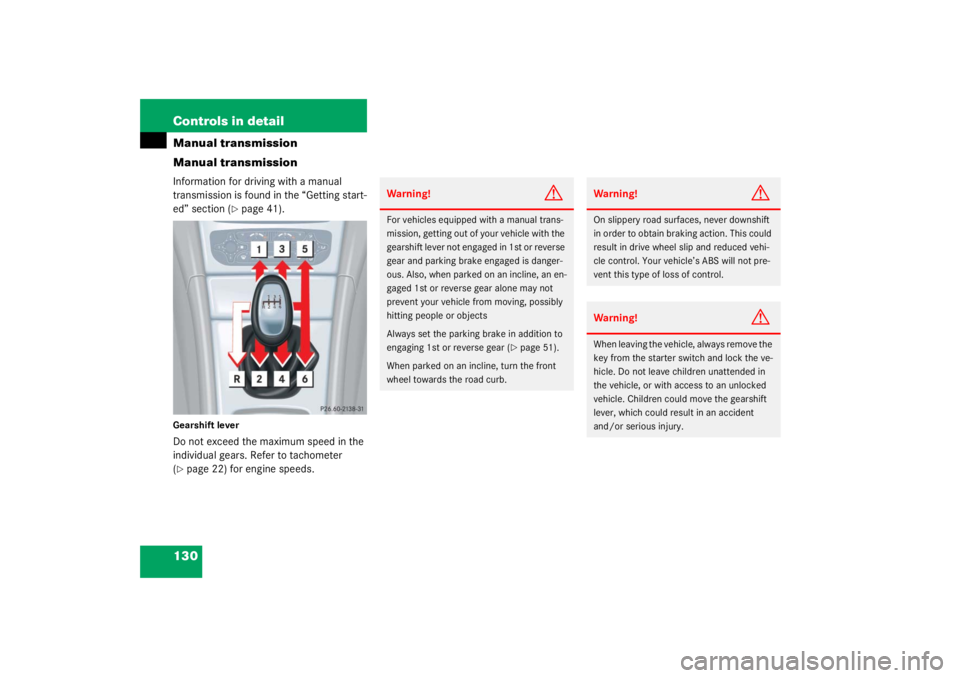

130 Controls in detailManual transmission
Manual transmissionInformation for driving with a manual
transmission is found in the “Getting start-
ed” section (
page 41).
Gearshift leverDo not exceed the maximum speed in the
individual gears. Refer to tachometer
(page 22) for engine speeds.
Warning!
G
For vehicles equipped with a manual trans-
mission, getting out of your vehicle with the
gearshift lever not engaged in 1st or reverse
gear and parking brake engaged is danger-
ous. Also, when parked on an incline, an en-
gaged 1st or reverse gear alone may not
prevent your vehicle from moving, possibly
hitting people or objects
Always set the parking brake in addition to
engaging 1st or reverse gear (
page 51).
When parked on an incline, turn the front
wheel towards the road curb.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.Warning!
G
When leaving the vehicle, always remove the
key from the starter switch and lock the ve-
hicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Children could move the gearshift
lever, which could result in an accident
and/or serious injury.
