MERCEDES-BENZ C CLASS COUPE 2005 Owners Manual

130 Controls in detailControl systemSelect radio station
Turn on the radio (
page 198).
Vehicles with COMAND*:
Refer to separate operating
instructions.

Press button è orÿ repeatedly
until the currently tuned station
appears in the multifunction display.
1 Waveband setting
2 Station frequency

Press button k orj repeatedly
until the desired station is found. Select satellite radio station*
(USA only)
The satellite radio is treated as a radio
application.

Select satellite radio with the
corresponding soft key (SAT) in the
radio menu.
1 SAT mode and preset number
2 Channel name or number

Press button k orj repeatedly
until the desired channel is found.
iYou can only store new stations using
the corresponding feature on the radio
(page 206).
Vehicles with COMAND*:
Refer to separate operating
instructions.
You can also operate the radio in the
usual manner.

131
Controls in detail
Control system
Operate the CD player
Turn on the radio and select the
CD player (
page 213).
Vehicles with COMAND*:
Refer to separate operating
instructions.

Press button è orÿ repeatedly
until the settings for the CD currently
being played appear in the
multifunction display. 1
Current CD (for CD changer*)
2 Current track

Press button k orj repeatedly
until the desired track is selected.
NAV* menu
The
NAV
menu contains the functions
needed to operate your navigation system.

Press button è orÿ repeatedly
until the message
NAV
appears in the
multifunction display.


If the navigation system is switched off,
the message
NAV OFF
appears in the
multifunction display.


If the navigation system is on, different
messages, depending on the current
state of the navigation system, appear
in the multifunction display.
Please refer to the COMAND* manual for
instructions on how to activate the route
guidance system*.
iFor more information on satellite radio
operation, see “Introduction to satellite
radio* (USA only)” (
page 208).
Vehicles with COMAND*:
Refer to separate operating
instructions.
iTo select a CD from the magazine,
press a number on the audio system or
the COMAND* system key pad located
in the center dashboard.

132 Controls in detailControl systemVehicle status message memory menu
Use the vehicle status message memory
menu to scan malfunction and warning
messages that may be stored in the sys-
tem. Such messages appear in the
multifunction display and are based on
conditions or system status the vehicle’s
system has recorded.

Press buttonè orÿ repeatedly
until the vehicle status message
memory appears in the multifunction
display. No vehicle status messages
If no conditions are recorded in memory,
the message in the multifunction display
is:
No message
Vehicle status messages have been
recorded
If conditions have occurred causing status
messages to be recorded, the number of
messages appears in the multifunction
display:
1 Number of messages
Warning!
G
Malfunction and warning messages are only
indicated for certain systems and are inten-
tionally not very detailed. The malfunction
and warning messages are simply a remind-
er with respect to the operation of certain
systems and do not replace the owner’s
and/or driver’s responsibility to maintain
the vehicle’s operating safety by having all
required maintenance and safety checks
performed on the vehicle and by bringing
the vehicle to an authorized Mercedes-Benz
Center to address the malfunction and
warning messages (
page 347).

133
Controls in detail
Control system

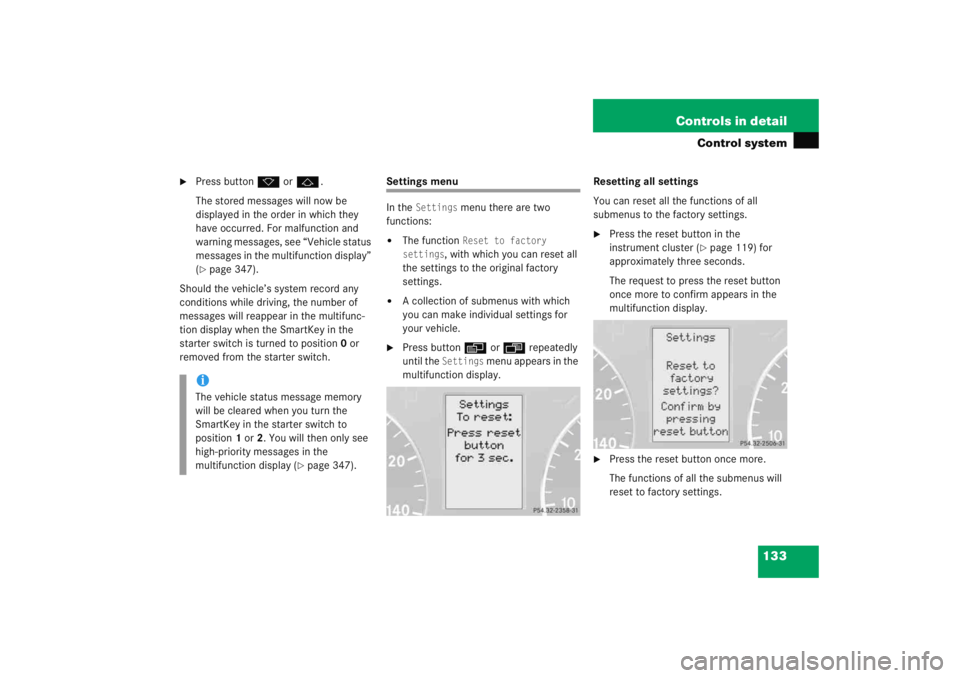

Press button
k orj .
The stored messages will now be
displayed in the order in which they
have occurred. For malfunction and
warning messages, see “Vehicle status
messages in the multifunction display”
(page 347).
Should the vehicle’s system record any
conditions while driving, the number of
messages will reappear in the multifunc-
tion display when the SmartKey in the
starter switch is turned to position 0 or
removed from the starter switch.
Settings menu
In the
Settings
menu there are two
functions:


The function
Reset to factory
settings
, with which you can reset all
the settings to the original factory
settings.


A collection of submenus with which
you can make individual settings for
your vehicle.

Press button è orÿ repeatedly
until the
Settings
menu appears in the
multifunction display. Resetting all settings
You can reset all the functions of all
submenus to the factory settings.

Press the reset button in the
instrument cluster (
page 119) for
approximately three seconds.
The request to press the reset button
once more to confirm appears in the
multifunction display.

Press the reset button once more.
The functions of all the submenus will
reset to factory settings.
iThe vehicle status message memory
will be cleared when you turn the
SmartKey in the starter switch to
position 1 or 2. You will then only see
high-priority messages in the
multifunction display (
page 347).

134 Controls in detailControl system

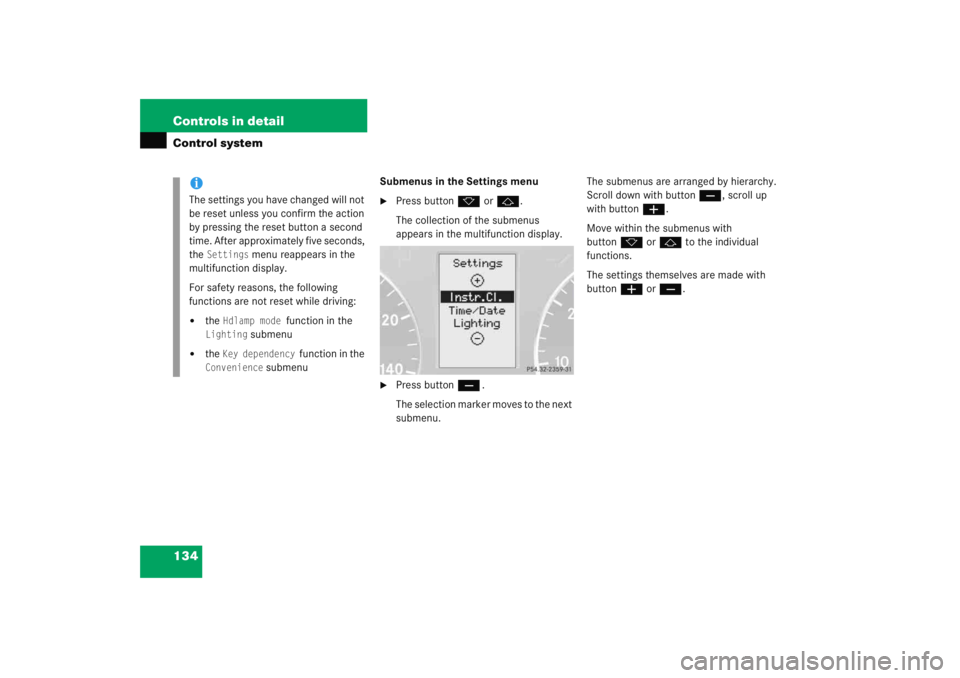

Submenus in the Settings menu
Press buttonk orj .
The collection of the submenus
appears in the multifunction display.

Press button ç.
The selection marker moves to the next
submenu. The submenus are arranged by hierarchy.
Scroll down with button
ç, scroll up
with button æ.
Move within the submenus with
button k orj to the individual
functions.
The settings themselves are made with
button æ orç .
iThe settings you have changed will not
be reset unless you confirm the action
by pressing the reset button a second
time. After approximately five seconds,
the
Settings
menu reappears in the
multifunction display.
For safety reasons, the following
functions are not reset while driving:


the
Hdlamp mode
function in the
Lighting
submenu


the
Key dependency
function in the
Convenience
submenu

135
Controls in detail
Control system

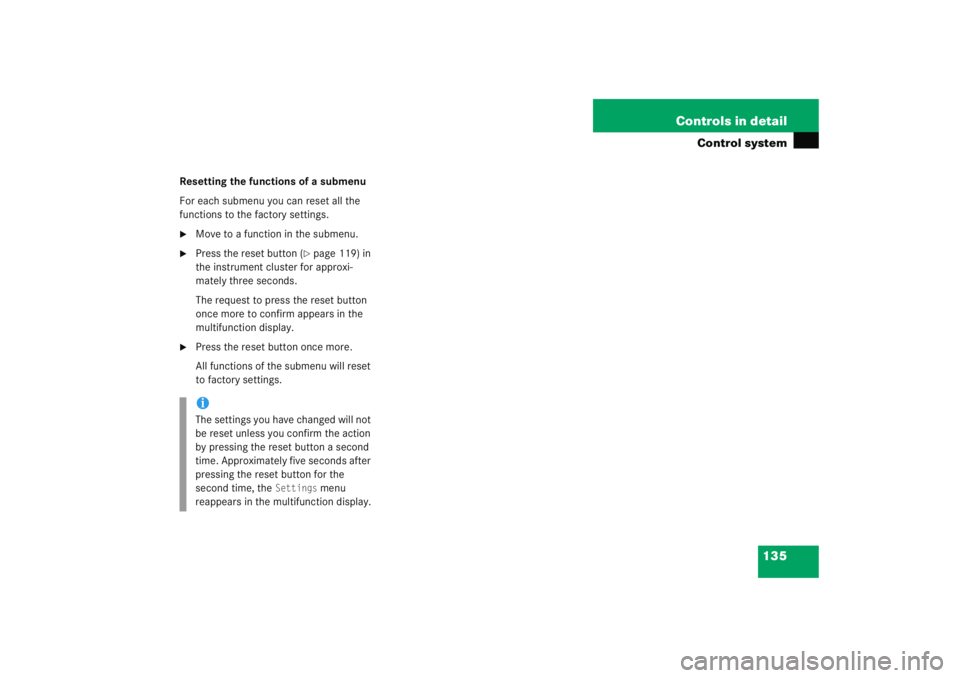

Resetting the functions of a submenu
For each submenu you can reset all the
functions to the factory settings.
Move to a function in the submenu.

Press the reset button (
page 119) in
the instrument cluster for approxi-
mately three seconds.
The request to press the reset button
once more to confirm appears in the
multifunction display.

Press the reset button once more.
All functions of the submenu will reset
to factory settings.iThe settings you have changed will not
be reset unless you confirm the action
by pressing the reset button a second
time. Approximately five seconds after
pressing the reset button for the
second time, the
Settings
menu
reappears in the multifunction display.

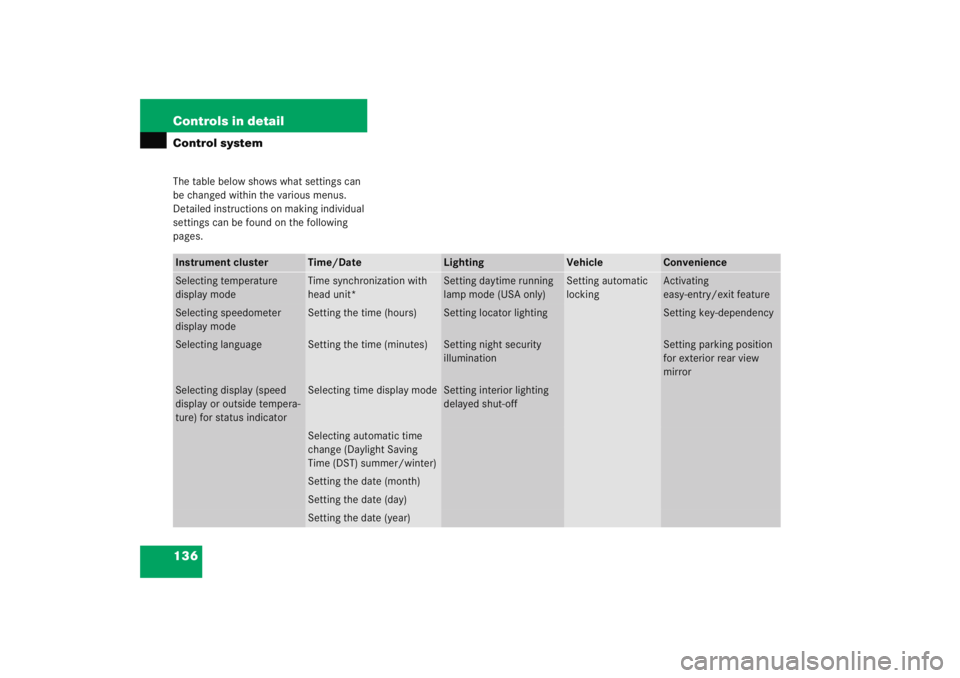

136 Controls in detailControl systemThe table below shows what settings can
be changed within the various menus.
Detailed instructions on making individual
settings can be found on the following
pages.Instrument cluster
Time/Date
Lighting
Vehicle
Convenience
Selecting temperature
display mode
Time synchronization with
head unit*
Setting daytime running
lamp mode (USA only)
Setting automatic
locking
Activating
easy-entry/exit feature
Selecting speedometer
display mode
Setting the time (hours)
Setting locator lighting
Setting key-dependency
Selecting language
Setting the time (minutes)
Setting night security
illumination
Setting parking position
for exterior rear view
mirror
Selecting display (speed
display or outside tempera-
ture) for status indicator
Selecting time display mode
Setting interior lighting
delayed shut-off
Selecting automatic time
change (Daylight Saving
Time (DST) summer/winter)Setting the date (month)Setting the date (day)Setting the date (year)

137
Controls in detail
Control system

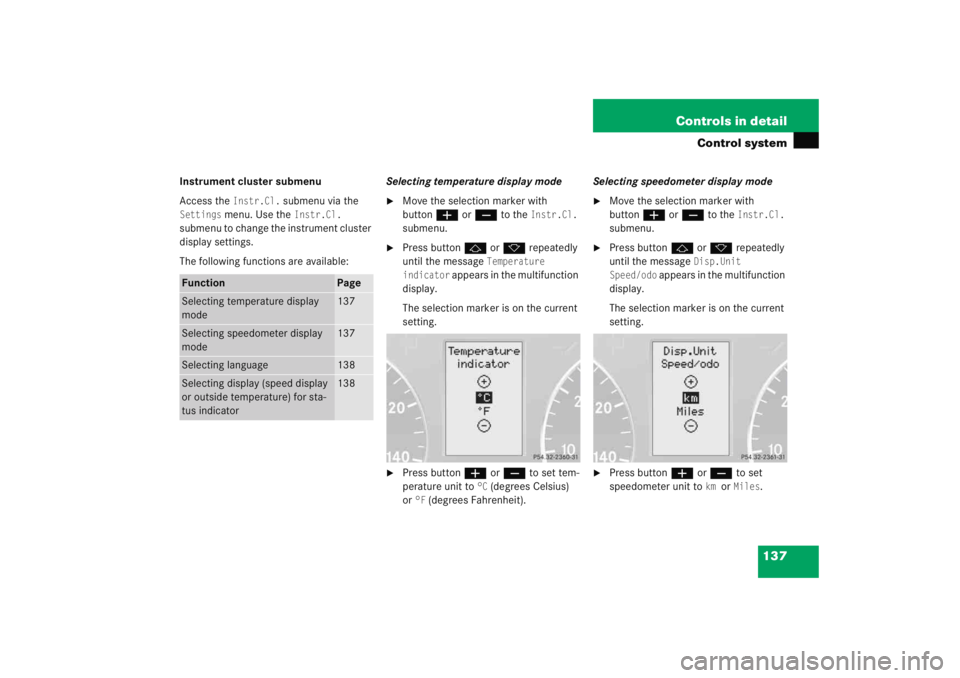

Instrument cluster submenu
Access the
Instr.Cl.
submenu via the
Settings
menu. Use the
Instr.Cl.

submenu to change the instrument cluster
display settings.
The following functions are available: Selecting temperature display mode

Move the selection marker with
button
æ orç to the
Instr.Cl.

submenu.

Press button j ork repeatedly
until the message
Temperature
indicator
appears in the multifunction
display.
The selection marker is on the current
setting.

Press button æ orç to set tem-
perature unit to
°C (degrees Celsius)
or
°F (degrees Fahrenheit). Selecting speedometer display mode

Move the selection marker with
button
æ orç to the
Instr.Cl.

submenu.

Press button j ork repeatedly
until the message
Disp.Unit
Speed/odo
appears in the multifunction
display.
The selection marker is on the current
setting.

Press button æ orç to set
speedometer unit to
km
or
Miles
.
Function
Page
Selecting temperature display
mode
137
Selecting speedometer display
mode
137
Selecting language
138
Selecting display (speed display
or outside temperature) for sta-
tus indicator
138

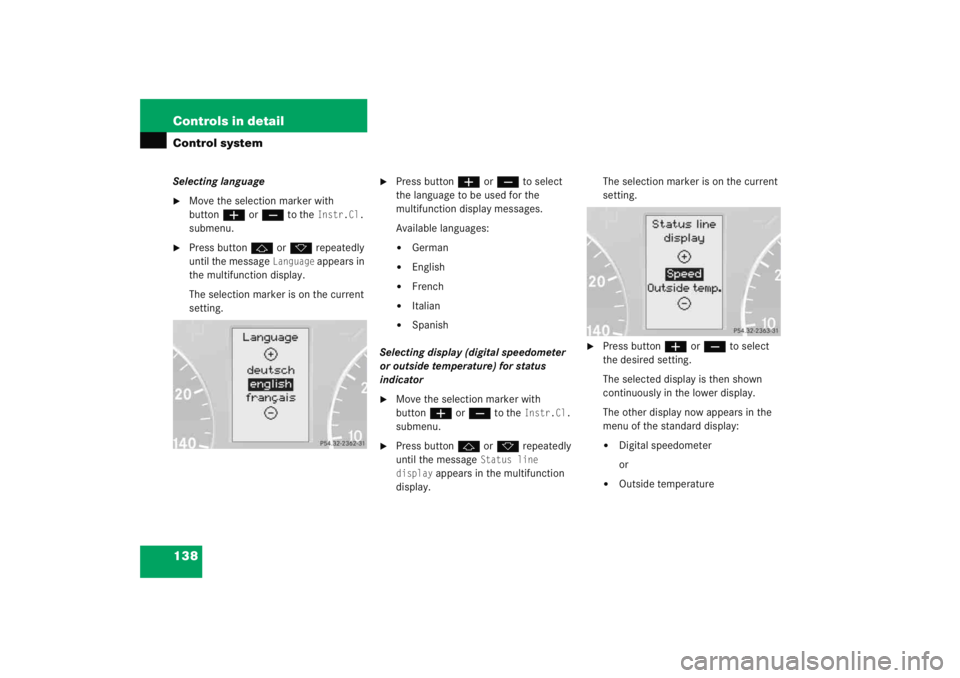

138 Controls in detailControl systemSelecting language
Move the selection marker with
buttonæ orç to the
Instr.Cl.

submenu.

Press button j ork repeatedly
until the message
Language
appears in
the multifunction display.
The selection marker is on the current
setting.

Press button æ orç to select
the language to be used for the
multifunction display messages.
Available languages:

German


English


French


Italian


Spanish
Selecting display (digital speedometer
or outside temperature) for status
indicator

Move the selection marker with
button æ orç to the
Instr.Cl.

submenu.

Press button j ork repeatedly
until the message
Status line
display
appears in the multifunction
display. The selection marker is on the current
setting.

Press button
æ orç to select
the desired setting.
The selected display is then shown
continuously in the lower display.
The other display now appears in the
menu of the standard display:

Digital speedometer
or


Outside temperature

139
Controls in detail
Control system
Time/Date submenu
Access the
Time/Date
submenu via the
Settings
menu. Use the
Time/Date

submenu to change the instrument cluster
display settings. The following functions
are available: Time synchronization with head unit*
This function can only be seen on vehicles
with COMAND* and navigation module*.

Move the selection marker with
button
æ orç to the
Time/Date

submenu.

Press button j ork repeatedly
until the message
Time synchro.
w/Head Unit
appears in the multifunc-
tion display.
The selection marker is on the current
setting.

Press button æ orç to select
the desired setting. Setting the time (hours)
This function can be seen in vehicles with
audio system, or in vehicles with
COMAND* if the time synchronization with
head unit* feature was set to
Off
.

Move the selection marker with
button
æ orç to the
Time/Date

submenu.

Press button j ork repeatedly
until the message
Time Hours
appears
in the multifunction display.
Function
Page
Time synchronization with
head unit*
139
Setting time (hours)
139
Setting time (minutes)
140
Selecting time display mode
141
Selecting automatic time change
(Daylight Saving Time (DST)
summer/Standard Time winter)
141
Setting date (month)
141
Setting date (day)
142
Setting date (year)
143
iVehicles with COMAND*:
For information on setting the time in
COMAND, refer to the separate
COMAND operating instructions.
