MERCEDES-BENZ C CLASS COUPE 2005 Owners Manual

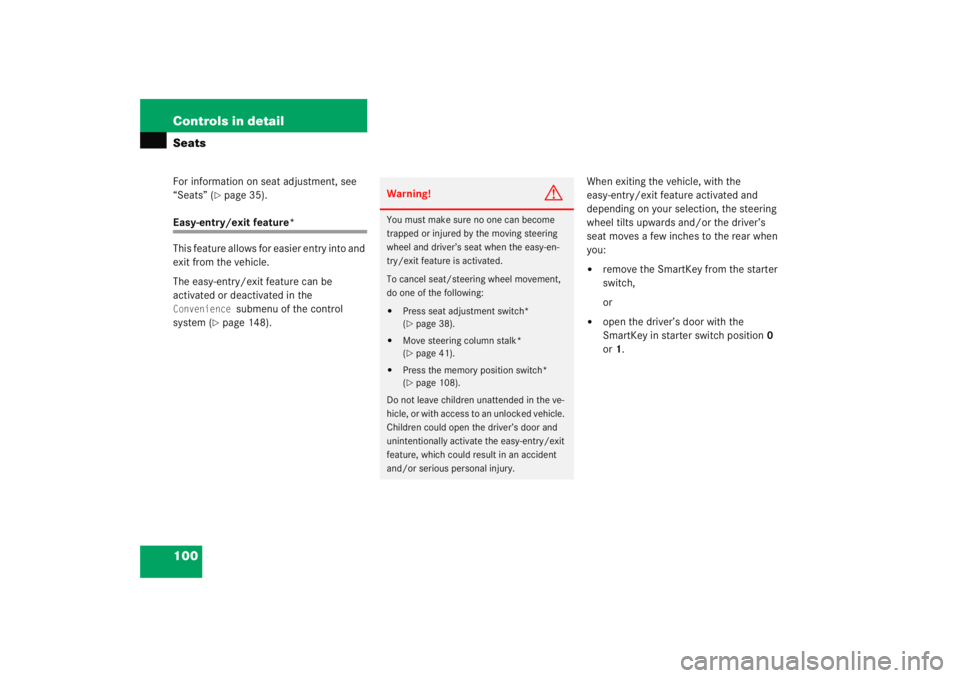

100 Controls in detailSeatsFor information on seat adjustment, see
“Seats” (
page 35).
Easy-entry/exit feature*
This feature allows for easier entry into and
exit from the vehicle.
The easy-entry/exit feature can be
activated or deactivated in the Convenience
submenu of the control
system (
page 148). When exiting the vehicle, with the
easy-entry/exit feature activated and
depending on your selection, the steering
wheel tilts upwards and/or the driver’s
seat moves a few inches to the rear when
you:


remove the SmartKey from the starter
switch,
or


open the driver’s door with the
SmartKey in starter switch position
0
or 1.
Warning!
G
You must make sure no one can become
trapped or injured by the moving steering
wheel and driver’s seat when the easy-en-
try/exit feature is activated.
To cancel seat/steering wheel movement,
do one of the following:

Press seat adjustment switch*
(page 38).


Move steering column stalk*
(page 41).


Press the memory position switch*
(page 108).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.

101
Controls in detailSeats
When entering the vehicle, with the
easy-entry/exit feature activated, the
steering wheel or, depending on your
selection, the steering wheel and driver’s
seat will return to their last set position or
a factory-set maximum forward position
when you:

close the driver’s door with the ignition
switched on


insert the SmartKey into the starter
switch with the driver’s door closed.
iIf the current position for the steering
wheel is in the uppermost tilt position,
the steering wheel will no longer be
able to move upward when the
easy-entry/exit feature is activated.
If the current seat position falls into a
factory-set position range and the sys-
tem recognizes the current seat posi-
tion to be rearward enough for easy
entry and exit, the driver’s seat will not
move to the rear when the easy-entry/
exit feature is activated.
iFor safety reasons, the driver’s seat will
not return to its last set position with
the easy-entry/exit feature activated if
the system recognizes the last set posi-
tion as an extreme forward position. In-
stead, the driver’s seat will remain at or
move to a factory-set maximum for-
ward position. To again fully return the
driver’s seat to your last set position or
to memory position, adjust the seat to
the desired position or press and hold
the respective memory position but-
ton* (
page 108).

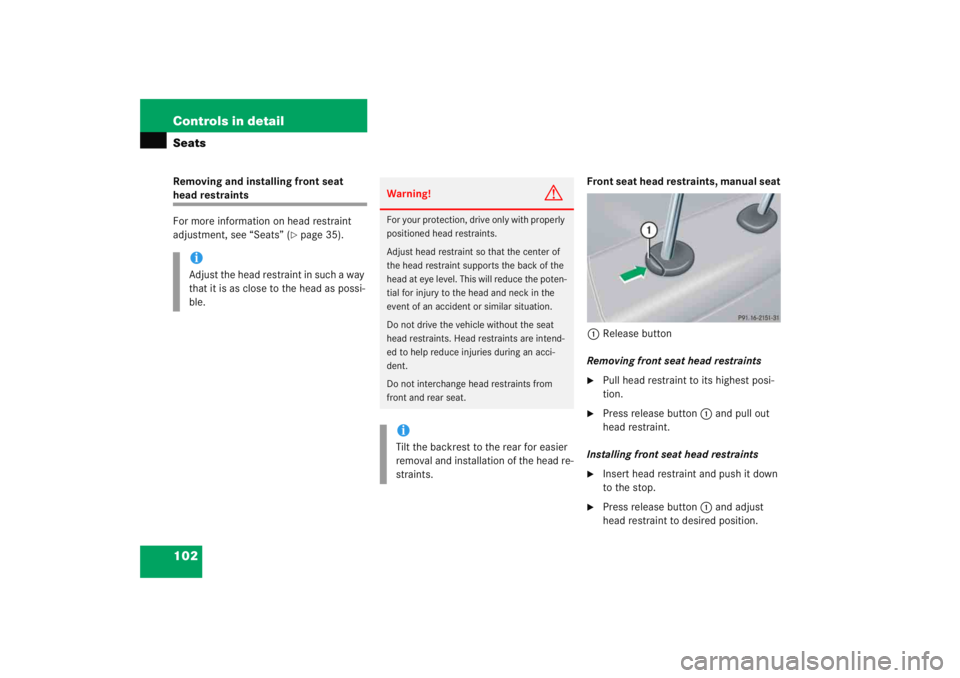

102 Controls in detailSeatsRemoving and installing front seat head restraints
For more information on head restraint
adjustment, see “Seats” (
page 35).Front seat head restraints, manual seat
1 Release button
Removing front seat head restraints

Pull head restraint to its highest posi-
tion.

Press release button 1 and pull out
head restraint.
Installing front seat head restraints

Insert head restraint and push it down
to the stop.

Press release button 1 and adjust
head restraint to desired position.
iAdjust the head restraint in such a way
that it is as close to the head as possi-
ble.
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the center of
the head restraint supports the back of the
head at eye level. This will reduce the poten-
tial for injury to the head and neck in the
event of an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.
Do not interchange head restraints from
front and rear seat.iTilt the backrest to the rear for easier
removal and installation of the head re-
straints.

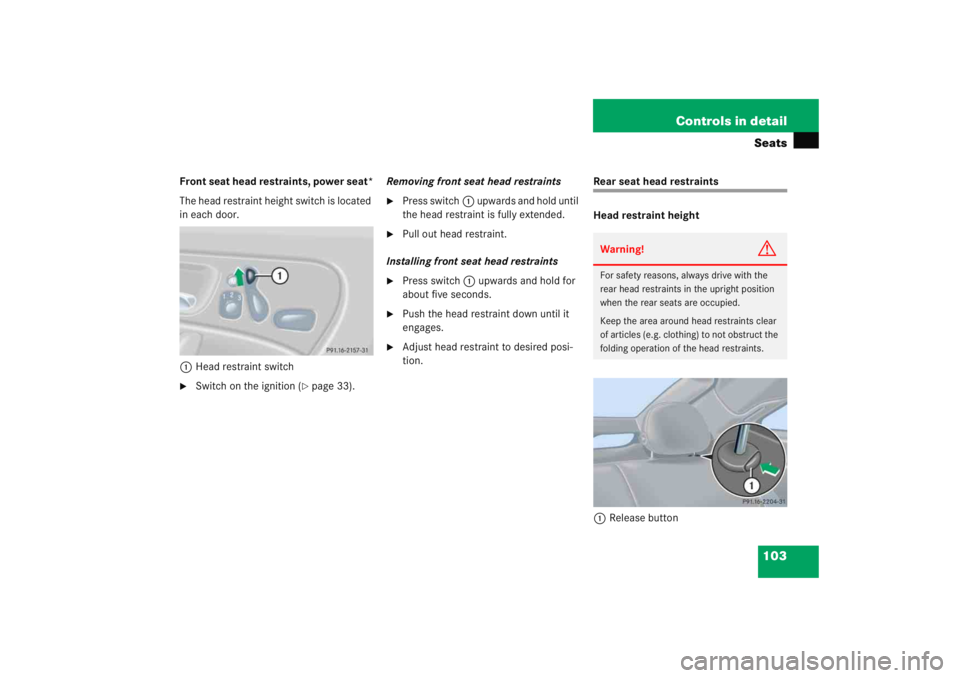

103
Controls in detailSeats
Front seat head restraints, power seat*
The head restraint height switch is located
in each door.
1 Head restraint switch
Switch on the ignition (
page 33). Removing front seat head restraints

Press switch
1 upwards and hold until
the head restraint is fully extended.

Pull out head restraint.
Installing front seat head restraints

Press switch 1 upwards and hold for
about five seconds.

Push the head restraint down until it
engages.

Adjust head restraint to desired posi-
tion.
Rear seat head restraints
Head restraint height
1 Release buttonWarning!
G
For safety reasons, always drive with the
rear head restraints in the upright position
when the rear seats are occupied.
Keep the area around head restraints clear
of articles (e.g. clothing) to not obstruct the
folding operation of the head restraints.

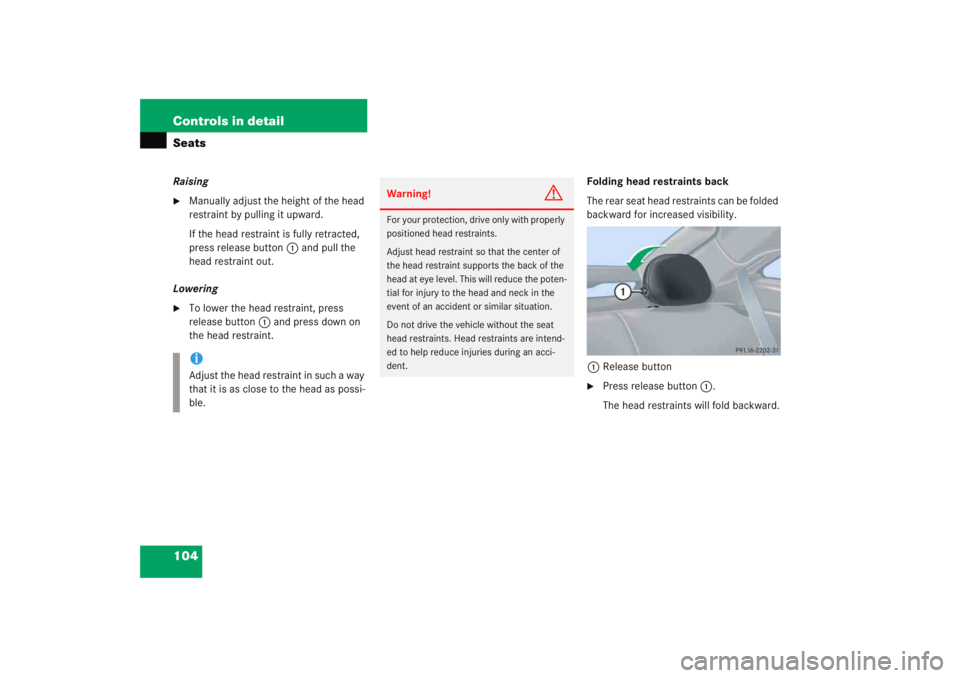

104 Controls in detailSeatsRaising
Manually adjust the height of the head
restraint by pulling it upward.
If the head restraint is fully retracted,
press release button 1 and pull the
head restraint out.
Lowering

To lower the head restraint, press
release button 1 and press down on
the head restraint. Folding head restraints back
The rear seat head restraints can be folded
backward for increased visibility.
1 Release button

Press release button 1.
The head restraints will fold backward.
iAdjust the head restraint in such a way
that it is as close to the head as possi-
ble.
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the center of
the head restraint supports the back of the
head at eye level. This will reduce the poten-
tial for injury to the head and neck in the
event of an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.

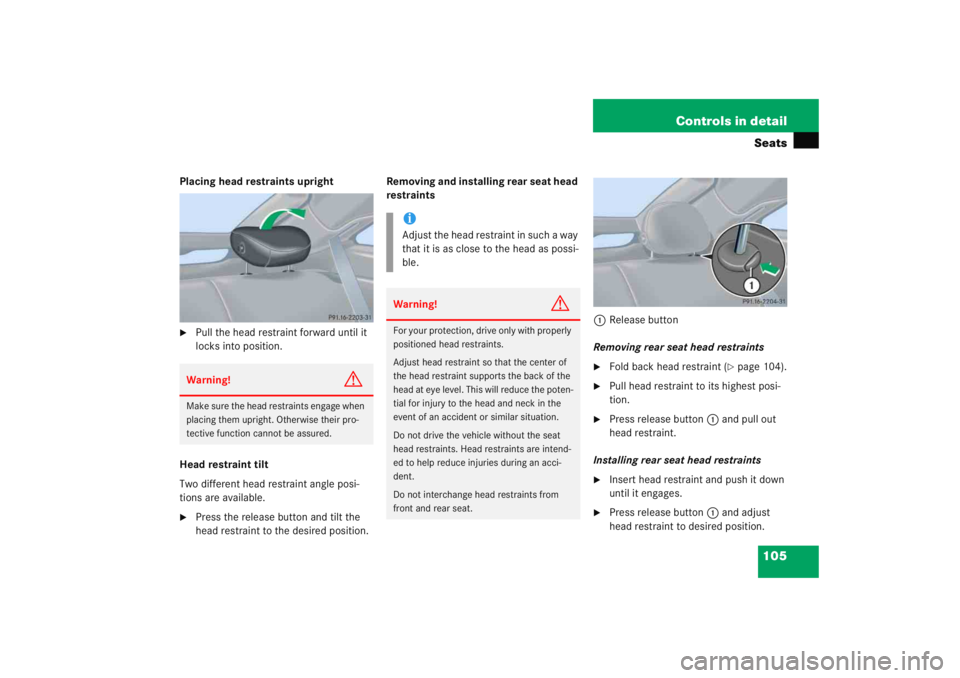

105
Controls in detailSeats
Placing head restraints upright
Pull the head restraint forward until it
locks into position.
Head restraint tilt
Two different head restraint angle posi-
tions are available.

Press the release button and tilt the
head restraint to the desired position. Removing and installing rear seat head
restraints
1Release button
Removing rear seat head restraints

Fold back head restraint (
page 104).

Pull head restraint to its highest posi-
tion.

Press release button 1 and pull out
head restraint.
Installing rear seat head restraints

Insert head restraint and push it down
until it engages.

Press release button 1 and adjust
head restraint to desired position.
Warning!
G
Make sure the head restraints engage when
placing them upright. Otherwise their pro-
tective function cannot be assured.
iAdjust the head restraint in such a way
that it is as close to the head as possi-
ble.Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the center of
the head restraint supports the back of the
head at eye level. This will reduce the poten-
tial for injury to the head and neck in the
event of an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.
Do not interchange head restraints from
front and rear seat.

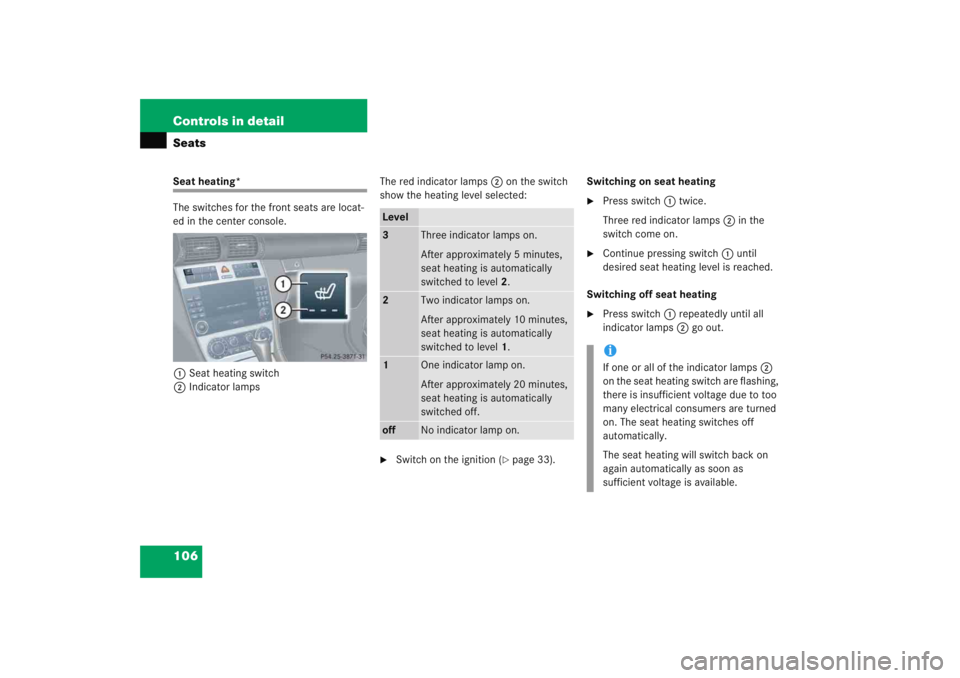

106 Controls in detailSeatsSeat heating*
The switches for the front seats are locat-
ed in the center console.1 Seat heating switch
2 Indicator lamps The red indicator lamps
2 on the switch
show the heating level selected:

Switch on the ignition (
page 33). Switching on seat heating

Press switch
1 twice.
Three red indicator lamps 2 in the
switch come on.

Continue pressing switch 1 until
desired seat heating level is reached.
Switching off seat heating

Press switch 1 repeatedly until all
indicator lamps 2 go out.
Level3
Three indicator lamps on.
After approximately 5 minutes,
seat heating is automatically
switched to level 2 .
2
Two indicator lamps on.
After approximately 10 minutes,
seat heating is automatically
switched to level 1.
1
One indicator lamp on.
After approximately 20 minutes,
seat heating is automatically
switched off.
off
No indicator lamp on.
iIf one or all of the indicator lamps 2
on the seat heating switch are flashing,
there is insufficient voltage due to too
many electrical consumers are turned
on. The seat heating switches off
automatically.
The seat heating will switch back on
again automatically as soon as
sufficient voltage is available.

107
Controls in detail
Memory function*
 Memory function*
You can store up to three different settings
per SmartKey.
The following settings are saved for each
stored position:

Driver’s seat, backrest and head
restraint position


Steering wheel position


Exterior rear view mirror positions
These key-dependent memory settings
can be deactivated if desired. For informa-
tion on key-dependent memory settings,
see “Setting key-dependency”
(
page 149). The following settings are not
key-dependent. They are stored when
using the buttons on the passenger door:


Front passenger seat, backrest and
head restraint position.
!Prior to operating the vehicle, the driv-
er should check and adjust the seat
height, seat position fore and aft, and
seat backrest angle if necessary, to en-
sure adequate control, reach and com-
fort. The head restraint should also be
adjusted for proper height. See also the
section on air bags (
page 61) for
proper seat positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, opera-
tion and comfort. Both the interior and
exterior rear view mirrors should be ad-
justed for adequate rear vision.
Fasten seat belts. Infants and small
children should be seated in a properly
secured restraint system that complies
with U.S. Federal Motor Vehicle Safety
Standards 213 and 225 and Canadian
Motor Vehicle Safety Standards 213
and 210.2.
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

108 Controls in detailMemory function*The memory button and memory position
switch are located on the door.1 Memory button
2 Memory position switch
Switch on the ignition (
page 33).
or

Open the respective door and insert
the SmartKey in the starter switch.
Storing positions into memory
Adjust the seats, steering wheel and
exterior rear view mirrors to the
desired position (
page 35).

Turn memory position switch 2 to
selected memory position.

Press memory button 1.

Release memory button 1 and press
memory position switch 2 within
three seconds.
All settings are stored at the selected
position.
Recalling positions from memory
Turn memory position switch 2 to
selected memory position.

Press and hold memory position
switch 2 until the seat, steering wheel
and exterior rear view mirrors have
completely moved to the stored
positions.!Do not operate the power seats using
the memory button if the seat backrest
is in an excessively reclined position.
Doing so could cause damage to front
or rear seats.iReleasing the memory position switch
stops movement to the stored posi-
tions immediately.

109
Controls in detail
Memory function*

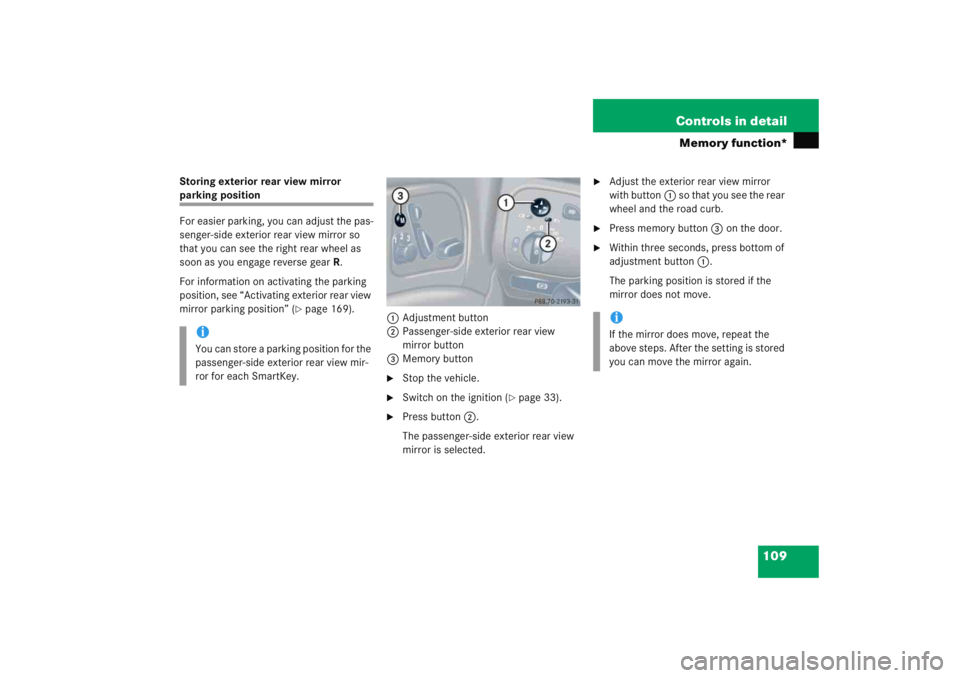

Storing exterior rear view mirror parking position
For easier parking, you can adjust the pas-
senger-side exterior rear view mirror so
that you can see the right rear wheel as
soon as you engage reverse gear
R.
For information on activating the parking
position, see “Activating exterior rear view
mirror parking position” (
page 169). 1Adjustment button
2 Passenger-side exterior rear view
mirror button
3 Memory button

Stop the vehicle.

Switch on the ignition (
page 33).

Press button 2.
The passenger-side exterior rear view
mirror is selected.

Adjust the exterior rear view mirror
with button 1 so that you see the rear
wheel and the road curb.

Press memory button 3 on the door.

Within three seconds, press bottom of
adjustment button 1.
The parking position is stored if the
mirror does not move.
iYou can store a parking position for the
passenger-side exterior rear view mir-
ror for each SmartKey.
iIf the mirror does move, repeat the
above steps. After the setting is stored
you can move the mirror again.
