52 Getting startedDriving
Turn the exterior lamp switch to
positionB.
The low beam headlamp indicator
lamp B in the instrument cluster
comes on (
page 24).
High beam
The combination switch is located on the
left of the steering column.
Combination switch1 High beam
2 High beam flasher

Push the combination switch in
direction of arrow 1.
The high beam headlamp indicator
lamp A in the instrument cluster
comes on (
page 24).
For more information on headlamps, see
“Combination switch” (
page 114).
Turn signals
The combination switch is located on the
left of the steering column.Combination switch1 Turn signals, right
2 Turn signals, left

Press combination switch in direction
of arrow 1 or 2.
The corresponding turn signal indicator
lamp L or K in the instrument
cluster flashes.
The combination switch resets auto-
matically after major steering wheel
movements.iTo signal minor directional changes,
such as changing lanes, press combi-
nation switch only to point of resis-
tance and release. The corresponding
turn signal will flash three times.

58 Getting startedParking and lockingTurning off the engine
Place the gear selector lever in
positionP (manual transmission: first
or reverse gear).

Turn the SmartKey in the starter switch
to position 0 and remove the SmartKey
from the starter switch.
The immobilizer is activated.

Press the seat belt release button
(page 44).
Allow the retractor to completely
rewind the seat belt by guiding the
latch plate.

After exiting the vehicle, press the lock
button ‹ on the SmartKey
(page 32).
With the hood, trunk and all doors
closed, all turn signal lamps flash three
times. The locking knobs in the doors
move down. The anti-theft alarm sys-
tem* is armed.
For more information, see “Locking and
unlocking” (
page 90).
iAlways set the parking brake in addi-
tion to shifting to position P (manual
transmission: first or reverse gear).
On slopes, turn the front wheels to-
wards the road curb.iVehicles with automatic transmission*:
The SmartKey can only be removed
from the starter switch with the gear
selector lever in position P.
iWith the SmartKey removed and the
driver’s door open, a warning sounds if
the vehicle’s exterior lamps are not
switched off.Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure there is no
possibility of someone getting caught in a
door during closing.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.

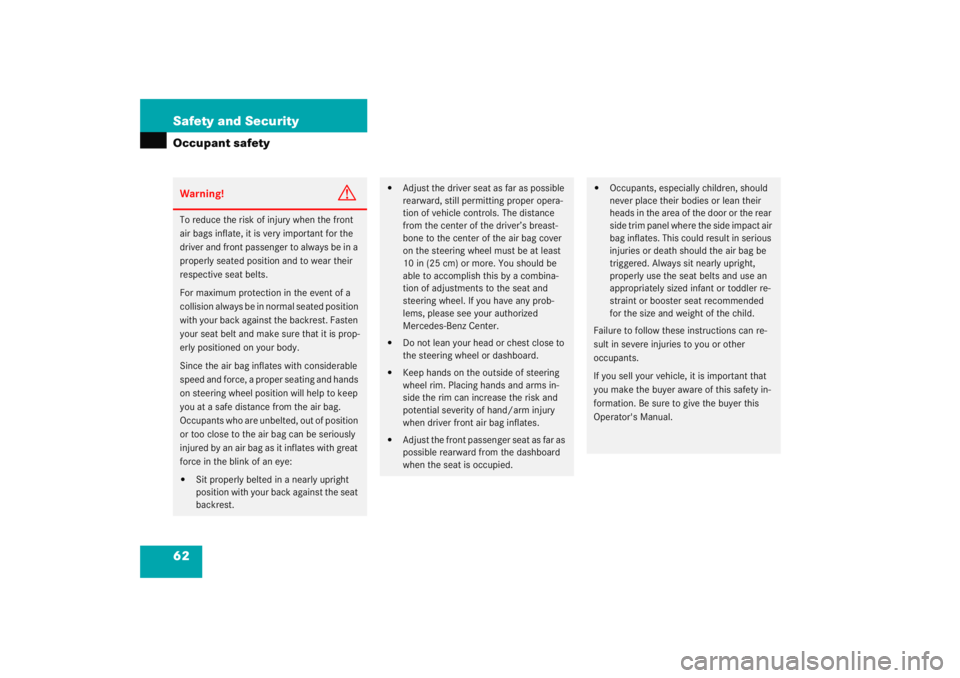

62 Safety and SecurityOccupant safetyWarning!
G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to wear their
respective seat belts.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and make sure that it is prop-
erly positioned on your body.
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured by an air bag as it inflates with great
force in the blink of an eye:

Sit properly belted in a nearly upright
position with your back against the seat
backrest.


Adjust the driver seat as far as possible
rearward, still permitting proper opera-
tion of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover
on the steering wheel must be at least
10 in (25 cm) or more. You should be
able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see your authorized
Mercedes-Benz Center.


Do not lean your head or chest close to
the steering wheel or dashboard.


Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver front air bag inflates.


Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.


Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door or the rear
side trim panel where the side impact air
bag inflates. This could result in serious
injuries or death should the air bag be
triggered. Always sit nearly upright,
properly use the seat belts and use an
appropriately sized infant or toddler re-
straint or booster seat recommended
for the size and weight of the child.
Failure to follow these instructions can re-
sult in severe injuries to you or other
occupants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety in-
formation. Be sure to give the buyer this
Operator's Manual.

63
Safety and Security
Occupant safety
Warning!
G
Accident research shows that the safest
place for children in an automobile is in the
rear seat.
It should be noted that with respect to both
front and rear side impact air bags there is a
possibility for a side impact air bag related
injury if occupants, especially children, are
not properly seated or restrained when next
to a side impact air bag which needs to de-
ploy rapidly in a side impact in order to do its
job.
To help avoid the possibility of injury, please
follow these guidelines:
(1) Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door where the
side impact air bag inflates. This could
result in serious injuries or death should
the side impact air bag be deployed.
(2) Always sit nearly upright, properly use the seat belts and for children 12 years
old and under, use an appropriately
sized infant or toddler restraint or boost-
er seat recommended for the size and
weight of the child.
(3) Always wear seat belts properly.
If you believe that, even with the use of
these guidelines, it would be safer for your
rear seat occupants to have the rear mount-
ed side impact air bags deactivated, then
deactivation can be accomplished upon
your written request to do so at your autho-
rized Mercedes-Benz Center at an additional
cost.
Please contact your local authorized
Mercedes-Benz Center or call our Customer
Assistance Center at 1-800-FOR-MERCedes
(1-800-367-6372) for details.
iAir bags are designed to deploy only in
certain frontal impacts (front air bags)
and in side impacts (side impact and
head protection window curtain air
bags) which exceed preset thresholds.
Only during these events will they
provide their supplemental protection.
The driver and passengers should
always wear their seat belts. Otherwise
it is not possible for air bags to provide
their supplemental protection.
In case of other types of impacts and
impacts below air bag deployment
thresholds, air bags will not deploy. The
driver and passenger will then be
protected to the extent possible by a
properly fastened seat belt. A properly
fastened seat belt is also needed to
provide the best possible protection in
a rollover.
We caution you not to rely on the pres-
ence of the air bags in order to avoid
wearing your seat belt.

69
Safety and Security
Occupant safety
Emergency tensioning device (ETD),
seat belt force limiter
The seat belts for the front and rear seats
are equipped with emergency tensioning
devices and belt force limiters.
The ETD is designed to activate in the fol-
lowing cases:

in frontal or rear-end impacts exceed-
ing a preset severity level


if the restraint systems are operational
and functioning correctly, see
1
indicator lamp (
page 60) In an impact, emergency tensioning devic-
es remove slack from the belts. Belt force
limiters reduce the force exerted by the
seat belts on occupants during a crash.


Belts should not be worn twisted. In a
crash, you wouldn’t have the full width
of the belt to distribute impact forces.
The twisted belt against your body could
cause injuries.


Pregnant women should also use a
lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible pres-
sure on the abdomen.


Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.


When using a seat belt to secure infant
or toddler restraints or children in boost-
er seats, always follow the child seat
manufacturer's instructions.
!The ETDs for the front seats will only
activate if the front seat belts are fas-
tened (latch plate properly inserted
into buckle).
The ETDs for the rear seats will activate
with or without the respective seat
belts fastened.
Warning!
G
An emergency tensioning device (ETD) that
was activated must be replaced.
When disposing of the emergency tension-
ing device, our safety instructions must be
followed. These are available at your autho-
rized Mercedes-Benz Center.

81
Safety and Security
Driving safety systems
 Driving safety systems
In this section you will find information on
the following driving safety systems:

ABS (A
ntilock B
rake S
ystem)


BAS (B
rake A
ssist S
ystem)


ESP (E
lectronic S
tability P
rogram)
ABS
The Antilock Brake System (ABS) regulates
the brake pressure so that the wheels do
not lock during braking. This allows you to
maintain the ability to steer your vehicle.
The ABS is functional above a speed of ap-
proximately 5 mph (8 km/h) independent
of road surface conditions. On slippery road surfaces, the ABS will re-
spond even to light brake pressure.
The
- indicator lamp in the instrument
cluster (
page 24) comes on when you
switch on the ignition. It goes out when the
engine is running.
Braking
At the instant one of the wheels is about to
lock up, a slight pulsation can be felt in the
brake pedal, indicating that the ABS is in
the regulating mode.

Keep firm and steady pressure on the
brake pedal while experiencing the pul-
sation.
Continuous, steady brake pedal pressure
yields the advantages provided by the ABS,
namely braking power and the ability to
steer the vehicle.
The pulsating brake pedal can be an indica-
tion of hazardous road conditions and
functions as a reminder to take extra care
while driving.
Warning!
G
The following factors increase the risk of ac-
cidents:

Excessive speed, especially in turns


Wet and slippery road surfaces


Following another vehicle too closely
The ABS, BAS and ESP cannot reduce this
risk.
Always adjust your driving style to the pre-
vailing road and weather conditions.
iIn winter operation, the maximum ef-
fectiveness of the ABS and ESP is only
achieved with winter tires (M + S tires),
or snow chains as required.Warning!
G
Do not pump the brake pedal. Use firm,
steady brake pedal pressure instead. Pump-
ing the brake pedal defeats the purpose of
the ABS and significantly reduces braking
effectiveness.

83
Safety and Security
Driving safety systems
ESP
The Electronic Stability Program (ESP) is
operational as soon as the engine is run-
ning and monitors the vehicle’s traction
(force of adhesive friction between the
tires and the road surface) and handling.
The ESP recognizes when a wheel is
spinning or if the vehicle starts to skid. By
applying brakes to the appropriate wheel
and by limiting engine output, the ESP
works to stabilize the vehicle. The ESP is
especially useful while driving off and on
wet or slippery road surfaces. The ESP also
stabilizes the vehicle during braking
maneuvers.
The ESP warning lamp
v in the
speedometer flashes when the ESP is
engaged.
The ESP warning lamp v in the
speedometer comes on when you switch
on the ignition. It goes out when the engine
is running.
Warning!
G
Never switch off the ESP when you see the
ESP warning lamp v flashing in the
speedometer dial. In this case proceed as
follows:

While driving off, apply as little throttle
as possible.


While driving, ease up on the accelera-
tor.


Adapt your speed and driving style to
the prevailing road conditions.
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP cannot prevent accidents resulting
from excessive speed.
Warning!
G
The ESP cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase the traction afforded. The ESP
cannot prevent accidents, including those
resulting from excessive speed in turns, or
hydroplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The ca-
pabilities of an ESP equipped vehicle must
never be exploited in a reckless or danger-
ous manner which could jeopardize the us-
er’s safety or the safety of others.!The ESP will only function properly if
you use wheels of the recommended
tire size (
page 419).

84 Safety and SecurityDriving safety systemsFor more information, see “Practical hints”
(page 343).Switching off the ESP
To improve the vehicle’s traction, turn off
the ESP in driving situations where it would
be advantageous to have drive wheels spin
and thus cut into surfaces for better grip
such as:


starting out on slippery surfaces and in
deep snow in conjunction with snow
chains


sand or gravelWhen you switch off the ESP


the ESP does not stabilize the vehicle


the engine output is not limited, which
allows the drive wheels to spin and
thus cut into surfaces for better grip


the traction control will still brake a
spinning wheel


the ESP continues to operate when you
are braking
!Because of the ESP’s automatic opera-
tion, the engine must be shut off
(SmartKey in starter switch position
0
or 1) when

the parking brake is being tested on
a brake test dynamometer


the vehicle is being towed with the
front axle raised
Active braking action through the ESP
may otherwise seriously damage the
rear axle brake system.
The ESP will only function properly if
you use wheels of the recommended
tire size.
Warning!
G
The ESP should not be switched off during
normal driving other than in the circum-
stances described below. Disabling of the
system will reduce vehicle stability in stan-
dard driving maneuvers.!Turn on the ESP immediately if the
aforementioned circumstances do not
apply anymore.
iWhen the ESP is switched off and one
or more drive wheels are spinning, the
ESP warning lamp v in the speed-
ometer flashes. However, the ESP will
then not stabilize the vehicle.

85
Safety and Security
Driving safety systems
The switch is located on the center
console.
1 ESP switch (off/on)
Press ESP switch 1.
The ESP warning lamp v in the
speedometer comes on.
The ESP is deactivated. Switching on the ESP

Press switch
1 again
The ESP warning lamp v in the
speedometer goes out.
You are now again in normal driving
mode with the ESP switched on.
Warning!
G
When the ESP warning lamp v is
illuminated continuously, the ESP is
switched off.
Adapt your speed and driving to the prevail-
ing road conditions and to the non-operating
status of the ESP.!Avoid spinning of a drive wheel for an
extended period with the ESP switched
off. This may cause serious damage to
the drivetrain which is not covered by
the Mercedes-Benz Limited Warranty.

86 Safety and SecurityAnti-theft systemsImmobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating

Remove the SmartKey from the starter
switch.
Deactivating


Switch on the ignition.
Anti-theft alarm system*
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens

a door


the trunk lid


the hood.
The alarm system will also be triggered
when


someone attempts to raise the vehicle
(page 87).


opening the vehicle with the
mechanical key. Arming the alarm system
The indicator lamp is in the switch for the
tow-away alarm* in the center console.
1 Indicator lamp
iStarting the engine will also deactivate
the immobilizer.
In case the engine cannot be started
(yet the vehicle’s battery is charged),
the system is not operational. Contact
an authorized Mercedes-Benz Center
or call 1-800-FOR-MERCedes (in the
USA), or 1-800-387-0100 (in Canada).
iThe alarm system will rearm automati-
cally after approximately 40 seconds if
a door or the trunk lid is not opened.
iIf the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system* (
page 261) provid-
ed Tele Aid service was subscribed to
and properly activated, and that neces-
sary cellular service and GPS coverage
are available.
