ESP MERCEDES-BENZ C CLASS COUPE 2005 Service Manual

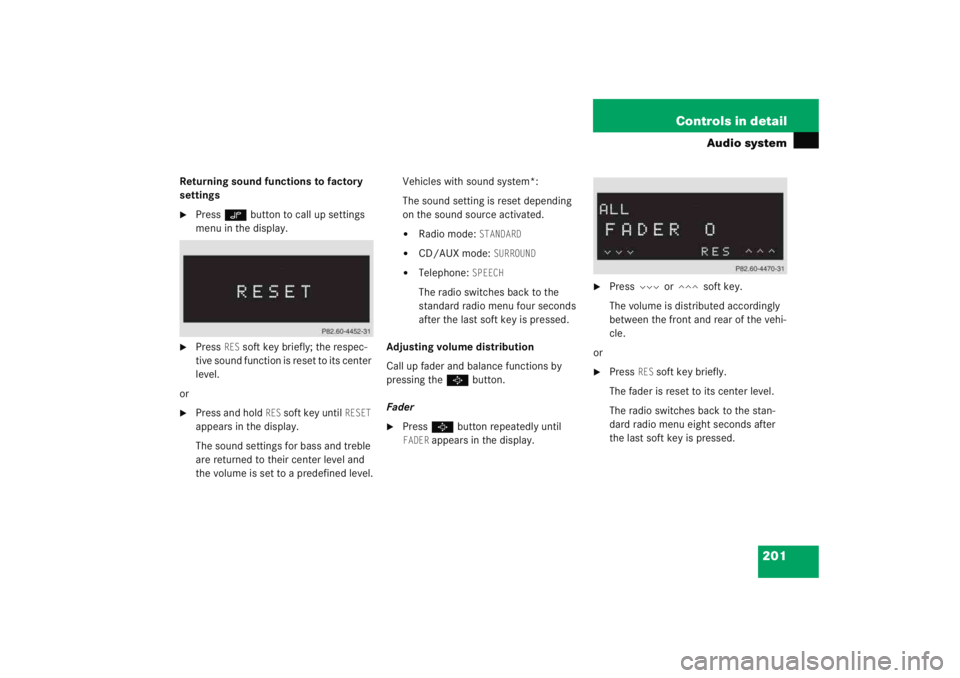

201
Controls in detail
Audio system
Returning sound functions to factory
settings
Press
O button to call up settings
menu in the display.

Press
RES
soft key briefly; the respec-
tive sound function is reset to its center
level.
or

Press and hold
RES
soft key until
RESET

appears in the display.
The sound settings for bass and treble
are returned to their center level and
the volume is set to a predefined level. Vehicles with sound system*:
The sound setting is reset depending
on the sound source activated.


Radio mode:
STANDARD


CD/AUX mode:
SURROUND


Telephone:
SPEECH
The radio switches back to the
standard radio menu four seconds
after the last soft key is pressed.
Adjusting volume distribution
Call up fader and balance functions by
pressing the Pbutton.
Fader

Press P button repeatedly until FADER
appears in the display.

Press V or W soft key.
The volume is distributed accordingly
between the front and rear of the vehi-
cle.
or

Press
RES
soft key briefly.
The fader is reset to its center level.
The radio switches back to the stan-
dard radio menu eight seconds after
the last soft key is pressed.

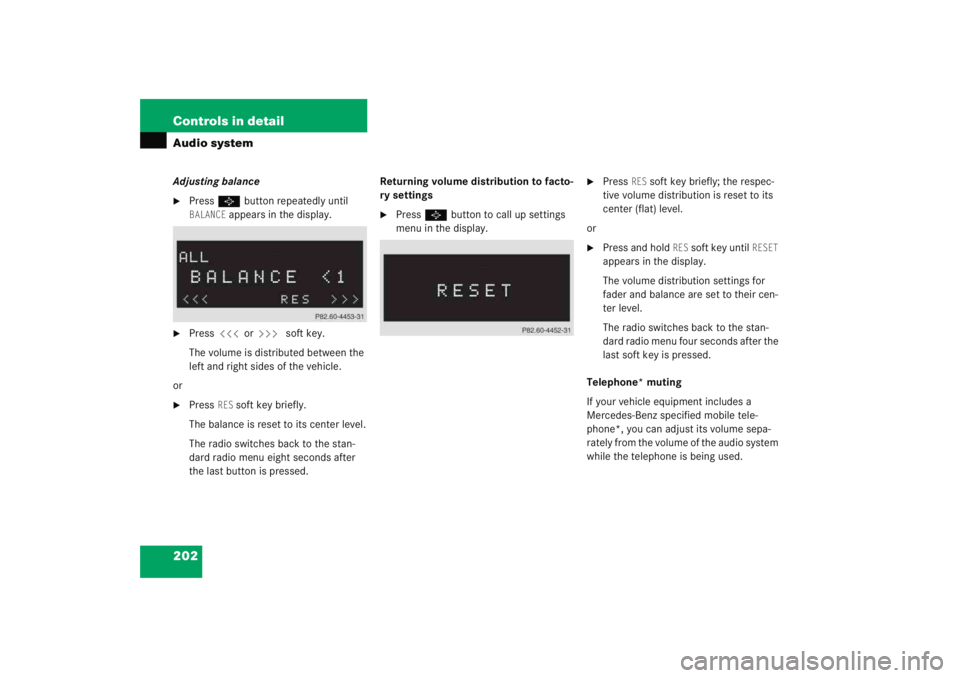

202 Controls in detailAudio systemAdjusting balance
Press P button repeatedly until BALANCE
appears in the display.

Press X or Y soft key.
The volume is distributed between the
left and right sides of the vehicle.
or

Press
RES
soft key briefly.
The balance is reset to its center level.
The radio switches back to the stan-
dard radio menu eight seconds after
the last button is pressed. Returning volume distribution to facto-
ry settings

Press
P button to call up settings
menu in the display.

Press
RES
soft key briefly; the respec-
tive volume distribution is reset to its
center (flat) level.
or

Press and hold
RES
soft key until
RESET

appears in the display.
The volume distribution settings for
fader and balance are set to their cen-
ter level.
The radio switches back to the stan-
dard radio menu four seconds after the
last soft key is pressed.
Telephone* muting
If your vehicle equipment includes a
Mercedes-Benz specified mobile tele-
phone*, you can adjust its volume sepa-
rately from the volume of the audio system
while the telephone is being used.

205
Controls in detail
Audio system
Manual tuning
Select desired waveband.

Press
S or T button for
approximately three seconds.

Press button repeatedly until desired
frequency has been reached.
Step-by-step station tuning takes place
in ascending or descending order. Each
time the button is pressed, the radio
tunes further by 0.2 MHz. During man-
ual tuning, the radio is muted. Automatic seek tuning

Select desired waveband.

Press
S or T button briefly.
The radio will tune to the next highest
or next lowest receivable frequency. Scan search


Starting scan search
Select desired waveband.

Press
SC soft key.
SC will appear in the display. The
radio briefly tunes in all receivable
stations on the waveband selected.
iYou can only enter frequencies within
the respective waveband.
If a button is not pressed within
four seconds, the radio will return to
the last station tuned.
iIf no station is received after two
consecutive scans of the complete
frequency range, then the scan stops
at the frequency from which it began.

210 Controls in detailAudio systemThe first channel 001 is called up and the
PTY system changes to all categories.
If no station can be received,
ACQUIRING

appears in the display.
If the Satellite radio service is not
activated,
ACQUIRING
will also appear in the
radio display and
NO SAT
will appear in the
multifunction display. Selecting a station
The following options are available:


Selecting a station using the selected
category (
page 211).


Tuning via station presets
(page 210).


Tuning via scan search (
page 212).


Tuning via manual channel input
(page 210).


Tuning via the program category list
(page 211).
Tuning via station presets
Ten satellite radio station presets are avail-
able.
You can access the presets via number
keys. Accessing via number keys

Enter number of preset you wish to
select, e.g.
1.
The radio plays the station stored un-
der this number and the PTY function
changes to the category corresponding
to the station.
Tuning via manual channel input
Example: tuning in channel 16
iThe system will tune to a default sta-
tion if no station had been selected pre-
viously.

217
Controls in detail
Audio system
Playing tracks
You have the following options:

Audio system with CD changer*: se-
lecting CDs


Direct track entry


Track skip forward/reverse


Fast forward/reverse


Scan


Random tracks


Repeat track
Selecting CDs in the audio unit with CD
changer*

You can select from among the
inserted CDs with buttons
R
to6 .
R = CD player in the audio unit
1 to6 = CDs in the CD
changer*
The magazine slot number of the se-
lected CD appears next to
CD in the dis-
play, and the number of the currently
played track appears next to TRACK
. Direct track entry
You can make a direct selection from
among the tracks on a CD.

Press
* button.

Enter track number using buttons 1
to R .iIf there is no CD in the selected maga-
zine slot,
NO CD
appears in the display
with the corresponding slot number.

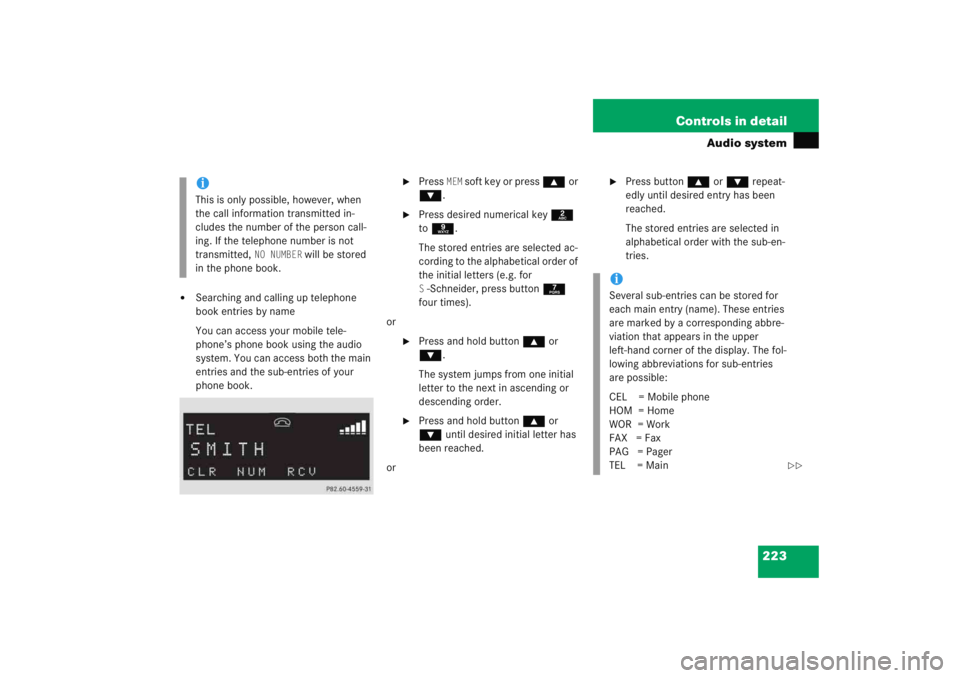

223
Controls in detail
Audio system


Searching and calling up telephone
book entries by name
You can access your mobile tele-
phone’s phone book using the audio
system. You can access both the main
entries and the sub-entries of your
phone book.

Press
MEM
soft key or press
‚ or
ƒ .

Press desired numerical key 2
to 9 .
The stored entries are selected ac-
cording to the alphabetical order of
the initial letters (e.g. for S-Schneider, press button 7
four times).
or

Press and hold button ‚ or
ƒ .
The system jumps from one initial
letter to the next in ascending or
descending order.

Press and hold button ‚ or
ƒ until desired initial letter has
been reached.
or

Press button ‚ or ƒ repeat-
edly until desired entry has been
reached.
The stored entries are selected in
alphabetical order with the sub-en-
tries.
iThis is only possible, however, when
the call information transmitted in-
cludes the number of the person call-
ing. If the telephone number is not
transmitted,
NO NUMBER
will be stored
in the phone book.
iSeveral sub-entries can be stored for
each main entry (name). These entries
are marked by a corresponding abbre-
viation that appears in the upper
left-hand corner of the display. The fol-
lowing abbreviations for sub-entries
are possible:
CEL = Mobile phone
HOM = Home
WOR = Work
FAX = Fax
PAG = Pager
TEL = Main

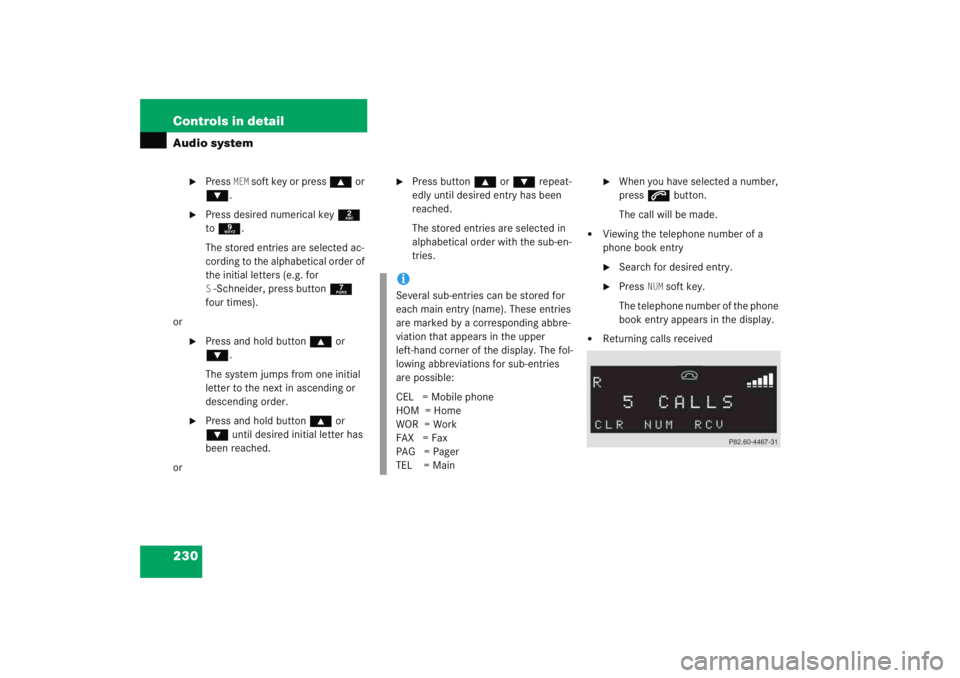

230 Controls in detailAudio system

Press
MEM
soft key or press ‚ or
ƒ .

Press desired numerical key 2
to 9 .
The stored entries are selected ac-
cording to the alphabetical order of
the initial letters (e.g. for S-Schneider, press button 7
four times).
or

Press and hold button ‚ or
ƒ .
The system jumps from one initial
letter to the next in ascending or
descending order.

Press and hold button ‚ or
ƒ until desired initial letter has
been reached.
or

Press button ‚ or ƒ repeat-
edly until desired entry has been
reached.
The stored entries are selected in
alphabetical order with the sub-en-
tries.

When you have selected a number,
press s button.
The call will be made.


Viewing the telephone number of a
phone book entry
Search for desired entry.

Press
NUM
soft key.
The telephone number of the phone
book entry appears in the display.


Returning calls received
iSeveral sub-entries can be stored for
each main entry (name). These entries
are marked by a corresponding abbre-
viation that appears in the upper
left-hand corner of the display. The fol-
lowing abbreviations for sub-entries
are possible:
CEL = Mobile phone
HOM = Home
WOR = Work
FAX = Fax
PAG = Pager
TEL = Main

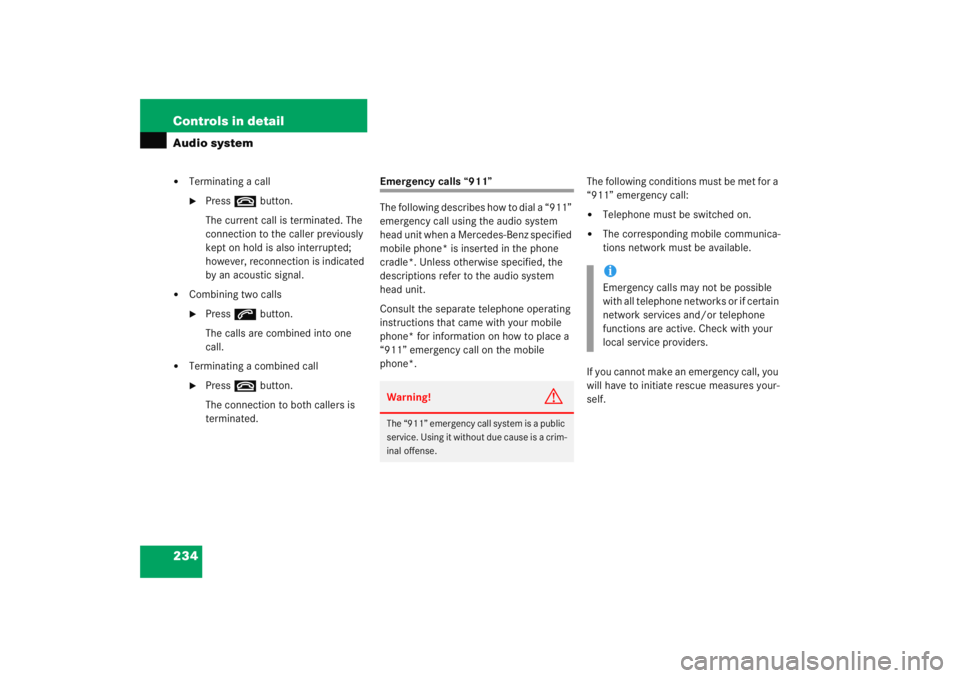

234 Controls in detailAudio system

Terminating a call
Press t button.
The current call is terminated. The
connection to the caller previously
kept on hold is also interrupted;
however, reconnection is indicated
by an acoustic signal.


Combining two calls
Press s button.
The calls are combined into one
call.


Terminating a combined call
Press t button.
The connection to both callers is
terminated.
Emergency calls “911”
The following describes how to dial a “911”
emergency call using the audio system
head unit when a Mercedes-Benz specified
mobile phone* is inserted in the phone
cradle*. Unless otherwise specified, the
descriptions refer to the audio system
head unit.
Consult the separate telephone operating
instructions that came with your mobile
phone* for information on how to place a
“911” emergency call on the mobile
phone*. The following conditions must be met for a
“911” emergency call:


Telephone must be switched on.


The corresponding mobile communica-
tions network must be available.
If you cannot make an emergency call, you
will have to initiate rescue measures your-
self.
Warning!
G
The “911” emergency call system is a public
service. Using it without due cause is a crim-
inal offense.
iEmergency calls may not be possible
with all telephone networks or if certain
network services and/or telephone
functions are active. Check with your
local service providers.

237
Controls in detail
Power windows
 Power windows
Opening and closing the windows
The side windows are opened and closed
electrically. The switches for all the side
windows are on the driver’s door. The
switch for the passenger door is on the
passenger door.
1 Left front window
2 Right front window
Warning!
G
When closing the windows, make sure there
is no danger of anyone being harmed by the
closing procedure.
The closing of the door windows can be im-
mediately halted by releasing the switch or,
if switch was pulled past the resistance
point and released, by either pressing or
pulling the respective switch.
If the window encounters an obstruction
that blocks its path in a circumstance where
you pulled the switch past the resistance
point and released it to close the window,
the automatic reversal function will stop the
window and open it slightly.
If the window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pulling and
holding the switch, or by pressing and hold-
ing button ‹ on the SmartKey, the auto-
matic reversal function will not operate
When leaving the vehicle, always remove the
SmartKey from starter switch, take it with
you, and lock your vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment can cause an acci-
dent and/or serious personal injury.

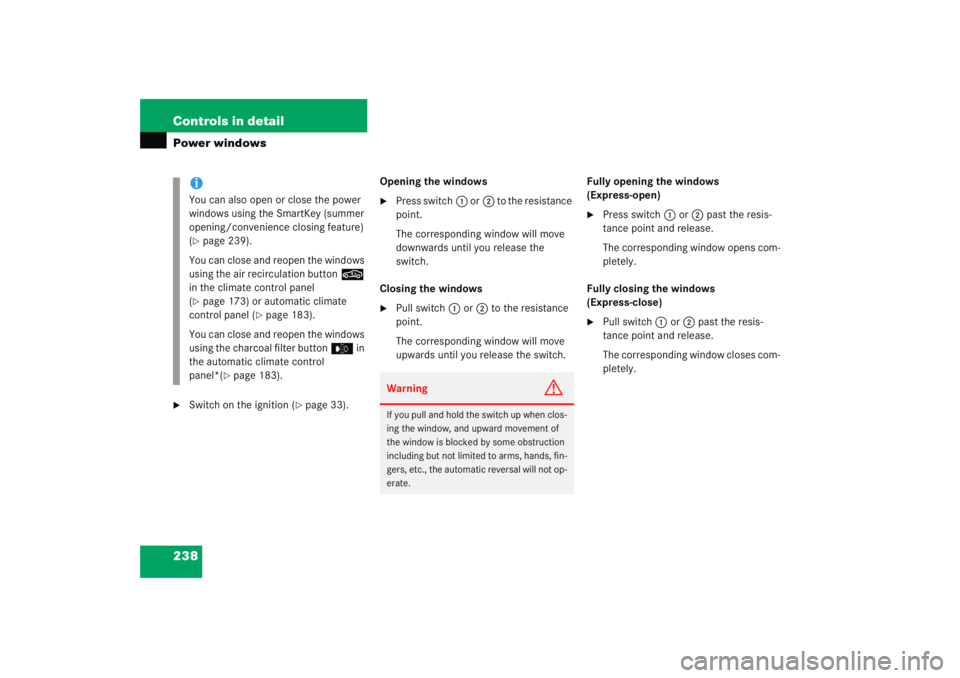

238 Controls in detailPower windows
Switch on the ignition (
page 33).Opening the windows

Press switch
1 or 2 to the resistance
point.
The corresponding window will move
downwards until you release the
switch.
Closing the windows

Pull switch 1 or 2 to the resistance
point.
The corresponding window will move
upwards until you release the switch. Fully opening the windows
(Express-open)

Press switch
1 or 2 past the resis-
tance point and release.
The corresponding window opens com-
pletely.
Fully closing the windows
(Express-close)

Pull switch 1 or 2 past the resis-
tance point and release.
The corresponding window closes com-
pletely.
iYou can also open or close the power
windows using the SmartKey (summer
opening/convenience closing feature)
(page 239).
You can close and reopen the windows
using the air recirculation button ,
in the climate control panel
(page 173) or automatic climate
control panel (
page 183).
You can close and reopen the windows
using the charcoal filter button e in
the automatic climate control
panel*(
page 183).
Warning
G
If you pull and hold the switch up when clos-
ing the window, and upward movement of
the window is blocked by some obstruction
including but not limited to arms, hands, fin-
gers, etc., the automatic reversal will not op-
erate.
