MERCEDES-BENZ C CLASS COUPE 2005 Owner's Manual

20

21

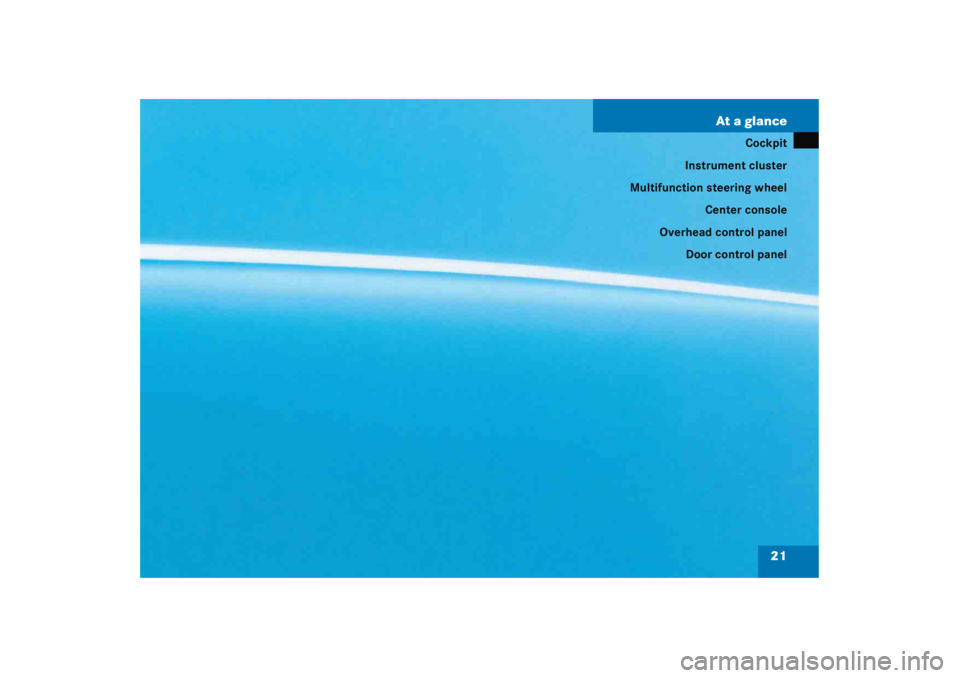

At a glance
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel Door control panel

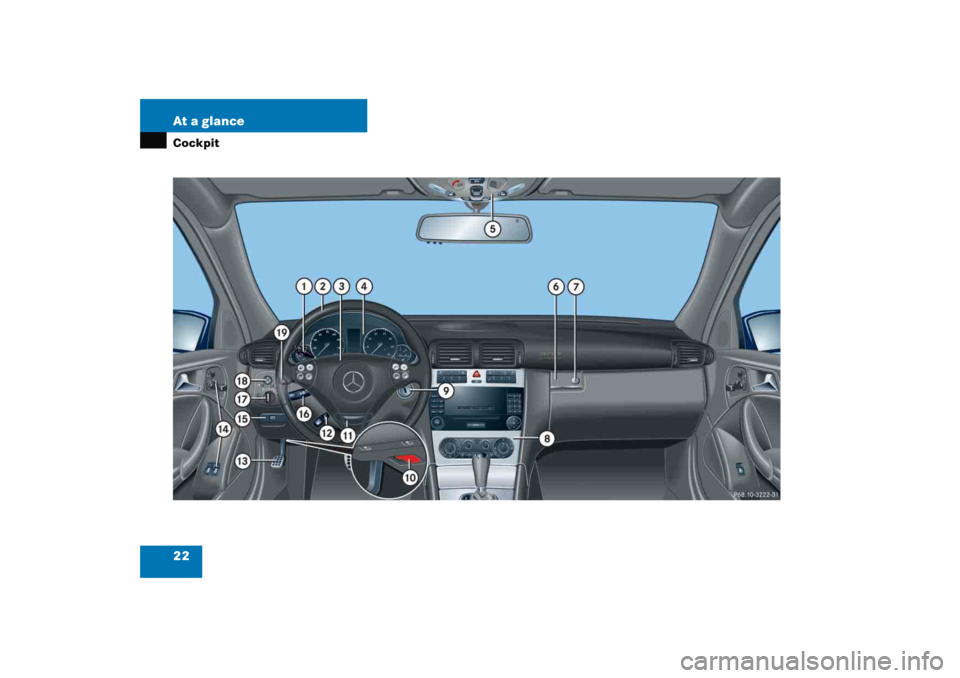

22 At a glanceCockpit

23
At a glance
Cockpit
Item
Page
1
Cruise control lever
247
2
Multifunction steering
wheel
26
124
3
Horn
4
Instrument cluster
24
119
5
Overhead control panel
29
6
Glove box lid release
254
Item
Page
7
Glove box lock
254
8
Center console
27
9
Starter switch
33
a
Hood lock release
291
b
Steering wheel adjustment
handle (manual)
41
c
Steering wheel adjustment
stalk (electrical)*
41
d
Parking brake pedal
50, 56
e
Door control panel
30
Item
Page
f
Parking brake release
50
g
Combination switch

Turn signals
52


High beam
52


Windshield wipers
53
h
Exterior lamp switch
51
110
j
Exterior rear view mirror
adjustment
42
k
Headlamp washer switch*
167

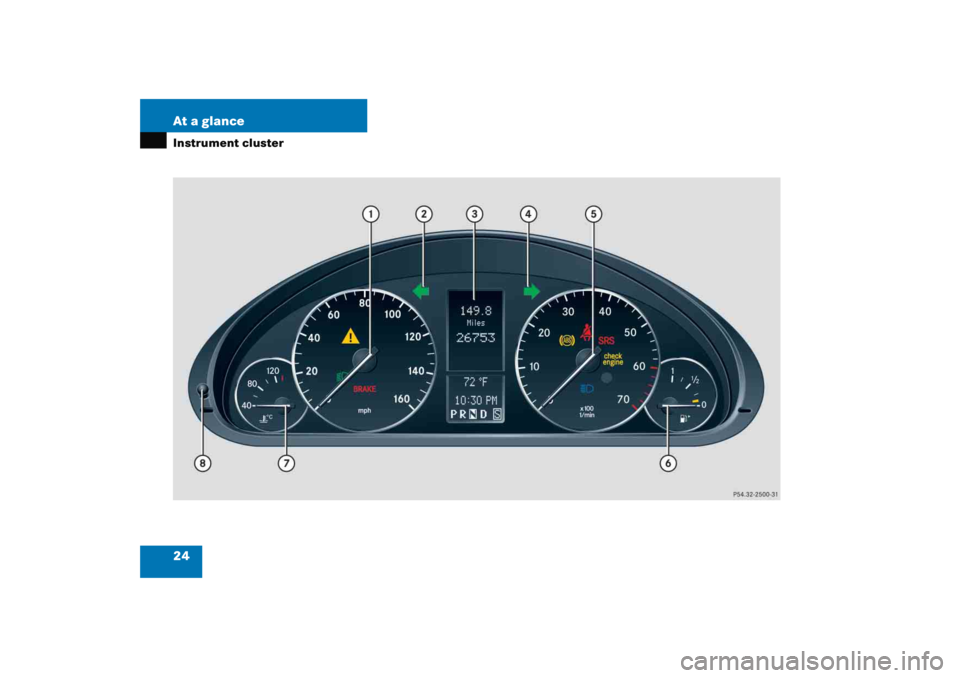

24 At a glanceInstrument cluster

25
At a glance
Instrument cluster
Item
Page
1
Speedometer with:v
Electronic Stability
Program (ESP)
warning lamp
83
343
; Brake warning lamp,
USA only
50
56
341
3 Brake warning lamp,
Canada only
50
56
341
B Low beam headlamp
indicator lamp
51
110
2
L Left turn signal
indicator lamp
52
3
Multifunction display with:Trip odometer
121
Main odometer
123
Gear selector lever position
49
162
Item
Page
Program mode
164
Status indicator
(outside temperature/ digital
speedometer)
121
138
Digital clock
123
139
4
K Right turn signal
indicator lamp
52
5
Tachometer with:-Antilock Brake
System (ABS)
indicator lamp
81
340
< Seat belt telltale
66
344
1 Supplemental
restraint system
indicator lamp
60
344
A High beam headlamp
indicator lamp
51
114
Item
Page
ú Engine malfunction
indicator lamp,
USA only
342
±Engine malfunction
indicator lamp,
Canada only
342
6
Fuel gauge with:Fuel reserve warning lamp
344
4Fuel filler cap location
indicator: The fuel
filler cap is on the rear
right-hand side.
7
Coolant temperature gauge
120
8
Reset button for:

Resetting trip odometer
121


Resetting individual
settings
135


Instrument cluster
illumination
119

26 At a glanceMultifunction steering wheel
Item
Page
1
Multifunction display in
speedometer
123
Operating control
system
123
2
Selecting the submenu or
setting the volume:
Press buttonæup/to increaseçdown/to decrease
3
Telephone*:
Press buttonsto take a calltto end a call
Item
Page
4
Moving within a menu:
Press buttonjfor next displaykfor previous display
5
Menu systems:
Press buttonèfor next menuÿfor previous menu

27
At a glance
Center console
 Center console
Upper part
Item
Page
1
Seat heater*, driver‘s side
106
2
ESP control switch
83
3
Hazard warning flasher
switch – switching on/off
116
4
Central locking switch
98
Central unlocking switch
98
5
Tow-away alarm switch*
87
Anti-theft alarm system
indicator lamp*
86
6
Seat heater*, passenger
side
106
7
Front passenger front air
bag off indicator lamp
76
8
Audio system
195
orCOMAND* (see separate
operating instructions)
9
Climate control
172
Automatic climate control*
182

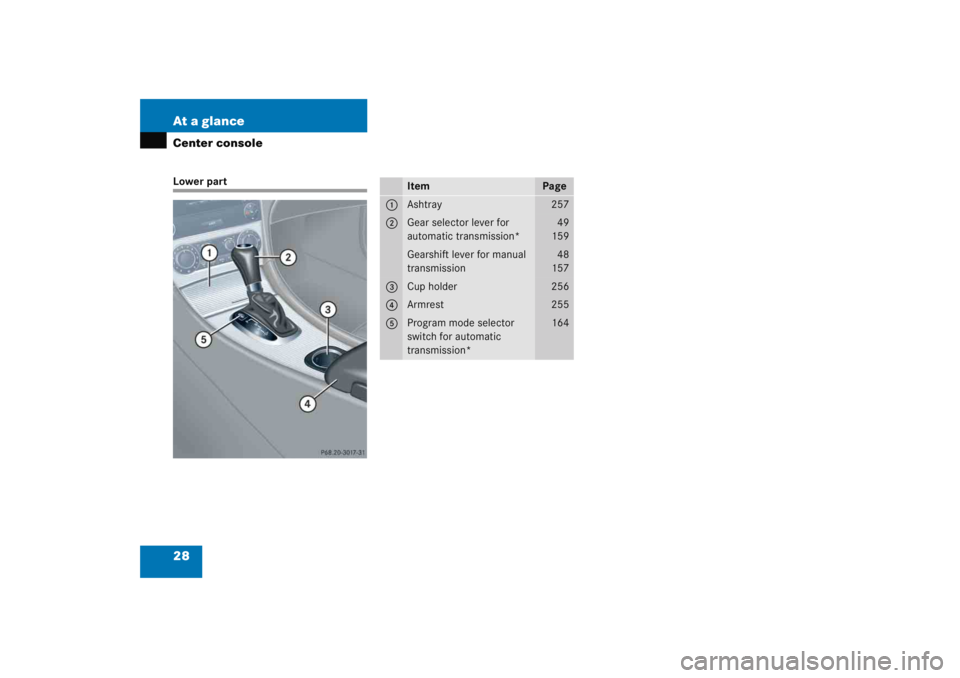

28 At a glanceCenter consoleLower part
Item
Page
1
Ashtray
257
2
Gear selector lever for
automatic transmission*
49
159
Gearshift lever for manual
transmission
48
157
3
Cup holder
256
4
Armrest
255
5
Program mode selector
switch for automatic
transmission*
164

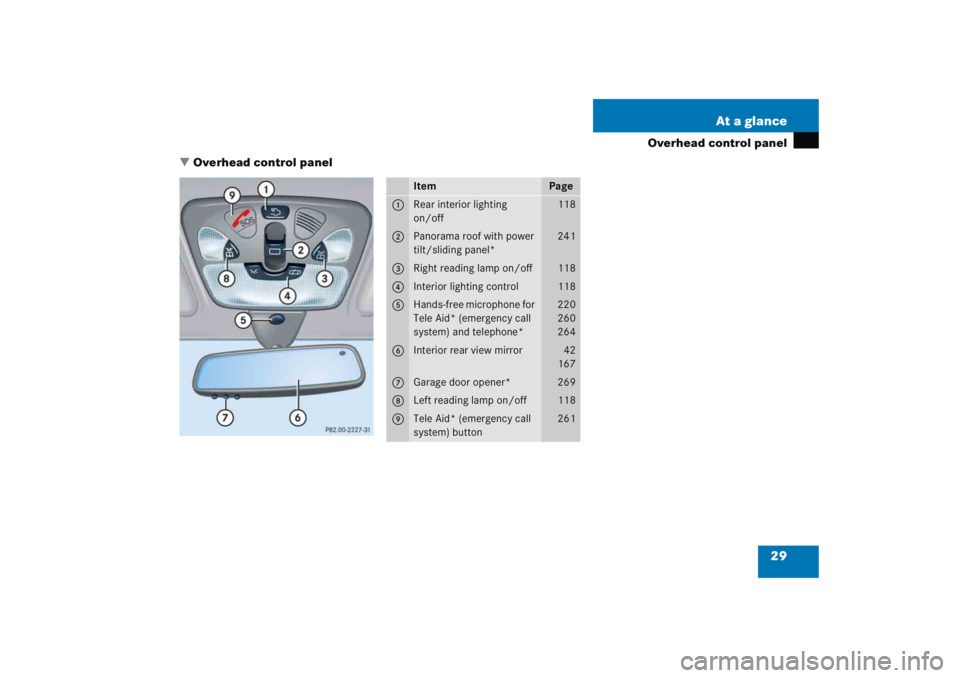

29
At a glance
Overhead control panel
 Overhead control panel
Item
Page
1
Rear interior lighting
on/off
118
2
Panorama roof with power
tilt/sliding panel*
241
3
Right reading lamp on/off
118
4
Interior lighting control
118
5
Hands-free microphone for
Tele Aid* (emergency call
system) and telephone*
220
260
264
6
Interior rear view mirror
42
167
7
Garage door opener*
269
8
Left reading lamp on/off
118
9
Tele Aid* (emergency call
system) button
261
