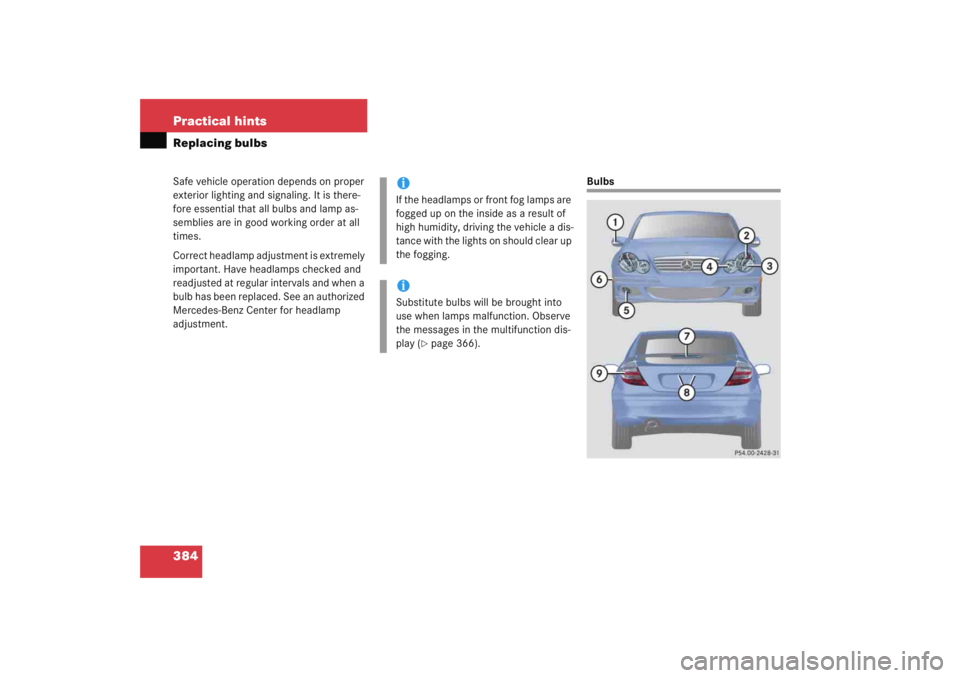

384 Practical hintsReplacing bulbsSafe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See an authorized
Mercedes-Benz Center for headlamp
adjustment.
Bulbs
iIf the headlamps or front fog lamps are
fogged up on the inside as a result of
high humidity, driving the vehicle a dis-
tance with the lights on should clear up
the fogging.iSubstitute bulbs will be brought into
use when lamps malfunction. Observe
the messages in the multifunction dis-
play (
page 366).

385
Practical hints
Replacing bulbs
Front lamps
Rear lamps

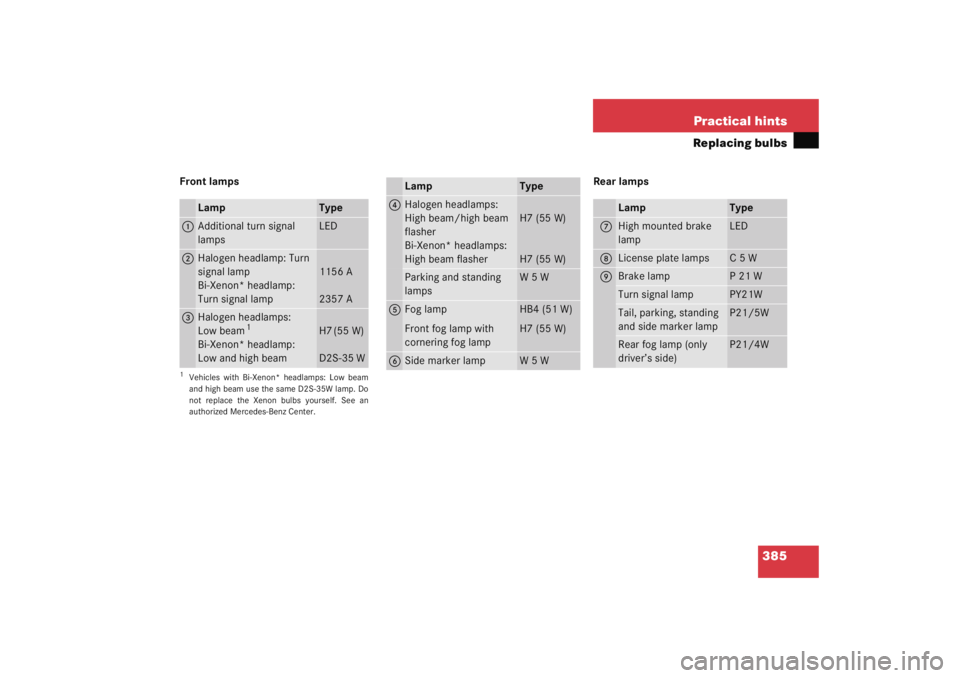

Lamp
Type
1
Additional turn signal
lamps
LED
2
Halogen headlamp: Turn
signal lamp
Bi-Xenon* headlamp:
Turn signal lamp
1156 A
2357 A
3
Halogen headlamps:
Low beam
1
Bi-Xenon* headlamp:
Low and high beam
1Vehicles with Bi-Xenon* headlamps: Low beam
and high beam use the same D2S-35W lamp. Do
not replace the Xenon bulbs yourself. See an
authorized Mercedes-Benz Center.
H7 (55 W)
D2S-35 W
Lamp
Type
4
Halogen headlamps:
High beam/high beam
flasher
Bi-Xenon* headlamps:
High beam flasher
H7 (55 W)
H7 (55 W)
Parking and standing
lamps
W5W
5
Fog lamp
Front fog lamp with
cornering fog lamp
HB4 (51 W)
H7 (55 W)
6
Side marker lamp
W5W
Lamp
Type
7
High mounted brake
lamp
LED
8
License plate lamps
C 5 W
9
Brake lamp
P 21 W
Turn signal lamp
PY21W
Tail, parking, standing
and side marker lamp
P21/5W
Rear fog lamp (only
driver’s side)
P21/4W

386 Practical hintsReplacing bulbs
Notes on bulb replacement

Use only 12-volt bulbs of the same type
and with the specified watt rating.


Switch lights off before replacing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not
come on, visit an authorized
Mercedes-Benz Center.
Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Center.


Additional turn signals in the exterior
rear view mirrors


High mounted brake lamp


Xenon* lamps


Front fog lamps
Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to
position M (
page 110).

Open the hood (
page 291) (except
for side marker lamps).

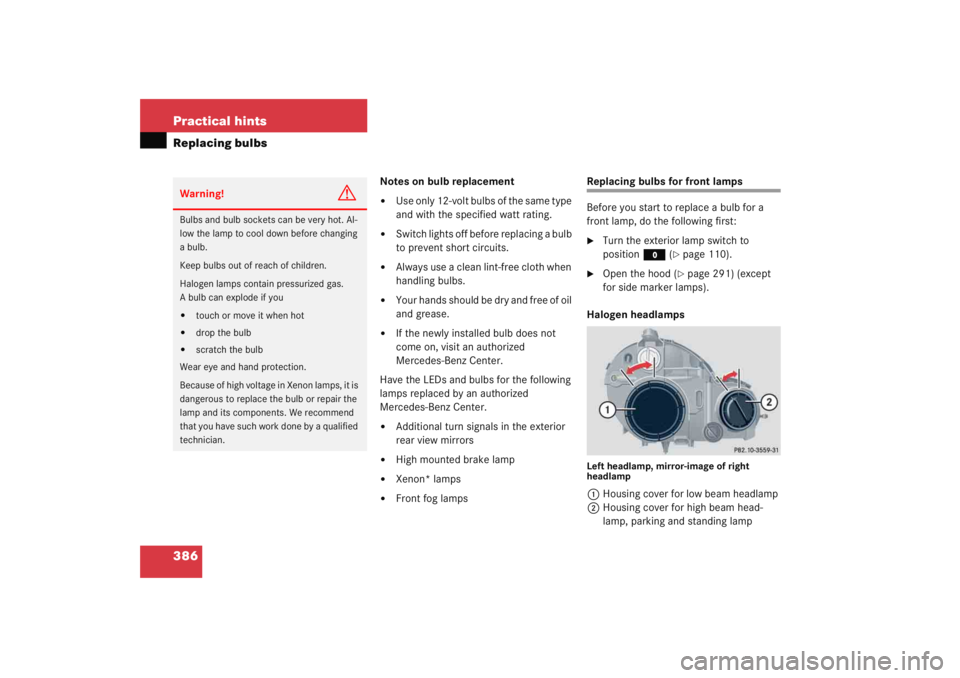

Halogen headlamps
Left headlamp, mirror-image of right
headlamp1 Housing cover for low beam headlamp
2 Housing cover for high beam head-
lamp, parking and standing lamp
Warning!
G
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas.
A bulb can explode if you

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.

388 Practical hintsReplacing bulbsFront turn signal lamp bulb
Turn bulb socket3 counterclockwise
and remove it.

Press gently onto the bulb and turn
counterclockwise out of bulb
socket 3.

Press the new bulb gently into bulb
socket 3 and turn clockwise until it
engages.

Place bulb socket 3 back into the
lamp and turn it clockwise. Parking and standing lamp bulb

Turn housing cover
2 counterclock-
wise and remove it.

Pull out bulb socket 6 with the bulb.

Pull the bulb out of bulb socket 6.

Press the new bulb into bulb socket 6.

Press bulb socket 6 back into the
lamp.

Align housing cover 2 and turn it
clockwise. Bi-Xenon* headlamps
Warning!
G
Do not remove the cover
1
for the
Bi-Xenon headlamp. Because of high voltage
in Bi-Xenon lamps, it is dangerous to replace
the bulb or repair the lamp and its compo-
nents. We recommend that you have such
work done by a qualified technician.

389
Practical hints
Replacing bulbs
Left headlamp, mirror-image of right
headlamp1
Housing cover for Bi-Xenon headlamp
2 Housing cover for high beam flasher,
parking and standing lamp 3
Bulb socket for turn signal lamp
4 Bulb holder for high beam flasher
5 Bulb socket for parking and standing
lamp bulb
High beam bulb for high beam flasher

Turn housing cover 2 counterclock-
wise and remove it.

Turn bulb holder 4 with the bulb coun-
terclockwise and remove it.

Pull the bulb at its socket out of bulb
holder 4.

Insert the new bulb so that its socket
locates in the recess of bulb holder 4
and is level to it.

Reinsert bulb holder 4 w i t h t h e b u l b i n
the lamp and turn clockwise.

Align housing cover 2 and turn it
clockwise.
Front turn signal lamp bulb

Turn bulb socket 3 with the bulb
counterclockwise and remove it.

Press gently onto the bulb and turn
counterclockwise out of bulb
socket 3.

Press the new bulb gently into bulb
socket 3 and turn clockwise until it
engages.

Place bulb socket 3 back into the
lamp and turn it clockwise.

427
Technical data
Fuels, coolants, lubricants, etc.
Model
Capacity
Fuels, coolants, lubricants, etc.
Fuel tank
including a reserve of
16.4 US gal (62.0 l)
2.1 US gal (8.0 l)
Premium unleaded gasoline:
Minimum Posted Octane 91 (Avg. of 96 RON / 86 MON)
Flexible Fuel Vehicles (identified by a label reading
Premium gasoline or E85 only!
on fuel filler flap):
Alternative fuel: Ethanol fuel (E85)
Air conditioning system
R-134a refrigerant and special PAG lubricant oil
(never R-12)
Windshield washer
3.2 US qt (3.0 l)
MB Windshield Washer Concentrate
1
Windshield washer and
headlamp cleaning system*
6.4 US qt (6.0 l)
1Use MB Windshield Washer Concentrate “S” and water for temperatur es above freezing point or MB Windshield Washer Concentrate “S” and commercially available
premixed windshield washer solvent/antifreeze for temperatures below freezing point. Follow suggested mixing ratios ( page 435).

435
Technical data
Fuels, coolants, lubricants, etc.
Windshield washer system and headlamp cleaning system
Both the windshield and headlamp washer
systems are supplied from the windshield
washer fluid reservoir.
The washer fluid reservoir has a capacity of
approximately

6.4 US qt (6.0 l) in vehicles with head-
lamp cleaning system*


3.2 US qt (3.0 l) in vehicles without
headlamp cleaning system

Refill the reservoir with MB Windshield
Washer Concentrate and water (or con-
centrate and commercially available
premixed windshield washer sol-
vent/antifreeze, depending on ambient
temperatures).
Windshield and headlamp washer fluid
mixing ratio
For temperatures above freezing point, use
MB Windshield Washer Concentrate “S”
and water:


1 part “S” to 100 parts water
[40 ml “S” to 1 gallon (4 liters) water]
For temperatures below freezing point, use
MB Windshield Washer Concentrate “S”
and commercially available premixed
windshield washer solvent/antifreeze:


1 part “S” to 100 parts solvent
[40 ml “S” to 1 gallon (4 liters) solvent].
Warning!
G
Washer solvent/antifreeze is highly flamma-
ble. Do not spill washer solvent/antifreeze
on hot engine parts, because it may ignite
and burn. You can be seriously burned.

437

Technical terms
ABS
(A
ntilock B
rake S
ystem)
Prevents the wheels from locking up
during braking so that the vehicle can
continue to be steered.
Accessory weight (
page 323)
Air pressure (page 323)
Alignment bolt Metal pin with thread. The centering
pin is an aid used when changing a tire
to align the wheel with the wheel hub.
Aspect ratio (page 323)
Bar (page 323)
BAS (Brake A
ssist S
ystem)
System for potentially reducing braking
distances in emergency braking situa-
tions. The system is activated when it
senses an emergency based on how
fast the brake is applied. Bead
(
page 323)
Bi-Xenon headlamps* Headlamps which use an electric arc as
the light source and produce a more in-
tense light than filament headlamps.
Bi-Xenon headlamps produce low
beam and high beam.
CAC (Customer A
ssistance C
enter)
Mercedes-Benz customer service cen-
ter, which can help you with any ques-
tions about your vehicle and provide
assistance in the event of a break-
down.
CAN system (C
ontroller A
rea N
etwork)
Data bus network serving to control ve-
hicle functions such as door locking or
windshield wiping. Cockpit
All instruments, switches, buttons and
indicator/warning lamps in the passen-
ger compartment needed for vehicle
operation and monitoring.
Cold tire inflation pressure (
page 323)
Collapsible tire An especially compact spare tire that
must be inflated with a provided air
pump before using. It should only be
used to bring the vehicle to the nearest
service station.
COMAND* (Cockpit M
anagement and D
ata Sys-
tem)
Information and operating center for
vehicle sound and communications
systems, including the radio and navi-
gation system, as well as other optional
equipment (CD changer, telephone,
etc.).

443
