54 Getting startedDrivingIntermittent wiping
Set the wiper switch to positionI.
Single wipe

Press switch briefly in the direction of
arrow 1.
The windshield wipers wipe one time
without washer fluid. Wiping with windshield washer fluid

Push switch in the direction of
arrow
1 past the resistance point.
The windshield wipers operate with
washer fluid.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system*”
(
page 299).
iIntermittent wiping is interrupted when
the vehicle is at a standstill and a door
is opened.
!If anything blocks the windshield wip-
ers (leaves, snow, etc.), switch them off
immediately.

For safety reasons, withdraw
SmartKey from starter switch
before attempting to remove any
blockage.


Remove blockage.


Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch position I,


set the combination switch to the
next highest wiper speed


have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Center

57
Getting started
Parking and locking
Switching off headlamps
Turn the exterior lamp switch to
M
(page 51).
For more information on headlamps, see
“Lighting” (
page 110).
Warning!
G
Getting out of your vehicle with the gear
selector lever not fully engaged in position P
(manual transmission: first or reverse gear)
is dangerous. Also, when parked on an
incline, position P (manual transmission:
first or reverse gear) alone may not prevent
your vehicle from moving, possibly hitting
people or objects.
Always set the parking brake in addition to
shifting to position P (manual transmission:
first or reverse gear).
When parked on an incline, turn front wheels
towards the road curb.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Children
could release the parking brake and/or
move the gear selector lever from position P
(manual transmission: into neutral), either of
which could result in an accident and/or se-
rious injury.

110 Controls in detailLightingFor more information on how to switch on
the headlamps and use the turn signals,
see “Switching on headlamps” (
page 51)
and “Turn signals”(
page 52).
Exterior lamp switch
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.Exterior lamp switchM Off
Daytime running lamp mode
(
page 144)
U Automatic headlamp mode
Daytime running lamp mode
(page 144) C
Parking lamps (also side marker
lamps, tail lamps, license plate
lamps, instrument panel lamps)
Canada only: When engine is run-
ning, the low beam is also switched
on.
B Low beam headlamps (or high
beam headlamps when the combi-
nation switch pushed forward) and
parking lamps.
ˆ Standing lamps, right (turn left one
stop)
‚ Standing lamps, left (turn left two
stops)
‡ Indicator lamp for front fog lamps
† Indicator lamp for rear fog lamp
iIf you drive in countries where vehicles
drive on the other side of the road than
the country where the vehicle is regis-
tered, you must have the headlamps
modified for symmetrical low beams.
Relevant information can be obtained
at an authorized Mercedes-Benz
Center.

111
Controls in detail
Lighting
Manual headlamp mode
The low beam headlamps and parking
lamps can be switched on and off with the
exterior lamp switch.
Automatic headlamp mode
The following lamps switch on and off
automatically depending on the brightness
of the ambient light:


Low beam headlamps


Tail and parking lamps


License plate lamps


Side marker lamps

Turn exterior lamp switch to
position
U.
With the SmartKey in starter switch
position 1, only the parking lamps will
switch on and off automatically.
When the engine is running, the low
beam headlamps, the tail and parking
lamps, the license plate lamps and the
side marker lamps will switch on and
off automatically.
iWith the SmartKey removed from the
starter switch and the driver’s door
open, while the parking lamps or low
beam headlamps are switched on,

a warning sounds


$ appears in the multifunction
display


the message
Switch off lights.

appears in the multifunction display
Warning!
G
If the exterior lamp switch is set to U,

the headlamps may switch off unexpect-
edly when the system senses bright am-
bient light, for example light from
oncoming traffic.


the headlamps will not be automatically
switched on under foggy conditions.
To minimize risk to you and to others, acti-
vate headlamps by turning exterior lamp
switch to B when driving or when traffic
and / or ambient lighting conditions require
you to do so.
In low ambient lighting conditions, only
switch from position U to B with the
vehicle at a standstill. Switching from U
to B will briefly switch off the head-
lamps. Doing so while driving in low ambient
lighting conditions may result in an acci-
dent.
The automatic headlamp feature is only an
aid to the driver. The driver is responsible for
the operation of the vehicle's lights at all
times.

112 Controls in detailLightingDaytime running lamp mode
Turn exterior lamp switch to
positionM orU .
When the engine is running, the low
beam headlamps are switched on.
In low ambient light conditions, the fol-
lowing lamps will switch on additional-
ly.

Tail and parking lamps


License plate lamps


Side marker lamps
For nighttime driving you should turn the
exterior lamp switch to position B to
permit activation of the high beam head-
lamps. Canada only
The daytime running lamp mode is manda-
tory and therefore in a constant mode.
Vehicles with automatic transmission*:
When the engine is running, and you shift
from a driving position to position
N or P,
the low beam headlamps will switch off
with a three-minute time delay.
When the engine is running, and you


turn the exterior lamp switch to
position C, the parking lamps
switch on additionally.


turn the exterior lamp switch to
position B, the manual headlamp
mode has priority over the daytime
running.
The corresponding exterior lamps
switch on (
page 110). USA only
By default, the daytime running lamp mode
is deactivated. Activate the daytime run-
ning lamp mode using the control system,
see “Setting daytime running lamp mode
(USA only)” (
page 144).
When the engine is running, and you turn
the exterior lamp switch to position C
or B , the manual headlamp mode has
priority over the daytime running lamp
mode.
The corresponding exterior lamps switch
on (
page 110).
Locator lighting and night security
illumination
The locator lighting and night security illu-
mination are described in the control sys-
tem section, see “Setting locator lighting”
(
page 145) and “Headlamps delayed
shut off” (
page 146).
iWith the daytime running lamp mode
activated and the exterior lamp switch
in position M, the high beam head-
lamps cannot be switched on.

113
Controls in detail
Lighting

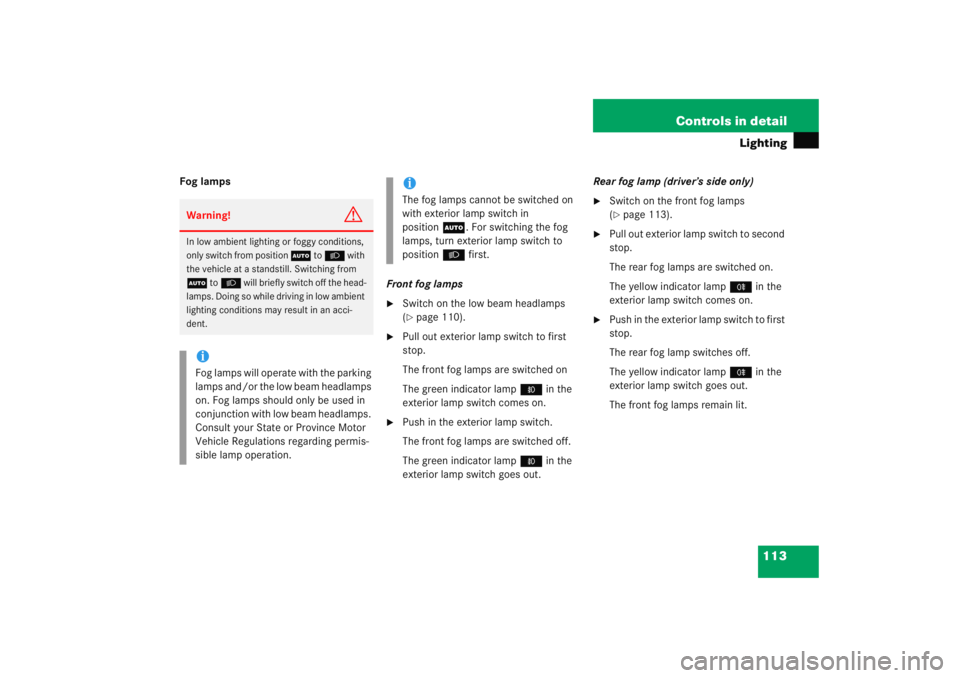

Fog lamps
Front fog lamps

Switch on the low beam headlamps
(page 110).

Pull out exterior lamp switch to first
stop.
The front fog lamps are switched on
The green indicator lamp‡ in the
exterior lamp switch comes on.

Push in the exterior lamp switch.
The front fog lamps are switched off.
The green indicator lamp ‡ in the
exterior lamp switch goes out. Rear fog lamp (driver’s side only)

Switch on the front fog lamps
(page 113).

Pull out exterior lamp switch to second
stop.
The rear fog lamps are switched on.
The yellow indicator lamp
† in the
exterior lamp switch comes on.

Push in the exterior lamp switch to first
stop.
The rear fog lamp switches off.
The yellow indicator lamp † in the
exterior lamp switch goes out.
The front fog lamps remain lit.
Warning!
G
In low ambient lighting or foggy conditions,
only switch from position U to B with
the vehicle at a standstill. Switching from
U to B will briefly switch off the head-
lamps. Doing so while driving in low ambient
lighting conditions may result in an acci-
dent.iFog lamps will operate with the parking
lamps and/or the low beam headlamps
on. Fog lamps should only be used in
conjunction with low beam headlamps.
Consult your State or Province Motor
Vehicle Regulations regarding permis-
sible lamp operation.
iThe fog lamps cannot be switched on
with exterior lamp switch in
position U. For switching the fog
lamps, turn exterior lamp switch to
position B first.

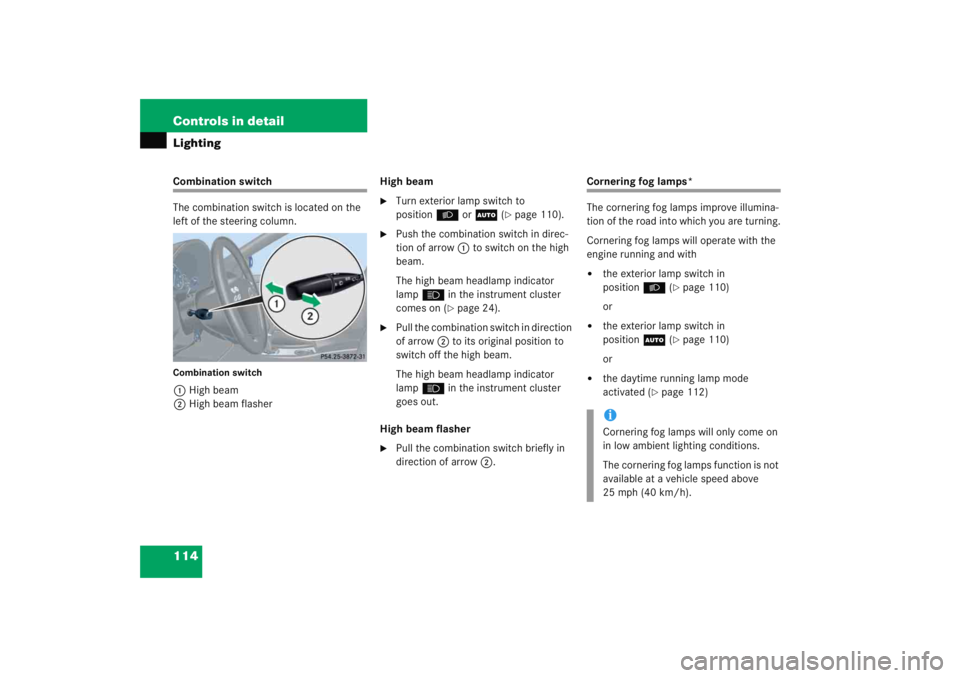

114 Controls in detailLightingCombination switch
The combination switch is located on the
left of the steering column.Combination switch1High beam
2 High beam flasher High beam

Turn exterior lamp switch to
position
B orU (
page 110).

Push the combination switch in direc-
tion of arrow 1 to switch on the high
beam.
The high beam headlamp indicator
lamp A in the instrument cluster
comes on (
page 24).

Pull the combination switch in direction
of arrow 2 to its original position to
switch off the high beam.
The high beam headlamp indicator
lamp A in the instrument cluster
goes out.
High beam flasher

Pull the combination switch briefly in
direction of arrow 2.
Cornering fog lamps*
The cornering fog lamps improve illumina-
tion of the road into which you are turning.
Cornering fog lamps will operate with the
engine running and with

the exterior lamp switch in
position B (
page 110)
or


the exterior lamp switch in
position U (
page 110)
or


the daytime running lamp mode
activated (
page 112)
iCornering fog lamps will only come on
in low ambient lighting conditions.
The cornering fog lamps function is not
available at a vehicle speed above
25 mph (40 km/h).

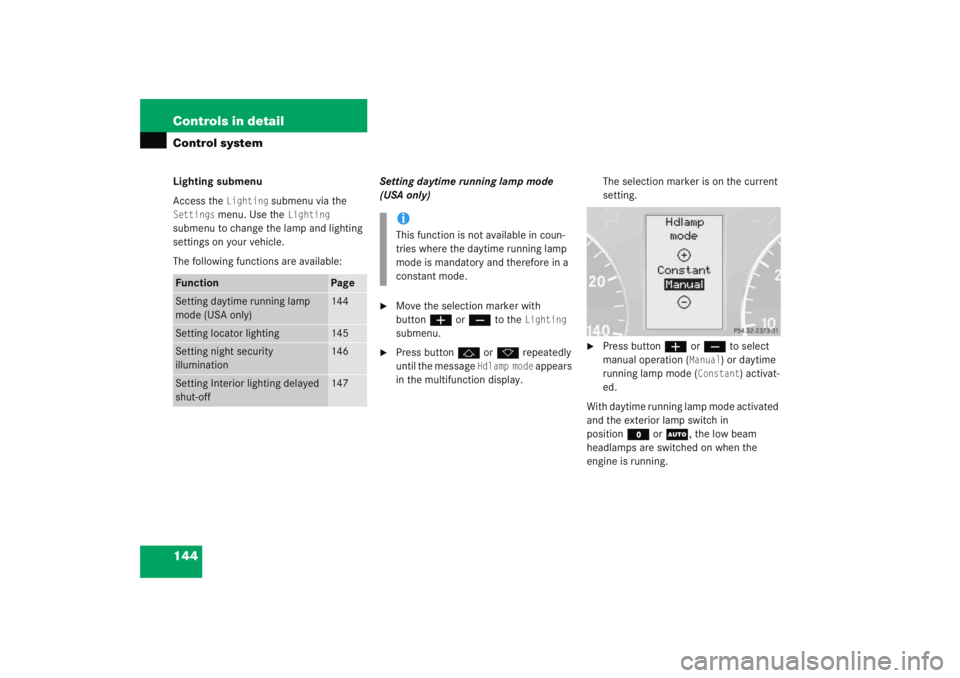

144 Controls in detailControl systemLighting submenu
Access the
Lighting
submenu via the
Settings
menu. Use the
Lighting
submenu to change the lamp and lighting
settings on your vehicle.
The following functions are available:Setting daytime running lamp mode
(USA only)

Move the selection marker with
button
æ orç to the
Lighting

submenu.

Press button j ork repeatedly
until the message
Hdlamp mode
appears
in the multifunction display. The selection marker is on the current
setting.

Press button
æ orç to select
manual operation (
Manual
) or daytime
running lamp mode (
Constant
) activat-
ed.
With daytime running lamp mode activated
and the exterior lamp switch in
position MorU , the low beam
headlamps are switched on when the
engine is running.
Function
Page
Setting daytime running lamp
mode (USA only)
144
Setting locator lighting
145
Setting night security
illumination
146
Setting Interior lighting delayed
shut-off
147
iThis function is not available in coun-
tries where the daytime running lamp
mode is mandatory and therefore in a
constant mode.

146 Controls in detailControl systemSetting night security illumination
(Headlamps delayed shut off)
Use this function to set whether and how
long you would like the exterior lamps to il-
luminate during darkness after exiting the
vehicle and all doors closed.
With the delayed shut-off feature activated
and the exterior lamp switch in
positionU before the engine is turned
off, the following lamps will come on after
you have removed the SmartKey from the
starter switch:

Parking lamps


Tail lamps


License plate lamps


Side marker lamps


Front fog lamps
If you do not open a door after removing
the SmartKey from the starter switch, the
lamps will switch off automatically after
approximately 60 seconds.

Move the selection marker with
button æorç to the
Lighting

submenu.

Press button jork repeatedly
until the message
Hdlamp delay off

appears in the multifunction display.
The selection marker is on the current
setting.

Press button æorç to select
the desired lamp-on period.
You can select:

0sec.
, the delayed shut-off feature
is deactivated.


15 sec.
, 30 sec.
, 45 sec.

or
60 sec.
, select the desired
lamp-on period.

Turn the exterior lamp switch to
position U before turning off the
engine (
page 110).
The headlamps delayed shut-off
feature is activated.
iYou can reactivate this function within
ten minutes by opening a door.

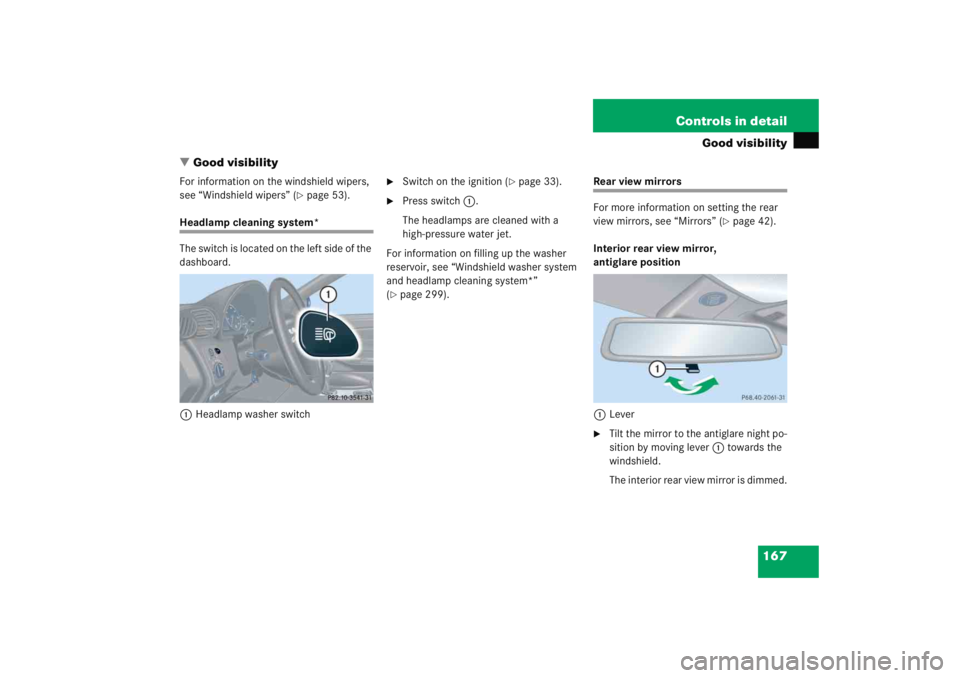

167
Controls in detail
Good visibility
 Good visibility
For information on the windshield wipers,
see “Windshield wipers” (
page 53).
Headlamp cleaning system*
The switch is located on the left side of the
dashboard.
1 Headlamp washer switch

Switch on the ignition (
page 33).

Press switch 1.
The headlamps are cleaned with a
high-pressure water jet.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system*”
(
page 299).
Rear view mirrors
For more information on setting the rear
view mirrors, see “Mirrors” (
page 42).
Interior rear view mirror,
antiglare position
1 Lever

Tilt the mirror to the antiglare night po-
sition by moving lever 1 towards the
windshield.
The interior rear view mirror is dimmed.
