buttons MERCEDES-BENZ C CLASS COUPE 2005 Owners Manual

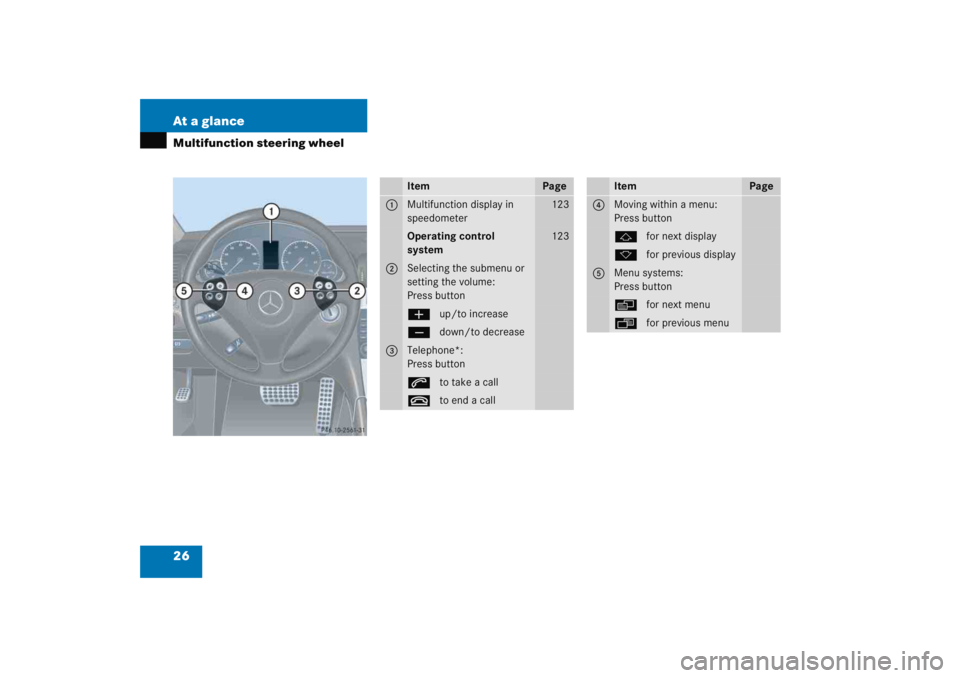

26 At a glanceMultifunction steering wheel
Item
Page
1
Multifunction display in
speedometer
123
Operating control
system
123
2
Selecting the submenu or
setting the volume:
Press buttonæup/to increaseçdown/to decrease
3
Telephone*:
Press buttonsto take a calltto end a call
Item
Page
4
Moving within a menu:
Press buttonjfor next displaykfor previous display
5
Menu systems:
Press buttonèfor next menuÿfor previous menu

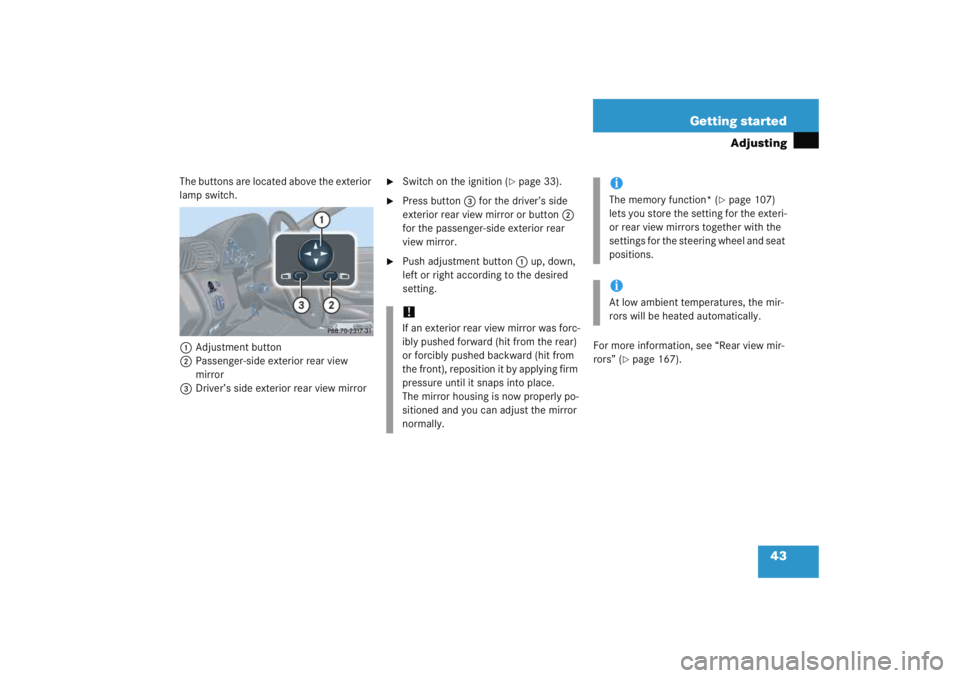

43
Getting started
Adjusting
The buttons are located above the exterior
lamp switch.
1 Adjustment button
2 Passenger-side exterior rear view
mirror
3 Driver’s side exterior rear view mirror

Switch on the ignition (
page 33).

Press button 3 for the driver’s side
exterior rear view mirror or button 2
for the passenger-side exterior rear
view mirror.

Push adjustment button 1 up, down,
left or right according to the desired
setting.
For more information, see “Rear view mir-
rors” (
page 167).
!If an exterior rear view mirror was forc-
ibly pushed forward (hit from the rear)
or forcibly pushed backward (hit from
the front), reposition it by applying firm
pressure until it snaps into place.
The mirror housing is now properly po-
sitioned and you can adjust the mirror
normally.
iThe memory function* (
page 107)
lets you store the setting for the exteri-
or rear view mirrors together with the
settings for the steering wheel and seat
positions.
iAt low ambient temperatures, the mir-
rors will be heated automatically.

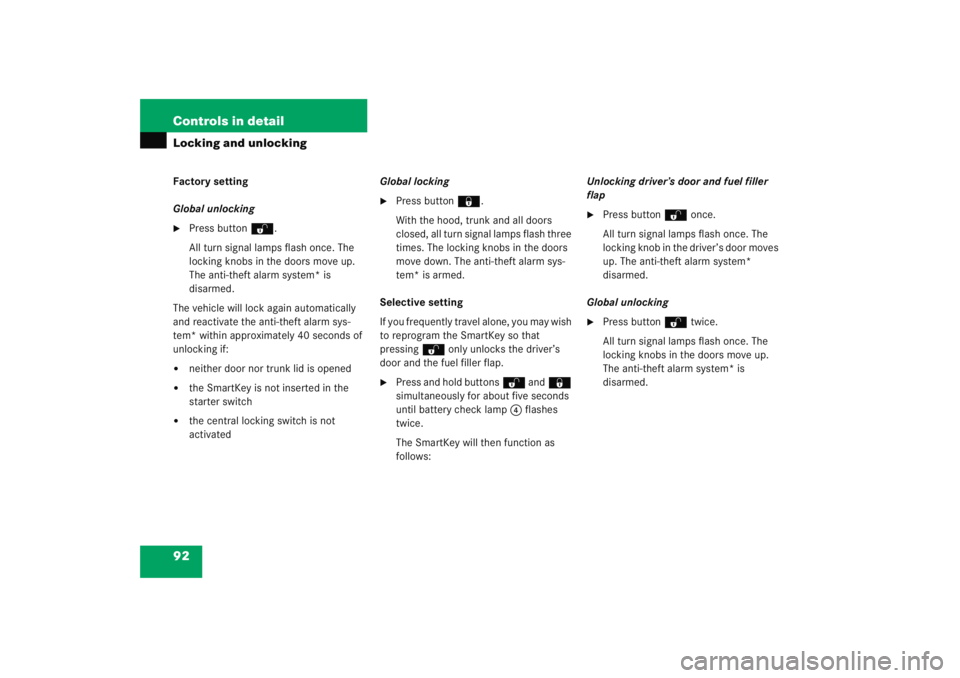

92 Controls in detailLocking and unlockingFactory setting
Global unlocking
Press buttonŒ.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system* is
disarmed.
The vehicle will lock again automatically
and reactivate the anti-theft alarm sys-
tem* within approximately 40 seconds of
unlocking if:


neither door nor trunk lid is opened


the SmartKey is not inserted in the
starter switch


the central locking switch is not
activated Global locking

Press button
‹.
With the hood, trunk and all doors
closed, all turn signal lamps flash three
times. The locking knobs in the doors
move down. The anti-theft alarm sys-
tem* is armed.
Selective setting
If you frequently travel alone, you may wish
to reprogram the SmartKey so that
pressing Œ only unlocks the driver’s
door and the fuel filler flap.

Press and hold buttons Œ and‹
simultaneously for about five seconds
until battery check lamp 4 flashes
twice.
The SmartKey will then function as
follows: Unlocking driver’s door and fuel filler
flap

Press button
Πonce.
All turn signal lamps flash once. The
locking knob in the driver’s door moves
up. The anti-theft alarm system*
disarmed.
Global unlocking

Press button Πtwice.
All turn signal lamps flash once. The
locking knobs in the doors move up.
The anti-theft alarm system* is
disarmed.

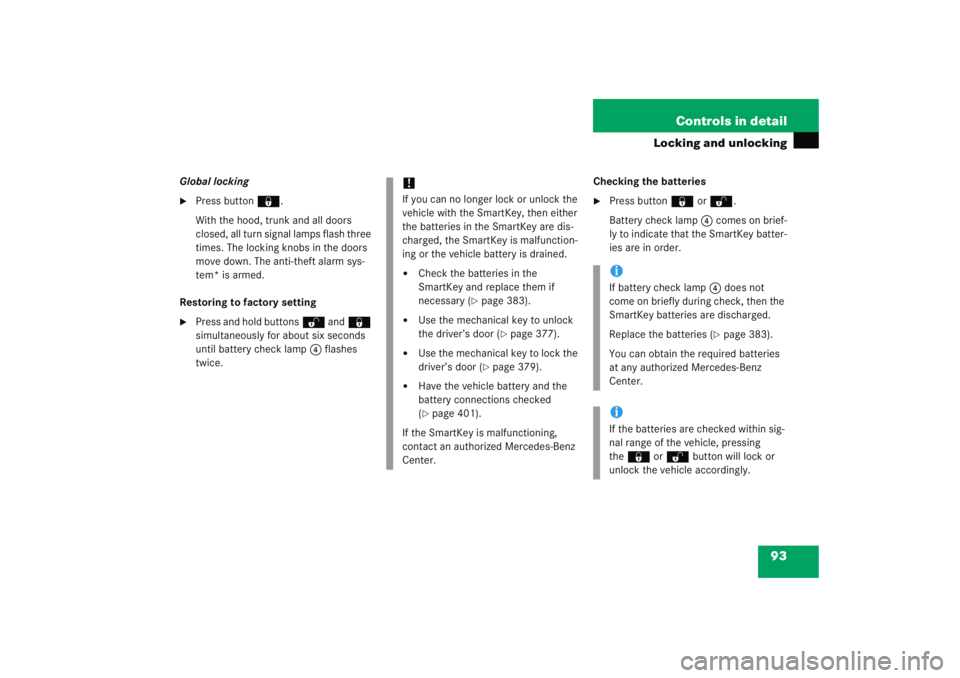

93
Controls in detail
Locking and unlocking
Global locking
Press button
‹.
With the hood, trunk and all doors
closed, all turn signal lamps flash three
times. The locking knobs in the doors
move down. The anti-theft alarm sys-
tem* is armed.
Restoring to factory setting

Press and hold buttons Œ and‹
simultaneously for about six seconds
until battery check lamp 4 flashes
twice. Checking the batteries

Press button
‹ orŒ .
Battery check lamp 4 comes on brief-
ly to indicate that the SmartKey batter-
ies are in order.
!If you can no longer lock or unlock the
vehicle with the SmartKey, then either
the batteries in the SmartKey are dis-
charged, the SmartKey is malfunction-
ing or the vehicle battery is drained.

Check the batteries in the
SmartKey and replace them if
necessary (
page 383).


Use the mechanical key to unlock
the driver’s door (
page 377).


Use the mechanical key to lock the
driver’s door (
page 379).


Have the vehicle battery and the
battery connections checked
(page 401).
If the SmartKey is malfunctioning,
contact an authorized Mercedes-Benz
Center.
iIf battery check lamp 4 does not
come on briefly during check, then the
SmartKey batteries are discharged.
Replace the batteries (
page 383).
You can obtain the required batteries
at any authorized Mercedes-Benz
Center.
iIf the batteries are checked within sig-
nal range of the vehicle, pressing
the ‹ orŒ button will lock or
unlock the vehicle accordingly.

107
Controls in detail
Memory function*
 Memory function*
You can store up to three different settings
per SmartKey.
The following settings are saved for each
stored position:

Driver’s seat, backrest and head
restraint position


Steering wheel position


Exterior rear view mirror positions
These key-dependent memory settings
can be deactivated if desired. For informa-
tion on key-dependent memory settings,
see “Setting key-dependency”
(
page 149). The following settings are not
key-dependent. They are stored when
using the buttons on the passenger door:


Front passenger seat, backrest and
head restraint position.
!Prior to operating the vehicle, the driv-
er should check and adjust the seat
height, seat position fore and aft, and
seat backrest angle if necessary, to en-
sure adequate control, reach and com-
fort. The head restraint should also be
adjusted for proper height. See also the
section on air bags (
page 61) for
proper seat positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, opera-
tion and comfort. Both the interior and
exterior rear view mirrors should be ad-
justed for adequate rear vision.
Fasten seat belts. Infants and small
children should be seated in a properly
secured restraint system that complies
with U.S. Federal Motor Vehicle Safety
Standards 213 and 225 and Canadian
Motor Vehicle Safety Standards 213
and 210.2.
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

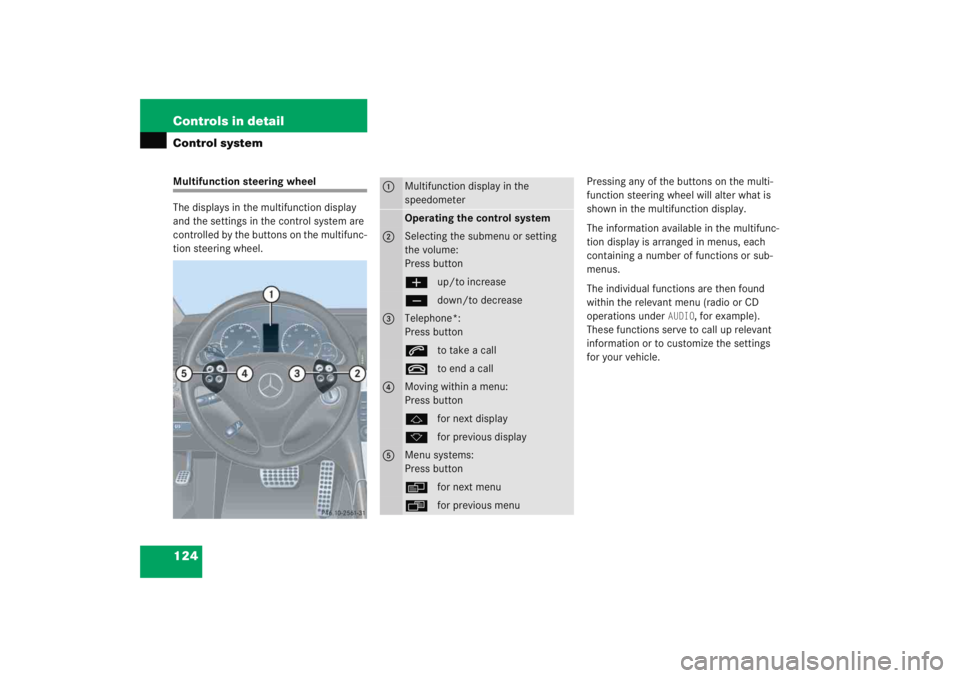

124 Controls in detailControl systemMultifunction steering wheel
The displays in the multifunction display
and the settings in the control system are
controlled by the buttons on the multifunc-
tion steering wheel.Pressing any of the buttons on the multi-
function steering wheel will alter what is
shown in the multifunction display.
The information available in the multifunc-
tion display is arranged in menus, each
containing a number of functions or sub-
menus.
The individual functions are then found
within the relevant menu (radio or CD
operations under
AUDIO
, for example).
These functions serve to call up relevant
information or to customize the settings
for your vehicle.
1
Multifunction display in the
speedometerOperating the control system
2
Selecting the submenu or setting
the volume:
Press buttonæ up/to increaseçdown/to decrease
3
Telephone*:
Press buttonsto take a calltto end a call
4
Moving within a menu:
Press buttonjfor next displaykfor previous display
5
Menu systems:
Press buttonèfor next menuÿfor previous menu

154 Controls in detailControl systemAnswering a call
When your telephone is ready to receive
calls, you can answer a call at any time. In
the multifunction display you will then see
the message:
Press buttons.
You have answered the call. The
duration of the call appears in the
multifunction display. Ending a call

Press button
t.
You have ended the call. The standby
message appears in the multifunction
display. Dialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.

Press button
ÿ orè repeatedly
until the message
TEL
appears in the
multifunction display.

Press button j ork .
The control system reads the phone
book which is stored in the telephone.
This may take up to 30 seconds. The
message
Please wait
appears in the
multifunction display.
When the message
Please wait

disappears, the phone book has been
loaded.

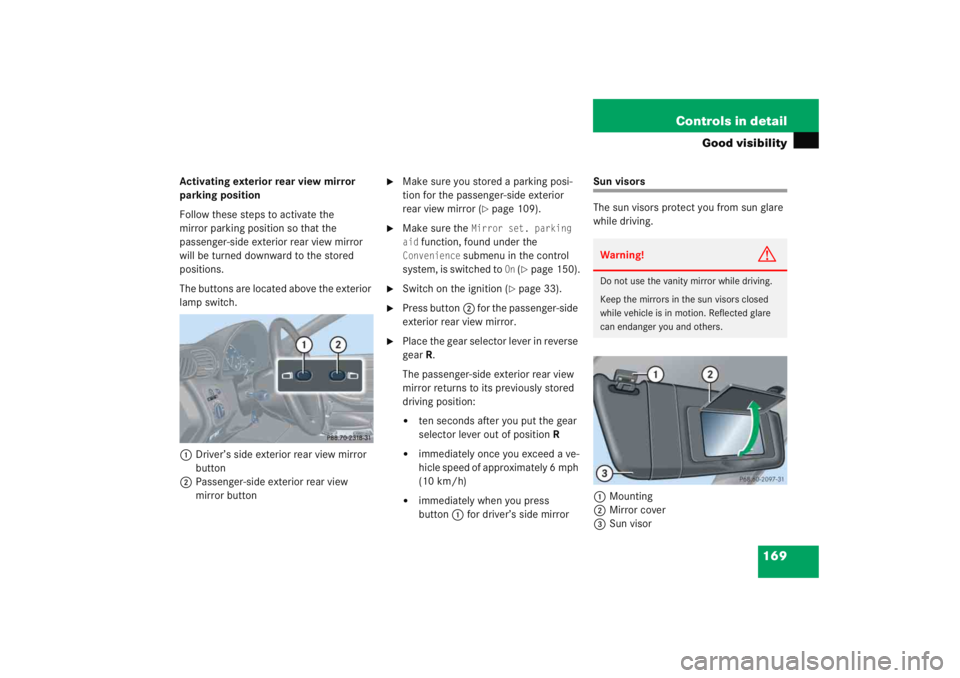

169
Controls in detail
Good visibility
Activating exterior rear view mirror
parking position
Follow these steps to activate the
mirror parking position so that the
passenger-side exterior rear view mirror
will be turned downward to the stored
positions.
The buttons are located above the exterior
lamp switch.
1 Driver’s side exterior rear view mirror
button
2 Passenger-side exterior rear view
mirror button

Make sure you stored a parking posi-
tion for the passenger-side exterior
rear view mirror (
page 109).

Make sure the
Mirror set. parking
aid
function, found under the
Convenience
submenu in the control
system, is switched to
On (page 150).

Switch on the ignition (
page 33).

Press button 2 for the passenger-side
exterior rear view mirror.

Place the gear selector lever in reverse
gear R.
The passenger-side exterior rear view
mirror returns to its previously stored
driving position:

ten seconds after you put the gear
selector lever out of position R


immediately once you exceed a ve-
hicle speed of approximately 6 mph
(10 km/h)


immediately when you press
button1 for driver’s side mirror
Sun visors
The sun visors protect you from sun glare
while driving.
1 Mounting
2 Mirror cover
3 Sun visorWarning!
G
Do not use the vanity mirror while driving.
Keep the mirrors in the sun visors closed
while vehicle is in motion. Reflected glare
can endanger you and others.

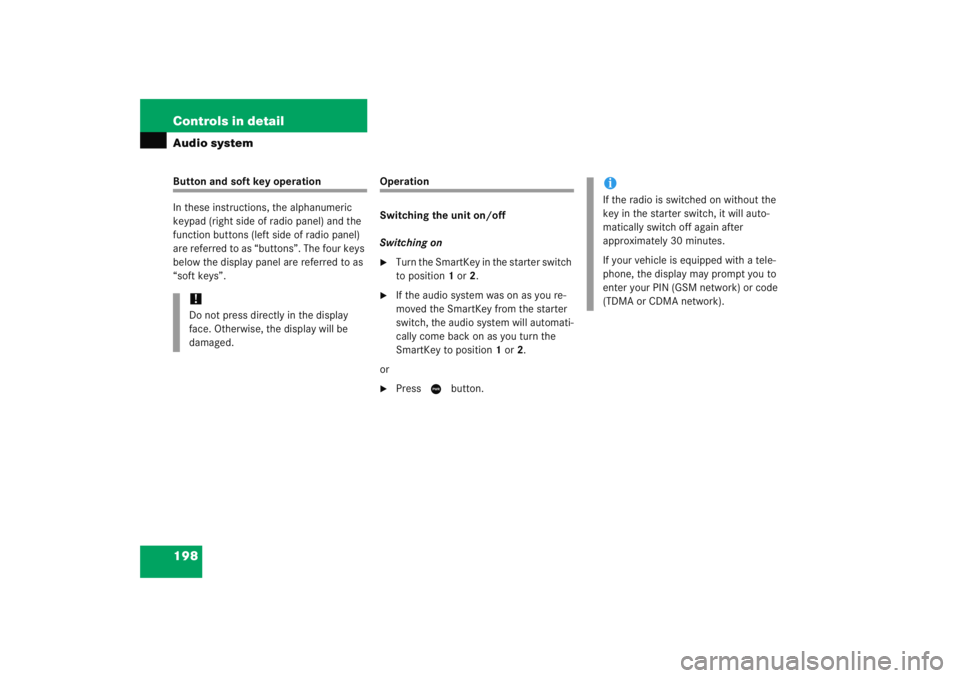

198 Controls in detailAudio systemButton and soft key operation
In these instructions, the alphanumeric
keypad (right side of radio panel) and the
function buttons (left side of radio panel)
are referred to as “buttons”. The four keys
below the display panel are referred to as
“soft keys”.
Operation
Switching the unit on/off
Switching on
Turn the SmartKey in the starter switch
to position 1 or 2.

If the audio system was on as you re-
moved the SmartKey from the starter
switch, the audio system will automati-
cally come back on as you turn the
SmartKey to position 1 or 2.
or

Press M button.
!Do not press directly in the display
face. Otherwise, the display will be
damaged.
iIf the radio is switched on without the
key in the starter switch, it will auto-
matically switch off again after
approximately 30 minutes.
If your vehicle is equipped with a tele-
phone, the display may prompt you to
enter your PIN (GSM network) or code
(TDMA or CDMA network).

204 Controls in detailAudio systemCalling up wavebands for radios with
SAT
Press
FM, AM, or
WB soft key repeatedly
until desired waveband has been se-
lected.
The FM, AM, and WB wavebands are
called up one after another.
The waveband currently selected
appears in the upper left-hand corner
of the display. Selecting a station
The following options are available for se-
lecting a station:


Direct frequency input (
page 204)


Manual tuning (
page 205)


Automatic seek tuning (
page 205)


Scan search (
page 205)


Station memory (
page 206)


Automatic station memory (Autostore)
(page 206)
The station search proceeds in the follow-
ing frequency increments:


200 KHz in FM range


10 KHz in AM range Direct frequency input

Select desired waveband.

Press
*button.

Enter desired frequency with buttons
1to R .
