display MERCEDES-BENZ C CLASS COUPE 2005 Owners Manual

ContentsSafety and Security........................... 59
Occupant safety................................... 60 Air bags .......................................... 61
Seat belts ....................................... 66
Children in the vehicle .................... 70
Panic alarm* ........................................ 80 Activating ....................................... 80
Deactivating ................................... 80
Driving safety systems ......................... 81 ABS ................................................ 81
BAS ................................................ 82
ESP ................................................. 83
Anti-theft systems................................ 86 Immobilizer..................................... 86
Anti-theft alarm system* ................ 86
Tow-away alarm* ........................... 87
Controls in detail ............................... 89
Locking and unlocking ......................... 90 SmartKey ....................................... 90
Opening the doors from the inside . 94
Opening the trunk lid ..................... 95
Closing the trunk lid ....................... 95
Trunk lid emergency release .......... 96
Automatic central locking .............. 97
Locking and unlocking from the
inside ............................................. 98
Seats ................................................. 100 Easy-entry/exit feature* .............. 100
Removing and installing front seat
head restraints ............................. 102
Rear seat head restraints ............. 103
Seat heating* ............................... 106
Memory function* ............................. 107 Storing positions into memory ..... 108
Recalling positions from memory . 108
Storing exterior rear view mirror
parking position ........................... 109 Lighting ............................................. 110
Exterior lamp switch .................... 110
Combination switch ..................... 114
Cornering fog lamps*................... 114
Hazard warning flasher ................ 116
Interior lighting ............................ 117
Instrument cluster ............................. 119 Instrument cluster illumination .... 119
Coolant temperature gauge ......... 120
Trip odometer .............................. 121
Tachometer .................................. 121
Outside temperature indicator ..... 121
Control system .................................. 123 Multifunction display.................... 123
Multifunction steering wheel........ 124
Menus .......................................... 126
Standard display menu ................ 128
AUDIO menu ................................ 129
NAV* menu .................................. 131
Vehicle status message memory
menu............................................ 132
Settings menu .............................. 133
Trip computer menu..................... 151
TEL menu* ................................... 153

Contents
Manual transmission ......................... 157Shifting into reverse ..................... 158
Automatic transmission* ................... 159 One-touch gearshifting................. 160
Gear ranges ................................. 161
Gear selector lever position ......... 162
Automatic shift program .............. 164
Driving tips ................................... 165
Emergency operation
(Limp Home Mode) ...................... 166
Good visibility .................................... 167 Headlamp cleaning system* ........ 167
Rear view mirrors ......................... 167
Sun visors .................................... 169
Rear window defroster ................. 170
Climate control .................................. 172 Deactivating the climate control
system ......................................... 175
Setting the temperature ............... 175
Adjusting air distribution and
volume ......................................... 176
Defrosting .................................... 177
Air recirculation mode.................. 177
Air conditioning ............................ 179
Rear passenger compartment
adjustable air vents...................... 180 Automatic climate control* ................ 182
Deactivating the automatic
climate control system ................. 185
Setting the temperature................ 185
Adjusting air distribution............... 186
Adjusting air volume ..................... 187
Defrosting ..................................... 188
Maximum cooling MAXCOOL ........ 188
Air recirculation mode .................. 189
Charcoal filter ............................... 191
Air conditioning............................. 192
Residual heat and ventilation
(available on automatic climate
control panel design A only).......... 193
Rear passenger compartment
adjustable air vents....................... 194 Audio system...................................... 195
Audio and telephone, operation .... 195
Operating safety ........................... 195
Operating and display elements ... 196
Button and soft key operation ...... 198
Operation...................................... 198
Radio operation ............................ 203
Introduction to satellite radio*
(USA only) ..................................... 208
CD mode....................................... 213
GSM network phones ................... 220
TDMA or CDMA network phones .. 227
Emergency calls “911” ................. 234
Power windows .................................. 237 Opening and closing the windows 237
Synchronizing power windows ...... 240

Contents
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 320
Tire ply material ........................... 322
Tire and loading terminology ........ 323
Rotating tires ............................... 326
Winter driving .................................... 328 Winter tires .................................. 328
Block heater (Canada only) .......... 329
Snow chains................................. 329
Maintenance...................................... 330 Clearing the maintenance
service indicator........................... 331
Maintenance service term
exceeded ..................................... 331
Calling up the maintenance
service indicator........................... 331
Resetting the maintenance
service indicator........................... 332
Vehicle care ....................................... 333 Cleaning and care of the vehicle .. 333
Practical hints .................................. 339
What to do if … ................................... 340 Lamps in instrument cluster ......... 340
Lamp in center console................. 345
Vehicle status messages in the
multifunction display..................... 347
Where will I find ...? ............................ 373 First aid kit.................................... 373
Vehicle tool kit .............................. 373
Spare wheel .................................. 375
Unlocking/locking in an emergency... 377 Unlocking the vehicle.................... 377
Locking the vehicle ....................... 379
Fuel filler flap ................................ 379
Manually unlocking the gear
selector lever ................................ 380
Opening/closing in an emergency ..... 381 Panorama roof with power
tilt/sliding panel* ......................... 381
Replacing SmartKey batteries ............ 382 SmartKey ...................................... 383
Replacing bulbs .................................. 384 Bulbs ............................................. 384
Replacing bulbs for front lamps .... 386
Replacing bulbs for rear lamps ..... 390 Replacing wiper blades ...................... 393
Removing ...................................... 393
Installing ....................................... 393
Flat tire............................................... 394 Preparing the vehicle .................... 394
Mounting the spare wheel ............ 394
Battery ............................................... 401 Disconnecting the battery ............ 402
Removing the battery ................... 402
Charging and reinstalling battery .. 402
Reconnecting the battery ............. 403
Jump starting...................................... 404
Towing the vehicle.............................. 406 Installing towing eye bolt .............. 409
Fuses.................................................. 410 Aids for changing fuses ................ 410
Main fuse box in passenger
compartment ................................ 411
Fuse box in engine compartment . 411
Fuse box in trunk .......................... 412

15

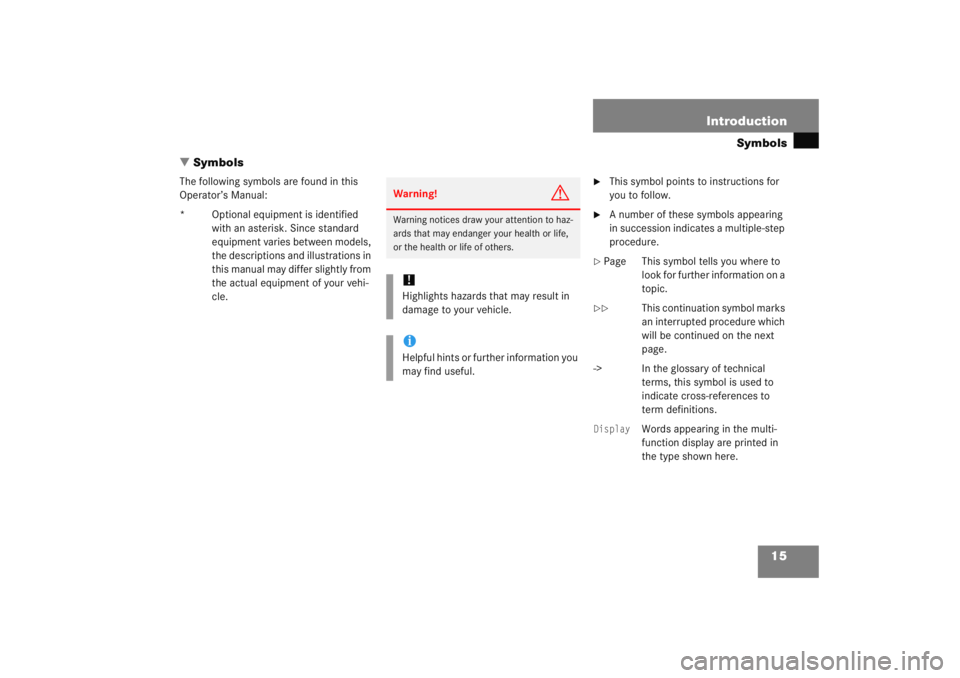

Introduction
Symbols
 Symbols
The following symbols are found in this
Operator’s Manual:
* Optional equipment is identified
with an asterisk. Since standard
equipment varies between models,
the descriptions and illustrations in
this manual may differ slightly from
the actual equipment of your vehi-
cle.

This symbol points to instructions for
you to follow.

A number of these symbols appearing
in succession indicates a multiple-step
procedure.
 Page This symbol tells you where to look for further information on a
topic.
This continuation symbol marks
an interrupted procedure which
will be continued on the next
page.
-> In the glossary of technical terms, this symbol is used to
indicate cross-references to
term definitions.
Display
Words appearing in the multi-
function display are printed in
the type shown here.
Warning!
G
Warning notices draw your attention to haz-
ards that may endanger your health or life,
or the health or life of others.!Highlights hazards that may result in
damage to your vehicle.iHelpful hints or further information you
may find useful.

25
At a glance
Instrument cluster
Item
Page
1
Speedometer with:v
Electronic Stability
Program (ESP)
warning lamp
83
343
; Brake warning lamp,
USA only
50
56
341
3 Brake warning lamp,
Canada only
50
56
341
B Low beam headlamp
indicator lamp
51
110
2
L Left turn signal
indicator lamp
52
3
Multifunction display with:Trip odometer
121
Main odometer
123
Gear selector lever position
49
162
Item
Page
Program mode
164
Status indicator
(outside temperature/ digital
speedometer)
121
138
Digital clock
123
139
4
K Right turn signal
indicator lamp
52
5
Tachometer with:-Antilock Brake
System (ABS)
indicator lamp
81
340
< Seat belt telltale
66
344
1 Supplemental
restraint system
indicator lamp
60
344
A High beam headlamp
indicator lamp
51
114
Item
Page
ú Engine malfunction
indicator lamp,
USA only
342
±Engine malfunction
indicator lamp,
Canada only
342
6
Fuel gauge with:Fuel reserve warning lamp
344
4Fuel filler cap location
indicator: The fuel
filler cap is on the rear
right-hand side.
7
Coolant temperature gauge
120
8
Reset button for:

Resetting trip odometer
121


Resetting individual
settings
135


Instrument cluster
illumination
119

26 At a glanceMultifunction steering wheel
Item
Page
1
Multifunction display in
speedometer
123
Operating control
system
123
2
Selecting the submenu or
setting the volume:
Press buttonæup/to increaseçdown/to decrease
3
Telephone*:
Press buttonsto take a calltto end a call
Item
Page
4
Moving within a menu:
Press buttonjfor next displaykfor previous display
5
Menu systems:
Press buttonèfor next menuÿfor previous menu

41
Getting started
Adjusting
Steering wheel adjustment, manual
1 Handle
To unlock the steering column, pull
handle 1 out until its stop limit.

Move steering wheel to the desired
position.

To lock the steering column, push
handle 1 all the way in until it
engages.
The steering wheel is once again
locked into position.

Make sure the steering wheel is
securely locked by trying to move it up
and down, and in and out before driving
off.
Make sure your legs can move freely and
that all the displays (inclusive malfunction
and indicator lamps) on the instrument
cluster are clearly visible. Steering wheel adjustment, electrical*
The stalk for steering wheel adjustment is
located on the steering column (lower left).
1 Adjusting steering column, in or out
2 Adjusting steering column, up or down

Switch on the ignition (
page 33).
or

Open the driver’s door.
Warning!
G
Only adjust the steering wheel with the vehi-
cle at a standstill and make sure the steer-
ing wheel is securely locked in place before
driving off.
Driving without the steering wheel adjust-
ment locked may cause an unexpected
steering wheel movement which could
cause the driver to lose control of the vehi-
cle. Make sure the steering wheel is secure-
ly locked by trying to move it up and down,
and in and out before driving off.

42 Getting startedAdjustingAdjusting steering column in or out
Move stalk forward or back in the direc-
tion of arrow1 until a comfortable
steering wheel position is reached with
your arms slightly bent at the elbow.
Adjusting steering column, up or down

Move stalk up or down in the direction
of arrow 2.
Make sure your legs can move freely
and that all the displays (inclusive mal-
function and indicator lamps) on the in-
strument cluster are clearly visible.
Mirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions. Interior rear view mirror

Manually adjust the interior rear view
mirror.
For more information, see “Rear view mir-
rors” (
page 167).
Exterior rear view mirrors
iThe memory function* (
page 107)
lets you store the setting for the steer-
ing wheel together wi th the setting for
the seat position and exterior rear view
mirrors.
Warning!
G
In the case of an accident, liquid electrolyte
may escape the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.!Electrolyte drops coming into contact
with the vehicle paint finish can only be
completely removed while in their
liquid state and by applying plenty of
water.
Warning!
G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
side rear view mirror or glance over your
shoulder before changing lanes.

73
Safety and Security
Occupant safety
Occupant Classification System
The Occupant Classification System (OCS)
automatically turns the front passenger
front air bag on or off based on the classi-
fied occupant weight category determined
by weight sensor readings from the front
passenger seat.
Occupants must sit properly belted in a
nearly upright position with their back
against the seat backrest and feet on the
floor to be correctly classified. If the occu-
pant's weight is transferred to another
object in the vehicle (e.g. by leaning on
armrests), the OCS may not be able to
properly approximate the occupant’s
weight category.
Both driver and the front passenger should
always use the 56
indicator lamp
as an indication of whether or not the front
passenger is properly positioned.
iThe system does not deactivate the
front passenger side impact air bag,
the window curtain air bag and the
emergency tensioning device.
iIf your seat, including your trim cover
and cushion needs to be serviced in
any way, take the vehicle to your
authorized Mercedes-Benz Center.
Only seat accessories approved by
Mercedes-Benz may be used. Warning!
G
If the 56 indicator lamp illuminates
when an adult or someone larger than a
small individual is in the front passenger
seat, have the front passenger re-position
himself or herself in the seat until the
56 indicator lamp goes out.
More information about air bag display mes-
sages (
page 349).
In the event of a collision, the air bag control
unit will not allow front passenger front air
bag deployment when the OCS classified
the front passenger seat occupant as being
up to or less than the weight of a typical
12-month-old child in a standard child re-
straint or if the front passenger seat is
sensed as being empty.
When the OCS senses that the front passen-
ger seat occupant is classified as being up
to or less than the weight of a typical
12-month-old child in a standard child re-
straint, the 56 indicator lamp will il-
luminate when the engine is started and
remain illuminated, indicating that the front
passenger front air bag is deactivated.
When the OCS senses that the front passen-
ger seat is classified as being empty, the
56 indicator lamp will illuminate
when the engine is started and remain illu-
minated, indicating that the front passenger
front air bag is deactivated.


111
Controls in detail
Lighting
Manual headlamp mode
The low beam headlamps and parking
lamps can be switched on and off with the
exterior lamp switch.
Automatic headlamp mode
The following lamps switch on and off
automatically depending on the brightness
of the ambient light:


Low beam headlamps


Tail and parking lamps


License plate lamps


Side marker lamps

Turn exterior lamp switch to
position
U.
With the SmartKey in starter switch
position 1, only the parking lamps will
switch on and off automatically.
When the engine is running, the low
beam headlamps, the tail and parking
lamps, the license plate lamps and the
side marker lamps will switch on and
off automatically.
iWith the SmartKey removed from the
starter switch and the driver’s door
open, while the parking lamps or low
beam headlamps are switched on,

a warning sounds


$ appears in the multifunction
display


the message
Switch off lights.

appears in the multifunction display
Warning!
G
If the exterior lamp switch is set to U,

the headlamps may switch off unexpect-
edly when the system senses bright am-
bient light, for example light from
oncoming traffic.


the headlamps will not be automatically
switched on under foggy conditions.
To minimize risk to you and to others, acti-
vate headlamps by turning exterior lamp
switch to B when driving or when traffic
and / or ambient lighting conditions require
you to do so.
In low ambient lighting conditions, only
switch from position U to B with the
vehicle at a standstill. Switching from U
to B will briefly switch off the head-
lamps. Doing so while driving in low ambient
lighting conditions may result in an acci-
dent.
The automatic headlamp feature is only an
aid to the driver. The driver is responsible for
the operation of the vehicle's lights at all
times.
