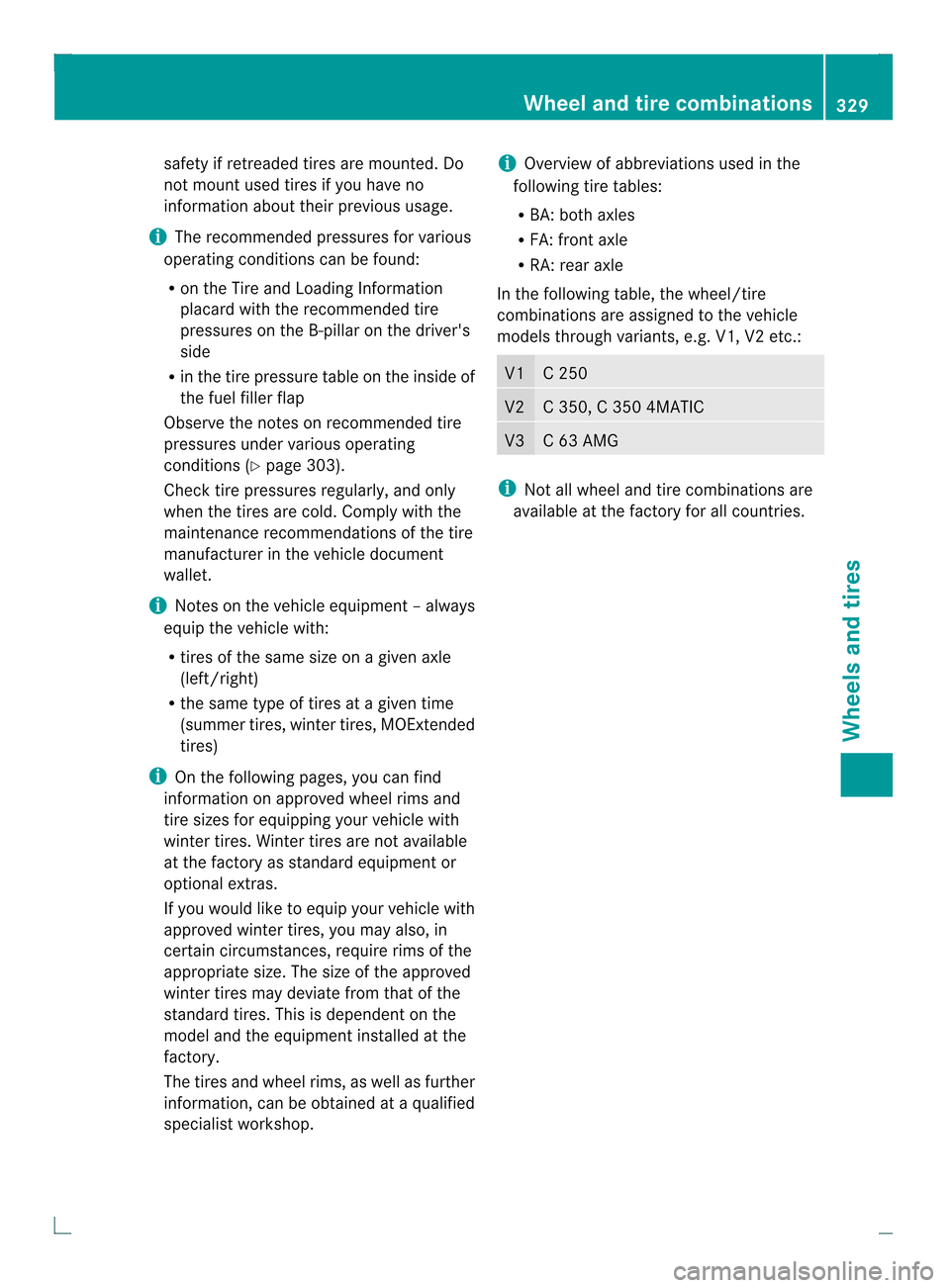

MERCEDES-BENZ C-Class COUPE 2013 CL204 Owner's Manual

safety if retreaded tires are mounted. Do
not mount used tires if you have no
information aboutt heir previous usage.
i The recommended pressures for various
operating conditions can be found:
R on the Tire and Loading Information
placard with the recommended tire
pressures on the B-pillar on the driver's
side
R in the tire pressure table on the inside of
the fuel filler flap
Observe the notes on recommended tire
pressures under various operating
conditions (Y page 303).
Check tire pressures regularly, and only
when the tires are cold. Comply with the
maintenance recommendations of the tire
manufacturer in the vehicle document
wallet.
i Notes on the vehicle equipment –always
equip the vehicle with:
R tires of the same size on a given axle
(left/right)
R the same type of tires at a given time
(summer tires, winter tires, MOExtended
tires)
i On the following pages, you can find
information on approved wheel rims and
tire sizes for equipping your vehicle with
winter tires. Winter tires are not available
at the factory as standard equipmen tor
optional extras.
If you would like to equip your vehicle with
approved winter tires, you may also, in
certain circumstances, require rims of the
appropriate size. The size of the approved
winter tires may deviate from that of the
standard tires. This is dependent on the
model and the equipment installed at the
factory.
The tires and wheel rims, as well as further
information, can be obtained at a qualified
specialist workshop. i
Overview of abbreviations used in the
following tire tables:
R BA: both axles
R FA: front axle
R RA: rear axle
In the following table, the wheel/tire
combinations are assigned to the vehicle
models through variants, e.g. V1, V2 etc.: V1 C 250
V2 C 350, C 350 4MATIC
V3 C 63 AMG
i
Not all wheel and tire combinations are
available at the factory for all countries. Wheel and tire combinations
329Wheels and tires Z

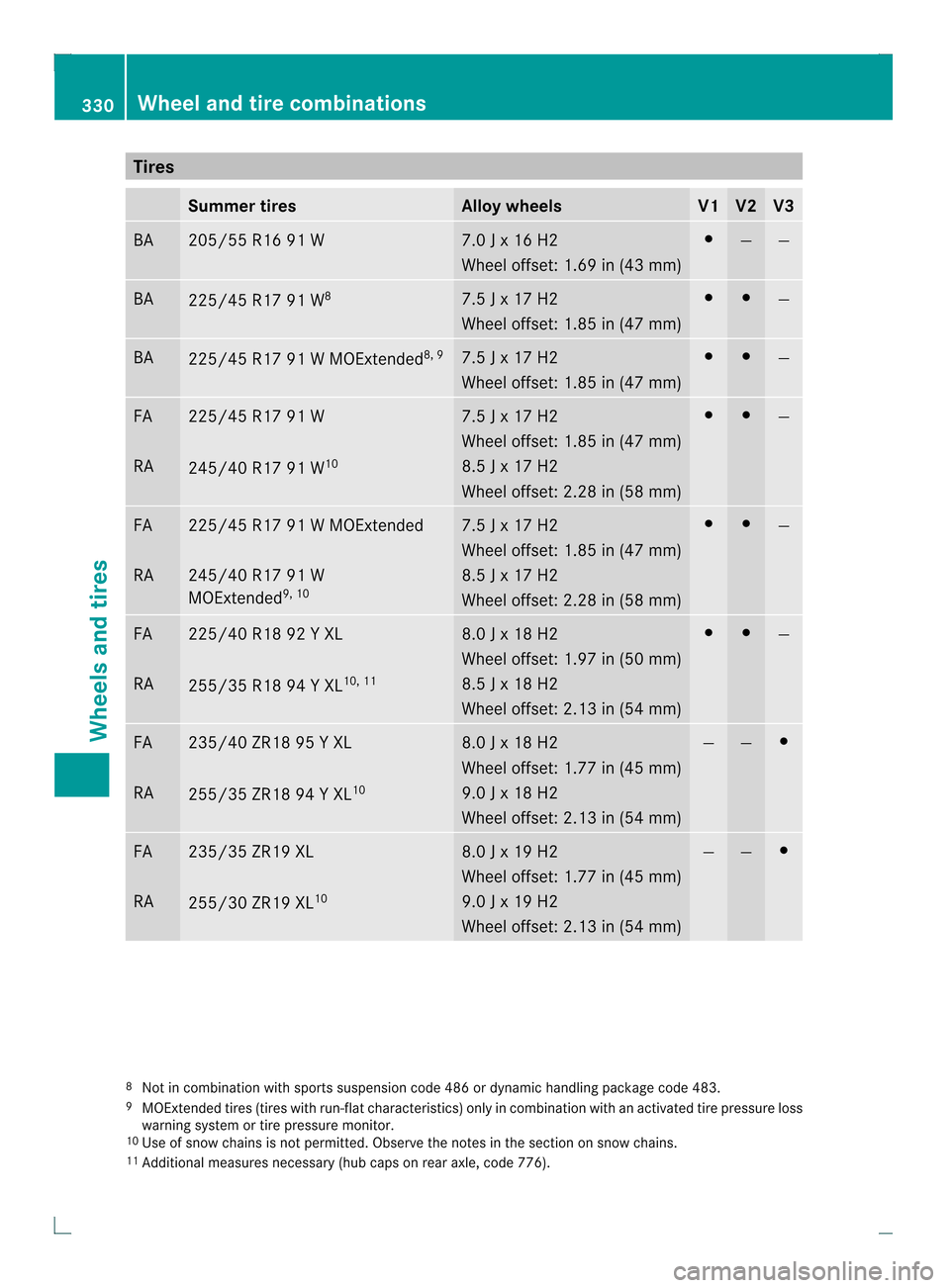

Tires
Summer tires Allo
ywheels V1 V2 V3
BA 205/55 R16 91 W 7.0 J x 16 H2
Wheel offset: 1.69 in (43 mm) 001C
— —
BA
225/45 R17 91 W
8 7.5 J x 17 H2
Wheel offset: 1.85 in (47 mm) 001C 001C
—
BA
225/45 R17 91 W MOExtended
8, 9 7.5 J x 17 H2
Wheel offset: 1.85 in (47 mm) 001C 001C
—
FA
RA 225/45 R17 91 W
245/40 R17 91 W
10 7.5 J x 17 H2
Wheel offset: 1.85 in (47 mm)
8.5 J x 17 H2
Wheel offset: 2.28 in (58 mm) 001C 001C
—
FA
RA 225/45 R17 91 W MOExtended
245/40 R17 91 W
MOExtended
9, 10 7.5 J x 17 H2
Wheel offset: 1.85 in (47 mm)
8.5 J x 17 H2
Wheel offset: 2.28 in (58 mm) 001C 001C
—
FA
RA 225/40 R18 92 Y XL
255/35 R18 94 Y XL
10, 11 8.0 J x 18 H2
Wheel offset: 1.97 in (50 mm)
8.5 J x 18 H2
Wheel offset: 2.13 in (54 mm) 001C 001C
—
FA
RA 235/40 ZR18 95
YXL
255/35 ZR18 94 YXL10 8.0 J x 18 H2
Wheel offset: 1.77 in (45 mm)
9.0 J x 18 H2
Wheel offset: 2.13 in (54 mm) — — 001C
FA
RA 235/35 ZR19 XL
255/30 ZR19 XL
10 8.0 J x 19 H2
Wheel offset: 1.77 in (45 mm)
9.0 J x 19 H2
Wheel offset: 2.13 in (54 mm) — — 001C
8
Not in combination with sports suspension code 486 or dynamic handling package code 483.
9 MOExtended tires (tires with run-flat characteristics) only in combination with an activated tire pressure loss
warning system or tire pressure monitor.
10 Use of snow chains is not permitted .Observe the notes in the section on snow chains.
11 Additional measures necessary (hub caps on rear axle, code 776). 330
Wheel and tire combinationsWheels and tires

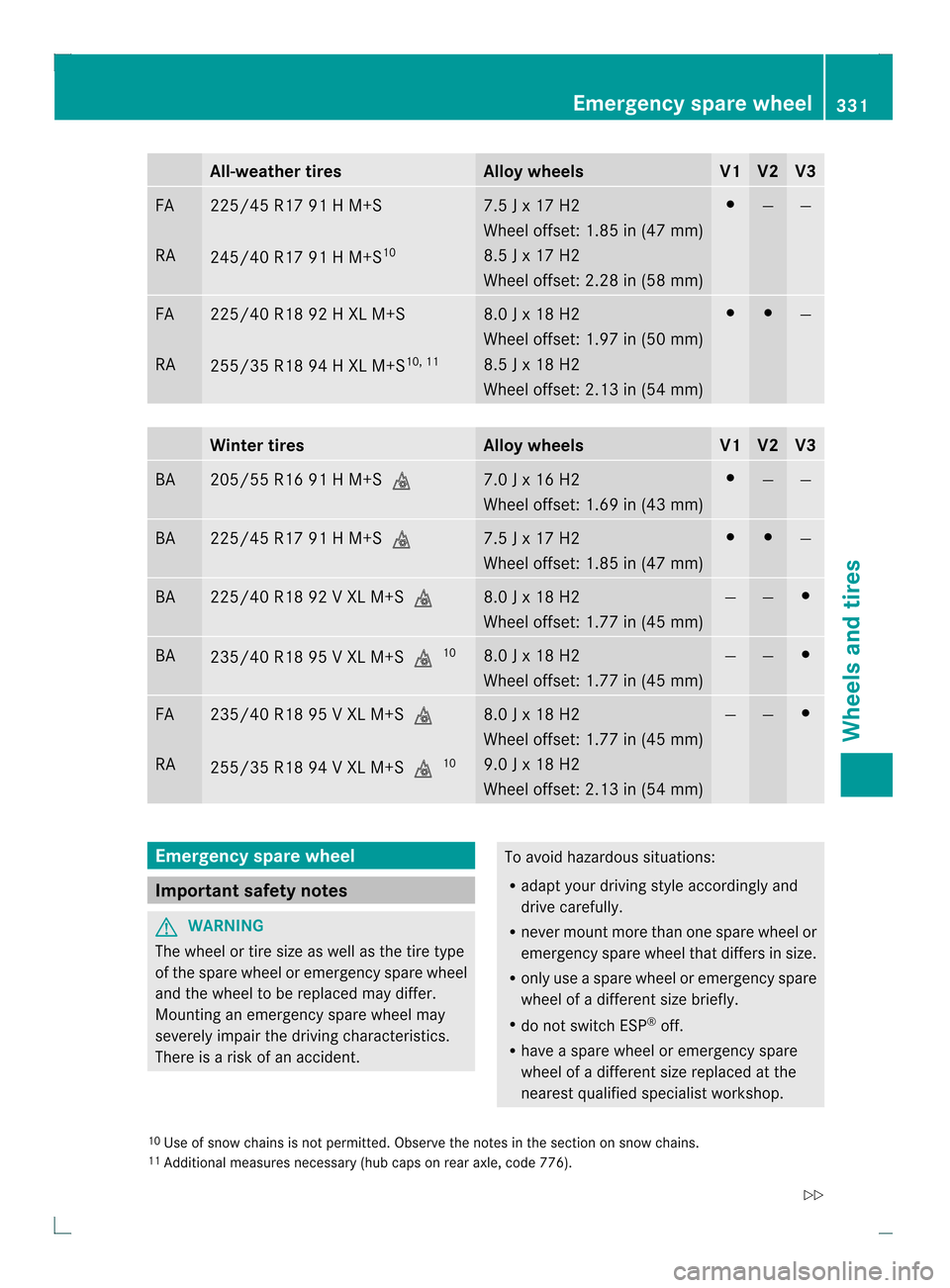

All-weather tires Alloy wheels V1 V2 V3
FA
RA 225/45 R17 91 H M+S
245/40 R17 91 H M+S
10 7.5 J x 17 H2
Wheel offset: 1.85 in (47 mm)
8.5 J x 17 H2
Wheel offset: 2.28 in (58 mm) 001C
— —
FA
RA 225/40 R18 92 H XL M+S
255/35 R18 94 H XL M+S
10, 11 8.0 J x 18 H2
Wheel offset: 1.97 in (50 mm)
8.5 J x 18 H2
Wheel offset: 2.13 in (54 mm) 001C 001C
—
Winter tires Alloy wheels V1 V2 V3
BA 205/55 R16 91 H M+S0002 7.0 J x 16 H2
Wheel offset: 1.69 in (43 mm) 001C
— —
BA 225/45 R17 91 H M+S0002 7.5 J x 17 H2
Wheel offset: 1.85 in (47 mm) 001C 001C
—
BA 225/40 R18 92 V XL M+S0002 8.0 J x 18 H2
Wheel offset: 1.77 in (45 mm) — — 001C
BA
235/40 R18 95 V XL M+S0002
10 8.0 J x 18 H2
Wheel offset: 1.77 in (45 mm) — — 001C
FA
RA 235/40 R18 95 V XL M+S0002
255/35 R18 94 V XL M+S0002
10 8.0 J x 18 H2
Wheel offset: 1.77 in (45 mm)
9.0 J x 18 H2
Wheel offset: 2.13 in (54 mm) — — 001C
Emergency spare wheel
Important safety notes
G
WARNING
The wheel or tire size as well as the tire type
of the spare wheel or emergency spare wheel
and the wheel to be replace dmay differ.
Mounting an emergency spar ewheel may
severely impair the driving characteristics.
There is a risk of an accident. To avoid hazardous situations:
R
adapt your driving style accordingly and
drive carefully.
R never mount more than one spare wheel or
emergency spare wheel that differs in size.
R only use a spare wheel or emergency spare
wheel of a different size briefly.
R do not switch ESP ®
off.
R have a spare wheel or emergency spare
wheel of a different size replaced at the
nearest qualified specialist workshop.
10 Use of snow chains is not permitted. Observe the notes in the section on snow chains.
11 Additional measures necessary (hub caps on rear axle, code 776). Emergency spare wheel
331Wheels and tires
Z

Observe that the wheel and tire dimensions
as well as the tire type must be correct.
When using an emergency spare wheel or
spare wheel of a different size, you must not
exceed the maximum speed of 50 mph
(80 km/h).
Snow chains must not be mounted on
emergency spare wheels. General notes
You should regularly check the pressure of
the emergency spare wheel, particularly prior
to long trips, and correct the pressure as
necessary (Y page 303). The applicable value
is found on the wheel or under "Technical
data" (Y page 328).
i When you are driving with the collapsible
spare wheel mounted, the tire pressure
loss warning system or the tire pressure
monitor cannot function reliably. Only
restart the tire pressure loss warning
system/the tire pressure monitor when the
damaged wheel has been replaced with a
new wheel.
Vehicles with tire pressure monitor:
after mounting an emergency spare wheel,
the system may still display the tire
pressure of the removed wheel for a few
minutes. The value displayed for the
mounted emergency spare wheel is not the
same as the current tire pressure of the
emergency spare wheel.
An emergency spare wheel may also be
mounted against the direction of rotation.
Observe the time restriction on use as well as
the speed limitation specified on the
emergency spare wheel.
Replace the tires after six years at the latest,
regardless of wear. This also applies to the
emergency spare wheel. "Minispare" emergency spare wheel
The "Minispare" emergency spare wheel can
be found in the stowage well under the trunk
floor.
X Lift the trunk floor upwards (Y page 251). X
Remove tool kit tray 0002.
X Turn stowage tray 0003counter-clockwise
and remove it.
X Remove "Minispare" emergency spare
wheel 0022.
Always observe the instructions and safety
notes in the "Mounting awheel" section
(Y page 324). 332
Emergency spare wheelWheels and tires

Technical data
"Minispare
"emergency spare wheel 10Tires Wheels V1 V2 V3
T 125/9
0 R16 98 M
Tire pressure : 420 kPa (4.2 bar/61 psi) 3.5 B x 16 H2
Wheel offset: 0.79 in (20 mm) 001C
— —
T 125/80 R17 99 M
Tire pressure: 420 kPa (4.2 bar/61 psi) 3.5 B x 17 H2
Wheel offset: 0.79 in (20 mm) — 001C
—
T 125/70 R18 99 M
Tire pressure: 420 kPa (4.2 bar/61 psi) 3.5 B x 18 H2
Wheel offset: 0.79 in (20 mm) — — 001C
i
The specified tire pressure is printed in yellow on the emergency spare wheel.
10 Use of snow chains is not permitted. Observe the notes in the section on snow chains. Emergenc
yspare wheel
333Wheels and tires Z

334

Useful information
............................336
Information regarding technical
data .................................................... 336
Warranty ............................................ 336
Identification plates .........................336
Service products and filling capaci-
ties ..................................................... 337
Vehicle data ...................................... 344 335Technical data

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: (Y page 25).Information regarding technical data
i The data stated here specifically refers to
a vehicle with standard equipment .Consult
a Mercedes-Benz Center for the data for all
vehicle variants and trim levels. Warranty
Your vehicle is covered under the terms of the
warranties printed in the Service and
Warranty Information booklet.
Your authorized Mercedes-Benz Center will
exchange or repair any defective parts
originally installed in the vehicle in
accordance with the terms of the following
warranties:
R New Vehicle Limited Warranty
R Emission Systems Warranty
R Emission Performance Warranty
R California, Connecticut, Maine,
Massachusetts, New York, Pennsylvania,
Rhode Island and Vermont Emission
Control System Warranty
R State warranty enforcement laws (Lemon
Laws)
Replacement parts and accessories are
covered by the Mercedes-Benz Parts and Accessories warranties. These are available
at any authorized Mercedes-Benz Center.
i
If you lose the Service and Warranty
Information booklet, contact an authorized
Mercedes-Benz Center to arrange a
replacement .Itwill be mailed to you. Identification plates
Vehicle identification plate with
vehicle identification number (VIN)
X
Open the driver's door.
You will see vehicle identification plate 0002.336
Identification platesTechnical data

Example: vehicle identification plate (US
Aonly) Example
:vehicle identification plate (Canada only)
0003 VIN
0022 Paint code
i The data shown on the identification plate
is example data. This data is differen tfor
every vehicle and can deviate from the data
shown here. You can find the data
applicable to your vehicle on the vehicle
identification plate. VIN X
Slide the right-hand front seat to its
rearmost position.
X Fold floor covering 0002upwards.
You will see VIN 0003.
The VIN can also be found in the following
locations:
R on the lower edge of the windshield
(Y page 337)
R on the vehicle identification plate
(Y page 336) Engine number
0002
Emission control information plate,
including the certification of both federal
and Californian emissions standards
0003 Engine number (stamped into the
crankcase)
0022 VIN (on the lower edge of the windshield) Service products and filling
capacities
Important safety notes
G
WARNING
Service products may be poisonous and
hazardous to health. There is a risk of injury.
Comply with instructions on the use, storage
and disposal of service products on the labels
of the respective original containers. Always
store service products sealed in their original
containers. Always keep service products out
of the reach of children. Service products and filling capacities
337Technical data Z

H
Environmental note
Dispose of service products in an
environmentally responsible manner.
Service products include the following:
R Fuels
R Lubricants (e.g .engine oil, transmission oil)
R Coolant
R Brake fluid
R Windshield washe rfluid
R Climate control system refrigerant
Comply with all valid regulations with respect
to handling, storing, and disposing of service
fluids.
Components and service products must be
matched .You should therefor eonly use
products tha thave been tested and approved
by Mercedes-Benz.
Information about tested and approved
products can be obtained from an authorized
Mercedes-Benz Center or on the Internet at
http://bevo.mercedes-benz.co m.
You can recognize service products approved
by Mercedes-Ben zby the following
inscription on the containers:
R MB-Freigabe (e.g. MB-Freigabe 229.51)
R MB Approval (e.g. MB Approval 229.51)
Other designations or recommendations
indicate a level of quality or a specification in
accordance with an MB Sheet number (e.g.
MB 229.5). The yhave no tnecessarily been
approved by Mercedes-Benz. Fuel
Important safety notes G
WARNING
Fuel is highly flammable. If you handle fuel
incorrectly, there is a risk of fire and
explosion.
You must avoid fire, open flames, creating
sparks and smoking. Switch off the engine and, if applicable, the auxiliary heating before
refueling.
G
WARNING
Fuel is poisonous and hazardous to health.
There is a risk of injury.
You must make sure that fuel does not come
into contact with your skin, eyes or clothing
and that it is not swallowed. Do not inhale fuel
vapors. Keep fuel away from children.
If you or others come into contact with fuel,
observe the following:
R Wash away fuel from skin immediately
using soap and water.
R If fuel comes into contact with your eyes,
immediately rinse them thoroughly with
clean water. Seek medical assistance
without delay.
R If fuel is swallowed, seek medical
assistance without delay. Do not induce
vomiting.
R Immediately change out of clothing which
has come into contact with fuel.
Tank capacity Model Total
capacity All models
17.4 US gal
(66.0 l) Model Of which
reserve All models (except
C 63 AMG)
approx.
2.1 US gal (8.0 l) C 63 AMG
approx.
3.7 US gal (14.0 l) 338
Service products and filling capacitiesTechnical data
