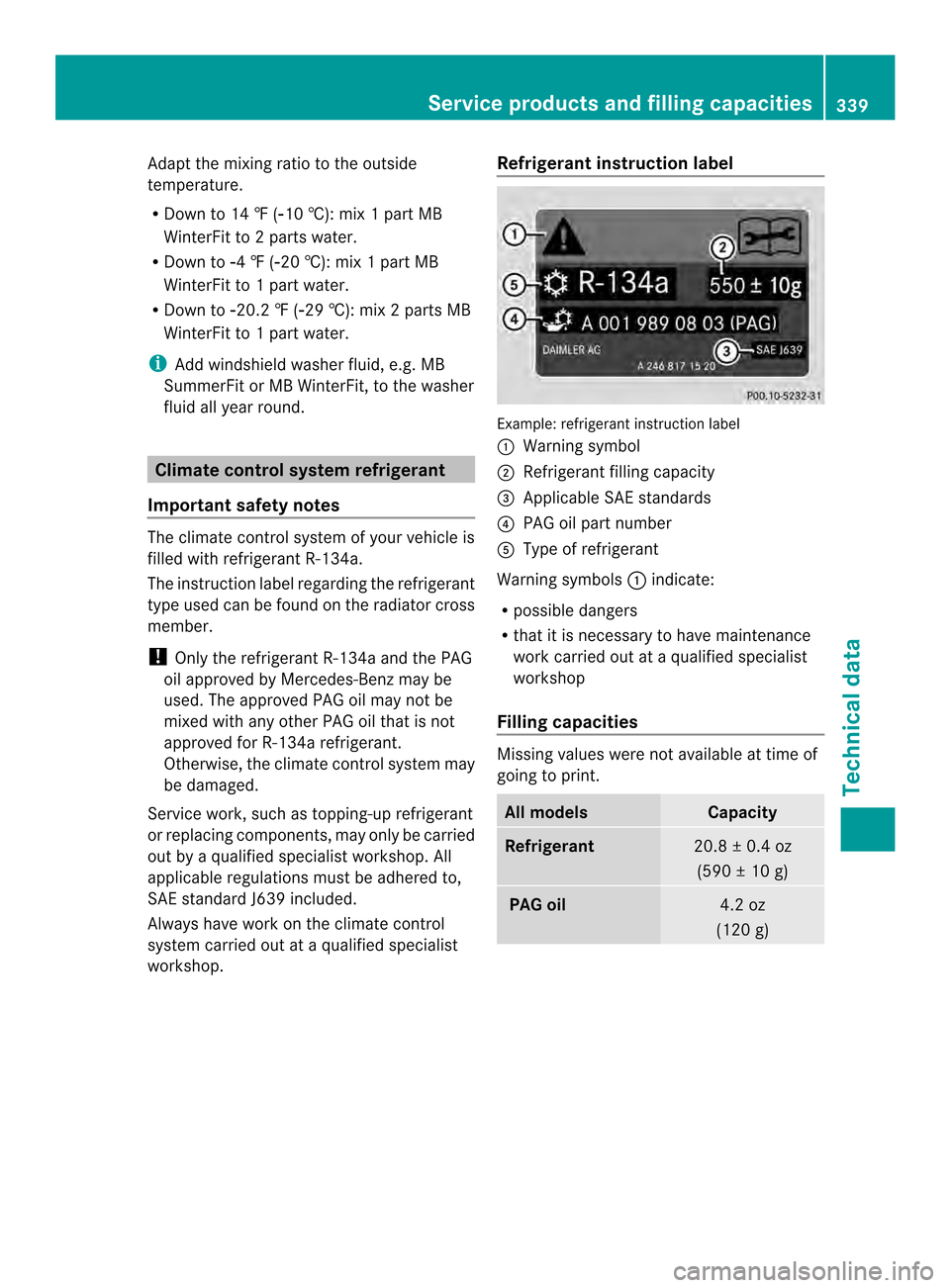

Adapt the mixing ratio to the outside
temperature.
R
Down to 14 ‡ ( 001710 †): mix 1 part MB
WinterFit to 2 parts water.
R Down to 00174 ‡ (001720 †): mix 1 part MB
WinterFit to 1 part water.
R Down to 001720.2 ‡ (0017 29 †): mix 2 parts MB
WinterFit to 1 part water.
i Add windshield washe rfluid, e.g. MB
SummerFit or MB WinterFit, to the washer
fluid all year round. Climate control system refrigerant
Important safety notes The climate control system of your vehicle is
filled with refrigerant R-134a.
The instruction label regarding the refrigerant
type used can be found on the radiator cross
member.
!
Only the refrigerant R-134a and the PAG
oil approved by Mercedes-Ben zmay be
used. The approved PAG oil may no tbe
mixed with any other PAG oil that is not
approved for R-134a refrigerant.
Otherwise, the climate control system may
be damaged.
Service work, such as topping-up refrigerant
or replacing components, may only be carried
out by a qualified specialist workshop .All
applicable regulations must be adhered to,
SAE standard J639 included.
Always have work on the climate control
system carried out at a qualified specialist
workshop. Refrigerant instruction label Example: refrigerant instruction label
0002
Warning symbol
0003 Refrigeran tfilling capacity
0022 Applicable SA Estandards
0021 PAG oil part number
001F Type of refrigerant
Warning symbols 0002indicate:
R possible dangers
R that it is necessary to have maintenance
work carried ou tataqualified specialist
workshop
Filling capacities Missing values were not available at time of
going to print.
All models Capacity
Refrigerant
20.8 ± 0.4 oz
(590 ± 10 g) PAG oil
4.2 oz
(120 g) Service products and filling capacities
339Technical data Z

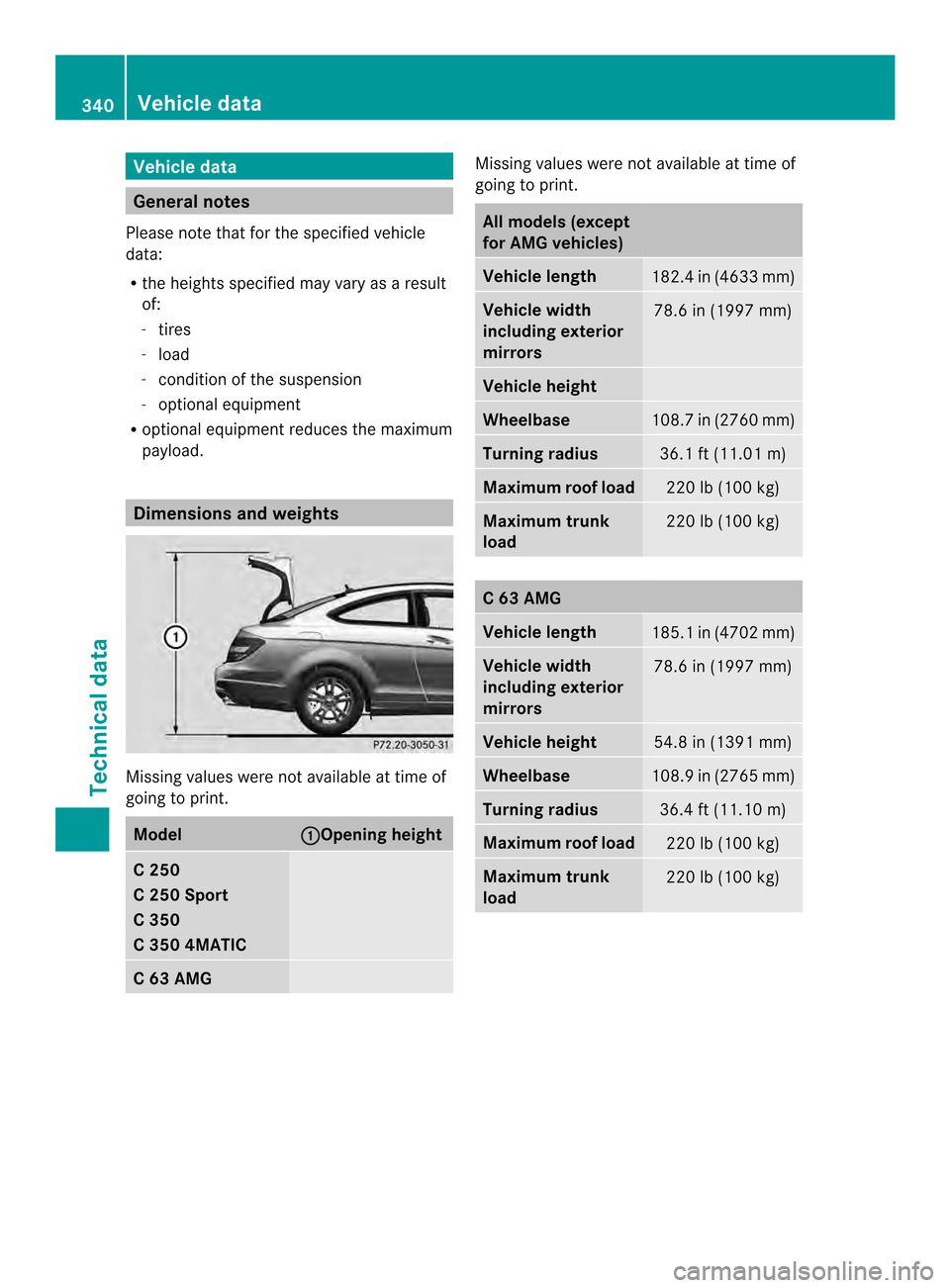

Vehicle data
General notes
Please note tha tfor the specified vehicle
data:
R the heights specified may vary as a result
of:
-tires
- load
- condition of the suspension
- optional equipment
R optional equipment reduces the maximum
payload. Dimensions and weights
Missing values were not available at time of
going to print.
Model 0002 Opening height
C 250
C 250 Sport
C 350
C 350 4MATIC
C 63 AMG Missing values were not available at time of
going to print.
All models (except
for AMG vehicles)
Vehicle length
182.4 in (4633 mm)
Vehicle width
including exterior
mirrors
78.6 in (1997 mm)
Vehicle height
Wheelbase
108.7 in (2760 mm)
Turning radius
36.1 ft (11.01 m)
Maximum roof load
220 lb (100 kg)
Maximum trunk
load
220 lb (100 kg)
C 63 AMG
Vehicle length
185.1 in (4702 mm)
Vehicle width
including exterior
mirrors
78.6 in (1997 mm)
Vehicle height
54.8 in (1391 mm)
Wheelbase
108.9 in (2765 mm)
Turning radius
36.4 ft (11.10 m)
Maximum roof load
220 lb (100 kg)
Maximum trunk
load
220 lb (100 kg)340
Vehicle dataTechnical data
