The light setting is automatically selected
accordin
gtothe brightness of the ambient light
(exception: poor visibility due to weather condi- tions such as fog, snow or spray):
R key in position 1in the ignition lock: the side
lamps are switched on or off automatically
depending on the brightness of the ambient
light.
R with the engine running: depending on the
ambient light conditions, the daytime driving
lights or the side lamps and dipped-beam
headlamps are switched on or off automati-
cally.
X To switch on the automatic headlamps:
turn the light switch to the
Ãposition. G
WARNING
When the light switch is set to Ã,the
dipped-beam headlamps may not be switched on automatically if there is fog, snow or othercauses of poor visibility due to the weather
conditions such as spray. There is arisk of an
accident.
In such situations, turn the light switch to
L.
The automatic headlamp feature is only an aid.
The driver is responsible for the vehicle lighting at all times.
The daytime driving lights improve the detecta-
bility of your vehicle during the day.
When the side lamps and dipped-beam head-
lamps are switched on, the green T(side
lamps) and L(dipped-beam headlamps)
indicator lamps in the instrument cluster light
up.
Dipped-beam headlamps When the ignition is switched on and the light
switch is in the Lposition, the side lamps
and dipped-beam headlamps are switched on
even if the light sensor does not sense dark
ambient light conditions. This is advantageous
when there is fog or rain.
X To switch on the dipped-beam headlamps:
turn the key in the ignition lock to position 2
or start the engine.
X Turn the light switch to the Lposition.
The green Lindicator lamp in the instru-
ment cluster lights up. Rear fog lamp
The rear foglamp improves the visibility of your
vehicle in heavy fog for the following traffic.
Please observe the country-specific laws on the
use of rear foglamps.
X To switch on the rear foglamp: turn the key
in the ignition lock to position 2or start the
engine.
X Turn the light switch to the LorÃ
position.
X Press the Rbutton.
The yellow Rindicator lamp in the instru-
ment cluster lights up.
X To switch off the rear foglamp: press the
R button.
The yellow Rindicator lamp in the instru-
ment cluster goes out.
Side lamps
! If the battery has been discharged to
alow
charge level, the side lamps or parking lamps
are automatically switched off to enable the
next engine start .Always leave your vehicle in
as afe position and adequately lit in accord-
ance with traffic regulations. Avoid using the
side lamps Tforaperiod of several hours.
If possible, switch on the right Xor left
W parking lamp.
X To switch on: turn the light switch to the
T position.
The green Tindicator lamp in the instru-
ment cluster lights up.
Parking lamps Switching on the parking lamps ensures that the
corresponding side of the vehicle is illuminated.
X To switch on the parking lamps: the key
should not be in the ignition lock or it should
be in position 0.
X Turn the light switch to the W(left-hand
side of the vehicle) or X(right-hand side of
the vehicle) position. Exterior lighting
119Lights and windscreen wipers Z
Page 123 of 385
Adjusting th
eheadlamp range (halogen
headlamps) Headlamp range control
g
Driver's seat and front-passenger seat
occupied
1 Driver's seat ,front-pa ssenger seat and rear
seat soccupied
2 Driver's seat ,front-pa ssenger seat and rear
seat soccupied, boot laden
3 Driver's and front-passenger seat occupied
and maximum permissible rear axle load uti-
lised ,e.g.w hen towin gatrailer
The headlamp range control allows you to adjust
th ec oneofl ightfro mt heheadlamps to suit the
vehicl eload.
X Start th eengine.
X Turn th eheadlamp range control to th eposi-
tio nw hichc orres pondstot heload in your
vehicle. Combinatio
nswitch :
Main-beam headlamps
; Turn signal, right
= Headlamp flasher
? Turn signal, left X
To indicat ebriefly: press th ecom bination
switch briefly to th epressur epointint he
direction of arrow ;or?.
The corresponding tur nsignal flashes three
times.
X To indicate: press thecom bination switch
beyon dthe pressur epointint hedirection of
arrow ;or?.
X To switch on th
emain-beam headlamps:
tur nthe ligh tswitch to LorÃ.
X Press th ecom bination switch beyon dthe
pressur epointint hedirection of arrow :.
In the Ãposition, th emain-beam head-
lamps are only switched on when it is dark and th ee ngineisr unning.
The blue Kindicator lamp in th einstru-
men tcluste rlights up when th emain-beam
headlamps are switched on.
X To switch off th
emain-beam headlamps:
mov ethe combination switch bac ktoits nor-
mal position.
The blue Kindicator lamp in th einstru-
men tcluste rgoes out. Hazard warning lamps
X
To switch on th
ehazar dwarning lamps:
press button :.
All tur nsignals flash. If you no wswitch on a
tur nsignal usin gthe combination switch ,only
th et urns ignal lamp on th ecorres ponding
side of th evehicl ewill flash.
X To switch off th
ehazar dwarning lamps:
press button :.
The hazard warning lamps switch on automati-
call yif:
R an airba gisdeployed or
R thev ehicl edecelerate srapidly from aspeed
of abov e70km/hand comes to astandstill 120
Exterior lightingLight
sand windscreen wipers
Page 124 of 385
The hazard warning lamps switch off automati-
cally if the vehicle reaches aspeed of above
10 km/ha gain afterafull brake application.
The hazard warning lamps continue to operate
even if the ignition is switched off. Intelligen
tLight System
General notes The Intelligent Light System is
asystem that
adjusts the headlamps automatically to suit the
prevailing driving and weather conditions. It
offers advanced functions for improved illumi-
nation of the road surface, e.g. depending on the vehicle speed or weather conditions. The sys-
tem includes the active light function, cornering light function, motorway mode, extended range
foglamps and off-road lights. The system is only
active when it is dark.
You can activate or deactivate the "Intelligent
Light System" function using the on-board com- puter (Y page 247).
Active light function The active light function is
asystem that moves
the headlamps according to the steerin gmove-
mentsoft he front wheels. In this way, relevant
areas remain illuminated while you are driving.
This allows you to recognise pedestrians,
cyclists and animals.
Active: when the lights are switched on.
Cornering light function The cornering light function improves the illu-
mination of the road over
awide angle in the
direction you are turning, enabling better visi-
bility in tight bends, for example. It can only be
activated when the dipped-beam headlamps are
switched on.
Active:
R if you are driving at speeds below 40 km/h
and switch on the turn signal or turn the steer- ing wheel
R if you are driving at speeds between 40 km/h
and 70 km/ha nd turnthe steering wheel
The cornering light function may remain lit for a
shor ttime, but is automatically switched off
after no mor ethant hree minutes. Motorwa
ymode Active:
if you are driving at aspee dabove
11 0k m/ hand do no tmakea ny large steering
movements for at least 1000 morify ou are
driving at aspee dabov e130 km/h.
Not active: if you are driving at speeds below
80 km/h followin gactivation.
Extended range foglamps The extended range foglamps reduc
ethe glare
experienced by th edriver and improve th eillu-
minatio noftheedge of th ecarriageway.
Active: if you are driving at speeds below
70 km/h and you switch on th erear foglamp.
Not active: if, followingactivation ,you are driv-
ing at speeds abov e100 km/h or if you switch
off th erear foglamp. Adaptive Highbeam Assist Plus
General notes Wit
hA daptiv eHighbeam Assist Plus, you can
automatically switch between dipped-beam,
partial main-beam and main-beam headlamps.
Partial main-beam illuminatio nisaformofi llu-
minatio nwhereby th emain beam is directed
past other road users. Other road user sare kept
out of th emain-beam. This prevent sglare .If
there is avehicle in front, for example, th emain-
beam headlamps illuminate th eareas to its right
and left ,and th evehicle in fron tisilluminate dby
th ed ipped-beam headlamps.
The system automatically adapt sthe dipped-
beam headlam prange dependin gonthedis-
tance to th eother vehicle .Oncet he system no
longer detect sany other vehicles, it switches on
th em ain-beam headlamps again.
If th emain-beam or partial main-beam head-
lamps are causing to omuchr eflectio nfromt raf-
fic signs, th elight sare automatically dimmed
and glare for th edriver caused by th ereflections
is thus avoided.
The system' soptical sensor is locate dbehind
th ew indscreen near th eoverhead control
panel. Exterior lighting
121Lightsand windscreen wipers Z
Page 125 of 385
Important safety notes
G
WARNING
Adaptive Highbeam Assist Plus does no trec-
ognise road users:
R who hav enolights,e.g.p edestrians
R who hav epoor lighting ,e.g.c yclists
R whos elighting is blocked, e.g. by abarrier
In ver yrarec ases, Adaptive Highbeam Assist
Plus may no trecognise road user swho do
have lights ,ormay recognise them to olate. In
this, or in similar situations, th eautomatic
main-beam headlamps will no tbedeactivated
or will be activated despit ethe presence of
other road users. Ther eisariskofana cci-
dent.
Always carefully observ ethe traffic conditions
and switch off th emain-beam headlamps in
goo dtime.
Adaptive Highbeam Assist Plus canno ttak einto
accoun troad ,weather or traffic conditions.
Adaptive Highbeam Assist Plus is only an aid.
You are responsible for adjusting th evehicle's
lighting to th eprevailing light, visibilit yand traf-
fic conditions.
In particular, th edetection of obstacles can be
restricted if there is:
R poor visibility, e.g. due to fog ,heav yrain or
snow
R dirt on th esensor sorift hesensor sare
obscured
Switchin gAdaptive Highbeam Assist
Plu son/off X
To switch on: turnthe ligh tswitch to the
à position.
X Press th ecom bination switch beyon dthe
pressur epointint hedirection of arrow :.
The _ indicator lamp in th emultifunction
display lights up when it is dark and th elight
sensor switches on th edipped-beam head-
lamps.
At speeds abov eappro x. 25 km/h: the
headlamp range is automatically controlled
according to th edistanc etoother road users. At speeds abov
eappro x. 30 km/h:
R if no other road user sare detected, the
main-beam headlamps are automatically
switched on
R if other road user sare detected, th epartial
main-beam headlamps are automatically
switched on
The K indicator lamp in th einstrument
cluste ralso lights up.
At speeds below approx. 25 km/h or
when there is sufficient stree tlighting:
R thep artial main-beam headlamps are
switched off automatically
R them ain-beam headlamps are switched off
automatically
The K indicator lamp in th einstrument
cluste rgoes out .The _ indicator lamp in
th em ultifunction display remain slit.
X To switch off: movethe combination switch
bac ktoi tsnormal position or mov ethe light
switch to another position.
The _ indicator lamp in th emultifunction
display goes out. Headlamp
smiste dupont heinside
Certain climatic and physical condition smay
caus emoisture to for mintheheadlamp. This
moisture does no taffec tthe functionalit yofthe
headlamp. 122
Exterior lightingLight
sand windscreen wipers
Page 127 of 385

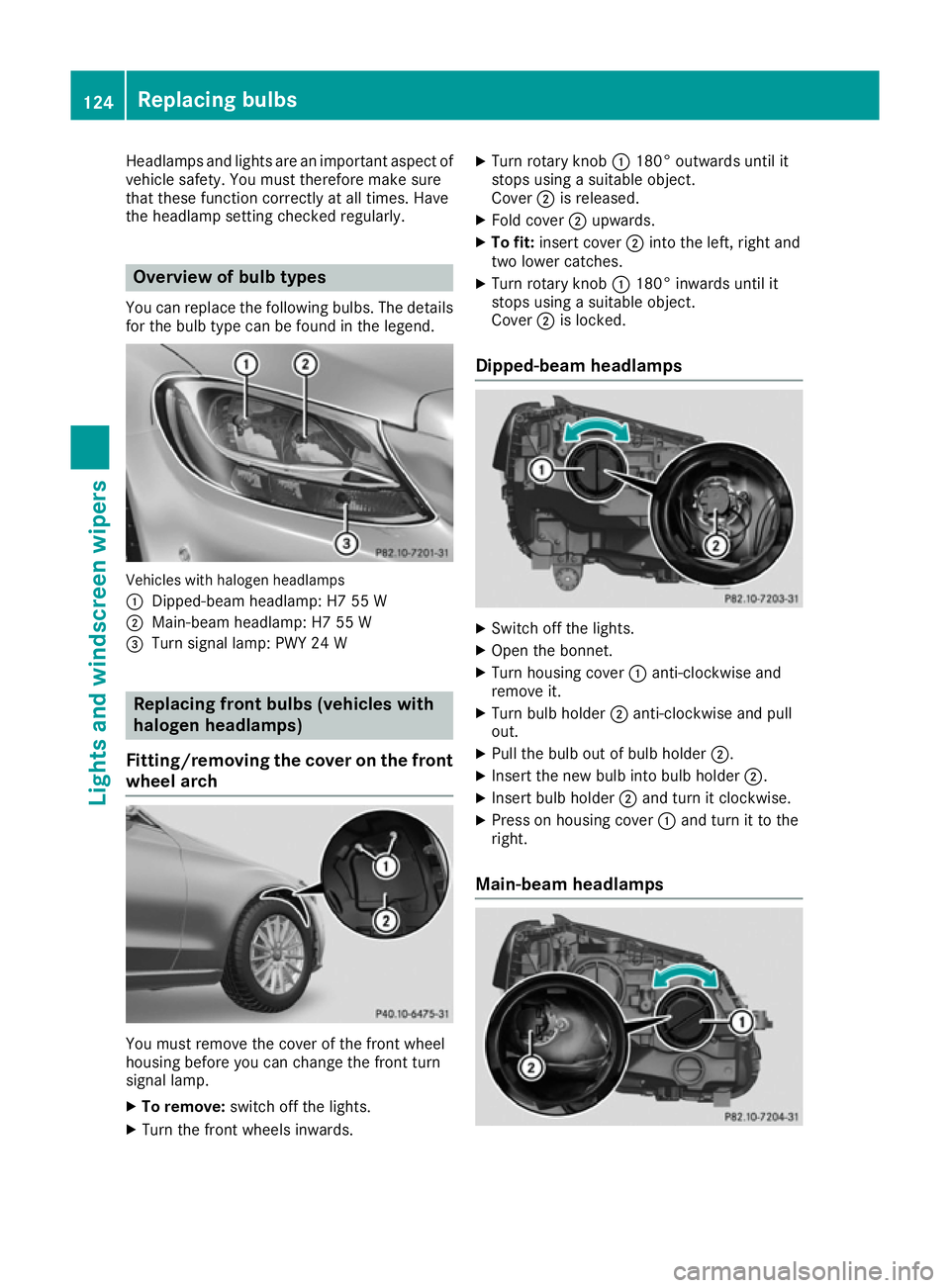

Headlamps and lights are an important aspect of
vehicle safety. You mus ttherefore make sure
that these functio ncorrectl yatalltimes .Have
the headlamp setting checked regularly. Overvie
wofbulbt ypes
You can replace the following bulbs .The details
for the bulb type can be found in the legend. Vehicles with haloge
nheadlamps
: Dipped-bea mheadlamp: H7 55 W
; Main-bea mheadlamp: H7 55 W
= Turnsignal lamp: PWY 24 W Replacing front bulbs (vehiclesw
ith
halogenh eadlamps)
Fitting/removin gthe cover on the front
wheel arch You mus
tremov ethe cover of the front wheel
housing before yo ucan chang ethe front turn
signal lamp.
X To remove: switch off the lights.
X Tur nthe front wheels inwards. X
Tur nrotar yknob :180° outward suntil it
stops using asuitabl eobject.
Cover ;is released.
X Fold cover ;upwards.
X To fit: insert cover ;into the left, righ tand
two lower catches.
X Tur nrotar yknob :180° inwards until it
stops using asuitabl eobject.
Cover ;is locked.
Dipped-beam headlamps X
Switch off the lights.
X Ope nthe bonnet.
X Tur nhousing cover :anti-clockwise and
remov eit.
X Tur nbulbh older ;anti-clockwise and pull
out.
X Pull the bulb out of bulb holder ;.
X Insert the new bulb into bulb holder ;.
X Insert bulb holder ;and turn it clockwise.
X Pres sonh ousing cover :and turn it to the
right.
Main-beam headlamps 124
Replacing bulbsLights and windscree
nwipers
Page 250 of 385
Setting the position
You can adjust the position of the head-up dis-
play on the windscreen. You can compensate for
height differences if the seat positions are
changed, for example.
X Switch on the head-up display (Y page 235).
X Press òon the steering wheel to open the
menu list.
X Press :or9 on the steering wheel to
select the Settings
Settings menu.
X Confirm by pressing aon the steering
wheel.
X Press :or9 to select the Head-up Head-up
display
display submenu.
X Press ato confirm.
X Press :or9 to select the Position
Position
function.
X Press ato save the setting.
X Press :or9 to adjust the position to a
level from Level
Level +5
+5(up) to Level
Level -5
-5(down).
X Press aor% to save the setting.
Using the Memory function, you can save and
call up the set position of the head-up display as as ingle memory preset (Y page 116).
Adjusting the brightness
The brightness of the head-up display is auto-
matically adjusted to the surrounding light con-
ditions. You can also individually adjust the
brightness of the head-up display.
X Switch on the head-up display (Y page 235).
X Press òon the steering wheel to open the
menu list.
X Press :or9 on the steering wheel to
select the Settings
Settings menu.
X Confirm by pressing aon the steering
wheel.
X Use : or9 to select the Head-up
Head-up
display
display submenu.
X Press ato confirm.
X Press :or9 to select the Brightness
Brightness
function.
X Press the abutton to save the setting.
X Press :or9 to adjust the brightness
to alevel from Level
Level +5
+5(bright) to Level
Level-5
-5
(dark).
X Press the aor% button to save the
setting. Light submenu Switching the Intelligent Light System
on/off
X Press òon the steering wheel to open the
menu list.
X Press :or9 on the steering wheel to
select the Settings Settings menu.
X Confirm by pressing aon the steering
wheel.
X Press :or9 to select the Lights
Lights
submenu.
X Press ato confirm.
X Press :or9 to select the Intelli‐
Intelli‐
gent Light System
gent Light System function.
If the Intelligent Light System
Intelligent Light System function
has been switched on, the cone of light and
the L symbol in the multifunction display
are shown in white.
X Press the abutton to save the setting.
If you switch on the Intelligent
Intelligent Light
LightSys‐
Sys‐
tem
tem function, the following functions are activa-
ted:
R Motorway mode
R Active light function
R Cornering light function
R Extended range foglamps
If you set the dipped-beam headlamps for driv-
ing on the right/left ,the multifunction display
shows the Inactive Inactive for
forleft-side
left-side traffic
traffic
or Inactive for right-side traffic
Inactive for right-side traffic dis-
play message in the Lights
Lightssubmenu instead of
the Intelligent Light System
Intelligent Light System function
(Y page 247). This display message will only
appear if the settingf or driving on the left/right
is set opposite to your vehicle's countryv ersion.
Further information on the Intelligent Light Sys-
tem (Y page 121).
Setting the dipped-beam headlamps for
driving on the left/right
This function is only available in vehicles with
the Intelligent Light System.
You can use this function to switch between
symmetrical and asymmetrical dipped beam
(Y page 118).
X Press òon the steering wheel to open the
menu list.
X Press :or9 on the steering wheel to
select the Settings
Settings menu. Menus and submenus
247On-board computer and displays Z
Page 251 of 385
X
Confir mbyp ressing aon thesteering
wheel.
X Press :or9 to select the Lights
Lights
submenu.
X Press ato confirm.
X Press :or9 to select the Dipped
Dipped
beams Settin gfor
beams Settin gforfunction.
You will see th eselected setting, right-
right-
sid et raffic
sid et raffic orleft-side traffic
left-side traffic.
X Press the abuttontos ave th esetting.
If you chang ethe setting, conversion does not
tak eplaceu ntil th enexttim et he vehicle is
stationary.
If you set th edipped-beam headlamps for driv-
ing on th eright/left ,the nm otorway mod eand
th ee xtended range foglamps are unavailable.
Thes eare only deactivate difthesettin gfor driv-
ing on th eleft/right is set opposit etoyour vehi-
cle's country version.
Aq ualified specialist worksho pcan set the
dipped-beam headlamps for driving on th eleft/
right.
Instrumen tcluster submenu Selecting th
edistance unit
The Display Display unit unitSpeed-/odometer
Speed-/odometer function
allows you to choos ewhether certain displays
appear in kilometres or mile sinthemultifunc-
tio nd isplay.
X Press òon thesteering wheel to open the
men ulist.
X Press the :or9 buttononthesteering
wheel to select the Settings
Settings menu.
X Confir mbyp ressing aon thesteering
wheel.
X Use : or9 to select the Instrument
Instrument
cluster
cluster submenu.
X Press ato confirm.
X Press :or9 to select the Display
Display
uni tS peed-/odometer
uni tS peed-/odometer function.
The curren tsetting km
kmorMiles
Miles appears.
X Press the abuttontos ave th esetting.
The selected unit of measuremen tfor distance
applies to the:
R digital speedometer in the Trip
Tripmenu
R total distanc erecorder and th etripm eter
R trip computer
R curren tconsum ption and th erange
R range R
navigation instruction sintheNavi
Navi menu
R Cruis econtrol
R SPEEDTRONIC
R DISTRONI CPLUSw ithS teering Assist and
Stop&Go Pilot
R ASSYS TPLUSs ervic einterval display
Switching th eadditiona lspeedometer
on/off
Unite dKingdom :thisf unction is unavailable.
The additional speedometer is always switched
on.
If th eadditional speedometer is switched on,
th es pee diss hown in th estatus bar of th emul-
tifunctio ndisplay instead of th eoutside tem-
perature.
The spee ddisplay is invers etoyour speedome-
ter.
X Press òon thesteering wheel to open the
men ulist.
X Press :or9 on thesteering wheel to
select the Settings Settings menu.
X Confir mbyp ressing aon thesteering
wheel.
X Press :or9 to select the Instru‐
Instru‐
men tc luster
men tc luster submenu.
X Press ato confirm.
X Press :or9 to select the Digital
Digital
speedo [km/h]
speedo [km/h] function.
The curren tselection appears.
X To activate/deactivate: press theabut-
to na gain.
Vehicle submenu Settin
gpermanent SPEEDTRONIC
X Press òon thesteering wheel to open the
men ulist.
X Press :or9 on thesteering wheel to
select the Settings Settings menu.
X Confir mbyp ressing aon thesteering
wheel.
X Press :or9 to select the Vehicle Vehicle
submenu.
X Press ato confirm.
X Press :or9 to select the Limit
Limit
speed (winte rtyres)
speed (winte rtyres) function.
The curren tsettin gappears.
X Press ato confirm. 248
Menu
sand submenusOn-boar dcomputer and displays
Page 269 of 385
Display messages
Possible causes/consequences and
M
MSolutions b
Switch on headlamps Switch on headlamps You are drivin
gwithout dipped-beam headlamps.
X Turn th eligh tswitch to the Lorà position. Adaptive Highbeam
Adaptive Highbeam
Assist Plu
sinoper‐
Assist Plu sinoper‐
ative ative Adaptive Highbea
mAssistisf aulty.
X Consult aqualified specialist workshop. Adaptive Highbeam
Adaptive Highbeam
Assist Plu
scur‐
Assist Plu scur‐
rently unavailable rently unavailable
See Owner' sManual
See Owner' sManual Adaptive Highbea
mAssistP lus is deactivated and temporarily inop-
erative .Possibl ecauses:
R thew indscree nisdirty in th ecamera' sfield of vision
R visibilit yisimpaire ddue to heav yrain ,sno worf og
X Clean th ewindscreen.
If th esystem detects that th ecamera is full yoperational, the Adap‐
Adap‐
tiv eH ighbeam Assist Plu savailable again
tiv eH ighbeam Assist Plu savailable again display message
is shown.
Adaptive Highbea mAssistP lus is operational again. Engine
Display messages
Possible causes/consequences and
M MSolutions +
Top up coolan
tSee
Top up coolan tSee
Owner’ sManual
Owner’ sManual The coolan
tlevel is to olow.
! Avoid making lon
gjou rneys wit htoo littl ecoolan tint heengine
coolin gsystem. The engin ewill otherwise be damaged.
X Top up th ecoolant, observing th ewarning note sbefore doin gso
( Ypage 324).
If you have to top up th ecoolant frequently:
X Contac taqualified specialist workshop and hav ethe engin ecooling
system checked. ? The fan motor is faulty.
X If th ecoolan ttem perature is belo w120†, you can continu edriving
to th eneares tqualified specialist workshop.
X Avoid heav yloads on th eengineasy ou do so, e.g. drivin ginmoun-
tainous terrain and stop-start traffic. 266
Display
messagesOn-boardcomputer an ddisplays
Page 380 of 385
i
The coolant is checked at every mainte-
nancei nterval at aqualified specialist work-
shop. Windscreen washer system
Important safety notes G
WARNING
If windscreen washer concentrate comes into contact with hot components of the engine or
the exhaust system, it can ignite. There is a
risk of fire and injury.
Make sure the windscreen washer concen-
trated oes not come into contact with the filler
neck.
! Only use washer fluid that is suitable for
plastic lamp lenses, e.g. MB SummerFit or MB
WinterFit. Unsuitable washer fluid could dam-
age the plastic lenses of the headlamps.
! Only the washer fluids SummerFit and Win-
terFit can be mixed. Otherwise, the spraying
nozzles could become blocked.
Do not use distilled or de-ionised water as the
level sensor may be triggered erroneously.
When handling washer fluid, observe the impor- tant safety notes on service products
(Y page 371).
At temperatures above freezing:
X Fill the washer fluid reservoir with amixture of
water and washer fluid, e.g. MB SummerFit.
Mix 1part MB SummerFit to 100 parts water.
At temperatures below freezing:
X Fill the washer fluid reservoir with amixture of
water and washer fluid, e.g. MB WinterFit.
For the correc tmixing ratio refer to the infor-
mation on the antifreeze reservoir.
i Add washer fluid concentrate, e.g. MB Sum-
merFit or MB WinterFit, to the washer fluid all
year round. Vehicle data
General notes
Please notet hat for the specified vehicle data:
R the heights specified may vary as aresult of:
- tyres
- load
- condition of the suspension
- optional equipment
R optional equipment reduces the maximum
payload
R only for certain countries: you can find vehi-
cle-specific vehicle data in the COC docu-
ments( CERTIFICATE OF CONFORMITY).
These document sare delivered with your
vehicle. Dimensions and weights
Missing values were not availabl
eatthe time of
going to print. Model
: :
Opening height Mercedes-AMG vehi-
cles
All other models
1831 mm
Mercedes-AMG vehicles
Vehicle length
4750 mm
Vehicle width including
exterior mirrors
2016 mm
Vehicle width excluding
exterior mirrors
1877 mmVehicle data
377Technical data Z
