MERCEDES-BENZ C-CLASS ESTATE 2014 Owners Manual

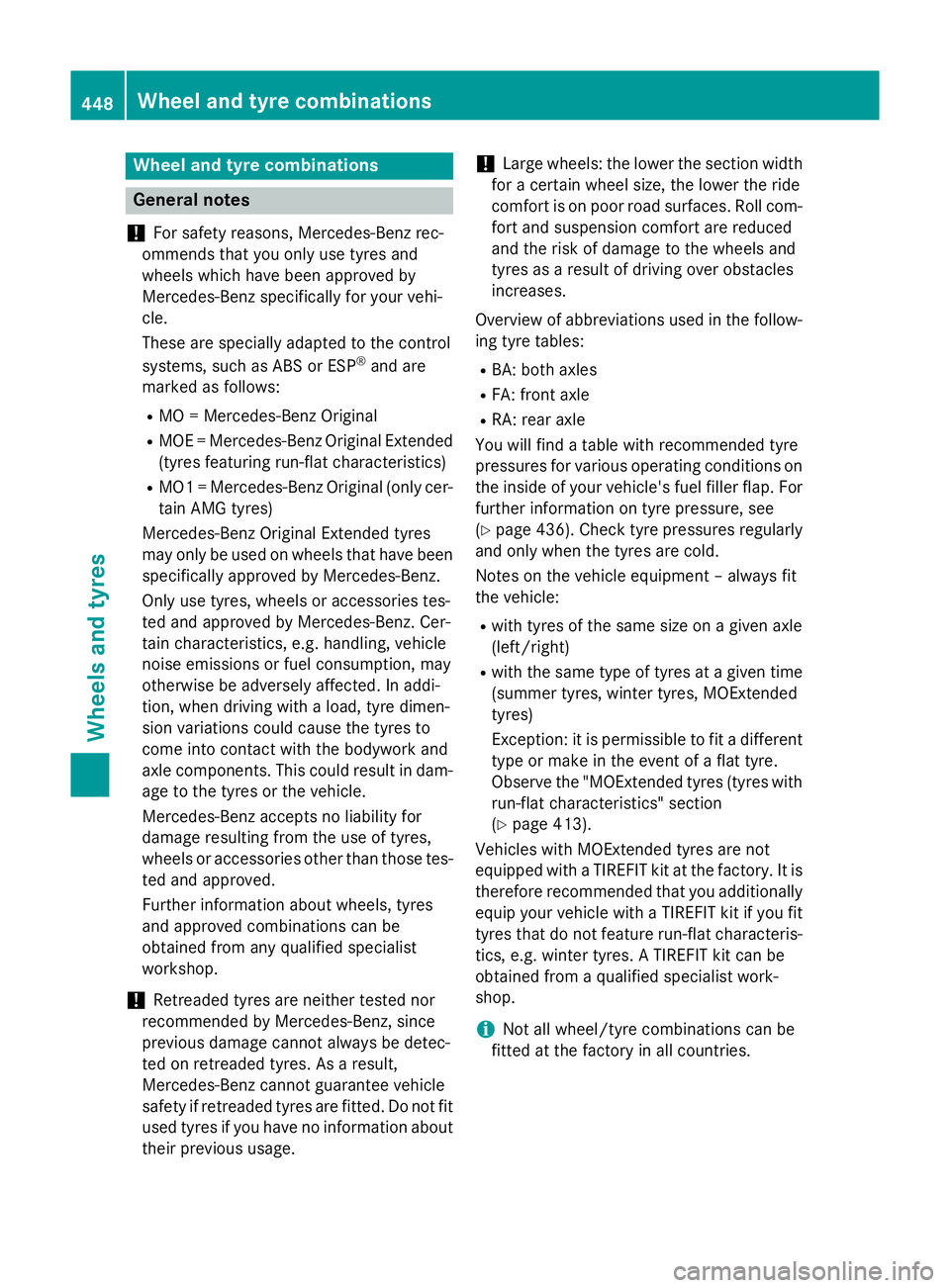

Wheel and tyre combinations
General notes
! For safety reasons, Mercedes-Benz rec-
ommends that you only use tyres and
wheels which have been approved by
Mercedes-Benz specifically for your vehi-
cle.
These are specially adapted to the control
systems, such as ABS or ESP ®
and are
marked as follows:
R MO = Mercedes-Benz Original
R MOE = Mercedes-Benz Original Extended
(tyres featuring run-flat characteristics)
R MO1 = Mercedes-Benz Original (only cer-
tain AMG tyres)
Mercedes-Benz Original Extended tyres
may only be used on wheels that have been
specifically approved by Mercedes-Benz.
Only use tyres, wheels or accessories tes-
ted and approved by Mercedes-Benz. Cer-
tain characteristics, e.g. handling, vehicle
noise emissions or fuel consumption, may
otherwise be adversely affected. In addi-
tion, when driving with a load, tyre dimen-
sion variations could cause the tyres to
come into contact with the bodywork and
axle components. This could result in dam- age to the tyres or the vehicle.
Mercedes-Benz accepts no liability for
damage resulting from the use of tyres,
wheels or accessories other than those tes- ted and approved.
Further information about wheels, tyres
and approved combinations can be
obtained from any qualified specialist
workshop.
! Retreaded tyres are neither tested nor
recommended by Mercedes-Benz, since
previous damage cannot always be detec-
ted on retreaded tyres. As a result,
Mercedes-Benz cannot guarantee vehicle
safety if retreaded tyres are fitted. Do not fit
used tyres if you have no information about their previous usage. !
Large wheels: the lower the section width
for a certain wheel size, the lower the ride
comfort is on poor road surfaces. Roll com-
fort and suspension comfort are reduced
and the risk of damage to the wheels and
tyres as a result of driving over obstacles
increases.
Overview of abbreviations used in the follow-
ing tyre tables:
R BA: both axles
R FA: front axle
R RA: rear axle
You will find a table with recommended tyre
pressures for various operating conditions on
the inside of your vehicle's fuel filler flap. For
further information on tyre pressure, see
(Y page 436). Check tyre pressures regularly
and only when the tyres are cold.
Notes on the vehicle equipment – always fit
the vehicle:
R with tyres of the same size on a given axle
(left/right)
R with the same type of tyres at a given time
(summer tyres, winter tyres, MOExtended
tyres)
Exception: it is permissible to fit a different
type or make in the event of a flat tyre.
Observe the "MOExtended tyres (tyres with
run-flat characteristics" section
(Y page 413).
Vehicles with MOExtended tyres are not
equipped with a TIREFIT kit at the factory. It is
therefore recommended that you additionally equip your vehicle with a TIREFIT kit if you fit tyres that do not feature run-flat characteris-
tics, e.g. winter tyres. A TIREFIT kit can be
obtained from a qualified specialist work-
shop.
i Not all wheel/tyre combinations can be
fitted at the factory in all countries. 448
Wheel and tyre combinationsWheels and tyres

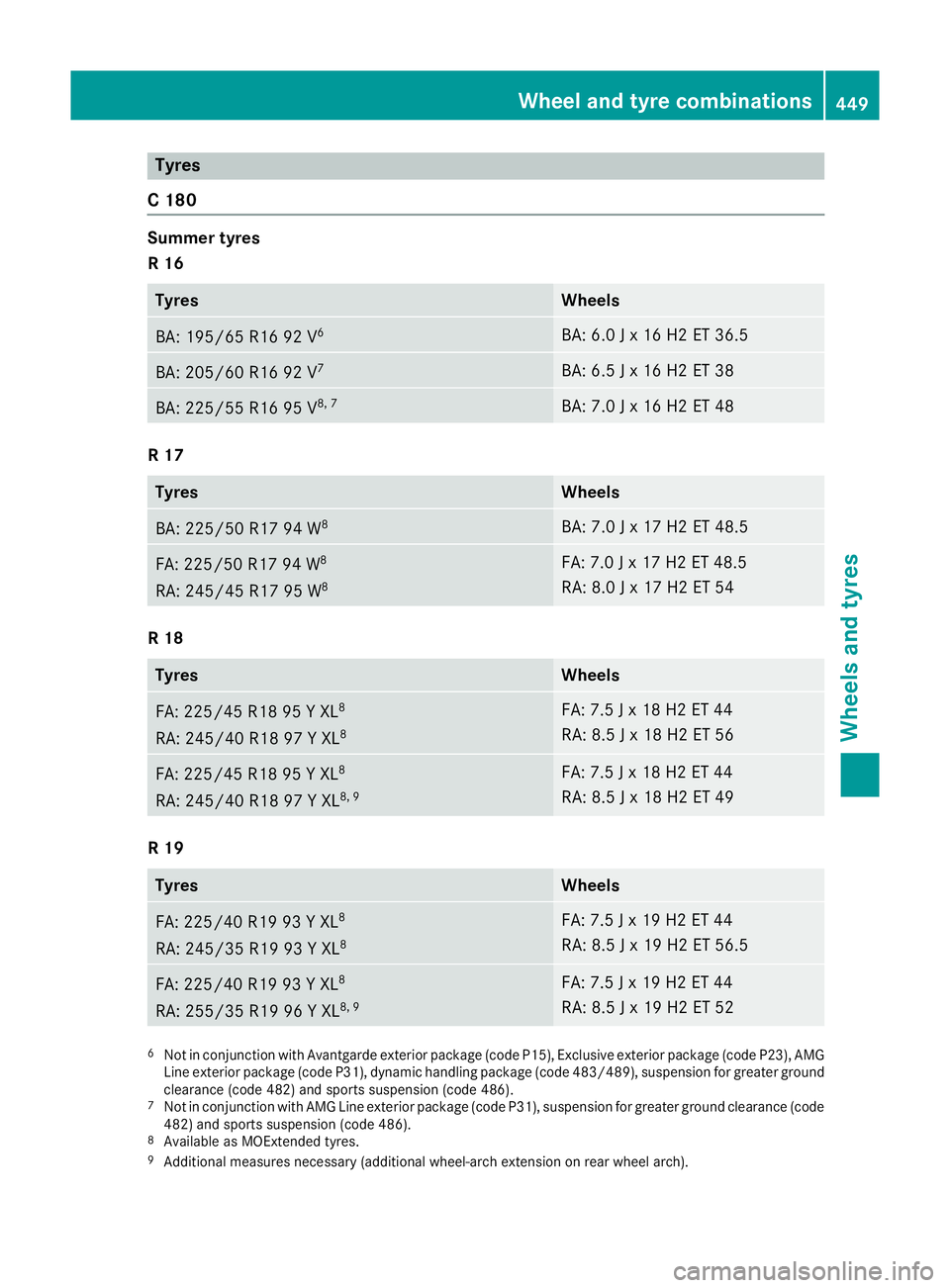

Tyres
C 180 Summer tyres
R 16
Tyres Wheels
BA: 195/6
5 R16 92 V 6 BA: 6.0 J x 16 H2 ET 36.5
BA: 205/60 R16 92 V
7 BA: 6.5 J x 16 H2 ET 38
BA: 225/55 R16 95 V
8, 7 BA: 7.0 J x 16 H2 ET 48
R 17
Tyres Wheels
BA: 225/50 R17 94 W
8 BA: 7.0 J x 17 H2 ET 48.5
FA: 225/50 R17 94 W
8
RA: 245/45 R17 95 W 8 FA: 7.0 J x 17 H2 ET 48.5
RA: 8.0 J x 17 H2 ET 54
R 18
Tyres Wheels
FA: 225/45 R18 95 Y XL
8
RA: 245/40 R18 97 Y XL 8 FA: 7.5 J x 18 H2 ET 44
RA: 8.5 J x 18 H2 ET 56
FA: 225/45 R18 95 Y XL
8
RA: 245/40 R18 97 Y XL 8, 9 FA: 7.5 J x 18 H2 ET 44
RA: 8.5 J x 18 H2 ET 49
R 19
Tyres Wheels
FA: 225/40 R19 93 Y XL
8
RA: 245/35 R19 93 Y XL 8 FA: 7.5 J x 19 H2 ET 44
RA: 8.5 J x 19 H2 ET 56.5
FA: 225/40 R19 93 Y XL
8
RA: 255/35 R19 96 Y XL 8, 9 FA: 7.5 J x 19 H2 ET 44
RA: 8.5 J x 19 H2 ET 52
6
Not in conjunction with Avantgarde exterior package (code P15), Exclusive exterior package (code P23), AMG
Line exterior package (code P31), dynamic handling package (code 483/489), suspension for greater ground
clearance (code 482) and sports suspension (code 486).
7 Not in conjunction with AMG Line exterior package (code P31), suspension for greater ground clearance (code
482) and sports suspension (code 486).
8 Available as MOExtended tyres.
9 Additional measures necessary (additional wheel-arch extension on rear wheel arch). Wheel and tyre combinations
449Wheels and tyres Z

Winter tyres
R 16
Tyres Wheels
BA: 205/60 R16 92 V M+S
i6 BA: 6.0 J x 16 H2 ET 36
BA: 205/60 R16 92 H M+Si
6 BA: 6.0 J x 16 H2 ET 36.5
BA: 205/60 R16 92 H M+Si
7 BA: 6.5 J x 16 H2 ET 38
BA: 225/55 R16 95 H M+Si
8, 7 BA: 7.0 J x 16 H2 ET 48
R 17
Tyres Wheels
BA: 225/50 R17 94 H M+Si
8 BA: 7.0 J x 17 H2 ET 48.5
R 18
Tyres Wheels
BA: 225/45 R18 95 H XL M+Si
8 BA: 7.5 J x 18 H2 ET 44
C 180 BlueTEC
Summer tyres
R 16
Tyres Wheels
BA: 195/65 R16 92 V
6 BA: 6.0 J x 16 H2 ET 36.5
BA: 205/60 R16 92 V
7 BA: 6.5 J x 16 H2 ET 38
BA: 225/55 R16 95 V
8, 7 BA: 7.0 J x 16 H2 ET 48
6
Not in conjunction with Avantgarde exterior package (code P15), Exclusive exterior package (code P23), AMG
Line exterior package (code P31), dynamic handling package (code 483/489), suspension for greater ground
clearance (code 482) and sports suspension (code 486).
7 Not in conjunction with AMG Line exterior package (code P31), suspension for greater ground clearance (code
482) and sports suspension (code 486).
8 Available as MOExtended tyres. 450
Wheel and tyre combinationsWheels and tyres

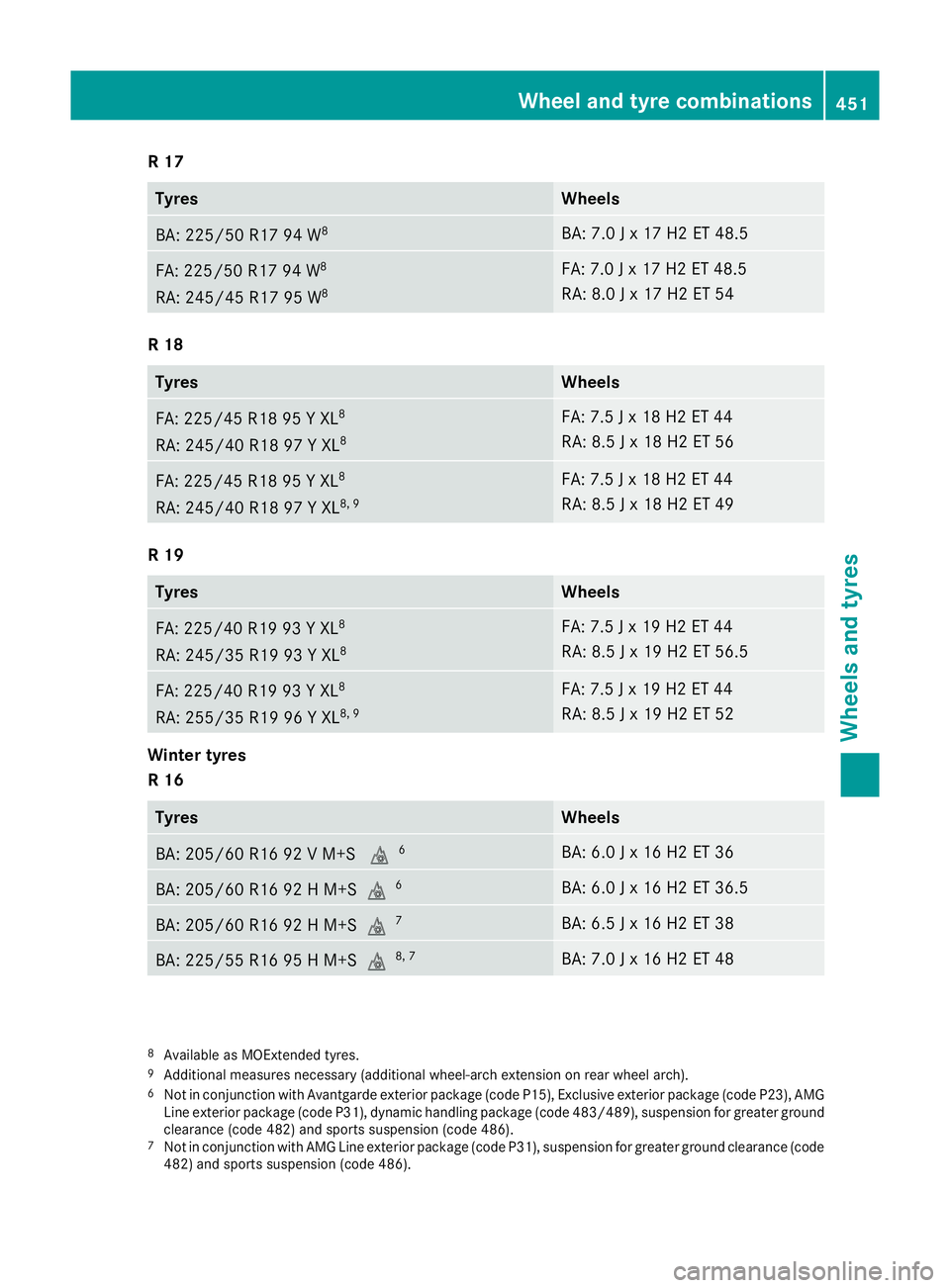

R 17
Tyres Wheels
BA: 225/50 R17 94 W
8 BA: 7.0 J x 17 H2 ET 48.5
FA: 225/50 R17 94 W
8
RA: 245/45 R17 95 W 8 FA: 7.0 J x 17 H2 ET 48.5
RA: 8.0 J x 17 H2 ET 54
R 18
Tyres Wheels
FA: 225/45 R18 95 Y XL
8
RA: 245/40 R18 97 Y XL 8 FA: 7.5 J x 18 H2 ET 44
RA: 8.5 J x 18 H2 ET 56
FA: 225/45 R18 95 Y XL
8
RA: 245/40 R18 97 Y XL 8, 9 FA: 7.5 J x 18 H2 ET 44
RA: 8.5 J x 18 H2 ET 49
R 19
Tyres Wheels
FA: 225/40 R19 93 Y XL
8
RA: 245/35 R19 93 Y XL 8 FA: 7.5 J x 19 H2 ET 44
RA: 8.5 J x 19 H2 ET 56.5
FA: 225/40 R19 93 Y XL
8
RA: 255/35 R19 96 Y XL 8, 9 FA: 7.5 J x 19 H2 ET 44
RA: 8.5 J x 19 H2 ET 52

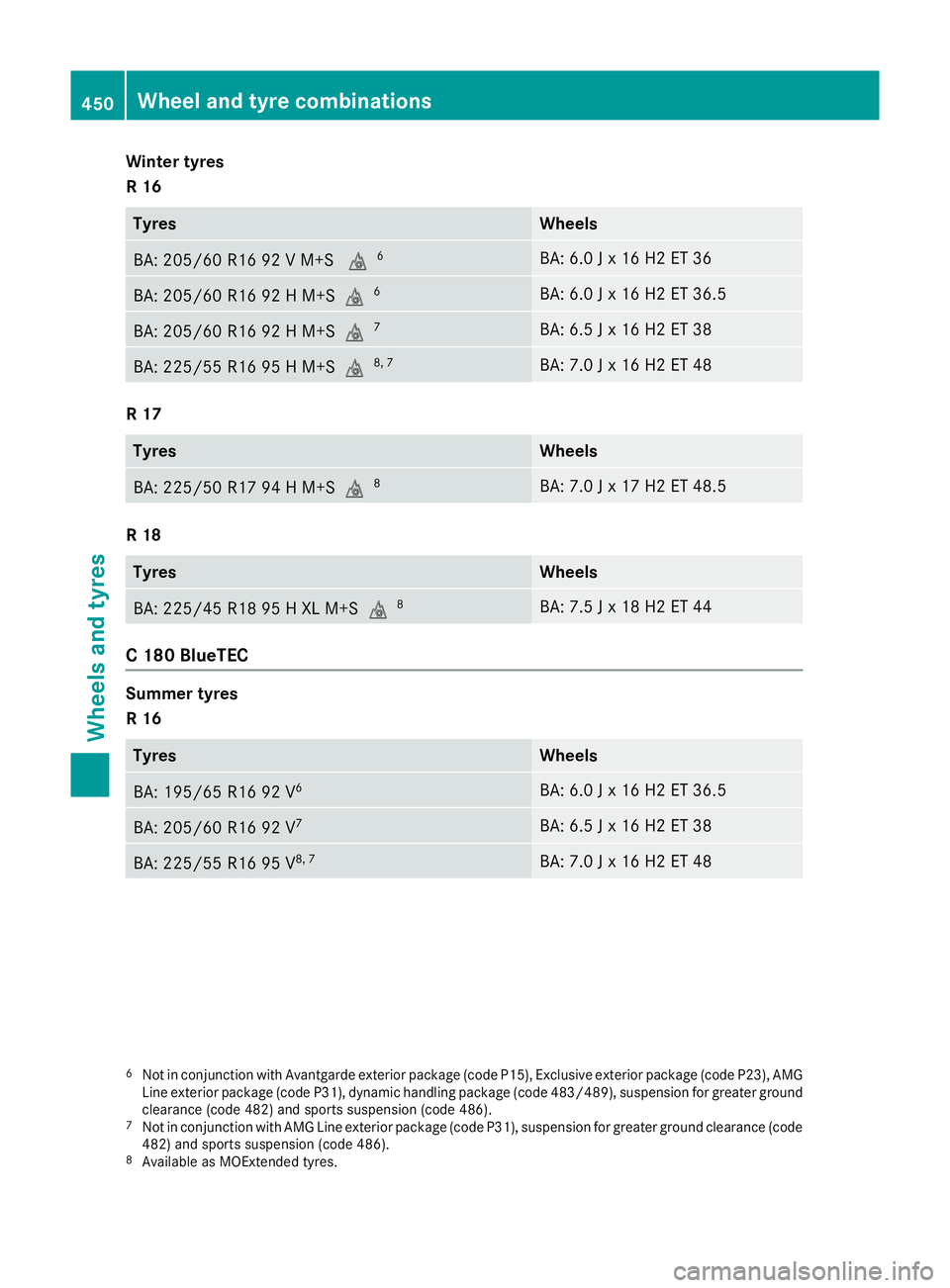

Winter tyres
R 16
Tyres Wheels
BA: 205/60 R16 92 V M+S
i6 BA: 6.0 J x 16 H2 ET 36
BA: 205/60 R16 92 H M+S
i6 BA: 6.0 J x 16 H2 ET 36.5
BA: 205/60 R16 92 H M+S
i7 BA: 6.5 J x 16 H2 ET 38
BA: 225/55 R16 95 H M+S
i8, 7 BA: 7.0 J x 16 H2 ET 48
8
Available as MOExtended tyres.
9 Additional measures necessary (additional wheel-arch extension on rear wheel arch).
6 Not in conjunction with Avantgarde exterior package (code P15), Exclusive exterior package (code P23), AMG
Line exterior package (code P31), dynamic handling package (code 483/489), suspension for greater ground
clearance (code 482) and sports suspension (code 486).
7 Not in conjunction with AMG Line exterior package (code P31), suspension for greater ground clearance (code
482) and sports suspension (code 486). Wheel and tyre combinations
451Wheels and tyres Z

R 17
Tyres Wheels
BA: 225/50 R17 94 H M+S
i8 BA: 7.0 J x 17 H2 ET 48.5
R 18
Tyres Wheels
BA: 225/45 R18 95 H XL M+S
i8 BA: 7.5 J x 18 H2 ET 44

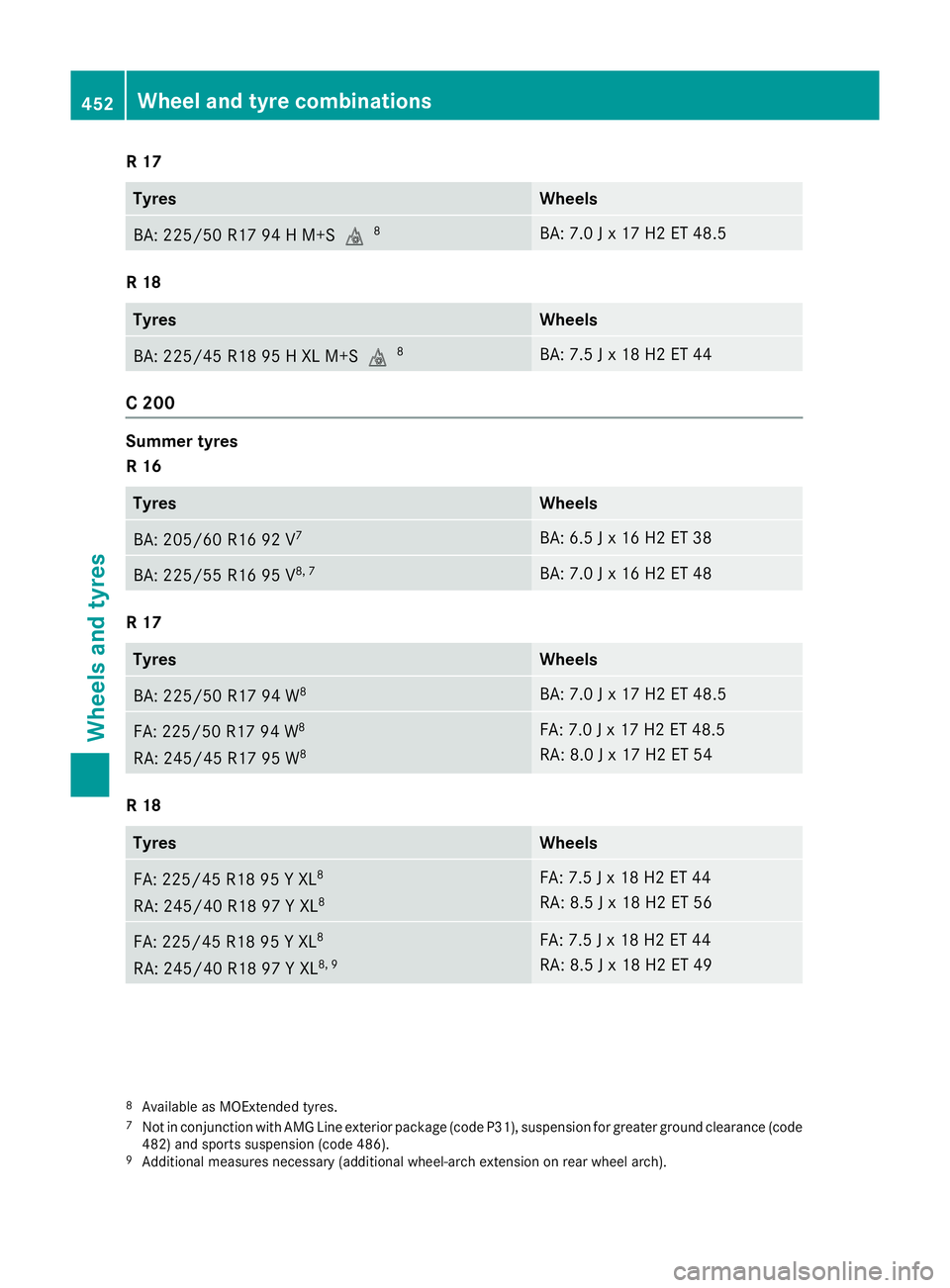

C 200
Summer tyres
R 16
Tyres Wheels
BA: 205/60 R16 92 V
7 BA: 6.5 J x 16 H2 ET 38
BA: 225/55 R16 95 V
8, 7 BA: 7.0 J x 16 H2 ET 48
R 17
Tyres Wheels
BA: 225/50 R17 94 W
8 BA: 7.0 J x 17 H2 ET 48.5
FA: 225/50 R17 94 W
8
RA: 245/45 R17 95 W 8 FA: 7.0 J x 17 H2 ET 48.5
RA: 8.0 J x 17 H2 ET 54
R 18
Tyres Wheels
FA: 225/45 R18 95 Y XL
8
RA: 245/40 R18 97 Y XL 8 FA: 7.5 J x 18 H2 ET 44
RA: 8.5 J x 18 H2 ET 56
FA: 225/45 R18 95 Y XL
8
RA: 245/40 R18 97 Y XL 8, 9 FA: 7.5 J x 18 H2 ET 44
RA: 8.5 J x 18 H2 ET 49
8
Available as MOExtended tyres.
7 Not in conjunction with AMG Line exterior package (code P31), suspension for greater ground clearance (code
482) and sports suspension (code 486).
9 Additional measures necessary (additional wheel-arch extension on rear wheel arch). 452
Wheel and tyre combinationsWheels and tyres

R 19
Tyres Wheels
FA: 225/40 R19 93 Y XL
8
RA: 245/35 R19 93 Y XL 8 FA: 7.5 J x 19 H2 ET 44
RA: 8.5 J x 19 H2 ET 56.5
FA: 225/40 R19 93 Y XL
8
RA: 255/35 R19 96 Y XL 8, 9 FA: 7.5 J x 19 H2 ET 44
RA: 8.5 J x 19 H2 ET 52
Winter tyres
R 16
Tyres Wheels
BA: 205/60 R16 92 H M+S
i7 BA: 6.5 J x 16 H2 ET 38
BA: 225/55 R16 95 H M+S
i8, 7 BA: 7.0 J x 16 H2 ET 48
R 17
Tyres Wheels
BA: 225/50 R17 94 H M+S
i8 BA: 7.0 J x 17 H2 ET 48.5
R 18
Tyres Wheels
BA: 225/45 R18 95 H XL M+S
i8 BA: 7.5 J x 18 H2 ET 44

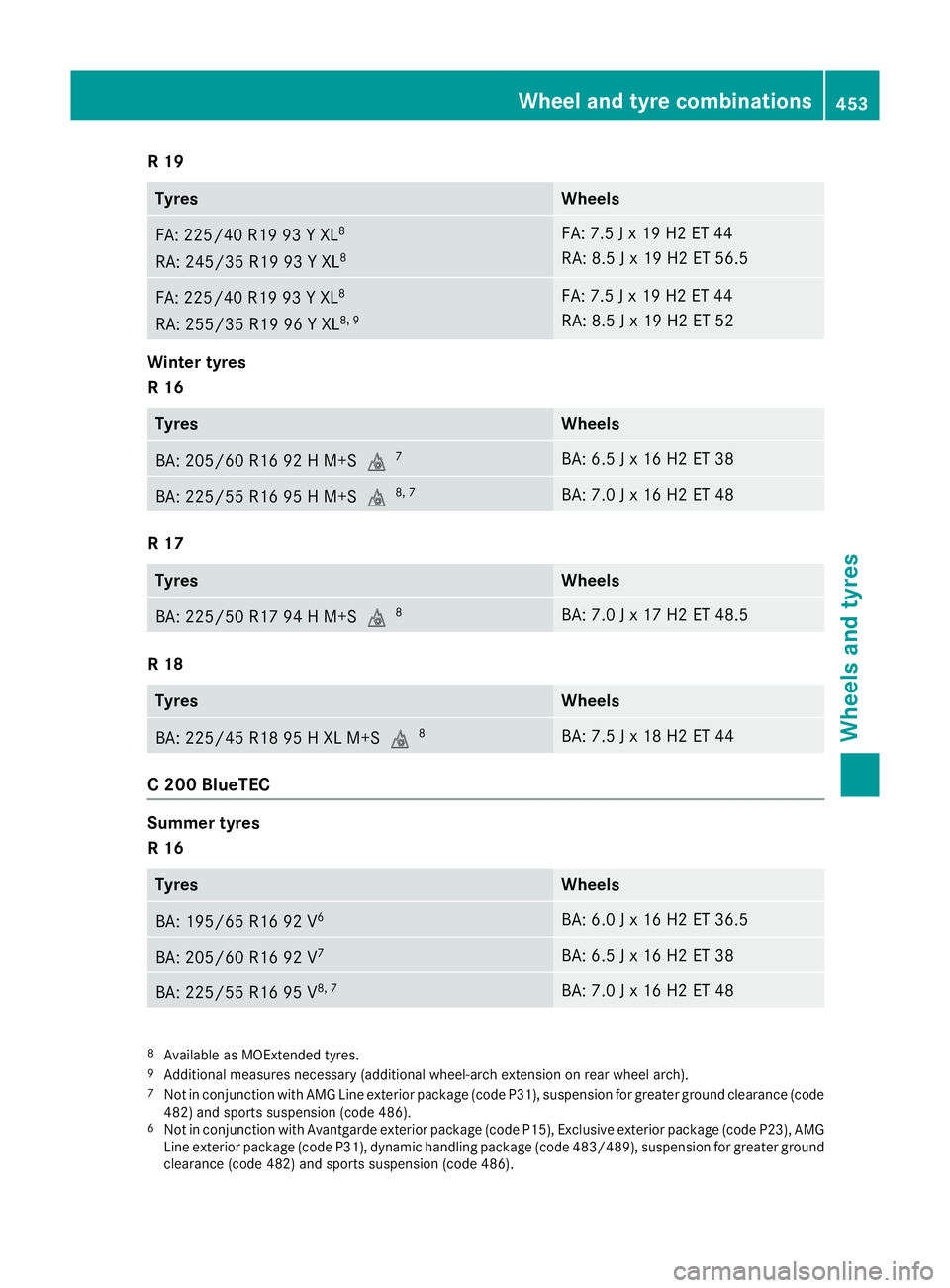

C 200 BlueTEC
Summer tyres
R 16
Tyres Wheels
BA: 195/65 R16 92 V
6 BA: 6.0 J x 16 H2 ET 36.5
BA: 205/60 R16 92 V
7 BA: 6.5 J x 16 H2 ET 38
BA: 225/55 R16 95 V
8, 7 BA: 7.0 J x 16 H2 ET 48
8
Available as MOExtended tyres.
9 Additional measures necessary (additional wheel-arch extension on rear wheel arch).
7 Not in conjunction with AMG Line exterior package (code P31), suspension for greater ground clearance (code
482) and sports suspension (code 486).
6 Not in conjunction with Avantgarde exterior package (code P15), Exclusive exterior package (code P23), AMG
Line exterior package (code P31), dynamic handling package (code 483/489), suspension for greater ground
clearance (code 482) and sports suspension (code 486). Wheel and tyre combinations
453Wheels and tyres Z

R 17
Tyres Wheels
BA: 225/50 R17 94 W
8 BA: 7.0 J x 17 H2 ET 48.5
FA: 225/50 R17 94 W
8
RA: 245/45 R17 95 W 8 FA: 7.0 J x 17 H2 ET 48.5
RA: 8.0 J x 17 H2 ET 54
R 18
Tyres Wheels
FA: 225/45 R18 95 Y XL
8
RA: 245/40 R18 97 Y XL 8 FA: 7.5 J x 18 H2 ET 44
RA: 8.5 J x 18 H2 ET 56
FA: 225/45 R18 95 Y XL
8
RA: 245/40 R18 97 Y XL 8, 9 FA: 7.5 J x 18 H2 ET 44
RA: 8.5 J x 18 H2 ET 49
R 19
Tyres Wheels
FA: 225/40 R19 93 Y XL
8
RA: 245/35 R19 93 Y XL 8 FA: 7.5 J x 19 H2 ET 44
RA: 8.5 J x 19 H2 ET 56.5
FA: 225/40 R19 93 Y XL
8
RA: 255/35 R19 96 Y XL 8, 9 FA: 7.5 J x 19 H2 ET 44
RA: 8.5 J x 19 H2 ET 52
Winter tyres
R 16
Tyres Wheels
BA: 205/60 R16 92 H M+S
i6 BA: 6.0 J x 16 H2 ET 36
BA: 205/60 R16 92 V M+S
i6 BA: 6.0 J x 16 H2 ET 36.5
BA: 205/60 R16 92 H M+S
i7 BA: 6.5 J x 16 H2 ET 38
BA: 225/55 R16 95 H M+S
i8, 7 BA: 7.0 J x 16 H2 ET 48
8
Available as MOExtended tyres.
9 Additional measures necessary (additional wheel-arch extension on rear wheel arch).
6 Not in conjunction with Avantgarde exterior package (code P15), Exclusive exterior package (code P23), AMG
Line exterior package (code P31), dynamic handling package (code 483/489), suspension for greater ground
clearance (code 482) and sports suspension (code 486).
7 Not in conjunction with AMG Line exterior package (code P31), suspension for greater ground clearance (code
482) and sports suspension (code 486). 454
Wheel and tyre combinationsWheels and tyres

R 17
Tyres Wheels
BA: 225/50 R17 94 H M+S
i8 BA: 7.0 J x 17 H2 ET 48.5
R 18
Tyres Wheels
BA: 225/45 R18 95 H XL M+S
i8 BA: 7.5 J x 18 H2 ET 44

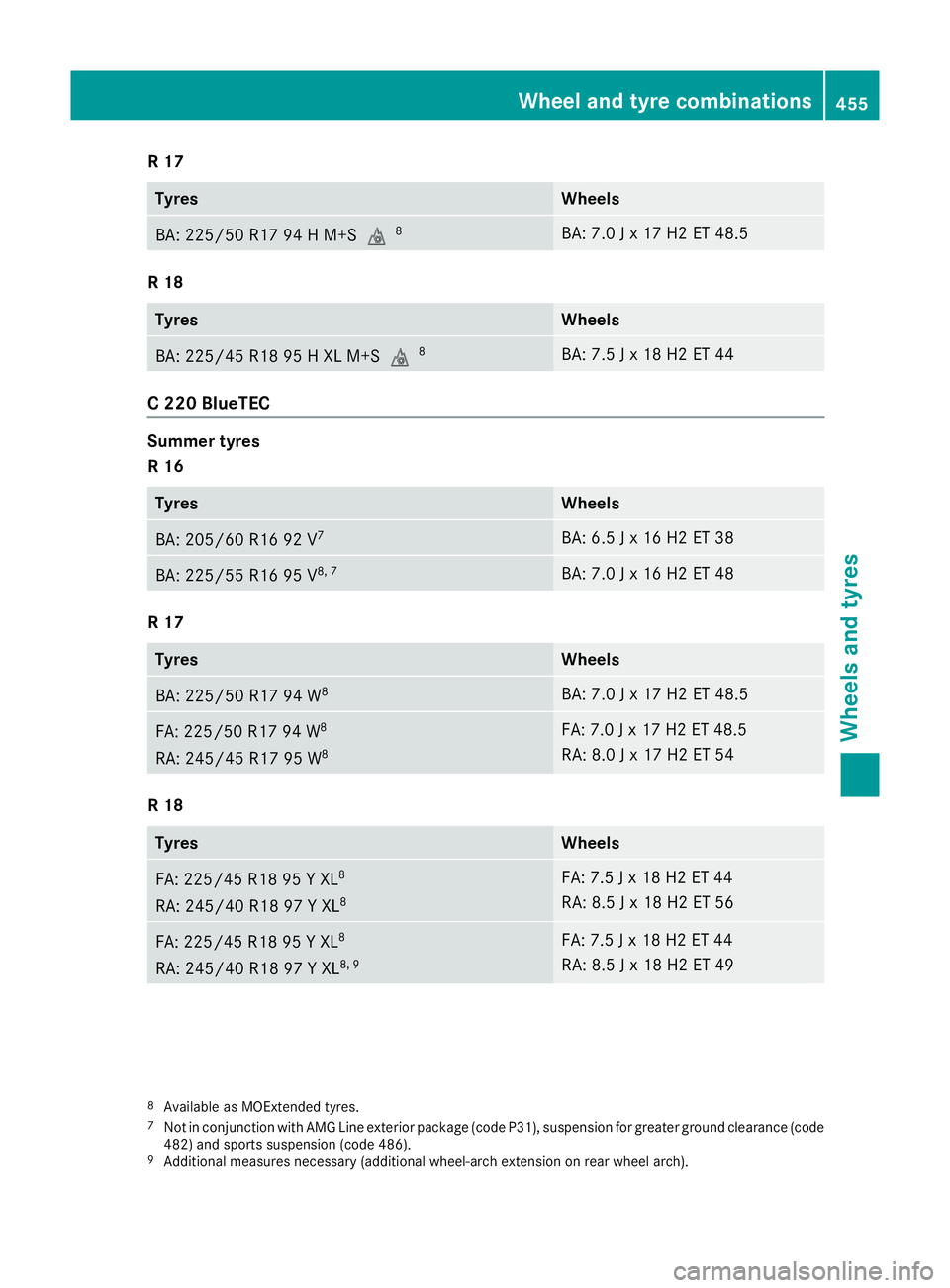

C 220 BlueTEC
Summer tyres
R 16
Tyres Wheels
BA: 205/60 R16 92 V
7 BA: 6.5 J x 16 H2 ET 38
BA: 225/55 R16 95 V
8, 7 BA: 7.0 J x 16 H2 ET 48
R 17
Tyres Wheels
BA: 225/50 R17 94 W
8 BA: 7.0 J x 17 H2 ET 48.5
FA: 225/50 R17 94 W
8
RA: 245/45 R17 95 W 8 FA: 7.0 J x 17 H2 ET 48.5
RA: 8.0 J x 17 H2 ET 54
R 18
Tyres Wheels
FA: 225/45 R18 95 Y XL
8
RA: 245/40 R18 97 Y XL 8 FA: 7.5 J x 18 H2 ET 44
RA: 8.5 J x 18 H2 ET 56
FA: 225/45 R18 95 Y XL
8
RA: 245/40 R18 97 Y XL 8, 9 FA: 7.5 J x 18 H2 ET 44
RA: 8.5 J x 18 H2 ET 49
8
Available as MOExtended tyres.
7 Not in conjunction with AMG Line exterior package (code P31), suspension for greater ground clearance (code
482) and sports suspension (code 486).
9 Additional measures necessary (additional wheel-arch extension on rear wheel arch). Wheel and tyre combinations

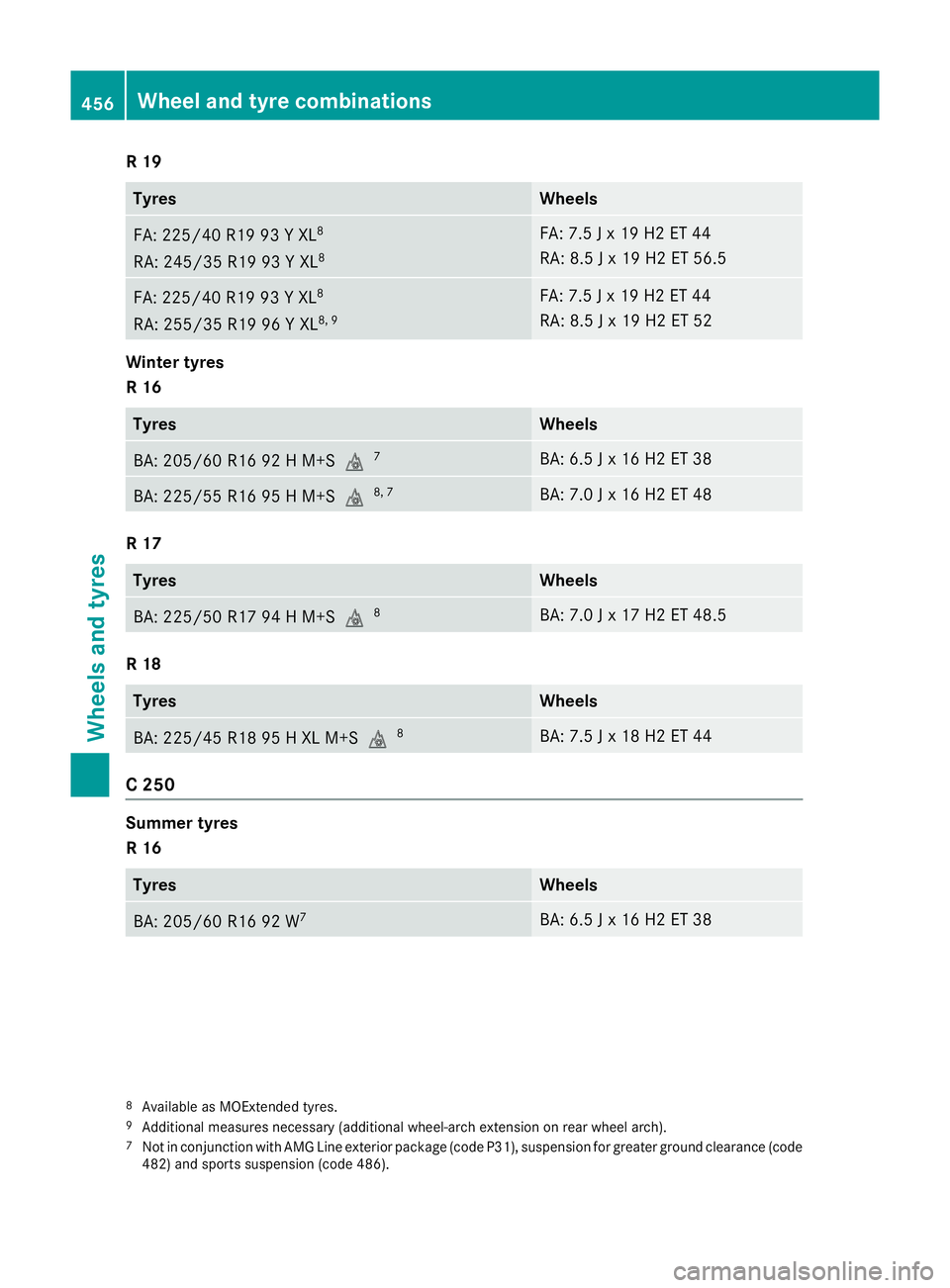

455Wheels and tyres Z

R 19
Tyres Wheels
FA: 225/40 R19 93 Y XL
8
RA: 245/35 R19 93 Y XL 8 FA: 7.5 J x 19 H2 ET 44
RA: 8.5 J x 19 H2 ET 56.5
FA: 225/40 R19 93 Y XL
8
RA: 255/35 R19 96 Y XL 8, 9 FA: 7.5 J x 19 H2 ET 44
RA: 8.5 J x 19 H2 ET 52
Winter tyres
R 16
Tyres Wheels
BA: 205/60 R16 92 H M+S
i7 BA: 6.5 J x 16 H2 ET 38
BA: 225/55 R16 95 H M+S
i8, 7 BA: 7.0 J x 16 H2 ET 48
R 17
Tyres Wheels
BA: 225/50 R17 94 H M+S
i8 BA: 7.0 J x 17 H2 ET 48.5
R 18
Tyres Wheels
BA: 225/45 R18 95 H XL M+S
i8 BA: 7.5 J x 18 H2 ET 44
C 250
Summer tyres
R 16
Tyres Wheels
BA: 205/60 R16 92 W
7 BA: 6.5 J x 16 H2 ET 38
8
Available as MOExtended tyres.
9 Additional measures necessary (additional wheel-arch extension on rear wheel arch).
7 Not in conjunction with AMG Line exterior package (code P31), suspension for greater ground clearance (code
482) and sports suspension (code 486). 456

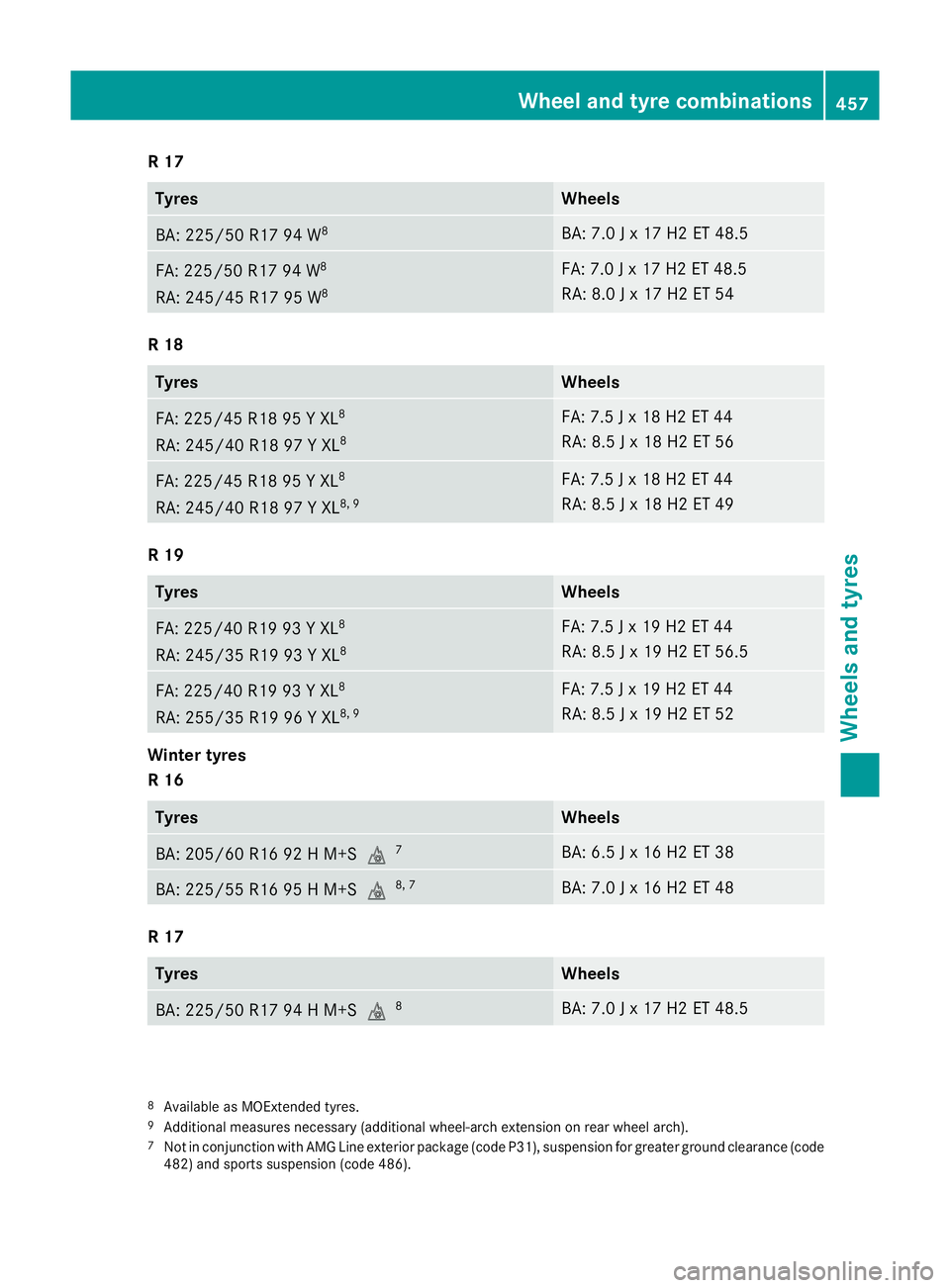

Wheel and tyre combinationsWheels and tyres

R 17
Tyres Wheels
BA: 225/50 R17 94 W
8 BA: 7.0 J x 17 H2 ET 48.5
FA: 225/50 R17 94 W
8
RA: 245/45 R17 95 W 8 FA: 7.0 J x 17 H2 ET 48.5
RA: 8.0 J x 17 H2 ET 54
R 18
Tyres Wheels
FA: 225/45 R18 95 Y XL
8
RA: 245/40 R18 97 Y XL 8 FA: 7.5 J x 18 H2 ET 44
RA: 8.5 J x 18 H2 ET 56
FA: 225/45 R18 95 Y XL
8
RA: 245/40 R18 97 Y XL 8, 9 FA: 7.5 J x 18 H2 ET 44
RA: 8.5 J x 18 H2 ET 49
R 19
Tyres Wheels
FA: 225/40 R19 93 Y XL
8
RA: 245/35 R19 93 Y XL 8 FA: 7.5 J x 19 H2 ET 44
RA: 8.5 J x 19 H2 ET 56.5
FA: 225/40 R19 93 Y XL
8
RA: 255/35 R19 96 Y XL 8, 9 FA: 7.5 J x 19 H2 ET 44
RA: 8.5 J x 19 H2 ET 52
Winter tyres
R 16
Tyres Wheels
BA: 205/60 R16 92 H M+S
i7 BA: 6.5 J x 16 H2 ET 38
BA: 225/55 R16 95 H M+S
i8, 7 BA: 7.0 J x 16 H2 ET 48
R 17
Tyres Wheels
BA: 225/50 R17 94 H M+S
i8 BA: 7.0 J x 17 H2 ET 48.5
8
Available as MOExtended tyres.
9 Additional measures necessary (additional wheel-arch extension on rear wheel arch).
7 Not in conjunction with AMG Line exterior package (code P31), suspension for greater ground clearance (code
482) and sports suspension (code 486). Wheel and tyre combinations
457Wheels and tyres Z
