MERCEDES-BENZ C-CLASS ESTATE 2020 Owners Manual

Wa
rning/indicator lamp
Possible causes/consequences and M MSolutions

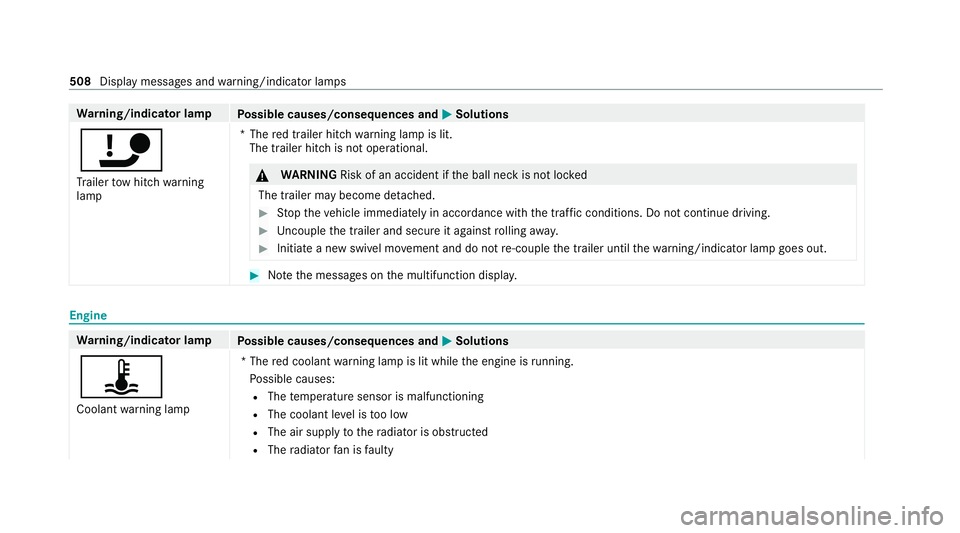

ï Tr ailer tow hit chwarning
lamp *T
hered trailer hitch warning lamp is lit.
The trailer hitch is not operational. &
WARNING Risk of an accident if the ball neck is not loc ked
The trailer may become de tach ed. #
Stop theve hicle immediately in accordance with the traf fic conditions. Do not continue driving. #
Uncouple the trailer and secure it against rolling away. #
Initiate a new swivel mo vement and do not re-couple the trailer until thewa rning/indicator lamp goes out. #
Notethe messages on the multifunction displa y.Engine
Wa
rning/indicator lamp
Possible causes/consequences and M MSolutions
ÿ Coolant warning lamp *T
he red coolant warning lamp is lit while the engine is running.
Po ssible causes:
R The temp erature sensor is malfunctioning
R The coolant le vel is too low
R The air supply tothera diator is obstructed
R The radiator fan is faulty 508
Display messages and warning/indicator lamps

Wa
rning/indicator lamp
Possible causes/consequences and M MSolutions

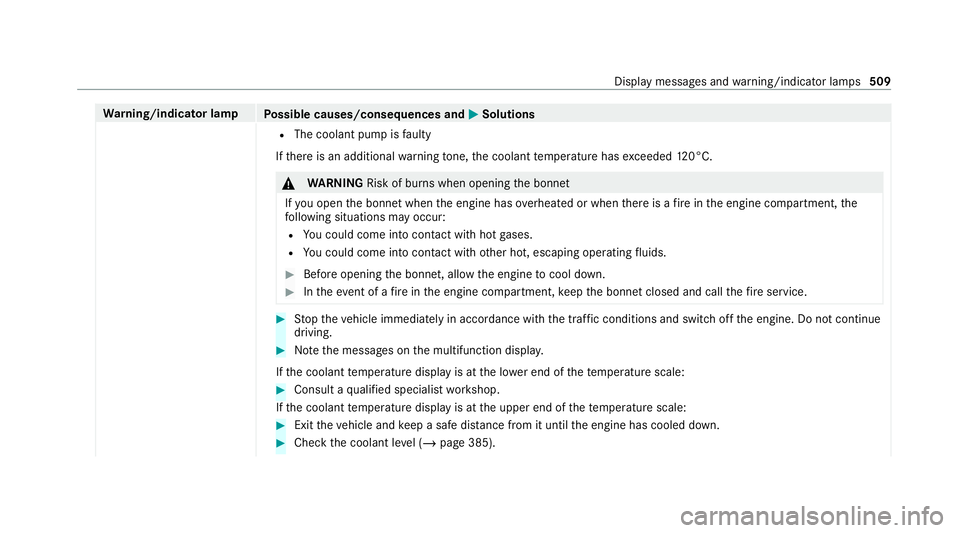

R The coolant pump is faulty
If th ere is an additional warning tone, the coolant temp erature has exceeded 120°C. &
WARNING Risk of burn s when opening the bonn et
If yo u open the bonn etwhen the engine has overheated or when there is a fire inthe engine compartment, the
fo llowing situations may occur:
R You could come into contact with hot gases.
R You could come into contact with other hot, escaping operating fluids. #
Before opening the bonn et, allow the engine tocool down. #
Intheeve nt of a fire inthe engine compartment, keep the bonn etclosed and call thefire service. #
Stop theve hicle immediately in accordance with the traf fic conditions and switch off the engine. Do not continue
driving. #
Notethe messages on the multifunction displa y.
If th e coolant temp erature display is at the lo wer end of thete mp erature scale: #
Consult a qualified specialist workshop.
If th e coolant temp erature display is at the upper end of thete mp erature scale: #
Exit theve hicle and keep a safe dis tance from it until the engine has cooled down. #
Check the coolant le vel (/ page 385). Display messages and
warning/indicator lamps 509

Wa
rning/indicator lamp
Possible causes/consequences and M MSolutions #

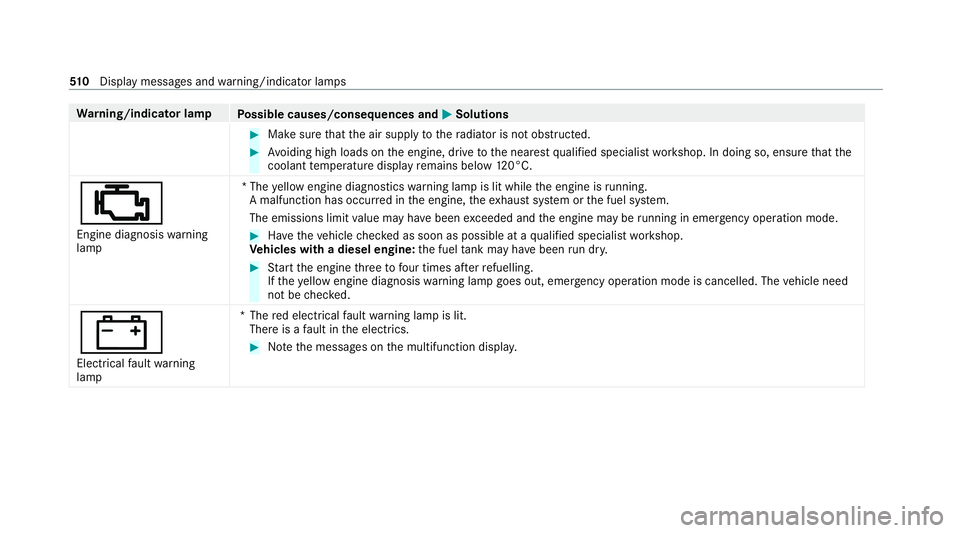

Make sure that the air supply tothera diator is not obstructed. #
Avoiding high loads on the engine, drive tothe nearest qualified specialist workshop. In doing so, ensure that the
coolant temp erature display remains below 120°C.
; Engine diagnosis warning
lamp *T
he yellow engine diagno stics warning lamp is lit while the engine is running.
A malfunction has occu rred in the engine, theex haust sy stem or the fuel sy stem.
The emissions limit value may ha vebeen exceeded and the engine may be running in eme rgency operation mode. #
Have theve hicle checked as soon as possible at a qualified specialist workshop.
Ve hicles with a diesel engine: the fuel tank may ha vebeen run dr y. #
Start the engine thre eto four times af terre fuelling.
If th eye llow engine diagnosis warning lamp goes out, emer gency operation mode is cancelled. The vehicle need
not be checked.
#
Elect rical fault warning
lamp *T
hered elect rical fault warning lamp is lit.
There is a fault in the electrics. #
Notethe messages on the multifunction displa y.51 0
Displaymessa ges and warning/indicator lamps

Wa
rning/indicator lamp
Possible causes/consequences and M MSolutions

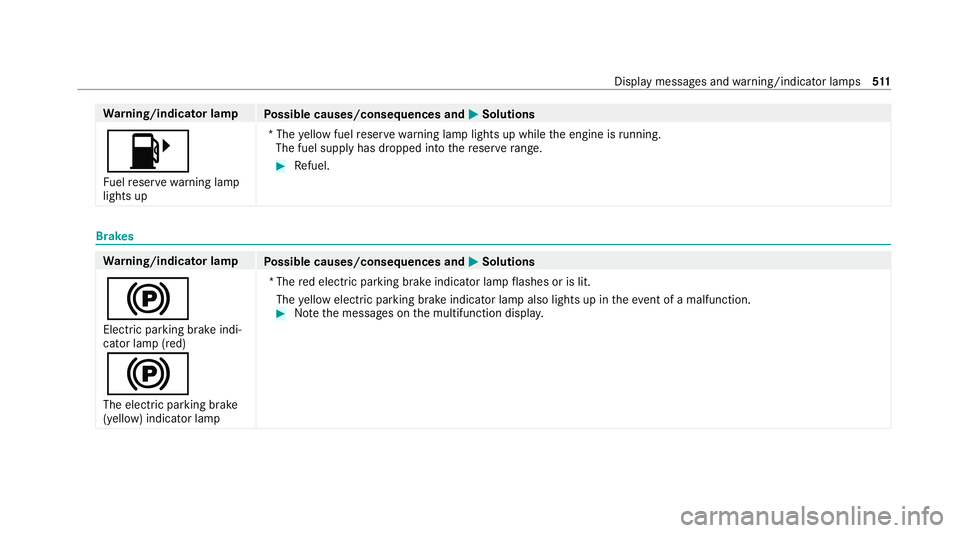

8 Fu elreser ve wa rning lamp
lights up *T
he yellow fuel reser vewarning lamp lights up while the engine is running.
The fuel supply has dropped into there ser verange. #
Refuel. Brakes
Wa
rning/indicator lamp
Possible causes/consequences and M MSolutions
! Elect ric pa rking brake indi‐
cator lamp (red)
!
The elect ric pa rking brake
(yellow) indicator lamp *T
he red elect ric pa rking brake indicator lamp flashes or is lit.
The yellow elect ric pa rking brake indicator lamp also lights up in theev ent of a malfunction. #
Notethe messages on the multifunction displa y. Displ
aymessa ges and warning/indicator lamps 511

Wa
rning/indicator lamp
Possible causes/consequences and M MSolutions

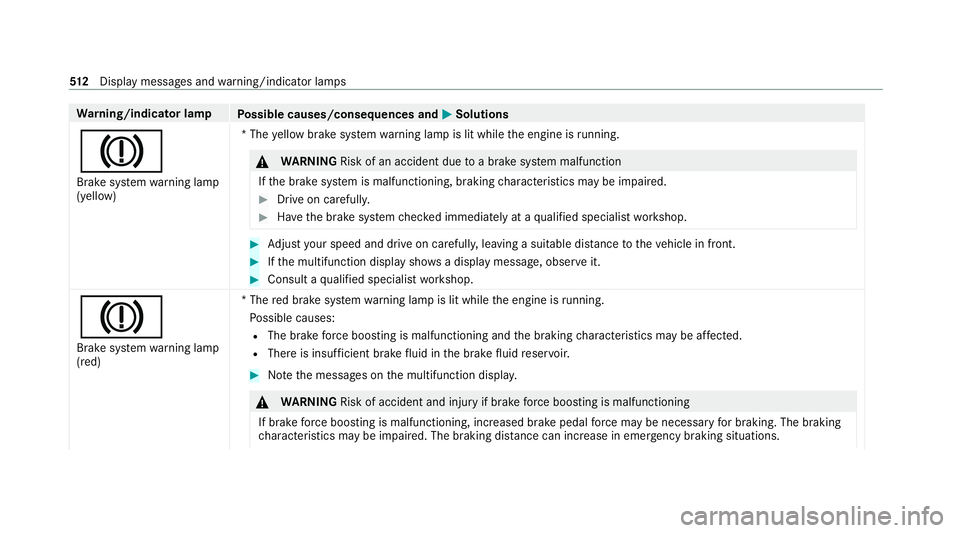

J Brake sy stem warning lamp
(yellow) *T
he yellow brake sy stem warning lamp is lit while the engine is running. &
WARNING Risk of an accident due toa brake sy stem malfunction
If th e brake sy stem is malfunctioning, braking characteristics may be impaired. #
Drive on carefull y. #
Have the brake sy stem checked immediately at a qualified specialist workshop. #
Adjust your speed and drive on carefull y,leaving a suitable dis tance totheve hicle in front. #
Ifth e multifunction display sho wsa display message, obse rve it. #
Consult a qualified specialist workshop.
J Brake sy stem warning lamp
(red) *T
he red brake sy stem warning lamp is lit while the engine is running.
Po ssible causes:
R The brake forc e boosting is malfunctioning and the braking characteristics may be af fected.
R The reis insuf ficient brake fluid in the brake fluid reser voir. #
Notethe messages on the multifunction displa y. &
WARNING Risk of accident and inju ryif brake forc e boosting is malfunctioning
If brake forc e boosting is malfunctioning, increased brake pedal forc e may be necessary for braking. The braking
ch aracteristics may be impaired. The braking dis tance can increase in emergency braking situations. 512
Displaymessa ges and warning/indicator lamps

Wa
rning/indicator lamp
Possible causes/consequences and M MSolutions #

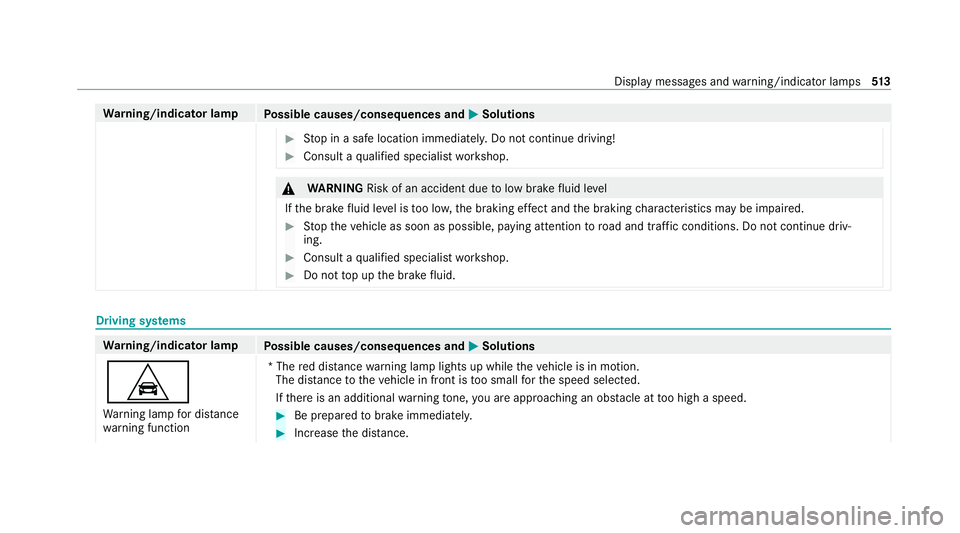

Stop in a safe location immediately. Do not continue driving! #
Consult a qualified specialist workshop. &
WARNING Risk of an accident due tolow brake fluid le vel
If th e brake fluid le vel is too lo w,the braking ef fect and the braking characteristics may be impaired. #
Stop theve hicle as soon as possible, paying attention toroad and traf fic conditions. Do not continue driv‐
ing. #
Consult a qualified specialist workshop. #
Do not top up the brake fluid. Driving sy
stems Wa
rning/indicator lamp
Possible causes/consequences and M MSolutions
L Wa rning lamp for dis tance
wa rning function *T
he red dis tancewarning lamp lights up while theve hicle is in motion.
The dis tance totheve hicle in front is too small forth e speed selected.
If th ere is an additional warning tone, you are approaching an obs tacle at too high a speed. #
Be prepared tobrake immediatel y. #
Increase the dis tance. Display messa
ges and warning/indicator lamps 513

Wa
rning/indicator lamp
Possible causes/consequences and M MSolutions

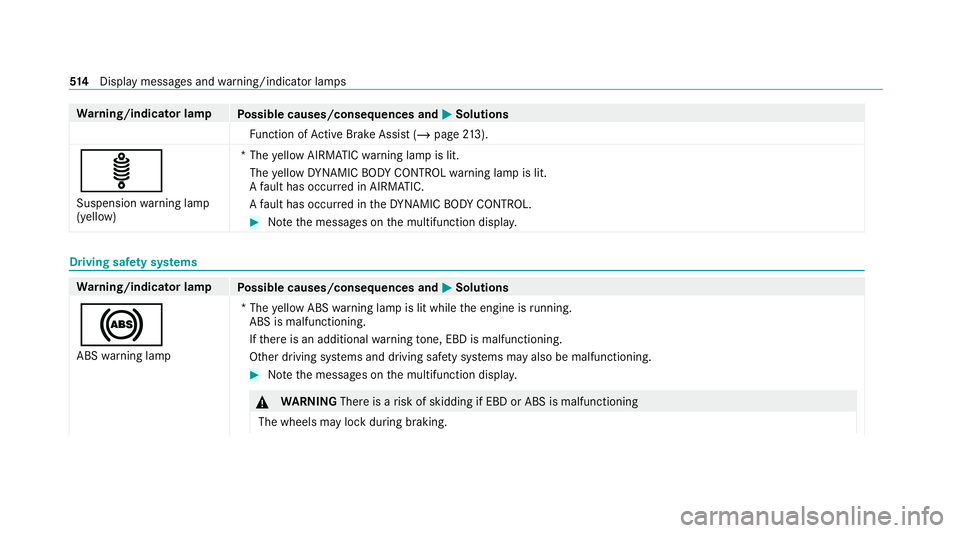

Fu nction of Active Brake Assi st (/ page 213).
ä Suspension warning lamp
(yellow) *T
he yellow AIRMATIC warning lamp is lit.
The yellow DYNA MIC BODY CONTROL warning lamp is lit.
A fault has occur red in AIRMATIC.
A fault has occur red in theDY NA MIC BODY CONTROL. #
Notethe messages on the multifunction displa y.Driving saf
ety sy stems Wa
rning/indicator lamp
Possible causes/consequences and M MSolutions
! ABS warning lamp *T
he yellow ABS warning lamp is lit while the engine is running.
ABS is malfunctioning.
If th ere is an additional warning tone, EBD is malfunctioning.
Other driving sy stems and driving saf ety sy stems may also be malfunctioning. #
Notethe messages on the multifunction displa y. &
WARNING Thereis a risk of skidding if EBD or ABS is malfunctioning
The wheels may lock during braking. 514
Displaymessa ges and warning/indicator lamps

Wa
rning/indicator lamp
Possible causes/consequences and M MSolutions

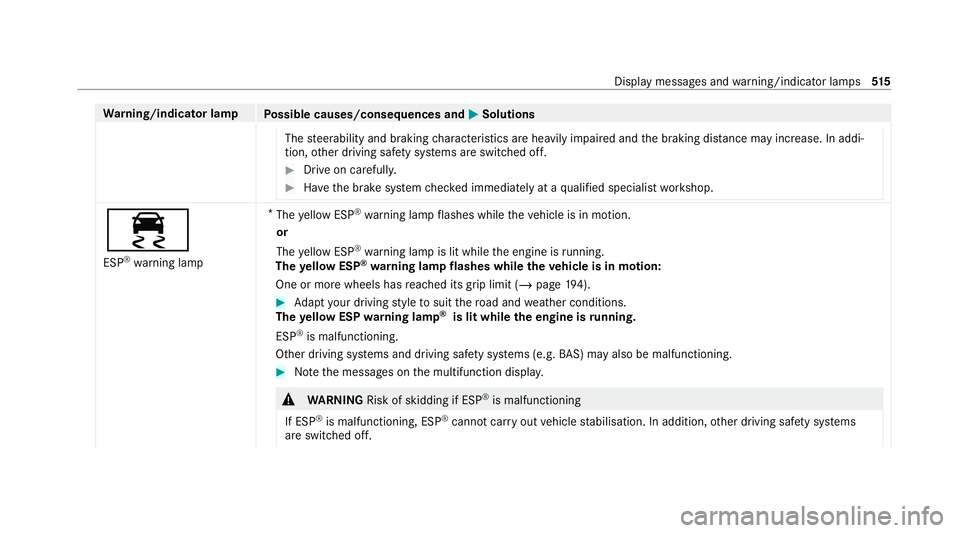

The steerability and braking characteristics are heavily impaired and the braking dis tance may increase. In addi‐
tion, other driving saf ety sy stems are switched off. #
Drive on carefull y. #
Have the brake sy stem checked immediately at a qualified specialist workshop. ÷
ESP ®
wa rning lamp *
The yellow ESP ®
wa rning lamp flashes while theve hicle is in motion.
or
The yellow ESP ®
wa rning lamp is lit while the engine is running.
The yellow ESP ®
wa rning lamp flashes while theve hicle is in motion:
One or more wheels has reached its grip limit (/ page194). #
Adapt your driving style to suit thero ad and weather conditions.
The yellow ESP warning lamp ®
is lit while the engine is running.
ESP ®
is malfunctioning.
Other driving sy stems and driving saf ety sy stems (e.g. BAS) may also be malfunctioning. #
Notethe messages on the multifunction displa y. &
WARNING Risk of skidding if ESP ®
is malfunctioning
If ESP ®
is malfunctioning, ESP ®
cannot car ryout vehicle stabilisation. In addition, other driving saf ety sy stems
are switched off. Display messages and
warning/indicator lamps 515

Wa
rning/indicator lamp
Possible causes/consequences and M MSolutions #
Drive on carefull y. #
Have ESP ®
ch ecked at a qualified specialist workshop. å

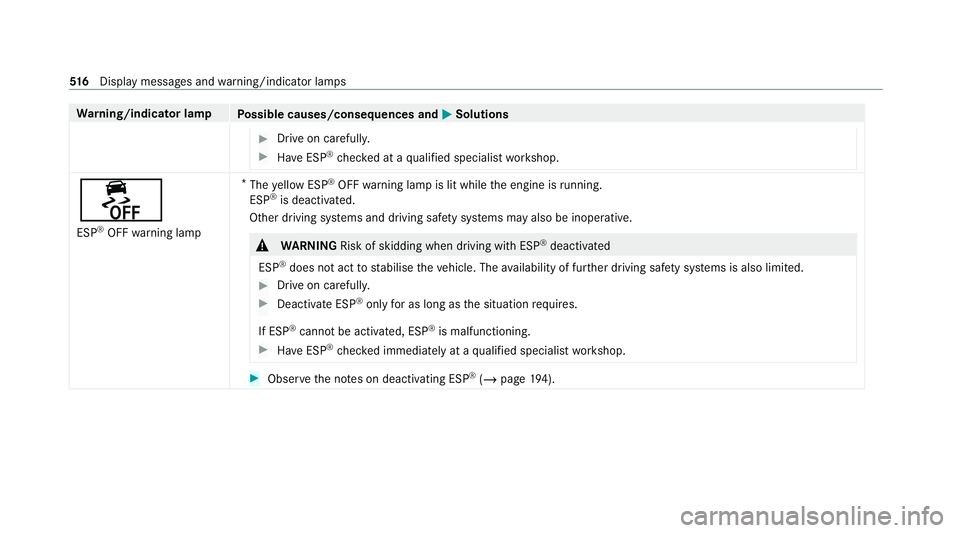

ESP ®
OFF warning lamp *
The yellow ESP ®
OFF warning lamp is lit while the engine is running.
ESP ®
is deacti vated.
Other driving sy stems and driving saf ety sy stems may also be inoperative. &
WARNING Risk of skidding when driving wi thESP ®
deacti vated
ESP ®
does not act tostabilise theve hicle. The availability of fur ther driving saf ety sy stems is also limited. #
Drive on carefull y. #
Deactivate ESP ®
only for as long as the situation requ ires.
If ESP ®
cannot be activated, ESP ®
is malfunctioning. #
Have ESP ®
ch ecked immediately at a qualified specialist workshop. #
Obser vethe no tes on deactivating ESP ®
(/ page 194). 516
Displaymessa ges and warning/indicator lamps

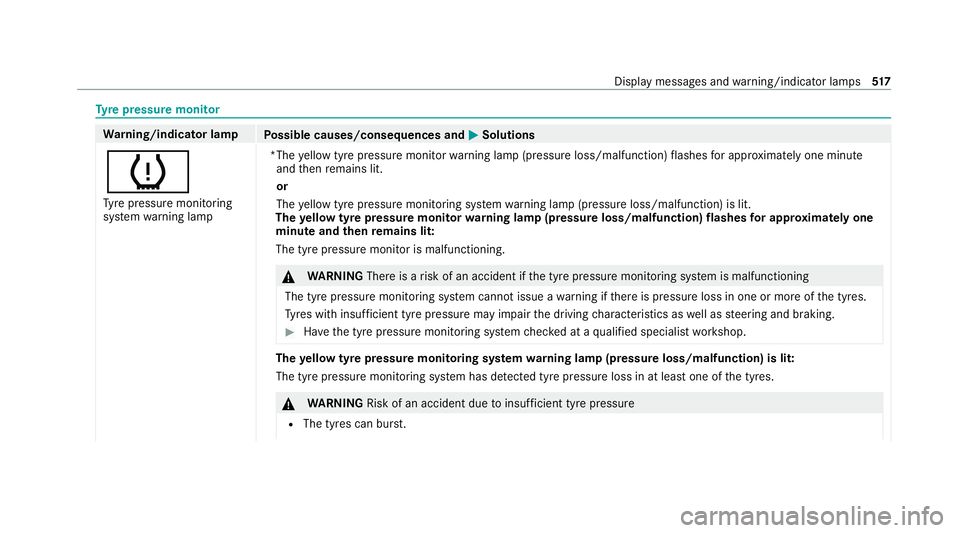

Ty
re pressure moni tor Wa
rning/indicator lamp
Possible causes/consequences and M MSolutions
h Ty re pressure monitoring
sy stem warning lamp *The
yellow tyre pressure monitor warning lamp (pressure loss/malfunction) flashes for appro ximately one minu te
and then remains lit.
or
The yellow tyre pressure monitoring sy stem warning lamp (pressure loss/malfunction) is lit.
The yellow tyre pressure monitor warning lamp (pressure loss/malfunction) flashes for appr oxima tely one
minute and then remains lit:
The tyre pressu remonitor is malfunctioning. &
WARNING Thereis a risk of an accident if the tyre pressure monitoring sy stem is malfunctioning
The tyre pressure monitoring sy stem cann otissue a warning if there is pressure loss in one or more of the tyres.
Ty res with insuf ficient tyre pressure may impair the driving characteristics as well as steering and braking. #
Have the tyre pressure monitoring sy stem checked at a qualified specialist workshop. The
yellow tyre pressure monitoring sy stem warning lamp (pressure loss/malfunction) is lit:
The tyre pressure monitoring sy stem has de tected tyre pressure loss in at least one of the tyres. &
WARNING Risk of an accident due toinsuf ficient tyre pressure
R The tyres can burs t. Displ
aymessa ges and warning/indicator lamps 517
