MERCEDES-BENZ C-CLASS SALOON 2011 Owners Manual

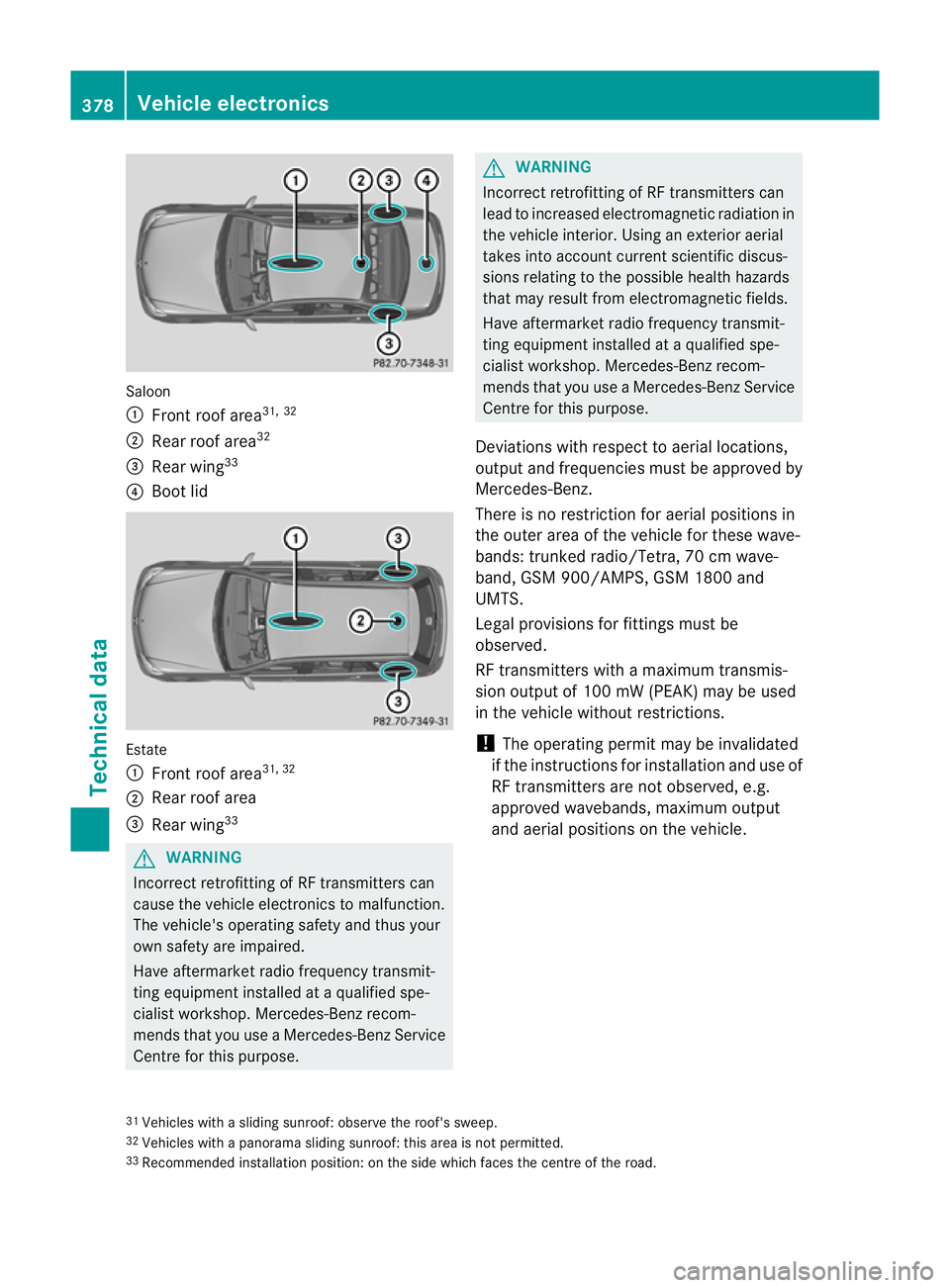

Saloon
:
Front roof area 31, 32
; Rear roof area 32
= Rear wing 33
? Boot lid Estate
:
Front roof area 31, 32
; Rear roof area
= Rear wing 33 G
WARNING
Incorrect retrofitting of RF transmitters can
cause the vehicle electronics to malfunction.
The vehicle's operating safety and thus your
ow ns afety are impaired.
Have aftermarket radio frequency transmit-
ting equipment installed at a qualified spe-
cialis tworkshop. Mercedes-Benz recom-
mends that you use a Mercedes-Benz Service
Centre for this purpose. G
WARNING
Incorrect retrofitting of RF transmitters can
lead to increased electromagnetic radiation in
the vehicle interior. Using an exterior aerial
takes into account current scientific discus-
sions relating to the possible health hazards
that may result from electromagnetic fields.
Have aftermarket radio frequency transmit-
ting equipment installed at a qualified spe-
cialist workshop. Mercedes-Benz recom-
mends that you use a Mercedes-Benz Service
Centre for this purpose.
Deviations with respect to aerial locations,
output and frequencies must be approved by
Mercedes-Benz.
There is no restriction for aerial positions in
the outer area of the vehicle for these wave-
bands: trunked radio/Tetra, 70 cm wave-
band, GSM 900/AMPS, GSM 1800 and
UMTS.
Legal provisions for fittings must be
observed.
RF transmitters with a maximum transmis-
sion output of 100 mW (PEAK) may be used
in the vehicle without restrictions.
! The operating permit may be invalidated
if the instructions for installation and use of
RF transmitters are not observed, e.g.
approved wavebands, maximum output
and aerial positions on the vehicle.
31 Vehicles with a sliding sunroof: observe the roof's sweep.
32 Vehicles with a panorama sliding sunroof: this area is not permitted.
33 Recommended installation position: on the side which faces the centre of the road. 378
Vehicle electronicsTechnical data

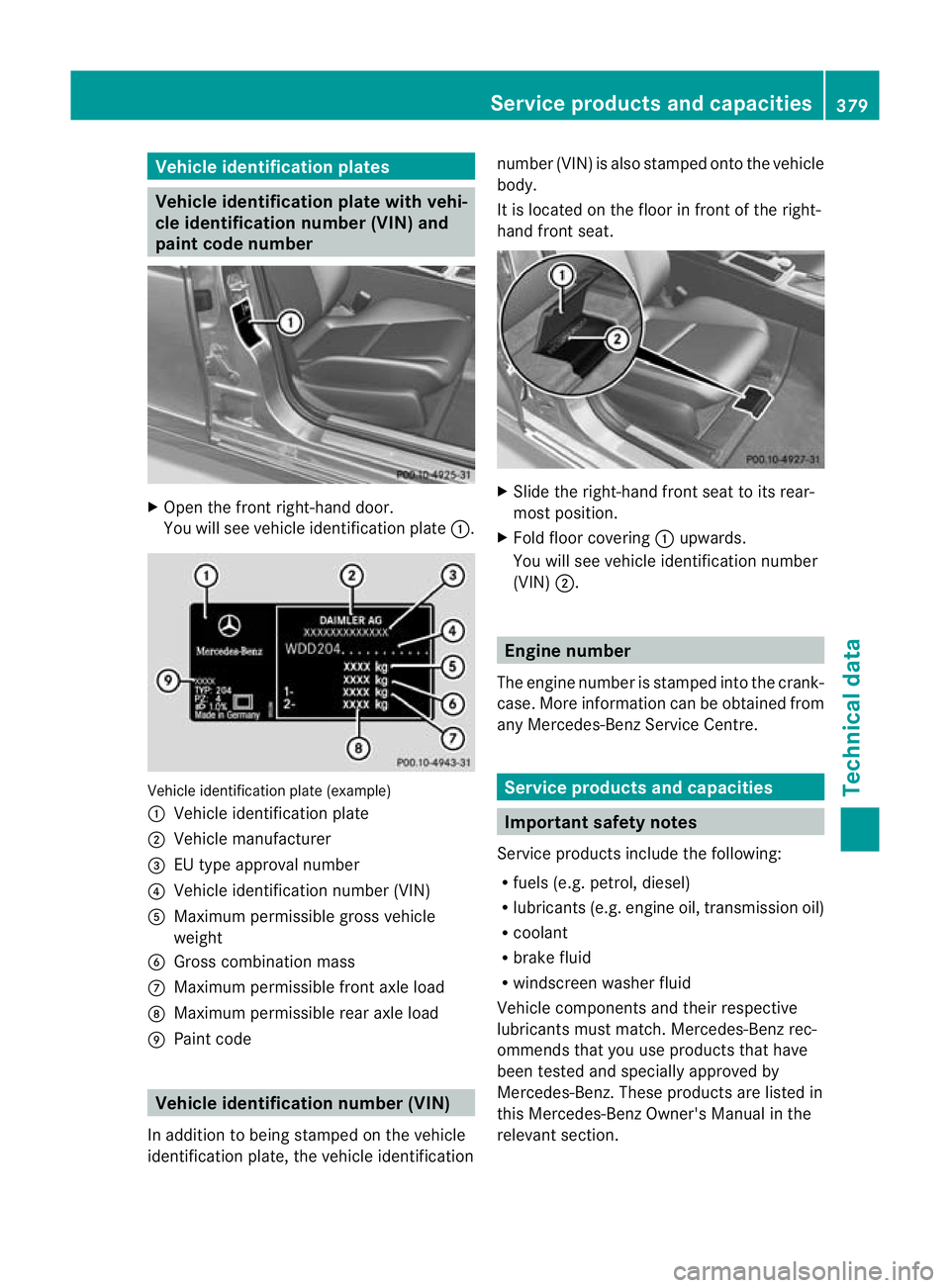

Vehicle identification plates
Vehicle identification plate with vehi-
cle identification number (VIN) and
pain tcode number X
Open the fron tright-hand door.
You will see vehicle identification plate :.Vehicle identification plate (example)
:
Vehicle identification plate
; Vehicle manufacturer
= EU type approval number
? Vehicle identification number (VIN)
A Maximum permissible gross vehicle
weight
B Gross combination mass
C Maximum permissible front axle load
D Maximum permissible rear axle load
E Paint code Vehicle identification number (VIN)
In additio nto being stamped on the vehicle
identification plate, the vehicle identification number (VIN) is also stamped onto the vehicle
body.
It is located on the floor in front of the right-
hand front seat.
X
Slide the right-hand front seat to its rear-
most position.
X Fold floor covering :upwards.
You will see vehicle identification number
(VIN) ;. Engine number
The engine number is stamped into the crank-
case. More information can be obtained from
any Mercedes-Benz Service Centre. Service products and capacities
Important safety notes
Service products include the following:
R fuels (e.g. petrol, diesel)
R lubricants (e.g. engine oil, transmission oil)
R coolant
R brake fluid
R windscreen washer fluid
Vehicle components and their respective
lubricants must match. Mercedes-Benz rec-
ommends that you use products that have
been tested and specially approved by
Mercedes-Benz. These products are listed in
this Mercedes-Benz Owner's Manual in the

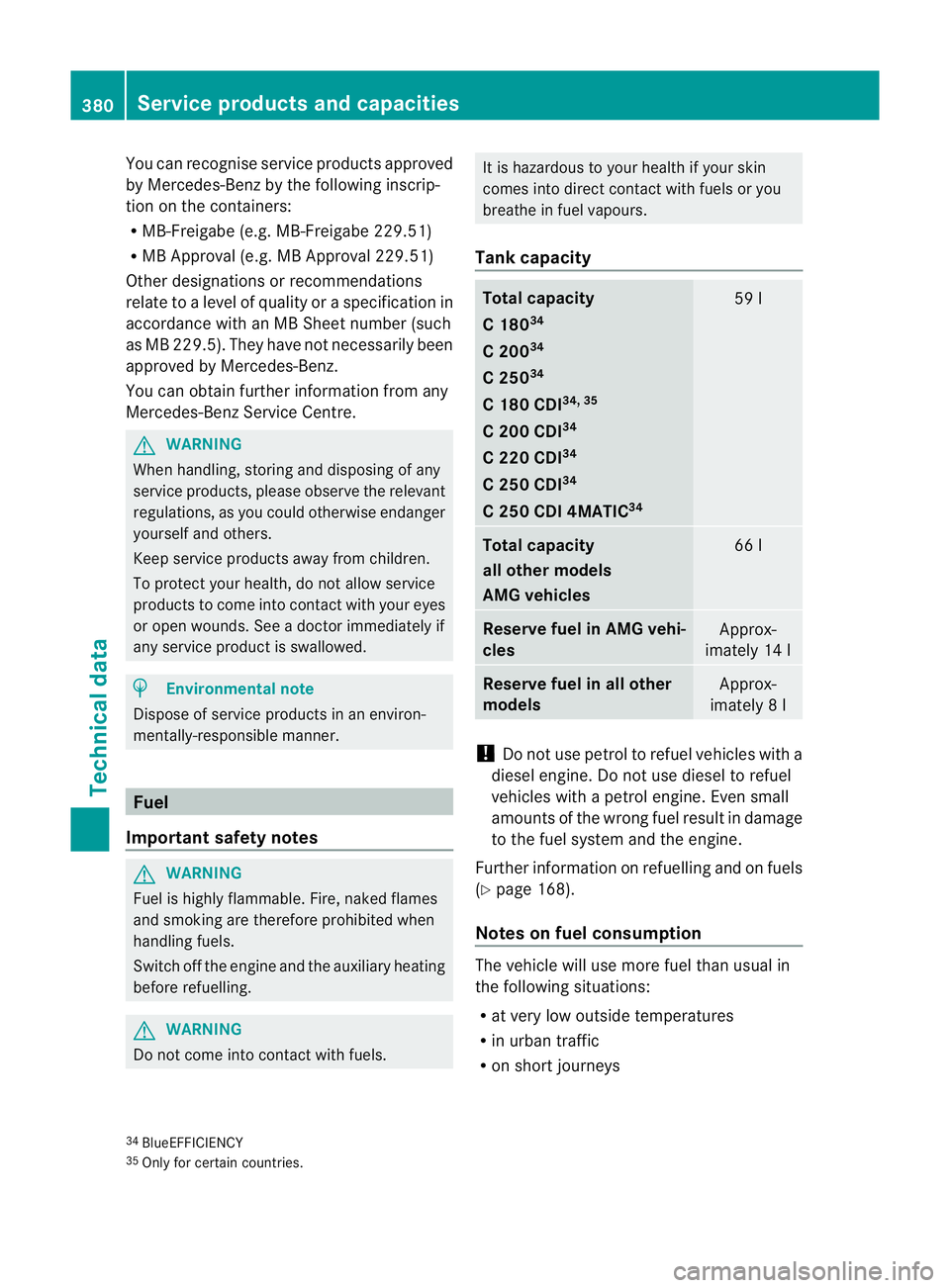

relevant section. Service products and capacities
379Technical data Z

You can recognise service products approved
by Mercedes-Ben
zby the following inscrip-
tion on the containers:
R MB-Freigabe (e.g. MB-Freigabe 229.51)
R MB Approval (e.g. MB Approval 229.51)
Other designations or recommendations
relate to a level of quality or a specification in
accordance with an MB Sheet number (such
as MB 229.5). They have no tnecessarily been
approved by Mercedes-Benz.
You can obtain further information from any
Mercedes-Benz Service Centre. G
WARNING
When handling, storing and disposing of any
service products, please observe the relevant
regulations, as you could otherwise endanger
yourself and others.
Keep service products away from children.
To protec tyour health, do not allow service
products to come into contact with your eyes
or open wounds. See a doctor immediately if
any service product is swallowed. H
Environmental note
Dispose of service products in an environ-
mentally-responsible manner. Fuel
Important safety notes G
WARNING
Fuel is highly flammable. Fire, naked flames
and smoking are therefore prohibited when
handling fuels.
Switch off the engine and the auxiliary heating
before refuelling. G
WARNING
Do not come into contact with fuels. It is hazardous to your health if your skin
comes into direct contact with fuels or you
breathe in fuel vapours.
Tank capacity Total capacity
C 180
34
C 200 34
C 250 34
C 180 CDI 34, 35
C 200 CDI 34
C 220 CDI 34
C 250 CDI 34
C 250 CDI 4MATIC 34 59 l
Total capacity
all other models
AMG vehicles
66 l
Reserve fuel in AMG vehi-
cles
Approx-
imately 14 l Reserve fuel in all other
models
Approx-
imately 8l !
Do not use petrol to refuel vehicles with a
diesel engine. Do not use diesel to refuel
vehicles with a petrol engine. Even small
amounts of the wrong fuel result in damage
to the fuel system and the engine.
Further information on refuelling and on fuels
(Y page 168).
Notes on fuel consumption The vehicle will use more fuel than usual in
the following situations:
R
at very low outside temperatures
R in urban traffic
R on short journeys
34 BlueEFFICIENCY
35 Only for certain countries. 380
Service products and capacitiesTechnical data

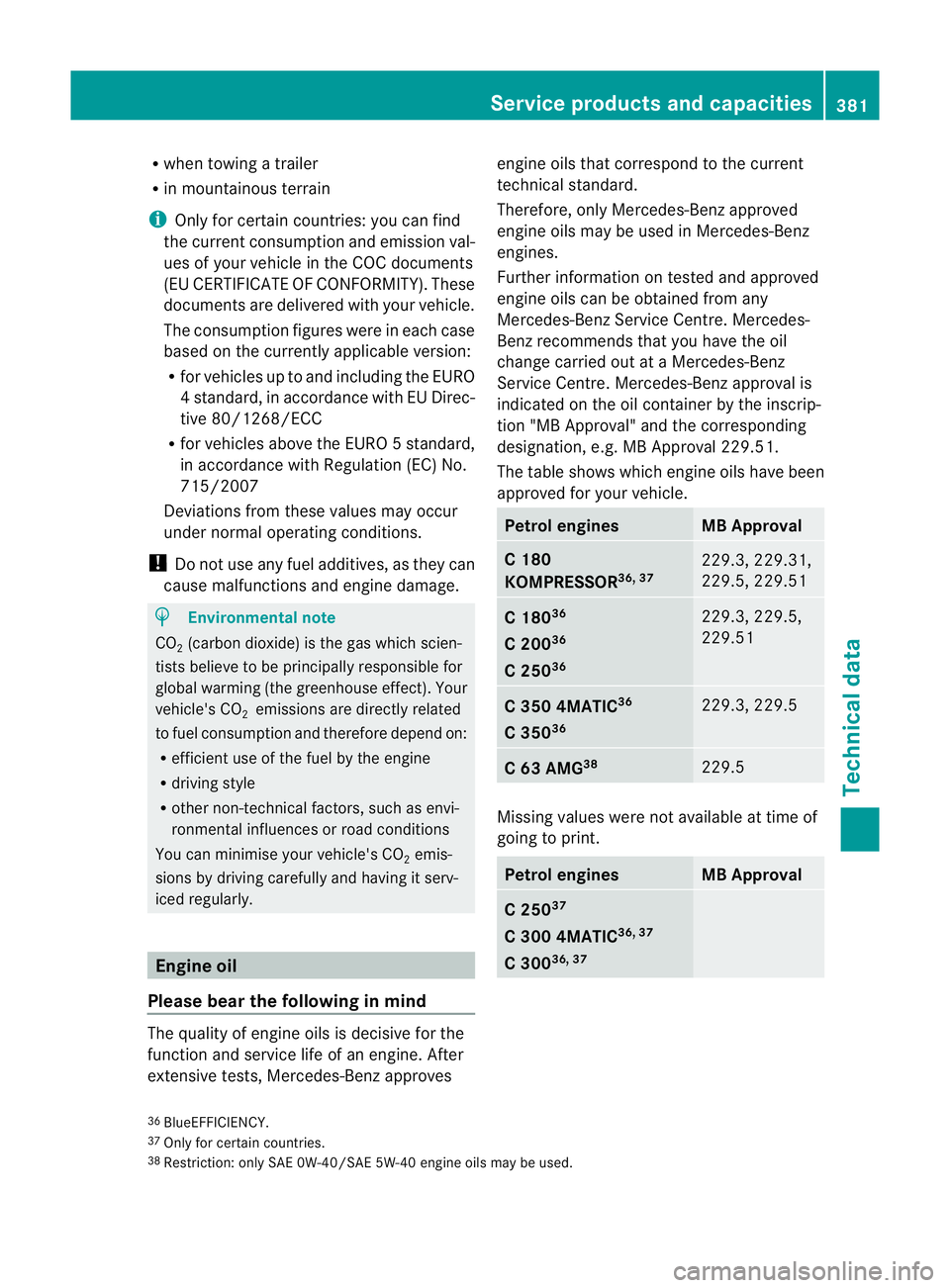

R
when towing a trailer
R in mountainous terrain
i Only for certain countries: you can find
the curren tconsumption and emission val-
ues of your vehicle in the COC documents
(EU CERTIFICATE OF CONFORMITY). These
documents are delivered with your vehicle.
The consumption figures were in each case
based on the currently applicable version:
R for vehicles up to and including the EURO
4s tandard, in accordance with EU Direc-
tive 80/1268/ECC
R for vehicles above the EURO 5standard,
in accordance with Regulatio n(EC) No.
715/2007
Deviations fro mthese values may occur
under normal operating conditions.
! Do not use any fuel additives, as they can
cause malfunctions and engine damage. H
Environmental note
CO 2(carbon dioxide) is the gas which scien-
tists believe to be principally responsible for
global warming (the greenhouse effect). Your
vehicle's CO 2emissions are directly related
to fuel consumption and therefore depend on:
R efficient use of the fuel by the engine
R driving style
R other non-technical factors, such as envi-
ronmental influences or road conditions
You can minimise your vehicle's CO 2emis-
sions by driving carefully and having it serv-
iced regularly. Engine oil
Please bear the following in mind The quality of engine oils is decisive for the
function and service life of an engine. After
extensive tests, Mercedes-Ben zapproves engine oils that correspond to the current
technical standard.
Therefore, only Mercedes-Benz approved
engine oils may be used in Mercedes-Benz
engines.
Further information on tested and approved
engine oils can be obtained from any
Mercedes-Benz Service Centre. Mercedes-
Ben
zrecommends that you have the oil
change carried out at a Mercedes-Benz
Service Centre. Mercedes-Benza pproval is
indicated on the oil container by the inscrip-
tion "MB Approval" and the corresponding
designation, e.g. MB Approval 229.51.
The table shows which engine oils have been
approved for your vehicle. Petrol engines MB Approval
C 180
KOMPRESSOR
36, 37 229.3, 229.31,
229.5, 229.51
C 180
36
C 200 36
C 250 36 229.3, 229.5,
229.51
C 350 4MATIC
36
C 350 36 229.3, 229.5
C 63 AMG
38 229.5
Missing values were not available at time of
going to print.
Petrol engines MB Approval
C 250
37
C 300 4MATIC 36, 37
C 300 36, 37 36
BlueEFFICIENCY.
37 Only for certain countries.
38 Restriction: only SAE 0W-4 0/SAE 5W-40 engine oils may be used. Service products and capacities
381Technical data Z

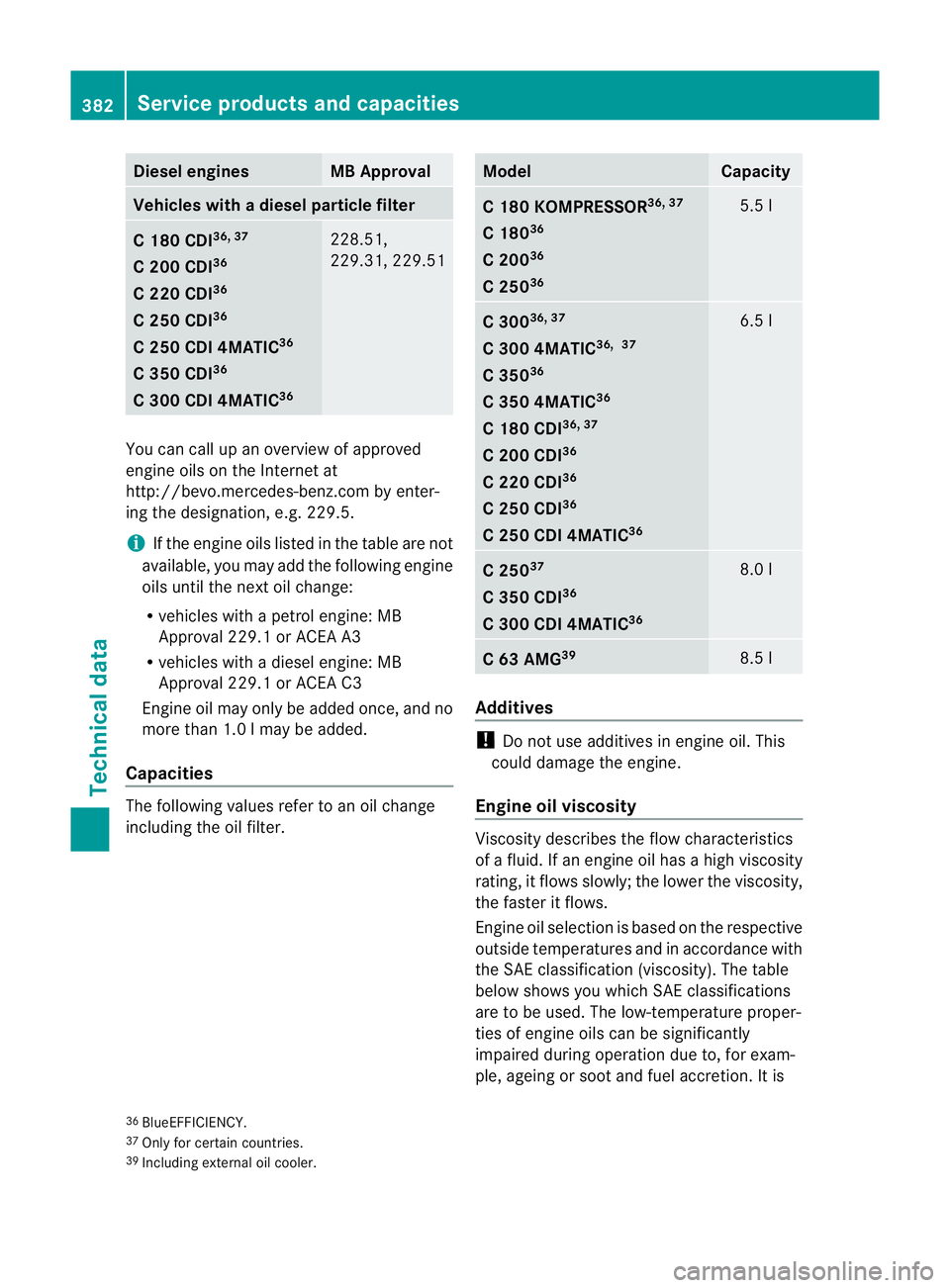

Diesel engines MB Approval
Vehicles wit
hadiesel particle filter C 180 CDI
36, 37
C 200 CDI 36
C 220 CDI 36
C 250 CDI 36
C 250 CDI 4MATIC 36
C 350 CDI 36
C 300 CDI 4MATIC 36 228.51,
229.31, 229.51
You can call up an overview of approved
engine oils on the Internet at
http://bevo.mercedes-benz.com by enter-
ing the designation, e.g. 229.5.
i If the engine oils listed in the table are not
available, you may add the following engine
oils until the nex toil change:
R vehicles with a petrol engine: MB
Approval 229.1 or ACEA A3
R vehicles with a diesel engine: MB
Approval 229.1 or ACEA C3
Engine oil may only be added once, and no
more than 1. 0lmay be added.
Capacities The following values refer to an oil change
including the oil filter. Model Capacity
C 180 KOMPRESSOR
36, 37
C 180 36
C 200 36
C 250 36 5.5 l
C 300
36, 37
C 300 4MATIC 36, 37
C 350 36
C 350 4MATIC 36
C 180 CDI 36, 37
C 200 CDI 36
C 220 CDI 36
C 250 CDI 36
C 250 CDI 4MATIC 36 6.5 l
C 250
37
C 350 CDI 36
C 300 CDI 4MATIC 36 8.0 l
C 63 AMG
39 8.5 l
Additives
!
Do not use additives in engine oil.T his
could damage the engine.
Engine oil viscosity Viscosity describes the flow characteristics
of a fluid. If an engine oil has a high viscosity
rating, it flows slowly; the lower the viscosity,
the faster it flows.
Engine oil selection is based on the respective
outside temperatures and in accordance with
the SAE classification (viscosity). The table
below shows you which SAE classifications
are to be used. The low-temperature proper-
ties of engine oils can be significantly
impaired during operation due to, for exam-
ple, ageing or soot and fuel accretion.Itis
36 BlueEFFICIENCY.
37 Only for certain countries.
39 Including external oil cooler. 382
Service products and capacitiesTechnical data

therefore strongly recommended to observe
regular oil changes using an approved engine
oil with the appropriate SAE classification. Brake fluid
G
WARNING
Ove raperiod of time, the brake fluid absorbs
moisture from the air; This lowers its boiling
point.
If the boiling point of the brake fluid is too low,
vapour pockets may form in the brake system
when the brakes are applied hard (e.g. when
driving downhill). This impairs braking effi-
ciency.
You should have the brake fluid renewed at
regular intervals. The brake fluid change inter-
vals can be found in the Service Booklet.
Only use brake fluid approved by Mercedes-
Benz. Information about approved brake flu-
ids can be obtained from any Mercedes-Benz
Service Centre or on the Internet at
http://bevo.mercedes-benz.com
i There is usually a notice in the engine
compartment to remind you when the next
brake fluid change is due. Coolant
Important safety notes The coolant is a mixture of water and anti-
freeze/corrosion inhibitor. It performs the
following tasks:
R
anti-corrosion protection
R antifreeze protection
R raising the boiling point
i When the vehicle is first delivered, it is fil-
led with a coolant mixture that ensures
adequate antifreeze and corrosion protec-
tion.
! Only add coolant that has been premixed
with the desired antifreeze protection. The
engine could otherwise be damaged.
Further information on coolants and on fill-
ing can be found in the Mercedes-Benz
Specifications for Service Products, MB
Approval 310.1, e.g. on the Internet at
http://bevo.mercedes-benz.com .You can
also consult a Mercedes-Benz Service
Centre.
! Always use a suitable coolant mixture,
even in countries where high temperatures
prevail.
Otherwise, the engine cooling system is not
sufficiently protected from corrosion and
overheating.
If antifreeze/corrosion inhibitor is present in
the correc tconcentration, the boiling point of
the coolant during operation will be around
130 †.
The antifreeze/corrosion inhibitor concentra-
tion in the engine cooling system should:
R be at least 50%. This will protec tthe engine
cooling system against freezing down to
around -37 †.
R not exceed 55% (antifreeze protection
down to -45 †); otherwise, heat will not be
dissipated as effectively.
If the vehicle has lost coolant, top it up with
equal amounts of water and antifreeze/cor- Service products and capacities
383Technical data Z

rosio
ninhibitor. Mercedes-Benz recom-
mends an antifreeze/corrosion inhibitor
which has been approved for Mercedes-Benz.
! The engine cooling system is filled with
coolant that must be renewed after 15
years, or after 250,000 km at the latest. Vehicle data
Please note tha tfor the specified vehicle
data:
R the heights specified may vary as a result
of:
-tyres
- load
- condition of the suspension
- optional equipment
R items of optional equipment increase the
unladen weight and reduce the maximum
payload. The unladen weight is specified in
accordance with EC directive and includes:
-driver (68 kg)
- luggage (7 kg)
- all fluids (fuel tank 90% full)
R vehicle-specific weight information can be
found on the vehicle identification plate
(Y page 379).
R only for certain countries: you can find vehi-
cle-specific vehicle data in the COC docu-
ments (CERTIFICATE OF CONFORMITY).
These documents are delivered with your
vehicle. All models
Vehicle length
(ECE), Saloon
4591 mm
Vehicle length
(ECE), Estate
4606 mm
Vehicle width
including exterior
mirrors
2008 mm All models
Vehicle width with-
out exterior mirrors
1770 mm
Wheelbase, except
for AMG vehicles
2760 mm
Maximum roof load
100 kg
Maximum boot load
100 kg
C 180 KOMPRESSOR BlueEFFI-
CIENCY
40 Manual transmission
Unladen weight,
Saloon
1480 kg
Unladen weight,
Estate
1530 kg
Automatic transmission
Unladen weight,
Saloon
1495 kg
Unladen weight,
Estate
1545 kg
C 180 BlueEFFICIENCY
Manual transmission
Unladen weight,
Saloon
1480 kg
Unladen weight,
Estate
1540 kg
Automatic transmission
Unladen weight,
Saloon
1495 kg
Unladen weight,
Estate
1555 kg
40
Only for certain countries. 384
Vehicle dataTechnical data

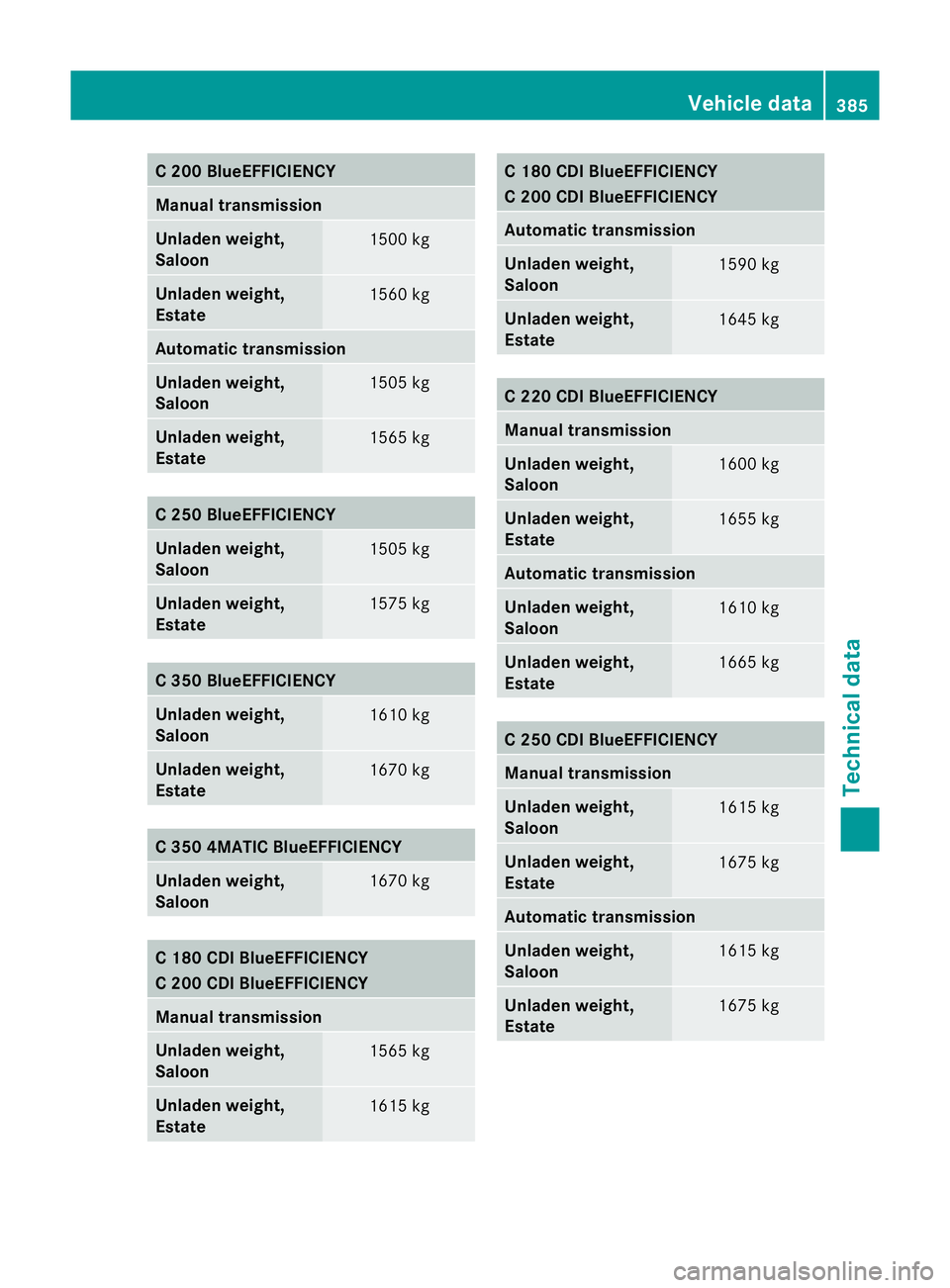

C 200 BlueEFFICIENCY
Manual transmission
Unladen weight,
Saloon
1500 kg
Unladen weight,
Estate
1560 kg
Automatic transmission
Unladen weight,
Saloon
1505 kg
Unladen weight,
Estate
1565 kg
C 250 BlueEFFICIENCY
Unladen weight,
Saloon
1505 kg
Unladen weight,
Estate
1575 kg
C 350 BlueEFFICIENCY
Unladen weight,
Saloon
1610 kg
Unladen weight,
Estate
1670 kg
C 350 4MATIC BlueEFFICIENCY
Unladen weight,
Saloon
1670 kg
C 180 CDI BlueEFFICIENCY
C 200 CDI BlueEFFICIENCY
Manual transmission
Unladen weight,
Saloon
1565 kg
Unladen weight,
Estate
1615 kg C 180 CDI BlueEFFICIENCY
C 200 CDI BlueEFFICIENCY
Automatic transmission
Unladen weight,
Saloon
1590 kg
Unladen weight,
Estate
1645 kg
C 220 CDI BlueEFFICIENCY
Manual transmission
Unladen weight,
Saloon
1600 kg
Unladen weight,
Estate
1655 kg
Automatic transmission
Unladen weight,
Saloon
1610 kg
Unladen weight,
Estate
1665 kg
C 250 CDI BlueEFFICIENCY
Manual transmission
Unladen weight,
Saloon
1615 kg
Unladen weight,
Estate
1675 kg
Automatic transmission
Unladen weight,
Saloon
1615 kg
Unladen weight,
Estate
1675 kgVehicle data
385Technical data Z

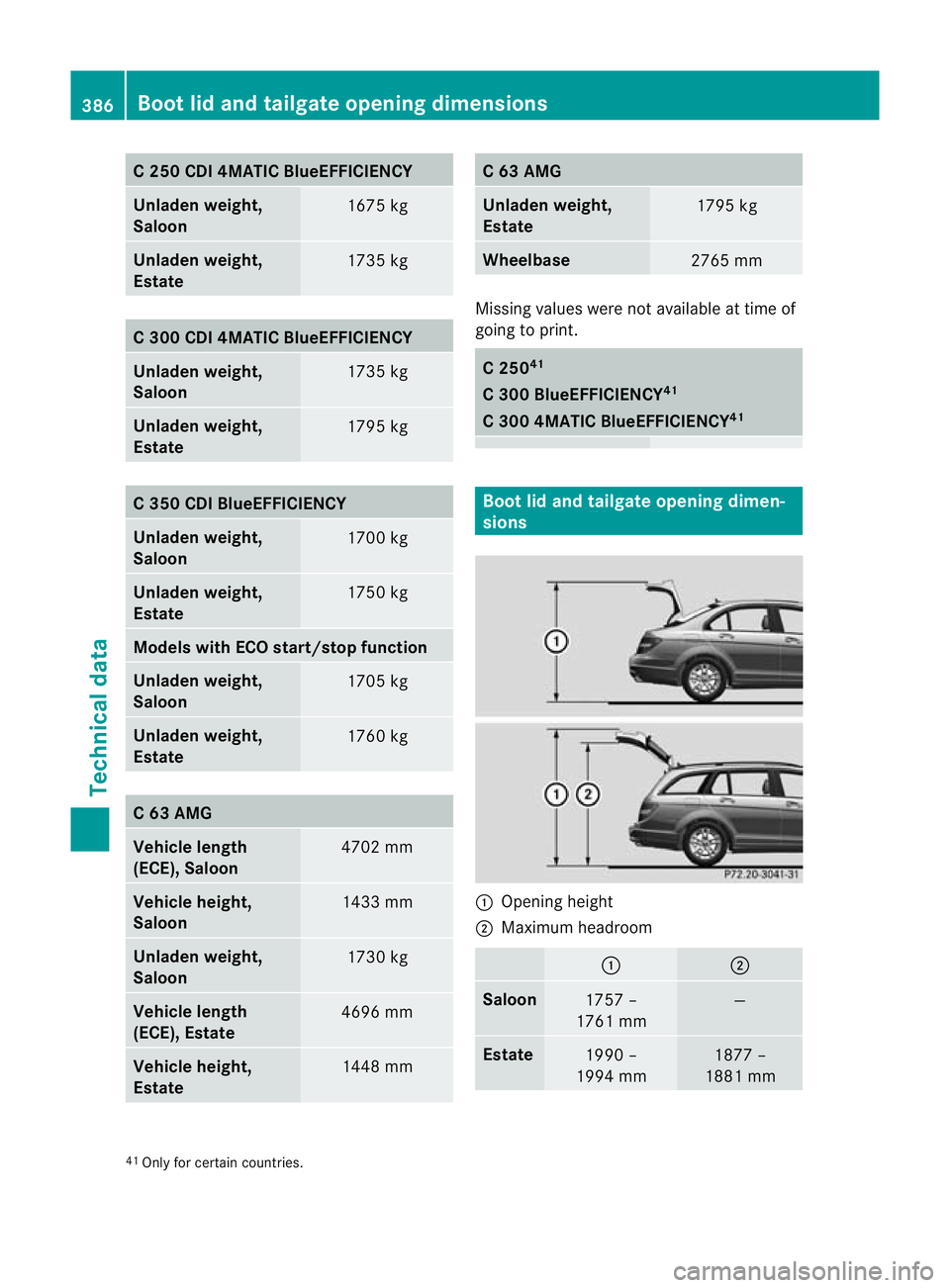

C 250 CDI 4MATIC BlueEFFICIENCY
Unladen weight,
Saloon
1675 kg
Unladen weight,
Estate
1735 kg
C 300 CDI 4MATIC BlueEFFICIENCY
Unladen weight,
Saloon
1735 kg
Unladen weight,
Estate
1795 kg
C 350 CDI BlueEFFICIENCY
Unladen weight,
Saloon
1700 kg
Unladen weight,
Estate
1750 kg
Models with ECO start/stop function
Unladen weight,
Saloon
1705 kg
Unladen weight,
Estate
1760 kg
C 63 AMG
Vehicle length
(ECE), Saloon
4702 mm
Vehicle height,
Saloon
1433 mm
Unladen weight,
Saloon
1730 kg
Vehicle length
(ECE), Estate
4696 mm
Vehicle height,
Estate
1448 mm C 63 AMG
Unladen weight,
Estate
1795 kg
Wheelbase
2765 mm
Missing values were no
tavailableatt ime of
going to print. C 250
41
C 300 BlueEFFICIENCY 41
C 300 4MATIC BlueEFFICIENCY 41 Boot lid and tailgate opening dimen-
sions
:
Opening height
; Maximum headroom : ;
Saloon
1757 –
1761 mm —
Estate
1990 –
1994 mm 1877 –
1881 mm 41
Only for certain countries. 386
Boot lid and tailgate opening dimensionsTechnical data

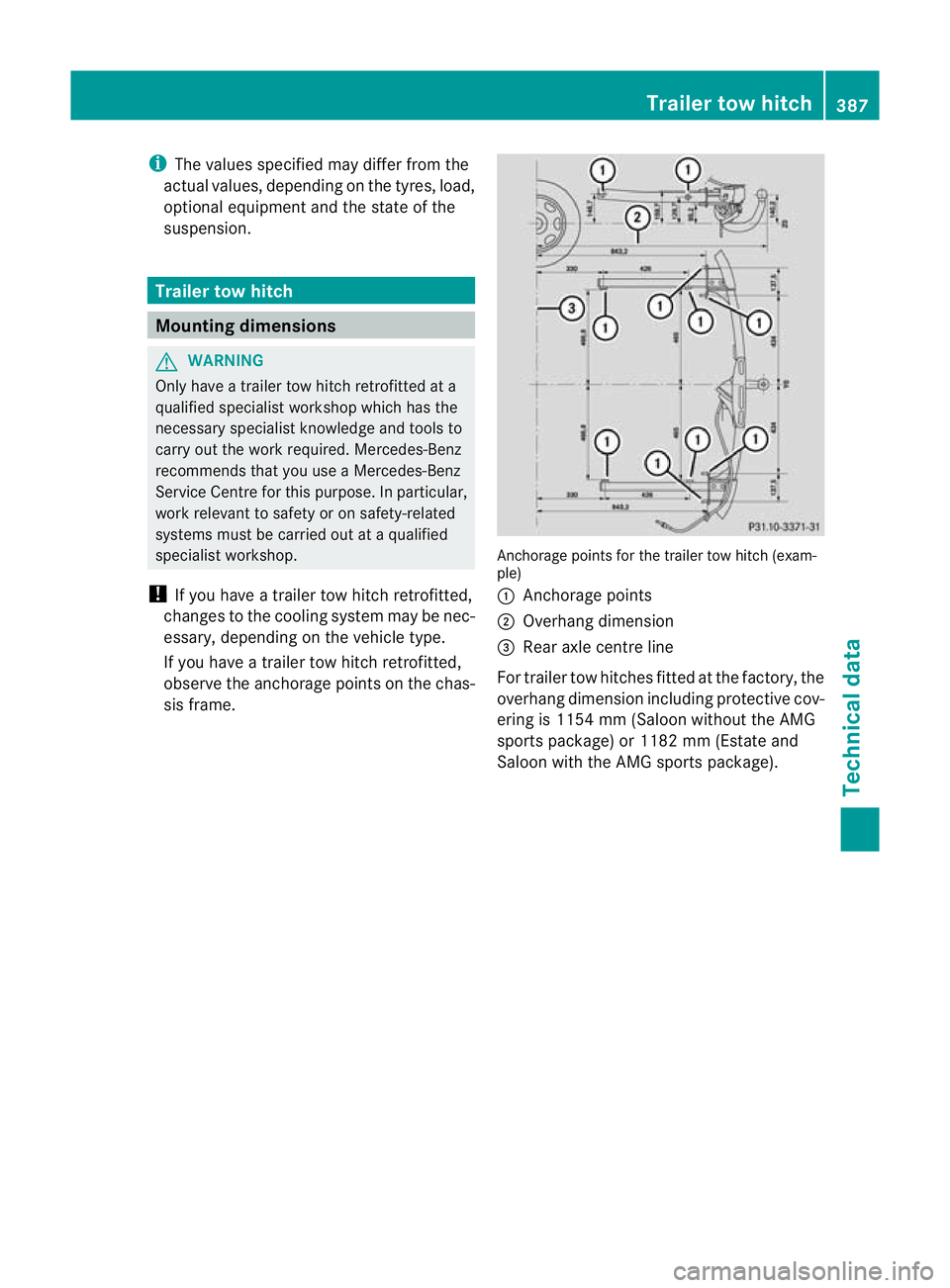

i
The values specified may differ from the
actual values, depending on the tyres, load,
optional equipment and the state of the
suspension. Trailer tow hitch
Mounting dimensions
G
WARNING
Only have a trailer tow hitch retrofitted at a
qualified specialist workshop which has the
necessary specialist knowledge and tools to
carry out the work required. Mercedes-Benz
recommends that you use aMercedes-Benz
Service Centre for this purpose. In particular,
work relevant to safety or on safety-related
systems must be carried out at a qualified
specialist workshop.
! If you have a trailer tow hitch retrofitted,
changes to the cooling system may be nec-
essary, depending on the vehicle type.
If you have a trailer tow hitch retrofitted,
observe the anchorage point sonthe chas-
sis frame. Anchorage points for the trailer tow hitch (exam-
ple)
:
Anchorage points
; Overhang dimension
= Rear axle centre line
For trailer tow hitches fitted at the factory, the
overhang dimension including protective cov-
ering is 1154 mm (Saloon without the AMG
sports package) or 1182 mm (Estate and
Saloon with the AMG sports package). Trailer tow hitch
387Technical data Z
