i

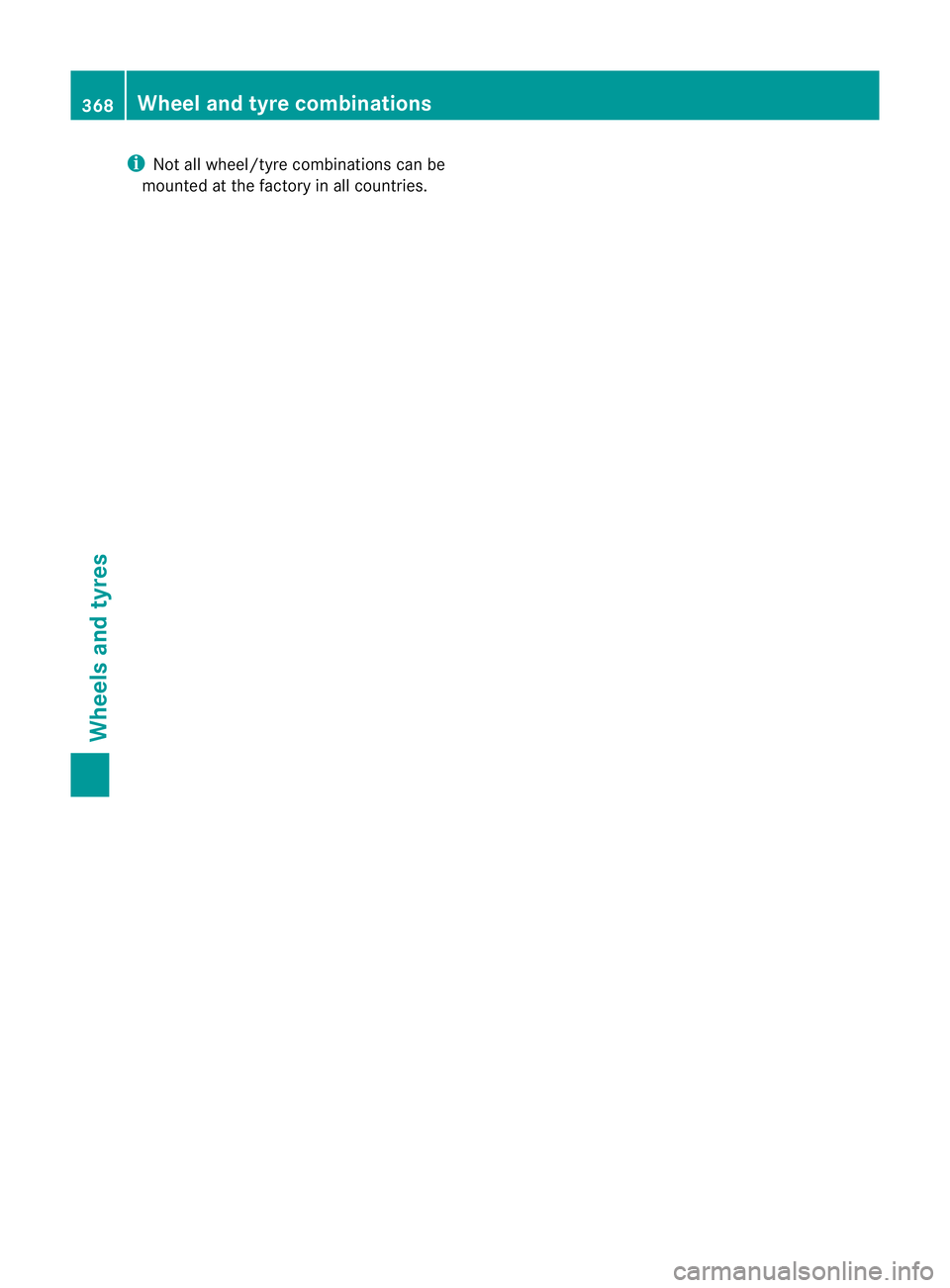

Not all wheel/tyre combinations can be
mounted at the factory in all countries. 368
Wheel and tyre combinationsWheels and tyres

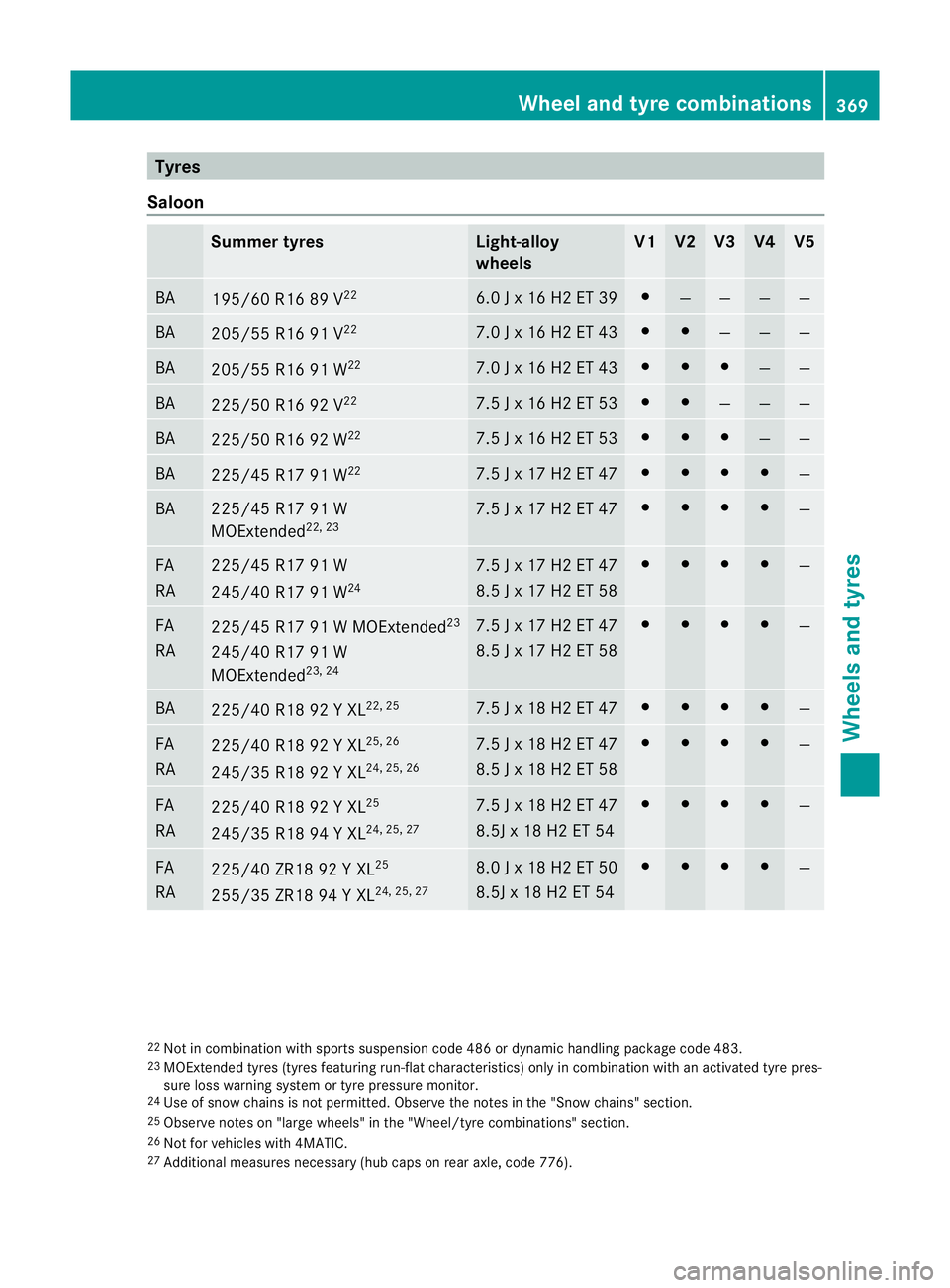

Tyres
Saloon Summer tyres Light-alloy
wheels V1 V2 V3 V4 V5
BA
195/6
0 R16 89 V 22 6.0
Jx16 H2 ET 39 #
— — — —
BA
205/55 R16 91 V
22 7.0
Jx16 H2 ET 43 # #
— — —
BA
205/55 R16 91 W
22 7.0
Jx16 H2 ET 43 # # #
— —
BA
225/50 R16 92 V
22 7.5
Jx16 H2 ET 53 # #
— — —
BA
225/50 R16 92 W
22 7.5
Jx16 H2 ET 53 # # #
— —
BA
225/45 R17 91 W
22 7.5
Jx17 H2 ET 47 # # # #
—
BA 225/45 R17 91 W
MOExtended
22, 23 7.5
Jx17 H2 ET 47 # # # #
—
FA
RA 225/45 R17 91 W
245/40 R17 91 W
24 7.5
Jx17 H2 ET 47
8.5 Jx17 H2 ET 58 # # # #
—
FA
RA
225/45 R17 91 W MOExtended
23
245/40 R17 91 W
MOExtended 23, 24 7.5
Jx17 H2 ET 47
8.5 Jx17 H2 ET 58 # # # #
—
BA
225/40 R18 92 Y XL
22, 25 7.5
Jx18 H2 ET 47 # # # #
—
FA
RA
225/40 R18 92 Y XL
25, 26
245/35 R18 92 Y XL 24, 25, 26 7.5
Jx18 H2 ET 47
8.5 Jx18 H2 ET 58 # # # #
—
FA
RA
225/40 R18 92 Y XL
25
245/35 R18 94 Y XL 24, 25, 27 7.5
Jx18 H2 ET 47
8.5J x 18 H2 ET 54 # # # #
—
FA
RA
225/40 ZR18 92
YXL25
255/35 ZR18 94 YXL24, 25, 27 8.0
Jx18 H2 ET 50
8.5J x 18 H2 ET 54 # # # #
—
22
Not in combination with sports suspensio ncode 486 or dynamic handling package code 483.
23 MOExtended tyres (tyres featuring run-flat characteristics) only in combination with an activated tyre pres-
sure loss warning system or tyre pressure monitor.
24 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
25 Observe notes on "large wheels" in the "Wheel/tyre combinations" section.
26 Not for vehicles with 4MATIC.
27 Additional measures necessary (hub caps on rear axle, code 776). Wheel and tyre combinations
369Wheels and tyres Z

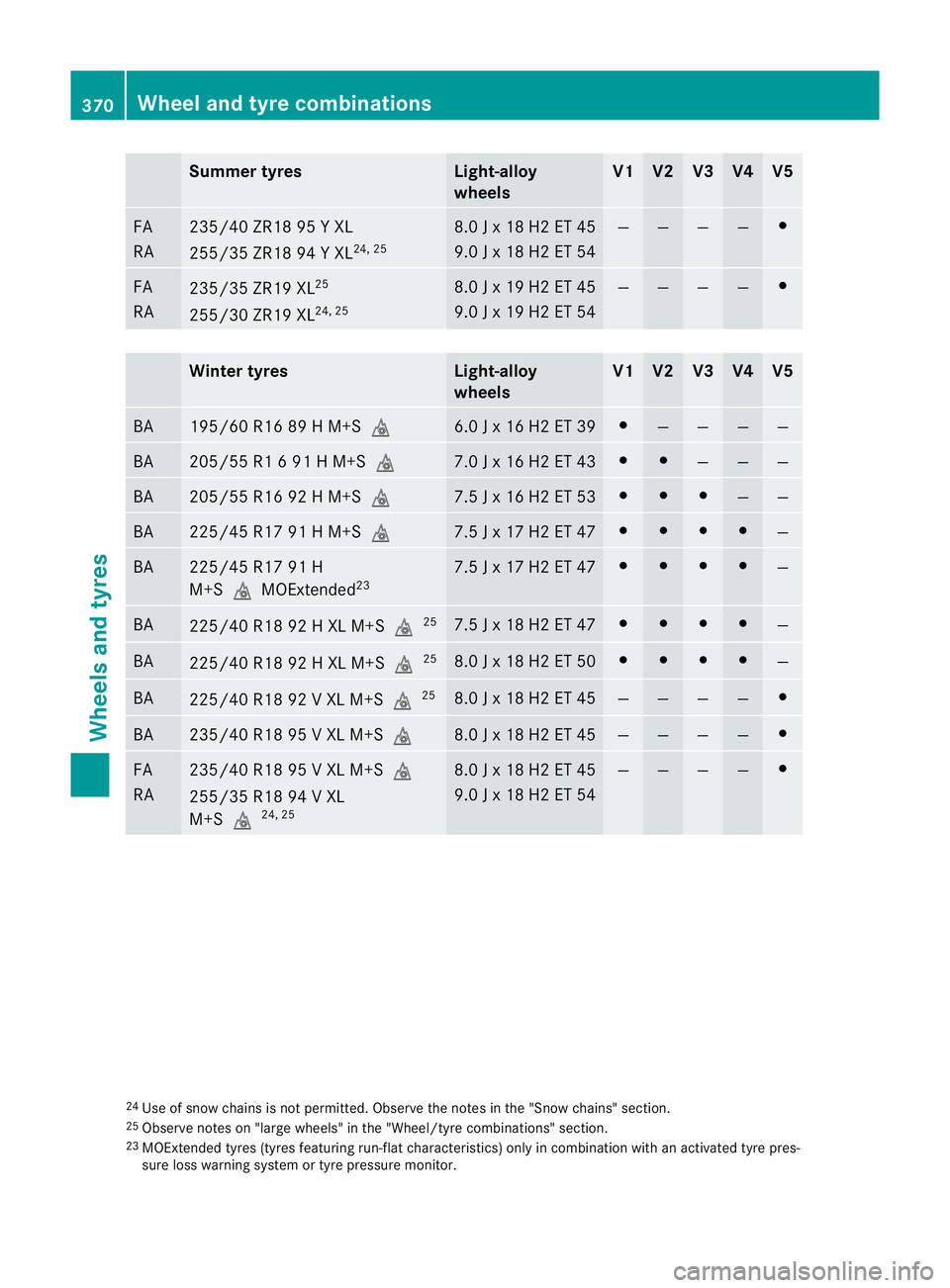

Summer tyres Light-alloy
wheels V1 V2 V3 V4 V5
FA
RA 235/40 ZR18 95
YXL
255/35 ZR18 94 YXL24, 25 8.0
Jx18 H2 ET 45
9.0 Jx18 H2 ET 54 — — — — #
FA
RA
235/35 ZR19 XL
25
255/30 ZR19 XL 24, 25 8.0
Jx19 H2 ET 45
9.0 Jx19 H2 ET 54 — — — — #
Winter tyres Light-alloy
wheels V1 V2 V3 V4 V5
BA 195/60 R16 89 H M+S
i 6.0
Jx16 H2 ET 39 #
— — — —
BA 205/55 R1 6 91 H M+S
i 7.0
Jx16 H2 ET 43 # #
— — —
BA 205/55 R16 92 H M+S
i 7.5
Jx16 H2 ET 53 # # #
— —
BA 225/45 R17 91 H M+S
i 7.5
Jx17 H2 ET 47 # # # #
—
BA 225/45 R17 91 H
M+SiMOExtended
23 7.5
Jx17 H2 ET 47 # # # #
—
BA
225/40 R18 92 H XL M+S
i25 7.5
Jx18 H2 ET 47 # # # #
—
BA
225/40 R18 92 H XL M+S
i25 8.0
Jx18 H2 ET 50 # # # #
—
BA
225/40 R18 92 V XL M+S
i25 8.0
Jx18 H2 ET 45 — — — — #
BA 235/40 R18 95 V XL M+S
i 8.0
Jx18 H2 ET 45 — — — — #
FA
RA 235/40 R18 95 V XL M+S
i
255/35 R18 94 V XL
M+Si 24, 25 8.0
Jx18 H2 ET 45
9.0 Jx18 H2 ET 54 — — — — #
24
Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
25 Observe notes on "large wheels" in the "Wheel/tyre combinations" section.
23 MOExtended tyres (tyres featuring run-fla tcharacteristics) only in combination with an activated tyre pres-
sure loss warning system or tyre pressure monitor. 370
Wheel and tyre combinationsWheels and tyres

"Minispare" emergency spare wheel
24Tyres Wheels V1 V2 V3 V4 V5
T 125/90 R16 99 M
Tyre pressure: 420 kPa (4.2 bar/61 psi) 3.5 B x 16 H2 ET 20 # # #
— —
T 125/80 R17 99 M
Tyre pressure: 420 kPa (4.2 bar/61 psi) 3.5 B x 17 H2 ET 20 — — #
28 #
—
T 125/70 R18 99 M
Tyre pressure: 420 kPa (4.2 bar/61 psi) 3.5 B x 18 H2 ET 20 — — — — #
Your vehicle may be equipped with TIREFIT or a "Minispare" emergency spare wheel, depend-
ing on the country, the engine and the wheels fitted.
i The specified tyre pressure is printed in yellow on the emergency spare wheel.
Estate Summer tyres Light-alloy wheels V1 V2 V3 V4
BA 205/55 R16 91 V 7.0 J x 16 H2 ET 43 #
— — —
BA 205/55 R16 91 W 7.0 J x 16 H2 ET 43 — #
— —
BA 225/50 R16 92 V 7.5 J x 16 H2 ET 53 #
— — —
BA 225/50 R16 92 W 7.5 J x 16 H2 ET 53 — #
— —
BA 225/45 R17 91 W 7.5 J x 17 H2 ET 47 # #
— —
BA
225/45 R17 91 W MOExtended
23 7.5 J x 17 H2 ET 47 # #
— —
BA 225/45 R17 91 Y 7.5 J x 17 H2 ET 47 # #
— —
BA
225/45 R17 91 Y MOExtended
23 7.5 J x 17 H2 ET 47 # # #
—
FA
RA 225/45 R17 91 W
245/40 R17 91 W
24 7.5 J x 17 H2 ET 47
8.5 J x 17 H2 ET 58 # # #
—
FA
RA
225/45 R17 91 W MOExtended
23
245/40 R17 91 W
MOExtended 23, 24 7.5 J x 17 H2 ET 47
8.5 J x 17 H2 ET 58 # #
— —
FA
RA 225/45 R17 91 Y
245/40 R17 91Y
24 7.5 J x 17 H2 ET 47
8.5 J x 17 H2 ET 58 — — #
—
24
Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
28 Use only in conjunction with Sports package optional equipment.
23 MOExtended tyres (tyres featuring run-flat characteristics) only in combination with an activated tyre pres-
sure loss warning system or tyre pressure monitor. Wheel and tyre combinations

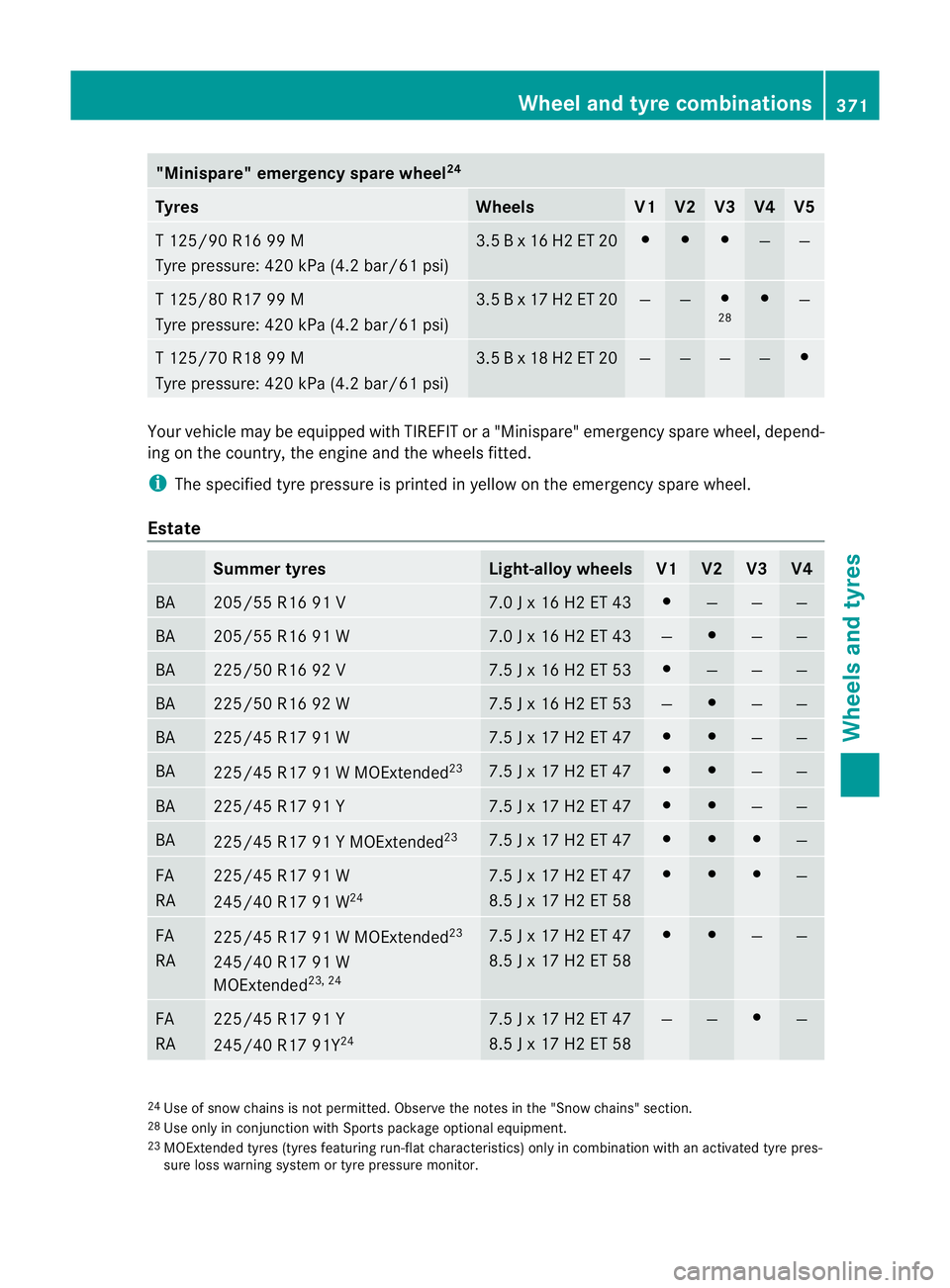

371Wheels and tyres Z

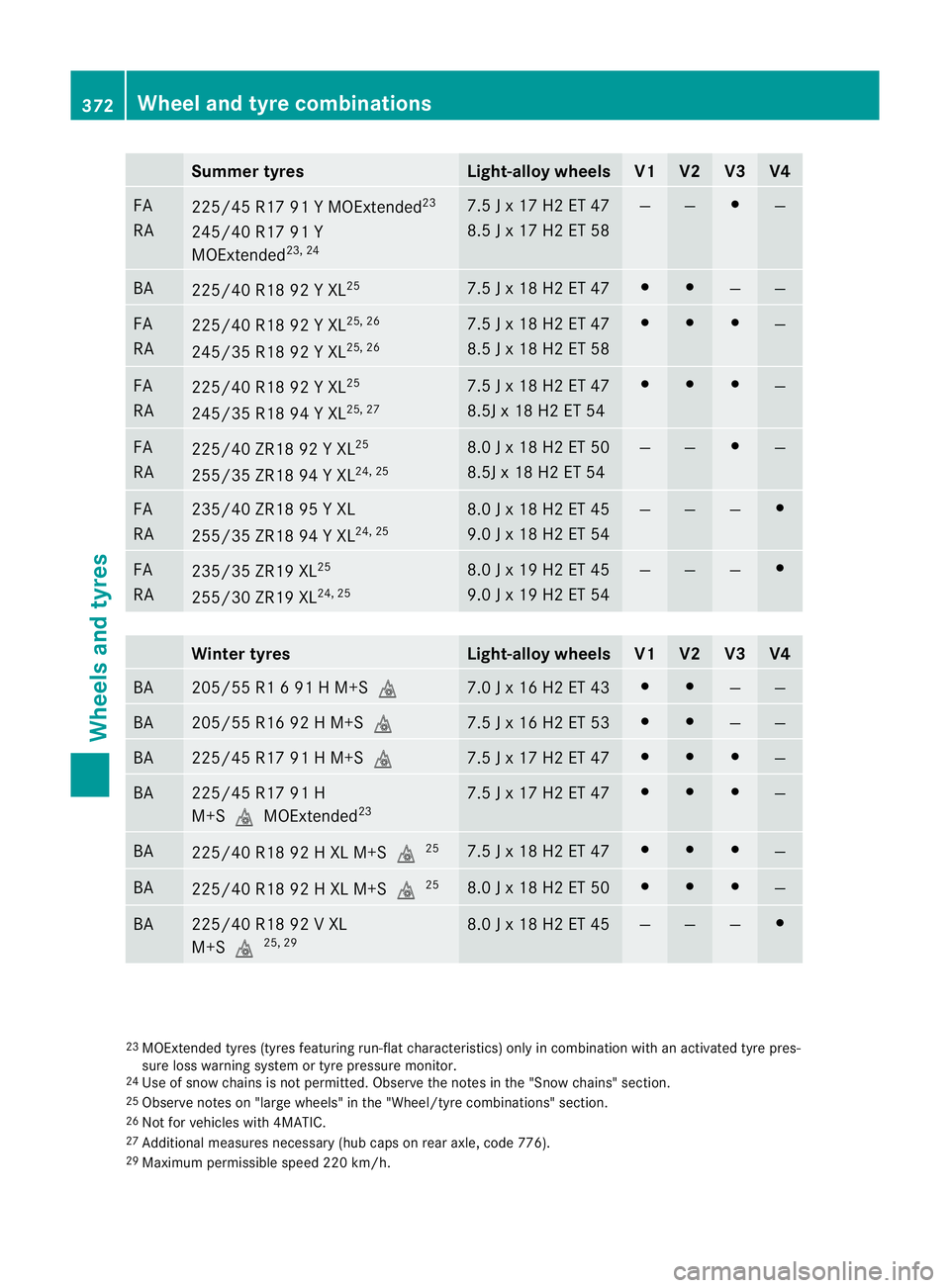

Summer tyres Light-alloy wheels V1 V2 V3 V4
FA
RA
225/45 R17 91 Y MOExtended
23
245/40 R17 91 Y
MOExtended 23, 24 7.5 J x 17 H2 ET 47
8.5 J x 17 H2 ET 58 — — #
—
BA
225/40 R18 92 Y XL
25 7.5 J x 18 H2 ET 47 # #
— —
FA
RA
225/40 R18 92 Y XL
25, 26
245/35 R18 92 Y XL 25, 26 7.5 J x 18 H2 ET 47
8.5 J x 18 H2 ET 58 # # #
—
FA
RA
225/40 R18 92 Y XL
25
245/35 R18 94 Y XL 25, 27 7.5 J x 18 H2 ET 47
8.5J x 18 H2 ET 54 # # #
—
FA
RA
225/40 ZR18 92
YXL25
255/35 ZR18 94 YXL24, 25 8.0 J x 18 H2 ET 50
8.5J x 18 H2 ET 54 — — #
—
FA
RA 235/40 ZR18 95
YXL
255/35 ZR18 94 YXL24, 25 8.0 J x 18 H2 ET 45
9.0 J x 18 H2 ET 54 — — — #
FA
RA
235/35 ZR19 XL
25
255/30 ZR19 XL 24, 25 8.0 J x 19 H2 ET 45
9.0 J x 19 H2 ET 54 — — — #
Winter tyres Light-alloy wheels V1 V2 V3 V4
BA 205/55 R1 6 91 H M+S
i 7.0 J x 16 H2 ET 43 # #
— —
BA 205/55 R16 92 H M+S
i 7.5 J x 16 H2 ET 53 # #
— —
BA 225/45 R17 91 H M+S
i 7.5 J x 17 H2 ET 47 # # #
—
BA 225/45 R17 91 H
M+SiMOExtended
23 7.5 J x 17 H2 ET 47 # # #
—
BA
225/40 R18 92 H XL M+S
i25 7.5 J x 18 H2 ET 47 # # #
—
BA
225/40 R18 92 H XL M+S
i25 8.0 J x 18 H2 ET 50 # # #
—
BA 225/40 R18 92 V XL
M+Si
25, 29 8.0 J x 18 H2 ET 45 — — — #
23
MOExtended tyres (tyres featuring run-flat characteristics) only in combination with an activated tyre pres-
sure loss warning system or tyre pressure monitor.
24 Use of snow chains is not permitted .Observe the notes in the "Snow chains" section.
25 Observe notes on "large wheels" in the "Wheel/tyre combinations" section.
26 Not for vehicles with 4MATIC.
27 Additional measures necessary (hub caps on rear axle, code 776).
29 Maximum permissible speed 220 km/h. 372
Wheel and tyre combinationsWheels and tyres

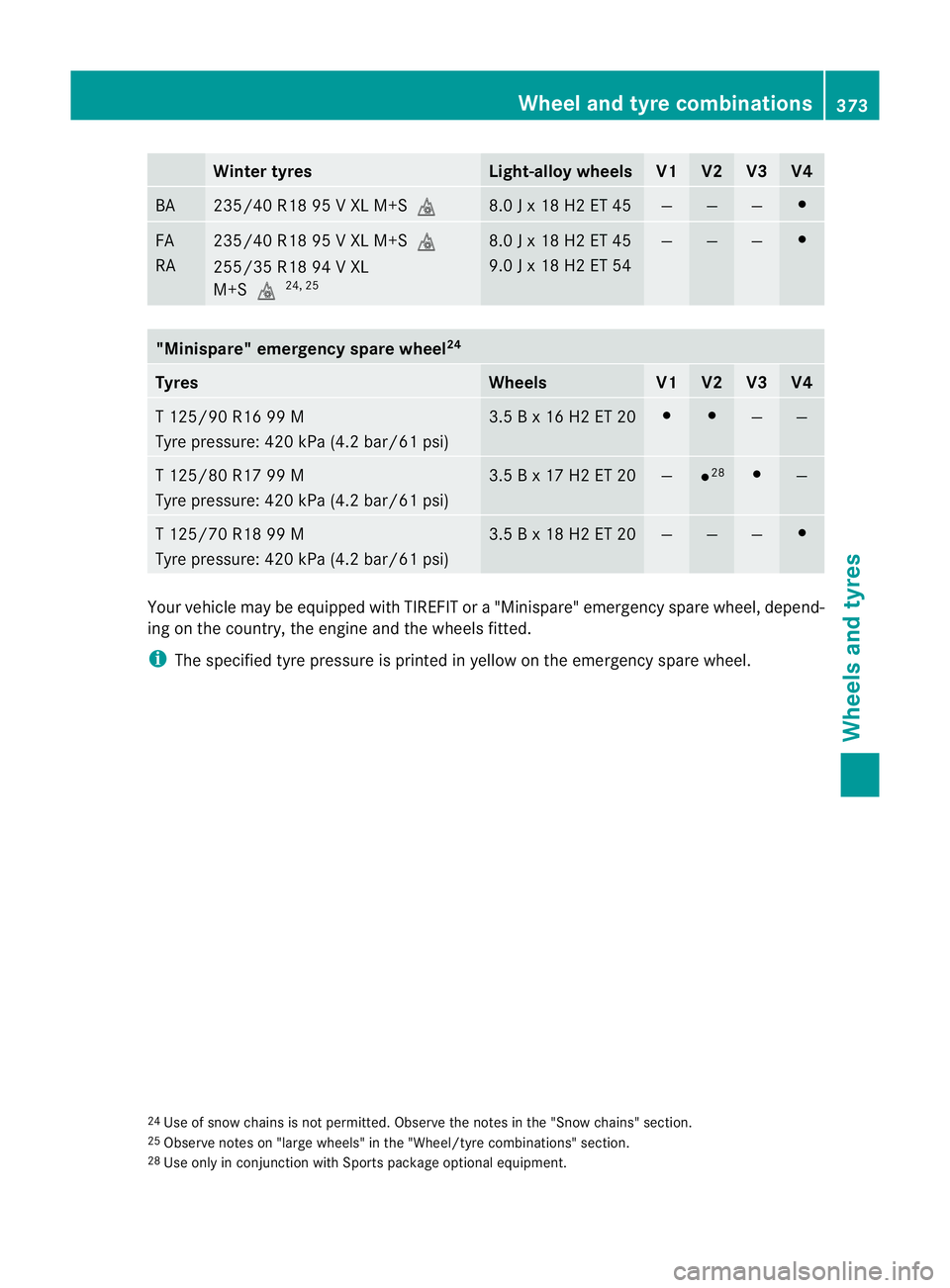

Winter tyres Light-alloy wheels V1 V2 V3 V4
BA 235/40 R18 95 V XL M+S
i 8.0 J x 18 H2 ET 45 — — — #
FA
RA 235/40 R18 95 V XL M+S
i
255/35 R18 94 V XL
M+Si 24, 25 8.0 J x 18 H2 ET 45
9.0 J x 18 H2 ET 54 — — — #
"Minispare" emergency spare wheel
24Tyres Wheels V1 V2 V3 V4
T 125/90 R16 99 M
Tyre pressure: 420 kPa (4.2 bar/61 psi) 3.5 B x 16 H2 ET 20 # #
— —
T 125/80 R17 99 M
Tyre pressure: 420 kPa (4.2 bar/61 psi) 3.5 B x 17 H2 ET 20 —
#
28 #
—
T 125/70 R18 99 M
Tyre pressure: 420 kPa (4.2 bar/61 psi) 3.5 B x 18 H2 ET 20 — — — #
Yourv
ehicle may be equipped with TIREFIT or a "Minispare" emergency spare wheel, depend-
ing on the country, the engine and the wheels fitted.
i The specified tyre pressure is printed in yellow on the emergency spare wheel.
24 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
25 Observe notes on "large wheels" in the "Wheel/tyre combinations" section.
28 Use only in conjunction with Sports package optional equipment. Wheel and tyre combinations
373Wheels and tyres Z

374

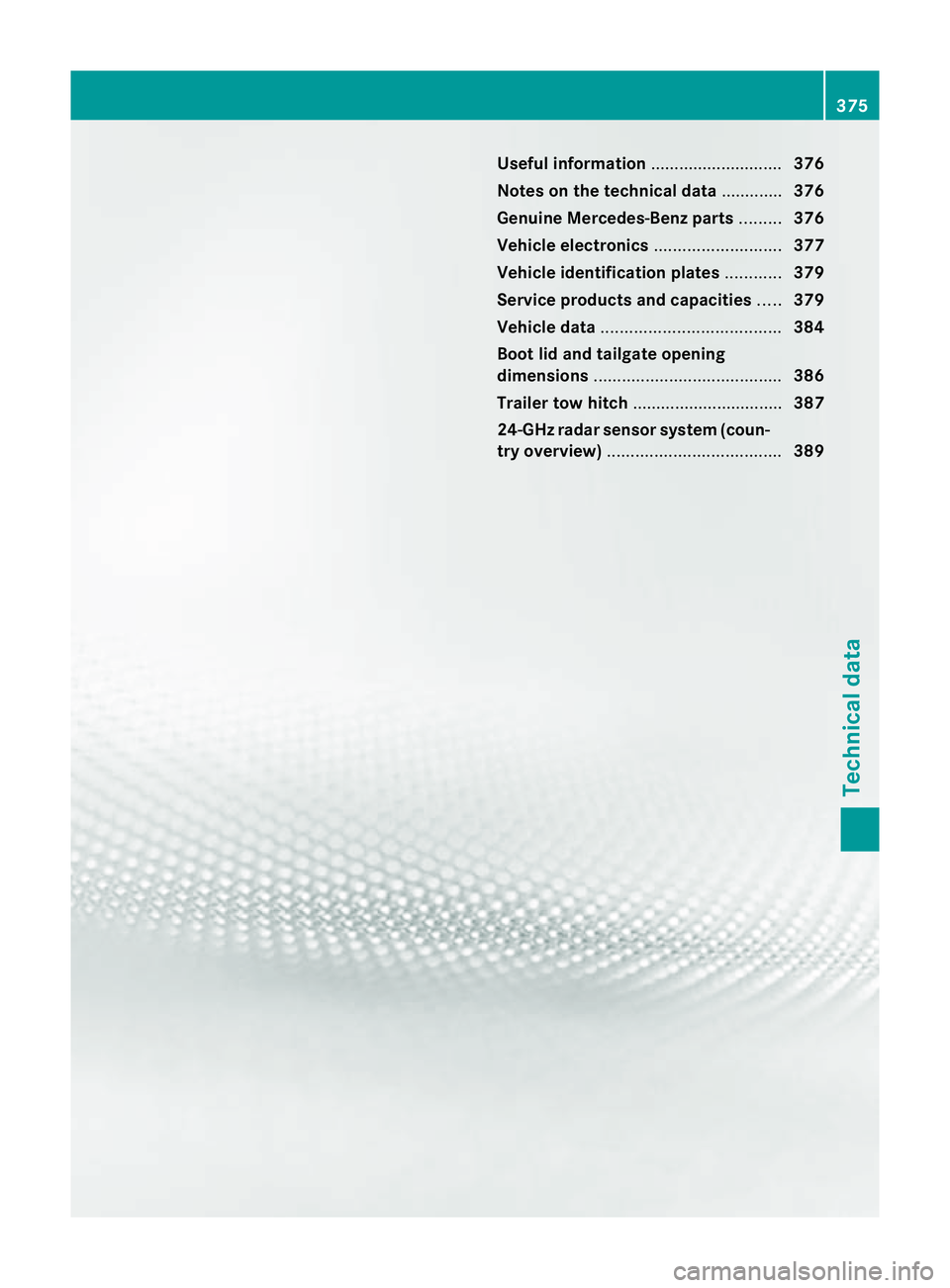

Useful information
............................376
Notes on the technical data .............376
Genuine Mercedes-Benz parts .........376
Vehicle electronics ...........................377
Vehicle identification plates ............379
Service products and capacities .....379
Vehicle data ...................................... 384
Boot lid and tailgate opening
dimensions ........................................ 386
Trailer tow hitch ................................ 387
24-GHz radar sensor system (coun-
tryo verview) ..................................... 389 375Technical data

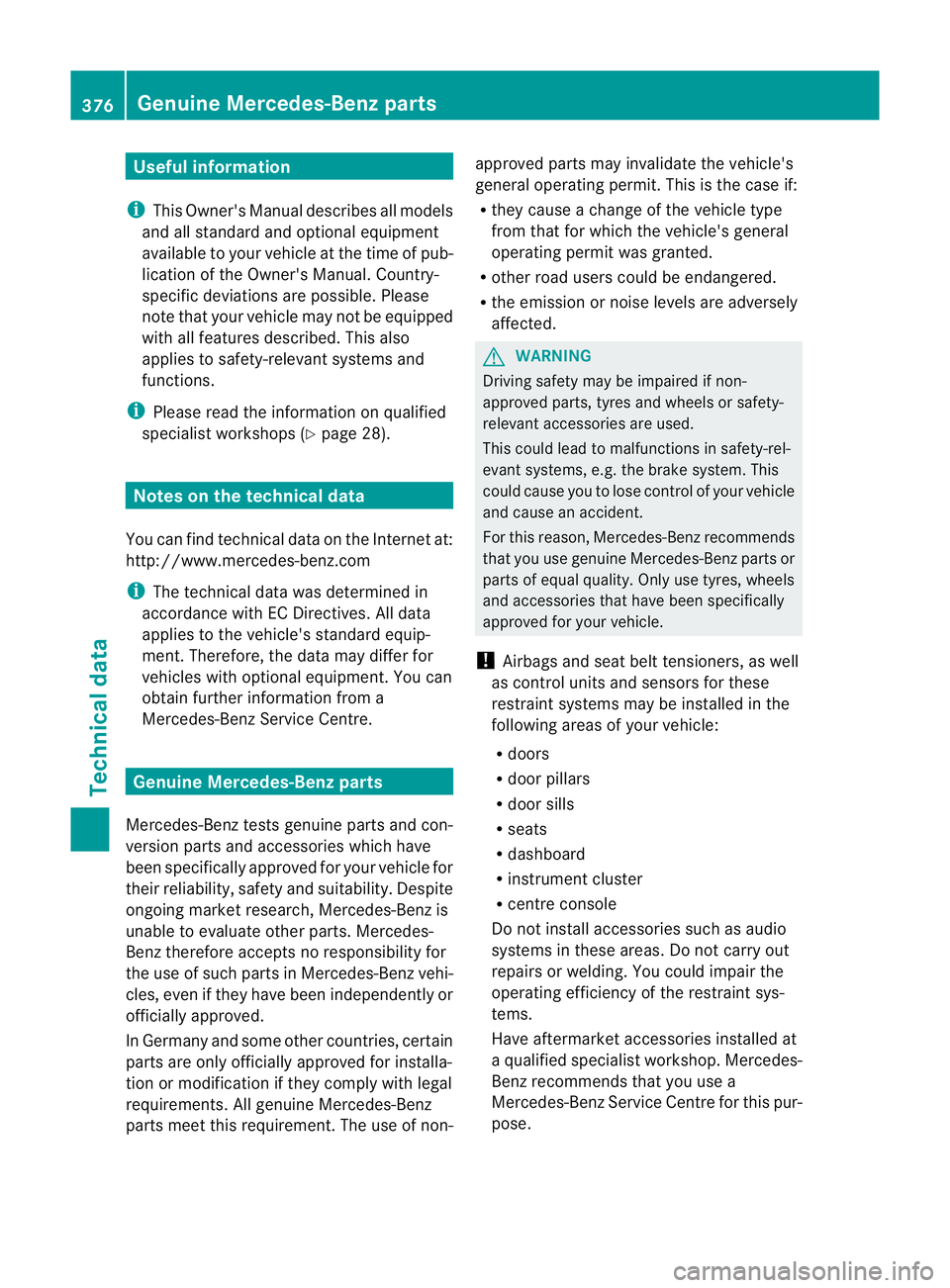

Useful information
i This Owner's Manual describes all models
and all standard and optional equipment
available to your vehicle at the time of pub-
lication of the Owner's Manual. Country-
specific deviations are possible. Please
note that your vehicle may not be equipped
with all features described. This also
applies to safety-relevan tsystems and
functions.
i Please read the information on qualified
specialist workshops (Y page 28).Notes on the technical data
You can find technical data on the Internet at:
http://www.mercedes-benz.com
i The technical data was determined in
accordance with EC Directives. All data
applies to the vehicle's standard equip-
ment. Therefore, the data may differ for
vehicles with optional equipment. You can
obtain further information from a
Mercedes-Benz Service Centre. Genuine Mercedes-Benz parts
Mercedes-Ben ztests genuine parts and con-
version parts and accessories which have
been specifically approved for your vehicle for
their reliability, safety and suitability. Despite
ongoing market research, Mercedes-Benzis
unable to evaluate other parts. Mercedes-
Ben ztherefore accepts no responsibility for
the use of such parts in Mercedes-Ben zvehi-
cles, even if they have been independently or
officially approved.
In Germany and some other countries, certain
parts are only officially approved for installa-
tion or modification if they comply with legal
requirements. All genuine Mercedes-Benz
parts meet this requirement .The use of non- approved parts may invalidate the vehicle's
general operating permit. This is the case if:
R
they cause a change of the vehicle type
from that for which the vehicle's general
operating permit was granted.
R other road users could be endangered.
R the emission or noise levels are adversely
affected. G
WARNING
Driving safety may be impaired if non-
approved parts, tyres and wheels or safety-
relevant accessories are used.
This could lead to malfunctions in safety-rel-
evant systems, e.g. the brake system. This
could cause you to lose control of your vehicle
and cause an accident.
For this reason, Mercedes-Ben zrecommends
that you use genuine Mercedes-Benz parts or
parts of equal quality. Only use tyres, wheels
and accessories that have been specifically
approved for your vehicle.
! Airbags and seat belt tensioners, as well
as control units and sensors for these
restraint systems may be installed in the
following areas of your vehicle:
R doors
R door pillars
R door sills
R seats
R dashboard
R instrument cluster
R centre console
Do not install accessories such as audio
systems in these areas. Do not carry out
repairs or welding. You could impair the
operating efficiency of the restraint sys-
tems.
Have aftermarket accessories installed at
a qualified specialist workshop. Mercedes-
Benz recommends that you use a
Mercedes-Benz Service Centre for this pur-
pose. 376
Genuine Mercedes-Benz partsTechnical data

H

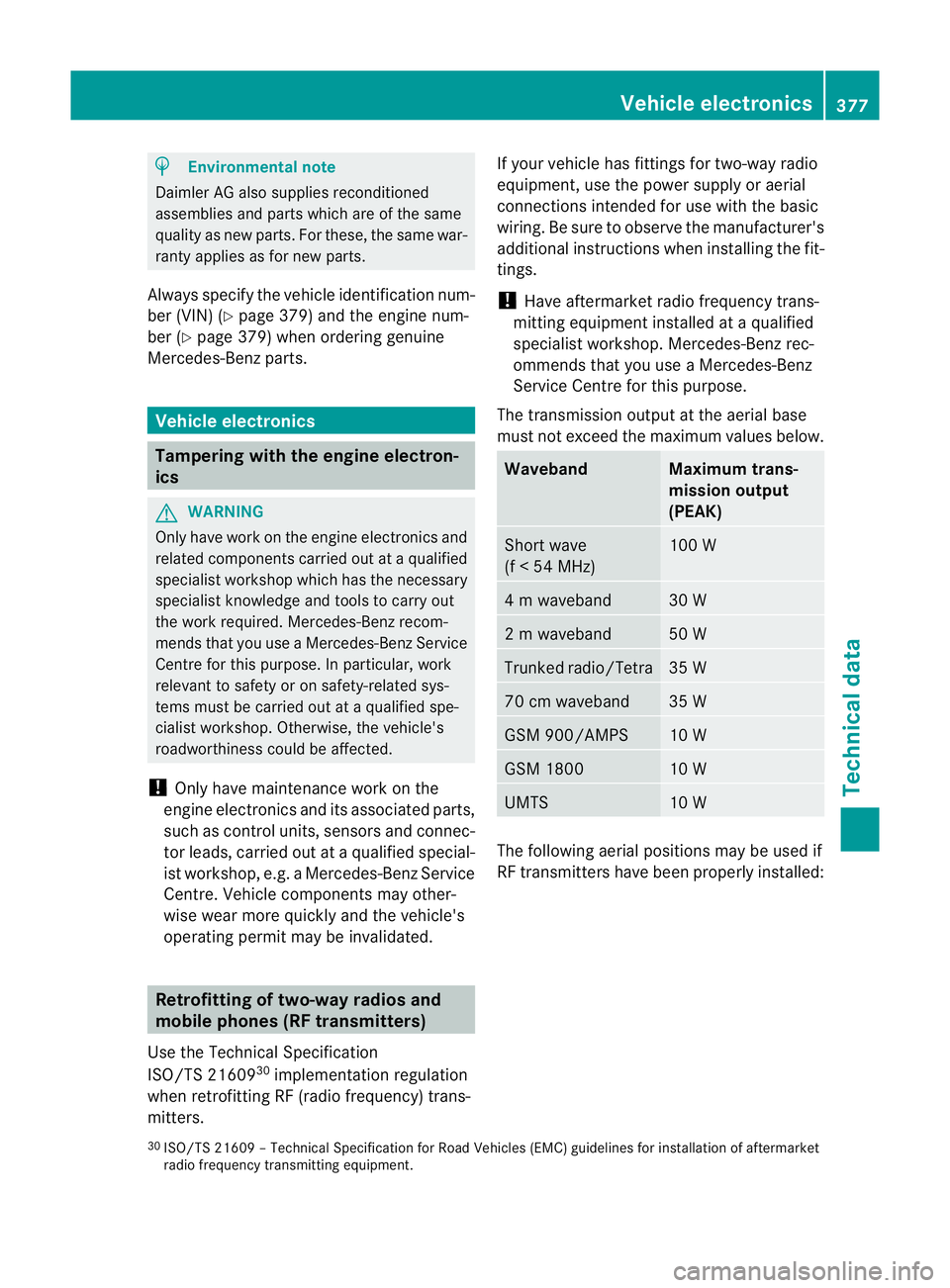

Environmental note
Daimler AG also supplies reconditioned
assemblies and parts which are of the same
quality as new parts. For these, the same war-
ranty applies as for new parts.
Always specify the vehicle identification num-
ber (VIN) (Y page 379) and the engine num-
ber (Y page 379) when ordering genuine
Mercedes-Ben zparts. Vehicle electronics
Tampering with the engine electron-
ics
G
WARNING
Only have work on the engine electronics and
related components carried out at a qualified
specialist workshop which has the necessary
specialist knowledge and tools to carry out
the work required. Mercedes-Benz recom-
mends that you use a Mercedes-Ben zService
Centre for this purpose. In particular, work
relevant to safety or on safety-related sys-
tems must be carried out at a qualified spe-
cialist workshop. Otherwise, the vehicle's
roadworthiness could be affected.
! Only have maintenance work on the
engine electronics and its associated parts,
such as control units, sensors and connec-
tor leads, carried out at a qualified special-
ist workshop, e.g. a Mercedes-Benz Service
Centre. Vehicle componentsm ay other-
wise wear more quickly and the vehicle's
operating permit may be invalidated. Retrofitting of two-way radios and
mobile phones (RF transmitters)
Use the Technical Specification
ISO/TS 21609 30
implementation regulation
when retrofitting RF (radio frequency) trans-
mitters. If your vehicle has fittings for two-way radio
equipment, use the power supply or aerial
connections intended for use with the basic
wiring. Be sure to observe the manufacturer's
additional instructions when installing the fit-
tings.
!
Have aftermarket radio frequency trans-
mitting equipmen tinstalled at a qualified
specialist workshop .Mercedes-Benzr ec-
ommends that you use a Mercedes-Benz
Service Centre for this purpose.
The transmission output at the aerial base
must not exceed the maximum values below. Waveband Maximum trans-
mission output
(PEAK)
Short wave
(f < 54 MHz) 100 W
4 m waveband 30 W
2 m waveband 50 W
Trunked radio/Tetra 35 W
70 cm waveband 35 W
GSM 900/AMPS 10 W
GSM 1800 10 W
UMTS 10 W
The following aerial positions may be used if
RF transmitters have been properly installed:
30 ISO/TS 2160 9–Technical Specification for Road Vehicles (EMC) guidelines for installation of aftermarket
radio frequency transmitting equipment. Vehicle electronics
377Technical data Z
