Fuel reserve
Display message (12-button mul-
tifunctio nsteering wheel) ..............271
Display message (4-button multi-
function steering wheel) ................269
see Fuel
Fuel tank
Capacity ........................................ 380
Problem (malfunction) ...................173
Fuse allocation chart (vehicle tool
kit) ...................................................... 335
Fuses Allocation chart ............................. 355
Before changing ............................. 355
Dashboard fuse box .......................355
Fuse box in the boot ......................356
Fuse box in the engine compart-
ment .............................................. 355
Fuse box in the luggage compart-
ment .............................................. 356
Important safety notes ..................354 G
Gear indicator (12-button multi-
function steering wheel) ..................245
Gear or selector lever (cleaning
instructions) ...................................... 332
Gearshift program SETUP (on-board computer) ..........245
Genuine Mercedes-Benz parts .........376
Glove compartment ..........................303 H
Handbrake see Parking brake
Hazard warning lamps ......................121
Headlamp Cleaning system (function) ............120
Headlamps
Misting up ...................................... 123
Topping up the cleaning system ....325
see Automatic headlamp mode
Head restraints
Adjusting ....................................... 107
Adjusting (electrically). ..................107
Adjusting (manually). .....................107Adjusting (rear)
.............................. 107
Fitting/removing (rear) ..................108
Luxury ............................................ 107
see NECK-PR Ohead restraints
see NECK-PRO head restraints/
NECK-PRO luxury head restraints
Heating
see Climate control
High-pressure cleaners ....................328
Hill start assist .................................. 156
HOLD function Display message (12-button mul-
tifunctio nsteering wheel) ..............273
Display message (4-button multi-
function steering wheel) ................272
Function/notes ............................. 193
Hook ................................................... 308 I
ICS padded play table .........................65
Ignition lock see Key positions
Immobiliser .......................................... 80
Indicator and warning lamps Coolant .......................................... 298
DISTRONI CPLUS ........................... 300
Engine diagnostics .........................298
Fuel tank ........................................ 298
Overview (12-button multifunc-
tion steering wheel) .........................39
Overview (4-button multifunction
steering wheel) ................................ 36
SPORT handling mode ...................296
Indicator lamps
see Warning and indicator lamps
Indicators
see Turn signals
Insectp rotection on the radiator ....323
Instrument cluster (12-button mul-
tifunction steering wheel)
Indicator and warning lamps ............39
Overview .......................................... 37
Settings ......................................... 239
Instrument cluster (4-button mul-
tifunction steering wheel) Indicator and warning lamps ............36
Overview .......................................... 34 Index
13

cerned. Do not attempt to repair or bridge
faulty fuses. Otherwise, a circuit overload
could cause a fire .Have the cause traced and
rectified at a qualified specialist workshop,
e.g. a Mercedes-Benz Service Centre.
Blown fuses must be replaced with fuses of
the same rating, which you can recognise by
the colour and value. The fuse ratings are lis-
ted in the fuse allocatio nchart. AMercedes-
BenzS ervice Centre will be happy to advise
you.
If the newly inserted fuse also blows, have the
cause traced and rectified at a qualified spe-
cialist workshop, e.g. a Mercedes-Benz
Service Centre.
! Only use fuses that have been approved
for Mercedes-Benzv ehicles and which
have the correct fuse rating for the system
concerned. Otherwise, components or sys-
tems could be damaged. Before changing a fuse
X Park the vehicle and apply the parking
brake.
X Switch off all electrical consumers.
X Remove the key from the ignition lock.
The fuses are located in various fuse boxes:
R fuse box on the driver's side of the dash-
board
R fuse box in the engine compartment on the
left-hand side of the vehicle, when viewed
in the direction of travel
R fuse box in the boot/luggage compartment
on the right-hand side of the vehicle, when
viewed in the direction of travel
The fuse allocation chart is located in the
vehicle tool kit (Y page 335) in the stowage
compartment under the boot/luggage com-
partment floor. Dashboard fuse box
! Do not use a pointed objec tsuch as a
screwdriver to open the cover in the dash-
board. You could damage th edashboard or
the cover. X
To open: pull out cover :slightly at the
bottom in the direction of arrow =.
X Pull cover :outwards in the direction of
arrow ;and remove it.
X To close: clip in cover :on the front of
the dashboard.
X Fold cover :inwards until it engages. Fuse box in the engine compartment
X Make sure that the windscree nwipers are
turned off. G
WARNING
Make sure that the windscreen wipers are
turned off and the key is pulled out of the igni-
tion lock before you open the cover of the fuse
box. Otherwise, the windscreen wipers and
the wiper rods above the cover could be set
in motion. This could lead to you or others
being injured by the wiper rods.
X Open the bonnet (Y page 322). Electrical fuses

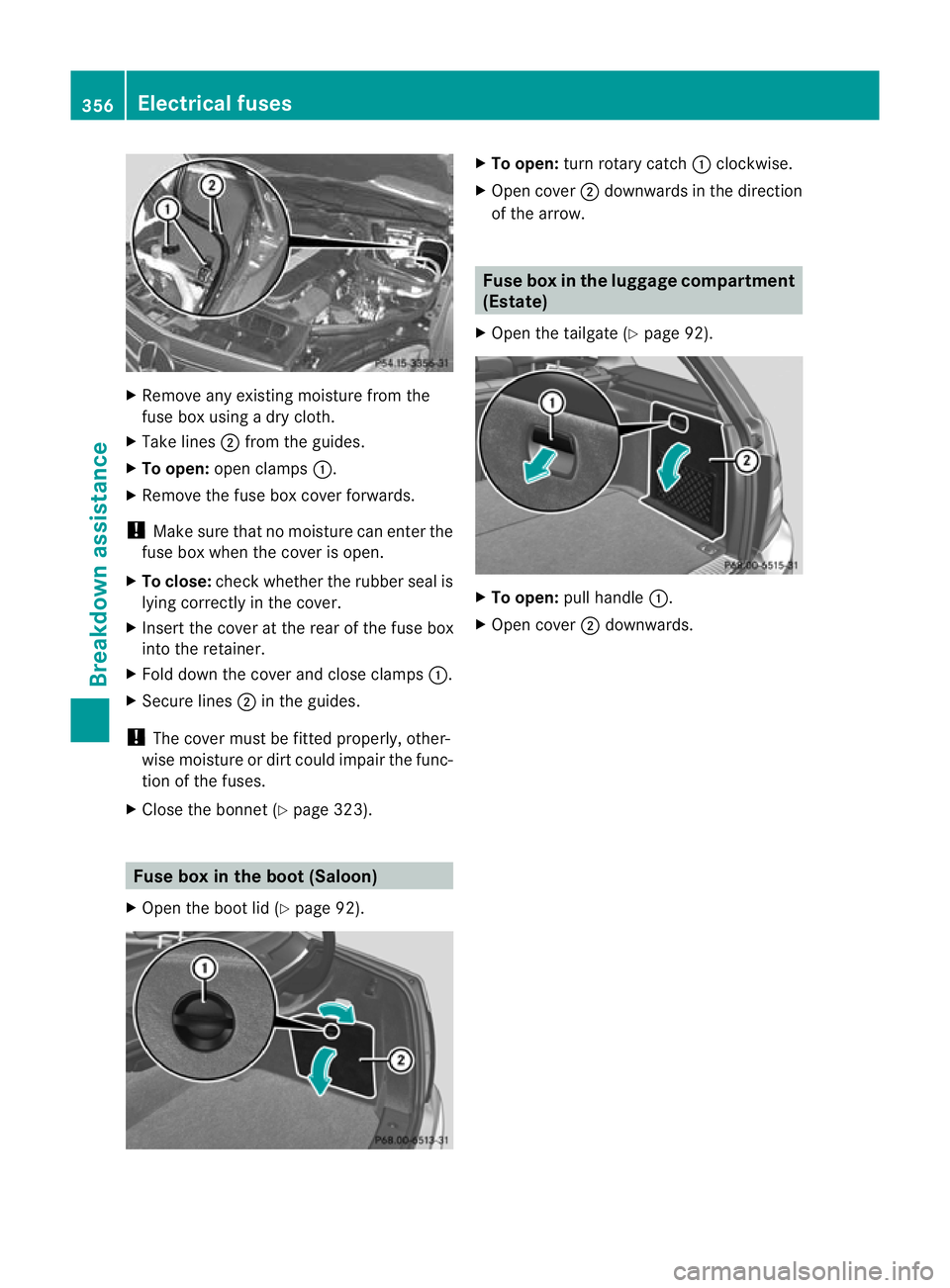

355Breakdown assistance Z

X
Remove any existing moisture from the
fuse box using a dry cloth.
X Take lines ;from the guides.
X To open: open clamps :.
X Remove the fuse box cover forwards.
! Make sure that no moisture can ente rthe
fuse box when the cover is open.
X To close: check whether the rubber seal is
lying correctly in the cover.
X Insert the cover at the rear of the fuse box
into the retainer.
X Fold down the cover and close clamps :.
X Secure lines ;in the guides.
! The cover must be fitted properly, other-
wise moisture or dirt could impair the func-
tion of the fuses.
X Close the bonnet (Y page 323).Fuse box in the boot (Saloon)
X Open the boot lid (Y page 92). X
To open: turn rotary catch :clockwise.
X Open cover ;downwards in the direction
of the arrow. Fuse box in the luggage compartment
(Estate)
X Open the tailgate (Y page 92). X
To open: pull handle :.
X Open cover ;downwards. 356
Electrical fusesBreakdown assistance
