MERCEDES-BENZ C-CLASS SALOON 2014 Owners Manual

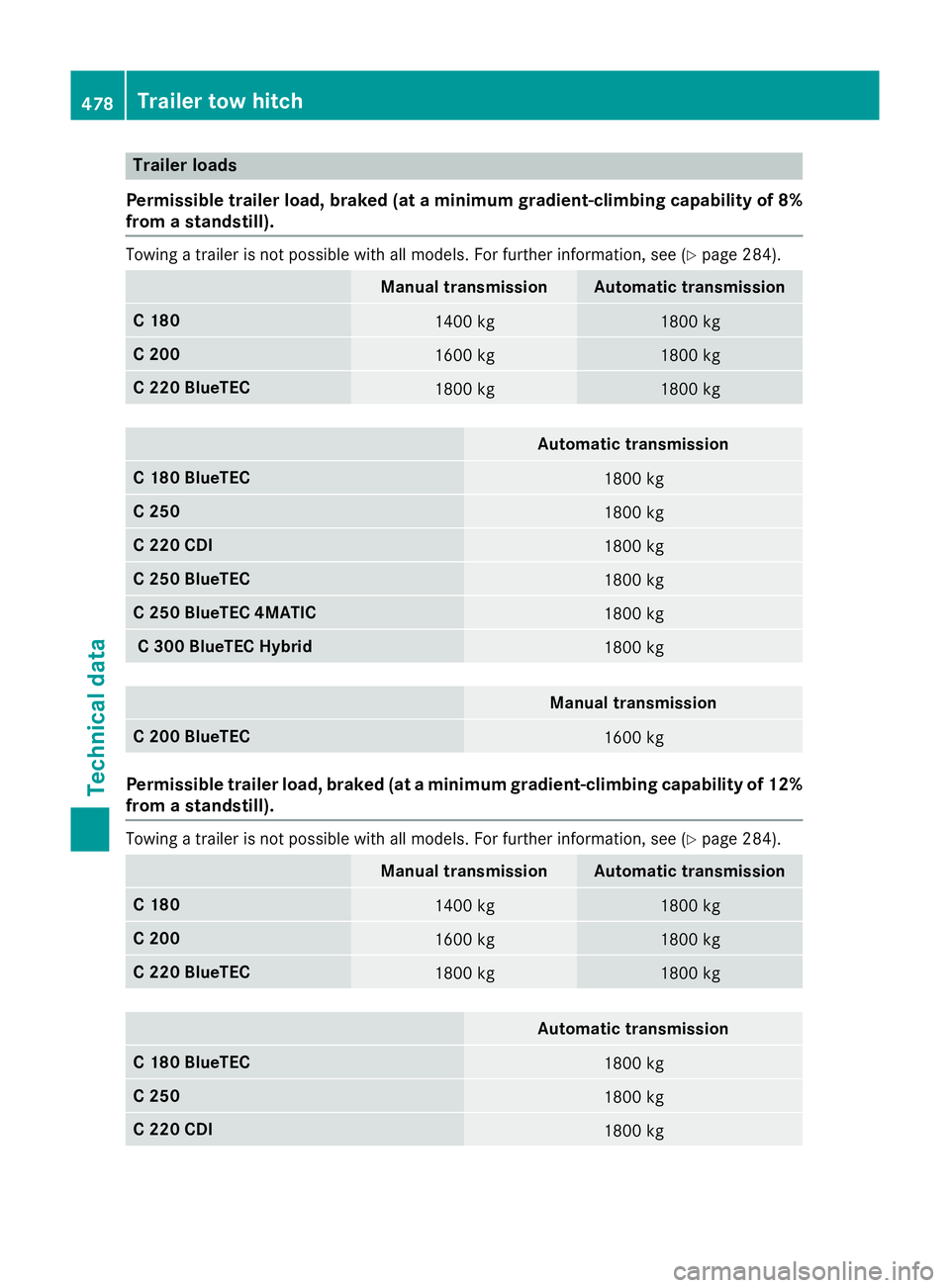

Trailer loads
Permissible trailer load, braked (at a minimum gradient-climbing capability of 8%
from a standstill). Towing a trailer is not possible with all models. For further information, see (Y
page 284).Manual transmission Automatic transmission
C 180
1400 kg 1800 kg
C 200
1600 kg 1800 kg
C 220 BlueTEC
1800 kg 1800 kg
Automatic transmission
C 180 BlueTEC
1800 kg
C 250
1800 kg
C 220 CDI
1800 kg
C 250 BlueTEC
1800 kg
C 250 BlueTEC 4MATIC
1800 kg
C 300 BlueTEC Hybrid
1800 kg
Manual transmission
C 200 BlueTEC
1600 kg
Permissible trailer load, braked (at a minimum gradient-climbing capability of 12%
from a standstill). Towing a trailer is not possible with all models. For further information, see (Y
page 284).Manual transmission Automatic transmission
C 180
1400 kg 1800 kg
C 200
1600 kg 1800 kg
C 220 BlueTEC
1800 kg 1800 kg
Automatic transmission
C 180 BlueTEC
1800 kg
C 250
1800 kg
C 220 CDI
1800 kg478
Trailer tow hitchTechnical data

Automatic transmission
C 250 BlueTEC
1800 kg
C 250 BlueTEC 4MATIC
1800 kg
C 300 BlueTEC Hybrid
1800 kg
Manual transmission
C 200 BlueTEC
1600 kg

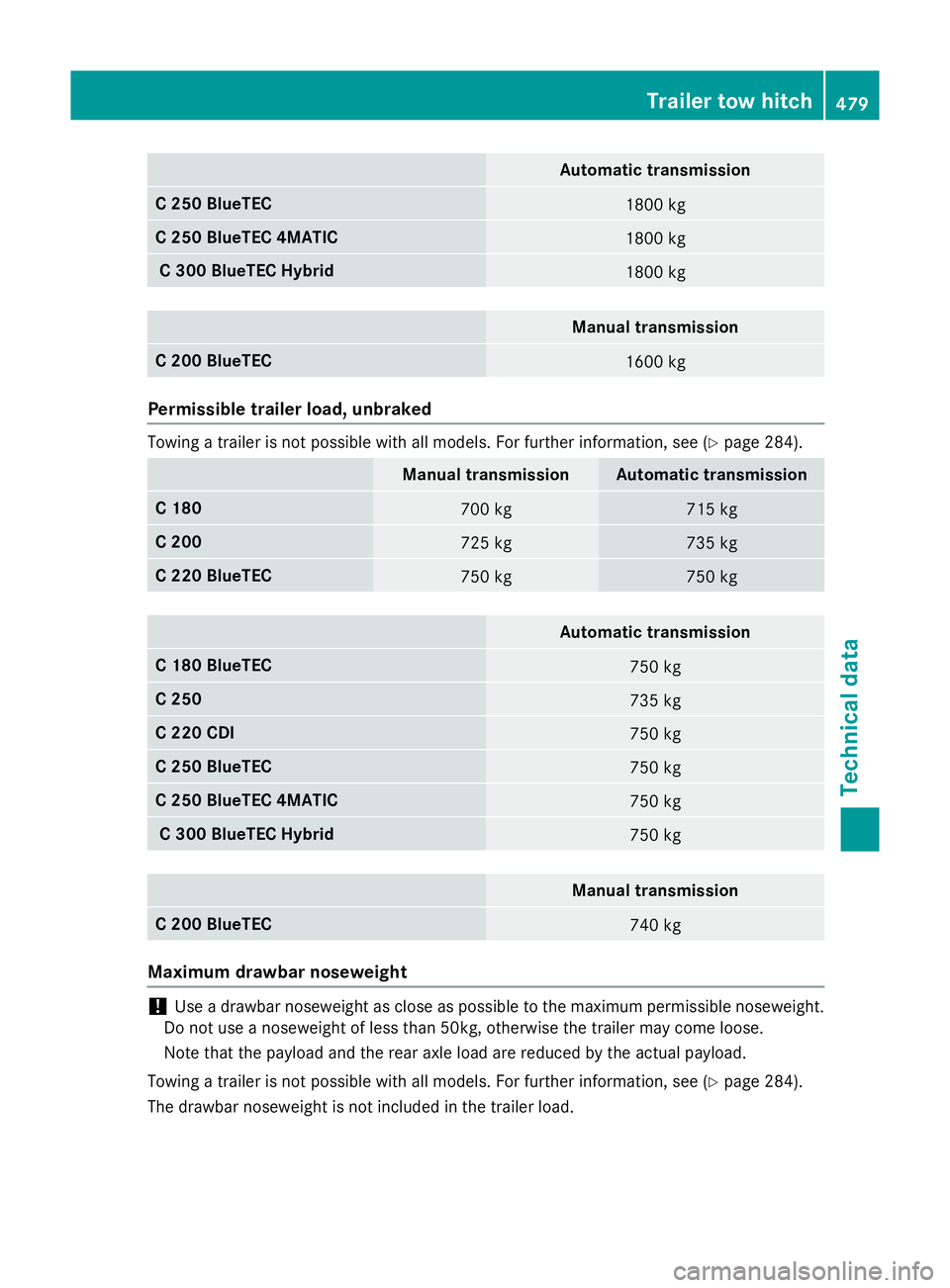

Permissible trailer load, unbraked
Towing a trailer is not possible with all models. For further information, see (Y
page 284).Manual transmission Automatic transmission
C 180
700 kg 715 kg
C 200
725 kg 735 kg
C 220 BlueTEC
750 kg 750 kg
Automatic transmission
C 180 BlueTEC
750 kg
C 250
735 kg
C 220 CDI
750 kg
C 250 BlueTEC
750 kg
C 250 BlueTEC 4MATIC
750 kg
C 300 BlueTEC Hybrid
750 kg
Manual transmission
C 200 BlueTEC
740 kg
Maximum drawbar noseweight
!
Use a drawbar noseweight as close as possible to the maximum permissible noseweight.
Do not use a noseweight of less than 50kg, otherwise the trailer may come loose.
Note that the payload and the rear axle load are reduced by the actual payload.
Towing a trailer is not possible with all models. For further information, see (Y page 284).
The drawbar noseweight is not included in the trailer load. Trailer tow hitch
479Technical data Z

Manual transmission Automatic transmission
C 180
75 kg 75 kg
C 200
75 kg 75 kg
C 220 BlueTEC
75 kg 75 kg
Automatic transmission
C 180 BlueTEC
75 kg
C 250
75 kg
C 220 CDI
75 kg
C 250 BlueTEC
75 kg
C 250 BlueTEC 4MATIC
75 kg
C 300 BlueTEC Hybrid
75 kg
Manual transmission
C 200 BlueTEC
75 kg

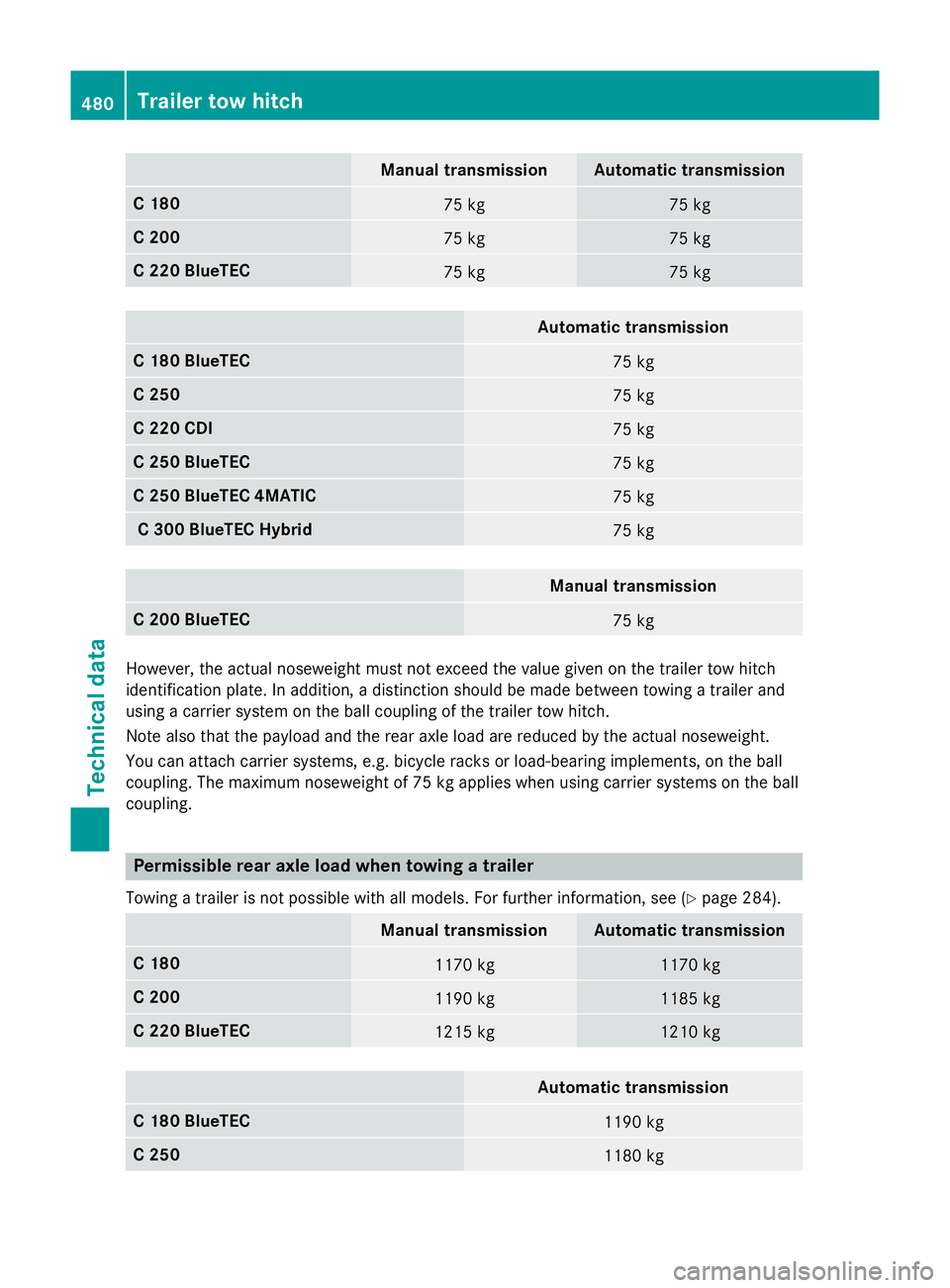

However, the actual noseweight must not exceed the value given on the trailer tow hitch
identification plate. In addition, a distinction should be made between towing a trailer and
using a carrier system on the ball coupling of the trailer tow hitch.
Note also that the payload and the rear axle load are reduced by the actual noseweight.
You can attach carrier systems, e.g. bicycle racks or load-bearing implements, on the ball
coupling. The maximum noseweight of 75 kg applies when using carrier systems on the ball
coupling. Permissible rear axle load when towing a trailer
Towing a trailer is not possible with all models. For further information, see (Y page 284).Manual transmission Automatic transmission
C 180
1170 kg 1170 kg
C 200
1190 kg 1185 kg
C 220 BlueTEC
1215 kg 1210 kg
Automatic transmission
C 180 BlueTEC
1190 kg
C 250
1180 kg480
Trailer tow hitchTechnical data

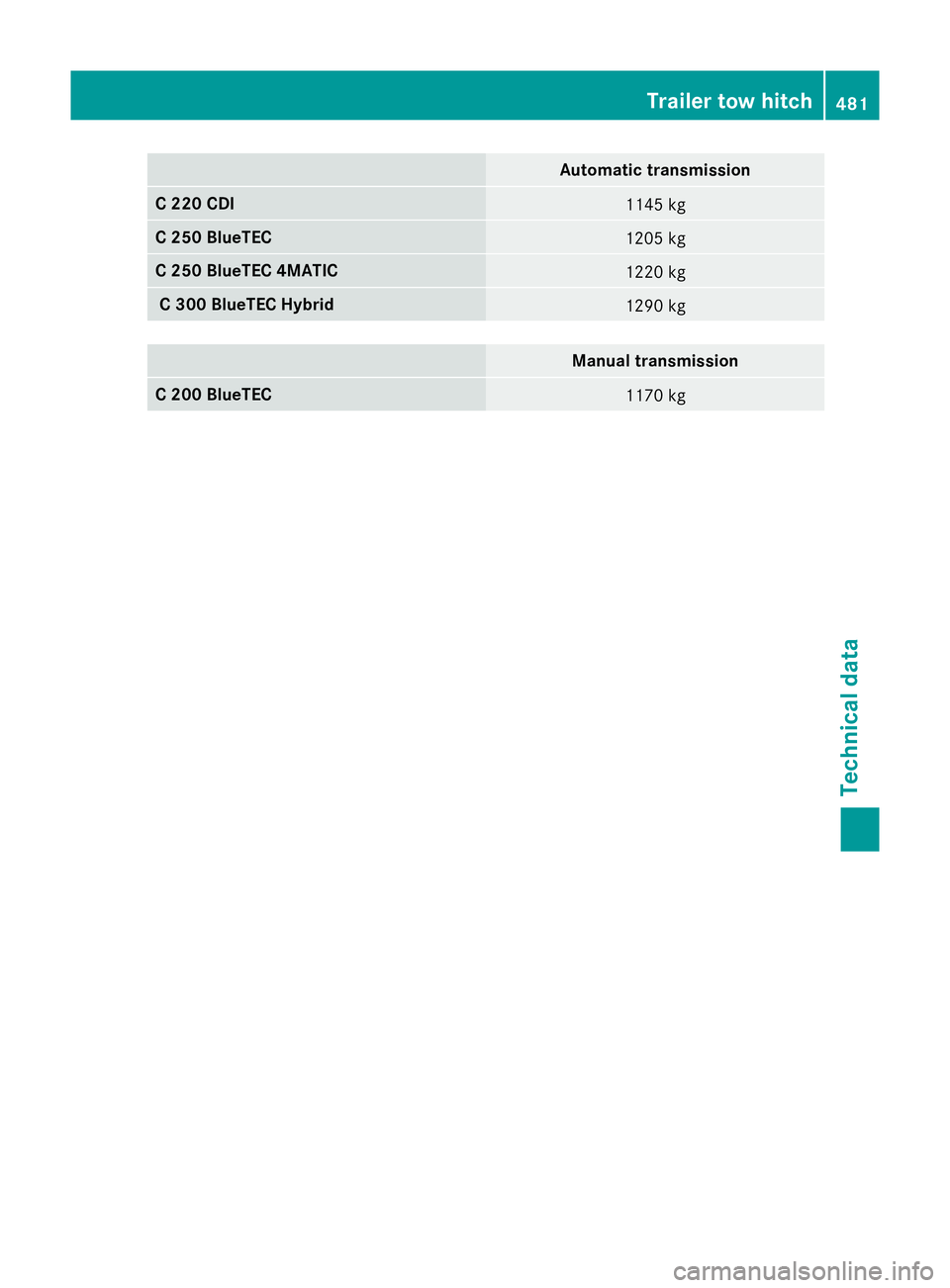

Automatic transmission
C 220 CDI
1145 kg
C 250 BlueTEC
1205 kg
C 250 BlueTEC 4MATIC
1220 kg
C 300 BlueTEC Hybrid
1290 kg
Manual transmission
C 200 BlueTEC
1170 kg Trailer tow hitch
481Technical data Z
