sensor MERCEDES-BENZ C-CLASS SALOON 2014 Owners Manual

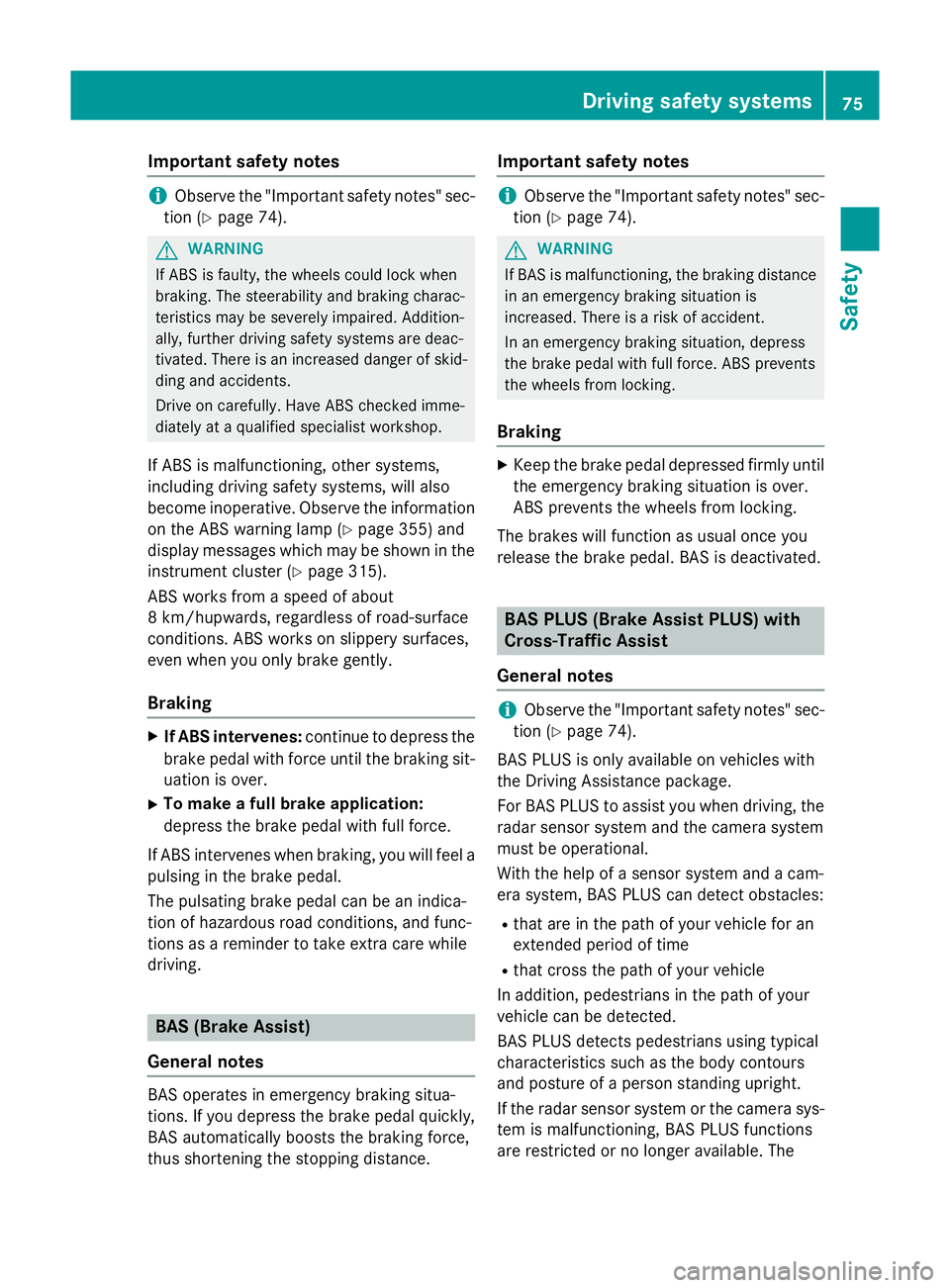

BAS .................................................. 75

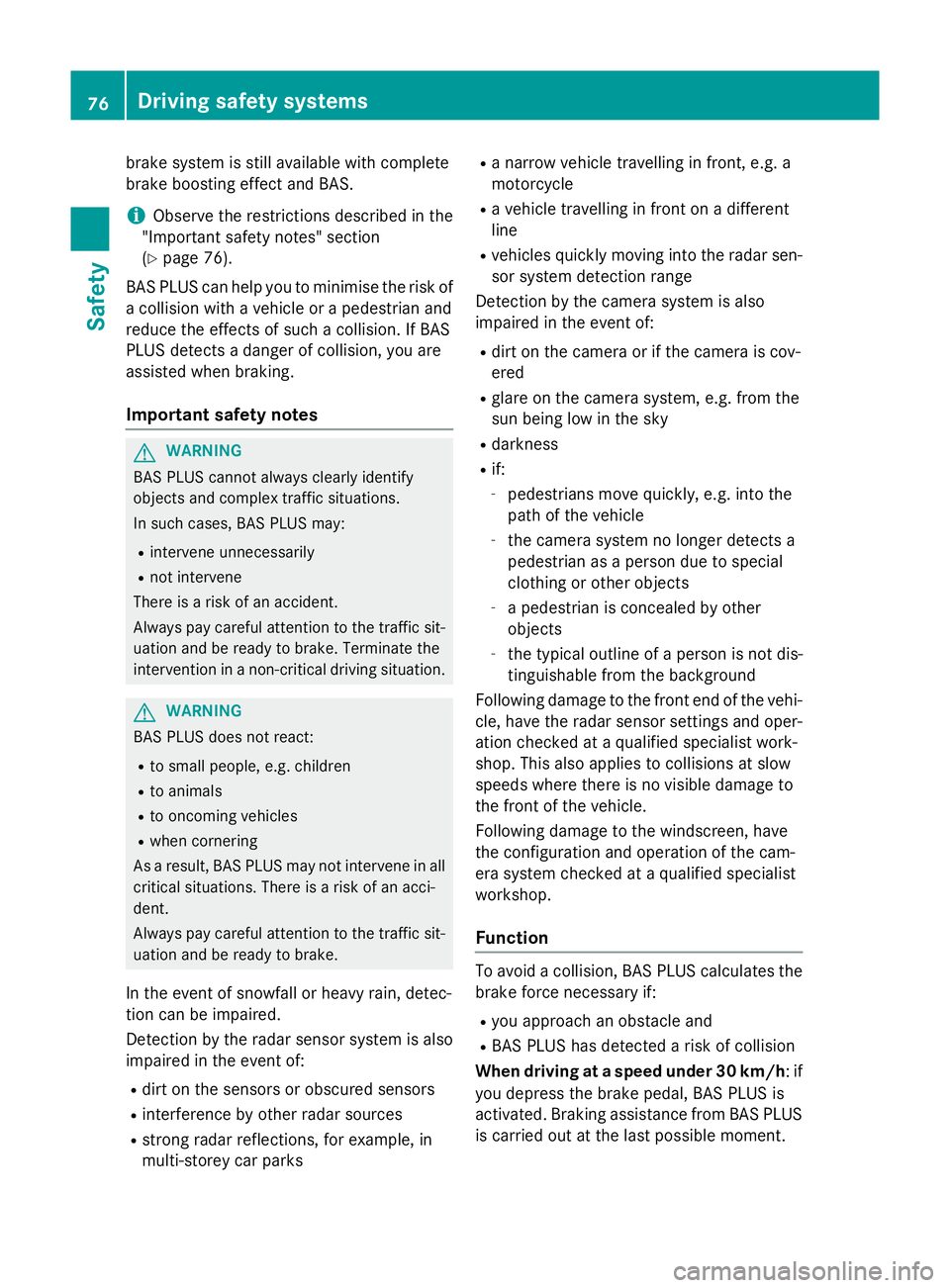

BAS PLUS with Cross-Traffic
Assist ............................................... 75
Brake fluid (notes) ......................... 475
Display messag e............................ 315
Driving tips .................................... 213
Hill start assist ............................... 185
HOLD function ............................... 232
Important safety notes .................. 213
Parking brake ................................ 209
RBS (Recuperative Brake Sys-
tem) ................................................. 44
RBS warning lamp .......................... 362
Warning lamp ................................. 353
Breakdown
see Flat tyre
see Towing away
Brightness control (instrument
cluster lighting) ................................... 32
Bulbs
see Replacing bulbs
Buttons on the steering column ...... 294C
Calling up a fault see Display messages
Camera
see 360° camera
Car
see Vehicle
Car key
see Key
Car wash (care) ................................. 396
Care
360° camera ................................. 401
AIRPANEL ...................................... 400
Automatic car wash ....................... 396
Carpets .......................................... 404
Display ........................................... 402
Exhaust pipe .................................. 402
Exterior lighting ............................. 400
Gear or selector lever .................... 403
High-pressure cleaner .................... 398
Interior ........................................... 402
Matt paintwork .............................. 399
Note s............................................. 396
Paint .............................................. 398 Plastic trim .................................... 403
Reversing camera .......................... 401
Roof lining ...................................... 404
Seat belt ........................................ 404
Seat cove r..................................... 403
Sensors ......................................... 401
Steering wheel ............................... 403
Trim pieces .................................... 403
Washing by hand ........................... 398
Wheels ........................................... 399
Windows ........................................ 399
Wiper blades .................................. 400
Wooden trim .................................. 403
CD player/CD changer(on-board
computer) .......................................... 303
Central locking
Locking/unlocking (key) .................. 91
Centre console
Lower section .................................. 38
Upper section .................................. 37
Changing bulbs
Dipped-beam headlamp s............... 143
Main-beam headlamp s................... 143
Reversing lamps ............................ 144
Turn signals (front) ......................... 144
Turn signals (rear) .......................... 144
Charge status of high-voltage bat-
tery ..................................................... 273
Child seat
Forward-facing restraint system ...... 68
ISOFIX .............................................. 65
On the front-passenger sea t............ 66
Rearward-facing restraint system .... 67
Recommendations ........................... 71
Suitable positions ............................ 68
Top Tether ....................................... 65
Child-proof locks
Important safety notes .................... 72
Rear doors ....................................... 73

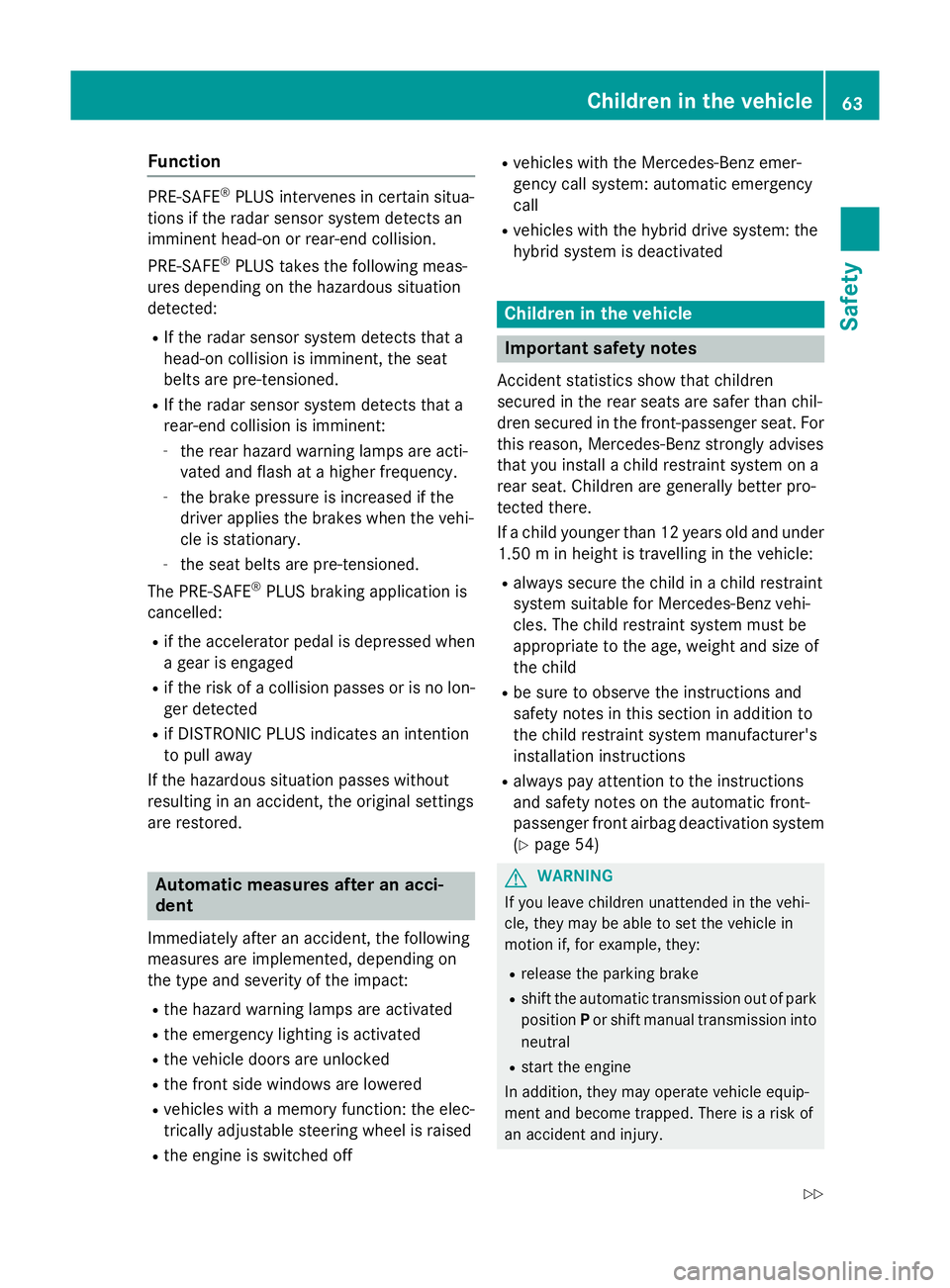

Children
In the vehicl e................................... 63
Restraint systems ............................ 64
Cigarette lighter ................................ 380
Cleaning
Mirror turn signal ........................... 400
Trailer tow hitch ............................. 402
Climate control
Auxiliary heating/ventilation .......... 172 Index
7

Instrument cluster
Overview .......................................... 34
Power display ................................ 272
Warning and indicator lamps .......... .35
Instrument cluster lighting .............. 292
Intelligent Light System
Activating/deactivating ................ .311
Display message ............................ 331
Overview ........................................ 138
Setting the dipped-beam head-
lamps for driving on the right/left .. 311
Interior lighting
Control .......................................... .141
Emergency lighting ........................ 141
Overview ........................................ 140
Reading lamp ................................. 140
Interior motion sensor
Deactivating ..................................... 87
Function .......................................... .86
Priming ............................................ 86
Switching off .................................... 87
Internal combustion engine
Malfunction .................................... 282
ISOFIX child seat securing system ....65J
Jack Storage location ............................4 07
Using ............................................. 439
Jump starting (engine) ......................418 K
Key Changing the battery ....................... 94
Checking the battery ....................... 94
Convenience closing feature .......... 108
Convenience opening feature ....... .107
Display message ............................ 350
Door central locking/unlocking ....... 91
Emergency key element ................... 93
Important safety notes .................... 90
KEYLESS-GO start function .............. 92
Loss ................................................. 95
Modifying the programming ............. 92
Overview .......................................... 90
Positions (ignition lock) ................. 181 Problem (malfunction) ..................... 95
Starting the engine ........................ 183
Key positions
Key ................................................ 181
Start/Stop button .......................... 181
KEYLESS-GO
Convenience closing ..................... .108
Deactivation ..................................... 91
Locking ............................................ 91
Removing the Start/Stop button ... 182
Unlocking ......................................... 91
Kickdown
Driving tips ................................... .196

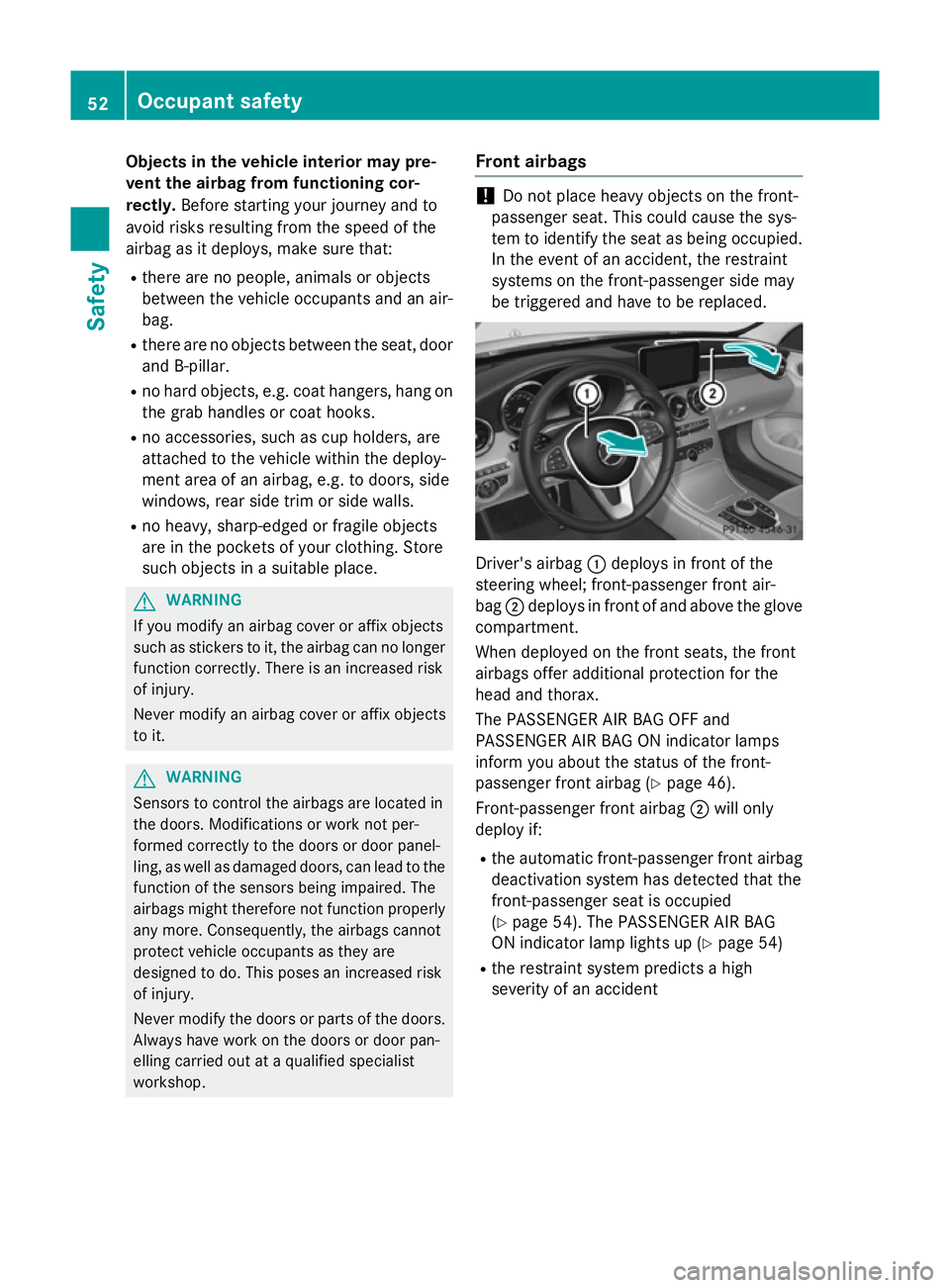

Kneebag ............................................... 53 L
Lamps see Warning and indicator lamps
Lane Keeping Assist
Activating/deactivating (on-
board computer) ............................ 309
Display message ............................ 338
Function/informatio n.................... 261
see Active Lane Keeping Assist
Lane package ..................................... 259
Lashing eyelets ................................. 373
Licence plate lamp (display mes-
sage) ................................................... 331
Light sensor (display message) ....... 332
Lighting
see Lights
Lights
Activating/deactivating the Intel-
ligent Light System ........................ 311
Active light function ....................... 138
Adaptive Highbeam Assist PLUS .... 139
Automatic headlamp mode ............ 135
Cornering light function ................. 138
Dipped-beam headlamp s............... 135
Driving abroad ............................... 134
Foglamps (extended range) ........... 139
Hazard warning lamps ................... 137
Headlamp flashe r........................... 137
Headlamp range ............................ 136
Intelligent Light System (func-
tion) ............................................... 138
Light switch ................................... 134 14
Index

Position of exterior mirror, front-
passenger side ...............................1
29
Reversing camera .......................... 244
see PARKTRONIC
Parking aid
Active Parking Assist ..................... 239
see Exterior mirrors
see PARKTRONIC
Parking assistance
see PARKTRONIC
Parking brake
Display message ............................ 318
Electric parking brake .................... 209
Warning lamp ................................. 359
Parking lamps
Display message ............................ 331
Switching on/off ........................... 136
PARKTRONIC
Deactivating/activating ................. 238
Driving system ............................... 236
Function/notes ............................ .236
Important safety notes .................. 236
Problem (fault) ............................... 239
Sensor range ................................. 236
Trailer towing ................................. 236
Warning displa y............................. 237
PASSENGER AIR BAG
Indicator lamps ................................ 46
PASSENGER AIR BAG indicator
lamp
Problem (malfunction) ................... 328
Perfume atomizer
Operating ....................................... 167
Perfume vial ................................... 167
Problem (malfunction) ................... 169
Petrol .................................................. 470
Pets in the vehicle ............................... 74
Plastic trim (cleaning instruc-
tions) .................................................. 403
Power windows
see Side windows
Pre-entry climate control
Problem (Malfunction) ................... 171

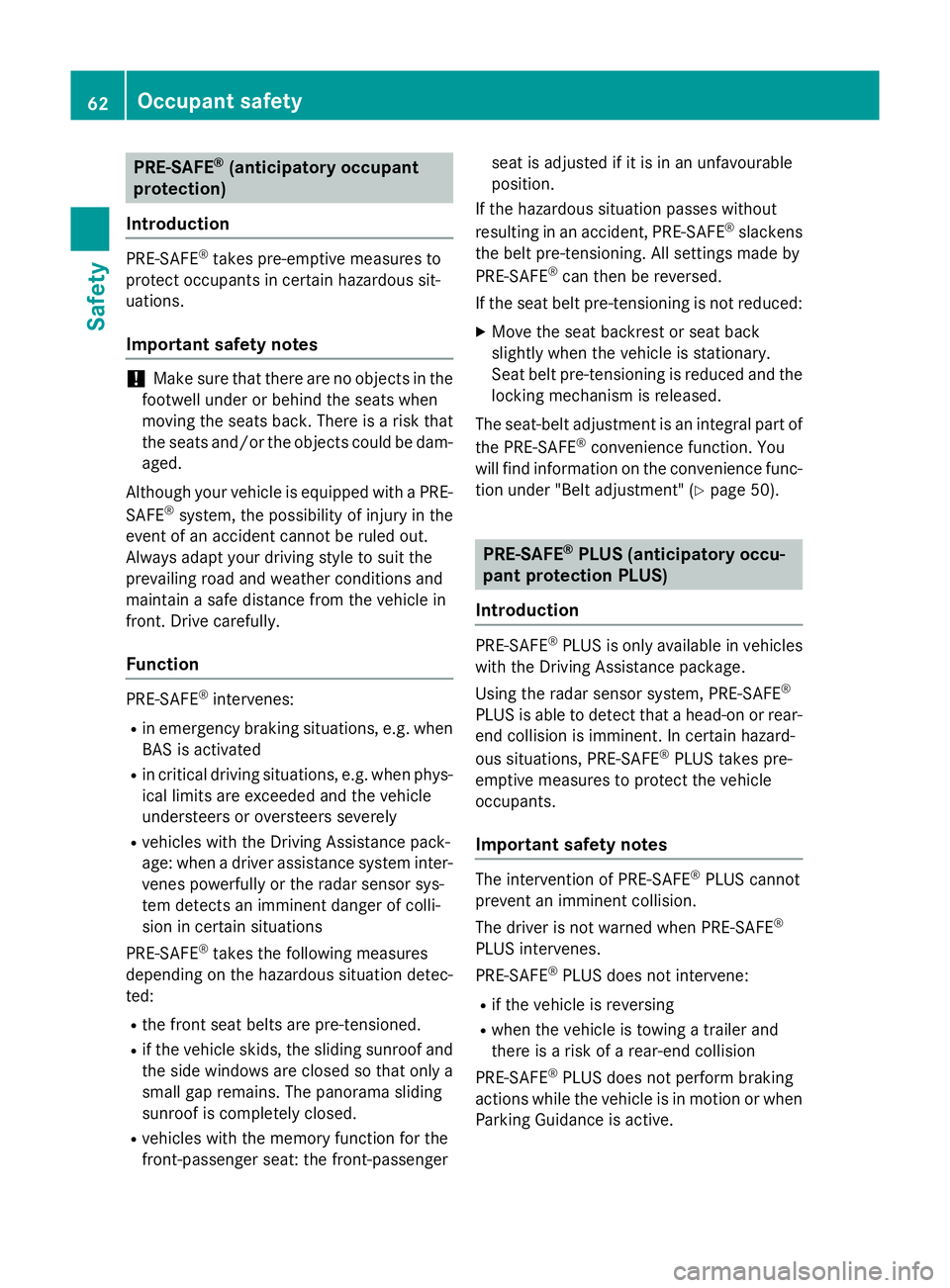

PRE-SAFE ®
(anticipatory occupant
protection)
Operation ......................................... 62 PRE-SAFE
®
(preventive occupant
safety system)
Display message ............................ 323
PRE-SAFE ®
Brake
Activating/deactivating ................. 309
Display message ............................ 323
Function/note s................................ 82
Important safety notes .................... 83
Warning lamp ................................. 363
PRE-SAFE ®
PLUS (anticipatory
occupant protection PLUS)
Operation ......................................... 62
Protection against theft
ATA (Anti-Theft Alarm system )......... 85
Immobiliser ...................................... 85
Interior motion sensor ..................... 86
Tow-away protection ........................ 86
Protection of the environment
General notes .................................. 24
Pulling away
Automatic transmission ................. 184
Hill start assist ............................... 185
Hybrid operation ............................ 277
Manual transmission ...................... 184
Trailer ............................................ 185 Q
Qualified specialist workshop ........... 27 R
Radiator cover ................................... 392
Radio
Selecting a station ......................... 302
Radio-based vehicle components
Declaration of conformity ................ 27
Rain closing feature
Panorama sliding sunroo f.............. 113
Sliding sunroof ............................... 112
RBS (Recuperative Brake System)
Driving safety systems ..................... 44
Important safety notes .................... 44
Warning lamp ................................. 362
Reading lamp ..................................... 140
READY indicator ................................ 276
Rear compartment
Setting the air vents ...................... 178 Index
17

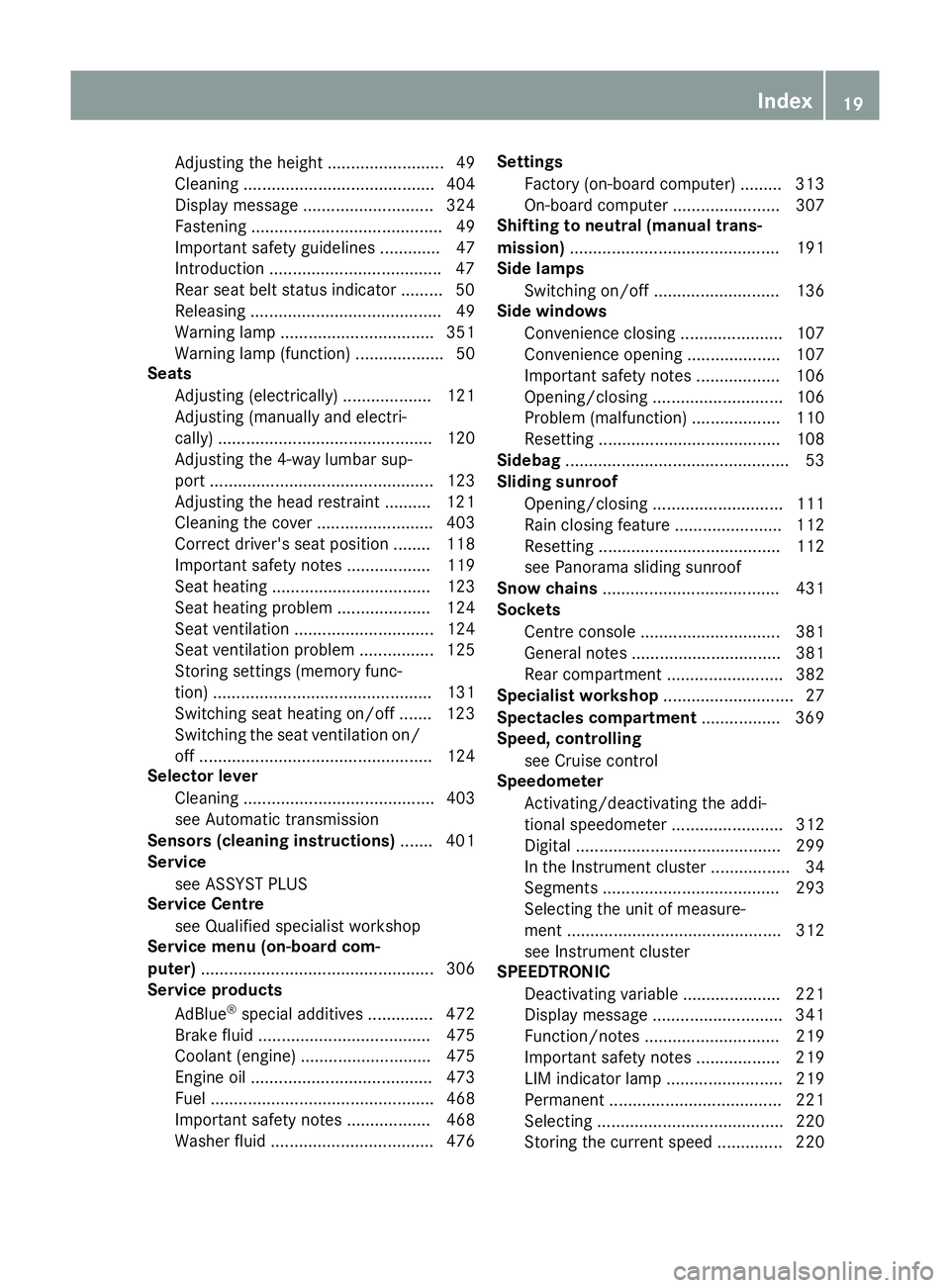

Adjusting the height ......................... 49
Cleaning ......................................... 404
Display message ............................ 324
Fastening ......................................... 49
Important safety guidelines ............. 47
Introduction ....................................
.47
Rear seat belt status indicato r .........50
Releasin g......................................... 49
Warning lamp ................................. 351
Warning lamp (function) ................... 50
Seats
Adjusting (electrically) ................... 121
Adjusting (manually and electri-
cally) .............................................. 120
Adjusting the 4-way lumbar sup-
port ................................................ 123
Adjusting the head restraint .......... 121
Cleaning the cover ......................... 403
Correct driver's seat position ........ 118
Important safety notes .................. 119
Seat heating .................................. 123
Seat heating problem .................... 124
Seat ventilation .............................. 124
Seat ventilation problem ................ 125
Storing settings (memory func-
tion) ............................................... 131
Switching seat heating on/of f....... 123
Switching the seat ventilation on/
off .................................................. 124
Selector lever
Cleaning ......................................... 403
see Automatic transmission
Sensors (cleaning instructions) ....... 401
Service
see ASSYST PLUS
Service Centre
see Qualified specialist workshop
Service menu (on-board com-
puter) .................................................. 306
Service products
AdBlue ®
special additive s.............. 472
Brake fluid ..................................... 475
Coolant (engine) ............................ 475
Engine oil ....................................... 473
Fuel ................................................ 468
Important safety notes .................. 468
Washer fluid ................................... 476 Settings
Factory (on-board computer) ......... 313
On-board compute r....................... 307
Shifting to neutral (manual trans-
mission) ............................................. 191
Side lamps
Switching on/of f........................... 136
Side windows
Convenience closing ...................... 107
Convenience opening .................... 107
Important safety notes .................. 106
Opening/closing ............................ 106
Problem (malfunction) ................... 110
Resetting ....................................... 108
Sidebag ................................................ 53
Sliding sunroof
Opening/closing ............................ 111
Rain closing feature ....................... 112
Resetting ....................................... 112
see Panorama sliding sunroof
Snow chains ...................................... 431
Sockets
Centre console .............................. 381
General notes ................................ 381
Rear compartment ......................... 382
Specialist workshop ............................ 27
Spectacles compartment ................. 369
Speed, controlling
see Cruise control
Speedometer
Activating/deactivating the addi-
tional speedometer ........................ 312
Digital ............................................ 299
In the Instrument cluster ................. 34
Segments ...................................... 293
Selecting the unit of measure-
ment .............................................. 312
see Instrument cluster
SPEEDTRONIC
Deactivating variable ..................... 221
Display message ............................ 341
Function/note s............................. 219
Important safety notes .................. 219
LIM indicator lamp ......................... 219
Permanent ..................................... 221
Selecting ........................................ 220
Storing the current speed .............. 220 Index
19

!
Airbags and seat belt tensioners, as well
as control units and sensors for these
restraint systems, may be installed in the
following areas of your vehicle:
R doors
R door pillars
R door sills
R seats
R dashboard
R instrument cluster
R centre console
Do not install accessories such as audio
systems in these areas. Do not carry out
repairs or welding. You could impair the
operating efficiency of the restraint sys-
tems.
Have accessories retrofitted at a qualified
specialist workshop.
You could jeopardise the operating safety of
your vehicle if you use parts, tyres and wheels
as well as accessories relevant to safety
which have not been approved by Mercedes. This could lead to malfunctions in safety-rel-
evant systems, e.g. the brake system. Use
only genuine Mercedes-Benz parts or parts of
equal quality. Only use tyres, wheels and
accessories that have been specifically
approved for your vehicle.
Mercedes-Benz tests genuine parts and con-
version parts and accessories that have been specifically approved for your vehicle for their
reliability, safety and suitability. Despite
ongoing market research, Mercedes-Benz is
unable to assess other parts. Mercedes-Benz therefore accepts no responsibility for the
use of such parts in Mercedes-Benz vehicles, even if they have been officially approved or
independently approved by a testing centre.
In Germany, certain parts are only officially
approved for installation or modification if
they comply with legal requirements. This
also applies to some other countries. All gen-
uine Mercedes-Benz parts meet the approval
requirements. The use of non-approved parts may invalidate the vehicle's general operating
permit.
This is the case:
R if they cause a change of the vehicle type
from that for which the vehicle's general
operating permit was granted
R if other road users could be endangered
R if the emission or noise levels are adversely
affected
Always specify the vehicle identification num- ber (VIN) when ordering genuine Mercedes-
Benz parts (Y page 468). Owner's Manual
Vehicle equipment
This Owner's Manual describes all models
and all standard and optional equipment
available for your vehicle at the time of pub-
lication of the Owner's Manual. Country-spe-
cific differences are possible. Note that your
vehicle may not be fitted with all features
described. This is also the case for systems
and functions relevant to safety. Therefore,
the equipment on your vehicle may differ from that in the descriptions and illustrations.
The original purchase contract documenta-
tion for your vehicle contains a list of all of the
systems in your vehicle.
Should you have any questions concerning
equipment and operation, please consult a
Mercedes-Benz Service Centre.
The Owner's Manual and Service Booklet are important documents and should kept in the
vehicle. Operating safety
Important safety notes
G
WARNING
If you do not have the prescribed service/
maintenance work or necessary repairs car- Introduction
25 Z

Objects in the vehicle interior may pre-
vent the airbag from functioning cor-
rectly. Before starting your journey and to
avoid risks resulting from the speed of the
airbag as it deploys, make sure that:
R there are no people, animals or objects
between the vehicle occupants and an air-
bag.
R there are no objects between the seat, door
and B-pillar.
R no hard objects, e.g. coat hangers, hang on
the grab handles or coat hooks.
R no accessories, such as cup holders, are
attached to the vehicle within the deploy-
ment area of an airbag, e.g. to doors, side
windows, rear side trim or side walls.
R no heavy, sharp-edged or fragile objects
are in the pockets of your clothing. Store
such objects in a suitable place. G
WARNING
If you modify an airbag cover or affix objects
such as stickers to it, the airbag can no longer function correctly. There is an increased risk
of injury.
Never modify an airbag cover or affix objects
to it. G
WARNING
Sensors to control the airbags are located in
the doors. Modifications or work not per-
formed correctly to the doors or door panel-
ling, as well as damaged doors, can lead to the function of the sensors being impaired. The
airbags might therefore not function properly any more. Consequently, the airbags cannot
protect vehicle occupants as they are
designed to do. This poses an increased risk
of injury.
Never modify the doors or parts of the doors.
Always have work on the doors or door pan-
elling carried out at a qualified specialist
workshop. Front airbags !
Do not place heavy objects on the front-
passenger seat. This could cause the sys-
tem to identify the seat as being occupied. In the event of an accident, the restraint
systems on the front-passenger side may
be triggered and have to be replaced. Driver's airbag
:deploys in front of the
steering wheel; front-passenger front air-
bag ;deploys in front of and above the glove
compartment.
When deployed on the front seats, the front
airbags offer additional protection for the
head and thorax.
The PASSENGER AIR BAG OFF and
PASSENGER AIR BAG ON indicator lamps
inform you about the status of the front-
passenger front airbag (Y page 46).
Front-passenger front airbag ;will only
deploy if:
R the automatic front-passenger front airbag
deactivation system has detected that the
front-passenger seat is occupied
(Y page 54). The PASSENGER AIR BAG
ON indicator lamp lights up (Y page 54)
R the restraint system predicts a high
severity of an accident 52
Occupant safetySafety

PRE-SAFE
®
(anticipatory occupant
protection)
Introduction PRE-SAFE
®
takes pre-emptive measures to
protect occupants in certain hazardous sit-
uations.
Important safety notes !
Make sure that there are no objects in the
footwell under or behind the seats when
moving the seats back. There is a risk that
the seats and/or the objects could be dam-
aged.
Although your vehicle is equipped with a PRE-
SAFE ®
system, the possibility of injury in the
event of an accident cannot be ruled out.
Always adapt your driving style to suit the
prevailing road and weather conditions and
maintain a safe distance from the vehicle in
front. Drive carefully.
Function PRE-SAFE
®
intervenes:
R in emergency braking situations, e.g. when
BAS is activated
R in critical driving situations, e.g. when phys-
ical limits are exceeded and the vehicle
understeers or oversteers severely
R vehicles with the Driving Assistance pack-
age: when a driver assistance system inter-
venes powerfully or the radar sensor sys-
tem detects an imminent danger of colli-
sion in certain situations
PRE-SAFE ®
takes the following measures
depending on the hazardous situation detec-
ted:
R the front seat belts are pre-tensioned.
R if the vehicle skids, the sliding sunroof and
the side windows are closed so that only a
small gap remains. The panorama sliding
sunroof is completely closed.
R vehicles with the memory function for the
front-passenger seat: the front-passenger seat is adjusted if it is in an unfavourable
position.
If the hazardous situation passes without
resulting in an accident, PRE-SAFE ®
slackens
the belt pre-tensioning. All settings made by
PRE-SAFE ®
can then be reversed.
If the seat belt pre-tensioning is not reduced:
X Move the seat backrest or seat back
slightly when the vehicle is stationary.
Seat belt pre-tensioning is reduced and the
locking mechanism is released.
The seat-belt adjustment is an integral part of
the PRE-SAFE ®
convenience function. You
will find information on the convenience func-
tion under "Belt adjustment" (Y page 50). PRE-SAFE
®
PLUS (anticipatory occu-
pant protection PLUS)
Introduction PRE-SAFE
®
PLUS is only available in vehicles
with the Driving Assistance package.
Using the radar sensor system, PRE-SAFE ®
PLUS is able to detect that a head-on or rear-
end collision is imminent. In certain hazard-
ous situations, PRE-SAFE ®
PLUS takes pre-
emptive measures to protect the vehicle
occupants.
Important safety notes The intervention of PRE-SAFE
®
PLUS cannot
prevent an imminent collision.
The driver is not warned when PRE-SAFE ®
PLUS intervenes.
PRE-SAFE ®
PLUS does not intervene:
R if the vehicle is reversing
R when the vehicle is towing a trailer and
there is a risk of a rear-end collision
PRE-SAFE ®
PLUS does not perform braking
actions while the vehicle is in motion or when
Parking Guidance is active. 62
Occupant safetySafety

Function
PRE-SAFE
®
PLUS intervenes in certain situa-
tions if the radar sensor system detects an
imminent head-on or rear-end collision.
PRE-SAFE ®
PLUS takes the following meas-
ures depending on the hazardous situation
detected:
R If the radar sensor system detects that a
head-on collision is imminent, the seat
belts are pre-tensioned.
R If the radar sensor system detects that a
rear-end collision is imminent:
- the rear hazard warning lamps are acti-
vated and flash at a higher frequency.
- the brake pressure is increased if the
driver applies the brakes when the vehi-
cle is stationary.
- the seat belts are pre-tensioned.
The PRE-SAFE ®
PLUS braking application is
cancelled:
R if the accelerator pedal is depressed when
a gear is engaged
R if the risk of a collision passes or is no lon-
ger detected
R if DISTRONIC PLUS indicates an intention
to pull away
If the hazardous situation passes without
resulting in an accident, the original settings
are restored. Automatic measures after an acci-
dent
Immediately after an accident, the following
measures are implemented, depending on
the type and severity of the impact:
R the hazard warning lamps are activated
R the emergency lighting is activated
R the vehicle doors are unlocked
R the front side windows are lowered
R vehicles with a memory function: the elec-
trically adjustable steering wheel is raised
R the engine is switched off R
vehicles with the Mercedes-Benz emer-
gency call system: automatic emergency
call
R vehicles with the hybrid drive system: the
hybrid system is deactivated Children in the vehicle
Important safety notes
Accident statistics show that children
secured in the rear seats are safer than chil-
dren secured in the front-passenger seat. For this reason, Mercedes-Benz strongly advises
that you install a child restraint system on a
rear seat. Children are generally better pro-
tected there.
If a child younger than 12 years old and under 1.50 m in height is travelling in the vehicle:
R always secure the child in a child restraint
system suitable for Mercedes-Benz vehi-
cles. The child restraint system must be
appropriate to the age, weight and size of
the child
R be sure to observe the instructions and
safety notes in this section in addition to
the child restraint system manufacturer's
installation instructions
R always pay attention to the instructions
and safety notes on the automatic front-
passenger front airbag deactivation system
(Y page 54) G
WARNING
If you leave children unattended in the vehi-
cle, they may be able to set the vehicle in
motion if, for example, they:
R release the parking brake
R shift the automatic transmission out of park
position Por shift manual transmission into
neutral
R start the engine
In addition, they may operate vehicle equip-
ment and become trapped. There is a risk of
an accident and injury. Children in the vehicle
63Safety
Z

Important safety notes
i
Observe the "Important safety notes" sec-
tion (Y page 74). G
WARNING
If ABS is faulty, the wheels could lock when
braking. The steerability and braking charac-
teristics may be severely impaired. Addition-
ally, further driving safety systems are deac-
tivated. There is an increased danger of skid- ding and accidents.
Drive on carefully. Have ABS checked imme-
diately at a qualified specialist workshop.
If ABS is malfunctioning, other systems,
including driving safety systems, will also
become inoperative. Observe the information on the ABS warning lamp (Y page 355) and
display messages which may be shown in the
instrument cluster (Y page 315).
ABS works from a speed of about
8 km/hupwards, regardless of road-surface
conditions. ABS works on slippery surfaces,
even when you only brake gently.
Braking X
If ABS intervenes: continue to depress the
brake pedal with force until the braking sit-
uation is over.
X To make a full brake application:
depress the brake pedal with full force.
If ABS intervenes when braking, you will feel a pulsing in the brake pedal.
The pulsating brake pedal can be an indica-
tion of hazardous road conditions, and func-
tions as a reminder to take extra care while
driving. BAS (Brake Assist)
General notes BAS operates in emergency braking situa-
tions. If you depress the brake pedal quickly,
BAS automatically boosts the braking force,
thus shortening the stopping distance. Important safety notes i
Observe the "Important safety notes" sec-
tion (Y page 74). G
WARNING
If BAS is malfunctioning, the braking distance
in an emergency braking situation is
increased. There is a risk of accident.
In an emergency braking situation, depress
the brake pedal with full force. ABS prevents
the wheels from locking.
Braking X
Keep the brake pedal depressed firmly until
the emergency braking situation is over.
ABS prevents the wheels from locking.
The brakes will function as usual once you
release the brake pedal. BAS is deactivated. BAS PLUS (Brake Assist PLUS) with
Cross-Traffic Assist
General notes i
Observe the "Important safety notes" sec-
tion (Y page 74).
BAS PLUS is only available on vehicles with
the Driving Assistance package.
For BAS PLUS to assist you when driving, the radar sensor system and the camera system
must be operational.
With the help of a sensor system and a cam-
era system, BAS PLUS can detect obstacles:
R that are in the path of your vehicle for an
extended period of time
R that cross the path of your vehicle
In addition, pedestrians in the path of your
vehicle can be detected.
BAS PLUS detects pedestrians using typical
characteristics such as the body contours
and posture of a person standing upright.
If the radar sensor system or the camera sys- tem is malfunctioning, BAS PLUS functions
are restricted or no longer available. The Driving safety systems
75Safety Z

brake system is still available with complete
brake boosting effect and BAS.
i Observe the restrictions described in the
"Important safety notes" section
(Y page 76).
BAS PLUS can help you to minimise the risk of a collision with a vehicle or a pedestrian and
reduce the effects of such a collision. If BAS
PLUS detects a danger of collision, you are
assisted when braking.
Important safety notes G
WARNING
BAS PLUS cannot always clearly identify
objects and complex traffic situations.
In such cases, BAS PLUS may:
R intervene unnecessarily
R not intervene
There is a risk of an accident.
Always pay careful attention to the traffic sit- uation and be ready to brake. Terminate the
intervention in a non-critical driving situation. G
WARNING
BAS PLUS does not react:
R to small people, e.g. children
R to animals
R to oncoming vehicles
R when cornering
As a result, BAS PLUS may not intervene in all
critical situations. There is a risk of an acci-
dent.
Always pay careful attention to the traffic sit- uation and be ready to brake.
In the event of snowfall or heavy rain, detec-
tion can be impaired.
Detection by the radar sensor system is also
impaired in the event of:
R dirt on the sensors or obscured sensors
R interference by other radar sources
R strong radar reflections, for example, in
multi-storey car parks R
a narrow vehicle travelling in front, e.g. a
motorcycle
R a vehicle travelling in front on a different
line
R vehicles quickly moving into the radar sen-
sor system detection range
Detection by the camera system is also
impaired in the event of:
R dirt on the camera or if the camera is cov-
ered
R glare on the camera system, e.g. from the
sun being low in the sky
R darkness
R if:
- pedestrians move quickly, e.g. into the
path of the vehicle
- the camera system no longer detects a
pedestrian as a person due to special
clothing or other objects
- a pedestrian is concealed by other
objects
- the typical outline of a person is not dis-
tinguishable from the background
Following damage to the front end of the vehi-
cle, have the radar sensor settings and oper- ation checked at a qualified specialist work-
shop. This also applies to collisions at slow
speeds where there is no visible damage to
the front of the vehicle.
Following damage to the windscreen, have
the configuration and operation of the cam-
era system checked at a qualified specialist
workshop.
Function To avoid a collision, BAS PLUS calculates the
brake force necessary if:
R you approach an obstacle and
R BAS PLUS has detected a risk of collision
When driving at a speed under 30 km/h : if
you depress the brake pedal, BAS PLUS is
activated. Braking assistance from BAS PLUS is carried out at the last possible moment. 76
Driving safety systemsSafety
