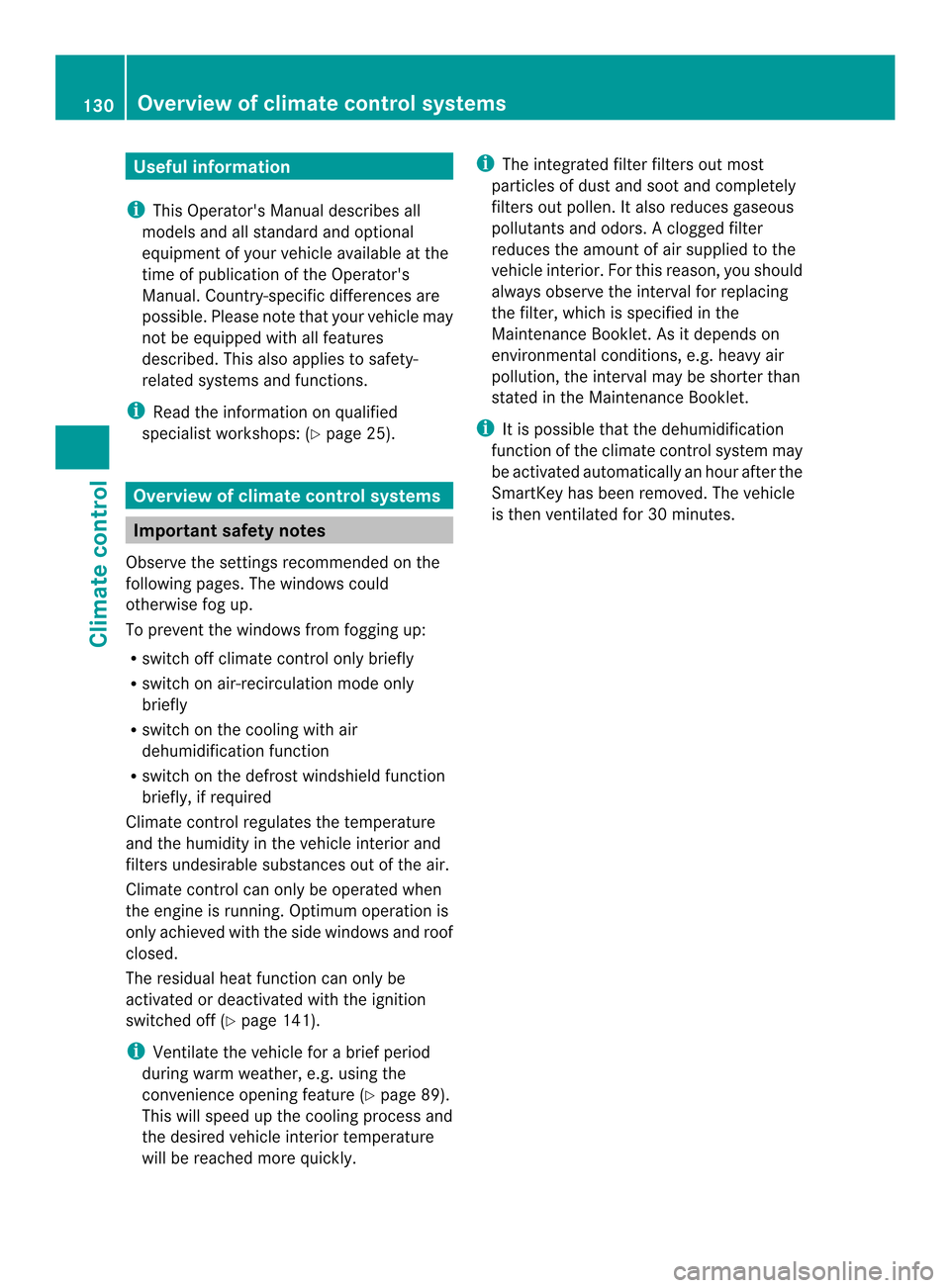

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: (Y page 25).Overview of climate control systems
Important safety notes
Observe the settings recommended on the
following pages. The windows could
otherwise fog up.
To preven tthe windows from fogging up:
R switch off climate control only briefly
R switch on air-recirculation mode only
briefly
R switch on the cooling with air
dehumidification function
R switch on the defrost windshield function
briefly, if required
Climate control regulates the temperature
and the humidity in the vehicle interior and
filters undesirable substances out of the air.
Climate control can only be operated when
the engine is running. Optimum operation is
only achieved with the side windows and roof
closed.
The residual heat function can only be
activated or deactivated with the ignition
switched off (Y page 141).
i Ventilate the vehicle for a brief period
during warm weather, e.g. using the
convenience opening feature (Y page 89).
This will speed up the cooling process and
the desired vehicle interior temperature
will be reached more quickly. i
The integrated filter filters out most
particles of dust and soot and completely
filters out pollen. It also reduces gaseous
pollutants and odors. Aclogged filter
reduces the amoun tofair supplied to the
vehicle interior .For this reason, you should
always observe the interval for replacing
the filter, which is specified in the
Maintenance Booklet .As it depends on
environmental conditions, e.g. heavy air
pollution, the interval may be shorter than
stated in the Maintenance Booklet.
i It is possible that the dehumidification
function of the climate control system may
be activated automatically an hour after the
SmartKey has been removed. The vehicle
is then ventilated for 30 minutes. 130
Overview of climate control systemsClimate control

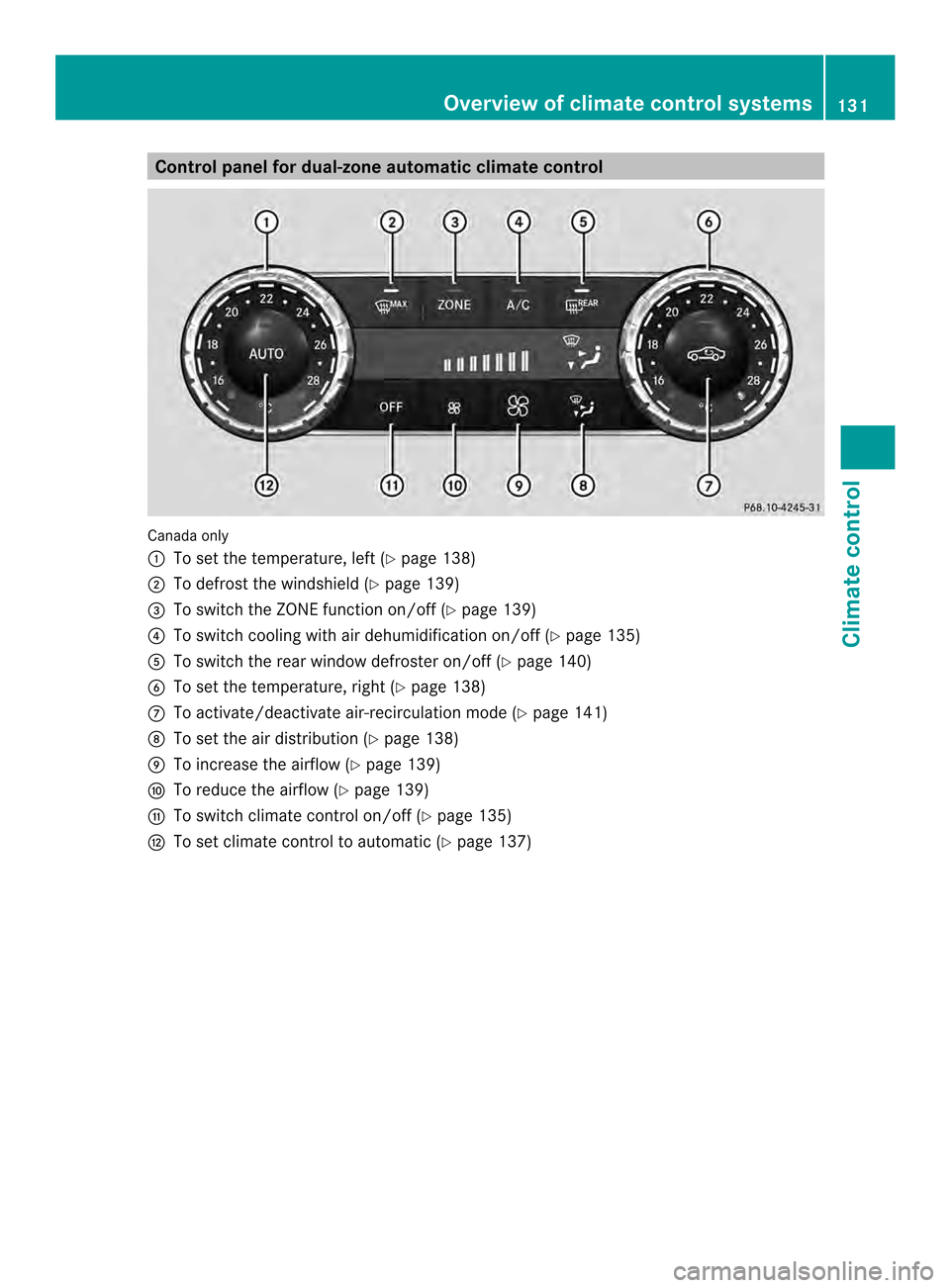

Control panel for dual-zone automatic climate control
Canada only
0002
To set the temperature, left (Y page 138)
0003 To defros tthe windshield (Y page 139)
0022 To switch the ZONE function on/off (Y page 139)
0021 To switch cooling with air dehumidification on/off (Y page 135)
001F To switch the rear window defroster on/off (Y page 140)
0020 To set the temperature, right (Y page 138)
0012 To activate/deactivate air-recirculation mode (Y page 141)
0013 To set the air distribution (Y page 138)
0014 To increase the airflow (Y page 139)
0015 To reduce the airflow (Y page 139)
0016 To switch climate control on/off (Y page 135)
0018 To set climate control to automatic (Y page 137) Overview of climate control systems
131Climate control

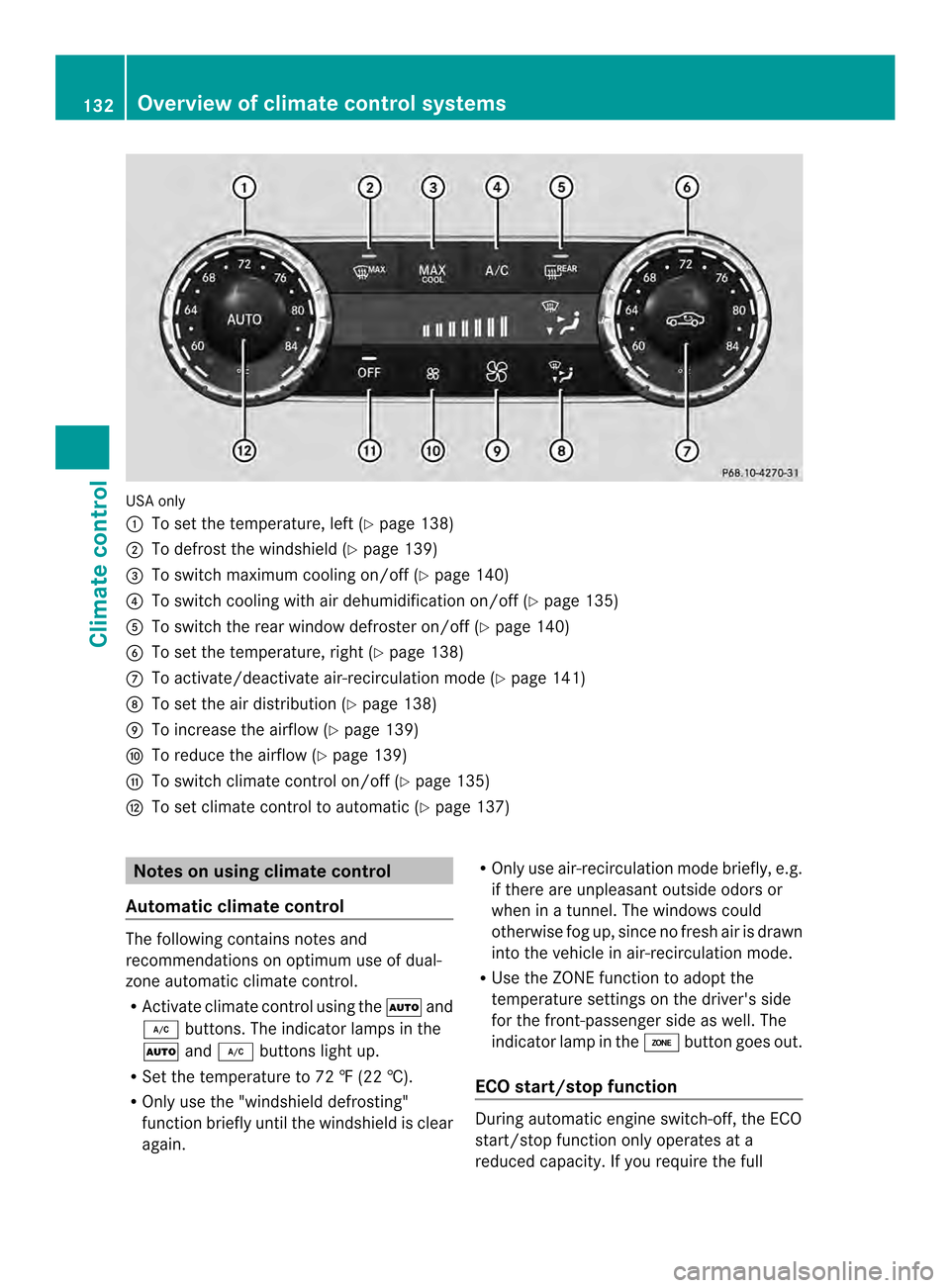

USA only
0002
To set the temperature, left (Y page 138)
0003 To defrost the windshield (Y page 139)
0022 To switch maximum cooling on/off (Y page 140)
0021 To switch cooling with air dehumidification on/off (Y page 135)
001F To switch the rear window defroster on/off (Y page 140)
0020 To set the temperature, right (Y page 138)
0012 To activate/deactivate air-recirculation mode (Y page 141)
0013 To set the air distribution (Y page 138)
0014 To increase the airflow (Y page 139)
0015 To reduce the airflow (Y page 139)
0016 To switch climate control on/off (Y page 135)
0018 To set climate control to automatic (Y page 137)Notes on using climate control
Automatic climate control The following contains notes and
recommendations on optimum use of dual-
zone automatic climate control.
R
Activate climate control using the 0004and
0005 buttons. The indicator lamps in the
0004 and0005 buttons light up.
R Set the temperature to 72 ‡ (22 †).
R Only use the "windshield defrosting"
function briefly until the windshield is clear
again. R
Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could
otherwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE function to adopt the
temperature settings on the driver's side
for the front-passenger side as well.T he
indicator lamp in the 0003button goes out.
ECO start/stop function During automatic engine switch-off, the ECO
start/stop function only operates at a
reduced capacity. If you require the full132
Overview of climate control systemsClimate control

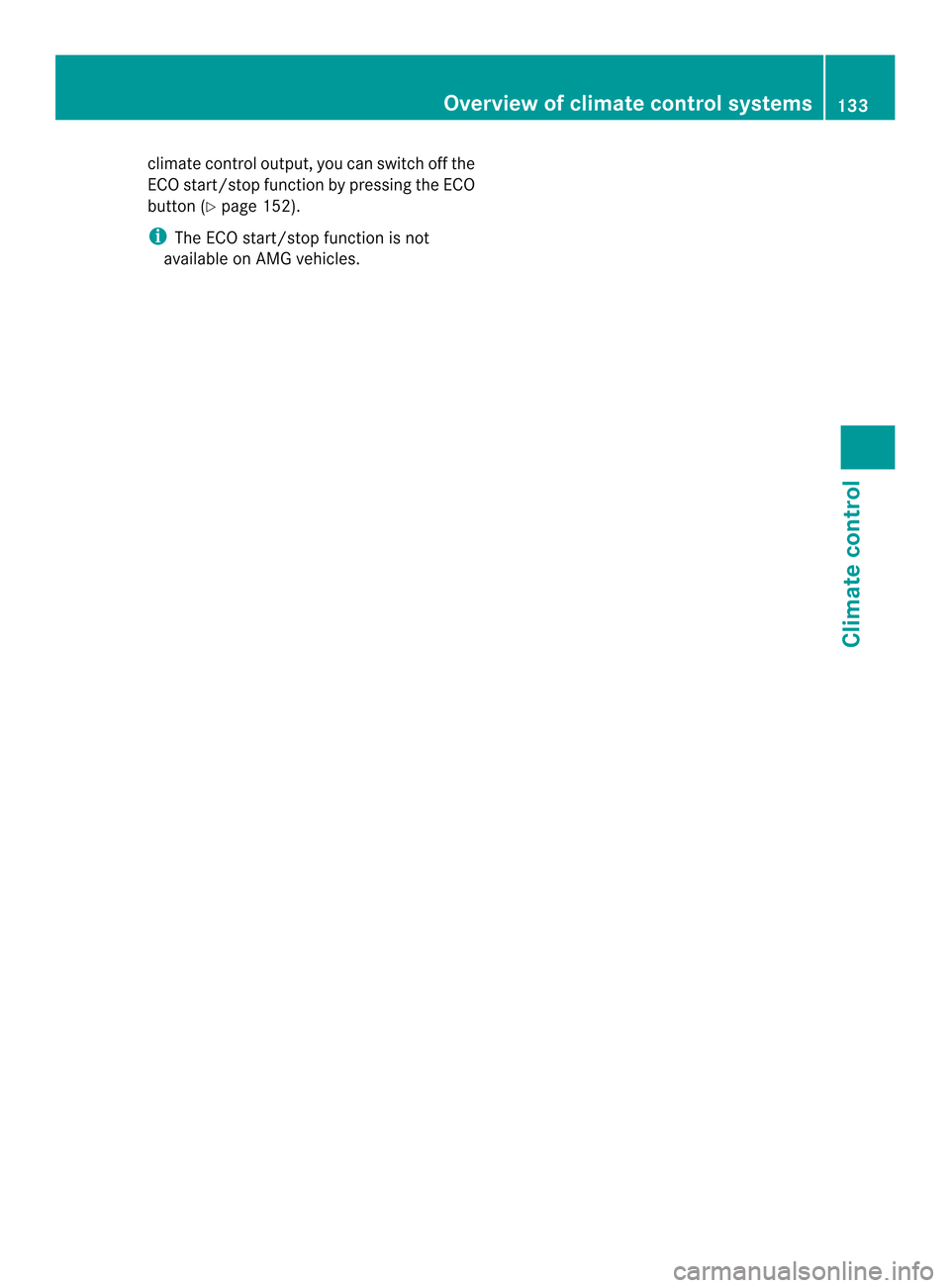

climate control output, you can switch off the
ECO start/stop function by pressing the ECO
button (Y page 152).
i The ECO start/stop function is not
available on AMG vehicles. Overview of climate control systems
133Climate control

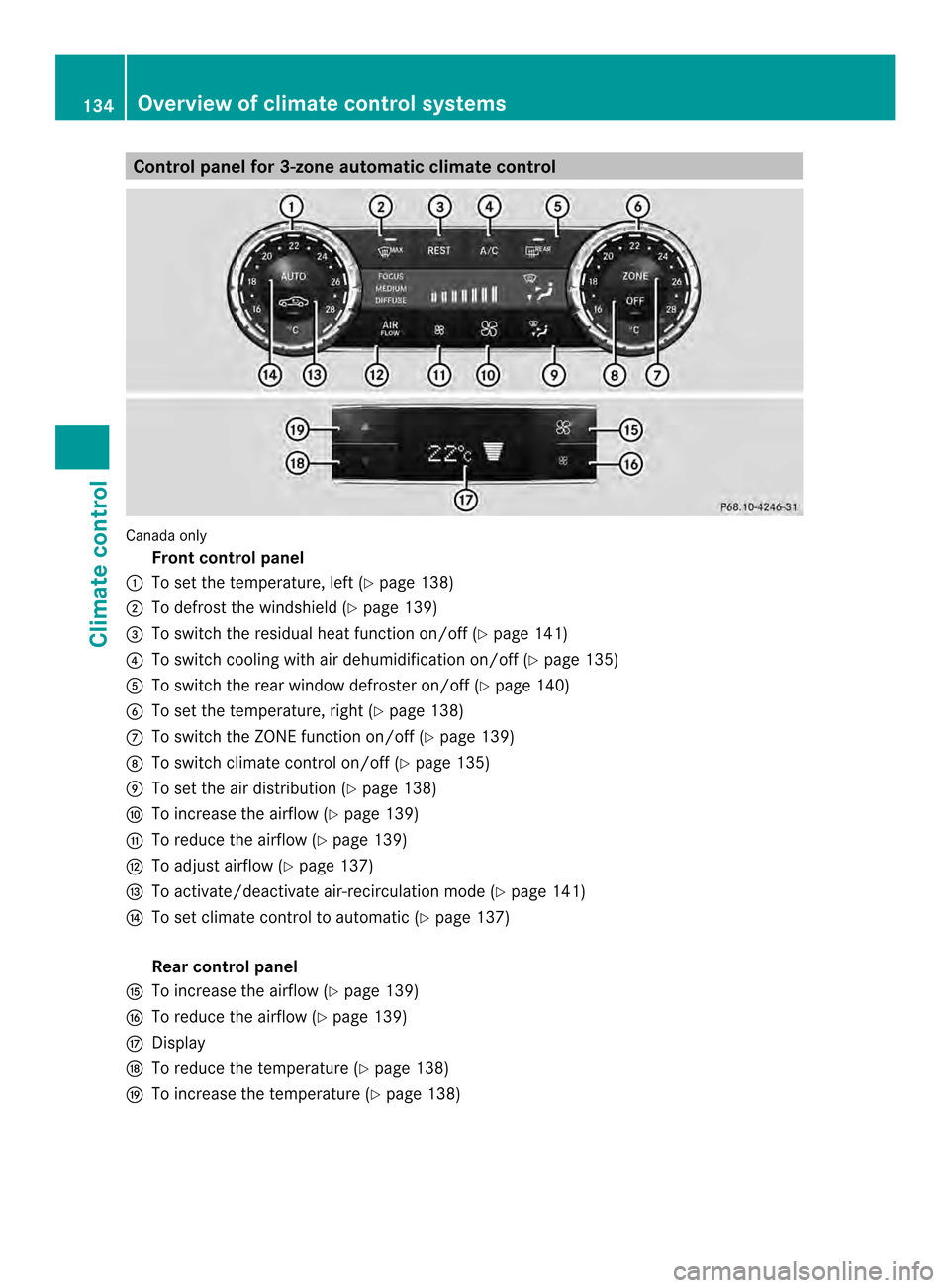

Control panel for 3-zone automatic climate control
Canada only
Fron tcontrol panel
0002 To set the temperature, left (Y page 138)
0003 To defrost the windshield (Y page 139)
0022 To switch the residual heat function on/off (Y page 141)
0021 To switch cooling with air dehumidificatio non/off (Y page 135)
001F To switch the rea rwindow defroster on/off (Y page 140)
0020 To set the temperature, right (Y page 138)
0012 To switch the ZONE function on/off (Y page 139)
0013 To switch climate control on/off (Y page 135)
0014 To set the air distribution (Y page 138)
0015 To increase the airflow (Y page 139)
0016 To reduce the airflow (Y page 139)
0018 To adjust airflow (Y page 137)
0019 To activate/deactivate air-recirculation mode (Y page 141)
001A To set climate control to automatic (Y page 137)
Rear control panel
001B To increase the airflow (Y page 139)
001D To reduce the airflow (Y page 139)
001E Display
0023 To reduce the temperature (Y page 138)
0024 To increase the temperature (Y page 138)134
Overview of climate control systemsClimate control

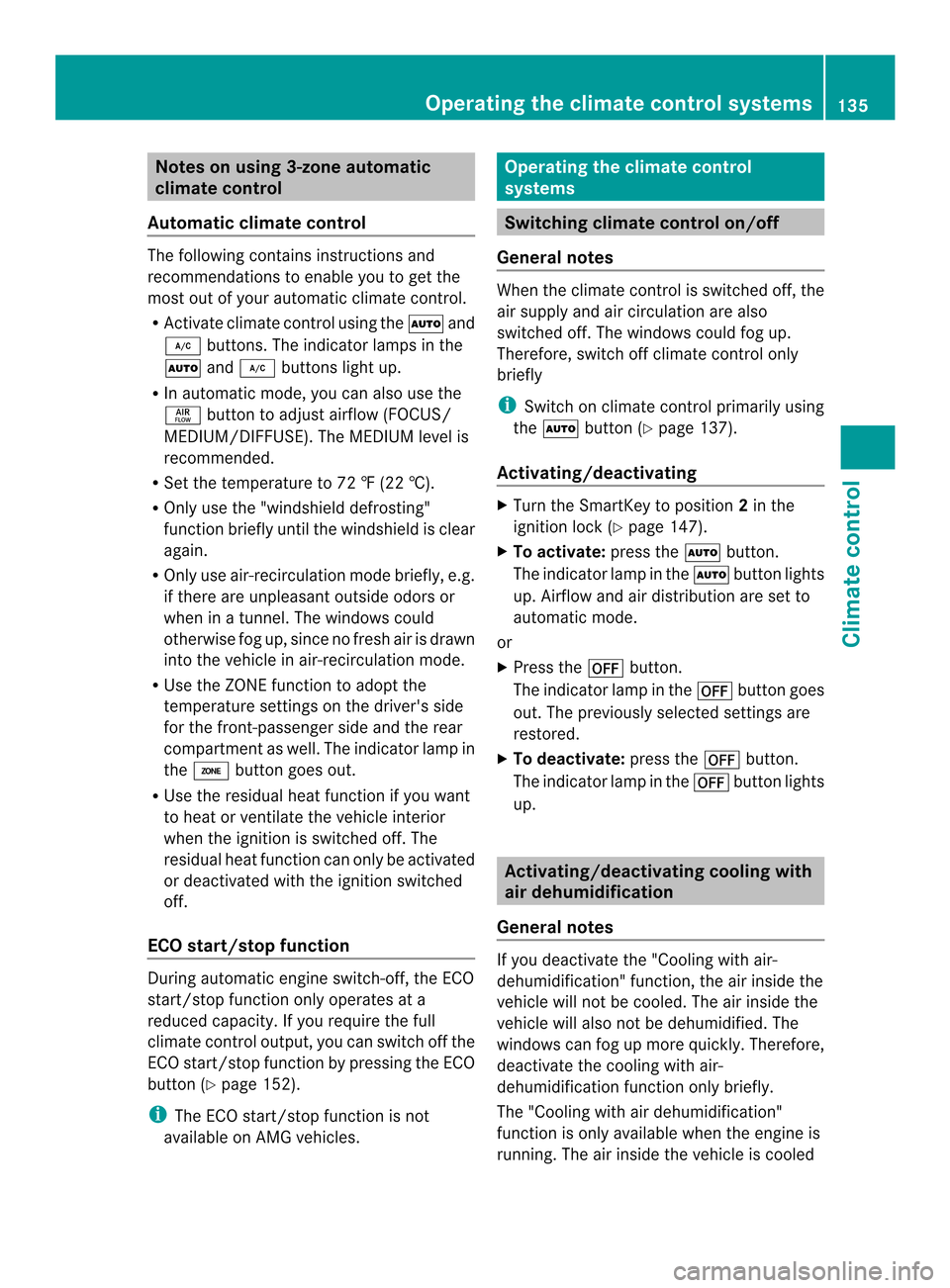

Notes on using 3-zone automatic
climate control
Automatic climate control The following contains instructions and
recommendations to enable you to ge tthe
most out of your automatic climate control.
R Activate climate control using the 0004and
0005 buttons. The indicator lamps in the
0004 and0005 buttons light up.
R In automatic mode, you can also use the
000A button to adjust airflow (FOCUS/
MEDIUM/DIFFUSE). The MEDIUM level is
recommended.
R Set the temperature to 72 ‡ (22 †).
R Only use the "windshield defrosting"
function briefly until the windshield is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could
otherwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE function to adopt the
temperature settings on the driver's side
for the front-passenger side and the rear
compartmenta s well.The indicator lamp in
the 0003 button goes out.
R Use the residual heat function if you want
to heat or ventilate the vehicle interior
when the ignition is switched off. The
residual heat function can only be activated
or deactivated with the ignition switched
off.
ECO start/stop function During automatic engine switch-off, the ECO
start/stop function only operates at a
reduced capacity. If you require the full
climate control output, you can switch off the
ECO start/stop function by pressing the ECO
button (Y page 152).
i The ECO start/stop function is not
available on AMG vehicles. Operating the climate control
systems
Switching climate control on/off
General notes When the climate control is switched off, the
air supply and air circulation are also
switched off. The windows could fog up.
Therefore, switch off climate control only
briefly
i
Switch on climate control primarily using
the 0004 button (Y page 137).
Activating/deactivating X
Turn the SmartKey to position 2in the
ignition lock (Y page 147).
X To activate: press the0004button.
The indicator lamp in the 0004button lights
up. Airflow and air distribution are set to
automatic mode.
or
X Press the 000Cbutton.
The indicator lamp in the 000Cbutton goes
out. The previously selected settings are
restored.
X To deactivate: press the000Cbutton.
The indicator lamp in the 000Cbutton lights
up. Activating/deactivating cooling with
air dehumidification
General notes If you deactivate the "Cooling with air-
dehumidification" function, the air inside the
vehicle will not be cooled. The air inside the
vehicle will also not be dehumidified. The
windows can fog up more quickly. Therefore,
deactivate the cooling with air-
dehumidification function only briefly.
The "Cooling with air dehumidification"
function is only available when the engine is
running. The air inside the vehicle is cooledOperating the climate control systems
135Climate control

and dehumidified according to the
temperature selected.
Condensation may drip from the underside of
the vehicle when it is in cooling mode. This is
normal and not a sign that there is a
malfunction.
Activating/deactivating X
To activate: press the0005button.
The indicator lamp in the 0005buttonlights
up.
i When the "Cooling with air
dehumidification" function is activated,
one of the indicator lamps on the auxiliary
heating button will light up on vehicles with
auxiliary heating.
X To deactivate: press the0005button.
The indicator lamp in the 0005button goes
out. The "Cooling with air dehumidification"
function has a delayed switch-off feature. 136
Operating the climate control systemsClimate control

Problems with the "Cooling with air dehumidification" function
Problem Possible causes/consequences and
0001 Solutions
The indicator lamp in
the
0005 button
flashes three times or
remains off. The
"Cooling with air
dehumidification"
function cannot be
switched on. Cooling with air dehumidification has been deactivated due to a
malfunction.
X
Visit a qualified specialist workshop. Setting climate control to automatic
General notes In automatic mode, the set temperature is
maintained automatically at a constant level.
The system automatically regulates the
temperature of the dispensed air, the airflow
and the air distribution.
The automatic mode functions optimally
when the "Cooling with air dehumidification"
function is activated. If necessary, cooling
with air dehumidification can be deactivated.
If you deactivate the "Cooling with air-
dehumidification" function, the air inside the
vehicle will not be cooled. The air inside the
vehicle will also not be dehumidified. The
windows can fog up more quickly. Therefore,
deactivate the cooling with air-
dehumidification function only briefly.
Activating/switching X
Turn the SmartKey to position 2in the
ignition lock (Y page 147).
X Set the desired temperature.
X To activate: press the0004button.

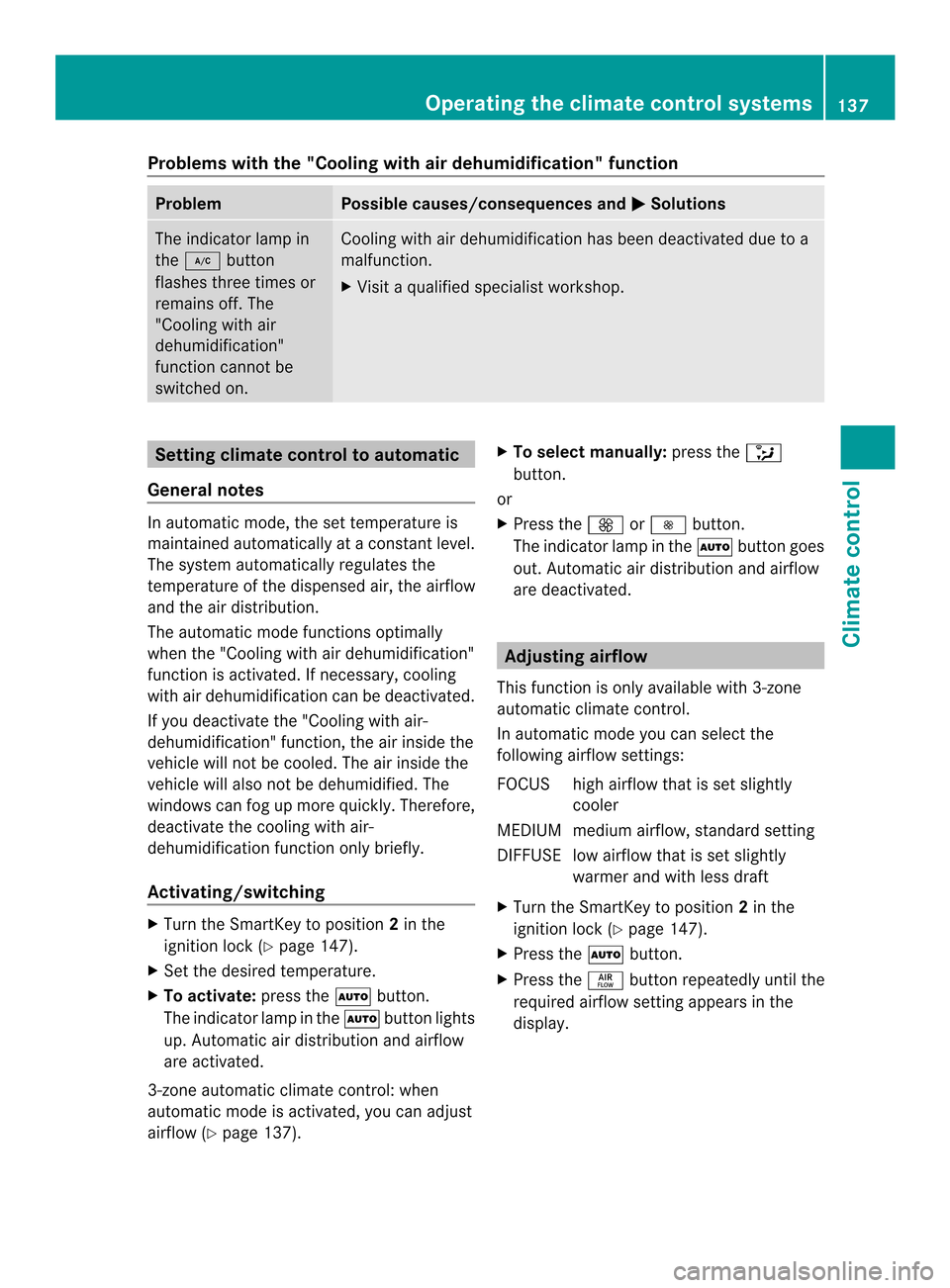

The indicator lamp in the 0004button lights
up. Automatic air distribution and airflow
are activated.
3-zone automatic climate control: when
automatic mode is activated, you can adjust
airflow (Y page 137). X
To selectm anually:press the 0015
button.
or
X Press the 0017or0016 button.
The indicator lamp in the 0004button goes
out. Automatic aird istribution and airflow
are deactivated. Adjusting airflow
This function is only available with 3-zone
automatic climate control.
In automatic mode you can select the
following airflow settings:
FOCUS high airflow that is set slightly cooler
MEDIUM medium airflow, standard setting
DIFFUSE low airflow that is set slightly warmer and with less draft
X Turn the SmartKey to position 2in the
ignition lock (Y page 147).
X Press the 0004button.
X Press the 000Abutton repeatedly until the
required airflow setting appears in the
display. Operating the climate control systems
137Climate control

Setting the temperature
Dual-zone automatic climate control Different temperatures can be set for the
driver's and front-passenger sides.
X
Turn the SmartKey to position 2in the
ignition lock (Y page 147).
X To increase/reduce: turn control0002or
0020 clockwise or counter-clockwise
(Y page 131).
Only change the temperature setting in
small increments. Start at 72 ‡ (22 †).
3-zone automatic climate control 7Automatic climate control zones
You can select different temperature settings
for the driver's and front-passenger sides as
well as for the rear compartment.
X
Turn the SmartKey to position 2in the
ignition lock (Y page 147).
X To increase/reduce the temperature in
the front: turn control 0002or0020 clockwise
or counter-clockwise (Y page 134).
Only change the temperature setting in
small increments. Start at 72 ‡ (22 †).
X To increase/reduce the temperature in
the rear compartment using the front
control panel: press the0003button.
The indicator lamp in the 0003button goes
out. X
Turn control 0002clockwise or counter-
clockwise (Y page 134).
Only change the temperature setting in
small increments. Start at 72 ‡ (22 †).
X To increase/reduce the temperature in
the rear compartment using the rear
control panel: press the0003or0004
button on the rear control panel.
Only change the temperature setting in
small increments. Start at 72 ‡ (22 †).
i If you leave the vehicle parked for longer
than 30 minutes, the temperature setting
for the rear compartment then switches
back to 72 ‡ (22 †). Setting the air distribution
Air distribution settings 0019
Directs air through the center and side
air vents
0018 Directs air through the footwell air
vents
001A Directs air through the center, side and
footwell vents
0006 Directs air through the defroster vents
0014 Directs the airflow through the
defroster, center and side air vents 8
0013 Directs air through the defroster and
footwell vents
0015 Directs air through the defroster,
center, side and footwell vents 8
i Regardless of the air distribution setting,
airflow is always directed through the side
air vents. The side air vents can only be
closed when the controls on the side air
vents are turned downwards.
7 Canada only.
8 Canada only. 138
Operating the climate control systemsClimate control
