MERCEDES-BENZ C-Class SEDAN 2015 W205 Owner's Manual

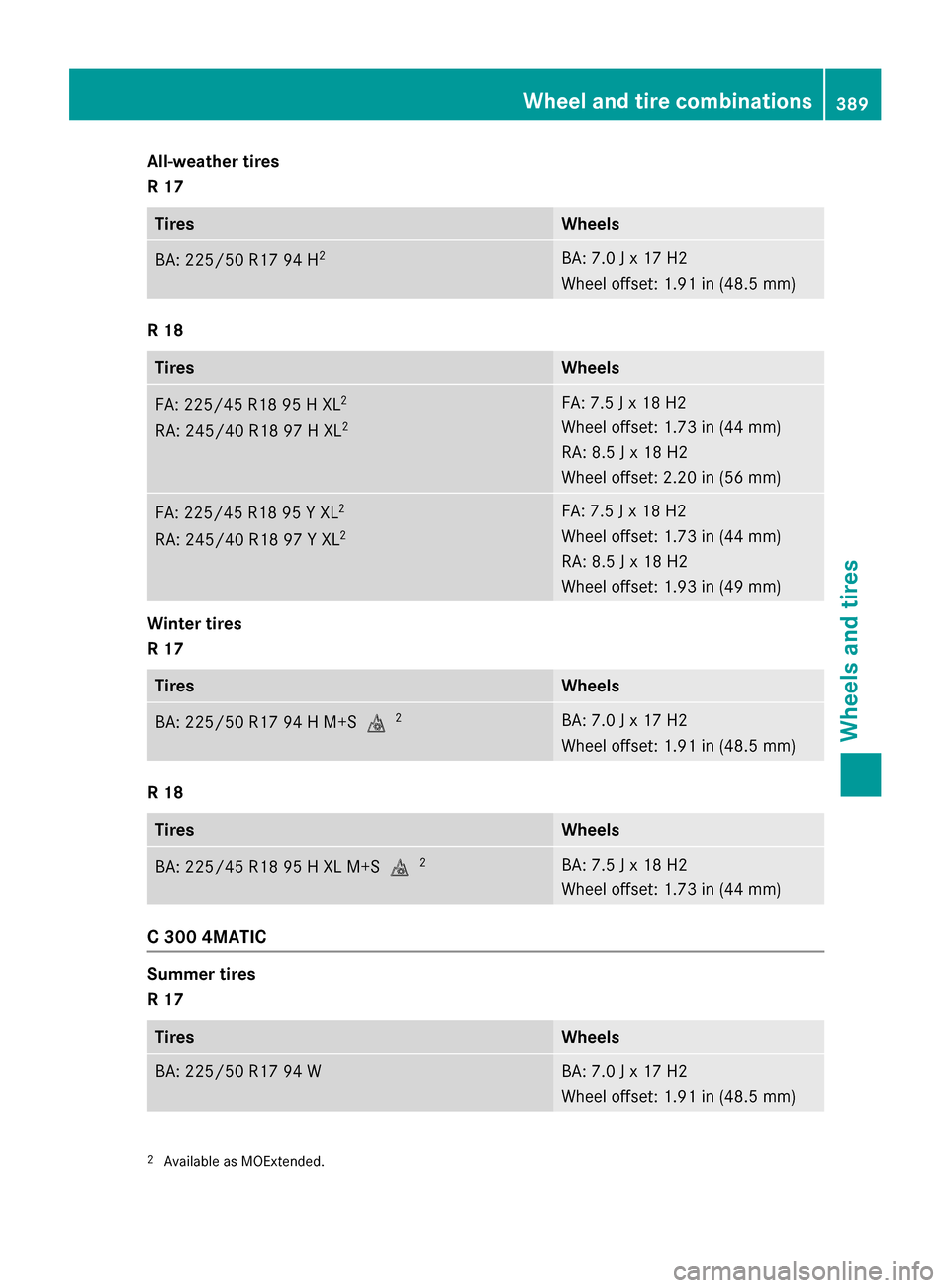

All-weather tires
R 17
Tires Wheels
BA: 225/50 R17 94 H
2 BA: 7.0 J x 17 H2
Wheel offset: 1.91 in (48.5 mm)
R 18
Tires Wheels
FA: 225/45 R18 95 H XL
2
RA: 245/40 R18 97 H XL 2 FA: 7.5 J x 18 H2
Wheel offset: 1.73 in (44 mm)
RA: 8.5 J x 18 H2
Wheel offset: 2.20 in (56 mm)
FA: 225/45 R18 95 Y XL
2
RA: 245/40 R18 97 Y XL 2 FA: 7.5 J x 18 H2
Wheel offset: 1.73 in (44 mm)
RA: 8.5 J x 18 H2
Wheel offset: 1.93 in (49 mm)
Winter tires
R 17
Tires Wheels
BA: 225/50 R17 94 H M+S004D
2 BA: 7.0 J x 17 H2
Wheel offset: 1.91 in (48.5 mm)
R 18
Tires Wheels
BA: 225/45 R18 95 H XL M+S004D
2 BA: 7.5 J x 18 H2
Wheel offset: 1.73 in (44 mm)
C 300 4MATIC
Summer tires
R 17
Tires Wheels
BA: 225/50 R17 94 W BA: 7.0 J x 17 H2
Wheel offset: 1.91 in (48.5 mm)
2
Available as MOExtended. Wheel and tire combinations
389Wheels and tires Z

R 18
Tires Wheels
FA: 225/45 R18 95 Y XL
2
RA: 245/40 R18 97 Y XL 2 FA: 7.5 J x 18 H2
Wheel offset: 1.73 in (44 mm)
RA: 8.5 J x 18 H2
Wheel offset: 2.20 in (56 mm)
FA: 225/45 R18 95 Y XL
2
RA: 245/40 R18 97 Y XL 2, 3 FA: 7.5 J x 18 H2
Wheel offset: 1.73 in (44 mm)
RA: 8.5 J x 18 H2
Wheel offset: 1.93 in (49 mm)
R 19
Tires Wheels
FA: 225/40 R19 93 Y XL
2
RA: 245/35 R19 93 Y XL 2, 3 FA: 7.5 J x 19 H2
Wheel offset: 1.73 in (44 mm)
RA: 8.5 J x 19 H2
Wheel offset: 2.22 in (56.5 mm)
FA: 225/40 R19 93 Y XL
2
RA: 255/35 R19 96 Y XL 2, 3 FA: 7.5 J x 19 H2
Wheel offset: 1.73 in (44 mm)
RA: 8.5 J x 19 H2
Wheel offset: 2.05 in (52 mm)
All-weather tires
R 17 Tires Wheels
BA: 225/50 R17 94 H
2 BA: 7.0 J x 17 H2
Wheel offset: 1.91 in (48.5 mm)
2
Available as MOExtended.
3 Additional measures necessary (additional wheel-arch extension on rear wheel arch). 390
Wheel and tire combinationsWheels and tires

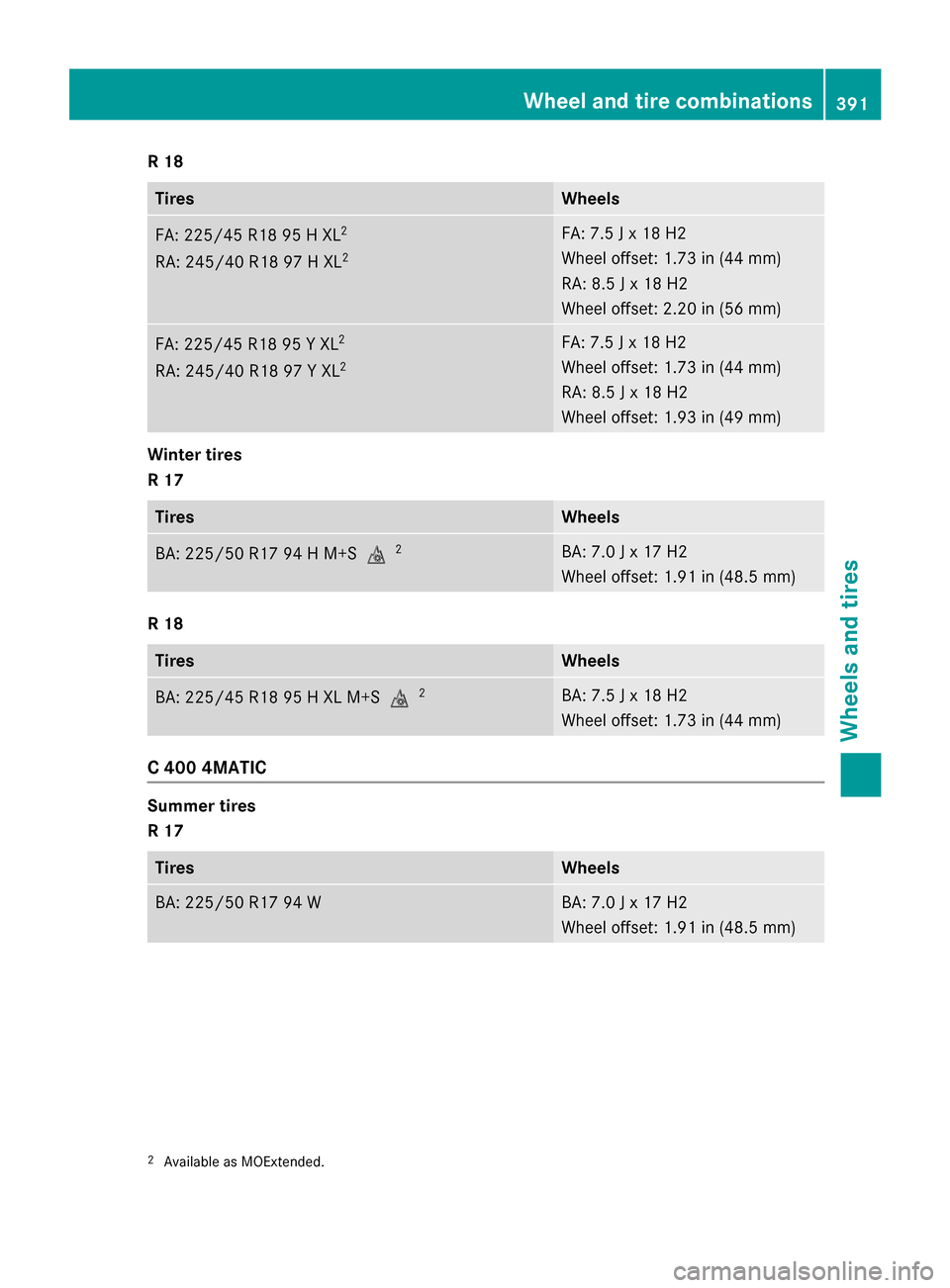

R 18
Tires Wheels
FA: 225/45 R18 95 H XL
2
RA: 245/40 R18 97 H XL 2 FA: 7.5 J x 18 H2
Wheel offset: 1.73 in (44 mm)
RA: 8.5 J x 18 H2
Wheel offset: 2.20 in (56 mm)
FA: 225/45 R18 95 Y XL
2
RA: 245/40 R18 97 Y XL 2 FA: 7.5 J x 18 H2
Wheel offset: 1.73 in (44 mm)
RA: 8.5 J x 18 H2
Wheel offset: 1.93 in (49 mm)
Winter tires
R 17
Tires Wheels
BA: 225/50 R17 94 H M+S
004D2 BA: 7.0 J x 17 H2
Wheel offset: 1.91 in (48.5 mm)
R 18
Tires Wheels
BA: 225/45 R18 95 H XL M+S
004D2 BA: 7.5 J x 18 H2
Wheel offset: 1.73 in (44 mm)
C 400 4MATIC
Summer tires
R 17
Tires Wheels
BA: 225/50 R17 94 W BA: 7.0 J x 17 H2
Wheel offset: 1.91 in (48.5 mm)
2
Available as MOExtended. Wheel and tire combinations
391Wheels and tires Z

R 18
Tires Wheels
FA: 225/45 R18 95 Y XL
2
RA: 245/40 R18 97 Y XL 2 FA: 7.5 J x 18 H2
Wheel offset: 1.73 in (44 mm)
RA: 8.5 J x 18 H2
Wheel offset: 2.20 in (56 mm)
FA: 225/45 R18 95 Y XL
2
RA: 245/40 R18 97 Y XL 2, 3 FA: 7.5 J x 18 H2
Wheel offset: 1.73 in (44 mm)
RA: 8.5 J x 18 H2
Wheel offset: 1.93 in (49 mm)
R 19
Tires Wheels
FA: 225/40 R19 93 Y XL
2
RA: 245/35 R19 93 Y XL 2, 3 FA: 7.5 J x 19 H2
Wheel offset: 1.73 in (44 mm)
RA: 8.5 J x 19 H2
Wheel offset: 2.22 in (56.5 mm)
FA: 225/40 R19 93 Y XL
2
RA: 255/35 R19 96 Y XL 2, 3 FA: 7.5 J x 19 H2
Wheel offset: 1.73 in (44 mm)
RA: 8.5 J x 19 H2
Wheel offset: 2.05 in (52 mm)
All-weather tires
R 17 Tires Wheels
BA: 225/50 R17 94 H
2 BA: 7.0 J x 17 H2
Wheel offset: 1.91 in (48.5 mm)
2
Available as MOExtended.
3 Additional measures necessary (additional wheel-arch extension on rear wheel arch). 392
Wheel and tire combinationsWheels and tires

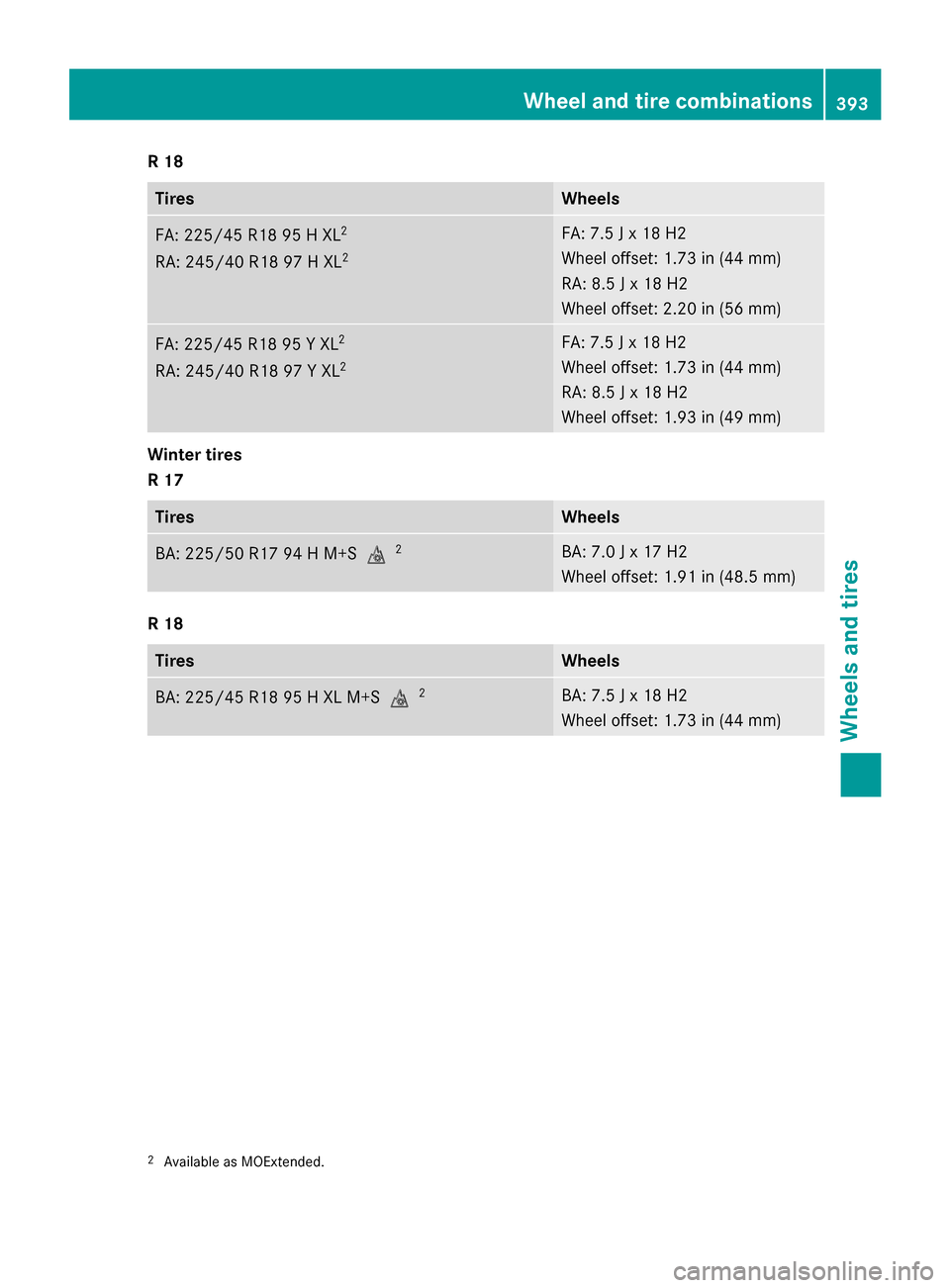

R 18
Tires Wheels
FA: 225/45 R18 95 H XL
2
RA: 245/40 R18 97 H XL 2 FA: 7.5 J x 18 H2
Wheel offset: 1.73 in (44 mm)
RA: 8.5 J x 18 H2
Wheel offset: 2.20 in (56 mm)
FA: 225/45 R18 95 Y XL
2
RA: 245/40 R18 97 Y XL 2 FA: 7.5 J x 18 H2
Wheel offset: 1.73 in (44 mm)
RA: 8.5 J x 18 H2
Wheel offset: 1.93 in (49 mm)
Winter tires
R 17
Tires Wheels
BA: 225/50 R17 94 H M+S
004D2 BA: 7.0 J x 17 H2
Wheel offset: 1.91 in (48.5 mm)
R 18
Tires Wheels
BA: 225/45 R18 95 H XL M+S
004D2 BA: 7.5 J x 18 H2
Wheel offset: 1.73 in (44 mm)
2
Available as MOExtended. Wheel and tire combinations
393Wheels and tires Z

394

Useful information
............................396
Information regarding technical
data .................................................... 396
Identification plates .........................396
Service products and filling capaci- ties ..................................................... 397
Vehicle data ...................................... 403 395Technical data

Useful information
i This Operator's Manual describes all
models and all standard and optional equip- ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
i Read the information on qualified special-
ist workshops (Y page 26). Information regarding technical data
i The data stated here specifically refers to
a vehicle with standard equipment. Consult an authorized Mercedes-Benz Center for
the data for all vehicle variants and trim
levels. Identification plates
Vehicle identification plate with vehi-
cle identification number (VIN)
X
Open the driver's door.
You will see vehicle identification plate 0043. Example: vehicle identification plate (USA only)
0044 VIN
0087 Vehicle model Example: vehicle identification plate (Canada only)
0044 VIN
0087 Paint code
i The data shown on the vehicle identifica-
tion plate is used only as an example. This
data is different for every vehicle and can
deviate from the data shown here. You can
find the data applicable to your vehicle on
the vehicle identification plate. 396
Identification platesTechnical data

VIN
X
Slide the right-hand front seat to its rear-
most position.
X Fold floor covering 0044upwards.
The VIN is visible 0043.
The VIN can also be found on the vehicle
identification plate (Y page 396).
The VIN can also be found at the lower edge of
the windshield (Y page 397). Engine number
0043
Emission control information plate,
including the certification of both federal
and Californian emissions standards
0044 Engine number (stamped into the crank-
case)
0087 VIN (on the lower edge of the windshield) Service products and filling capaci-
ties
Important safety notes
G
WARNING
Service products may be poisonous and haz-
ardous to health. There is a risk of injury.
Comply with instructions on the use, storage
and disposal of service products on the labels of the respective original containers. Always
store service products sealed in their original containers. Always keep service products out
of the reach of children. H
Environmental note
Dispose of service products in an environ-
mentally responsible manner.
Service products include the following:
R Fuels
R Lubricants (e.g. engine oil, transmission oil)
R Coolant
R Brake fluid
R Windshield washer fluid
R Climate control system refrigerant
Components and service products must be
matched. Only use products recommended
by Mercedes-Benz. Damage which is caused
by the use of products which have not been
recommended is not covered by the
Mercedes-Benz warranty or goodwill ges-
tures. They are listed in this Mercedes-Benz
Operator's Manual in the appropriate section.
Information on tested and approved products can be obtained at an authorized Mercedes-
Benz Center or on the Internet at
http://bevo.mercedes-benz.com.
You can recognize service products approved
by Mercedes-Benz by the following inscrip-
tion on the containers:
R MB-Freigabe (e.g. MB-Freigabe 229.51)
R MB Approval (e.g. MB Approval 229.51)
Other designations or recommendations indi- cate a level of quality or a specification in Service products and filling capacities
397Technical data Z

accordance with an MB Sheet Number (e.g.
MB 229.5). They have not necessarily been
approved by Mercedes-Benz.
Other identifications, for example:
R 0 W-30
R 5 W-30
R 5 W-40 Fuel
Important safety notes G
WARNING
Fuel is highly flammable. If you handle fuel
incorrectly, there is a risk of fire and explo-
sion.
You must avoid fire, open flames, creating
sparks and smoking. Switch off the engine
and, if applicable, the auxiliary heating before refueling. G
WARNING
Fuel is poisonous and hazardous to health.
There is a risk of injury.
You must make sure that fuel does not come into contact with your skin, eyes or clothing
and that it is not swallowed. Do not inhale fuel
vapors. Keep fuel away from children.
If you or others come into contact with fuel,
observe the following:
R Wash away fuel from skin immediately
using soap and water.
R If fuel comes into contact with your eyes,
immediately rinse them thoroughly with
clean water. Seek medical assistance with-
out delay.
R If fuel is swallowed, seek medical assis-
tance without delay. Do not induce vomit-
ing.
R Immediately change out of clothing which
has come into contact with fuel. Tank capacity Model Total capacity
All models
17.4 US gal
(66.0 l) Model Of which
reserve All models
Approx.
1.8 US gal (7.0 l) Gasoline
Fuel grade
!
Do not use diesel to refuel vehicles with a
gasoline engine. Do not switch on the igni- tion if you accidentally refuel with the
wrong fuel. Otherwise, the fuel will enter
the fuel system. Even small amounts of the
wrong fuel could result in damage to the
fuel system and the engine. Notify a quali-
fied specialist workshop and have the fuel
tank and fuel lines drained completely.
! Only refuel using unleaded premium
grade gasoline with at least 91 AKI/
95 RON.
! Only use the fuel recommended. Operat-
ing the vehicle with other fuels can lead to
engine failure.
! Do not use the following:
R E85 (gasoline with 85% ethanol)
R E100 (100% ethanol)
R M15 (gasoline with 15% methanol)
R M30 (gasoline with 30% methanol)
R M85 (gasoline with 85% methanol)
R M100 (100% methanol)
R Gasoline with metalliferous additives
R Diesel
Do not mix such fuels with the fuel recom-
mended for your vehicle. Do not use addi-
tives. Otherwise, engine damage may 398
Service products and filling capacitiesTechnical data
