190 Controls in detailAutomatic climate control*
Deactivating
Press button, (
page 183).
The indicator lamp on the button goes
out.The air recirculation mode is deactivated
automatically:


after five minutes if the outside
temperature is below
approximately 41°F (5 °C)


after five minutes if the air conditioning
is turned off


after 30 minutes if the outside
temperature is above
approximately 41°F (5 °C)
At outside temperatures above 79°F
(26 °C) the system will not automatically
switch back to outside air. A quantity of
outside air is added after approximately
30 minutes.
iThe air recirculation mode is activated
automatically:

at high outside temperatures


if the concentration of carbon mon-
oxide and nitrogen oxide in the
outside air increases, for example
in a tunnel (charcoal filter must be
activated for the air recirculation
mode to be activated automatically)
The indicator lamp on the button,
is not lit when the air recirculation
mode is automatically switched on.
After approximately 30 minutes, out-
side air is added to the air inside the
vehicle.
If you have turned off the air
conditioning (
page 192) or the out-
side temperature is below 41°F (5°C),
the air recirculation mode will not
switch on automatically.
iIf you keep button, pressed, the
side windows and panorama roof with
power tilt/sliding panel* will return to
their previous position.

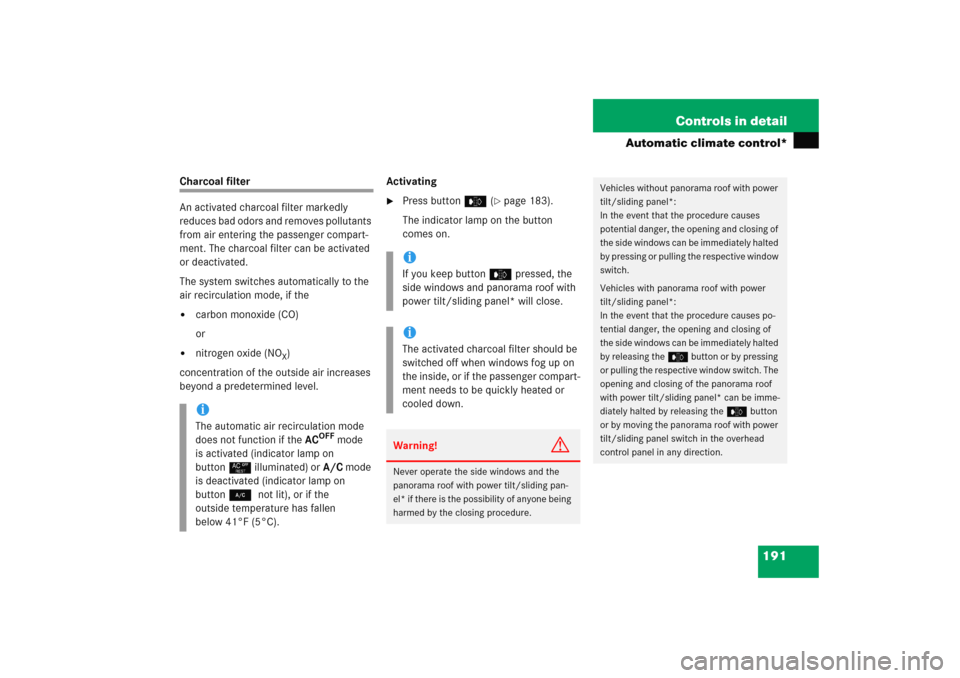

191 Controls in detail
Automatic climate control*
Charcoal filter
An activated charcoal filter markedly
reduces bad odors and removes pollutants
from air entering the passenger compart-
ment. The charcoal filter can be activated
or deactivated.
The system switches automatically to the
air recirculation mode, if the

carbon monoxide (CO)
or


nitrogen oxide (NO
X)
concentration of the outside air increases
beyond a predetermined level.Activating

Press buttone (
page 183).
The indicator lamp on the button
comes on.
iThe automatic air recirculation mode
does not function if theAC
OFF
mode
is activated (indicator lamp on
button° illuminated) orA/C mode
is deactivated (indicator lamp on
button2 not lit), or if the
outside temperature has fallen
below 41°F (5°C).
iIf you keep buttone pressed, the
side windows and panorama roof with
power tilt/sliding panel* will close.iThe activated charcoal filter should be
switched off when windows fog up on
the inside, or if the passenger compart-
ment needs to be quickly heated or
cooled down.Warning!
G
Never operate the side windows and the
panorama roof with power tilt/sliding pan-
el* if there is the possibility of anyone being
harmed by the closing procedure.
Vehicles without panorama roof with power
tilt/sliding panel*:
In the event that the procedure causes
potential danger, the opening and closing of
the side windows can be immediately halted
by pressing or pulling the respective window
switch.
Vehicles with panorama roof with power
tilt/sliding panel*:
In the event that the procedure causes po-
tential danger, the opening and closing of
the side windows can be immediately halted
by releasing the e button or by pressing
or pulling the respective window switch. The
opening and closing of the panorama roof
with power tilt/sliding panel* can be imme-
diately halted by releasing the e button
or by moving the panorama roof with power
tilt/sliding panel switch in the overhead
control panel in any direction.

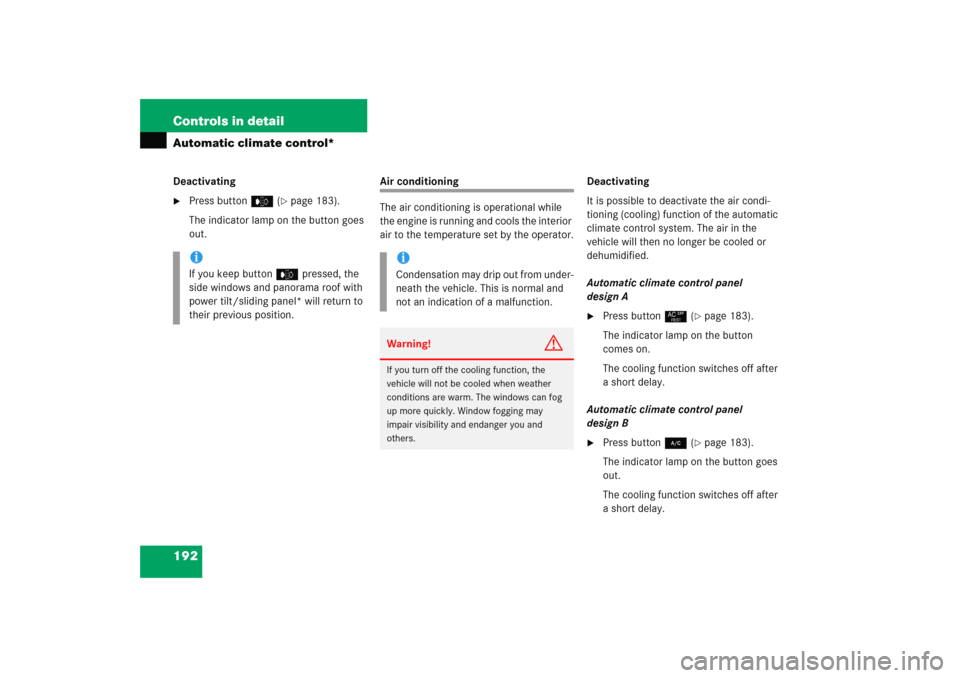

192 Controls in detailAutomatic climate control*Deactivating
Press buttone (
page 183).
The indicator lamp on the button goes
out.
Air conditioning
The air conditioning is operational while
the engine is running and cools the interior
air to the temperature set by the operator.Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the automatic
climate control system. The air in the
vehicle will then no longer be cooled or
dehumidified.
Automatic climate control panel
design A

Press button° (
page 183).
The indicator lamp on the button
comes on.
The cooling function switches off after
a short delay.
Automatic climate control panel
design B

Press button2 (
page 183).
The indicator lamp on the button goes
out.
The cooling function switches off after
a short delay.
iIf you keep buttone pressed, the
side windows and panorama roof with
power tilt/sliding panel* will return to
their previous position.
iCondensation may drip out from under-
neath the vehicle. This is normal and
not an indication of a malfunction.Warning!
G
If you turn off the cooling function, the
vehicle will not be cooled when weather
conditions are warm. The windows can fog
up more quickly. Window fogging may
impair visibility and endanger you and
others.

193 Controls in detail
Automatic climate control*
Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condi-
tioning.
Automatic climate control panel
design A
Press button° (
page 183) again.
The indicator lamp on the button goes
out.
The cooling function is switched on.
Automatic climate control panel
design B

Press button2 (
page 183) again.
The indicator lamp on the button
comes on.
The cooling function is switched on.
The air conditioning uses the refrigerant
R134a. This refrigerant is free of CFCs
which are harmful to the ozone layer.Residual heat and ventilation
(available on automatic climate control
panel design A only)
With the engine switched off, it is possible
to continue to heat or ventilate the interior
for up to 30 minutes. This feature makes
use of the residual heat produced by the
engine.
Activating
Switch off the ignition (
page 58).

Press button° (
page 183).
The indicator lamp on the button
comes on.Deactivating

Press button° (
page 183).
The indicator lamp on the button goes
out.
The residual heat is automatically turned
off:


when the ignition is switched on


after about 30 minutes


if the battery voltage drops
!If the air conditioning cannot be turned
on again, this indicates that the air
conditioning is losing refrigerant. The
compressor has turned itself off.
Have the air conditioning checked at
the nearest authorized Mercedes-Benz
Center.
iHow long the system will provide
heating depends on

the coolant temperature


the temperature set by the operator
The blower will run at speed setting 1
regardless of the air distribution
control setting.

194 Controls in detailAutomatic climate control*Rear passenger compartment adjustable air vents
The air conditioning for the rear passenger
compartment is controlled via the auto-
matic climate control panel (
page 183).
The air vents for the rear passenger
compartment are located in the rear
center console.1Left center air vent
2Thumbwheel for air volume control for
center air vents
3Right center air ventAdjusting air distribution

Push the slide for the left center
vent1 or right center vent3 to the
left, right, up, or down.
The air flow is directed in the
corresponding direction.
Adjusting air volume

Turn thumbwheel2 up or down.
The air volume is increased or
decreased.
iThe temperature at the center air vents
for the rear passenger
compartment1 and3 i s t h e s a m e a s
at the dashboard center air vents.
iFor draft-free ventilation, push
slides1 and3 upward.

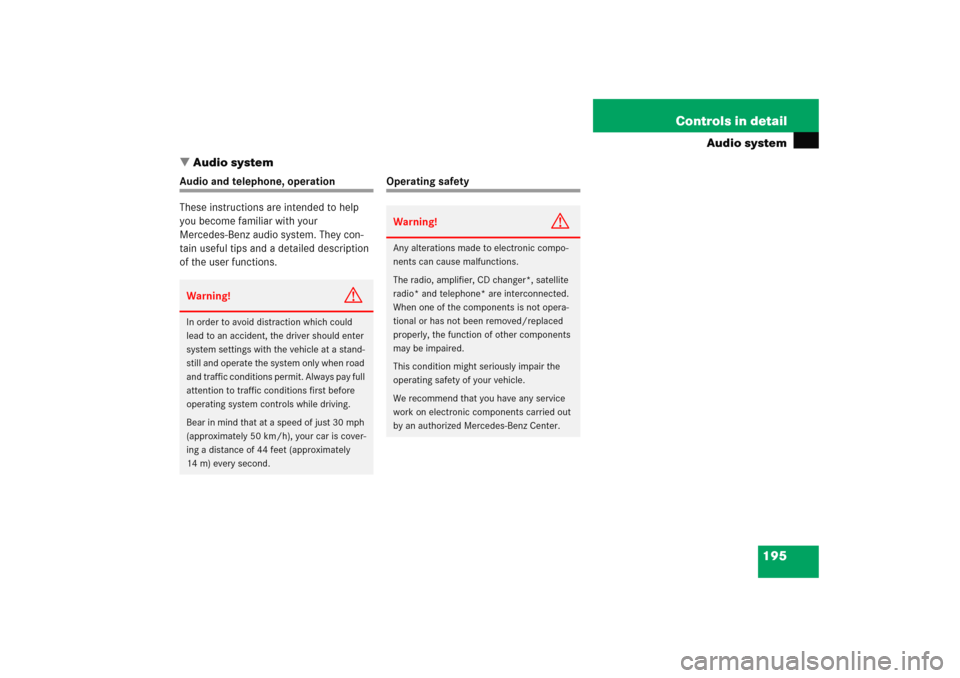

195 Controls in detail
Audio system
Audio system
Audio and telephone, operation
These instructions are intended to help
you become familiar with your
Mercedes-Benz audio system. They con-
tain useful tips and a detailed description
of the user functions.
Operating safety
Warning!
G
In order to avoid distraction which could
lead to an accident, the driver should enter
system settings with the vehicle at a stand-
still and operate the system only when road
and traffic conditions permit. Always pay full
attention to traffic conditions first before
operating system controls while driving.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car is cover-
ing a distance of 44 feet (approximately
14 m) every second.
Warning!
G
Any alterations made to electronic compo-
nents can cause malfunctions.
The radio, amplifier, CD changer*, satellite
radio* and telephone* are interconnected.
When one of the components is not opera-
tional or has not been removed/replaced
properly, the function of other components
may be impaired.
This condition might seriously impair the
operating safety of your vehicle.
We recommend that you have any service
work on electronic components carried out
by an authorized Mercedes-Benz Center.

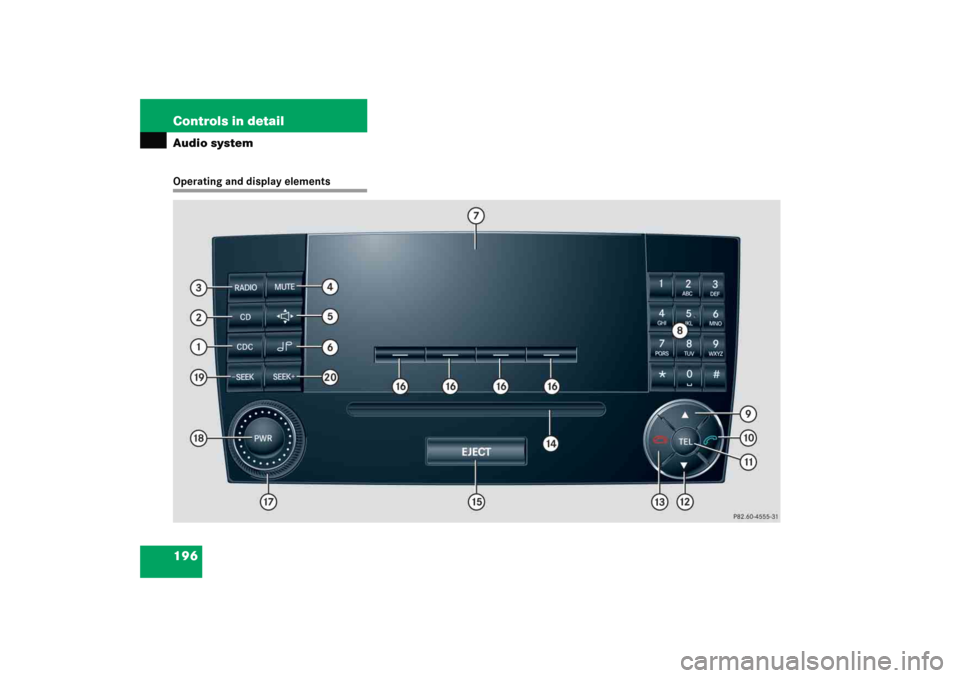

196 Controls in detailAudio systemOperating and display elements

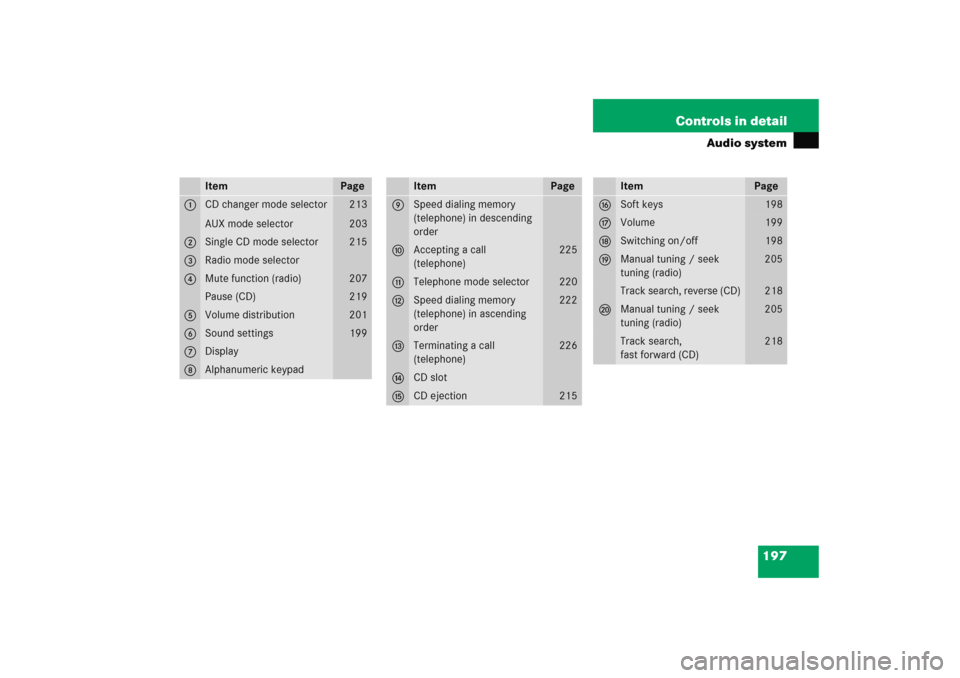

197 Controls in detail
Audio system
Item
Page
1
CD changer mode selector
AUX mode selector
213
203
2
Single CD mode selector
215
3
Radio mode selector
4
Mute function (radio)
207
Pause (CD)
219
5
Volume distribution
201
6
Sound settings
199
7
Display
8
Alphanumeric keypad
Item
Page
9
Speed dialing memory
(telephone) in descending
order
a
Accepting a call
(telephone)
225
b
Telephone mode selector
220
c
Speed dialing memory
(telephone) in ascending
order
222
d
Terminating a call
(telephone)
226
e
CD slot
f
CD ejection
215
Item
Page
g
Soft keys
198
h
Volume
199
j
Switching on/off
198
k
Manual tuning / seek
tuning (radio)
205
Track search, reverse (CD)
218
l
Manual tuning / seek
tuning (radio)
205
Track search,
fast forward (CD)
218

198 Controls in detailAudio systemButton and soft key operation
In these instructions, the alphanumeric
keypad (right side of radio panel) and the
function buttons (left side of radio panel)
are referred to as “buttons”. The four keys
below the display panel are referred to as
“soft keys”.
Operation
Switching the unit on/off
Switching on
Turn the SmartKey in the starter switch
to position 1 or 2.

If the audio system was on as you re-
moved the SmartKey from the starter
switch, the audio system will automati-
cally come back on as you turn the
SmartKey to position 1 or 2.
or

Press M button.
!Do not press directly in the display
face. Otherwise, the display will be
damaged.
iIf the radio is switched on without the
key in the starter switch, it will auto-
matically switch off again after
approximately 30 minutes.
If your vehicle is equipped with a tele-
phone, the display may prompt you to
enter your PIN (GSM network) or code
(TDMA or CDMA network).

199 Controls in detail
Audio system
Switching off
Remove SmartKey from starter switch.
or

Press M button.
Adjusting the volume

Turn rotary control of N button.
The volume will increase or decrease
depending on the direction turned.Adjusting sound functions
The bass and treble functions are called up
by pressing the O button.
Settings for bass and treble are stored sep-
arately for the AM and FM wavebands,
weather band, CD mode and telephone
mode.
Bass

Press O button repeatedly until BASS
appears in the display.

Press
+ or
– soft key to increase or
decrease tone level accordingly.
or

Press
RES
soft key briefly to reset bass
tones to their center level.
The radio switches back to the stan-
dard radio menu eight seconds after
the last soft key is pressed.
iShould excessively high temperatures
occur while the audio system is being
operated, the display will dim. If tem-
peratures continue to rise,
HIGH TEMP

will appear in the display, after which
the audio system will be switched off
for a cooling-down period.
iIf your vehicle equipment includes a
Mercedes-Benz specified mobile tele-
phone*, you can adjust its volume sep-
arately from the volume of the audio
system while the telephone is being
used.
