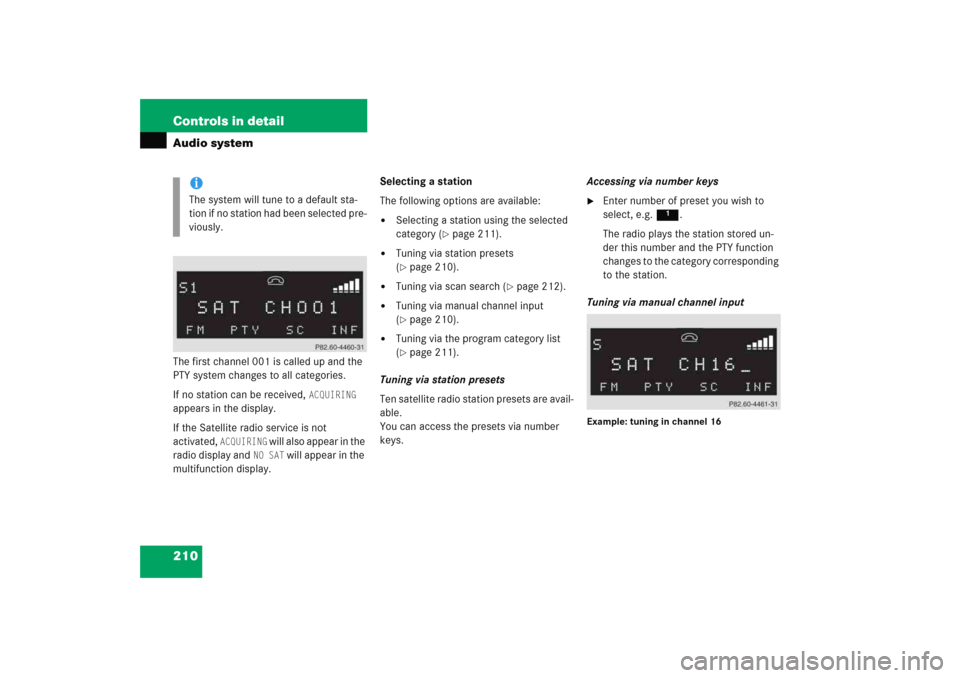

210 Controls in detailAudio systemThe first channel 001 is called up and the
PTY system changes to all categories.
If no station can be received,
ACQUIRING

appears in the display.
If the Satellite radio service is not
activated,
ACQUIRING
will also appear in the
radio display and
NO SAT
will appear in the
multifunction display.Selecting a station
The following options are available:


Selecting a station using the selected
category (
page 211).


Tuning via station presets
(page 210).


Tuning via scan search (
page 212).


Tuning via manual channel input
(page 210).


Tuning via the program category list
(page 211).
Tuning via station presets
Ten satellite radio station presets are avail-
able.
You can access the presets via number
keys.Accessing via number keys

Enter number of preset you wish to
select, e.g. 1.
The radio plays the station stored un-
der this number and the PTY function
changes to the category corresponding
to the station.
Tuning via manual channel input
Example: tuning in channel 16
iThe system will tune to a default sta-
tion if no station had been selected pre-
viously.

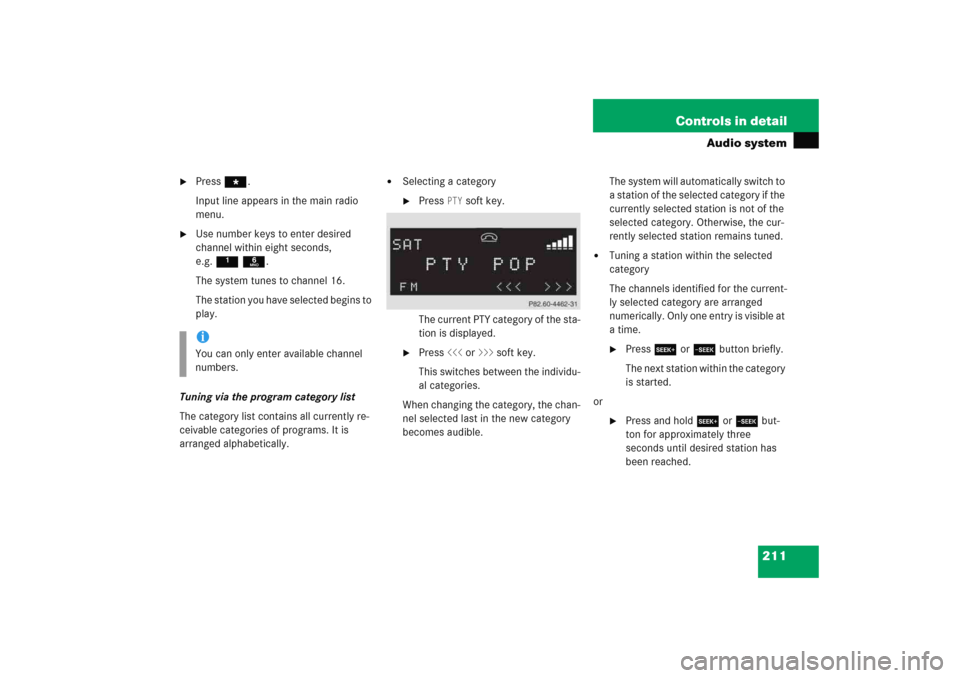

211 Controls in detail
Audio system

Press *.
Input line appears in the main radio
menu.

Use number keys to enter desired
channel within eight seconds,
e.g.1 6.
The system tunes to channel 16.
The station you have selected begins to
play.
Tuning via the program category list
The category list contains all currently re-
ceivable categories of programs. It is
arranged alphabetically.


Selecting a category
Press
PTY
soft key.
The current PTY category of the sta-
tion is displayed.

Press
<<<
or
>>>
soft key.
This switches between the individu-
al categories.
When changing the category, the chan-
nel selected last in the new category
becomes audible.The system will automatically switch to
a station of the selected category if the
currently selected station is not of the
selected category. Otherwise, the cur-
rently selected station remains tuned.


Tuning a station within the selected
category
The channels identified for the current-
ly selected category are arranged
numerically. Only one entry is visible at
a time.
Press S or T button briefly.
The next station within the category
is started.
or

Press and hold S or T but-
ton for approximately three
seconds until desired station has
been reached.
iYou can only enter available channel
numbers.

212 Controls in detailAudio systemTuning via scan search
Scan search is characterized as follows:

Scan search plays a channel for ap-
proximately eight seconds and then
skips to the next channel within the
current category.


Scan search can be terminated manu-
ally.

Press
SC soft key.
The search starts.
SC appears in the
display.

Press
SC soft key again.
The search stops.Obtaining additional text information
Additional text information (artist, title) re-
lated to the current channel can be dis-
played.

Press
INF
soft key.
The title being played is displayed.

Press
INF
soft key again.
The name of the artist performing the
title being played is displayed.Storing stations

Tune in desired station.

Press and hold desired station button
1 to R until a brief signal tone is
heard.
The frequency is stored on the selected
station button.
The radio saves the current station at
the memory preset selected. The mem-
ory preset selected appears in the sta-
tus line, e.g. S3.
iIf a button is not pressed within
four seconds, the radio will return to
the standard display.
iThere are ten presets available.
An existing entry is overwritten in the
memory list when a new entry is given.

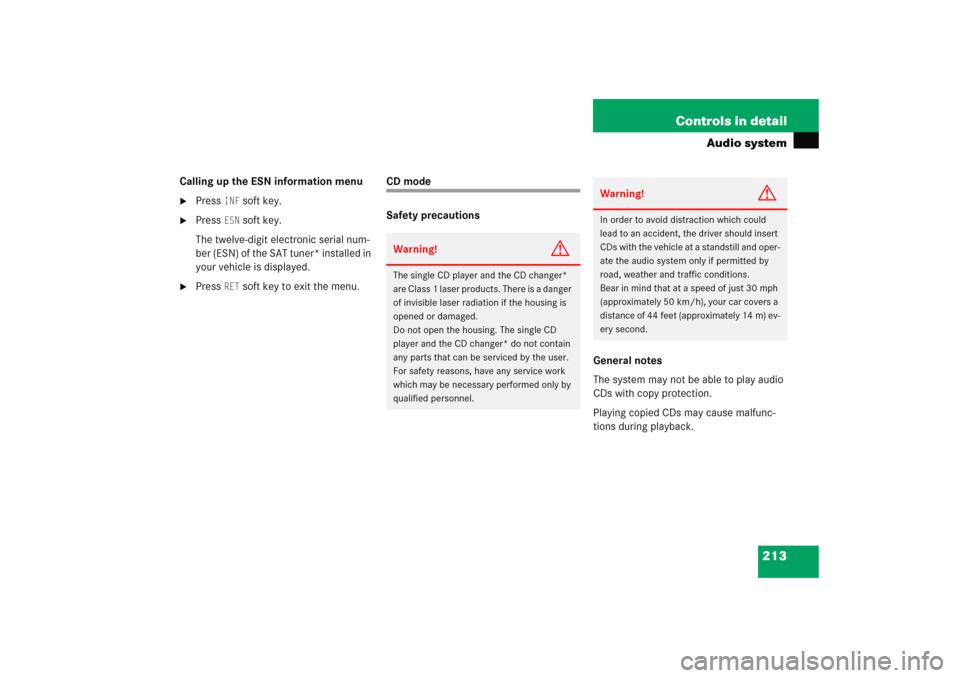

213 Controls in detail
Audio system
Calling up the ESN information menu
Press
INF
soft key.

Press
ESN
soft key.
The twelve-digit electronic serial num-
ber (ESN) of the SAT tuner* installed in
your vehicle is displayed.

Press
RET
soft key to exit the menu.
CD mode
Safety precautions
General notes
The system may not be able to play audio
CDs with copy protection.
Playing copied CDs may cause malfunc-
tions during playback.Warning!
G
The single CD player and the CD changer*
are Class 1 laser products. There is a danger
of invisible laser radiation if the housing is
opened or damaged.
Do not open the housing. The single CD
player and the CD changer* do not contain
any parts that can be serviced by the user.
For safety reasons, have any service work
which may be necessary performed only by
qualified personnel.
Warning!
G
In order to avoid distraction which could
lead to an accident, the driver should insert
CDs with the vehicle at a standstill and oper-
ate the audio system only if permitted by
road, weather and traffic conditions.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car covers a
distance of 44 feet (approximately 14 m) ev-
ery second.

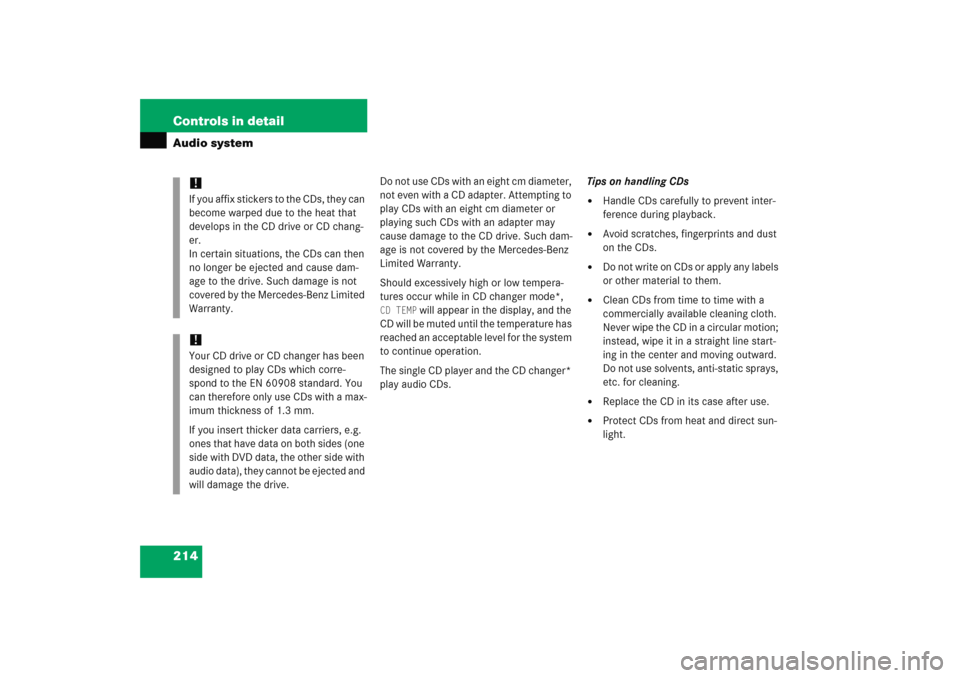

214 Controls in detailAudio system
D o n o t u s e C D s w i t h a n e i g h t c m d i a m e t e r ,
not even with a CD adapter. Attempting to
play CDs with an eight cm diameter or
playing such CDs with an adapter may
cause damage to the CD drive. Such dam-
age is not covered by the Mercedes-Benz
Limited Warranty.
Should excessively high or low tempera-
tures occur while in CD changer mode*, CD TEMP
will appear in the display, and the
CD will be muted until the temperature has
reached an acceptable level for the system
to continue operation.
The single CD player and the CD changer*
play audio CDs.Tips on handling CDs


Handle CDs carefully to prevent inter-
ference during playback.


Avoid scratches, fingerprints and dust
on the CDs.


Do not write on CDs or apply any labels
or other material to them.


Clean CDs from time to time with a
commercially available cleaning cloth.
Never wipe the CD in a circular motion;
instead, wipe it in a straight line start-
ing in the center and moving outward.
Do not use solvents, anti-static sprays,
etc. for cleaning.


Replace the CD in its case after use.


Protect CDs from heat and direct sun-
light.
!If you affix stickers to the CDs, they can
become warped due to the heat that
develops in the CD drive or CD chang-
er.
In certain situations, the CDs can then
no longer be ejected and cause dam-
age to the drive. Such damage is not
covered by the Mercedes-Benz Limited
Warranty.!Your CD drive or CD changer has been
designed to play CDs which corre-
spond to the EN 60908 standard. You
can therefore only use CDs with a max-
imum thickness of 1.3 mm.
If you insert thicker data carriers, e.g.
ones that have data on both sides (one
side with DVD data, the other side with
audio data), they cannot be ejected and
will damage the drive.

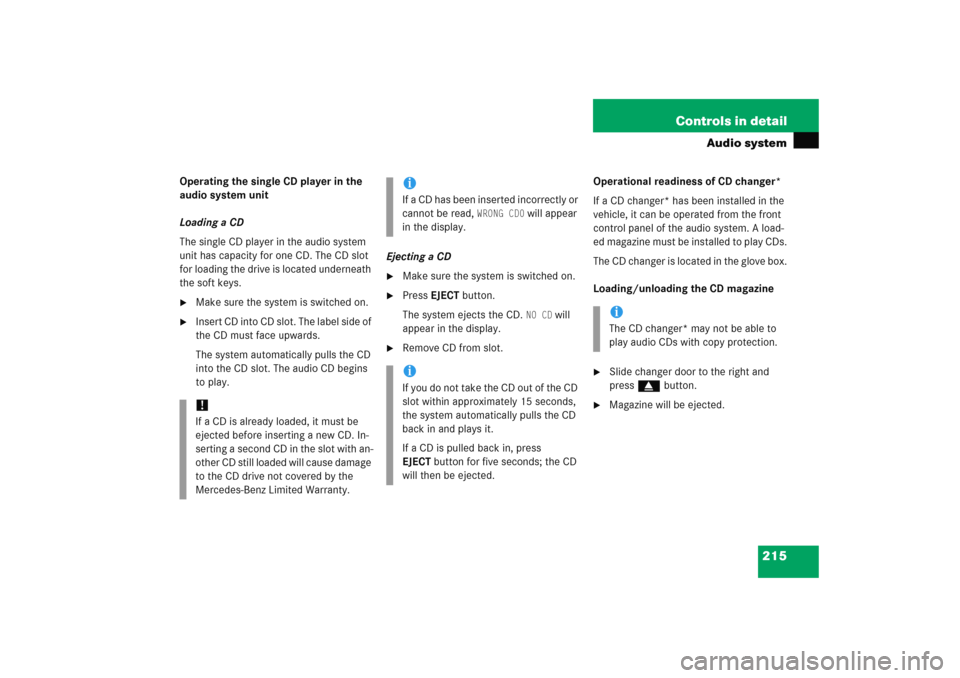

215 Controls in detail
Audio system
Operating the single CD player in the
audio system unit
Loading a CD
The single CD player in the audio system
unit has capacity for one CD. The CD slot
for loading the drive is located underneath
the soft keys.
Make sure the system is switched on.

Insert CD into CD slot. The label side of
the CD must face upwards.
The system automatically pulls the CD
into the CD slot. The audio CD begins
to play.Ejecting a CD

Make sure the system is switched on.

Press EJECTbutton.
The system ejects the CD.
NO CD
will
appear in the display.

Remove CD from slot.Operational readiness of CD changer*
If a CD changer* has been installed in the
vehicle, it can be operated from the front
control panel of the audio system. A load-
ed magazine must be installed to play CDs.
The CD changer is located in the glove box.
Loading/unloading the CD magazine

Slide changer door to the right and
press gbutton.

Magazine will be ejected.
!If a CD is already loaded, it must be
ejected before inserting a new CD. In-
serting a second CD in the slot with an-
other CD still loaded will cause damage
to the CD drive not covered by the
Mercedes-Benz Limited Warranty.
iIf a CD has been inserted incorrectly or
cannot be read,
WRONG CD0
will appear
in the display.
iIf you do not take the CD out of the CD
slot within approximately 15 seconds,
the system automatically pulls the CD
back in and plays it.
If a CD is pulled back in, press
EJECTbutton for five seconds; the CD
will then be ejected.
iThe CD changer* may not be able to
play audio CDs with copy protection.

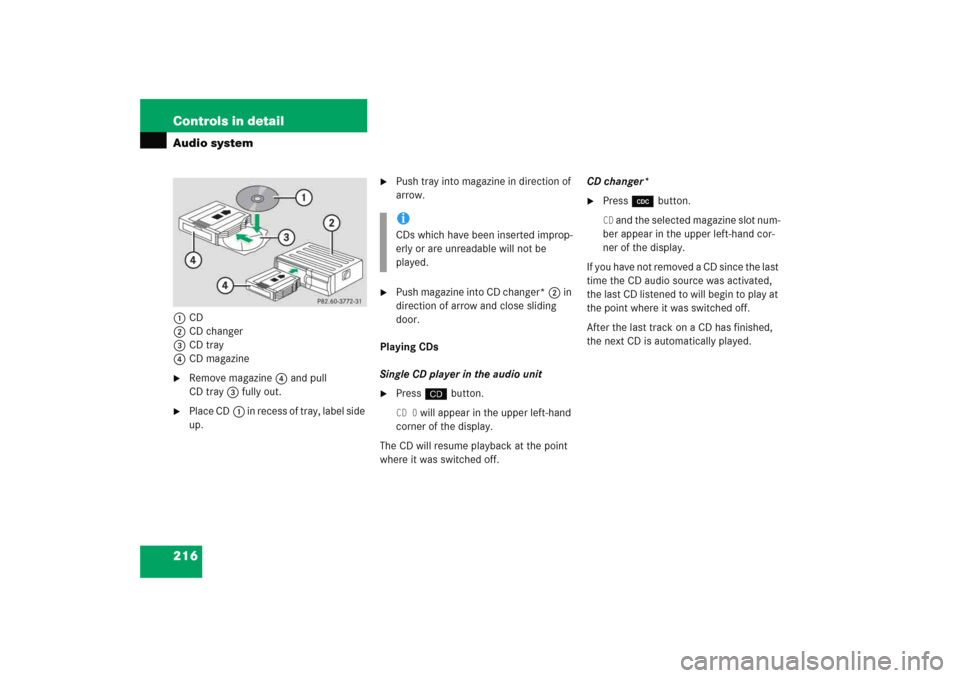

216 Controls in detailAudio system1CD
2CD changer
3CD tray
4CD magazine
Remove magazine4 and pull
CD tray3 fully out.

Place CD1 i n r e c e s s o f t r a y , l a b e l s i d e
up.

Push tray into magazine in direction of
arrow.

Pus h ma ga zine i nt o CD c hang er*2 in
direction of arrow and close sliding
door.
Playing CDs
Single CD player in the audio unit

Pressi button.CD 0
will appear in the upper left-hand
corner of the display.
The CD will resume playback at the point
where it was switched off.CD changer*

Press Q button.CD and the selected magazine slot num-
ber appear in the upper left-hand cor-
ner of the display.
If you have not removed a CD since the last
time the CD audio source was activated,
the last CD listened to will begin to play at
the point where it was switched off.
After the last track on a CD has finished,
the next CD is automatically played.
iCDs which have been inserted improp-
erly or are unreadable will not be
played.

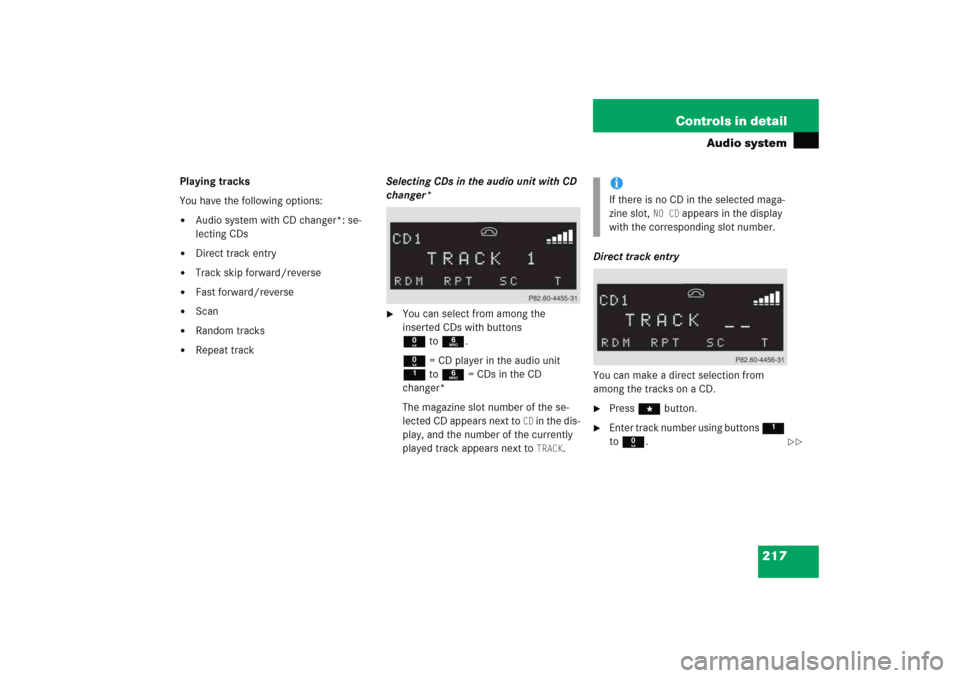

217 Controls in detail
Audio system
Playing tracks
You have the following options:

Audio system with CD changer*: se-
lecting CDs


Direct track entry


Track skip forward/reverse


Fast forward/reverse


Scan


Random tracks


Repeat trackSelecting CDs in the audio unit with CD
changer*

You can select from among the
inserted CDs with buttons
Rto6.
R = CD player in the audio unit
1to6 = CDs in the CD
changer*
The magazine slot number of the se-
lected CD appears next to
CD in the dis-
play, and the number of the currently
played track appears next to TRACK
.Direct track entry
You can make a direct selection from
among the tracks on a CD.

Press * button.

Enter track number using buttons 1
to R.iIf there is no CD in the selected maga-
zine slot,
NO CD
appears in the display
with the corresponding slot number.


218 Controls in detailAudio system
The number of the track being played
appears next to
TRACK
in the display.
You can only enter available track num-
bers.
Skipping tracks forward/backward


Skipping tracks forward
Press S button briefly.
The next track will be played.


Skipping tracks backward
Press T button briefly.
If the track has been playing for
more than ten seconds, the unit
skips back to the beginning of the
track currently playing. If less than
ten seconds have been played, the
unit skips back to the beginning of
the previous track.
Pressing the T or S button repeat-
edly will result in multiple tracks being
skipped.Fast forward/reverse


Fast forward
Press and hold S button until
desired point has been reached.


Reverse
Press and hold T button until
desired point has been reached.Scan


Starting scan
Press
SC soft key.
SC will appear in the display.
Each track on the current CD will be
played for approximately eight sec-
onds in ascending order.


Ending scan
Press
SC soft key or T or S.
Random play
The random function (RDM) plays the
tracks of the current CD in random order.
iThe track number and the relative time
of the track is shown in the display dur-
ing the search.
iWhen you start the RDM function, the
RPT function is automatically switched
off.

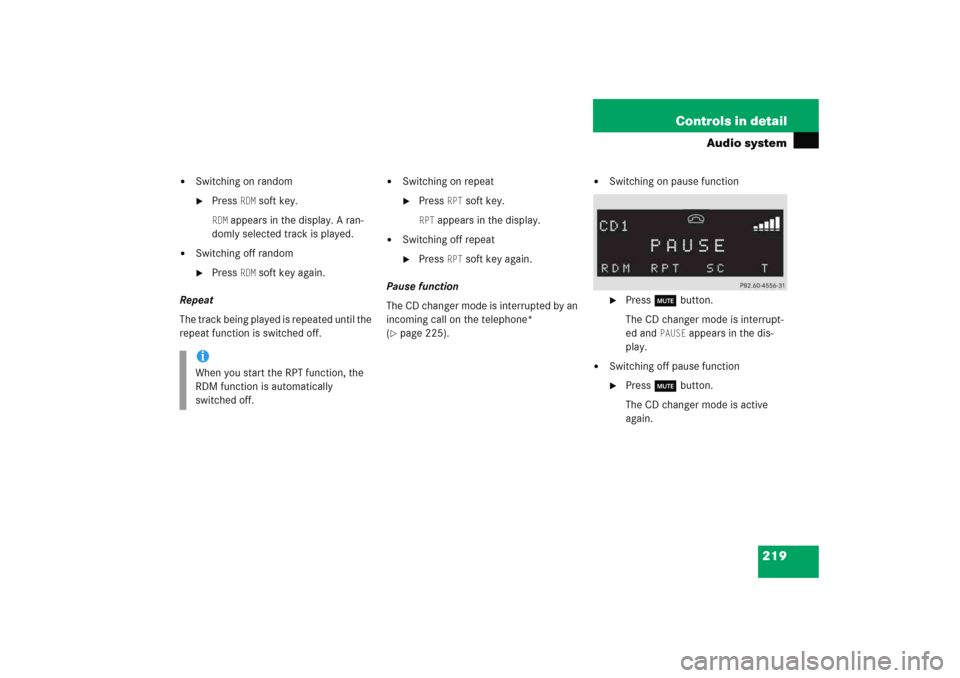

219 Controls in detail
Audio system


Switching on random
Press
RDM
soft key.
RDM
appears in the display. A ran-
domly selected track is played.


Switching off random
Press
RDM
soft key again.
Repeat
The track being played is repeated until the
repeat function is switched off.


Switching on repeat
Press
RPT
soft key.
RPT
appears in the display.


Switching off repeat
Press
RPT
soft key again.
Pause function
The CD changer mode is interrupted by an
incoming call on the telephone*
(
page 225).


Switching on pause function
Press U button.
The CD changer mode is interrupt-
ed and
PAUSE
appears in the dis-
play.


Switching off pause function
Press U button.
The CD changer mode is active
again.
iWhen you start the RPT function, the
RDM function is automatically
switched off.
