MERCEDES-BENZ C COUPE 2005 CL203 Owner's Manual

240 Controls in detailPower windows
Aim transmitter eye at the driver’s door
handle.
Opening (Summer opening feature)

Press and hold buttonΠafter
unlocking the vehicle.
The windows and panorama roof with
power tilt/sliding panel* (
page 241)
begin to open after approximately
one second.

Release the Œbutton to stop
procedure.Closing (Convenience feature)

Press and hold button‹ after lock-
ing the vehicle.
The windows and panorama roof with
power tilt/sliding panel* begin to close
after approximately one second.

Release the ‹button to stop
procedure.
Make sure all side windows and the pan-
orama roof with power tilt/sliding panel*
are properly closed before leaving the
vehicle.
Synchronizing power windows
The power window must be resynchro-
nized each time

after the battery has been disconnect-
ed.


if the power windows cannot be fully
opened (Express-open) or closed
(Express-close).

Switch on the ignition (
page 33).

Pull the power window switches until
the side windows are closed.
Hold the switches for approximately
one second.
The power windows are synchronized.


241 Controls in detail
Panorama roof with power tilt/sliding panel*
Panorama roof with power tilt/sliding panel*
Opening and closing the roller
sunblinds for the panorama roof with power tilt/sliding panel
The tilt/sliding panel and the roller sun-
blinds are opened and closed electrically.
The switch for the tilt/sliding panel and the
roller sunblinds is on the overhead control
panel.
The roller sunblinds only operate with the
tilt/sliding panel closed.Roof panel switch1, 4 Open roller sunblinds
2, 3 Close roller sunblinds

Switch on the ignition (
page 33).
Warning!
G
When opening or closing the tilt/sliding pan-
el, make sure there is no danger of anyone
being harmed by the opening or closing pro-
cedure.
If the tilt/sliding panel is closed with the
convenience closing feature and becomes
blocked, it will not open automatically.
Should this occur, press the Œbutton on
the SmartKey and hold it down; the tilt/slid-
ing panel opens again.
The panorama roof with power tilt/sliding
panel is made out of glass. In the event of an
accident, the glass may shatter. This may
result in an opening in the roof.
In a vehicle rollover, occupants not wearing
their seat belts or not wearing them properly
may be thrown out of the opening. Such an
opening also presents a potential for injury
for occupants wearing their seat belts prop-
erly as entire body parts or portions of them
may protrude from the passenger compart-
ment.
When leaving the vehicle, always remove the
SmartKey from starter switch, take it with
you, and lock the vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment can cause an acci-
dent and/or serious personal injury.

242 Controls in detailPanorama roof with power tilt/sliding panel*Opening and closing the roller
sunblinds
To open or close the roller sunblinds,
move the roof panel switch to the resis-
tance point in the required
direction1to4.
Release the roof panel switch when the
roller sunblinds have reached the de-
sired position.Fully opening the roller sunblinds
(Express-open)

Move the roof panel switch past the
resistance point in the required
direction of arrow1or4 and
release.
The roller sunblinds open completely.
Stopping the roller sunblinds during
Express-operation

Move the roof panel switch in any
direction.Opening and closing the panorama roof
with power tilt/sliding panel
The tilt/sliding panel is opened and closed
electrically. The roof panel switch is locat-
ed on the overhead control panel.
The tilt/sliding panel only operates with
the roller sunblinds opened.Roof panel switch1Push up to raise roof panel at rear
2Pull down to lower roof panel at rear
3Push forward to slide roof panel closed
4Push back to slide roof panel open
Warning!
G
When closing the roller sunblinds, make
sure that no one is in danger of being injured
by the closing procedure. The closing of the
roller sunblinds can be immediately halted
by releasing the switch.

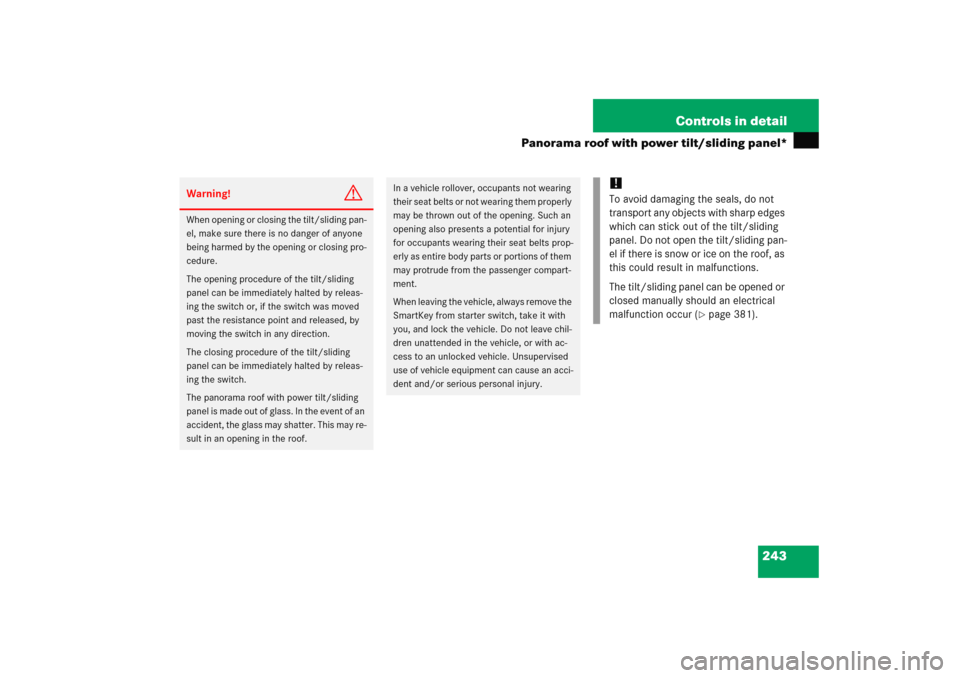

243 Controls in detail
Panorama roof with power tilt/sliding panel*
Warning!
G
When opening or closing the tilt/sliding pan-
el, make sure there is no danger of anyone
being harmed by the opening or closing pro-
cedure.
The opening procedure of the tilt/sliding
panel can be immediately halted by releas-
ing the switch or, if the switch was moved
past the resistance point and released, by
moving the switch in any direction.
The closing procedure of the tilt/sliding
panel can be immediately halted by releas-
ing the switch.
The panorama roof with power tilt/sliding
panel is made out of glass. In the event of an
accident, the glass may shatter. This may re-
sult in an opening in the roof.
In a vehicle rollover, occupants not wearing
their seat belts or not wearing them properly
may be thrown out of the opening. Such an
opening also presents a potential for injury
for occupants wearing their seat belts prop-
erly as entire body parts or portions of them
may protrude from the passenger compart-
ment.
When leaving the vehicle, always remove the
SmartKey from starter switch, take it with
you, and lock the vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment can cause an acci-
dent and/or serious personal injury.
!To avoid damaging the seals, do not
transport any objects with sharp edges
which can stick out of the tilt/sliding
panel. Do not open the tilt/sliding pan-
el if there is snow or ice on the roof, as
this could result in malfunctions.
The tilt/sliding panel can be opened or
closed manually should an electrical
malfunction occur (
page 381).

244 Controls in detailPanorama roof with power tilt/sliding panel*
Switch on the ignition (
page 33).Opening and closing the panorama roof
with power tilt/sliding panel

To open, close, raise, or lower the
tilt/sliding panel, move the roof panel
switch to resistance point in the re-
quired direction of arrows1to4.
Release the roof panel switch when the
tilt/sliding panel has reached the de-
sired position.
Fully opening (Express-open) the
panorama roof with power tilt/sliding
panel

Move the roof panel switch past the
resistance point in the direction of
arrow4 and release.
The tilt/sliding panel opens
completely.
Stopping the panorama roof with power
tilt/sliding panel during Express-open

Move the roof panel switch in any
direction.Opening the panorama roof with power
tilt/sliding panel with the SmartKey
The power windows (
page 237) will also
be opened or closed when you operate the
tilt/sliding panel with the SmartKey.
iYou can also open or close the tilt/slid-
ing panel using the SmartKey (summer
opening/convenience closing feature)
(page 244).
You can close and reopen the tilt/slid-
ing panel using the air recirculation
button, in the climate control pan-
el (page 173) or automatic climate
control panel (
page 183).
You can close and reopen the tilt/slid-
ing panel using the charcoal filter but-
ton e in the automatic climate
control panel*(page 183).
Warning!
G
Never operate the windows or tilt/sliding
panel if there is the possibility of anyone be-
ing harmed by the opening or closing proce-
dure.
In the event that the procedure causes po-
tential danger, the procedure can be imme-
diately halted by releasing the button on the
SmartKey. To reverse direction of move-
ment, press Œ for opening or ‹ for
closing.

245 Controls in detail
Panorama roof with power tilt/sliding panel*

Aim transmitter eye at the driver‘s door
handle.
Opening (Summer opening feature)
If the roller sunblind is closed:

Press and hold buttonΠafter
unlocking the vehicle.
The windows and the roller sunblind
begin to open after approximately
one second.

Press and hold buttonΠagain.
The tilt/sliding panel tilts.

Press and hold buttonΠagain.
The tilt/sliding panel begins to open
after approximately one second.
If roller sunblind is already open:

Press and hold buttonΠafter
unlocking the vehicle.
The windows move down and the
tilt/sliding panel tilts after approxi-
mately one second.

With the windows fully open, press and
hold buttonΠagain.
The tilt/sliding panel begins to slide
open after approximately one second.

Release theΠbutton to stop
procedure.Closing (Convenience feature)

Press and hold button ‹ after lock-
ing the vehicle.
The windows and the tilt/sliding panel
begin to close after approximately
one second.

With the windows and tilt/sliding panel
fully closed, press and hold button
‹ again.
The roller sunblind begins to close after
approximately one second.

Release the ‹ button to stop
procedure.
Make sure all side windows and the
tilt/sliding panel are properly closed
before leaving the vehicle.

246 Controls in detailPanorama roof with power tilt/sliding panel*Synchronizing the panorama roof with
power tilt/sliding panel and the roller sunblinds
The tilt/sliding panel after must be
synchronized

after the battery has been
disconnected or discharged


after the tilt/sliding panel has been
closed manually


the tilt/sliding panel has been opened
with an abrupt movement


after a malfunction.

Switch on the ignition (
page 33).

Move and hold the roof panel switch in
direction of arrow3 (
page 242)
until the roller sunblind are fully closed.
Hold the roof panel switch for approxi-
mately one second.

Move and hold the roof panel switch in
direction of arrow4 until the roller
sunblinds are fully opened.
Hold the roof panel switch for
approximately one second.

Move and hold the roof panel switch in
the direction of arrow4 until the
tilt/sliding panel is approximately 4 in
(10 cm) opened.
Release the roof panel switch.

Move and hold the roof panel switch in
the direction of arrow3 until the
tilt/sliding panel is fully closed.
Hold the roof panel switch for
approximately one second.

Check the Express-open feature of the
tilt/sliding panel (
page 244).
If the tilt/sliding panel opens com-
pletely, the tilt/sliding panel is
synchronized. Otherwise repeat the
above steps.

247 Controls in detail
Driving systems
Driving systems
The driving system of your vehicle is
described on the following pages:

Cruise control, with which the vehicle
can maintain a preset speed
For information on the BAS, ABS and ESP
driving systems, see “Driving safety sys-
tems” (
page 81).
Cruise control
Cruise control automatically maintains the
speed you set for your vehicle.
Use of cruise control is recommended for
driving at a constant speed for extended
periods of time. You can set or resume
cruise control at any speed over 20 mph
(30 km/h).
The cruise control function is operated by
means of the cruise control lever.
The cruise control lever is the uppermost
lever on the left-hand side of the steering
column.
Warning!
G
Cruise control is a convenience system
designed to assist the driver during vehicle
operation. The driver is and must remain at
all times responsible for the vehicle speed
and for safe brake operation.
Only use cruise control if the road, the traffic
and weather conditions make it advisable to
travel at a steady speed.

The use of cruise control can be danger-
ous on winding roads or in heavy traffic
because conditions do not allow safe
driving at a steady speed.


The use of cruise control can be danger-
ous on slippery roads. Rapid changes in
tire traction can result in wheel spin and
loss of control.


Deactivate cruise control when driving
in fog.
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

248 Controls in detailDriving systems1Sets current or higher speed
2Sets current or lower speed
3Cancels cruise control
4Resumes at last set speed
Setting current speed
Accelerate or decelerate to the desired
speed.

Briefly lift1 or depress2 the cruise
control lever.
The current speed is set.

Remove your foot from the accelerator
pedal.
Cruise control is activated.Canceling cruise control
There are several ways to cancel cruise
control:

Step on the brake pedal.
Cruise control is canceled. The last
speed set is stored for later use.
or

Briefly push the cruise control lever to
position3.
Cruise control is canceled. The last
speed set is stored for later use.iOn uphill or downhill grades, cruise
control may not be able to maintain the
set speed. Once the grade eases, the
set speed will be resumed.
!Vehicles with automatic transmission:
Moving the gear selector lever to
positionN while driving also cancels
cruise control. However, the gear se-
lector lever should not be moved to
positionN while driving, except to
coast when the vehicle is in danger of
skidding (e.g. on icy roads).iVehicles with manual transmission:
The set cruise controlled speed is
switched off when declutching exceeds
four seconds during downshifting a
gear.iThe last stored speed is canceled when
you turn off the engine.

249 Controls in detail
Driving systems
Setting a higher speed
Lift cruise control lever to position1
and hold it up until the desired speed is
reached.

Release cruise control lever.
The new speed is set.
Setting a lower speed

Depress cruise control lever to
position2 and hold it down until the
desired speed is reached.

Release cruise control lever.
The new speed is set.Fine adjustment in 1 mph
(Canada: 1 km/h) increments
Faster

Briefly tip cruise control lever in
direction of arrow1.
Slower

Briefly tip cruise control lever in
direction of arrow2.Setting to last stored speed
(“Resume” function)

Briefly push cruise control lever to
position4.
The cruise control resumes the last set
speed.

Remove your foot from the accelerator
pedal.
iDepressing the accelerator pedal does
not deactivate cruise control. After
brief acceleration (e.g. for passing),
cruise control will resume the last
speed set.
iVehicles with automatic transmission:
When you use the cruise control lever
to decelerate, the transmission will
automatically downshift if the engine’s
braking power does not brake the
vehicle sufficiently.
Warning!
G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to preset
speed could cause an accident and/or seri-
ous injury to you and others.
