MERCEDES-BENZ C COUPE 2005 CL203 Owner's Manual

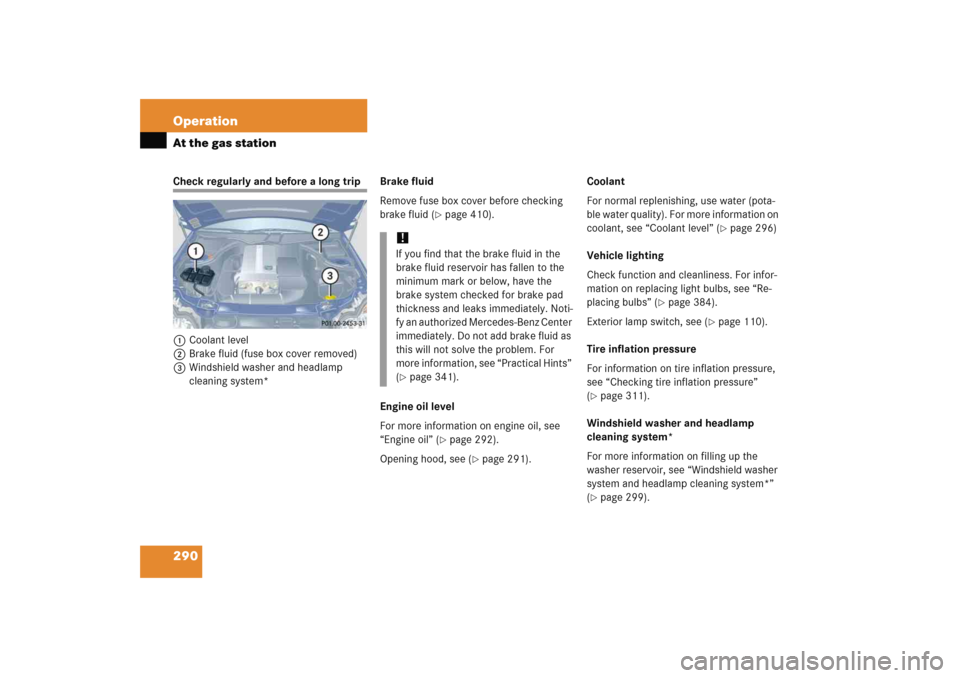

290 OperationAt the gas stationCheck regularly and before a long trip
1Coolant level
2Brake fluid (fuse box cover removed)
3Windshield washer and headlamp
cleaning system*Brake fluid
Remove fuse box cover before checking
brake fluid (
page 410).
Engine oil level
For more information on engine oil, see
“Engine oil” (page 292).
Opening hood, see (
page 291).Coolant
For normal replenishing, use water (pota-
ble water quality). For more information on
coolant, see “Coolant level” (
page 296)
Vehicle lighting
Check function and cleanliness. For infor-
mation on replacing light bulbs, see “Re-
placing bulbs” (
page 384).
Exterior lamp switch, see (
page 110).
Tire inflation pressure
For information on tire inflation pressure,
see “Checking tire inflation pressure”
(
page 311).
Windshield washer and headlamp
cleaning system*
For more information on filling up the
washer reservoir, see “Windshield washer
system and headlamp cleaning system*”
(page 299).
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks immediately. Noti-
fy an authorized Mercedes-Benz Center
immediately. Do not add brake fluid as
this will not solve the problem. For
more information, see “Practical Hints”
(page 341).

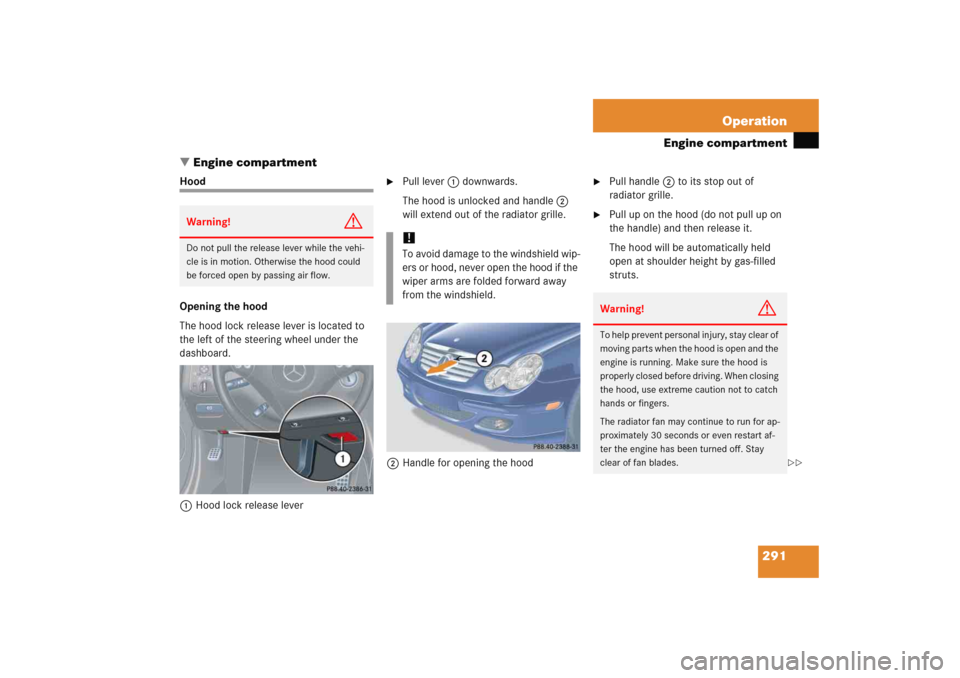

291 Operation
Engine compartment
Engine compartment
Hood
Opening the hood
The hood lock release lever is located to
the left of the steering wheel under the
dashboard.
1Hood lock release lever

Pull lever1 downwards.
The hood is unlocked and handle2
will extend out of the radiator grille.
2Handle for opening the hood

Pull handle2 to its stop out of
radiator grille.

Pull up on the hood (do not pull up on
the handle) and then release it.
The hood will be automatically held
open at shoulder height by gas-filled
struts.
Warning!
G
Do not pull the release lever while the vehi-
cle is in motion. Otherwise the hood could
be forced open by passing air flow.
!To avoid damage to the windshield wip-
ers or hood, never open the hood if the
wiper arms are folded forward away
from the windshield.
Warning!
G
To help prevent personal injury, stay clear of
moving parts when the hood is open and the
engine is running. Make sure the hood is
properly closed before driving. When closing
the hood, use extreme caution not to catch
hands or fingers.
The radiator fan may continue to run for ap-
proximately 30 seconds or even restart af-
ter the engine has been turned off. Stay
clear of fan blades.

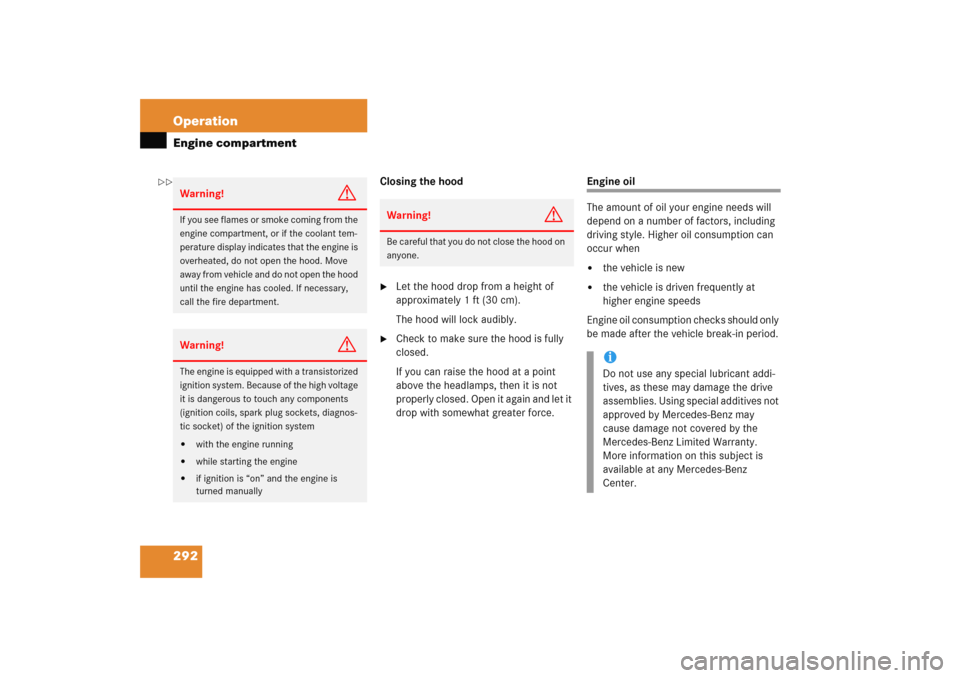

292 OperationEngine compartment
Closing the hood
Let the hood drop from a height of
approximately 1 ft (30 cm).
The hood will lock audibly.

Check to make sure the hood is fully
closed.
If you can raise the hood at a point
above the headlamps, then it is not
properly closed. Open it again and let it
drop with somewhat greater force.
Engine oil
The amount of oil your engine needs will
depend on a number of factors, including
driving style. Higher oil consumption can
occur when

the vehicle is new


the vehicle is driven frequently at
higher engine speeds
Engine oil consumption checks should only
be made after the vehicle break-in period.
Warning!
G
If you see flames or smoke coming from the
engine compartment, or if the coolant tem-
perature display indicates that the engine is
overheated, do not open the hood. Move
away from vehicle and do not open the hood
until the engine has cooled. If necessary,
call the fire department.Warning!
G
The engine is equipped with a transistorized
ignition system. Because of the high voltage
it is dangerous to touch any components
(ignition coils, spark plug sockets, diagnos-
tic socket) of the ignition system

with the engine running


while starting the engine


if ignition is “on” and the engine is
turned manually
Warning!
G
Be careful that you do not close the hood on
anyone.
iDo not use any special lubricant addi-
tives, as these may damage the drive
assemblies. Using special additives not
approved by Mercedes-Benz may
cause damage not covered by the
Mercedes-Benz Limited Warranty.
More information on this subject is
available at any Mercedes-Benz
Center.

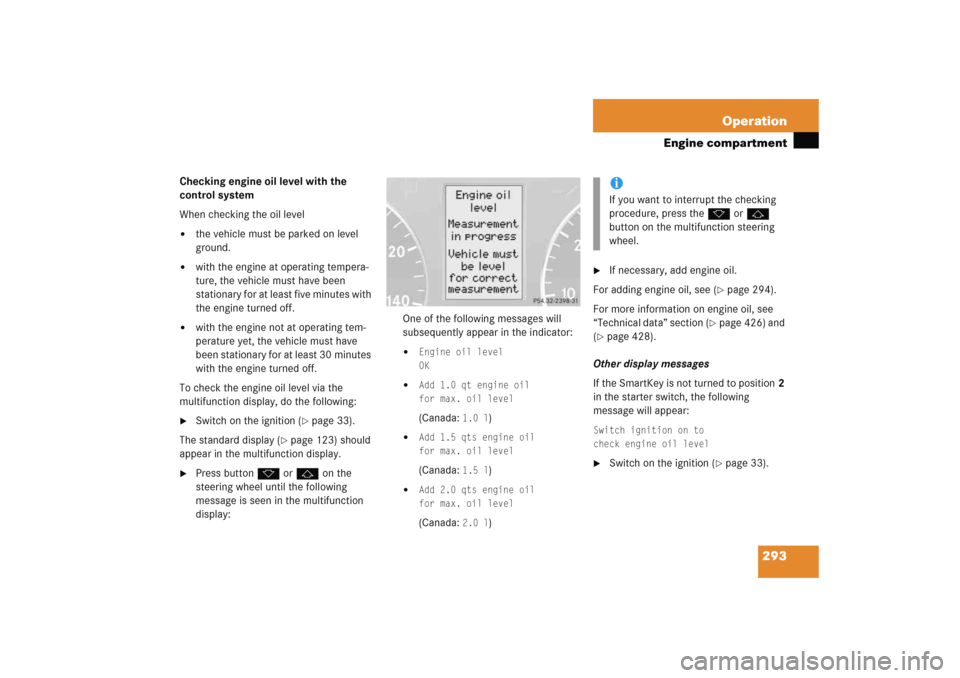

293 Operation
Engine compartment
Checking engine oil level with the
control system
When checking the oil level

the vehicle must be parked on level
ground.


with the engine at operating tempera-
ture, the vehicle must have been
stationary for at least five minutes with
the engine turned off.


with the engine not at operating tem-
perature yet, the vehicle must have
been stationary for at least 30 minutes
with the engine turned off.
To check the engine oil level via the
multifunction display, do the following:

Switch on the ignition (
page 33).
The standard display (
page 123) should
appear in the multifunction display.

Press buttonk orj on the
steering wheel until the following
message is seen in the multifunction
display:One of the following messages will
subsequently appear in the indicator:


Engine oil level
OK


Add 1.0 qt engine oil
for max. oil level(Canada:
1.0 l
)


Add 1.5 qts engine oil
for max. oil level(Canada:
1.5 l
)


Add 2.0 qts engine oil
for max. oil level(Canada:
2.0 l
)

If necessary, add engine oil.
For adding engine oil, see (
page 294).
For more information on engine oil, see
“Technical data” section (
page 426) and
(
page 428).
Other display messages
If the SmartKey is not turned to position2
in the starter switch, the following
message will appear:
Switch ignition on to
check engine oil level
Switch on the ignition (
page 33).
iIf you want to interrupt the checking
procedure, press thek orj
button on the multifunction steering
wheel.

294 OperationEngine compartmentIf you see the message:Observe waiting time
If engine is at operating temperature,
wait five minutes before repeating
check procedure.

If engine is not at operating tempera-
ture yet, wait 30 minutes before
repeating check procedure.
If you see the message:
Engine oil level
Not when engine on
Turn off the engine.

If the engine is at operating tempera-
ture, wait five minutes before checking
oil.

If the engine is not at operating temper-
ature yet, you must wait 30 minutes
before checking oil.If there is excess engine oil with the engine
at normal operating temperature, the
following message will appear:
Engine oil level
Reduce oil level
Have excess oil siphoned or drained
off. Contact an authorized
Mercedes-Benz Center.
For more information on messages in the
display concerning engine oil, see “Practi-
cal hints” (
page 363).Adding engine oil
!Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.
!Only use approved engine oils and oil
filters required for vehicles with
Maintenance System (U.S. vehicles) or
FSS (Canada vehicles). For a listing of
approved engine oils and oil filters,
refer to the Factory Approved Service
Products pamphlet in your vehicle
literature portfolio, or contact an
authorized Mercedes-Benz Center.
Using engine oils and oil filters of spec-
ification other than those expressly
required for the Maintenance System
(U.S. vehicles) or FSS (Canada vehi-
cles), or changing of oil and oil filter at
change intervals longer than those
called for by the Maintenance System
(U.S. vehicles) or FSS (Canada vehi-
cles) will result in engine damage not
covered by the Mercedes-Benz Limited
Warranty.

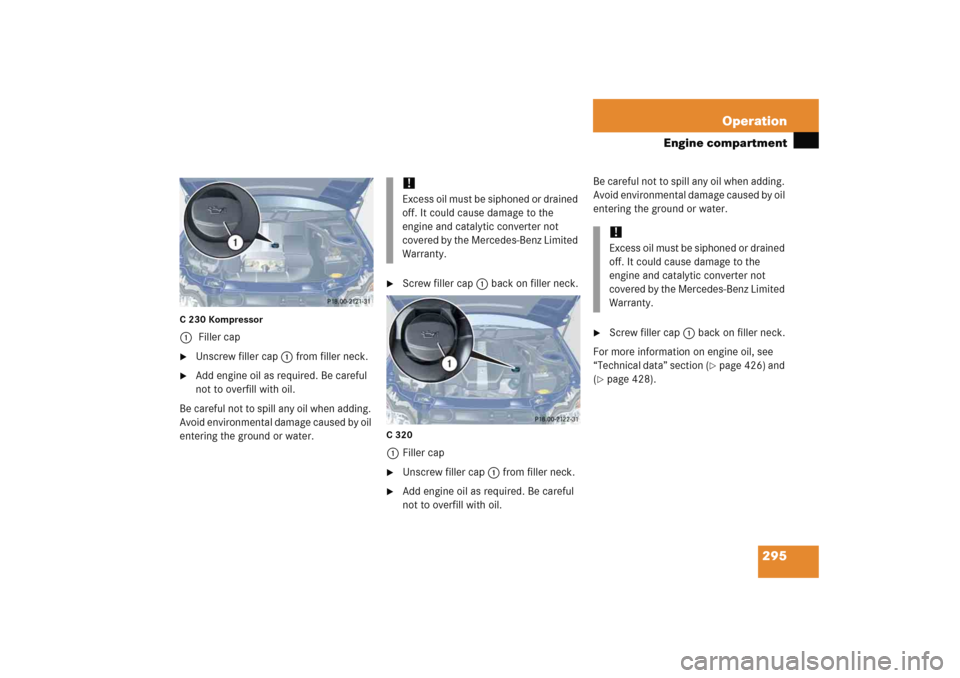

295 Operation
Engine compartment
C 230 Kompressor1 Filler cap
Unscrew filler cap1 from filler neck.

Add engine oil as required. Be careful
not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

Screw filler cap1 back on filler neck.
C3201Filler cap
Unscrew filler cap1 from filler neck.

Add engine oil as required. Be careful
not to overfill with oil.Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

Screw filler cap1 back on filler neck.
For more information on engine oil, see
“Technical data” section (
page 426) and
(
page 428).
!Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.
!Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.

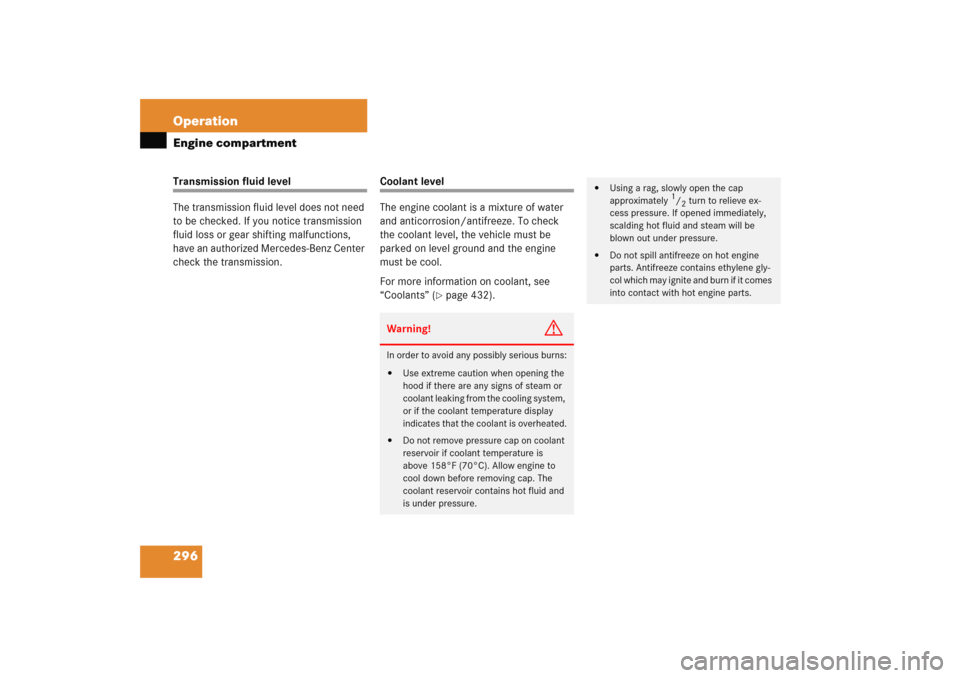

296 OperationEngine compartmentTransmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the transmission.
Coolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze. To check
the coolant level, the vehicle must be
parked on level ground and the engine
must be cool.
For more information on coolant, see
“Coolants” (
page 432).
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature display
indicates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if coolant temperature is
above 158°F (70°C). Allow engine to
cool down before removing cap. The
coolant reservoir contains hot fluid and
is under pressure.


Using a rag, slowly open the cap
approximately
1/2 turn to relieve ex-
cess pressure. If opened immediately,
scalding hot fluid and steam will be
blown out under pressure.


Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may ignite and burn if it comes
into contact with hot engine parts.

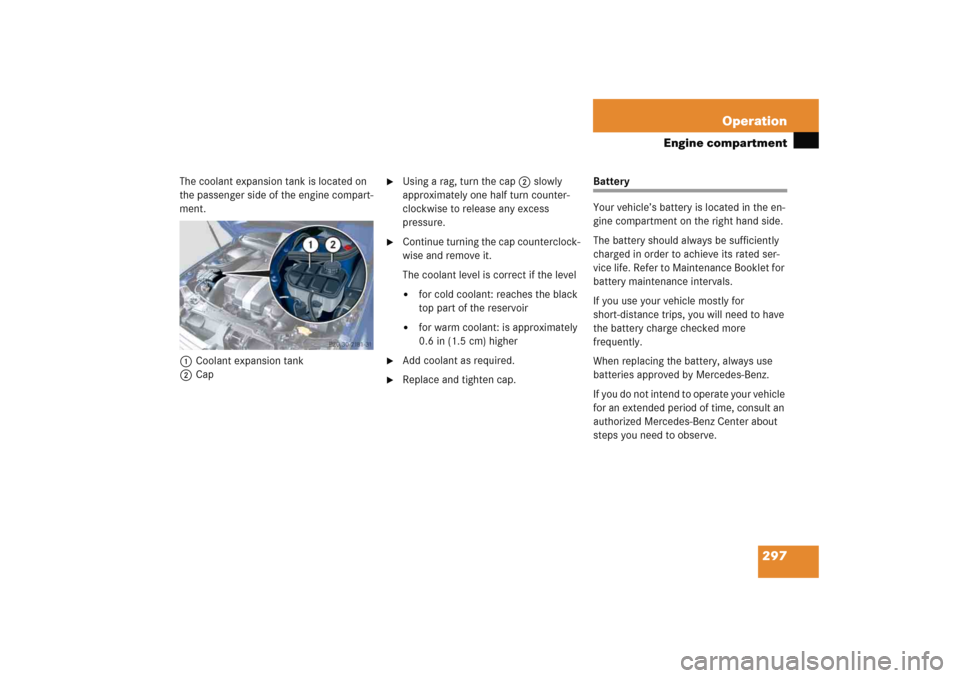

297 Operation
Engine compartment
The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
1Coolant expansion tank
2Cap

Using a rag, turn the cap2 slowly
approximately one half turn counter-
clockwise to release any excess
pressure.

Continue turning the cap counterclock-
wise and remove it.
The coolant level is correct if the level

for cold coolant: reaches the black
top part of the reservoir


for warm coolant: is approximately
0.6 in (1.5 cm) higher

Add coolant as required.

Replace and tighten cap.

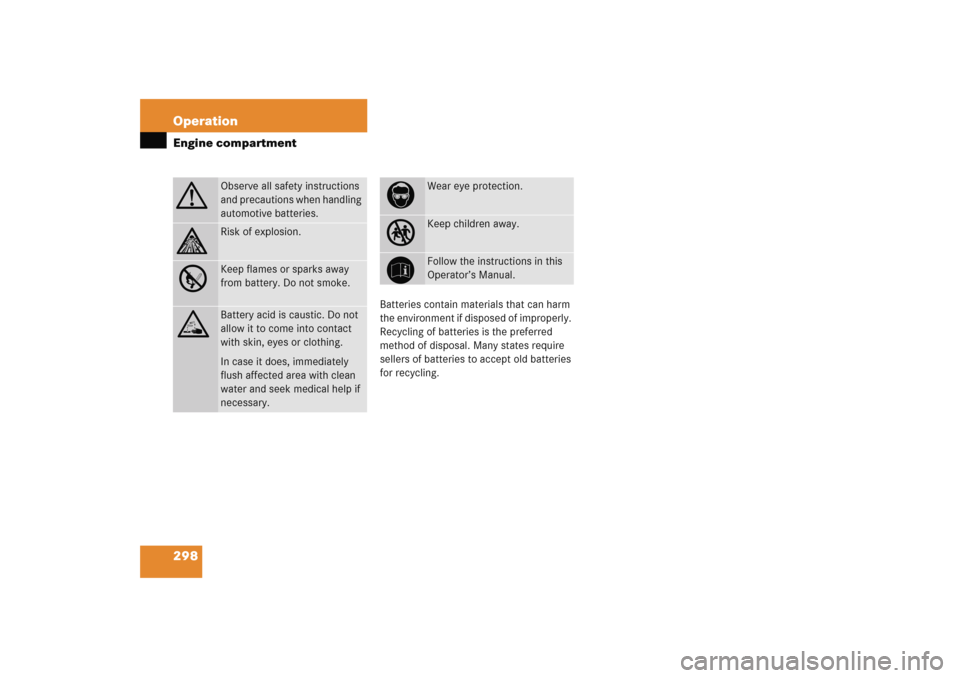

Battery
Your vehicle’s battery is located in the en-
gine compartment on the right hand side.
The battery should always be sufficiently
charged in order to achieve its rated ser-
vice life. Refer to Maintenance Booklet for
battery maintenance intervals.
If you use your vehicle mostly for
short-distance trips, you will need to have
the battery charge checked more
frequently.
When replacing the battery, always use
batteries approved by Mercedes-Benz.
If you do not intend to operate your vehicle
for an extended period of time, consult an
authorized Mercedes-Benz Center about
steps you need to observe.

298 OperationEngine compartment
Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
G
Observe all safety instructions
and precautions when handling
automotive batteries.
A
Risk of explosion.
D
Keep flames or sparks away
from battery. Do not smoke.
B
Battery acid is caustic. Do not
allow it to come into contact
with skin, eyes or clothing.
In case it does, immediately
flush affected area with clean
water and seek medical help if
necessary.
E
Wear eye protection.
C
Keep children away.
F
Follow the instructions in this
Operator’s Manual.

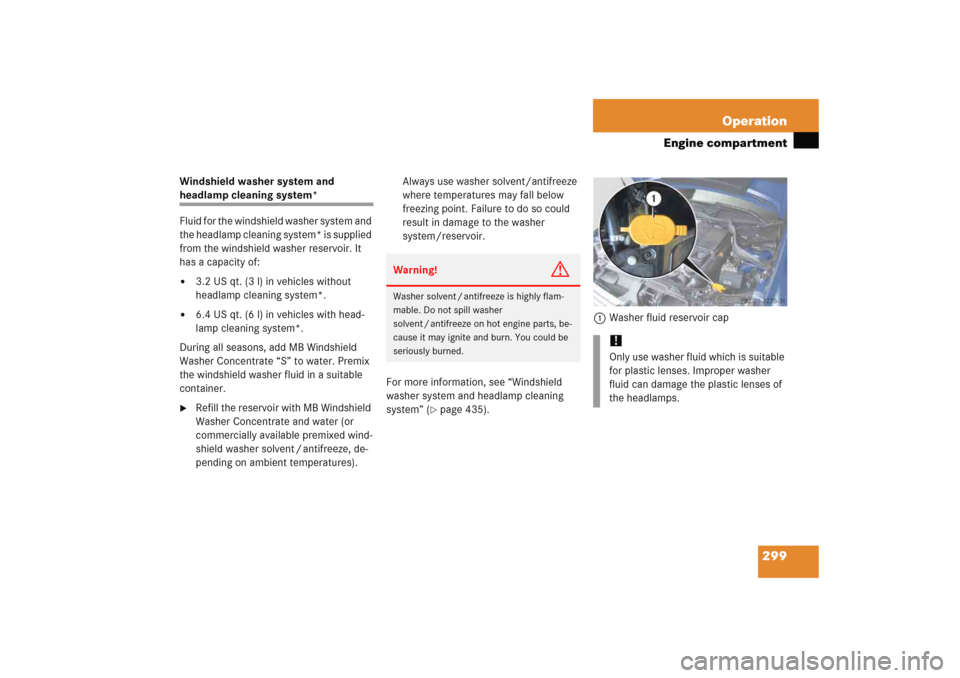

299 Operation
Engine compartment
Windshield washer system and headlamp cleaning system*
Fluid for the windshield washer system and
the headlamp cleaning system* is supplied
from the windshield washer reservoir. It
has a capacity of:

3.2 US qt. (3 l) in vehicles without
headlamp cleaning system*.


6.4 US qt. (6 l) in vehicles with head-
lamp cleaning system*.
During all seasons, add MB Windshield
Washer Concentrate “S” to water. Premix
the windshield washer fluid in a suitable
container.

Refill the reservoir with MB Windshield
Washer Concentrate and water (or
commercially available premixed wind-
shield washer solvent / antifreeze, de-
pending on ambient temperatures).Always use washer solvent/antifreeze
where temperatures may fall below
freezing point. Failure to do so could
result in damage to the washer
system/reservoir.
For more information, see “Windshield
washer system and headlamp cleaning
system” (
page 435).1Washer fluid reservoir cap
Warning!
G
Washer solvent / antifreeze is highly flam-
mable. Do not spill washer
solvent / antifreeze on hot engine parts, be-
cause it may ignite and burn. You could be
seriously burned.
!Only use washer fluid which is suitable
for plastic lenses. Improper washer
fluid can damage the plastic lenses of
the headlamps.
