MERCEDES-BENZ C COUPE 2005 CL203 Service Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2005, Model line: C COUPE, Model: MERCEDES-BENZ C COUPE 2005 CL203Pages: 474, PDF Size: 4.14 MB
Page 41 of 474
40 Getting startedAdjustingFolding backrest forward
Pivot seat belt presenter2 down.
Pull release lever1 forward and fold
the seat backrest forward.
Vehicles with manual seat adjustment:
If necessary, press the head restraint
downward while tilting the backrest
forward.Folding backrest back
Fold and press the backrest rearward
until it engages in driving position.
Vehicles with manual seat adjustment:
If necessary, pull the head restraint out
while tilting the seat back.
For more information, see “Seats”
(
page 100).
Steering wheel
iVehicles with power seat*: The head
restraints will automatically move
down.
iVehicles with power seat*: The head
restraint returns to its previous posi-
tions.
Warning!
G
Do not adjust the steering wheel while
driving. Adjusting the steering wheel while
driving, or driving without the steering wheel
adjustment locked could cause the driver to
lose control of the vehicle.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle.
Even with the SmartKey removed from the
starter switch, the electrical steering wheel
adjustment feature* can be operated when
the driver’s door is open. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Page 42 of 474
41 Getting started
Adjusting
Steering wheel adjustment, manual
1Handle
To unlock the steering column, pull
handle1 out until its stop limit.
Move steering wheel to the desired
position.
To lock the steering column, push
handle1 all the way in until it
engages.
The steering wheel is once again
locked into position.
Make sure the steering wheel is
securely locked by trying to move it up
and down, and in and out before driving
off.
Make sure your legs can move freely and
that all the displays (inclusive malfunction
and indicator lamps) on the instrument
cluster are clearly visible.Steering wheel adjustment, electrical*
The stalk for steering wheel adjustment is
located on the steering column (lower left).
1Adjusting steering column, in or out
2Adjusting steering column, up or down
Switch on the ignition (
page 33).
or
Open the driver’s door.
Warning!
G
Only adjust the steering wheel with the vehi-
cle at a standstill and make sure the steer-
ing wheel is securely locked in place before
driving off.
Driving without the steering wheel adjust-
ment locked may cause an unexpected
steering wheel movement which could
cause the driver to lose control of the vehi-
cle. Make sure the steering wheel is secure-
ly locked by trying to move it up and down,
and in and out before driving off.
Page 43 of 474
42 Getting startedAdjustingAdjusting steering column in or out
Move stalk forward or back in the direc-
tion of arrow1 until a comfortable
steering wheel position is reached with
your arms slightly bent at the elbow.
Adjusting steering column, up or down
Move stalk up or down in the direction
of arrow2.
Make sure your legs can move freely
and that all the displays (inclusive mal-
function and indicator lamps) on the in-
strument cluster are clearly visible.
Mirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.Interior rear view mirror
Manually adjust the interior rear view
mirror.
For more information, see “Rear view mir-
rors” (
page 167).
Exterior rear view mirrors
iThe memory function* (
page 107)
lets you store the setting for the steer-
ing wheel together with the setting for
the seat position and exterior rear view
mirrors.
Warning!
G
In the case of an accident, liquid electrolyte
may escape the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.!Electrolyte drops coming into contact
with the vehicle paint finish can only be
completely removed while in their
liquid state and by applying plenty of
water.
Warning!
G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
side rear view mirror or glance over your
shoulder before changing lanes.
Page 44 of 474
43 Getting started
Adjusting
The buttons are located above the exterior
lamp switch.
1Adjustment button
2Passenger-side exterior rear view
mirror
3Driver’s side exterior rear view mirror
Switch on the ignition (
page 33).
Press button3 for the driver’s side
exterior rear view mirror or button2
for the passenger-side exterior rear
view mirror.
Push adjustment button1 up, down,
left or right according to the desired
setting.
For more information, see “Rear view mir-
rors” (
page 167).
!If an exterior rear view mirror was forc-
ibly pushed forward (hit from the rear)
or forcibly pushed backward (hit from
the front), reposition it by applying firm
pressure until it snaps into place.
The mirror housing is now properly po-
sitioned and you can adjust the mirror
normally.
iThe memory function* (
page 107)
lets you store the setting for the exteri-
or rear view mirrors together with the
settings for the steering wheel and seat
positions.
iAt low ambient temperatures, the mir-
rors will be heated automatically.
Page 45 of 474

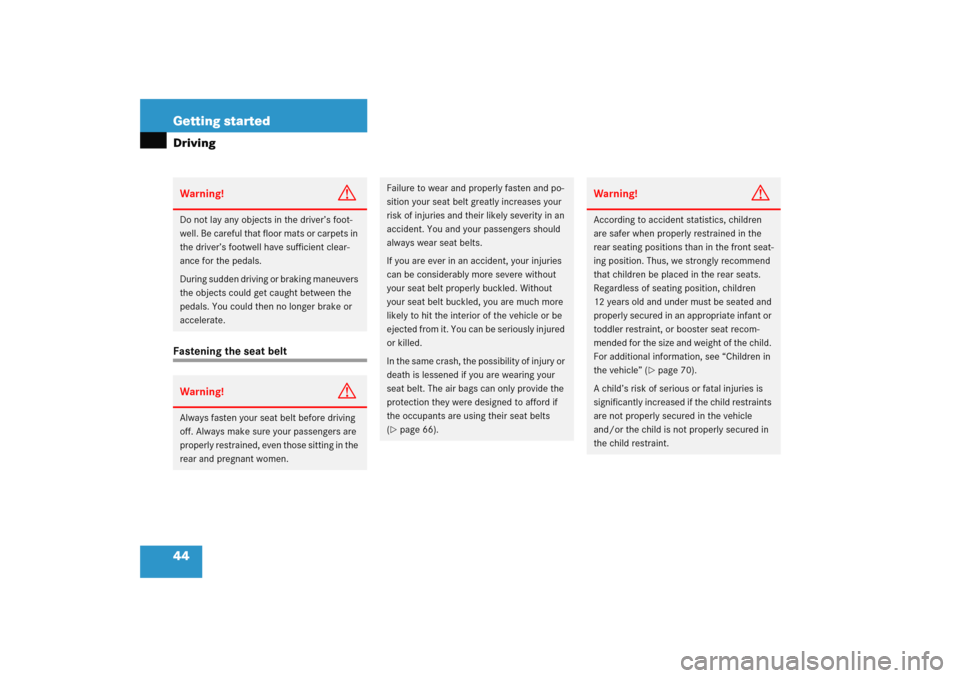

44 Getting startedDrivingFastening the seat beltWarning!
G
Do not lay any objects in the driver’s foot-
well. Be careful that floor mats or carpets in
the driver’s footwell have sufficient clear-
ance for the pedals.
During sudden driving or braking maneuvers
the objects could get caught between the
pedals. You could then no longer brake or
accelerate.Warning!
G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The air bags can only provide the
protection they were designed to afford if
the occupants are using their seat belts
(page 66).
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats.
Regardless of seating position, children
12 years old and under must be seated and
properly secured in an appropriate infant or
toddler restraint, or booster seat recom-
mended for the size and weight of the child.
For additional information, see “Children in
the vehicle” (
page 70).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.
Page 46 of 474
45 Getting started
Driving
The seat belt presenter for driver and pas-
senger makes it easier to put on the seat
belt.
1Seat belt presenter
Manually adjust the seat belt presenter
to the desired position.1Latch plate
2Release button
3Buckle
Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly
restrained with a separate seat belt. Never
use a seat belt for more than one person at
a time.Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.
Warning!
G
Read and observe the additional warning
notices printed in the “Safety and Security”
section (
page 64) and (
page 66).
iThe seat belt presenter must be put
back to its original position before lean-
ing the seat backrest toward the rear or
letting someone enter the rear passen-
ger compartment.
Page 47 of 474
46 Getting startedDriving
With a smooth motion, pull the belt
from the seat belt presenter.
Place the shoulder portion of the belt
across the top of your shoulder and the
lap portion across your hips.
Push latch plate1 into buckle3 until
it clicks.
If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.Seat belt height adjustment
1Release buttonRaising
Slide belt outlet upward.
Lowering
Press button1 and slide belt outlet
downward.
Page 48 of 474
47 Getting started
Driving
Proper use of seat belts
Do not twist the belt when fastening.
Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm. For this purpose, you can adjust
the height of the belt outlet.
Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.
Place the seat backrest in a nearly
upright position.
Never use a seat belt for more than one
person at a time.
Do not fasten a seat belt around a per-
son and another object at the same
time. When using a seat belt to secure
infant or toddler restraints or children
in booster seats, always follow the
child seat manufacturer's instructions.
Check your seat belt periodically dur-
ing travel to ensure that it is properly
positioned.
Make sure the seat belt is always fitted
snugly. Take special care of this when
wearing loose clothing.
Warning!
G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz
Center.
Page 49 of 474
48 Getting startedDrivingStarting the engine Manual transmission
Gearshift pattern for manual transmissionFor more information, see “Manual trans-
mission” (
page 157).Starting
Depress brake pedal.
Make sure the gearshift lever is in neu-
tral position (no gear selected).
Fully depress clutch pedal.
Otherwise the engine cannot be start-
ed due to the integrated safety inter-
lock.
Do not depress accelerator.
Turn the SmartKey in the starter switch
to position3 and hold until the engine
starts (
page 33).
For information on turning off the engine,
see “Turning off the engine” (
page 58).
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and lead to death.
Do not run the engine in confined areas
(such as garage) which are not properly ven-
tilated. If you think that exhaust gas fumes
are entering the vehicle while driving, have
the cause determined and corrected imme-
diately. If you must drive under these condi-
tions, drive only with at least one window
fully open.
Page 50 of 474
49 Getting started
Driving
Automatic transmission*Gearshift pattern for automatic
transmissionPPark position with gear selector lever
lock
RReverse gear
NNeutral
DDrive position
For more information, see “Automatic
transmission*” (
page 159).Starting
Make sure the gear selector lever is set
toP.
Do not depress accelerator.
Turn the SmartKey in the starter switch
to position3 and hold until the engine
starts (
page 33).
Depress brake pedal.
The selector lever lock is released.
For information on turning off the engine
with the SmartKey, see “Turning off the en-
gine” (
page 58).Starting difficulties
If the engine does not start as described,
carry out the following steps:
Turn SmartKey in starter to position0
and repeat starting procedure.
Remember that extended starting
attempts can drain the battery.
Get a jump start (
page 404).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.
Notify an authorized Mercedes-Benz
Center.
iYou can also use the “touch-start”
function. Turn the SmartKey to
position3 and release it again immedi-
ately. The engine then starts automati-
cally.
