21 At a glance
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Door control panel
Page 23 of 474

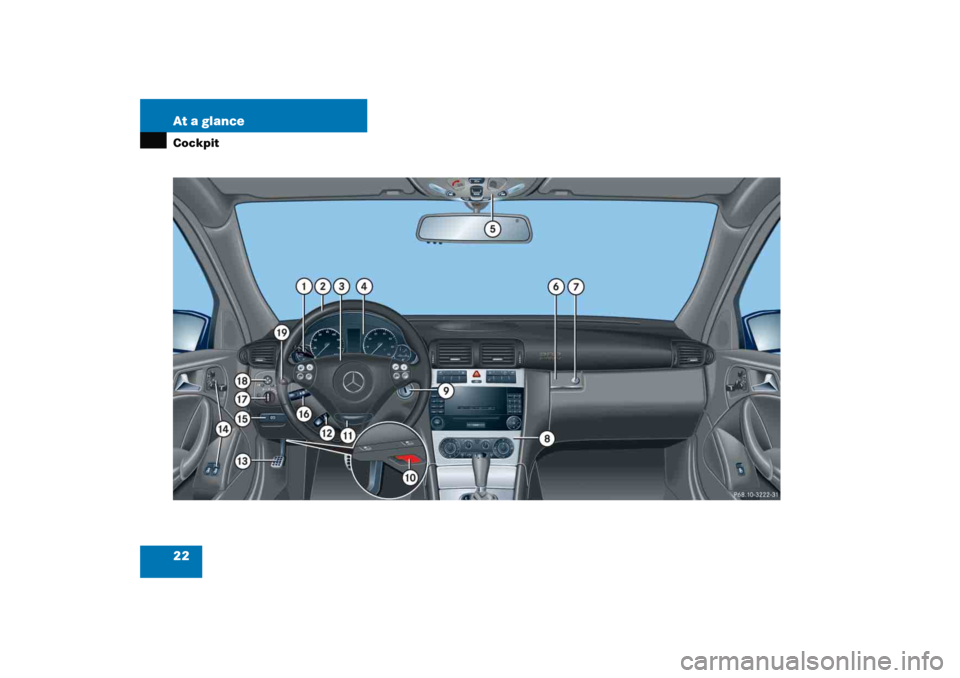

22 At a glanceCockpit
Page 24 of 474
23 At a glance
Cockpit
Item
Page
1
Cruise control lever
247
2
Multifunction steering
wheel
26
124
3
Horn
4
Instrument cluster
24
119
5
Overhead control panel
29
6
Glove box lid release
254
Item
Page
7
Glove box lock
254
8
Center console
27
9
Starter switch
33
a
Hood lock release
291
b
Steering wheel adjustment
handle (manual)
41
c
Steering wheel adjustment
stalk (electrical)*
41
d
Parking brake pedal
50, 56
e
Door control panel
30
Item
Page
f
Parking brake release
50
g
Combination switch
Turn signals
52
High beam
52
Windshield wipers
53
h
Exterior lamp switch
51
110
j
Exterior rear view mirror
adjustment
42
k
Headlamp washer switch*
167
Page 25 of 474

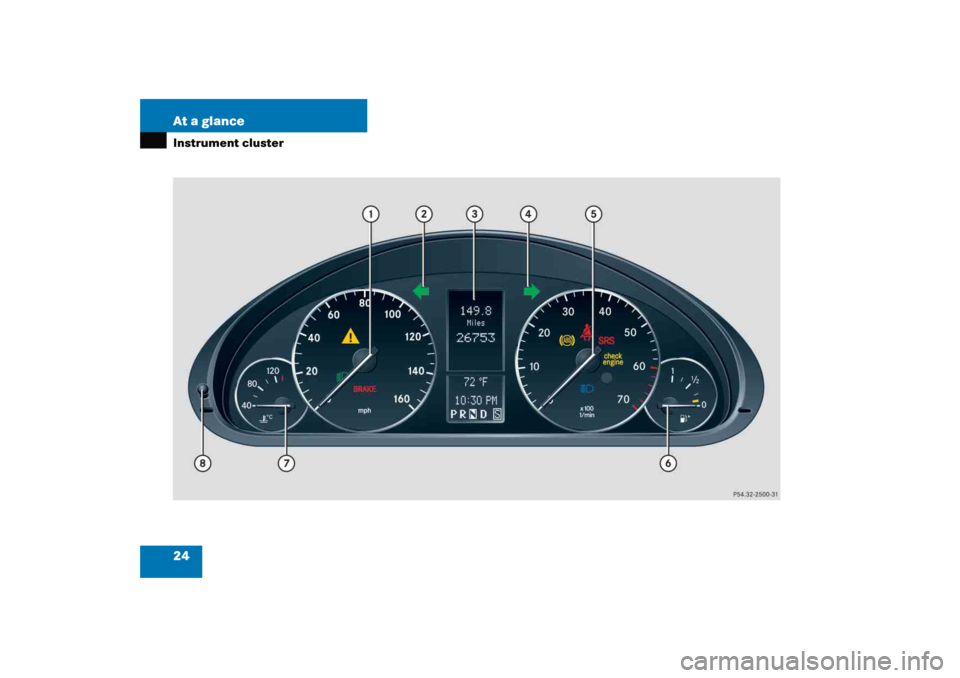

24 At a glanceInstrument cluster
Page 26 of 474
25 At a glance
Instrument cluster
Item
Page
1
Speedometer with:vElectronic Stability
Program (ESP)
warning lamp
83
343
;Brake warning lamp,
USA only
50
56
341
3Brake warning lamp,
Canada only
50
56
341
BLow beam headlamp
indicator lamp
51
110
2
LLeft turn signal
indicator lamp
52
3
Multifunction display with:Trip odometer
121
Main odometer
123
Gear selector lever position
49
162
Item
Page
Program mode
164
Status indicator
(outside temperature/ digital
speedometer)
121
138
Digital clock
123
139
4
KRight turn signal
indicator lamp
52
5
Tachometer with:-Antilock Brake
System (ABS)
indicator lamp
81
340
344
1Supplemental
restraint system
indicator lamp
60
344
AHigh beam headlamp
indicator lamp
51
114
Item
Page
úEngine malfunction
indicator lamp,
USA only
342
±Engine malfunction
indicator lamp,
Canada only
342
6
Fuel gauge with:Fuel reserve warning lamp
344
4Fuel filler cap location
indicator: The fuel
filler cap is on the rear
right-hand side.
7
Coolant temperature gauge
120
8
Reset button for:
Resetting trip odometer
121
Resetting individual
settings
135
Instrument cluster
illumination
119
Page 27 of 474

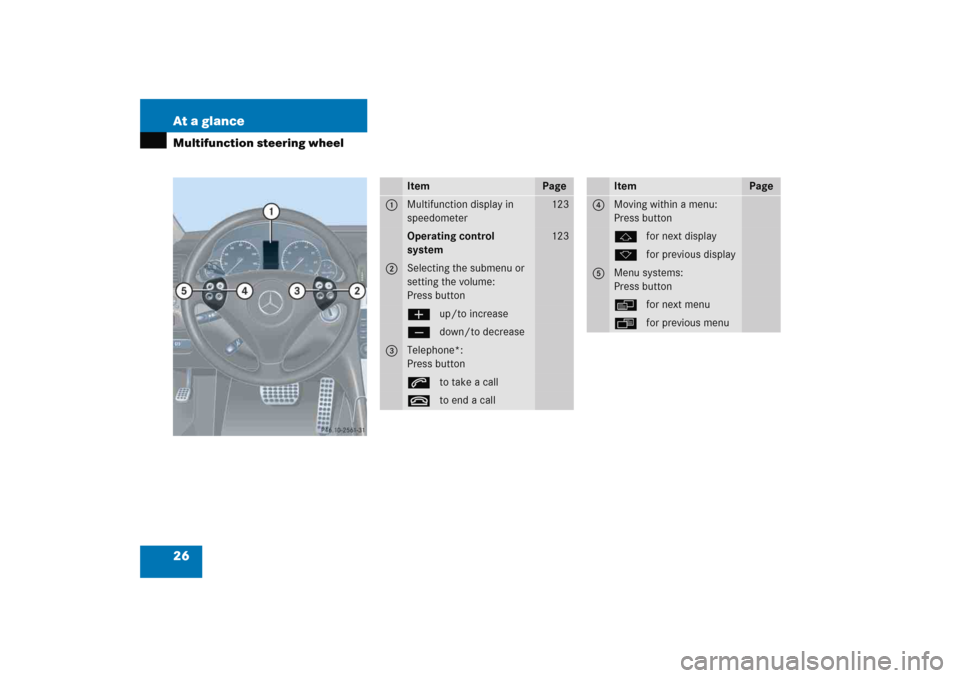

26 At a glanceMultifunction steering wheel
Item
Page
1
Multifunction display in
speedometer
123
Operating control
system
123
2
Selecting the submenu or
setting the volume:
Press buttonæup/to increaseçdown/to decrease
3
Telephone*:
Press buttonsto take a calltto end a call
Item
Page
4
Moving within a menu:
Press buttonjfor next displaykfor previous display
5
Menu systems:
Press buttonèfor next menuÿfor previous menu
Page 28 of 474

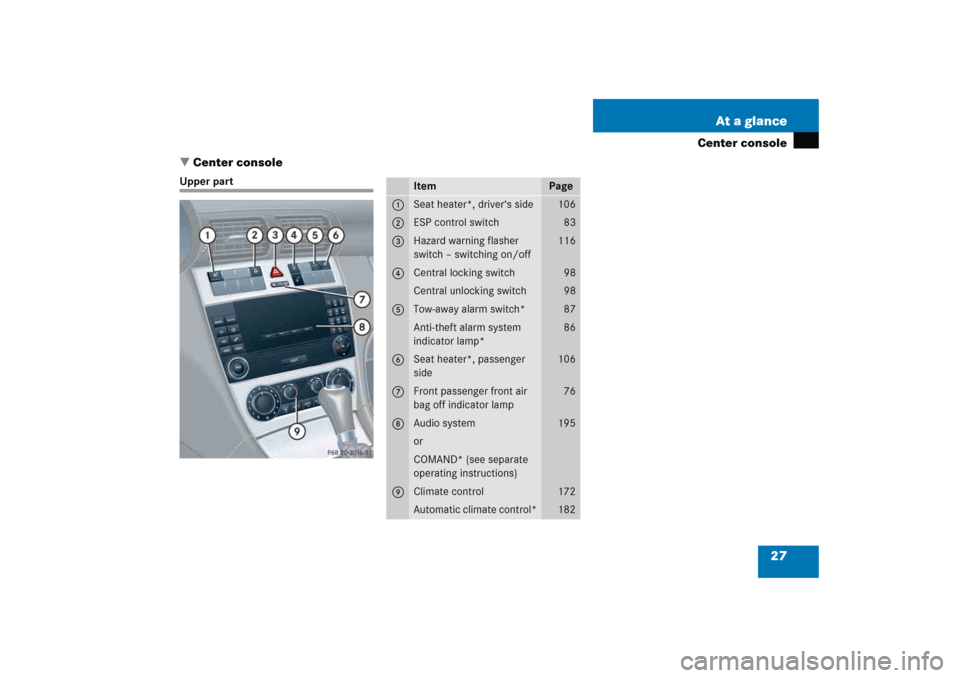

27 At a glance
Center console
Center console
Upper part
Item
Page
1
Seat heater*, driver‘s side
106
2
ESP control switch
83
3
Hazard warning flasher
switch – switching on/off
116
4
Central locking switch
98
Central unlocking switch
98
5
Tow-away alarm switch*
87
Anti-theft alarm system
indicator lamp*
86
6
Seat heater*, passenger
side
106
7
Front passenger front air
bag off indicator lamp
76
8
Audio system
195
orCOMAND* (see separate
operating instructions)
9
Climate control
172
Automatic climate control*
182
Page 29 of 474

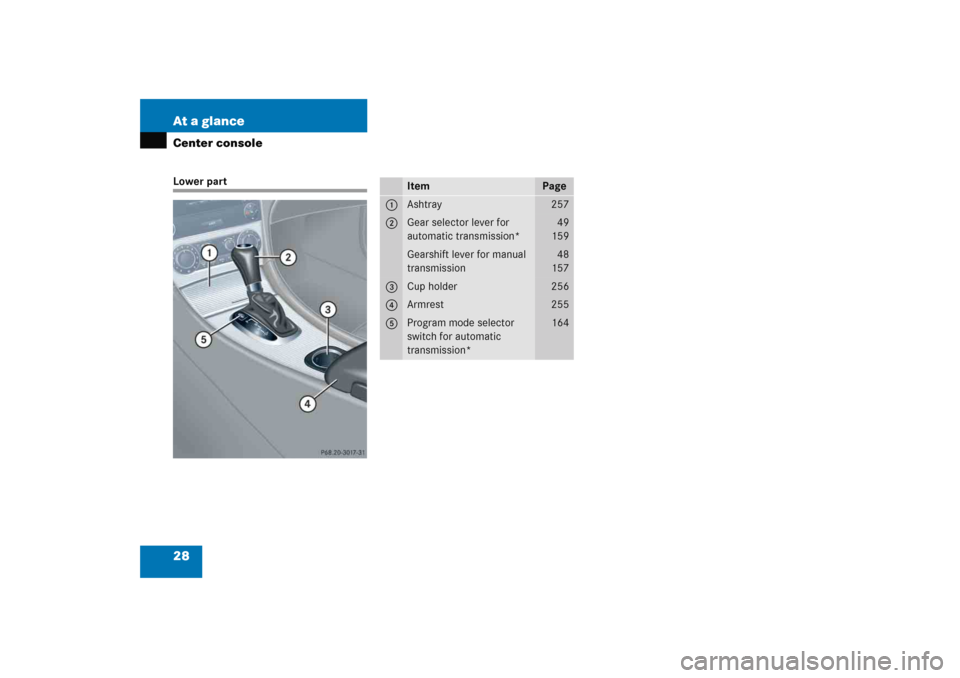

28 At a glanceCenter consoleLower part
Item
Page
1
Ashtray
257
2
Gear selector lever for
automatic transmission*
49
159
Gearshift lever for manual
transmission
48
157
3
Cup holder
256
4
Armrest
255
5
Program mode selector
switch for automatic
transmission*
164
Page 30 of 474
29 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Rear interior lighting
on/off
118
2
Panorama roof with power
tilt/sliding panel*
241
3
Right reading lamp on/off
118
4
Interior lighting control
118
5
Hands-free microphone for
Tele Aid* (emergency call
system) and telephone*
220
260
264
6
Interior rear view mirror
42
167
7
Garage door opener*
269
8
Left reading lamp on/off
118
9
Tele Aid* (emergency call
system) button
261
