oil reset MERCEDES-BENZ C WAGON 2005 S203 Owner's Manual

ContentsOperation......................................... 255
The first 1 000 miles (1 500 km) ......... 256
Driving instructions ............................ 257
Drive sensibly – save fuel ............. 257
Drinking and driving ..................... 257
Pedals .......................................... 257
Power assistance ......................... 257
Brakes .......................................... 258
Driving off..................................... 259
Parking ......................................... 259
Tires ............................................. 260
Hydroplaning ................................ 260
Tire traction .................................. 261
Tire speed rating .......................... 261
Winter driving instructions ........... 262
Standing water ............................. 263
Passenger compartment .............. 263
Driving abroad .............................. 263
Control and operation of radio
transmitter ................................... 264
Catalytic converter ....................... 264
Emission control........................... 265
Coolant temperature .................... 266At the gas station .............................. 267
Refueling ...................................... 267
Check regularly and before
a long trip ..................................... 269
Engine compartment ......................... 270
Hood ............................................ 270
Engine oil ..................................... 272
Transmission fluid level ................ 274
Coolant level ................................ 275
Battery ......................................... 276
Windshield washer system and
headlamp cleaning system* ......... 277
Tires and wheels ................................ 278
Important guidelines .................... 278
Life of tire..................................... 279
Direction of rotation ..................... 279
Checking tire inflation pressure ... 279
Rotating tires ............................... 281Winter driving .................................... 282
Winter tires .................................. 282
Block heater (Canada only) .......... 283
Snow chains................................. 283
Maintenance...................................... 284
Clearing the maintenance
service indicator .......................... 285
Maintenance service term
exceeded ..................................... 285
Calling up the maintenance
service indicator .......................... 285
Resetting the maintenance
service indicator .......................... 286
Vehicle care....................................... 287
Cleaning and care of the
vehicle ......................................... 287

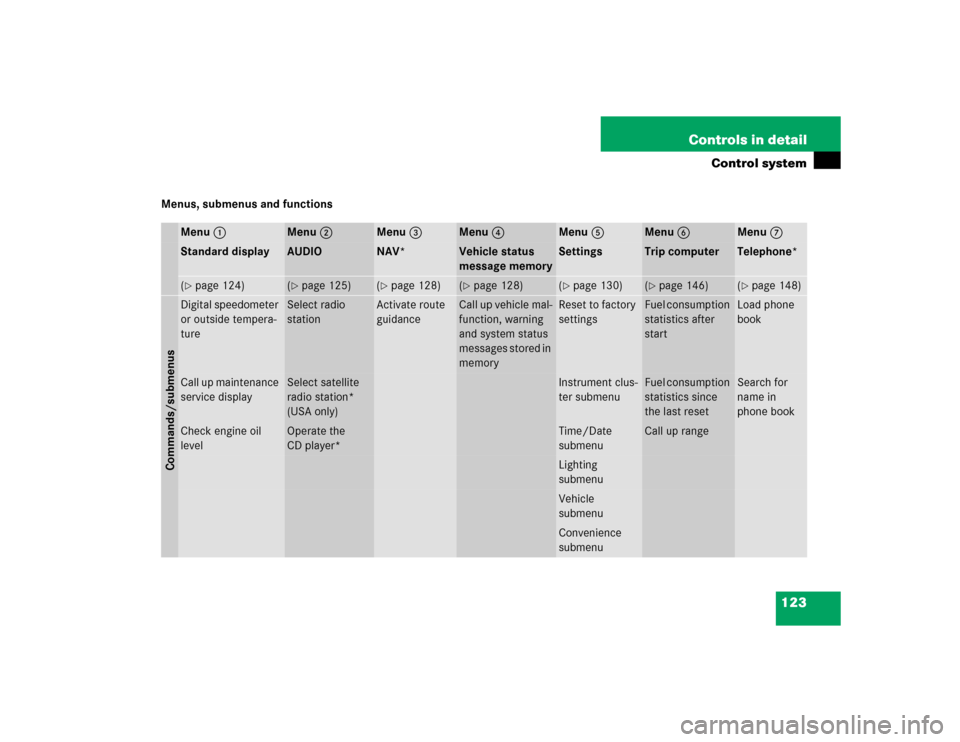

123 Controls in detail
Control system
Menus, submenus and functions
Menu1
Menu2
Menu3
Menu4
Menu5
Menu6
Menu7
Standard display
AUDIO
NAV*
Vehicle status
message memory
Settings
Trip computer
Telephone*
(page 124)
(page 125)
(page 128)
(page 128)
(page 130)
(page 146)
(page 148)
Commands/submenusDigital speedometer
or outside tempera-
ture
Select radio
station
Activate route
guidance
Call up vehicle mal-
function, warning
and system status
messages stored in
memory
Reset to factory
settings
Fuel consumption
statistics after
start
Load phone
book
Call up maintenance
service display
Select satellite
radio station*
(USA only)
Instrument clus-
ter submenu
Fuel consumption
statistics since
the last reset
Search for
name in
phone book
Check engine oil
level
Operate the
CD player*
Time/Date
submenu
Call up range
Lighting
submenuVehicle
submenuConvenience
submenu

285 Operation
Maintenance
Clearing the maintenance service indicator
The maintenance service indicator is
automatically cleared

after ten seconds when you switch on
the ignition or when reaching the main-
tenance service threshold while driving


after 30 seconds, once the suggested
maintenance service term has passed
You can also clear it yourself.
1Reset button

Press reset button1 on the
instrument cluster.
Maintenance service term exceeded
If you have exceeded the suggested
maintenance service term, you will see the
following message in the multifunction
display:Service A exceeded by XX Days
Service A exceeded by XX Miles
(Km)
In addition, a signal sounds when the
message appears.
Any authorized Mercedes-Benz Center will
reset the maintenance service indicator
following a completed maintenance
service.Calling up the maintenance service
indicator
Switch on ignition (
page 33).
The standard display of the control
system appears (
page 119).

Press buttonk orj on the
multifunction steering wheel until the
maintenance service indicator with the
service symbol9 or´ and the
service deadline appears in the
multifunction display.iIf the battery is disconnected, the days
of disconnection will not be included in
the count shown by the maintenance
service indicator. To arrive at the true
maintenance service deadline, you will
need to subtract these days from the
days shown in the maintenance service
indicator.
Do not confuse the maintenance
service indicator with the engine oil
level indicator:.

416 Index
Lighting 139
Resetting functions in
Control system 131
Selecting 131
Settings menu 131
Time/Date 135
Vehicle 143
Substitute lamps
Bulbs 332
Sun visors 164
Supplemental Restraint System see SRS
Switching
Fuel (Flexible fuel vehicle) 378
Switching off
Audio system 178
Automatic central locking
(control system) 143
Delayed (exterior lamps) 141
Engine 57
ESP 82
Hazard warning flasher 113
Headlamps 56
Seat heating* 104Switching on
Audio system 178
Automatic central locking
(control system) 143
ESP 83
Front fog lamps 111
Hazard warning flasher 113
Headlamps 49
High beam headlamps 49
High beams 112
Low beam headlamps 49
Rear fog lamp 112
Seat heating* 104
Windshield wipers 51
Symbols 15
Synchronizing
Power windows 218
Tilt/sliding sunroof* 222T
Tachometer 25, 118
Overspeed range 118
Tail lamps
Cleaning 289
Messages in display 317
Replacing bulbs 333, 339
Tailgate
Closing 94
Message in display 320
Opening 94
Tar stains 288
Technical data
Air conditioning refrigerant 375
Brake fluid 375
Coolant 373
Coolants 379
Electrical system 370
Engine 366
Engine oil additives 375
Engine oils 375
Flexible fuel vehicles 377
