Page 10 of 426
ContentsTechnical data.................................. 361
Parts service ...................................... 362
Warranty coverage ............................. 363
Loss of Service and Warranty
Information Booklet...................... 363
Identification labels............................ 364
Layout of poly-V-belt drive ................. 365
C 240 (all models) ........................ 365
Engine ................................................ 366
Rims and Tires ................................... 367
Same size tires ............................. 368
Minispare wheel ........................... 369
Electrical system................................ 370
Main Dimensions ............................... 371
Weights .............................................. 372Fuels, coolants, lubricants, etc. ......... 373
Capacities .................................... 373
Engine oils.................................... 375
Engine oil additives ...................... 375
Air conditioning refrigerant .......... 375
Brake fluid .................................... 375
Premium unleaded gasoline ......... 376
Fuel requirements ........................ 376
Gasoline additives ........................ 377
Flexible Fuel Vehicles ................... 377
Coolants....................................... 379
Windshield washer and
headlamp cleaning system* ......... 381
Consumer information ....................... 382
Uniform tire quality grading ......... 382
Technical terms............................... 385Index................................................. 391
Page 66 of 426
64 Safety and SecurityOccupant safety
Safety guidelines for the seat belt,
emergency tensioning device and
air bag In cases of other frontal impacts,
angled impacts, roll-overs, other side
impacts, rear collisions, or other acci-
dents, the air bags will not be activat-
ed. The driver and passengers will then
be protected by the fastened seat
belts.
We caution you not to rely on the
presence of the air bags in order to
avoid wearing your seat belt.
Your vehicle was originally equipped
with air bags that are designed to acti-
vate in certain impacts exceeding a
preset threshold to reduce the poten-
tial and severity of injury. It is important
to your safety and that of your passen-
gers that you replace deployed air bags
and repair any malfunctioning air bags
to make sure that the vehicle will con-
tinue to provide supplemental crash
protection for occupants.Warning!
G
Damaged seat belts or belts that were
highly stressed in an accident must be
replaced and their anchoring points
must also be checked. Only use belts in-
stalled or supplied by an authorized
Mercedes-Benz Center.
Air bags and emergency tensioning
devices (ETDs) are designed to function
on a one-time only basis. An air bag or
ETD that was activated must be
replaced.
No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or re-
moving any component or part of the
SRS, the installation of additional trim
material, badges, etc. over the steering
wheel hub, passenger front air bag
cover, door trim panels, or door frame
trims, and installation of additional elec-
trical/electronic equipment on or near
SRS components and wiring. Keep area
between air bags and occupants free
from objects (e.g. packages, purses,
umbrellas, etc.).
Do not pass belts over sharp edges.
They could tear.
Do not make any modification that could
change the effectiveness of the belts.
Do not bleach or dye seat belts as this
may severely weaken them. In a crash
they may not be able to provide ade-
quate protection.
Page 280 of 426
278 OperationTires and wheelsSee an authorized Mercedes-Benz Center
for information on tested and
recommended rims and tires for summer
and winter operation. They can also offer
advice concerning tire service and
purchase.
Retreaded tires are not tested or recom-
mended by Mercedes-Benz, since previous
damage cannot always be recognized on
retreads. Mercedes-Benz can therefore
not assure the operating safety of the
vehicle when such tires are used.
See an authorized Mercedes-Benz Center
for information on tested and
recommended rims and tires for summer
and winter operation.
Important guidelines
Only use sets of tires and rims of the
same type and make.
Tires must be of the correct size for the
rim.
Break in new tires for approximately
60 miles (100 km) at moderate
speeds.
Regularly check the tires and rims for
damage. Dented or bent rims can
cause tire pressure loss and damage to
the tire beads.
If vehicle is heavily loaded, check tire
pressure and correct as required.
Do not allow your tires to wear down
too far. Adhesion properties on wet
roads are sharply reduced at tread
depths under
1/8in (3 mm).
When replacing individual tires, you
should mount new tires on the front
wheels first (on vehicles with
same-sized wheels all around).
Warning!
G
Replace rims or tires with the same designa-
tion, manufacturer and type as shown on the
original part. See an authorized
Mercedes-Benz Center for further informa-
tion. If incorrectly sized rims and tires are
mounted:
The wheel brakes or suspension
components can be damaged.
The correct operating clearance of the
wheels and the tires are no longer
guaranteed.
Warning!
G
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
When replacing rims, only use genuine
Mercedes-Benz wheel bolts specified for the
particular rim type. Failure to do so can
result in the bolts loosening and possibly an
accident.
Page 283 of 426
281 Operation
Tires and wheels
Rotating tires
Tire rotation can be performed on vehicles
with tires of the same dimension all
around. If your vehicle is equipped with
tires of the same dimension all around,
tires can be rotated, observing a a
front-to-rear rotation pattern that will
maintain the intended rotation (spinning)
direction of the tire (
page 279).
In some cases, such as when your vehicle
is equipped with mixed-size tires (different
tire dimension front vs. rear), tire rotation
is not possible.If applicable to your vehicle's tire configu-
ration, tires can be rotated according to
the tire manufacturer's recommended in-
tervals in the tire manufacturer's warranty
pamphlet located in your vehicle literature
portfolio. If none is available, tires should
be rotated every 3 000 to 6 000 miles
(5 000 to 10 000 km), or sooner if neces-
sary, according to the degree of tire wear.
The same rotation (spinning) direction
must be maintained (
page 279).
Rotate tires before the characteristic tire
wear pattern becomes visible (shoulder
wear on front tires and tread center wear
on rear tires).
Thoroughly clean the mounting face of
wheels and brake disks, i.e. the inner side
of the wheels/tires, during each rotation.
Check for and ensure proper tire inflation
pressure.For information on wheel change, see the
“Practical hints” section (
page 321) and
(
page 342).
Warning!
G
Rotate front and rear wheels only if the tires
are of the same dimension.
If your vehicle is equipped with mixed-size
tires (different tire dimensions front vs.
rear), tire rotation is not possible.
Warning!
G
Have the tightening torque checked after
changing a wheel. Wheels could become
loose if not tightened with a torque of
80 lb-ft (110 Nm).
Only use genuine Mercedes-Benz wheel
bolts specified for your vehicle's rims.
Page 294 of 426
292 OperationVehicle careCloth upholstery
Clean with soft bristle brush, or use a
dry-shampoo cleaner in case of excessive
dirt.
MB Tex upholstery
Pour Mercedes-Benz approved Interior
Care onto soft lint-free cloth and apply
with light pressure.
Plastic and rubber parts
Do not use oil or wax on these parts.
Wood trims
Dampen cloth using water and use damp
cloth to clean wood trims in your vehicle.
Do not use solvents like tar remover or
wheel cleaner nor polishes or waxes as
these may be abrasive.
Page 327 of 426
325 Practical hints
Where will I find ...?
In the case of a flat tire, you may
temporarily use the Minispare wheel when
observing the following restrictions:
Do not exceed a vehicle speed of
50 mph (80 km/h).
Drive to the nearest tire repair facility
to have the flat tire repaired or
replaced as appropriate.
Do not operate vehicle with more than
one Minispare wheel mounted.
For more information, see “Rims and Tires”
(
page 367).Minispare wheel bolts
1Wheel bolt for light alloy rims
2Wheel bolt for Minispare wheel or other
steel rims (located in vehicle tool kit)
!Wheel bolts2 must be used when
mounting the Minispare wheel or other
steel rims. The use of any wheel bolts
other than wheel bolts2 for the
Minispare wheel or other steel rims will
physically damage the vehicle’s
brakes.Warning!
G
Make sure to use the original length wheel
bolts when remounting the original wheel
after it has been repaired.
Page 347 of 426
345 Practical hints
Flat tire
Mounting the Minispare wheel
1Wheel bolt for light alloy rims
2Wheel bolt for Minispare wheel or other
steel rims (located in vehicle tool kit)
Clean contact surfaces of wheel and
wheel hub.
Guide Minispare wheel onto alignment
bolt and push it on.
Insert wheel bolts and tighten them
slightly.
!Wheel bolts2 must be used when
mounting the Minispare wheel or other
steel rims. The use of any wheel bolts
other than wheel bolts2 for the
Minispare wheel or other steel rims will
physically damage the vehicle’s
brakes.
!To avoid paint damage, place wheel flat
against hub and hold it there while
installing first wheel bolt.Warning!
G
Always replace wheel bolts that are
damaged or rusted.
Never apply oil or grease to wheel bolts.
Damaged wheel hub threads should be
repaired immediately. Do not continue to
drive under these circumstances! Contact
an authorized Mercedes-Benz Center or call
Roadside Assistance.
Incorrect wheel bolts or improperly tight-
ened wheel bolts can cause the wheel to
come off. This could cause an accident.
Make sure to use the correct wheel bolts.

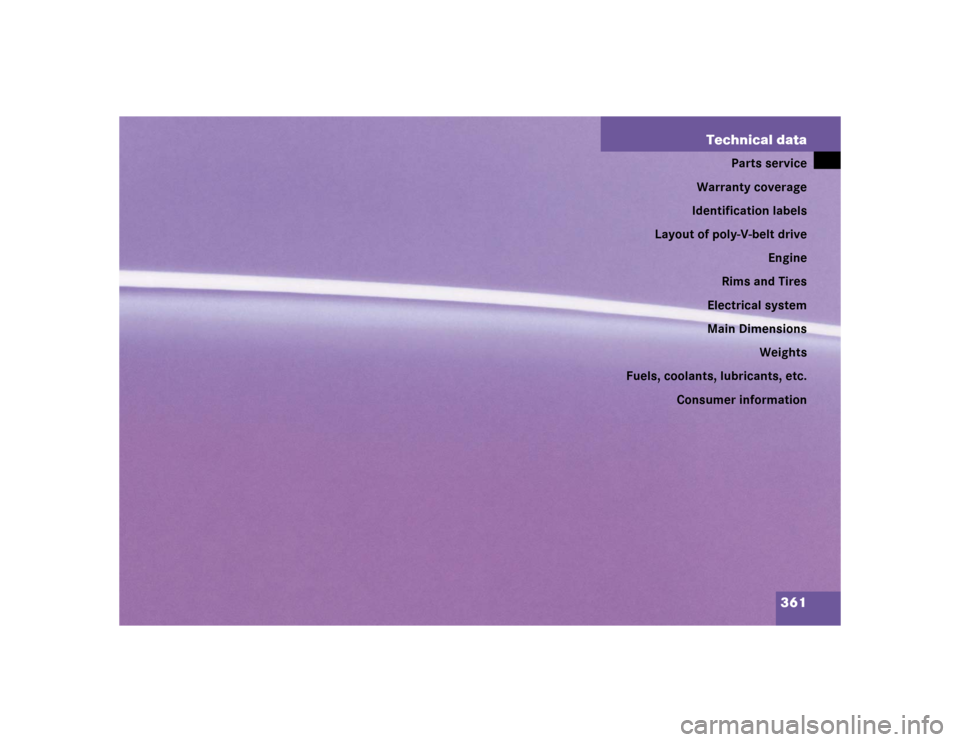

Page 363 of 426
361 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and Tires
Electrical system
Main Dimensions
Weights
Fuels, coolants, lubricants, etc.
Consumer information
Page 369 of 426
367 Technical data
Rims and Tires
Rims and Tires
Only use tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as
poor handling characteristics
increased noise
increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load,
exhibit dimensional variations and
different tire deformation characteris-
tics that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the
vehicle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A tire inflation
pressure table is located on the fuel
filler cap of the vehicle. The tire pres-
sure should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.

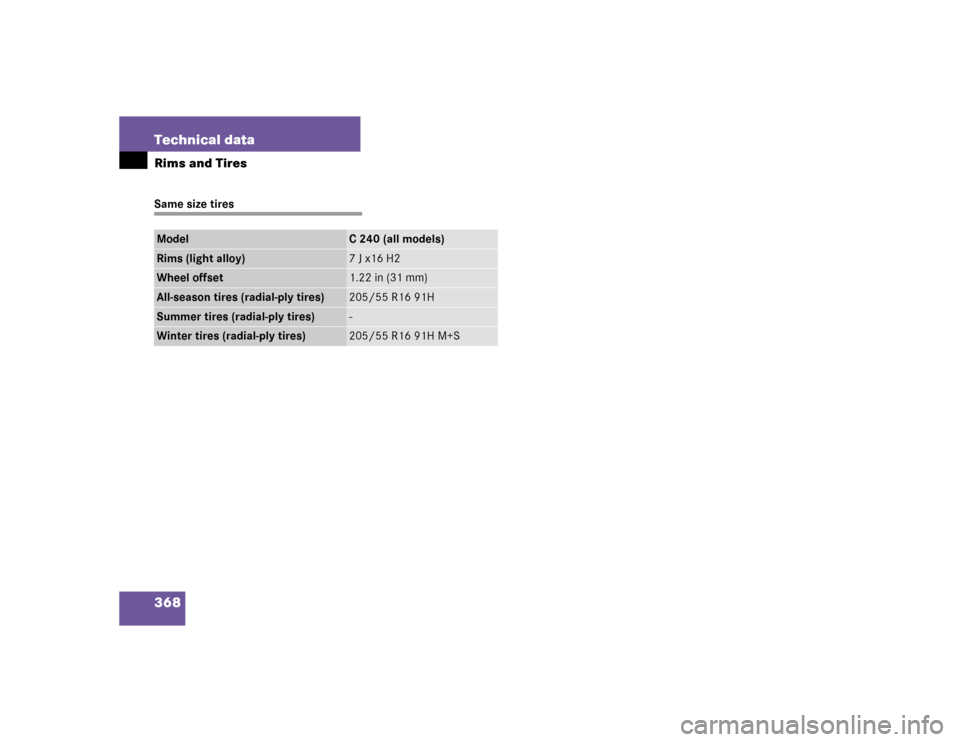

Page 370 of 426
368 Technical dataRims and TiresSame size tiresModel
C 240 (all models)
Rims (light alloy)
7 J x16 H2
Wheel offset
1.22 in (31 mm)
All-season tires (radial-ply tires)
205/55 R16 91H
Summer tires (radial-ply tires)
-
Winter tires (radial-ply tires)
205/55 R16 91H M+S
