Practical hints................................. 293
What to do if … .................................. 294
Lamps in instrument cluster ........ 294
Lamp in center console................ 300
Vehicle status messages in the
multifunction display .................... 301
Where will I find ...? ........................... 321
First aid kit ................................... 321
Vehicle tool kit ............................. 321
Minispare wheel ........................... 324
Unlocking/locking in an emergency .. 326
Unlocking the vehicle ................... 326
Locking the vehicle ...................... 327
Fuel filler flap ............................... 328
Manually unlocking the
transmission gear selector lever .. 328
Opening/closing in an emergency..... 329
Power tilt/sliding sunroof* .......... 329Replacing SmartKey batteries ............ 330
SmartKey ...................................... 331
Replacing bulbs .................................. 332
Bulbs ............................................. 332
Replacing bulbs for front lamps .... 335
Replacing bulbs for rear lamps ..... 339
Replacing wiper blades....................... 341
Removing wiper blades ................. 341
Installing wiper blades .................. 341
Flat tire ............................................... 342
Preparing the vehicle .................... 342
Mounting the Minispare wheel...... 342
Battery................................................ 347
Disconnecting the battery............. 348
Removing the battery.................... 348
Charging and reinstalling
the battery .................................... 348
Reconnecting the battery.............. 349Jump starting...................................... 350
Towing the vehicle.............................. 352
Installing towing eye bolt .............. 355
Fuses.................................................. 356
Aids for changing fuses ................ 357
Main fuse box in passenger
compartment ................................ 357
Fuse box in engine
compartment ................................ 358
Fuse box in cargo
compartment ................................ 359
Page 89 of 426
87 Safety and Security
Anti-theft systems

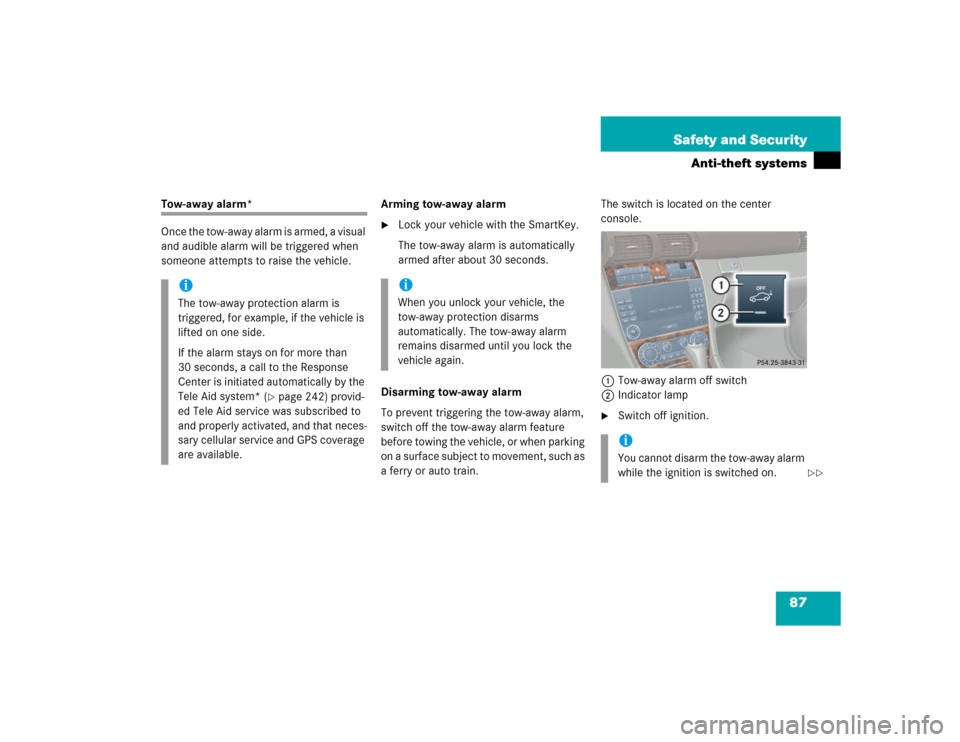

Tow-away alarm*
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.Arming tow-away alarm
Lock your vehicle with the SmartKey.
The tow-away alarm is automatically
armed after about 30 seconds.
Disarming tow-away alarm
To prevent triggering the tow-away alarm,
switch off the tow-away alarm feature
before towing the vehicle, or when parking
on a surface subject to movement, such as
a ferry or auto train.The switch is located on the center
console.
1Tow-away alarm off switch
2Indicator lamp
Switch off ignition.
iThe tow-away protection alarm is
triggered, for example, if the vehicle is
lifted on one side.
If the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system* (
page 242) provid-
ed Tele Aid service was subscribed to
and properly activated, and that neces-
sary cellular service and GPS coverage
are available.
iWhen you unlock your vehicle, the
tow-away protection disarms
automatically. The tow-away alarm
remains disarmed until you lock the
vehicle again.
iYou cannot disarm the tow-away alarm
while the ignition is switched on.
Page 236 of 426
234 Controls in detailUseful featuresStorage compartments Glove box
1Glove box lid release
2Glove box
Opening the glove box
Pull lid release1.
The glove box lid opens downward.
Closing the glove box
Push lid up to close.1Unlocking
2Locking
Locking the glove box
Insert mechanical key (
page 326)
into the glove box lock and turn it to
position2.
Unlocking the glove box
Turn mechanical key in the glove box
lock to position1.

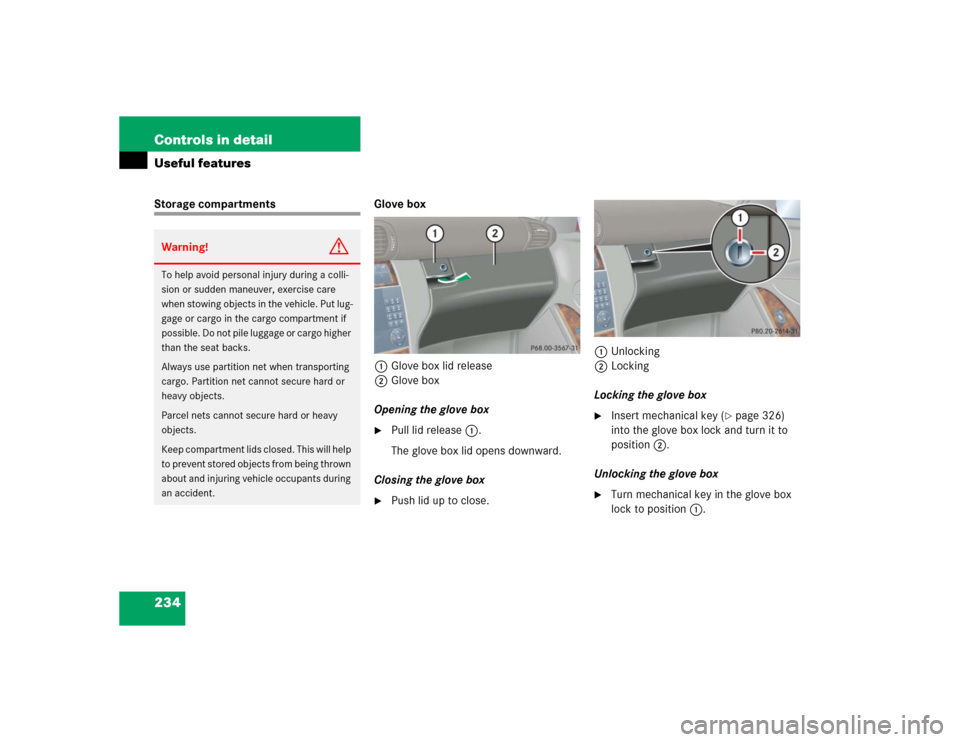

Warning!
G
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when stowing objects in the vehicle. Put lug-
gage or cargo in the cargo compartment if
possible. Do not pile luggage or cargo higher
than the seat backs.
Always use partition net when transporting
cargo. Partition net cannot secure hard or
heavy objects.
Parcel nets cannot secure hard or heavy
objects.
Keep compartment lids closed. This will help
to prevent stored objects from being thrown
about and injuring vehicle occupants during
an accident.
Page 237 of 426
235 Controls in detail
Useful features
Armrest storage compartments
1Handle
2Button, passenger side
3Button, driver’s sideOpening storage compartment
Pull handle1 and lift armrest.
Closing storage compartment
Press armrest down until it engages
into place.
Opening telephone compartment
Press button3 on driver’s side or
button2 on passenger side and lift
armrest.
Closing telephone compartment
Press armrest down until it engages
into place.Changing inclination of armrest
1Handle
Pull up on armrest.
Lowering armrest
Pull handle1 to lower armrest.
!Do not store any items between the
telephone holder and the cover for the
blower. Otherwise these items could
be damaged when the holder is closed.
Use the space in the front door pocket
for stowing.
Page 247 of 426
245 Controls in detail
Useful features
Roadside Assistance button•
Located below the center armrest cover is
the Roadside Assistance button•.
Press and hold button (for longer than
two seconds).
A call to a Mercedes-Benz Roadside
Assistance dispatcher will be initiated.
The button will flash while the call is in
progress. The message
Connecting
call
will appear in the multifunction
display and the audio system is muted.
When the connection is established, the
message Call connected
appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and
location (subject to availability of cellular
and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.
Describe the nature of the need for
assistance.The Mercedes-Benz Roadside Assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest authorized
Mercedes-Benz Center. For services such
as labor and/or towing, charges may
apply. Refer to the Roadside Assistance
manual for more information.
The following is only available in the USA:
Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable.

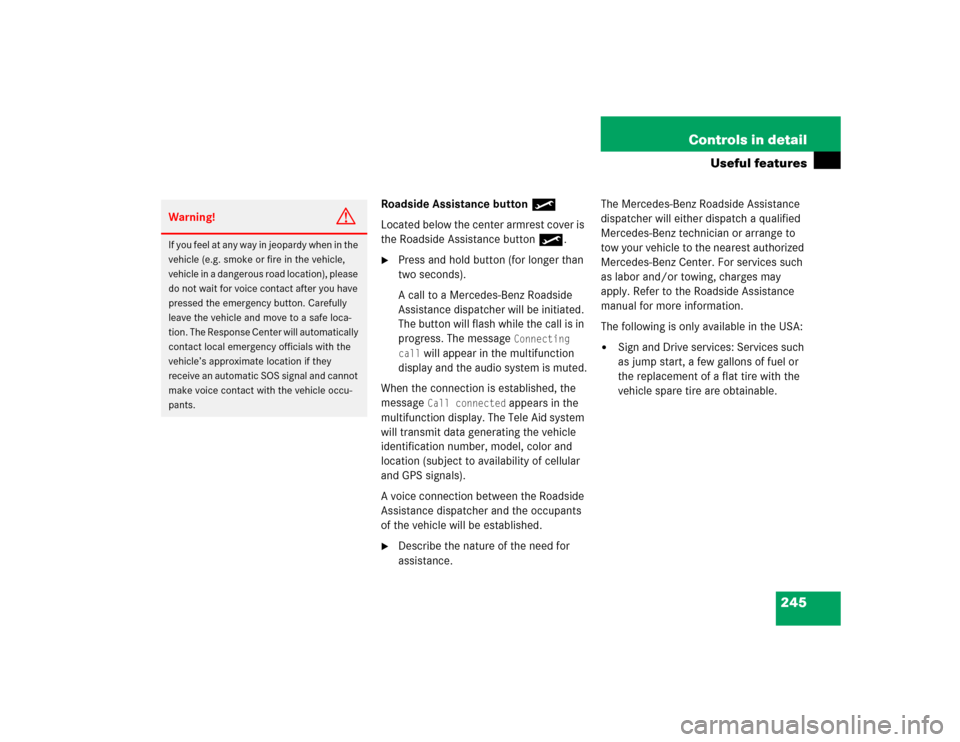

Warning!
G
If you feel at any way in jeopardy when in the
vehicle (e.g. smoke or fire in the vehicle,
vehicle in a dangerous road location), please
do not wait for voice contact after you have
pressed the emergency button. Carefully
leave the vehicle and move to a safe loca-
tion. The Response Center will automatically
contact local emergency officials with the
vehicle’s approximate location if they
receive an automatic SOS signal and cannot
make voice contact with the vehicle occu-
pants.
Page 295 of 426

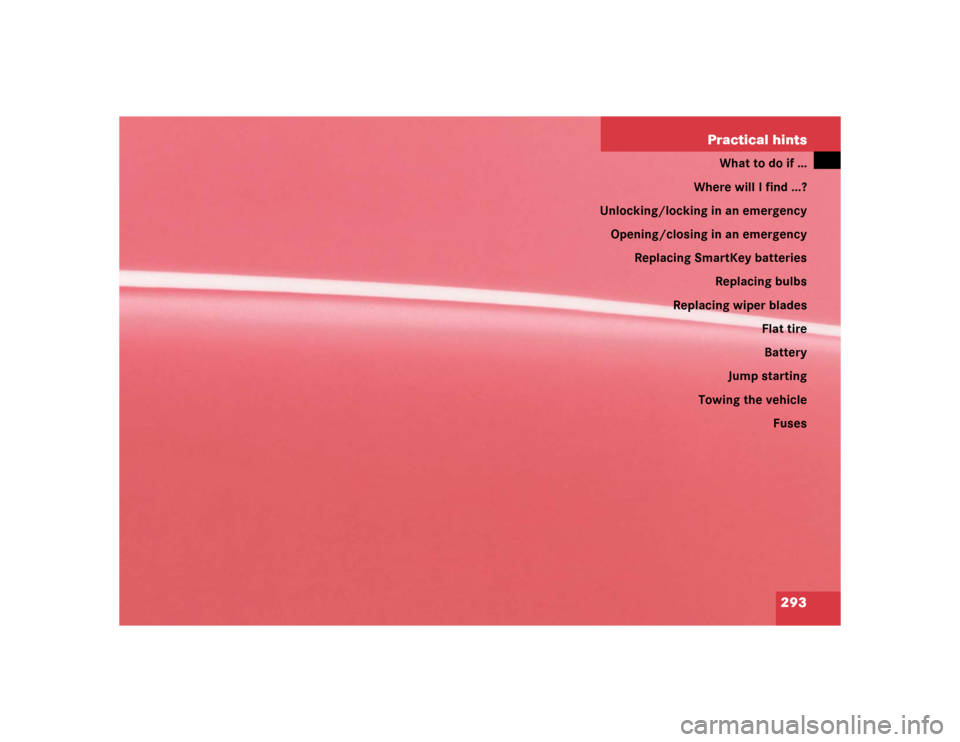

293 Practical hints
What to do if …
Where will I find ...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Replacing SmartKey batteries
Replacing bulbs
Replacing wiper blades
Flat tire
Battery
Jump starting
Towing the vehicle
Fuses
Page 324 of 426
322 Practical hintsWhere will I find ...?3Vehicle tool kit
The following is included:
Towing eye bolt
Wheel wrench
Alignment bolt
Vehicle jack
Spare wheel bolts
Fuse extractor
Spare fuses
Collapsible wheel chock
A pair of glovesVehicle jackThe vehicle jack is located in the storage
compartment behind the left trim panel.
Storage position
Remove vehicle jack from its
compartment.
Push crank handle up.

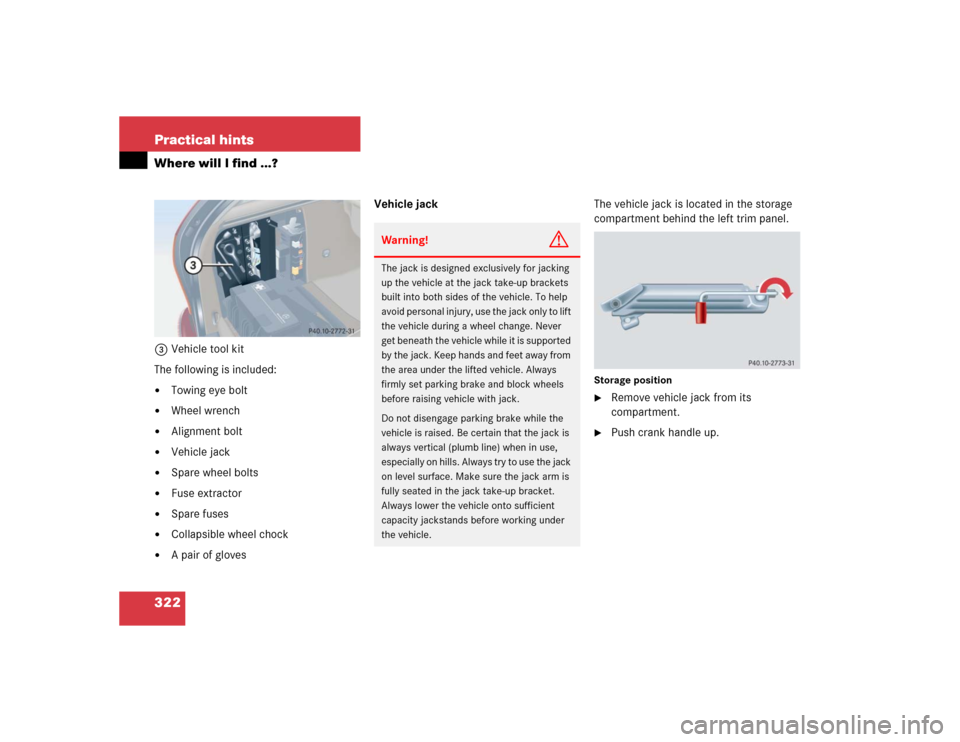

Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on level surface. Make sure the jack arm is
fully seated in the jack take-up bracket.
Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.
Page 354 of 426
352 Practical hintsTowing the vehicleMercedes-Benz recommends that the
vehicle be transported with all wheels off
the ground using flatbed or appropriate
wheel lift/dolly equipment. This method is
preferable to other types of towing.When circumstances do not permit the
recommended towing methods, the
vehicle may be towed with all wheels on
the ground or front wheels raised (except
vehicles with 4MATIC) only so far as
necessary to have the vehicle moved to a
safe location where the recommended
towing methods can be employed.
!Use flatbed or wheel lift/dolly equip-
ment with the SmartKey in the starter
switch turned to position0.
Do not tow with sling-type equipment.
Towing with sling-type equipment over
bumpy roads will damage radiator and
supports.
To prevent damage during transport,
do not tie down vehicle by its chassis or
suspension parts.
Switch off the tow-away alarm
(page 87) and deactivate the auto-
matic central locking (
page 143).
!Do not tow-start the vehicle.!Vehicles with 4MATIC:
Do not tow with one axle raised. Doing
so could damage the transfer case,
which is not covered by the
Mercedes-Benz Limited Warranty.
All wheels must be on or off the ground.
Observe instructions for towing the
vehicle with all wheels on the ground.
!If the vehicle is towed with the front
axle raised (not permissible for vehicles
with 4MATIC), the engine must be shut
off (SmartKey in starter switch
position0 or1). Otherwise the ESP will
immediately be engaged and will apply
the rear wheel brakes.
When towing the vehicle with all wheels
on the ground, the gear selector lever
must be in positionN and the
SmartKey must be in starter switch
position2.
When towing the vehicle with all wheels
on the ground or the front axle raised,
the vehicle may be towed only for
distances up to 30 miles (50 km) and
at a speed not to exceed 30 mph
(50 km/h).
Page 355 of 426
353 Practical hints
Towing the vehicle
!
To be certain to avoid a possibility of
damage to the drivetrain, however, we
recommend the drive shaft be discon-
nected at the rear axle drive flange
(vehicles with 4MATIC: disconnected at
the front and rear axle drive flanges) for
any towing beyond a short tow to a
nearby garage.
Warning!
G
If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if:
the engine will not run
there is a malfunction in the power
supply or in the vehicle’s electrical
system
as that will be necessary to adequately
control the towed vehicle.
Prior to towing the vehicle with all wheels on
the ground, make sure the SmartKey is in
starter switch position2.
If the SmartKey is left in starter switch
position0 for an extended period of time, it
can no longer be turned in the switch. In this
case, the steering is locked. To unlock,
remove SmartKey from starter switch and
reinsert.
iTo signal turns while being towed with
the hazard warning flasher in use,
switch on ignition and activate the
combination switch for the left or right
turn signal in the usual manner – only
the selected turn signal will operate.
Upon canceling the turn signal, the
hazard warning flasher will operate
again.
Page 356 of 426
354 Practical hintsTowing the vehicleWarning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle. Adapt your driving accordingly.
!When towing the vehicle with all wheels
on the ground, please note the
following:
With the automatic central locking
activated and the SmartKey in starter
switch position2, the vehicle doors
lock if the left front wheel as well as the
right rear wheel are turning at vehicle
speeds of approx. 9 mph (15 km/h) or
more.
Switch off the tow-away alarm*
(page 87).
To prevent the vehicle doors from
locking, deactivate the automatic
central locking (
page 143).
Towing of the vehicle should only be
done using the properly installed
towing eye bolt. Never attach tow
cable, tow rope or tow rod to vehicle
chassis, frame or suspension parts.
iIf the battery is disconnected or
discharged
the SmartKey will not turn in the
starter switch. For more informa-
tion, see “Battery” (
page 347)
and “Jump starting” (page 350).
the gear selector lever will remain
locked in positionP. For informa-
tion on manually unlocking the
transmission gear selector lever,
see (
page 328).
