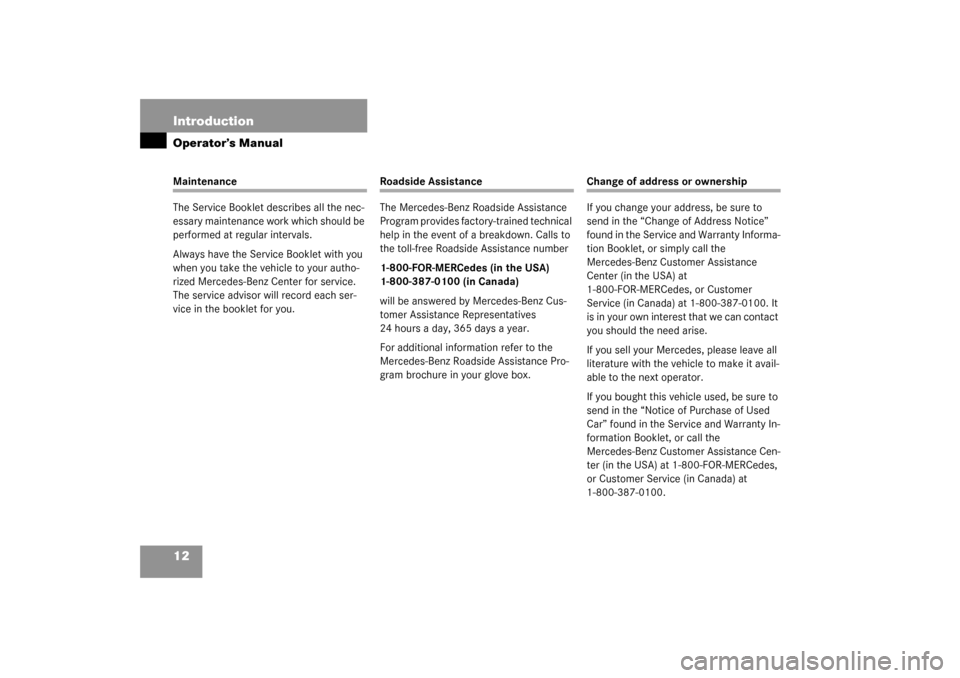

12 IntroductionOperator’s ManualMaintenance
The Service Booklet describes all the nec-
essary maintenance work which should be
performed at regular intervals.
Always have the Service Booklet with you
when you take the vehicle to your autho-
rized Mercedes-Benz Center for service.
The service advisor will record each ser-
vice in the booklet for you.
Roadside Assistance
The Mercedes-Benz Roadside Assistance
Program provides factory-trained technical
help in the event of a breakdown. Calls to
the toll-free Roadside Assistance number
1-800-FOR-MERCedes (in the USA)
1-800-387-0100 (in Canada)
will be answered by Mercedes-Benz Cus-
tomer Assistance Representatives
24 hours a day, 365 days a year.
For additional information refer to the
Mercedes-Benz Roadside Assistance Pro-
gram brochure in your glove box.
Change of address or ownership
If you change your address, be sure to
send in the “Change of Address Notice”
found in the Service and Warranty Informa-
tion Booklet, or simply call the
Mercedes-Benz Customer Assistance
Center (in the USA) at
1-800-FOR-MERCedes, or Customer
Service (in Canada) at 1-800-387-0100. It
is in your own interest that we can contact
you should the need arise.
If you sell your Mercedes, please leave all
literature with the vehicle to make it avail-
able to the next operator.
If you bought this vehicle used, be sure to
send in the “Notice of Purchase of Used
Car” found in the Service and Warranty In-
formation Booklet, or call the
Mercedes-Benz Customer Assistance Cen-
ter (in the USA) at 1-800-FOR-MERCedes,
or Customer Service (in Canada) at
1-800-387-0100.

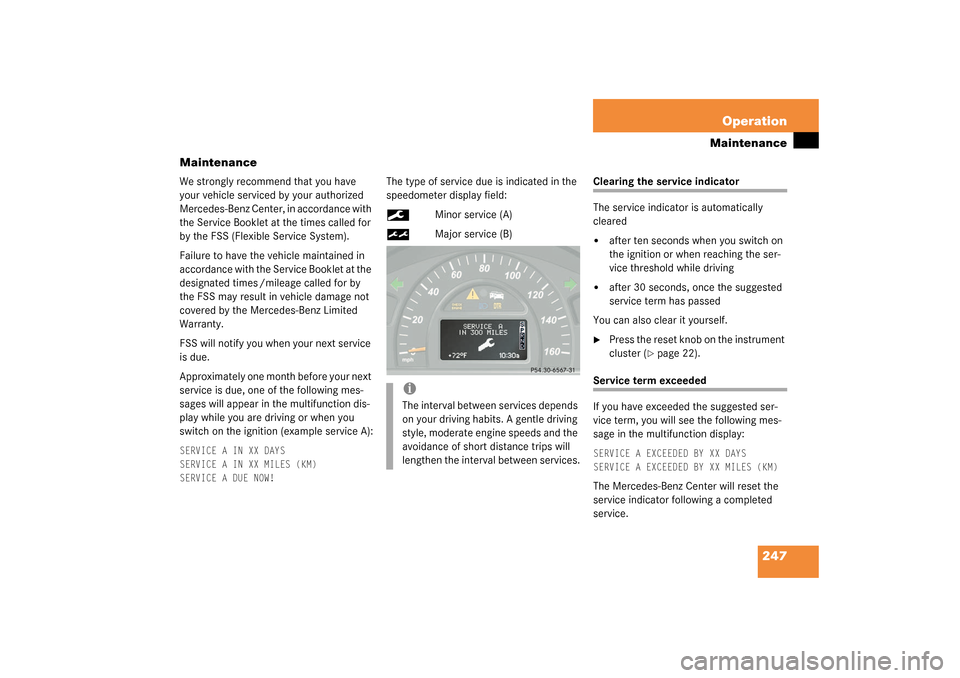

247 Operation
Maintenance
Maintenance
We strongly recommend that you have
your vehicle serviced by your authorized
Mercedes-Benz Center, in accordance with
the Service Booklet at the times called for
by the FSS (Flexible Service System).
Failure to have the vehicle maintained in
accordance with the Service Booklet at the
designated times /mileage called for by
the FSS may result in vehicle damage not
covered by the Mercedes-Benz Limited
Warranty.
FSS will notify you when your next service
is due.
Approximately one month before your next
service is due, one of the following mes-
sages will appear in the multifunction dis-
play while you are driving or when you
switch on the ignition (example service A):SERVICE A IN XX DAYS
SERVICE A IN XX MILES (KM)
SERVICE A DUE NOW!
The type of service due is indicated in the
speedometer display field:9
Minor service (A)
½
Major service (B)
Clearing the service indicator
The service indicator is automatically
cleared

after ten seconds when you switch on
the ignition or when reaching the ser-
vice threshold while driving


after 30 seconds, once the suggested
service term has passed
You can also clear it yourself.

Press the reset knob on the instrument
cluster (
page 22).
Service term exceeded
If you have exceeded the suggested ser-
vice term, you will see the following mes-
sage in the multifunction display:SERVICE A EXCEEDED BY XX DAYS
SERVICE A EXCEEDED BY XX MILES (KM)The Mercedes-Benz Center will reset the
service indicator following a completed
service.
iThe interval between services depends
on your driving habits. A gentle driving
style, moderate engine speeds and the
avoidance of short distance trips will
lengthen the interval between services.

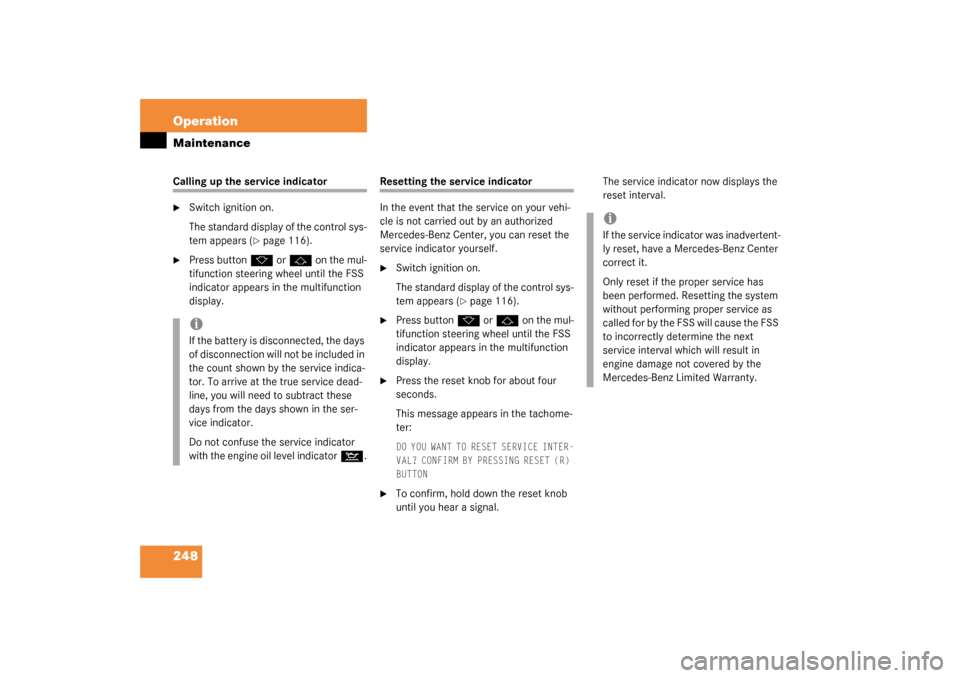

248 OperationMaintenanceCalling up the service indicator
Switch ignition on.
The standard display of the control sys-
tem appears (
page 116).

Press button
k
or
j
on the mul-
tifunction steering wheel until the FSS
indicator appears in the multifunction
display.
Resetting the service indicator
In the event that the service on your vehi-
cle is not carried out by an authorized
Mercedes-Benz Center, you can reset the
service indicator yourself.
Switch ignition on.
The standard display of the control sys-
tem appears (
page 116).

Press button
k
or
j
on the mul-
tifunction steering wheel until the FSS
indicator appears in the multifunction
display.

Press the reset knob for about four
seconds.
This message appears in the tachome-
ter:DO YOU WANT TO RESET SERVICE INTER-
VAL? CONFIRM BY PRESSING RESET (R)
BUTTON

To confirm, hold down the reset knob
until you hear a signal.The service indicator now displays the
reset interval.
iIf the battery is disconnected, the days
of disconnection will not be included in
the count shown by the service indica-
tor. To arrive at the true service dead-
line, you will need to subtract these
days from the days shown in the ser-
vice indicator.
Do not confuse the service indicator
with the engine oil level indicator
:
.
iIf the service indicator was inadvertent-
ly reset, have a Mercedes-Benz Center
correct it.
Only reset if the proper service has
been performed. Resetting the system
without performing proper service as
called for by the FSS will cause the FSS
to incorrectly determine the next
service interval which will result in
engine damage not covered by the
Mercedes-Benz Limited Warranty.

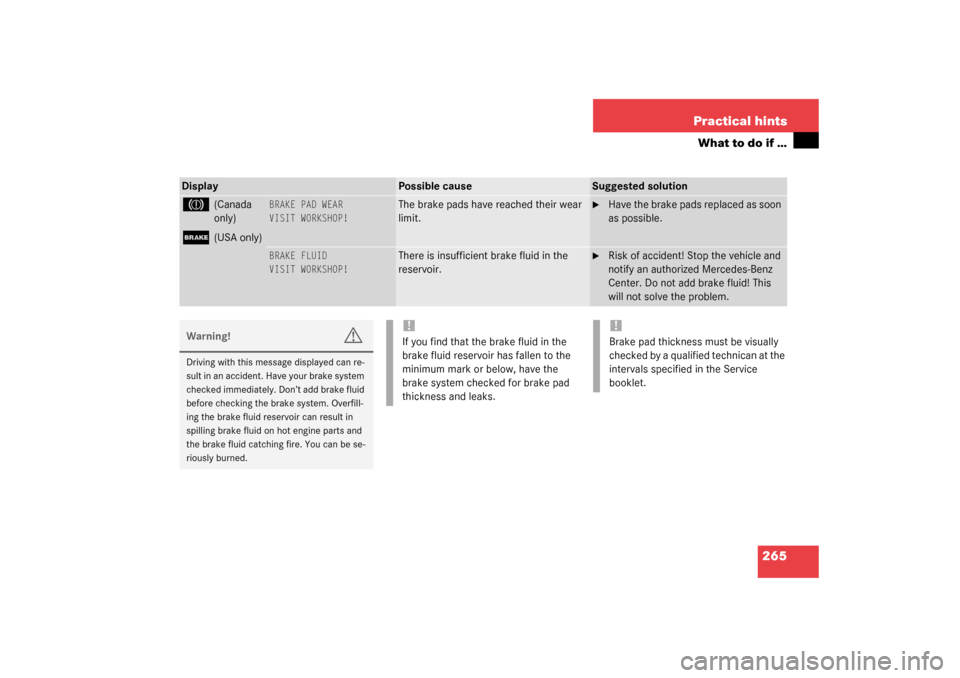

265 Practical hints
What to do if …
Display
Possible cause
Suggested solution
3
(Canada
only)
;
(USA only)
BRAKE PAD WEAR
VISIT WORKSHOP!
The brake pads have reached their wear
limit.

Have the brake pads replaced as soon
as possible.
BRAKE FLUID
VISIT WORKSHOP!
There is insufficient brake fluid in the
reservoir.

Risk of accident! Stop the vehicle and
notify an authorized Mercedes-Benz
Center. Do not add brake fluid! This
will not solve the problem.
Warning!
G
Driving with this message displayed can re-
sult in an accident. Have your brake system
checked immediately. Don’t add brake fluid
before checking the brake system. Overfill-
ing the brake fluid reservoir can result in
spilling brake fluid on hot engine parts and
the brake fluid catching fire. You can be se-
riously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.
!Brake pad thickness must be visually
checked by a qualified technican at the
intervals specified in the Service
booklet.

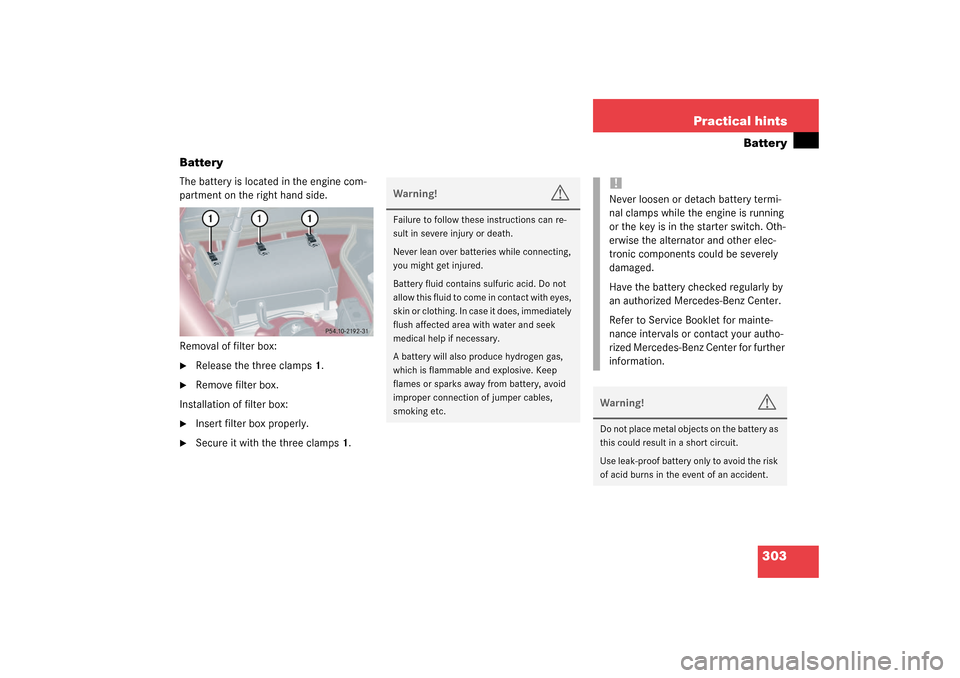

303 Practical hints
Battery
Battery
The battery is located in the engine com-
partment on the right hand side.
Removal of filter box:
Release the three clamps1.

Remove filter box.
Installation of filter box:

Insert filter box properly.

Secure it with the three clamps1.
Warning!
G
Failure to follow these instructions can re-
sult in severe injury or death.
Never lean over batteries while connecting,
you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking etc.
!Never loosen or detach battery termi-
nal clamps while the engine is running
or the key is in the starter switch. Oth-
erwise the alternator and other elec-
tronic components could be severely
damaged.
Have the battery checked regularly by
an authorized Mercedes-Benz Center.
Refer to Service Booklet for mainte-
nance intervals or contact your autho-
rized Mercedes-Benz Center for further
information.Warning!
G
Do not place metal objects on the battery as
this could result in a short circuit.
Use leak-proof battery only to avoid the risk
of acid burns in the event of an accident.

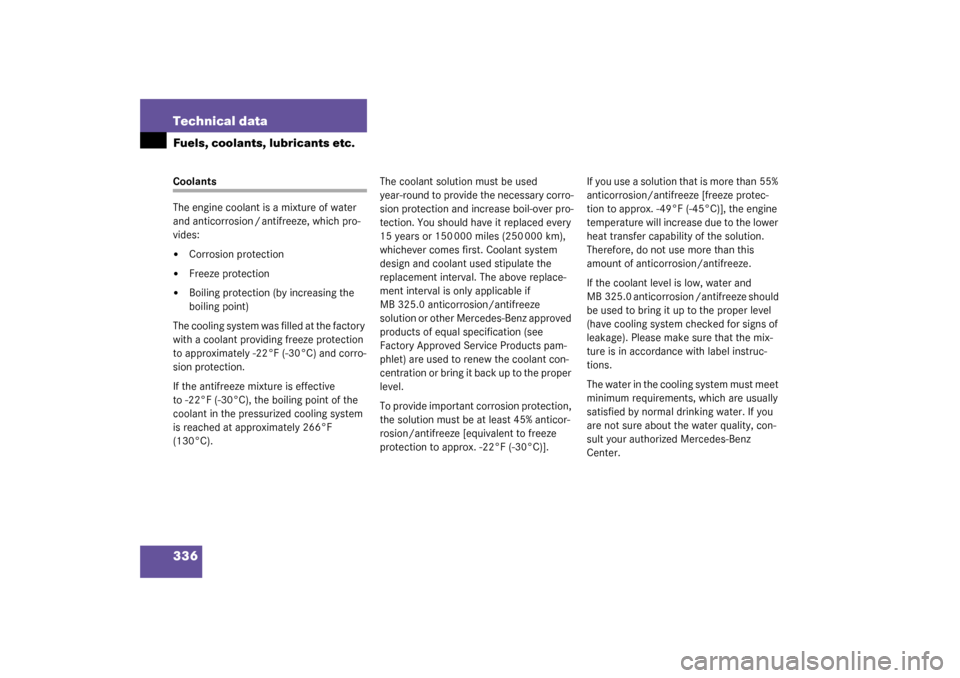

336 Technical dataFuels, coolants, lubricants etc.Coolants
The engine coolant is a mixture of water
and anticorrosion / antifreeze, which pro-
vides:

Corrosion protection


Freeze protection


Boiling protection (by increasing the
boiling point)
The cooling system was filled at the factory
with a coolant providing freeze protection
to approximately -22°F (-30°C) and corro-
sion protection.
If the antifreeze mixture is effective
to -22°F (-30°C), the boiling point of the
coolant in the pressurized cooling system
is reached at approximately 266°F
(130°C).The coolant solution must be used
year-round to provide the necessary corro-
sion protection and increase boil-over pro-
tection. You should have it replaced every
15 years or 150 000 miles (250 000 km),
whichever comes first. Coolant system
design and coolant used stipulate the
replacement interval. The above replace-
ment interval is only applicable if
MB 325.0 anticorrosion/antifreeze
solution or other Mercedes-Benz approved
products of equal specification (see
Factory Approved Service Products pam-
phlet) are used to renew the coolant con-
centration or bring it back up to the proper
level.
To provide important corrosion protection,
the solution must be at least 45% anticor-
rosion/antifreeze [equivalent to freeze
protection to approx. -22°F (-30°C)]. If you use a solution that is more than 55%
anticorrosion/antifreeze [freeze protec-
tion to approx. -49°F (-45°C)], the engine
temperature will increase due to the lower
heat transfer capability of the solution.
Therefore, do not use more than this
amount of anticorrosion/antifreeze.
If the coolant level is low, water and
MB 325.0 anticorrosion /antifreeze should
be used to bring it up to the proper level
(have cooling system checked for signs of
leakage). Please make sure that the mix-
ture is in accordance with label instruc-
tions.
The water in the cooling system must meet
minimum requirements, which are usually
satisfied by normal drinking water. If you
are not sure about the water quality, con-
sult your authorized Mercedes-Benz
Center.
