ContentsSafety and Security........................... 55
Occupant safety................................... 56
Airbags ........................................... 57
Seat belts ....................................... 61
Children in the vehicle .................... 65
Blocking of rear door window
operation ........................................ 71
Panic alarm* .................................. 72
Activating ....................................... 72
Deactivating ................................... 72
Driving safety systems ......................... 73
ABS ................................................ 73
BAS ................................................ 74
ESP ................................................. 75
Four wheel electronic traction
system (4MATIC*) with the ESP ..... 78
Anti-theft systems................................ 79
Immobilizer..................................... 79
Anti-theft alarm system .................. 79
Tow-away alarm ............................. 80
Controls in detail............................... 83
Locking and unlocking ......................... 84
Keys ............................................... 84
Opening the doors from the inside . 87
Opening the trunk from the inside . 88
Opening the trunk .......................... 88
Closing the trunk............................ 89
Trunk lid emergency release .......... 89
Separately locking the trunk .......... 90
Separately unlocking the trunk ...... 91
Automatic central locking .............. 91
Locking and unlocking
from the inside ............................... 92
Seats ................................................... 93
Easy-entry/exit feature* ................ 93
Head restraints .............................. 94
Multicontour seat* ......................... 96
Heated seats* ................................ 97
Memory function* ............................... 98
Storing positions into memory ....... 99
Recalling positions from memory ... 99
Storing exterior rear view mirror
parking position ........................... 100Lighting ............................................. 101
Exterior lamp switch .................... 101
Combination switch ..................... 104
Hazard warning flasher ................ 104
Interior lighting ............................ 105
Door entry lamps ......................... 106
Trunk lamp ................................... 106
Instrument cluster ............................. 107
Instrument cluster illumination .... 107
Coolant temperature display ........ 108
Trip odometer .............................. 109
Tachometer .................................. 109
Outside temperature indicator ..... 110
Control system .................................. 111
Multifunction display.................... 111
Multifunction steering wheel........ 112
Menus .......................................... 114
Standard display menu ................ 116
AUDIO menu ................................ 116
NAVI menu ................................... 118
Malfunction memory menu .......... 118
Settings menu .............................. 119
Trip computer menu..................... 132
TEL menu* ................................... 134
Manual transmission ......................... 137
Shifting into reverse ..................... 137
Page 7 of 376
Contents
Practical hints................................ 255
What to do if … .................................. 256
Lamps in instrument cluster ........ 256
Lamp in center console................ 260
Messages in the display ............... 261
Where will I find ...? ........................... 279
First aid kit ................................... 279
Vehicle tool kit ............................. 279
Spare wheel ................................. 281
Unlocking/locking in an emergency .. 285
Unlocking the vehicle ................... 285
Locking the vehicle ...................... 286
Changing batteries ....................... 286
Fuel filler flap ............................... 287
Manually unlocking the
transmission selector lever .......... 288
Opening/closing in an emergency..... 289
Sliding/pop-up roof* ................... 289
Replacing bulbs ................................. 290
Bulbs ............................................ 290
Replacing bulbs for front lamps ... 292
Side marker lamp bulb ................. 294
Replacing bulbs for rear lamps..... 295Replacing wiper blades....................... 296
Removing ...................................... 296
Installing ....................................... 296
Flat tire ............................................... 297
Preparing the vehicle .................... 297
Mounting the spare wheel ............ 297
Battery................................................ 303
Disconnecting the battery............. 304
Removing the battery.................... 304
Charging and reinstalling
the battery .................................... 304
Reconnecting the battery.............. 305
Jump starting ...................................... 306
Towing the vehicle .............................. 308
Installing towing eye bolt .............. 311
Fuses .................................................. 312
Fuse box in passenger
compartment ................................ 312
Fuse box in engine
compartment ................................ 312
Auxiliary fuse box in trunk............. 313
Technical data.................................. 315
Spare parts service ............................ 316
Warranty coverage ............................. 317
Loss of Service and Warranty
Information Booklet ...................... 317
Identification labels ............................ 318
Layout of poly-V-belt drive.................. 319
C 230 Kompressor Sport .............. 319
C 240 / C 320 (all models)........... 319
C 32 AMG ..................................... 319
Engine ................................................ 320
Rims and Tires.................................... 322
Same size tires ............................. 323
Mixed size tires ............................. 324
Spare wheel .................................. 325
Electrical system ................................ 326
Main dimensions ................................ 327
Weights .............................................. 328
Page 25 of 376
25 At a glance
Center console
Center console
Upper part
Item
Page
1
Seat heater*, driver’s side
97
2
Rear window sunshade
switch
147
3
ESP control switch
75
4
Hazard warning flasher
switch – switching on/off
104
5
Central locking switch
92
6
Rear seat head restraints
switch
36
7
Anti-theft alarm system in-
dicator lamp
79
Tow-away alarm switch
80
Item
Page
8
Seat heater*, passenger
side
97
9
Indicator lamp
7
67,
260
10
Audio system, or
165
COMAND* (see separate
operating instructions)
11
Climate control
148
Automatic climate control*
156
Rear window defroster
153,
162
Page 51 of 376
51 Getting started
Parking and locking
Parking and locking
You have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows.
Parking brake
1Release handle
2Parking brake
Step firmly on parking brake2.
When the engine is running, the indica-
tor lamp
;
(USA only) or
3
(Canada only) in the instrument cluster
will be illuminated.
Warning!
G
Wait until the vehicle is stationary before re-
moving the key from the starter switch. The
vehicle cannot be steered when the key is
removed.Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
system. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to stop or steer the vehi-
cle.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:
Keep right foot on brake pedal.
Firmly depress parking brake pedal.
Move the selector lever to positionP
(manual transmission: first or reverse
gear).
Slowly release brake pedal.
When parked on an incline, turn front
wheels towards the road curb.
Turn the key to starter switch position0
and remove.
Take the key and lock vehicle when
leaving.
Page 52 of 376
52 Getting startedParking and locking
Switching off headlamps
Turn the exterior lamp switch to
M
(page 47).
More information can be found in the
“Controls in detail” section (
page 101).
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch and lock the ve-
hicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Children could release the parking
brake and/or move the gear selector lever
from positionP, either of which could result
in an accident and/or serious injury.
Warning!
G
Getting out of your vehicle with the selector
lever not fully engaged in positionP is dan-
gerous. Also, when parked on an incline,
positionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP (manual transmission:
first or reverse gear).
When parked on an incline, turn front wheel
towards the road curb.
Page 53 of 376

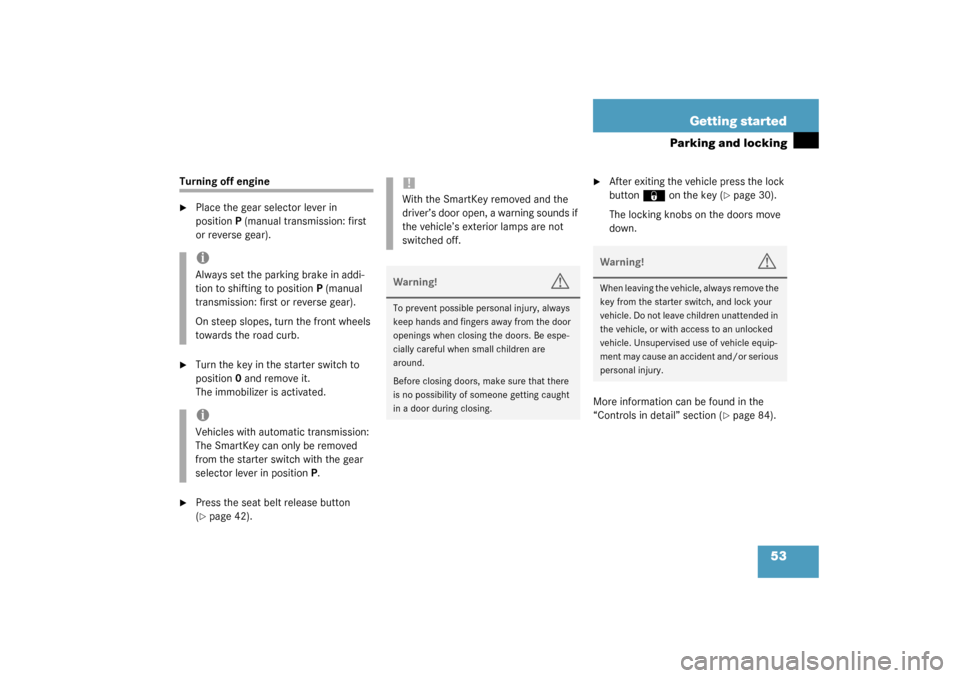

53 Getting started
Parking and locking
Turning off engine
Place the gear selector lever in
positionP (manual transmission: first
or reverse gear).
Turn the key in the starter switch to
position0 and remove it.
The immobilizer is activated.
Press the seat belt release button
(page 42).
After exiting the vehicle press the lock
button
‹
on the key (
page 30).
The locking knobs on the doors move
down.
More information can be found in the
“Controls in detail” section (page 84).
iAlways set the parking brake in addi-
tion to shifting to positionP (manual
transmission: first or reverse gear).
On steep slopes, turn the front wheels
towards the road curb. iVehicles with automatic transmission:
The SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.
!With the SmartKey removed and the
driver’s door open, a warning sounds if
the vehicle’s exterior lamps are not
switched off.Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure that there
is no possibility of someone getting caught
in a door during closing.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, and lock your
vehicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
Page 76 of 376
76 Safety and SecurityDriving safety systems
More information can be found in the
“Practical hints” section (

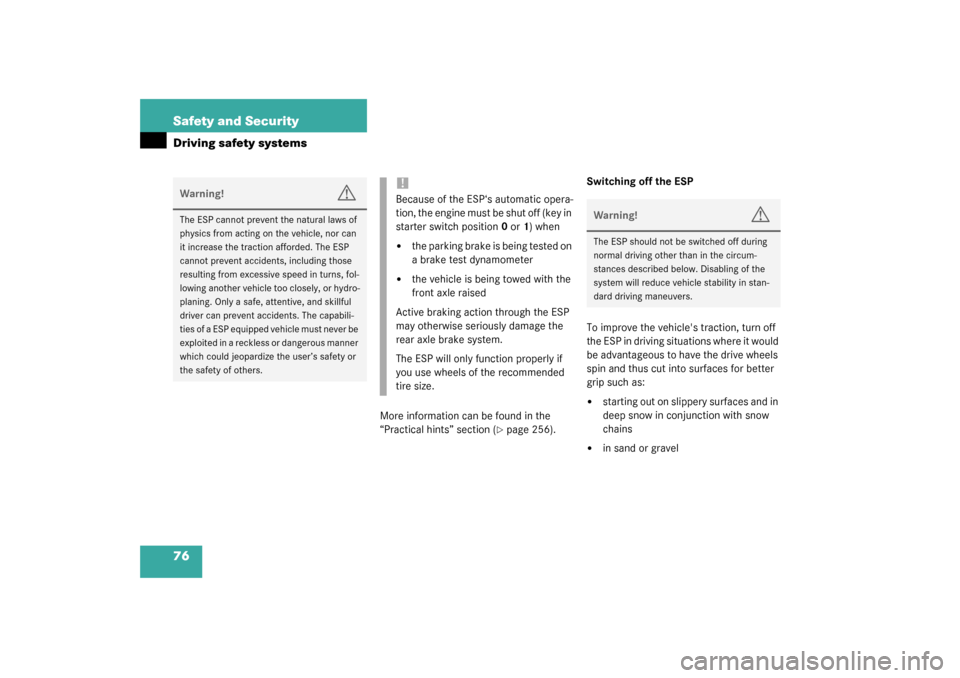

page 256).Switching off the ESP
To improve the vehicle's traction, turn off
the ESP in driving situations where it would
be advantageous to have the drive wheels
spin and thus cut into surfaces for better
grip such as:
starting out on slippery surfaces and in
deep snow in conjunction with snow
chains
in sand or gravel
Warning!
G
The ESP cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase the traction afforded. The ESP
cannot prevent accidents, including those
resulting from excessive speed in turns, fol-
lowing another vehicle too closely, or hydro-
planing. Only a safe, attentive, and skillful
driver can prevent accidents. The capabili-
ties of a ESP equipped vehicle must never be
exploited in a reckless or dangerous manner
which could jeopardize the user’s safety or
the safety of others.
!Because of the ESP‘s automatic opera-
tion, the engine must be shut off (key in
starter switch position0 or1) when
the parking brake is being tested on
a brake test dynamometer
the vehicle is being towed with the
front axle raised
Active braking action through the ESP
may otherwise seriously damage the
rear axle brake system.
The ESP will only function properly if
you use wheels of the recommended
tire size.
Warning!
G
The ESP should not be switched off during
normal driving other than in the circum-
stances described below. Disabling of the
system will reduce vehicle stability in stan-
dard driving maneuvers.
Page 78 of 376

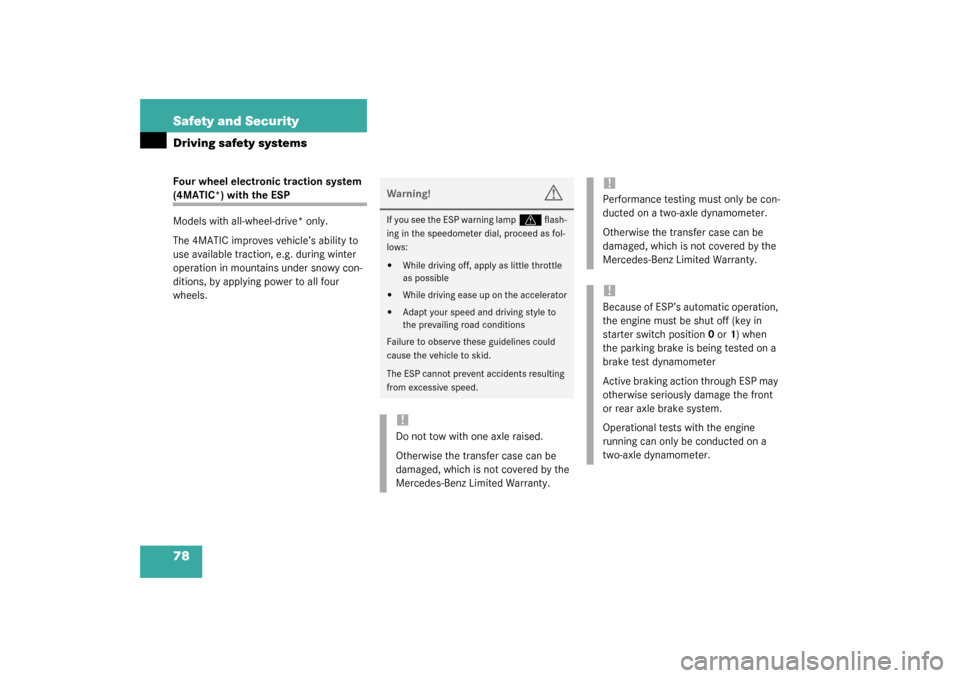

78 Safety and SecurityDriving safety systemsFour wheel electronic traction system (4MATIC*) with the ESP
Models with all-wheel-drive* only.
The 4MATIC improves vehicle’s ability to
use available traction, e.g. during winter
operation in mountains under snowy con-
ditions, by applying power to all four
wheels.
Warning!
G
If you see the ESP warning lamp
v
flash-
ing in the speedometer dial, proceed as fol-
lows:
While driving off, apply as little throttle
as possible
While driving ease up on the accelerator
Adapt your speed and driving style to
the prevailing road conditions
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP cannot prevent accidents resulting
from excessive speed.!Do not tow with one axle raised.
Otherwise the transfer case can be
damaged, which is not covered by the
Mercedes-Benz Limited Warranty.
!Performance testing must only be con-
ducted on a two-axle dynamometer.
Otherwise the transfer case can be
damaged, which is not covered by the
Mercedes-Benz Limited Warranty.!Because of ESP’s automatic operation,
the engine must be shut off (key in
starter switch position0 or1) when
the parking brake is being tested on a
brake test dynamometer
Active braking action through ESP may
otherwise seriously damage the front
or rear axle brake system.
Operational tests with the engine
running can only be conducted on a
two-axle dynamometer.
Page 79 of 376
79 Safety and Security
Anti-theft systems
Anti-theft systems
Immobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating
Removing the key from the starter
switch activates the immobilizer.
Deactivating
Inserting the key in the starter switch
deactivates the immobilizer.
Anti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens
a door
the trunk
the hood
The alarm system will also be triggered
when
someone attempts to raise the vehicle
the vehicle is opened with the mechan-
ical keyArming the alarm system
The alarm system is armed after locking
the vehicle with the remote control. The
turn signal lamps blink three times to
indicate that the alarm system is activated.
A red indicator lamp in the switch for the
tow-away alarm (
page 80) will blink after
approximately ten seconds when the alarm
system is completely armed.
iIn case the engine cannot be started
(yet the vehicle’s battery is charged),
the system is not operational. Contact
an authorized Mercedes-Benz Center
or call 1-800-FOR-MERCedes (in the
USA), or 1-800-387-0100 (in Canada).
iIf the alarm stays on for more than
20 seconds, an emergency call is
initiated automatically by the Tele Aid
system* (
page 209) provided
Tele Aid service was subscribed to and
properly activated, and that necessary
cellular service and GPS coverage are
available.
iIf the turn signal lamps do not blink
three times, the tow-away sensor* is
malfunctioning or one of the following
elements may not be properly closed:
a door
the trunk lid
the hood
Close the respective element and lock
the vehicle again.
Page 80 of 376

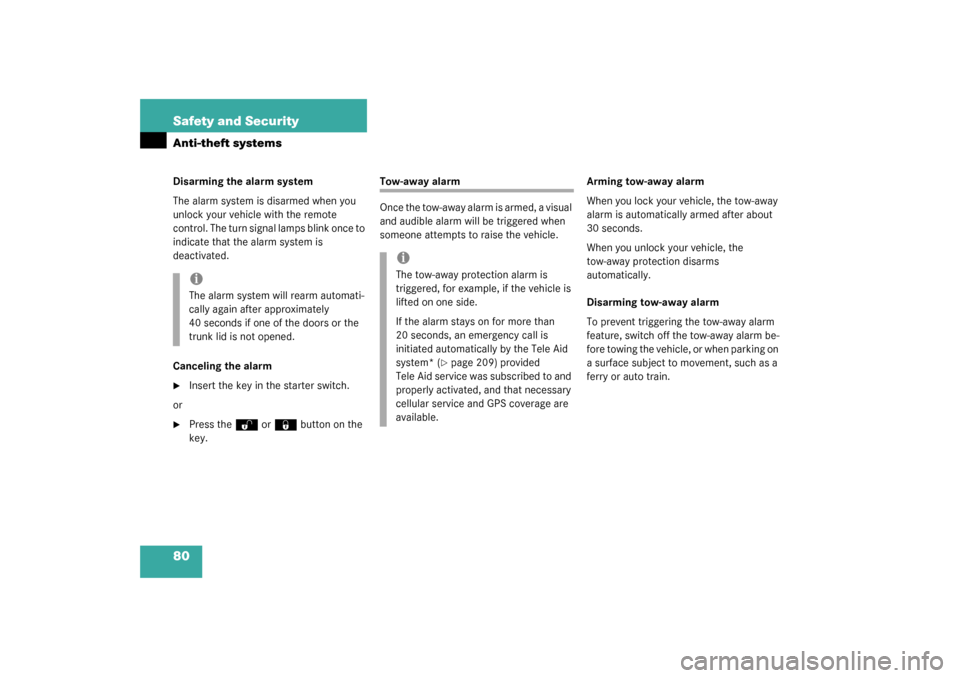

80 Safety and SecurityAnti-theft systemsDisarming the alarm system
The alarm system is disarmed when you
unlock your vehicle with the remote
control. The turn signal lamps blink once to
indicate that the alarm system is
deactivated.
Canceling the alarm
Insert the key in the starter switch.
or
Press the
Œ
or
‹
button on the
key.
Tow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.Arming tow-away alarm
When you lock your vehicle, the tow-away
alarm is automatically armed after about
30 seconds.
When you unlock your vehicle, the
tow-away protection disarms
automatically.
Disarming tow-away alarm
To prevent triggering the tow-away alarm
feature, switch off the tow-away alarm be-
fore towing the vehicle, or when parking on
a surface subject to movement, such as a
ferry or auto train.
iThe alarm system will rearm automati-
cally again after approximately
40 seconds if one of the doors or the
trunk lid is not opened.
iThe tow-away protection alarm is
triggered, for example, if the vehicle is
lifted on one side.
If the alarm stays on for more than
20 seconds, an emergency call is
initiated automatically by the Tele Aid
system* (
page 209) provided
Tele Aid service was subscribed to and
properly activated, and that necessary
cellular service and GPS coverage are
available.
