Storage compartment in front of armrest
5Storage compartment in front of armrestTo o p e n :
Slide cover (5) rearward.
To c l o s e :
Slide cover (5) forward.
Note:
The compartment contains a lighter (see page 213),
a coin holder, and a cup holder (see page 210).

209 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument

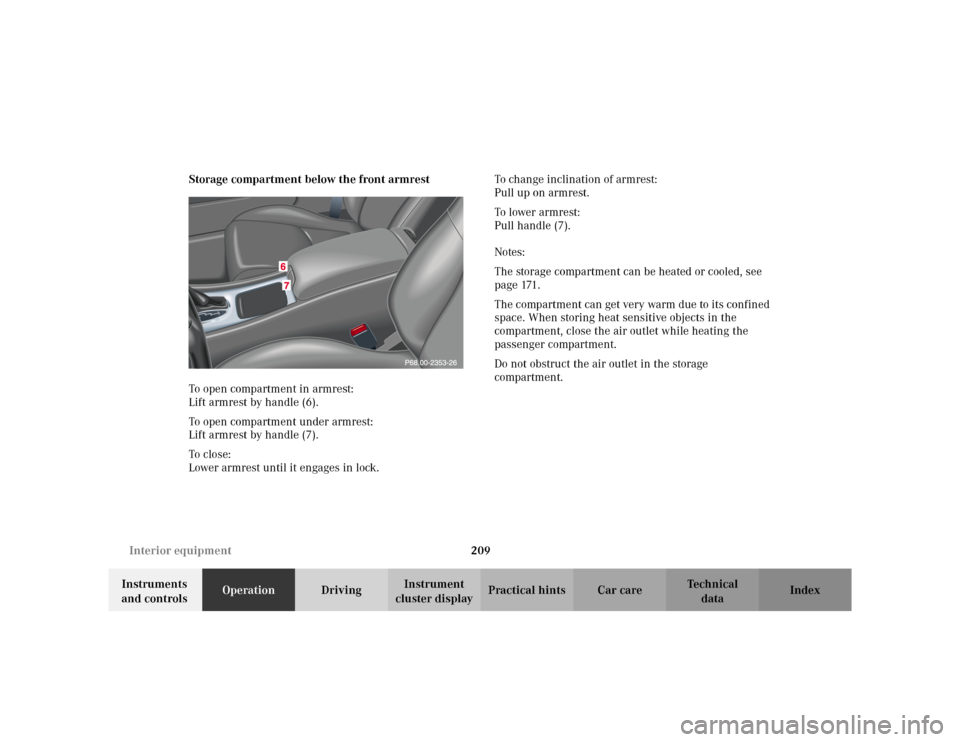

cluster displayPractical hints Car care Index Storage compartment below the front armrest
To open compartment in armrest:
Lift armrest by handle (6).
To open compartment under armrest:
Lift armrest by handle (7).
To c lo se:
Lower armrest until it engages in lock.To change inclination of armrest:
Pull up on armrest.
To lower armrest:
Pull handle (7).
Notes:
The storage compartment can be heated or cooled, see
p a g e 171 .
The compartment can get very warm due to its confined
space. When storing heat sensitive objects in the
compartment, close the air outlet while heating the
passenger compartment.
Do not obstruct the air outlet in the storage
compartment.

210 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

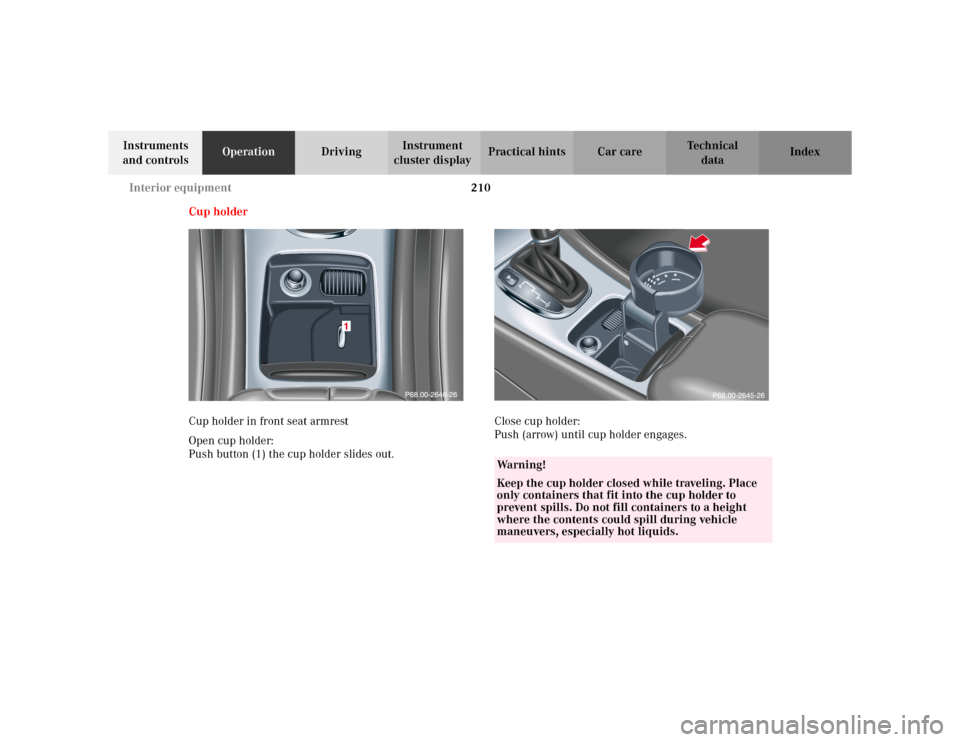

Cup holder
Cup holder in front seat armrest
Open cup holder:
Push button (1) the cup holder slides out.Close cup holder:
Push (arrow) until cup holder engages.
Wa r n i n g !
Keep the cup holder closed while traveling. Place
only containers that fit into the cup holder to
prevent spills. Do not fill containers to a height
where the contents could spill during vehicle
maneuvers, especially hot liquids.

211 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument

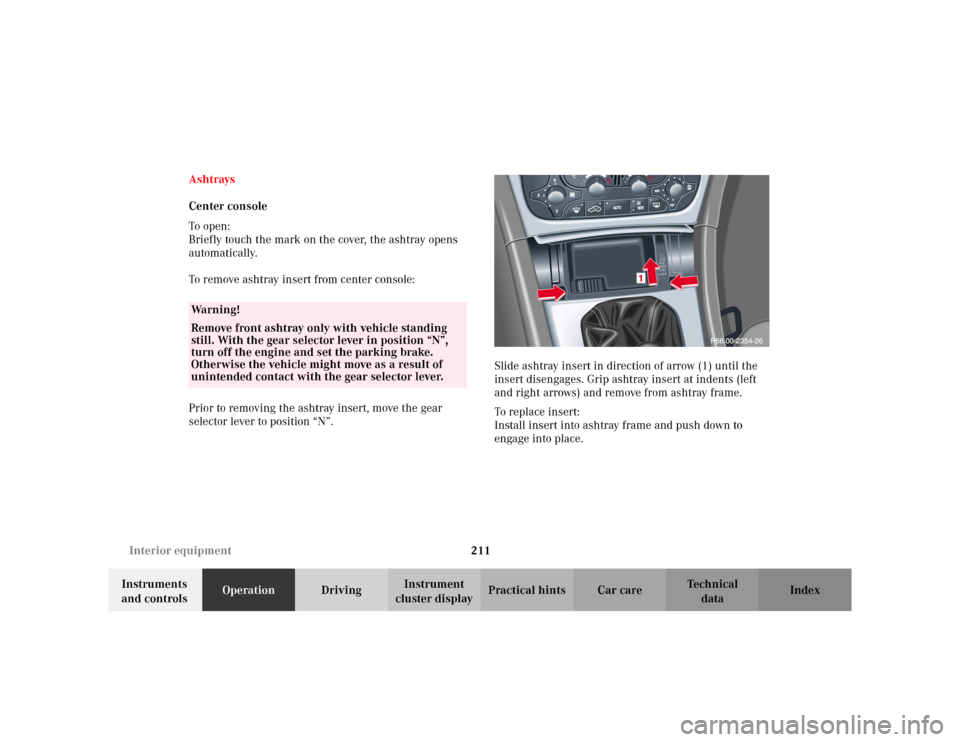

cluster displayPractical hints Car care Index Ashtrays
Center console
To o pen :
Briefly touch the mark on the cover, the ashtray opens
automatically.
To remove ashtray insert from center console:
Prior to removing the ashtray insert, move the gear
selector lever to position “N”.Slide ashtray insert in direction of arrow (1) until the
insert disengages. Grip ashtray insert at indents (left
and right arrows) and remove from ashtray frame.
To replace insert:
Install insert into ashtray frame and push down to
engage into place.
Wa r n i n g !
Remove front ashtray only with vehicle standing
still. With the gear selector lever in position “N”,
turn off the engine and set the parking brake.
Otherwise the vehicle might move as a result of
unintended contact with the gear selector lever.

212 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

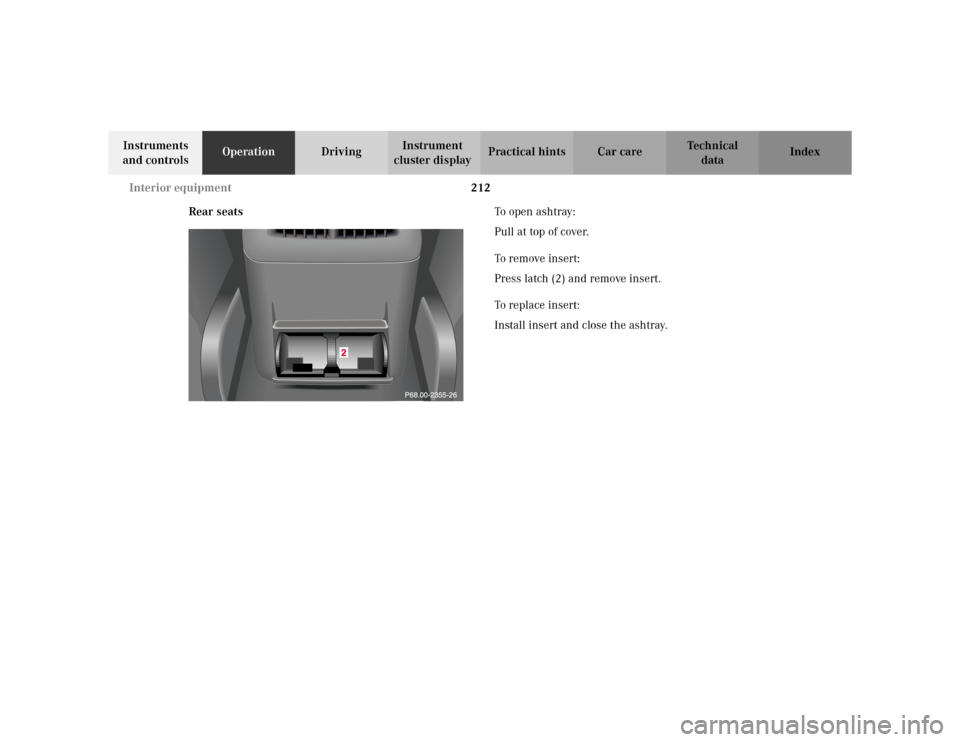

Rear seatsTo o p e n a s h t r ay :
Pull at top of cover.
To remove insert:
Press latch (2) and remove insert.
To replace insert:
Install insert and close the ashtray.

213 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument

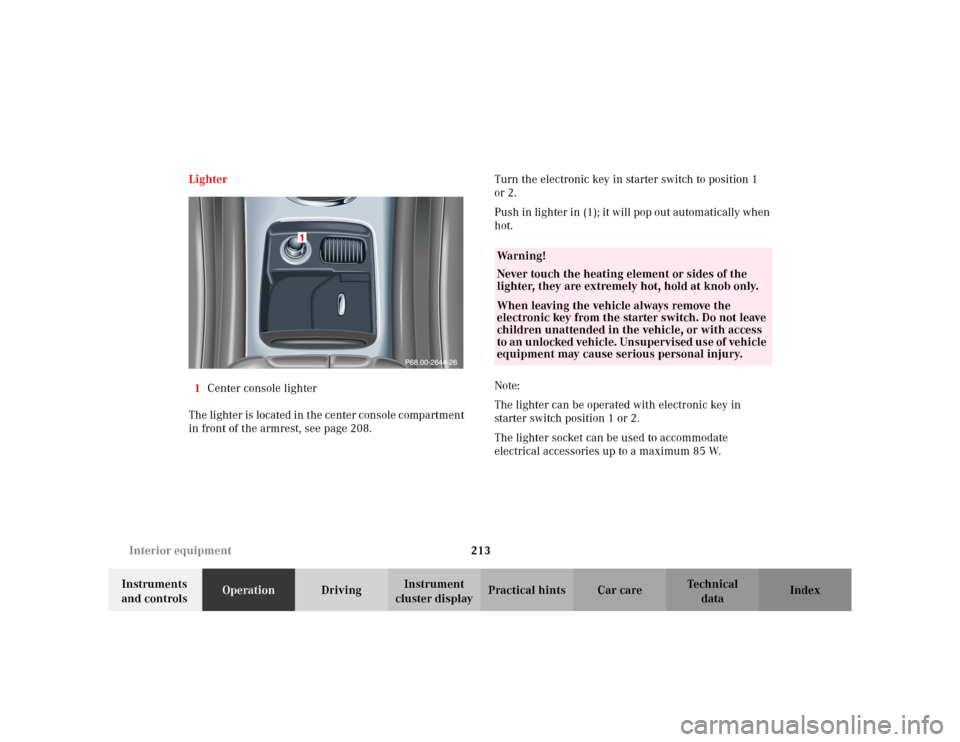

cluster displayPractical hints Car care Index Lighter
1Center console lighter
The lighter is located in the center console compartment
in front of the armrest, see page 208.Turn the electronic key in starter switch to position 1
or 2.
Push in lighter in (1); it will pop out automatically when
hot.
Note:
The lighter can be operated with electronic key in
starter switch position 1 or 2.
The lighter socket can be used to accommodate
electrical accessories up to a maximum 85 W.
Wa r n i n g !
Never touch the heating element or sides of the
lighter, they are extremely hot, hold at knob only.When leaving the vehicle always remove the
electronic key from the starter switch. Do not leave
children unattended in the vehicle, or with access
to an unlocked vehicle. Unsupervised use of vehicle
equipment may cause serious personal injury.

214 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Parcel net in front passenger footwell
A small convenience parcel net is located in the front
passenger footwell. It is for small and light items, such
as road maps, mail, etc.
Wa r n i n g !
Do not place heavy or fragile objects, or objects
having sharp edges, in the parcel net.In an accident, during hard braking or sudden
maneuvers, they could be thrown around inside
the vehicle, and cause injury to vehicle occupants.

215 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Split folding rear seat bench1. Pull release handle (1) and fold seat cushion (2)
forward.
2. Fully retract and fold down head restraints, see
page 60.
3. Pull release lever (3) and fold backrest (4) forward.

216 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Setting up rear seat bench
Pull backrest up until it locks in its upright position.
The pop-up indicators (5) (left and right backrest
section) are visible in unlocked position. With backrest
sections in upright and locked position, the
indicators (5) are fully lowered.
Check for secure locking by pushing and pulling on the
backrest.
P68.00-2476-26
5
Wa r n i n g !
Failure to assure that backrests are locked into
place result in an increased chance of injury in an
accident.Always lock backrest in its upright position when
rear seat bench is occupied by passengers, cargo is
being carried in the trunk, or the extended cargo
area is not in use.

217 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Luggage cover – removal and installationRemoval:
Take off securing straps (1).
Pull cover towards rear (2).
Installation:
Place cover into holder.
Attach securing straps to trunk lid.
Note:
Do not place anything on the luggage cover below the
rear window.
