82 Safety and SecurityDriving safety systemsFour wheel electronic traction system (4MATIC) with the ESP
Models with all-wheel-drive only.
The 4MATIC improves vehicle’s ability to
use available traction, e.g. during winter
operation in mountains under snowy
conditions, by applying power to all four
wheels.Warning!
G
If you see the ESP warning lampv flash-
ing in the speedometer, proceed as follows:

While driving off, apply as little throttle
as possible


While driving, ease up on the accelera-
tor


Adapt your speed and driving style to
the prevailing road conditions
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP cannot prevent accidents resulting
from excessive speed.
!Do not tow with one axle raised.
Otherwise the transfer case can be
damaged, which is not covered by the
Mercedes-Benz Limited Warranty.!Performance testing must only be con-
ducted on a two-axle dynamometer.
Otherwise the transfer case can be
damaged, which is not covered by the
Mercedes-Benz Limited Warranty.
!Because of the ESP’s automatic
operation, the engine must be shut off
(SmartKey in starter switch position0
or1) when the parking brake is being
tested on a brake test dynamometer
Active braking action through ESP may
otherwise seriously damage the front
or rear axle brake system.
Operational tests with the engine
running can only be conducted on a
two-axle dynamometer.iAt highly demanding operating condi-
tions, the electronic traction system
may temporarily switch off to prevent
overheating of the drive wheel brakes.
The message
unavailable
See Operator’s Manual
will then
appear in the multifunction display
while the ESP warning lamp
v
is
flashing. The ESP is still functioning
normally.

176 Controls in detailClimate controlThe climate control is operational when-
ever the engine is running. You can oper-
ate the climate control system in either the
automatic or manual mode. The system
cools or heats the interior depending on
the selected interior temperature and the
current outside temperature.Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the modeAC
OFF
is selected
(
page 181).
Warning!
G
When operating the climate control, the air
that enters the passenger compartment
through the air vents in the footwell can be
very hot or very cold (depending on the set
temperature). This may cause burns or frost-
bite on unprotected skin in the immediate
area of the air vents. Always keep sufficient
distance between unprotected parts of the
body and the footwell air vents. If necessary,
change the air flow using the air distribution
controls to direct the air away from the foot-
well air vents (
page 178).
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
iSevere conditions (e.g. strong air
pollution) may require replacement of
the filter before its scheduled interval.
A clogged filter will reduce the air
volume to the interior.
If the vehicle interior is hot, ventilate
the interior before driving off, see
“Opening (Summer opening feature)”
(page 229).
Keep the air intake grille in front of the
windshield free of snow and debris.
Do not obstruct air flow by placing
objects on the air flow-through exhaust
slots below the rear window.

249 Controls in detail
Useful features
The Tele Aid system
(Tele
matic A
larm I
dentification on
D
emand)
The Tele Aid system consists of three
types of response:

automatic and manual emergency


roadside assistance and


information
The Tele Aid system is operational provid-
ing that the vehicle’s battery is charged,
properly connected, not damaged and
cellular and GPS coverage is available.
The speaker volume of a Tele Aid call can
be adjusted when using the volume control
on the multifunction steering wheel. To
raise, press buttonæ and to lower,
press buttonç. The volume can also be
adjusted using the volume knob on your
audio system or COMAND* head unit.

To activate, press the SOS button, the
Roadside Assistance button• or
the Information button¡, depend-
ing on the type of response required.
Shortly after the completion of your Tele
Aid acquaintance call, you will receive a
user ID and password. By visiting
www.mbusa.com and selecting “Tele Aid”
(USA only), you will have access to account
information, remote door unlock and
more.System self-check
Initially, after switching on ignition, mal-
functions are detected and indicated (the
indicator lamps in the SOS button, the
Roadside Assistance button• and the
Information button¡ stay on longer
than ten seconds or do not come on). The
message
Tele Aid malfunction. Drive
to workshop
appears in the multifunction
display.
iThe SOS button is located above the
interior rear view mirror.
The Roadside Assistance button•
and the Information button¡ are
located below the center armrest
cover.
iThe Tele Aid system utilizes the cellular
network for communication and the
GPS (Global Positioning System) satel-
lites for vehicle location. If either of
these signals are unavailable, the
Tele Aid system may not function and if
this occurs, assistance must be sum-
moned by other means.

250 Controls in detailUseful features
Emergency calls
An emergency call is initiated
automatically following an accident in
which the emergency tensioning devices
(ETDs) or air bags deploy.
An emergency call can also be initiated
manually by opening the cover next to the
interior rear view mirror labeled SOS, then
briefly pressing the button located under
the cover. See (
page 251) for
instructions on initiating an emergency call
manually.
Once the emergency call is in progress, the
indicator lamp in the SOS button will begin
to flash. The message
Connecting call

appears in the multifunction display and
the audio system is muted. When the
connection is established, the message
Call connected
appears in the multifunc-
tion display. All information relevant to the
emergency, such as the location of the
vehicle (determined by the GPS satellite
location system), vehicle model, identifica-
tion number and color are generated.A voice connection between the Response
Center and the occupants of the vehicle
will be established automatically soon af-
ter the emergency call has been initiated.
The Response Center will attempt to
determine more precisely the nature of the
emergency provided they can speak to an
occupant of the vehicle.
The Tele Aid system is available if


it has been activated and is
operational. Activation requires a
subscription for monitoring services,
connection and cellular air time


the relevant cellular phone network
and GPS signals are available and pass
the information on to the Response
Center
Warning!
G
If the indicator lamps in the SOS button, in
the Roadside Assistance button and/or in
the Information button remain illuminated
constantly in red and/or the message Tele Aid malfunction. Drive to
workshop
is displayed in the multifunction
display after the system self-check, a mal-
function in the system has been detected.
If a malfunction is indicated as outlined
above, the system may not operate as
expected. Have the system checked at the
nearest Mercedes-Benz Center as soon as
possible.
iLocation of the vehicle on a map is only
possible if the vehicle is able to receive
signals from the GPS satellite network
and pass the information on to the
Response Center.

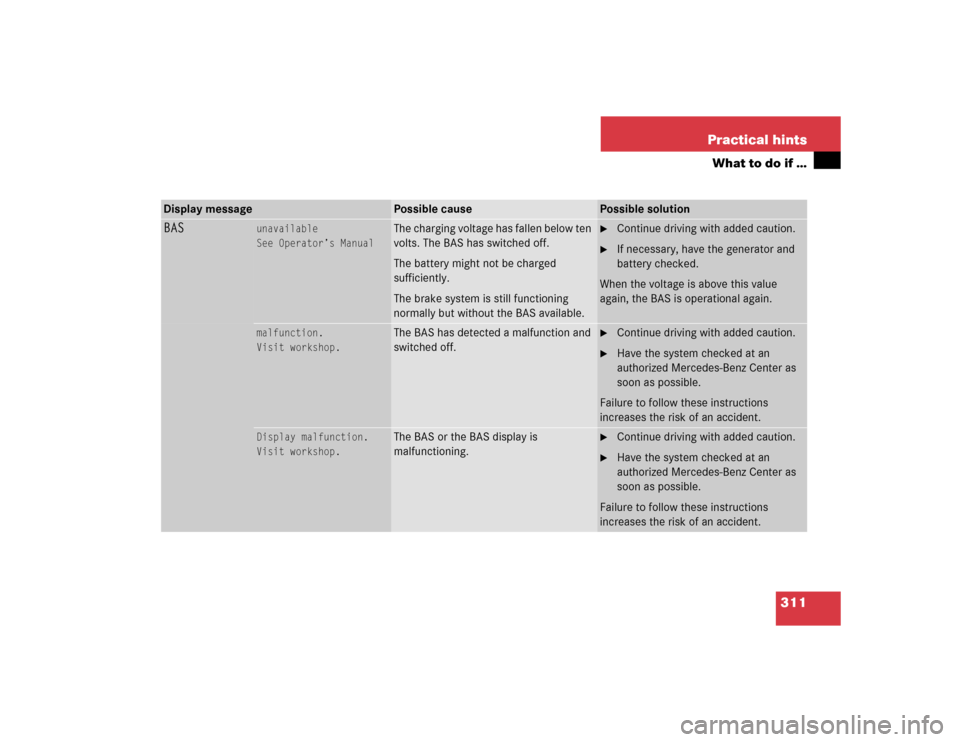

311 Practical hints
What to do if …
Display message
Possible cause
Possible solution
BAS
unavailable
See Operator’s Manual
The charging voltage has fallen below ten
volts. The BAS has switched off.
The battery might not be charged
sufficiently.
The brake system is still functioning
normally but without the BAS available.

Continue driving with added caution.

If necessary, have the generator and
battery checked.
When the voltage is above this value
again, the BAS is operational again.
malfunction.
Visit workshop.
The BAS has detected a malfunction and
switched off.

Continue driving with added caution.

Have the system checked at an
authorized Mercedes-Benz Center as
soon as possible.
Failure to follow these instructions
increases the risk of an accident.
Display malfunction.
Visit workshop.
The BAS or the BAS display is
malfunctioning.

Continue driving with added caution.

Have the system checked at an
authorized Mercedes-Benz Center as
soon as possible.
Failure to follow these instructions
increases the risk of an accident.

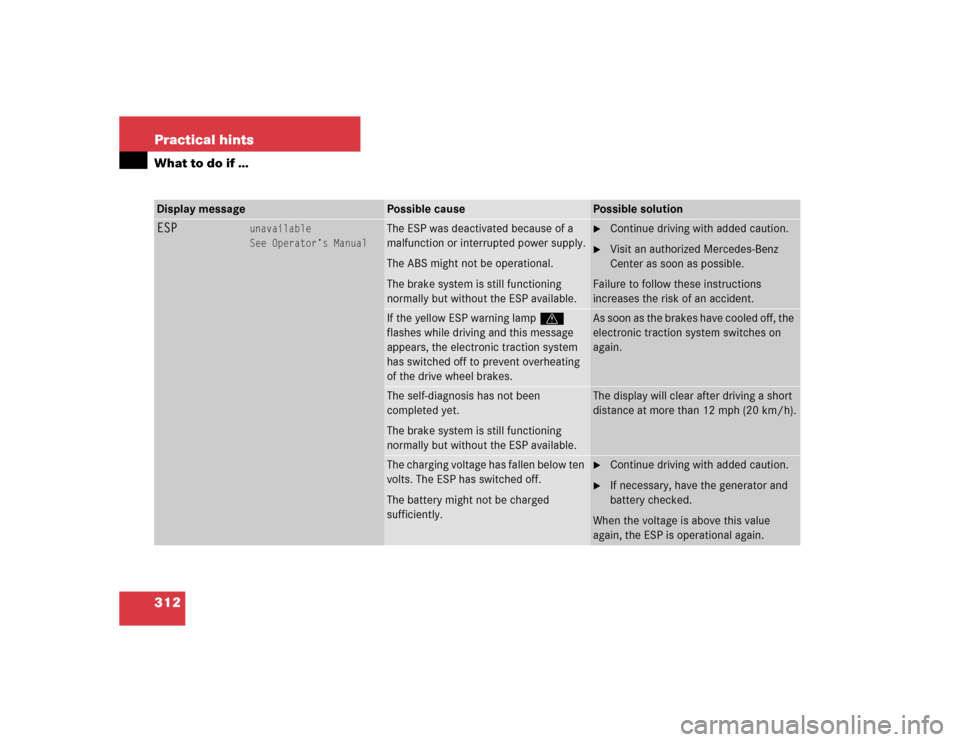

312 Practical hintsWhat to do if …Display message
Possible cause
Possible solution
ESP
unavailable
See Operator’s Manual
The ESP was deactivated because of a
malfunction or interrupted power supply.
The ABS might not be operational.
The brake system is still functioning
normally but without the ESP available.

Continue driving with added caution.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Failure to follow these instructions
increases the risk of an accident.
If the yellow ESP warning lampv
flashes while driving and this message
appears, the electronic traction system
has switched off to prevent overheating
of the drive wheel brakes.
As soon as the brakes have cooled off, the
electronic traction system switches on
again.
The self-diagnosis has not been
completed yet.
The brake system is still functioning
normally but without the ESP available.
The display will clear after driving a short
distance at more than 12 mph (20 km/h).
The charging voltage has fallen below ten
volts. The ESP has switched off.
The battery might not be charged
sufficiently.

Continue driving with added caution.

If necessary, have the generator and
battery checked.
When the voltage is above this value
again, the ESP is operational again.

403 Technical terms
Tele Aid* System
(T
elematic A
larm I
dentification on
D
emand)
The Tele Aid system consists of three
types of response: automatic and
manual emergency, roadside assis-
tance and information. Tele Aid is
initially activated by completing a
subscriber agreement and placing an
acquaintance call.
The Tele Aid system is operational
provided that the vehicle’s battery is
charged, properly connected, not
damaged and cellular and GPS
coverage is available.Telematics*
A combination of the terms “tele-
communications” and “informatics”.
Tightening torque
Force times lever arm (e.g. a lug
wrench) with which threaded fasteners
such as wheel bolts are tightened.
Tire speed rating
Part of tire designation; indicates the
speed range for which a tire is
approved.
Traction
Force exerted by the vehicle on the
road via the tires.VIN
(V
ehicle I
dentification N
umber)
The number set by the manufacturer
and placed on the body to uniquely
identify each vehicle produced.
Voice control system*
1
Voice control system for car phones,
portable cell phones and audio
systems (radio, CD, etc.).
1Feature description is based on preliminary infor-
mation at time of printing. At time of printing, no
date for availability of voice control had been set.
Contact an authorized Mercedes-Benz Center for
details and availability for your vehicle model.
