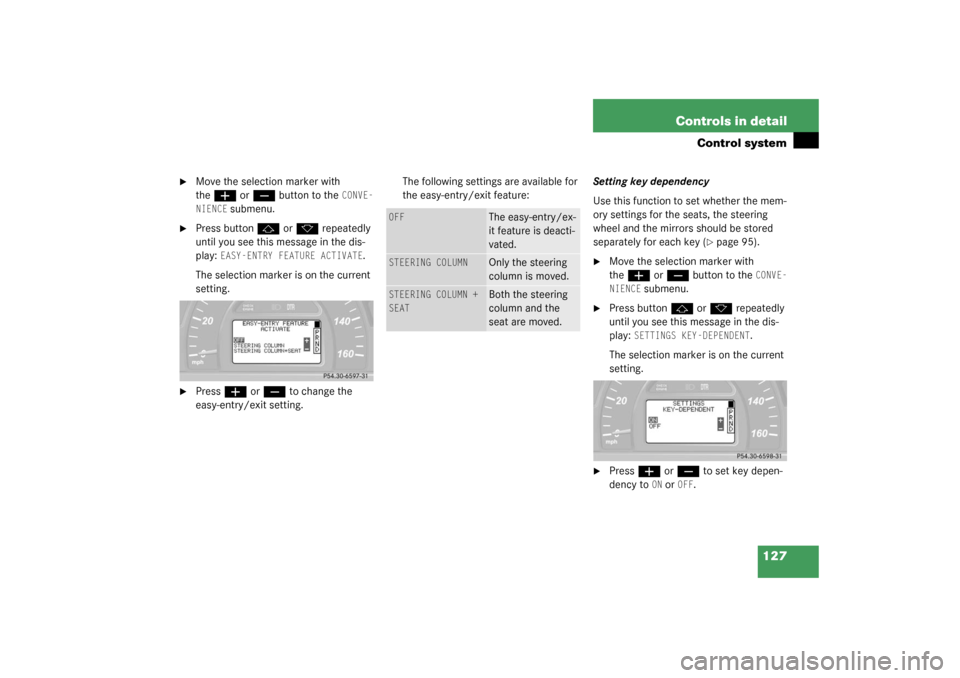

127 Controls in detail
Control system

Move the selection marker with
the
æ
or
ç
button to the
CONVE-
NIENCE
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
EASY-ENTRY FEATURE ACTIVATE
.
The selection marker is on the current
setting.

Press
æ
or
ç
to change the
easy-entry/exit setting.The following settings are available for
the easy-entry/exit feature:Setting key dependency
Use this function to set whether the mem-
ory settings for the seats, the steering
wheel and the mirrors should be stored
separately for each key (
page 95).

Move the selection marker with
the
æ
or
ç
button to the
CONVE-
NIENCE
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
SETTINGS KEY-DEPENDENT
.
The selection marker is on the current
setting.

Press
æ
or
ç
to set key depen-
dency to
ON or
OFF
.
OFF
The easy-entry/ex-
it feature is deacti-
vated.
STEERING COLUMN
Only the steering
column is moved.
STEERING COLUMN +
SEAT
Both the steering
column and the
seat are moved.
S203 MY03_A.book Page 127 Tuesday, January 28, 2003 2:22 PM

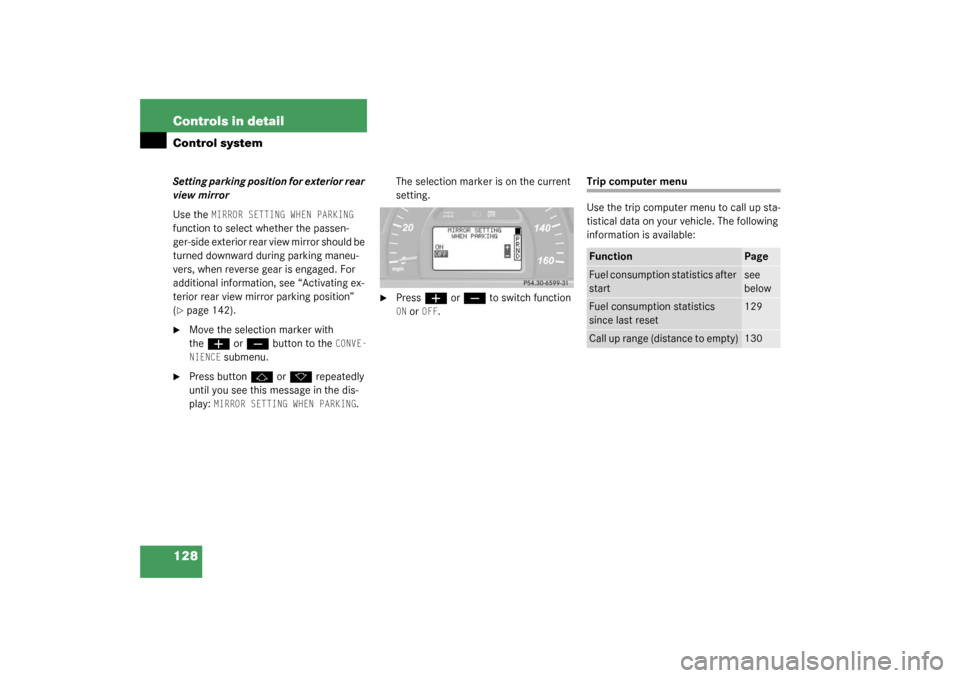

128 Controls in detailControl systemSetting parking position for exterior rear
view mirror
Use the
MIRROR SETTING WHEN PARKING

function to select whether the passen-
ger-side exterior rear view mirror should be
turned downward during parking maneu-
vers, when reverse gear is engaged. For
additional information, see “Activating ex-
terior rear view mirror parking position”
(
page 142).

Move the selection marker with
the
æ
or
ç
button to the
CONVE-
NIENCE
submenu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
MIRROR SETTING WHEN PARKING
.The selection marker is on the current
setting.

Press
æ
or
ç
to switch function
ON or
OFF
.
Trip computer menu
Use the trip computer menu to call up sta-
tistical data on your vehicle. The following
information is available:Function
Page
Fuel consumption statistics after
start
see
below
Fuel consumption statistics
since last reset
129
Call up range (distance to empty)
130
S203 MY03_A.book Page 128 Tuesday, January 28, 2003 2:22 PM

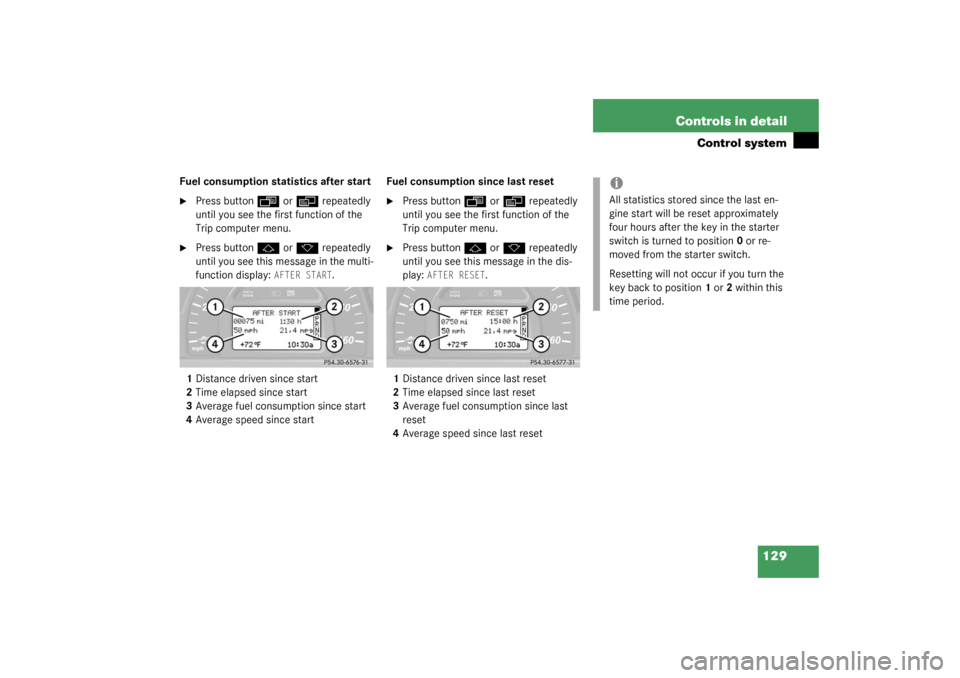

129 Controls in detail
Control system
Fuel consumption statistics after start
Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see this message in the multi-
function display:
AFTER START
.
1Distance driven since start
2Time elapsed since start
3Average fuel consumption since start
4Average speed since startFuel consumption since last reset

Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
AFTER RESET
.
1Distance driven since last reset
2Time elapsed since last reset
3Average fuel consumption since last
reset
4Average speed since last reset
iAll statistics stored since the last en-
gine start will be reset approximately
four hours after the key in the starter
switch is turned to position0 or re-
moved from the starter switch.
Resetting will not occur if you turn the
key back to position1 or2 within this
time period.
S203 MY03_A.book Page 129 Tuesday, January 28, 2003 2:22 PM

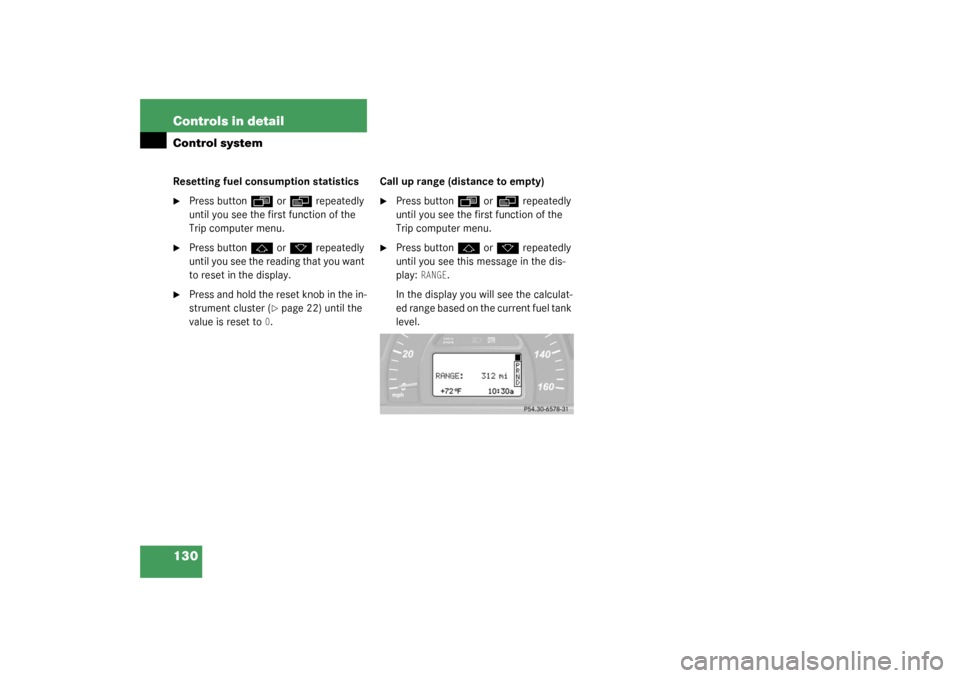

130 Controls in detailControl systemResetting fuel consumption statistics
Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see the reading that you want
to reset in the display.

Press and hold the reset knob in the in-
strument cluster (
page 22) until the
value is reset to
0.Call up range (distance to empty)

Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
RANGE
.
In the display you will see the calculat-
ed range based on the current fuel tank
level.
S203 MY03_A.book Page 130 Tuesday, January 28, 2003 2:22 PM

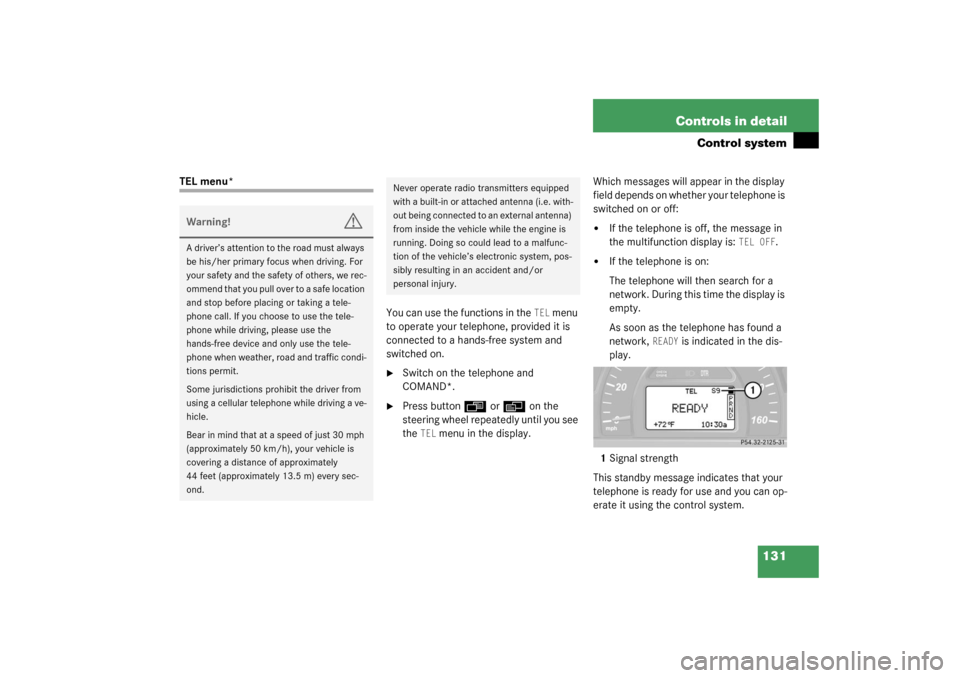

131 Controls in detail
Control system
TEL menu*
You can use the functions in the
TEL
menu
to operate your telephone, provided it is
connected to a hands-free system and
switched on.

Switch on the telephone and
COMAND*.

Press button
ÿ
or
è
on the
steering wheel repeatedly until you see
the
TEL
menu in the display.Which messages will appear in the display
field depends on whether your telephone is
switched on or off:


If the telephone is off, the message in
the multifunction display is:
TEL OFF
.


If the telephone is on:
The telephone will then search for a
network. During this time the display is
empty.
As soon as the telephone has found a
network,
READY
is indicated in the dis-
play.
1Signal strength
This standby message indicates that your
telephone is ready for use and you can op-
erate it using the control system.
Warning!
G
A driver’s attention to the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we rec-
o m m e n d t h a t y o u p u l l o v e r t o a s a f e l o c a t i o n
and stop before placing or taking a tele-
phone call. If you choose to use the tele-
phone while driving, please use the
hands-free device and only use the tele-
phone when weather, road and traffic condi-
tions permit.
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a ve-
hicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of approximately
44 feet (approximately 13.5 m) every sec-
ond.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or
personal injury.
S203 MY03_A.book Page 131 Tuesday, January 28, 2003 2:22 PM

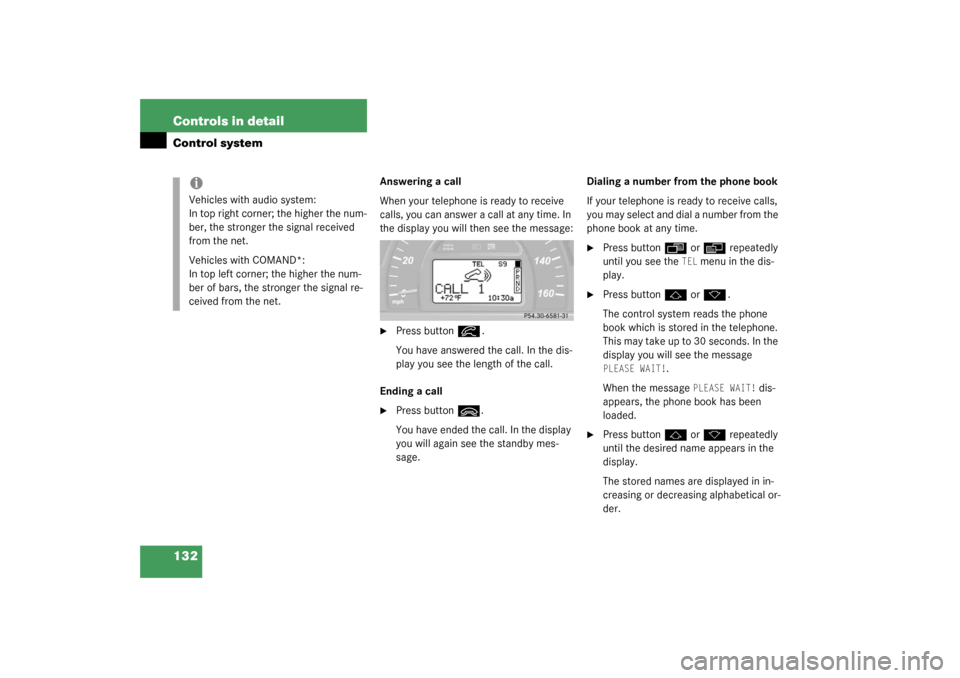

132 Controls in detailControl system
Answering a call
When your telephone is ready to receive
calls, you can answer a call at any time. In
the display you will then see the message:
Press button
í
.
You have answered the call. In the dis-
play you see the length of the call.
Ending a call

Press button
ì
.
You have ended the call. In the display
you will again see the standby mes-
sage.Dialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.

Press button
ÿ
or
è
repeatedly
until you see the
TEL
menu in the dis-
play.

Press button
j
or
k
.
The control system reads the phone
book which is stored in the telephone.
This may take up to 30 seconds. In the
display you will see the message
PLEASE WAIT!
.
When the message
PLEASE WAIT!
dis-
appears, the phone book has been
loaded.

Press button
j
or
k
repeatedly
until the desired name appears in the
display.
The stored names are displayed in in-
creasing or decreasing alphabetical or-
der.
iVehicles with audio system:
In top right corner; the higher the num-
ber, the stronger the signal received
from the net.
Vehicles with COMAND*:
In top left corner; the higher the num-
ber of bars, the stronger the signal re-
ceived from the net.
S203 MY03_A.book Page 132 Tuesday, January 28, 2003 2:22 PM

133 Controls in detail
Control system

Press button
í
.
The system dials the selected phone
number.


If connection is successful, the
name of the party you called and
the duration of the call will appear
in the display.


If no connection is made, the con-
trol system stores the dialed num-
ber in the redial memory.Redialing
The control system stores the most recent-
ly dialed phone numbers. This eliminates
the need to search through your entire
phone book.

Press button
ÿ
or
è
repeatedly
until you see the
TEL
menu in the dis-
play.

Press button
í
.
In the display you see the first number
in the redial memory.

Press button
j
or
k
repeatedly
until the desired name appears in the
display.

Press button
í
.
The control system dials the selected
phone number.
iIf you press and hold
j
or
k
for
longer than one second, the system
scrolls rapidly through the list of names
until you release the button again.
Cancel the quick search mode by
pressing
ì
.
S203 MY03_A.book Page 133 Tuesday, January 28, 2003 2:22 PM

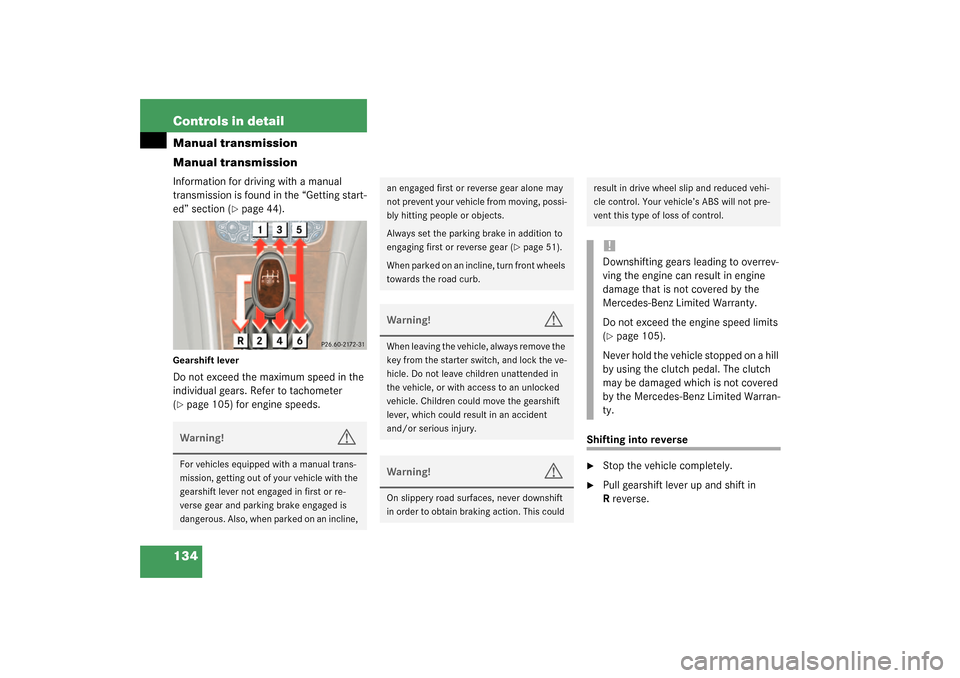

134 Controls in detailManual transmission
Manual transmissionInformation for driving with a manual
transmission is found in the “Getting start-
ed” section (
page 44).
Gearshift leverDo not exceed the maximum speed in the
individual gears. Refer to tachometer
(page 105) for engine speeds.
Shifting into reverse
Stop the vehicle completely.

Pull gearshift lever up and shift in
Rreverse.
Warning!
G
For vehicles equipped with a manual trans-
mission, getting out of your vehicle with the
gearshift lever not engaged in first or re-
verse gear and parking brake engaged is
dangerous. Also, when parked on an incline,
an engaged first or reverse gear alone may
not prevent your vehicle from moving, possi-
bly hitting people or objects.
Always set the parking brake in addition to
engaging first or reverse gear (
page 51).
When parked on an incline, turn front wheels
towards the road curb.
Warning!
G
When leaving the vehicle, always remove the
key from the starter switch, and lock the ve-
hicle. Do not leave children unattended in
the vehicle, or with access to an unlocked
vehicle. Children could move the gearshift
lever, which could result in an accident
and/or serious injury.Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.!Downshifting gears leading to overrev-
ving the engine can result in engine
damage that is not covered by the
Mercedes-Benz Limited Warranty.
Do not exceed the engine speed limits
(page 105).
Never hold the vehicle stopped on a hill
by using the clutch pedal. The clutch
may be damaged which is not covered
by the Mercedes-Benz Limited Warran-
ty.
S203 MY03_A.book Page 134 Tuesday, January 28, 2003 2:22 PM

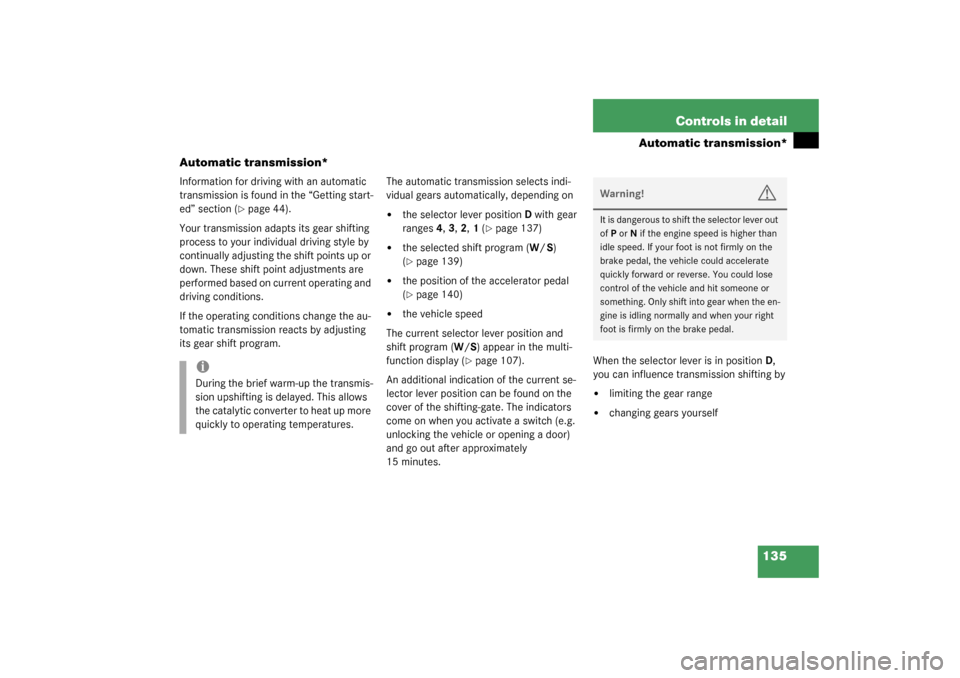

135 Controls in detail
Automatic transmission*
Automatic transmission*
Information for driving with an automatic
transmission is found in the “Getting start-
ed” section (
page 44).
Your transmission adapts its gear shifting
process to your individual driving style by
continually adjusting the shift points up or
down. These shift point adjustments are
performed based on current operating and
driving conditions.
If the operating conditions change the au-
tomatic transmission reacts by adjusting
its gear shift program.The automatic transmission selects indi-
vidual gears automatically, depending on


the selector lever positionD with gear
ranges4, 3, 2, 1 (
page 137)


the selected shift program (W/S)
(page 139)


the position of the accelerator pedal
(page 140)


the vehicle speed
The current selector lever position and
shift program (W/S) appear in the multi-
function display (
page 107).
An additional indication of the current se-
lector lever position can be found on the
cover of the shifting-gate. The indicators
come on when you activate a switch (e.g.
unlocking the vehicle or opening a door)
and go out after approximately
15 minutes.When the selector lever is in positionD,
you can influence transmission shifting by


limiting the gear range


changing gears yourself
iDuring the brief warm-up the transmis-
sion upshifting is delayed. This allows
the catalytic converter to heat up more
quickly to operating temperatures.
Warning!
G
It is dangerous to shift the selector lever out
ofP orN if the engine speed is higher than
idle speed. If your foot is not firmly on the
brake pedal, the vehicle could accelerate
quickly forward or reverse. You could lose
control of the vehicle and hit someone or
something. Only shift into gear when the en-
gine is idling normally and when your right
foot is firmly on the brake pedal.
S203 MY03_A.book Page 135 Tuesday, January 28, 2003 2:22 PM

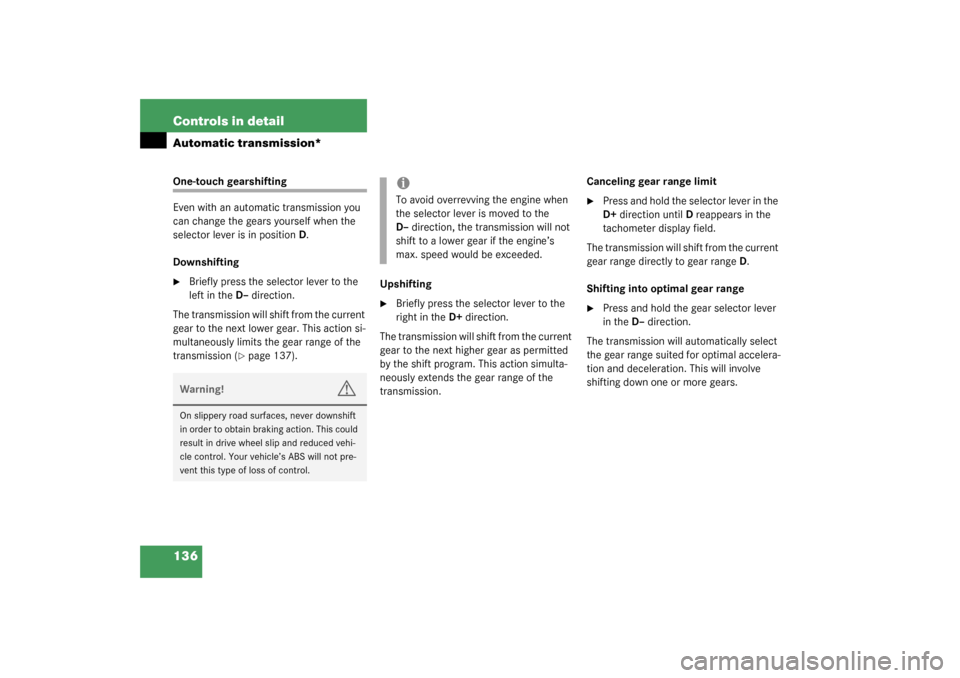

136 Controls in detailAutomatic transmission*One-touch gearshifting
Even with an automatic transmission you
can change the gears yourself when the
selector lever is in positionD.
Downshifting
Briefly press the selector lever to the
left in the D–direction.
The transmission will shift from the current
gear to the next lower gear. This action si-
multaneously limits the gear range of the
transmission (
page 137).Upshifting

Briefly press the selector lever to the
right in the D+direction.
The transmission will shift from the current
gear to the next higher gear as permitted
by the shift program. This action simulta-
neously extends the gear range of the
transmission.Canceling gear range limit

Press and hold the selector lever in the
D+direction until D reappears in the
tachometer display field.
The transmission will shift from the current
gear range directly to gear rangeD.
Shifting into optimal gear range

Press and hold the gear selector lever
in the D–direction.
The transmission will automatically select
the gear range suited for optimal accelera-
tion and deceleration. This will involve
shifting down one or more gears.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.
iTo avoid overrevving the engine when
the selector lever is moved to the
D–direction, the transmission will not
shift to a lower gear if the engine’s
max. speed would be exceeded.
S203 MY03_A.book Page 136 Tuesday, January 28, 2003 2:22 PM
