MERCEDES-BENZ C240 4MATIC WAGON 2004 S203 Owner's Guide

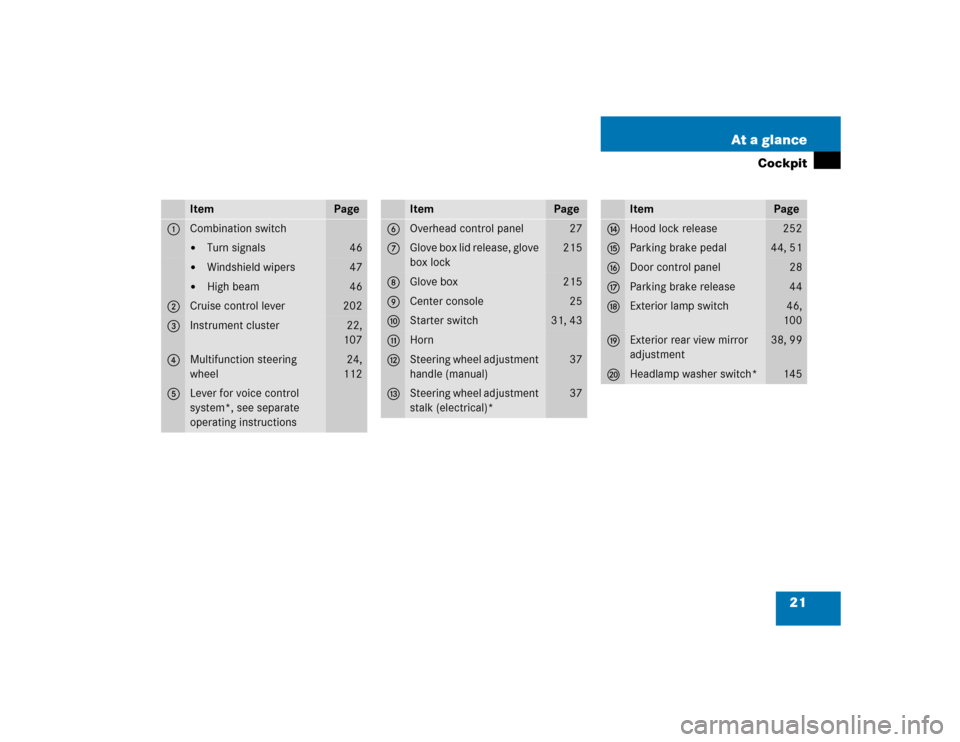

21 At a glance
Cockpit
Item
Page
1
Combination switch

Turn signals
46


Windshield wipers
47


High beam
46
2
Cruise control lever
202
3
Instrument cluster
22,
107
4
Multifunction steering
wheel
24,
112
5
Lever for voice control
system*, see separate
operating instructions
Item
Page
6
Overhead control panel
27
7
Glove box lid release, glove
box lock
215
8
Glove box
215
9
Center console
25
a
Starter switch
31, 43
b
Horn
c
Steering wheel adjustment
handle (manual)
37
d
Steering wheel adjustment
stalk (electrical)*
37
Item
Page
e
Hood lock release
252
f
Parking brake pedal
44, 51
g
Door control panel
28
h
Parking brake release
44
j
Exterior lamp switch
46,
100
k
Exterior rear view mirror
adjustment
38, 99
l
Headlamp washer switch*
145

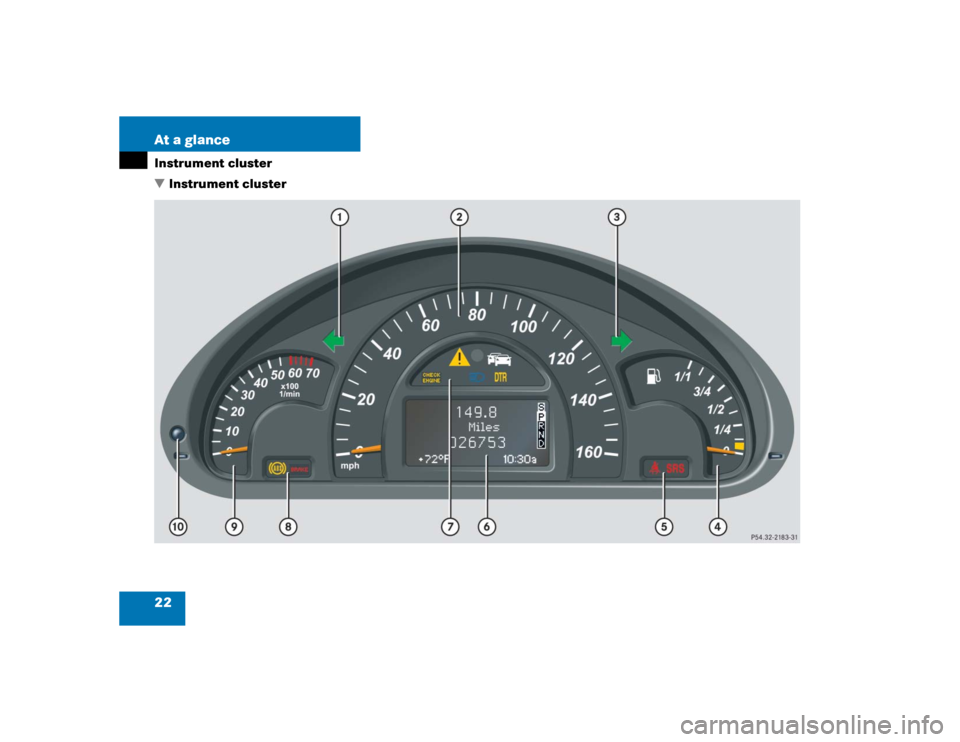

22 At a glanceInstrument cluster
Instrument cluster

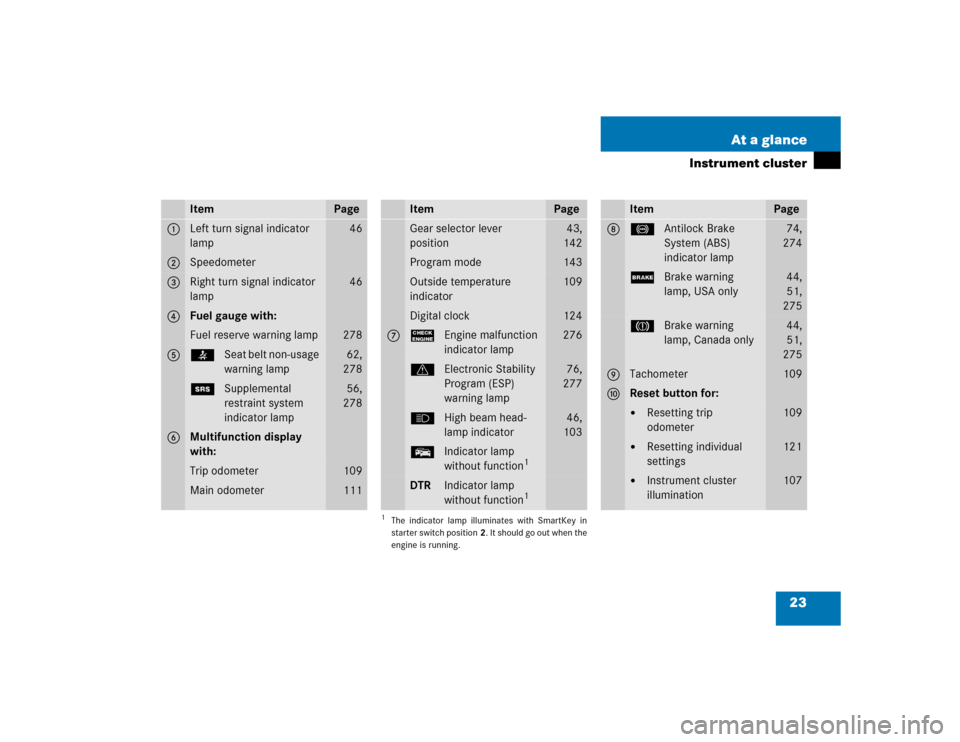

23 At a glance
Instrument cluster
Item
Page
1
Left turn signal indicator
lamp
46
2
Speedometer
3
Right turn signal indicator
lamp
46
4
Fuel gauge with:Fuel reserve warning lamp
278
5
warning lamp
62,
278
1Supplemental
restraint system
indicator lamp
56,
278
6
Multifunction display
with:Trip odometer
109
Main odometer
111
Item
Page
Gear selector lever
position
43,
142
Program mode
143
Outside temperature
indicator
109
Digital clock
124
7
?Engine malfunction
indicator lamp
276
vElectronic Stability
Program (ESP)
warning lamp
76,
277
AHigh beam head-
lamp indicator
46,
103
EIndicator lamp
without function
1
DTRIndicator lamp
without function
1
1The indicator lamp illuminates with SmartKey in
starter switch position2. It sh ould go out when the
engine is running.
Item
Page
8
-Antilock Brake
System (ABS)
indicator lamp
74,
274
;Brake warning
lamp, USA only
44,
51,
275
3Brake warning
lamp, Canada only
44,
51,
275
9
Tachometer
109
a
Reset button for:

Resetting trip
odometer
109


Resetting individual
settings
121


Instrument cluster
illumination
107

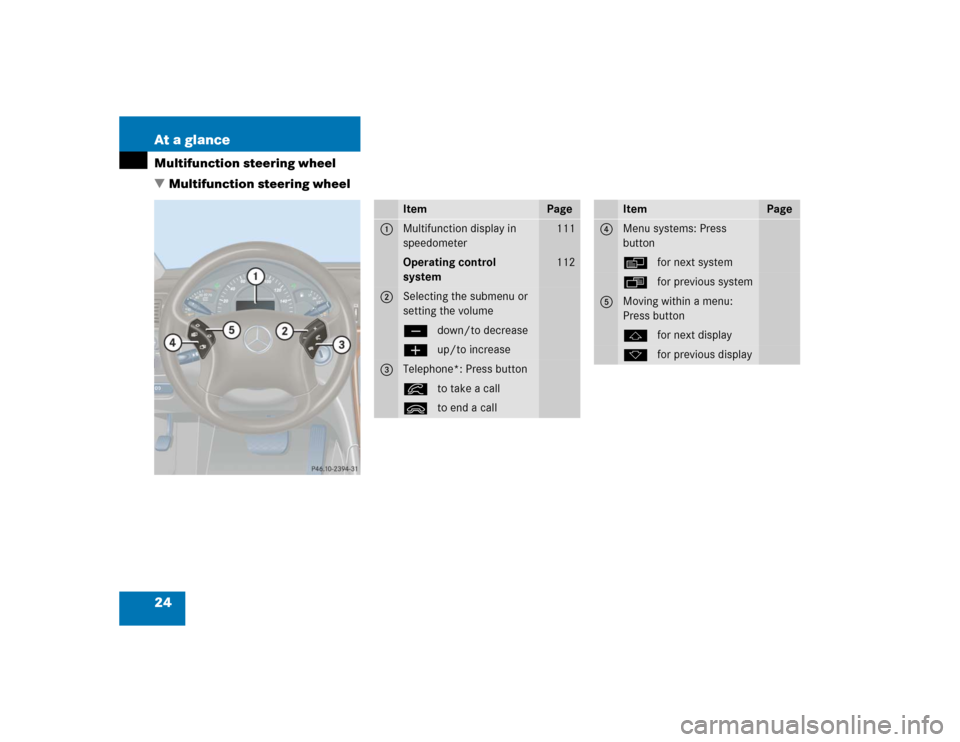

24 At a glanceMultifunction steering wheel
Multifunction steering wheel
Item
Page
1
Multifunction display in
speedometer
111
Operating control
system
112
2
Selecting the submenu or
setting the volumeçdown/to decreaseæup/to increase
3
Telephone*: Press buttoníto take a callìto end a call
Item
Page
4
Menu systems: Press
buttonèfor next systemÿfor previous system
5
Moving within a menu:
Press buttonjfor next displaykfor previous display

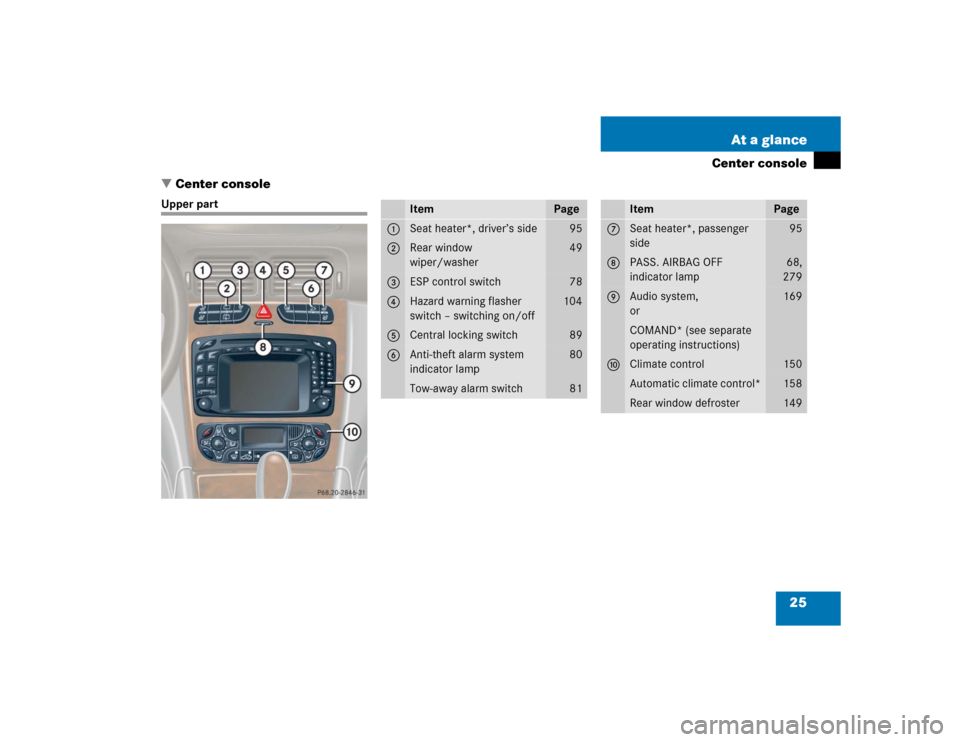

25 At a glance
Center console
Center console
Upper part
Item
Page
1
Seat heater*, driver’s side
95
2
Rear window
wiper/washer
49
3
ESP control switch
78
4
Hazard warning flasher
switch – switching on/off
104
5
Central locking switch
89
6
Anti-theft alarm system
indicator lamp
80
Tow-away alarm switch
81
Item
Page
7
Seat heater*, passenger
side
95
8
PASS. AIRBAG OFF
indicator lamp
68,
279
9
Audio system,
or
169
COMAND* (see separate
operating instructions)
a
Climate control
150
Automatic climate control*
158
Rear window defroster
149

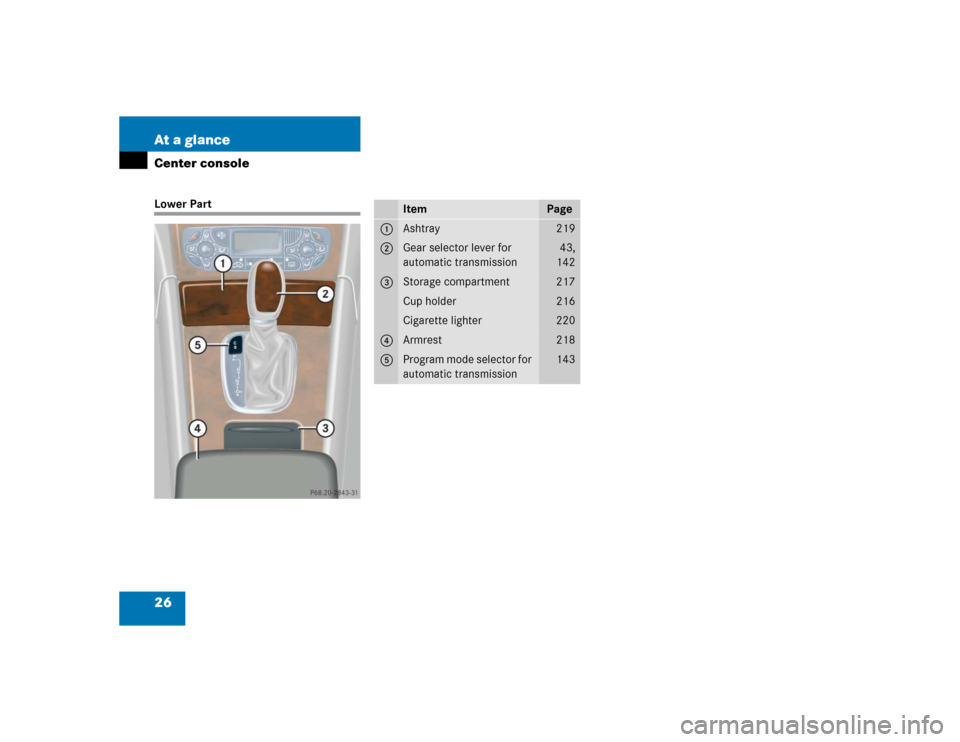

26 At a glanceCenter consoleLower Part
Item
Page
1
Ashtray
219
2
Gear selector lever for
automatic transmission
43,
142
3
Storage compartment
217
Cup holder
216
Cigarette lighter
220
4
Armrest
218
5
Program mode selector for
automatic transmission
143

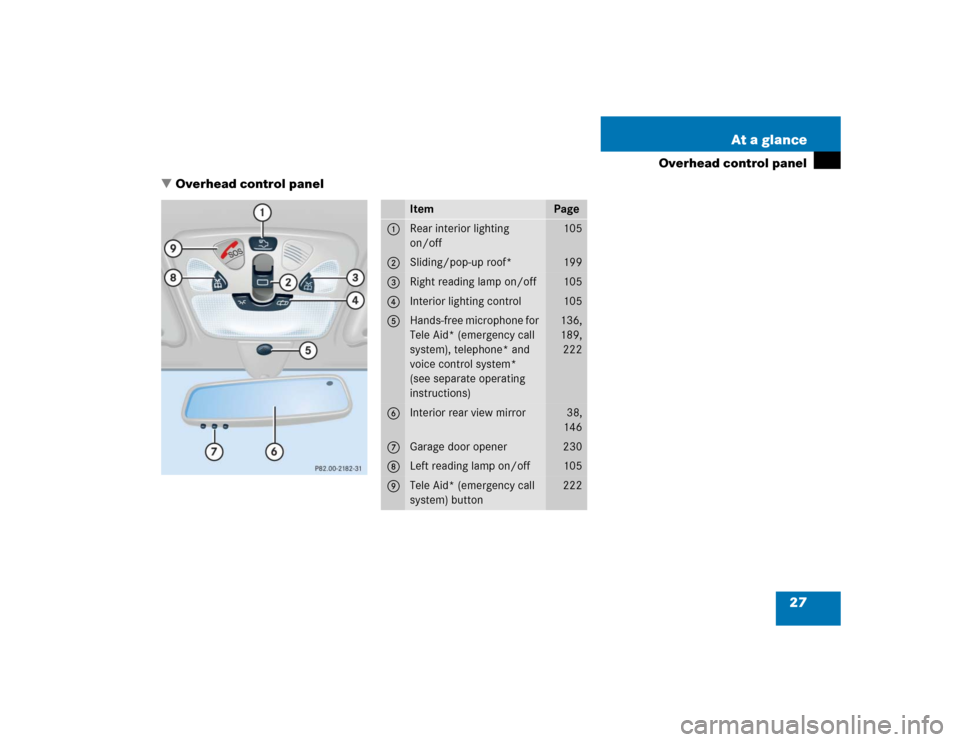

27 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Rear interior lighting
on/off
105
2
Sliding/pop-up roof*
199
3
Right reading lamp on/off
105
4
Interior lighting control
105
5
Hands-free microphone for
Tele Aid* (emergency call
system), telephone* and
voice control system*
(see separate operating
instructions)
136,
189,
222
6
Interior rear view mirror
38,
146
7
Garage door opener
230
8
Left reading lamp on/off
105
9
Tele Aid* (emergency call
system) button
222

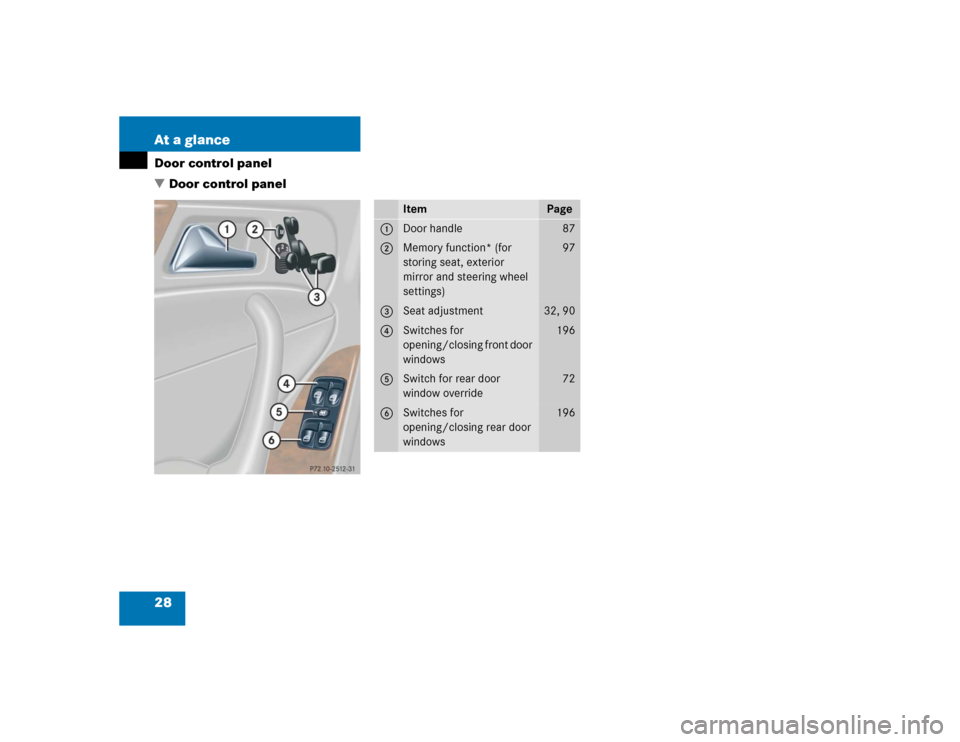

28 At a glanceDoor control panel
Door control panel
Item
Page
1
Door handle
87
2
Memory function* (for
storing seat, exterior
mirror and steering wheel
settings)
97
3
Seat adjustment
32, 90
4
Switches for
opening/closing front door
windows
196
5
Switch for rear door
window override
72
6
Switches for
opening/closing rear door
windows
196

29 Getting started
Unlocking
Adjusting
Driving
Parking and locking

30 Getting startedUnlocking
The “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page
references are located at the end of each
segment.
Unlocking

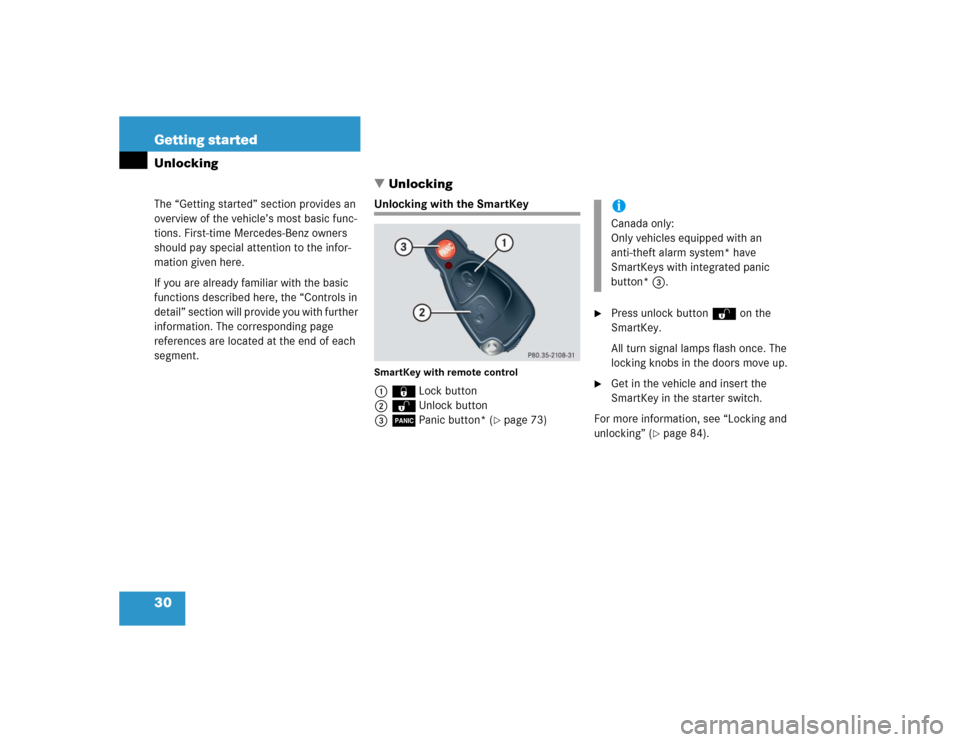

Unlocking with the SmartKeySmartKey with remote control1‹Lock button
2ŒUnlock button
3ÂPanic button* (
page 73)

Press unlock buttonΠon the
SmartKey.
All turn signal lamps flash once. The
locking knobs in the doors move up.

Get in the vehicle and insert the
SmartKey in the starter switch.
For more information, see “Locking and
unlocking” (
page 84).
iCanada only:
Only vehicles equipped with an
anti-theft alarm system* have
SmartKeys with integrated panic
button*3.
