MERCEDES-BENZ C240 4MATIC WAGON 2004 S203 Service Manual

41 Getting started
Driving

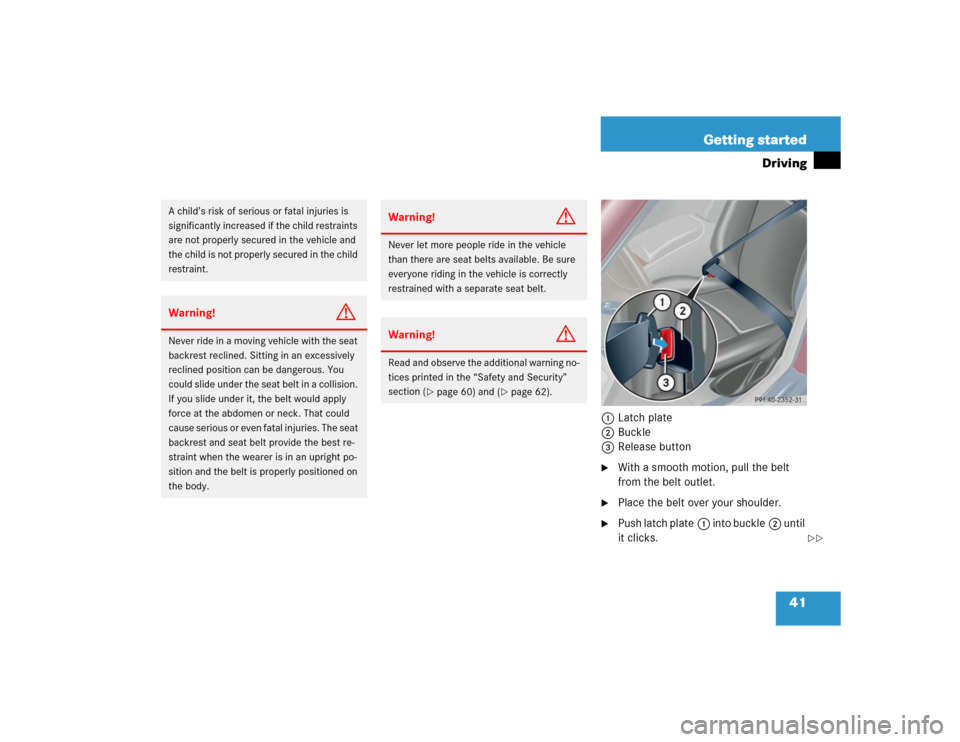

1Latch plate
2Buckle
3Release button
With a smooth motion, pull the belt
from the belt outlet.

Place the belt over your shoulder.

Push latch plate1 into buckle2 until
it clicks.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.Warning!
G
Never ride in a moving vehicle with the seat
backrest reclined. Sitting in an excessively
reclined position can be dangerous. You
could slide under the seat belt in a collision.
If you slide under it, the belt would apply
force at the abdomen or neck. That could
cause serious or even fatal injuries. The seat
backrest and seat belt provide the best re-
straint when the wearer is in an upright po-
sition and the belt is properly positioned on
the body.
Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly
restrained with a separate seat belt.Warning!
G
Read and observe the additional warning no-
tices printed in the “Safety and Security”
section (
page 60) and (
page 62).


42 Getting startedDriving
If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.

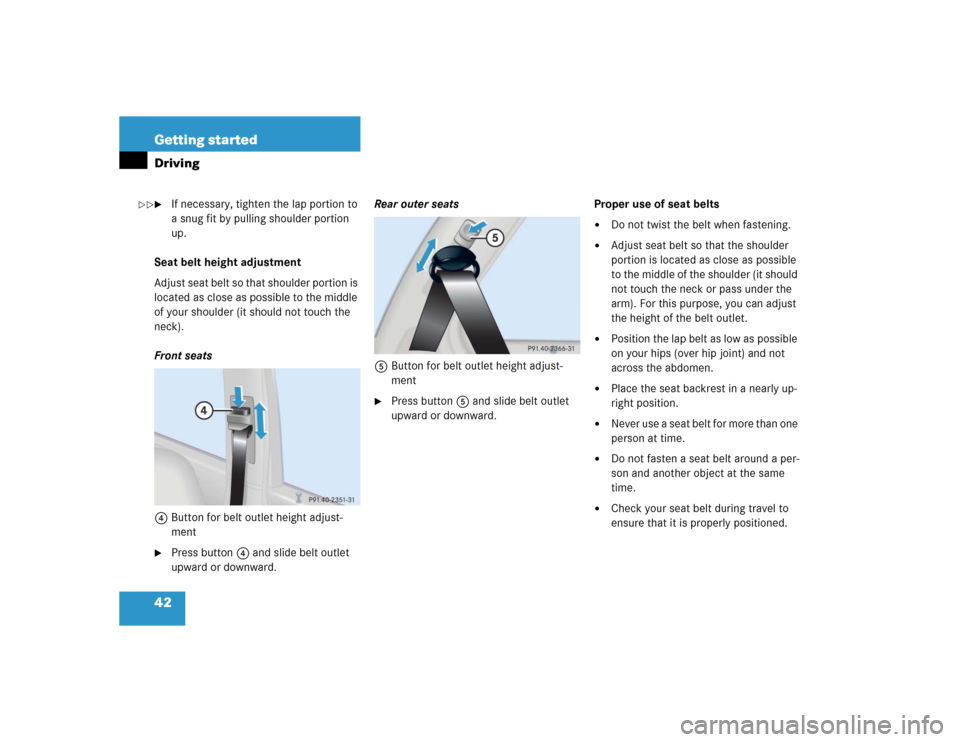

Seat belt height adjustment
Adjust seat belt so that shoulder portion is
located as close as possible to the middle
of your shoulder (it should not touch the
neck).
Front seats
4Button for belt outlet height adjust-
ment

Press button4 and slide belt outlet
upward or downward.Rear outer seats
5Button for belt outlet height adjust-
ment

Press button5 and slide belt outlet
upward or downward.Proper use of seat belts


Do not twist the belt when fastening.


Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck or pass under the
arm). For this purpose, you can adjust
the height of the belt outlet.


Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.


Place the seat backrest in a nearly up-
right position.


Never use a seat belt for more than one
person at time.


Do not fasten a seat belt around a per-
son and another object at the same
time.


Check your seat belt during travel to
ensure that it is properly positioned.


43 Getting started
Driving


Ensure that the seat belt is always fit-
ted snugly. You should avoid wearing
bulky clothing, such as winter coats,
when traveling in the vehicle.

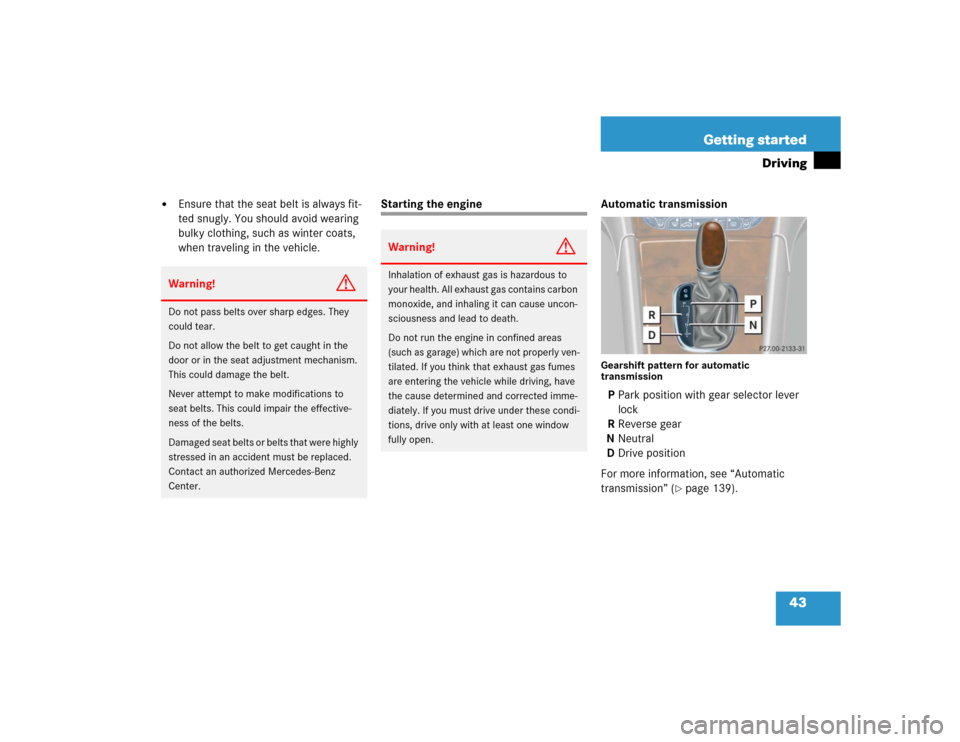

Starting the engine Automatic transmission
Gearshift pattern for automatic
transmissionPPark position with gear selector lever
lock
RReverse gear
NNeutral
DDrive position
For more information, see “Automatic
transmission” (
page 139).
Warning!
G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz
Center.
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and lead to death.
Do not run the engine in confined areas
(such as garage) which are not properly ven-
tilated. If you think that exhaust gas fumes
are entering the vehicle while driving, have
the cause determined and corrected imme-
diately. If you must drive under these condi-
tions, drive only with at least one window
fully open.

44 Getting startedDrivingStarting
Make sure the gear selector lever is set
toP.

Do not depress accelerator.

Turn the SmartKey in the starter switch
to position3 and hold until the engine
starts (
page 31).

Depress the brake pedal.
The gear selector lever lock is released.
For information on turning off the engine,
see “Turning off engine” (
page 53).Starting difficulties
If the engine does not start as described,
carry out the following steps:

Turn SmartKey in starter to position0
and repeat starting procedure
(page 43).

Remember that extended starting at-
tempts can drain the battery.

Get a jump start (
page 327).
If the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.

Notify an authorized Mercedes-Benz
Center.Parking brake
1Release handle
2Parking brake
iYou can also use the “touch-start”
function. Turn the SmartKey to
position3 and release it again
immediately. The engine then starts
automatically.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, and lock
the vehicle. Do not leave children unattend-
ed in the vehicle, or with access to an un-
locked vehicle. Children could release the
parking brake, which could result in an acci-
dent and/or serious injury.

45 Getting started
Driving

Release parking brake by pulling on
handle1.
The warning lamp; (USA only)
or3 (Canada only) in the
instrument cluster goes out.
Driving

Depress the brake pedal.

Move gear selector lever to positionD
orR.

Release the brake pedal.

Carefully depress the accelerator.
Once the vehicle is in motion, the auto-
matic central locking system engages
and the locking knobs drop down.After a cold start, the automatic transmis-
sion shifts at a higher engine revolution.
This allows the catalytic converter to reach
its operating temperature earlier.iWait for the gear selection process to
complete before setting the vehicle in
motion.
iYou can open a locked door from the
inside. Open door only when conditions
are safe to do so.
You can deactivate the automatic
locking using the control system
(page 131).
!Simultaneously depressing the
accelerator pedal and applying the
brake reduces engine performance and
causes premature brake and drivetrain
wear.!If you hear a warning signal when driv-
ing off, you have forgotten to release
the parking brake.
Release the parking brake.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.!Place the gear selector lever in
positionR only when the vehicle is
stopped in order to avoid damaging the
transmission.!Do not run cold engine at high engine
speeds. Running a cold engine at high
engine speeds may shorten the service
life of the engine.

46 Getting startedDrivingFor more information on driving, see “Driv-
ing instructions” (
page 239).

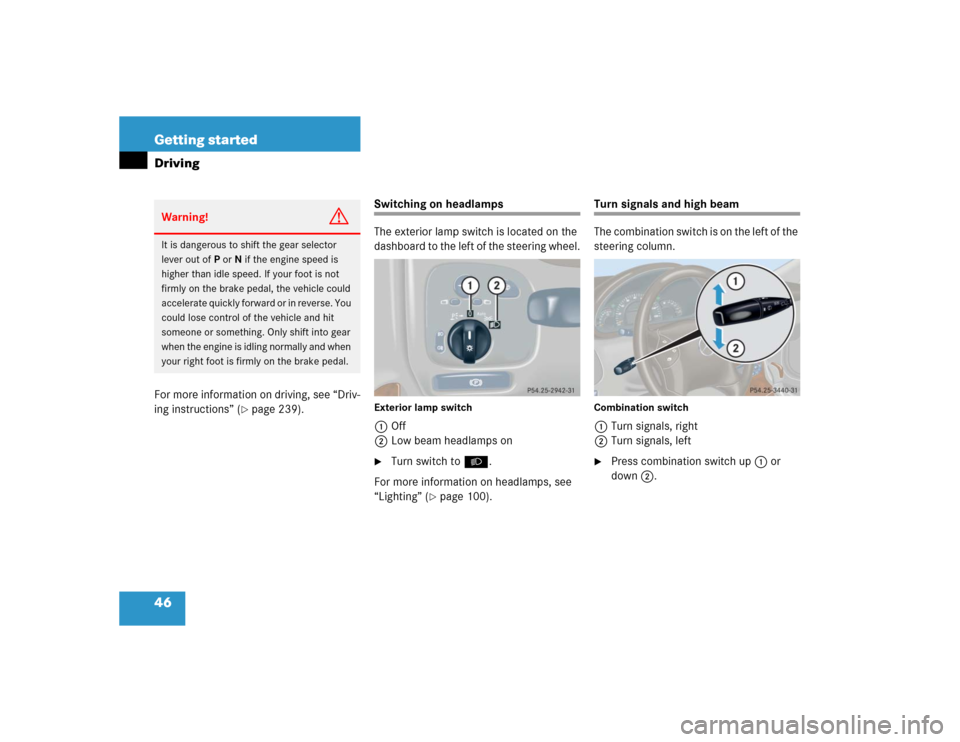

Switching on headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.Exterior lamp switch1Off
2Low beam headlamps on
Turn switch toB.
For more information on headlamps, see
“Lighting” (
page 100).
Turn signals and high beam
The combination switch is on the left of the
steering column.Combination switch1Turn signals, right
2Turn signals, left
Press combination switch up1 or
down2.
Warning!
G
It is dangerous to shift the gear selector
lever out ofP orN if the engine speed is
higher than idle speed. If your foot is not
firmly on the brake pedal, the vehicle could
accelerate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.

47 Getting started
Driving
High beam
Push combination switch forward.
The high beam symbolA in the
instrument cluster comes on.
For more information on high beam, see
“Combination switch” (
page 103).
Windshield wipers
The combination switch is located on the
left of the steering column.Combination switch1Single wipe
2Switching on windshield wipers
Make sure the ignition is switched on.Switching on windshield wipers

Turn the combination switch to the
desired position depending on the
intensity of the rain.
0Windshield wipers off
IIntermittent wiping
IINormal wiper speed
IIIFast wiper speed
iTo signal minor directional changes,
move combination switch to point of
resistance only and release. The turn
signal flashes three times.
iVehicles without rain sensor*:
Fast wiper speedIII goes to settingII
when the vehicle is standing still.
Vehicles with rain sensor*:
Intermittent wiping interval is depen-
dent on wetness of windshield. Wiping
will not occur with a front door open.

48 Getting startedDriving
Single wipe
Press combination switch briefly in
direction of arrow1.
The windshield wipers wipe one time
without washer fluid.
Wiping with windshield washer fluid

Push combination switch in direction of
arrow1 past the resistance point.
The windshield wipers operate with
washer fluid.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system*”
(
page 259).
!Vehicles with rain sensor*:
Do not leave windshield wipers in inter-
mittent setting when the vehicle is tak-
en to an automatic car wash or during
windshield cleaning. Wipers will oper-
ate in the presence of water sprayed on
the windshield, and wipers may be
damaged as a result.
The switch should not be left in inter-
mittent setting as the wipers will wipe
the windshield once every time the en-
gine is started. Dust that accumulates
on the windshield might scratch the
glass and/or damage the wiper blades
when wiping occurs on a dry wind-
shield.
!If anything blocks the windshield
wipers (leaves, snow, etc.), switch
them off immediately.

For safety reasons, withdraw
SmartKey from starter switch
before attempting to remove any
blockage.


Remove blockage.


Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch positionI,


set the combination switch to the
next highest wiper speed


have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Center

49 Getting started
Driving
Rear window wiper/washer
The switch is located on the center
console.
1Intermittent wipe
2Indicator lamp
3Rear window washer system

Make sure the ignition is switched on.Activating intermittent wipe

Press upper switch position1.
Indicator lamp2 comes on.
Deactivating intermittent wipe

Press upper switch position1 again.
Indicator lamp2 goes out.
Wiping with window washer fluid

Press and hold lower switch
position3.
The wiper operates with washer fluid.
More information on windshield wipers can
be found in the “Controls in detail” section
(
page 145).
iThe rear window wiper will also auto-
matically engage if

the windshield wiper is engaged


the gear selector lever is placed
inR “Reverse”

50 Getting startedDrivingProblems while driving
The engine runs erratically and misfires

An ignition cable may be damaged.


The engine electronics may not be op-
erating properly.


Unburned gasoline may have entered
the catalytic converter and damaged it.

Give very little gas.

Have the problem repaired by an au-
thorized Mercedes-Benz Center as
soon as possible.The coolant temperature is over 248°F
(120°C)
The coolant is too hot and is no longer
cooling the engine.

Stop the vehicle as soon as possible
and turn off the engine. Allow engine
and coolant to cool.

Check the coolant level and add cool-
ant if necessary (
page 257).In case of accident
If the vehicle is leaking gasoline:

Do not start the engine under any cir-
cumstances.

Notify local fire and/or police authori-
ties.
If the extent of the damage cannot be de-
termined:

Notify an authorized Mercedes-Benz
Center.
If no damage can be determined on the


major assemblies


fuel system


engine mount

Start the engine in the usual manner.
