27 At a glance
Instrument cluster
ItemPage
1Combination gauge with:
Fuel gauge
4Fuel tank reserve
warning lamp
Coolant temperature gauge
ÌCoolant temperature
warning lamp
Indicator/warning lamps:
AHigh beam headlamp
indicator lamp
±Engine malfunction
indicator lamp
380
112
374
382
378
;
USA only
3
Canada onlyBrake warning
lamp376
2LLeft turn signal
indicator lamp131
ItemPage
3vElectronic Stability
Program (ESP®)
warning lamp
380
4Speedometer
5Multifunction display
6KRight turn signal
indicator lamp131
7Tachometer with:
HCombination low tire
pressure/TPMS
malfunction telltale,
USA only380
=SRS indicator lamp382
-Antilock Brake System
(ABS) indicator lamp59
8Outside temperature
(manual transmission)
Outside temperature /
additional speedometer
(automatic transmission*)149
149,
169
ItemPage
9Outside temperature
(automatic transmission*)149,
169
aSelected program mode
indicator
(automatic transmission*)140
bGear position/range
indicator
(automatic transmission*)
Additional speedometer
(manual transmission)143
169
cDigital clock151
dInstrument cluster
illumination148

79 Controls in detail
Locking and unlocking
Loss of the SmartKey or SmartKey with
KEYLESS-GO* (Canada only)
If you lose your SmartKey, SmartKey with
KEYLESS-GO or mechanical key, you
should do the following:
Have the SmartKey or SmartKey with
KEYLESS-GO deactivated at an autho-
rized Mercedes-Benz Center.
Report the loss of the SmartKey,
SmartKey with KEYLESS-GO or the
mechanical key immediately to your
car insurance company.
Have the mechanical lock replaced if
necessary.
Your authorized Mercedes-Benz Center
will be glad to supply you with a
replacement.
Opening doors from the inside
You can open a locked door from the in-
side. Open door only when conditions are
safe to do so.
1Locking knob
2Inside door handle
iIf the vehicle has previously been locked
with the SmartKey or KEYLESS-GO*, opening a
door from the inside will trigger the anti-theft
alarm system.
To cancel the alarm, do one of the following:

Insert the SmartKey or SmartKey with
KEYLESS-GO* in the starter switch.

Press button Œ or ‹ on the SmartKey
or SmartKey with KEYLESS-GO*.
In vehicles with KEYLESS-GO*:

Grasp an outside door handle.
The SmartKey with KEYLESS-GO* must be
within 3 ft (1 m) of the vehicle.

Press the KEYLESS-GO* start/stop button
(
page 84).
The SmartKey with KEYLESS-GO* must be
inside the vehicle.
iIf you hear a warning signal you have
forgotten to switch off the low beam headlamps
or the parking lamps before opening the driver’s
door.
In addition the message
Switch Off Lights
appears in the multifunction display.
Switch off the low beam headlamps or the park-
ing lamps.
If the message
Switch Off Lights or Re-
move Key
appears in the multifunction display
remove the SmartKey from the starter switch or
switch off the automatic headlamp mode.

108 Controls in detail
Lighting

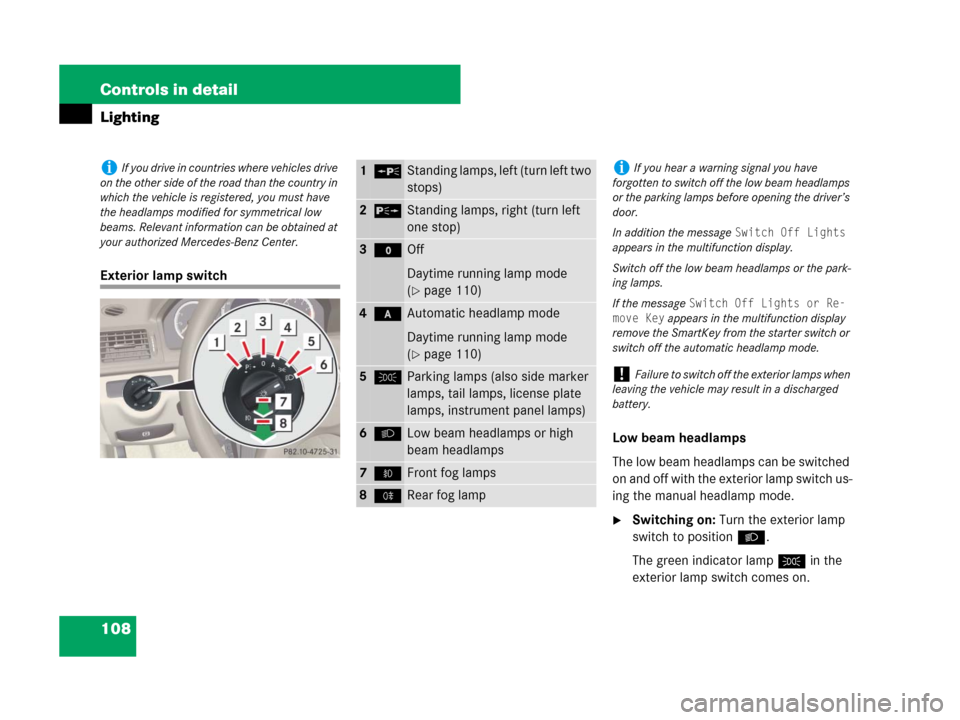

Exterior lamp switch
Low beam headlamps
The low beam headlamps can be switched
on and off with the exterior lamp switch us-
ing the manual headlamp mode.
Switching on: Turn the exterior lamp
switch to positionB.
The green indicator lampC in the
exterior lamp switch comes on.
iIf you drive in countries where vehicles drive
on the other side of the road than the country in
which the vehicle is registered, you must have
the headlamps modified for symmetrical low
beams. Relevant information can be obtained at
your authorized Mercedes-Benz Center.1‚Standing lamps, left (turn left two
stops)
2ˆStanding lamps, right (turn left
one stop)
3MOff
Daytime running lamp mode
(
page 110)
4*Automatic headlamp mode
Daytime running lamp mode
(
page 110)
5CParking lamps (also side marker
lamps, tail lamps, license plate
lamps, instrument panel lamps)
6BLow beam headlamps or high
beam headlamps
7‡Front fog lamps
8†Rear fog lamp
iIf you hear a warning signal you have
forgotten to switch off the low beam headlamps
or the parking lamps before opening the driver’s
door.
In addition the message
Switch Off Lights
appears in the multifunction display.
Switch off the low beam headlamps or the park-
ing lamps.
If the message
Switch Off Lights or Re-
move Key
appears in the multifunction display
remove the SmartKey from the starter switch or
switch off the automatic headlamp mode.
!Failure to switch off the exterior lamps when
leaving the vehicle may result in a discharged
battery.

109 Controls in detail
Lighting
The following lamps switch on:

Low beam headlamps

Tail and parking lamps

License plate lamps

Side marker lamps
Switching off: Turn the exterior lamp
switch to positionM.
The green indicator lampC in the
exterior lamp switch goes out.
Automatic headlamp mode
The following lamps switch on and off au-
tomatically depending on the brightness of
the ambient light:

Low beam headlamps

Tail and parking lamps

License plate lamps

Side marker lamps
Turn the exterior lamp switch to
position*.
With the SmartKey in starter switch
position1 or the KEYLESS-GO*
start/stop button (Canada only)
pressed once, the tail and parking
lamps, the license plate lamps and the
side marker lamps will switch on and
off depending on the brightness of the
ambient light.
When the engine is running, the low
beam headlamps, the tail and parking
lamps, the license plate lamps, and the
side marker lamps will switch on and
off depending on the brightness of the
ambient light.

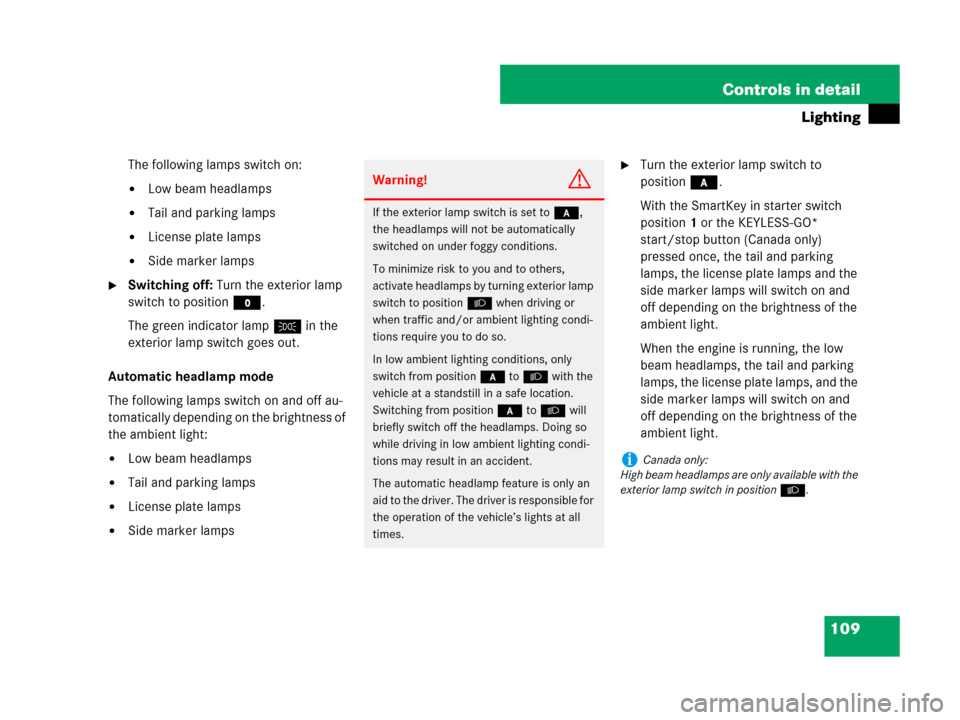

Warning!G
If the exterior lamp switch is set to*,
the headlamps will not be automatically
switched on under foggy conditions.
To minimize risk to you and to others,
activate headlamps by turning exterior lamp
switch to positionB when driving or
when traffic and/or ambient lighting condi-
tions require you to do so.
In low ambient lighting conditions, only
switch from position * to B with the
vehicle at a standstill in a safe location.
Switching from position* to B will
briefly switch off the headlamps. Doing so
while driving in low ambient lighting condi-
tions may result in an accident.
The automatic headlamp feature is only an
aid to the driver. The driver is responsible for
the operation of the vehicle’s lights at all
times.
iCanada only:
High beam headlamps are only available with the
exterior lamp switch in position B.

110 Controls in detail
Lighting
Daytime running lamp mode
In Canada the daytime running lamp mode
is mandatory and therefore in a constant
mode.
In the USA the daytime running lamp mode
is deactivated by default. Activate the day-
time running lamp mode using the control
system, see “Setting daytime running lamp
mode (USA only)” (
page 171).
Turn exterior lamp switch to
positionM or*.
When the engine is running, the low
beam headlamps are switched on.
In low ambient light conditions, the fol-
lowing lamps will switch on additional-
ly:

Tail and parking lamps

License plate lamps

Side marker lampsCanada only
Vehicles with automatic transmission*:
When the engine is running and you shift
from a driving position to positionN orP,
with the vehicle at a standstill the low
beam headlamps will switch off with a de-
lay of 3-minutes.
When the engine is running, and you

turn the exterior lamp switch to
positionC, the low beam head-
lamps, the tail and parking lamps, the
license plate lamp and the side marker
lamps switch on.

turn the exterior lamp switch to
positionB, the manual headlamp
mode has priority over the daytime run-
ning lamp mode.The corresponding exterior lamps
switch on (
page 108).
USA only
When the engine is running, and you turn
the exterior lamp switch to position C
orB, the manual headlamp mode has
priority over the daytime running lamp
mode.
The corresponding exterior lamps switch
on (
page 108).
iWith the daytime running lamp mode activat-
ed and the engine running, the low beam head-
lamps cannot be switched off manually.
iWith the exterior lamp switch in
positionM or *, you cannot switch on the
high beam headlamps.
The high beam flasher is available at all times.
For nighttime driving you should turn the exterior
lamp switch to positionB to permit activa-
tion of the high beam headlamps.
iWith the daytime running lamp mode
activated and the exterior lamp switch in
position M, you cannot switch on the high
beam headlamps.
The high beam flasher is available at all times.
For nighttime driving you should turn the exterior
lamp switch to positionB or * to permit
activation of the high beam headlamps.

111 Controls in detail
Lighting
Locator lighting and interior lighting
delayed shut-off
The locator lighting and night security illu-
mination are described in the “Control sys-
tem” section, see “Setting locator lighting”
(
page 172) and “Setting interior lighting
delayed shut off” (
page 173).
Fog lampsFront fog lampsTurn the exterior lamp switch to
positionC orB (
page 108).
Pull out exterior lamp switch to first
stop.
The front fog lamps are switched on.
The green indicator lamp‡ in the
exterior lamp switch comes on
(
page 108).
Push in the exterior lamp switch.
The front fog lamps are switched off.
The green indicator lamp‡ in the
exterior lamp switch goes out.Rear fog lamp (driver’s side only)
Turn the exterior lamp switch to
positionB (
page 108).
Pull out exterior lamp switch to second
stop.
The front fog lamps and the rear fog
lamp switch on.
The yellow indicator lamp† in the
exterior lamp switch comes on
(
page 108).
Push in the exterior lamp switch to first
stop.
The rear fog lamp switches off.
The yellow indicator lamp† in the
exterior lamp switch goes out.
The front fog lamps remain lit.
Warning!G
In low ambient lighting or foggy conditions,
only switch from position * to B with
the vehicle at a standstill in a safe location.
Switching from position* to B will
briefly switch off the headlamps. Doing so
while driving in low ambient lighting condi-
tions may result in an accident.
iFog lamps will operate with the parking
lamps and/or the low beam headlamps on. Fog
lamps should only be used in conjunction with
low beam headlamps. Consult your State or
Province Motor Vehicle Regulations regarding
permissible lamp operation.
iFog lamps cannot be switched on manually
with exterior lamp switch in position*. To
activate the fog lamps, turn exterior lamp switch
to positionB first.

112 Controls in detail
Lighting
Switching on high beams
Combination switch
1High beam
2High beam flasher
High beam: Turn the exterior lamp
switch to positionB (
page 108).
Push the combination switch in the di-
rection of arrow1.
The high beam indicatorA in the in-
strument cluster comes on
(
page 26).
High beam flasher: Pull the combina-
tion switch briefly in the direction of
arrow2.
Headlamp cleaning system*
The headlamps are automatically cleaned
with a high-pressure water jet when, at the
same time,

the engine is running

the headlamps are switched on

the windshield wipers have wiped the
windshield with washer fluid for the
first time.
The headlamps are cleaned every tenth
time the windshield is washed with washer
fluid.
When you switch off the headlamps or the
ignition, the automatic function is reset
and will start counting the next time from
the beginning.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system*”
(
page 330).Corner-illuminating front fog lamps*
(With Bi-Xenon* headlamps only)
The corner-illuminating front fog lamps
improve illumination of the area in the
direction into which you are turning.
The corner-illuminating front fog lamps will
operate with the engine running and with:

the exterior lamp switch in
positionB or* (
page 108)
or

the daytime running lamp mode acti-
vated (
page 110).
iThe corner-illuminating front fog lamps will
only come on in low ambient lighting conditions.
iIf you are driving faster than 25 mph
(40 km/h) or have the front fog lamps switched
on, the corner-illuminating front fog lamps
function is not available.

172 Controls in detail
Control system
Depending on the previous status, the
daytime running lamps feature will be
Enabled orDisabled.
With
Daytime Running Lamps mode En-
abled
selected and the exterior lamp
switch at position M or *, the low
beam headlamps are switched on when
the engine is running.
In low ambient light conditions the follow-
ing lamps will switch on additionally:

Parking lamps

Tail lamps

License plate lamps

Side marker lamps
also illuminates the instrument cluster.
For more information on the daytime run-
ning lamp mode (
page 110).Setting locator lighting
Press % or $ to select the
Lights submenu.
Press #.
Press % or $ to select the Sur-
round Lighting
feature.
Press #.
The current setting
Enabled
or
Disabled is shown.
Press # again if you would like to
change the current status.
Depending on the previous status, the
locator lighting feature will be
Enabled
or
Disabled.
With the locator lighting feature activated
and the exterior lamp switch in
positionU, the following lamps will
switch on during darkness when the vehi-
cle is unlocked with the SmartKey:

Parking lamps

Tail lamps

License plate lamps

Side marker lamps

Front fog lamps
also illuminates the instrument cluster.
iIf you turn the exterior lamp switch to anoth-
er position, the corresponding lamp(s) will
switch on.
iMake sure the light switch is set toB
or* when you switch off the daytime running
lamps while driving at night.
iFor safety reasons, resetting the Lights
submenu to factory settings (
page 165) while
driving will not deactivate the daytime running
lamp mode.
The following message appears in the
multifunction display:
Lighting - Cannot be completely reset
to factory settings while driving.


388 Practical hints
What to do if …?
On the pages that follow, you will find a
compilation of the most important warning
and malfunction messages that may ap-
pear in the malfunction display.
For your convenience the messages are di-
vided into two sections:

Text messages (page 389)

Symbol messages (page 397)
Warning!G
All categories of messages contain impor-
tant information which should be taken note
of and, where a malfunction is indicated, ad-
dressed as soon as possible at an autho-
rized Mercedes-Benz Center.
Failure to repair condition noted may cause
damage not covered by the Mercedes-Benz
Limited Warranty, or result in property dam-
age or personal injury.
iSwitching on the ignition causes all instru-
ment cluster lamps (except high beam headlamp
indicator lamp and turn signal indicator lamps
unless activated) as well as the multifunction dis-
play to come on. Make sure the lamps and multi-
function display are in working order before
starting your journey.

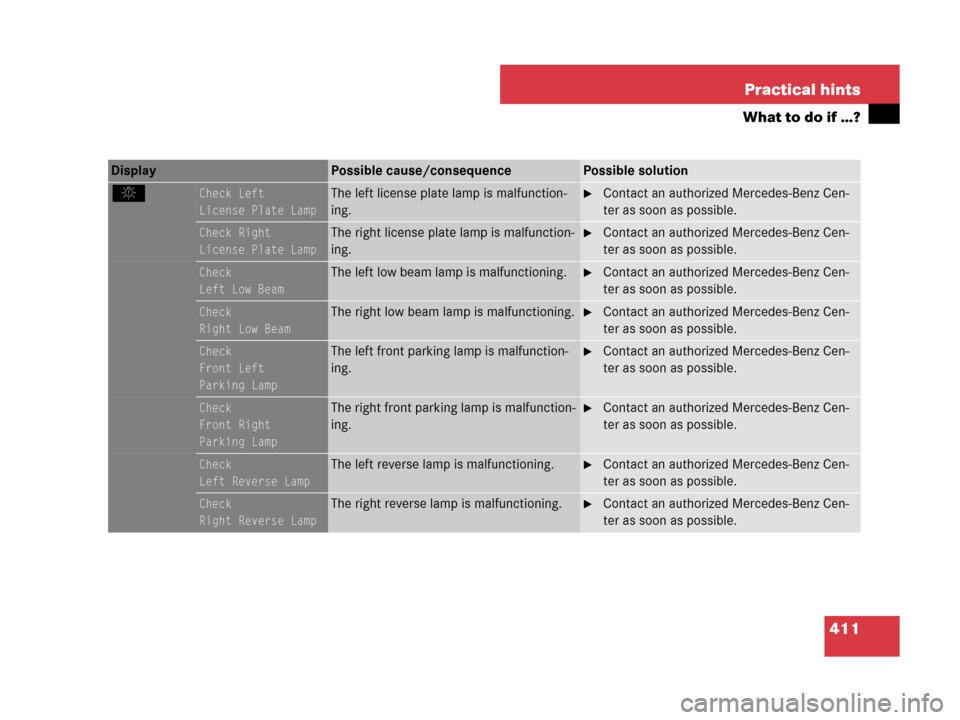

411 Practical hints
What to do if …?
Display Possible cause/consequencePossible solution
.Check Left
License Plate LampThe left license plate lamp is malfunction-
ing.Contact an authorized Mercedes-Benz Cen-
ter as soon as possible.
Check Right
License Plate LampThe right license plate lamp is malfunction-
ing.Contact an authorized Mercedes-Benz Cen-
ter as soon as possible.
Check
Left Low BeamThe left low beam lamp is malfunctioning.Contact an authorized Mercedes-Benz Cen-
ter as soon as possible.
Check
Right Low BeamThe right low beam lamp is malfunctioning.Contact an authorized Mercedes-Benz Cen-
ter as soon as possible.
Check
Front Left
Parking LampThe left front parking lamp is malfunction-
ing.Contact an authorized Mercedes-Benz Cen-
ter as soon as possible.
Check
Front Right
Parking LampThe right front parking lamp is malfunction-
ing.Contact an authorized Mercedes-Benz Cen-
ter as soon as possible.
Check
Left Reverse LampThe left reverse lamp is malfunctioning.Contact an authorized Mercedes-Benz Cen-
ter as soon as possible.
Check
Right Reverse LampThe right reverse lamp is malfunctioning.Contact an authorized Mercedes-Benz Cen-
ter as soon as possible.
