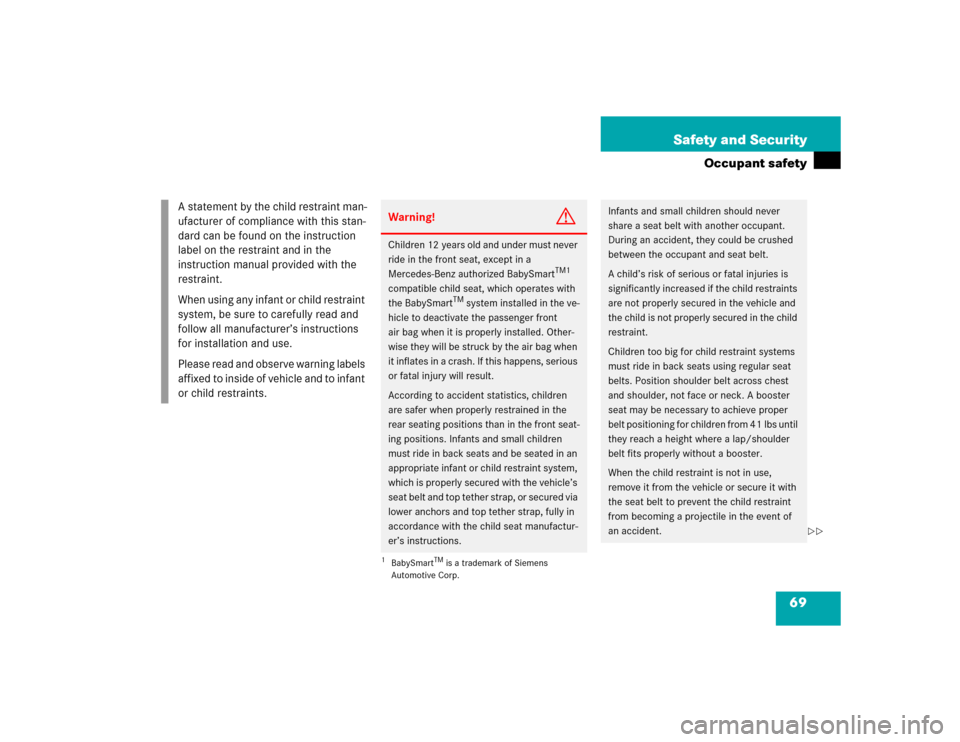

69 Safety and Security
Occupant safety
A statement by the child restraint man-
ufacturer of compliance with this stan-
dard can be found on the instruction
label on the restraint and in the
instruction manual provided with the
restraint.
When using any infant or child restraint
system, be sure to carefully read and
follow all manufacturer’s instructions
for installation and use.
Please read and observe warning labels
affixed to inside of vehicle and to infant
or child restraints.
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM1

compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front
air bag when it is properly installed. Other-
wise they will be struck by the air bag when
it inflates in a crash. If this happens, serious
or fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in back seats and be seated in an
appropriate infant or child restraint system,
which is properly secured with the vehicle’s
seat belt and top tether strap, or secured via
lower anchors and top tether strap, fully in
accordance with the child seat manufactur-
er’s instructions.
1BabySmart
TM is a trademark of Siemens
Automotive Corp.
Infants and small children should never
share a seat belt with another occupant.
During an accident, they could be crushed
between the occupant and seat belt.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
Children too big for child restraint systems
must ride in back seats using regular seat
belts. Position shoulder belt across chest
and shoulder, not face or neck. A booster
seat may be necessary to achieve proper
belt positioning for children from 41 lbs until
they reach a height where a lap/shoulder
belt fits properly without a booster.
When the child restraint is not in use,
remove it from the vehicle or secure it with
the seat belt to prevent the child restraint
from becoming a projectile in the event of
an accident.


70 Safety and SecurityOccupant safetyBabySmart
TM1
air bag deactivation
system
The56 indicator lamp is located on
the center console.
1Front passenger front air bag off
indicator lampSpecial BabySmart
TM compatible child
seats, designed for use with the
Mercedes-Benz system and available at
any authorized Mercedes-Benz Center are
required for use with the BabySmart
TM
air bag deactivation system. With the
special child seat properly installed, the
passenger front air bag will not deploy.
The56 indicator lamp will be
illuminated, except with the SmartKey
removed or in starter switch position0.Self-test BabySmart
TM without special
child seat installed
After turning the SmartKey in the starter
switch to position1 or2,
the56indicator lamp comes on
for approximately six seconds and then
goes out.
If the56indicator lamp should not
come on or is continuously lit, the system
is not functioning. You must see an
authorized Mercedes-Benz Center before
seating any child on the front passenger
seat.
For more information, see “Practical hints”
(
page 308).
Do not leave children unattended in the ve-
hicle; even if the children are secured in a
child restraint system. Unsupervised chil-
dren in a child restraint system may use ve-
hicle equipment and may cause an accident
and/or serious personal injury.1BabySmart
TM is a trademark of Siemens
Automotive Corp.
iThe system does not deactivate the
side impact air bag and the emergency
tensioning device.

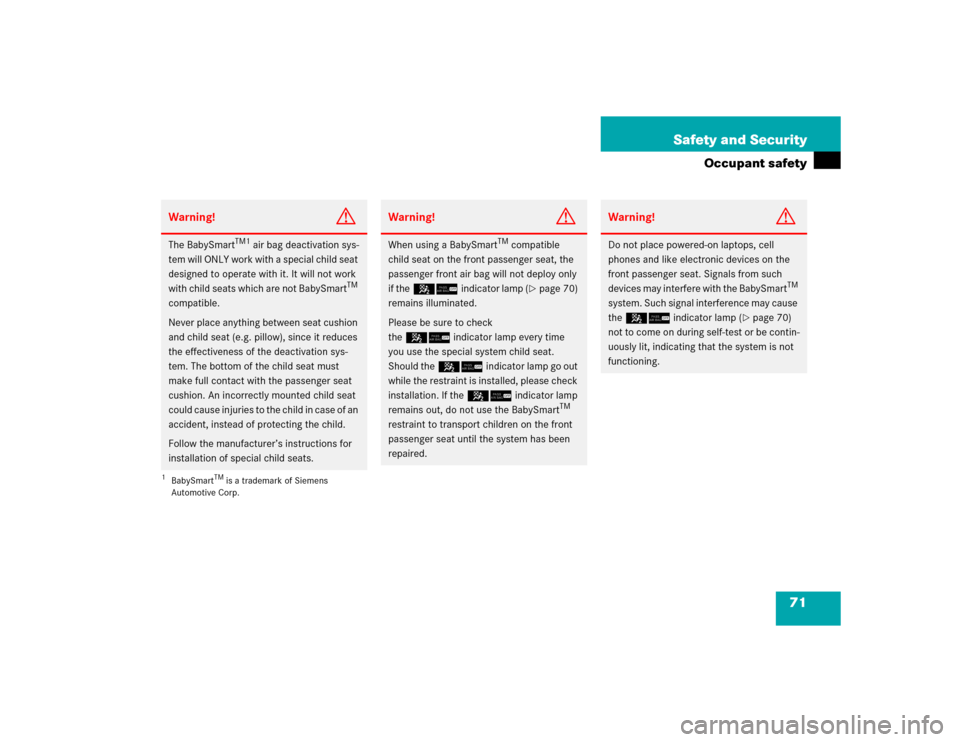

71 Safety and Security
Occupant safety
Warning!
G
The BabySmart
TM1
air bag deactivation sys-
tem will ONLY work with a special child seat
designed to operate with it. It will not work
with child seats which are not BabySmart
TM
compatible.
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the deactivation sys-
tem. The bottom of the child seat must
make full contact with the passenger seat
cushion. An incorrectly mounted child seat
could cause injuries to the child in case of an
accident, instead of protecting the child.
Follow the manufacturer’s instructions for
installation of special child seats.
1BabySmart
TM is a trademark of Siemens
Automotive Corp.
Warning!
G
When using a BabySmart
TM compatible
child seat on the front passenger seat, the
passenger front air bag will not deploy only
if the56indicator lamp (
page 70)
remains illuminated.
Please be sure to check
the56indicator lamp every time
you use the special system child seat.
Should the56indicator lamp go out
while the restraint is installed, please check
installation. If the56indicator lamp
remains out, do not use the BabySmart
TM
restraint to transport children on the front
passenger seat until the system has been
repaired.
Warning!
G
Do not place powered-on laptops, cell
phones and like electronic devices on the
front passenger seat. Signals from such
devices may interfere with the BabySmart
TM
system. Such signal interference may cause
the56indicator lamp (
page 70)
not to come on during self-test or be contin-
uously lit, indicating that the system is not
functioning.

72 Safety and SecurityOccupant safetyInstallation of infant and child restraint
systems
This vehicle is equipped with tether
anchorages for a top tether strap at each
of the rear seating positions.
1Cover of top anchorage ring
Make sure the rear backrest is locked
in its upright position (
page 239).

Remove cover1 from anchorage
ring3.

Guide tether strap between head
restraint and top of seat back.
Head restraint must be installed (if
removable) and positioned such that
the top tether strap can pass freely
between the head restraint and top of
seat back.
Make sure the tether strap is not
twisted.2Hook
3Anchorage ring

Securely fasten hook2, which is part
of the tether strap, to anchorage
ring3.
Once the top tether anchorage hook is
attached, the child restraint itself can be
secured. Tighten the top tether strap
according to the child restraint
manufacturer's instructions
Warning!
G
Always lock backrest in its upright position
when rear seat bench is occupied by pas-
sengers, or the extended cargo area is not in
use. Check for secure locking by pushing
and pulling on the backrest.

73 Safety and Security
Occupant safety

Reinstall cover1 after removing the
tether strap.
Child seat anchors – LATCH-type
This vehicle is equipped with two LATCH-
(Lower A
nchors and T
ethers for CH
ildren)
type anchors (at each of the outer rear
seats) for the installation of a LATCH-type
child seat with the matching mounting
fittings.The foldable LATCH-type anchors are
located between the seat cushion and the
backrest.
1Anchors
2Button

Grip inner side of anchors1 and fold
forward until they audibly lock in place.

Install child seat according to the
manufacturer’s instructions.
iFor safety, make sure the hook has
attached to the ring beyond the safety
catch, as illustrated.
iIf a child seat is not installed, the
LATCH-type anchors can be folded
back between the seat cushion and the
backrest (
page 74).
iThe child seat must be firmly attached
in the right and left side anchors1.
With a child seat installed in the left
rear seat, the seat belt for the center
seat occupied by a passenger must op-
erate freely. Guide seat belt between
its seat cushion mount and backrest
mount along outside of right side child
seat anchor.

74 Safety and SecurityOccupant safetyTo fold anchors back
Press down button2 on each anchor
and return anchor1 to its catch.iNon-LATCH-type child seats may also
be used and can be installed using the
vehicle’s seat belt system. Install child
seat according to the manufacturer’s
instructions.
Warning!
G
Children too big for child restraint systems
must ride in back seats using regular seat
belts. Position shoulder belt across chest
and shoulder, not face or neck. A booster
seat may be necessary to achieve proper
belt positioning for children from 41 lbs until
they reach a height where a lap/shoulder
belt fits properly without a booster.
Before installing the child seat, make sure
anchors1 are folded out and locked in
place.
Install child seat according to manufactur-
er’s instructions.
T h e c h i l d s e a t m u s t b e f i r m l y a t t a c h e d i n t h e
right and left side anchors1.
An incorrectly mounted child seat may come
loose during an accident which could result
in serious injury or death to your child.
Damaged or impact-damaged child seats or
child seat anchors1 must be replaced.
Do not leave children unattended in the
vehicle, even if the children are secured in a
child restraint system.

75 Safety and Security
Occupant safety
Blocking of rear door window operation
You can block the rear door window
operation (for instance when you have
children riding in the rear passenger
compartment).
The override switch is located on the door
control panel of the driver’s door.
1Enable
2Disable
3Override switchActivating override switch

Slide override switch3 to the right.
The rear door windows can no longer
be operated using the respective
switch located in the rear doors.
Deactivating override switch

Slide override switch3 to the left.
The rear door windows can be operated
again using the respective switch
located in the rear doors .For more information, see “Power win-
dows” (
page 223).
iOperation of the rear door windows
with the switches located on the door
control panel of the driver’s door is still
possible.
Warning!
G
Activate the override switch when children
are riding in the back seats of the vehicle.
The children may otherwise injure them-
selves, e.g. by becoming trapped in the win-
dow opening.
When leaving the vehicle, always remove the
SmartKey from the starter switch, and lock
the vehicle. Do not leave children unattend-
ed in the vehicle, or with access to an un-
locked vehicle. Unsupervised use of vehicle
equipment can cause an accident and/or
serious personal injury.

76 Safety and SecurityPanic alarm*An audible alarm and flashing exterior
lamps will operate for approximately
21/2minutes.
1Âbutton
Activating
Press and hold button1 for at least
one second.
Deactivating
Press button1 again.
or

Insert SmartKey in starter switch.
iCanada only:
Only vehicles equipped with an
anti-theft alarm system* have
SmartKeys with integrated panic
button1.
iFor operation in the USA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

77 Safety and Security
Driving safety systems
Driving safety systems
In this section you will find information on
the following driving safety systems:

ABS (A
ntilock B
rake S
ystem)


BAS (B
rake A
ssist S
ystem)


ESP (E
lectronic S
tability P
rogram)


4MATIC (Four Wheel Electronic
Traction System)
ABS
The Antilock Brake System (ABS) regulates
the brake pressure so that the wheels do
not lock during braking. This allows you to
maintain the ability to steer your vehicle.
The ABS is functional above a speed of ap-
proximately 5 mph (8 km/h) independent
of road surface conditions.
On slippery road surfaces, the ABS will
respond even to light brake pressure.
The- indicator lamp in the instrument
cluster (
page 24) comes on when you
switch on the ignition. It goes out when the
engine is running.
iIn winter operation, the maximum
effectiveness of the ABS, ESP, and
4MATIC (if so equipped) is only
achieved with winter tires (M + S tires),
or snow chains as required.
Warning!
G
The following factors increase the risk of
accidents:

Excessive speed, especially in turns


Wet and slippery road surfaces


Following another vehicle too closely
The ABS, BAS, ESP, and 4MATIC (if so
equipped) cannot reduce this risk.
Always adjust your driving style to the
prevailing road and weather conditions.
Warning!
G
Do not pump the brake pedal. Use firm,
steady brake pedal pressure instead. Pump-
ing the brake pedal defeats the purpose of
the ABS and significantly reduces braking
effectiveness.

78 Safety and SecurityDriving safety systemsBraking
At the instant one of the wheels is about to
lock up, a slight pulsation can be felt in the
brake pedal, indicating that the ABS is in
the regulating mode.
Keep firm and steady pressure on the
brake pedal while experiencing the
pulsation.
Continuous steady brake pedal pressure
yields the advantages provided by the ABS,
namely braking power and ability to steer
the vehicle.
The pulsating brake pedal can be an
indication of hazardous road conditions
and functions as a reminder to take extra
care while driving.Emergency brake maneuver

Keep continuous full pressure on the
brake pedal.
For more information, see “Practical hints”
(
page 302) and (
page 310).
BAS
The Brake Assist System (BAS) operates in
emergency situations. If you apply the
brakes very quickly, the BAS automatically
provides full brake boost, thereby poten-
tially reducing the braking distance. Apply
continuous full braking pressure until the
emergency braking situation is over. The
ABS will prevent the wheels from locking.
When you release the brake pedal, the
brakes function again as normal. The BAS
is then deactivated.
Warning!
G
The ABS cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase braking or steering efficiency
beyond that afforded by the condition of the
vehicle brakes and tires or the traction af-
forded. The ABS cannot prevent accidents,
including those resulting from excessive
speed in turns, following another vehicle too
closely, or hydroplaning. Only a safe, atten-
tive, and skillful driver can prevent acci-
dents. The capabilities of an ABS equipped
vehicle must never be exploited in a reck-
less or dangerous manner which could jeop-
ardize the user’s safety or the safety of
others.
Warning!
G
If the BAS is malfunctioning, the brake sys-
tem is still functioning normally, but without
the additional brake boost available that
BAS would normally provide in an emergen-
cy braking maneuver. Therefore, the braking
distance may increase.
