MERCEDES-BENZ C320 2005 W203 Owner's Manual

99 Controls in detail
Seats
When entering the vehicle, with the
easy-entry/exit feature activated, the
steering wheel or, depending on your
selection, the steering wheel and driver’s
seat will return to their last set position or
a factory-set maximum forward position
when you:

close the driver’s door with the ignition
switched on


insert the SmartKey into the starter
switch with the driver’s door closed. Removing and installing front seat
head restraints
For information on head restraint
adjustment, see “Seats” (
page 35). If the current seat position falls into a
factory-set position range and the
system recognizes the current seat
position to be rearward enough for
easy entry and exit, the driver’s seat
will not move to the rear when the
easy-entry/exit feature is activated.
iFor safety reasons, the driver’s seat will
not return to its last set position with
the easy-entry/exit feature activated if
the system recognizes the last set posi-
tion as an extreme forward position.
Instead, the driver’s seat will remain at
or move to a factory-set maximum
forward position. To again fully return
the driver’s seat to your last set posi-
tion or to memory position, adjust the
seat to the desired position or press
and hold the respective memory
position switch* (
page 107).
iAdjust the head restraint in such a way
that it is as close to the head as
possible.Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the center of
the head restraint supports the back of the
head at eye level. This will reduce the poten-
tial for injury to the head and neck in the
event of an accident or similar situation.


100 Controls in detailSeats
Front seat head restraints, manual seat
1Release button
Removing front seat head restraints
Pull head restraint to its highest
position.

Push release button1 and pull out
head restraint.
Installing front seat head restraints

Insert head restraint and push it down
until it engages.

Push release button1 and adjust
head restraint to desired position.Front seat head restraints, power seat*
1Head restraint switch

Switch on ignition (
page 33).
Removing front seat head restraints

Press switch1 upwards and hold until
head restraint is fully extended.

Pull out head restraint.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.
Do not interchange head restraints from
front and rear seat.iTilt the backrest to the rear for easier
removal and installation of the head
restraints.


101 Controls in detailSeats
Installing front seat head restraints
Press switch1 upwards and hold for
about five seconds.

Push head restraint down until it
engages.

Adjust head restraint to desired
position (
page 38).
Rear seat head restraintsHead restraint height (rear outer seats)
1Release button
Raising:

Manually adjust the height of the head
restraint by pulling it upward.
If the head restraint is fully retracted,
push release button1 and pull the
head restraint out.
Lowering:

To lower the head restraint, push
release button1 and push down on
the head restraint.
Warning!
G
For safety reasons, always drive with the
rear head restraints in the upright position
when the rear seats are occupied.
Keep the area around head restraints clear
of articles (e.g. clothing) to not obstruct the
folding operation of the head restraints.
iAdjust the head restraint in such a way
that it is as close to the head as
possible.Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the center of
the head restraint supports the back of the
head at eye level. This will reduce the poten-
tial for injury to the head and neck in the
event of an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are
intended to help reduce injuries during an
accident.

102 Controls in detailSeatsFolding head restraints back with
release button
The rear seat head restraints can be folded
backward for increased visibility.
1Release button
Push release button1.
The head restraint will fold backward.Folding head restraints back with
switch in the center console (rear outer
seats)
1Switch for rear seat head restraints

Start the engine (
page 46).

Press switch1.
The rear seat head restraints will fold
backward.Placing head restraints upright

Pull the head restraint forward until it
locks into position.
iYou can also fold the rear outer seat
head restraints back using the switch
in the center console (
page 102).
Warning!
G
Make sure the head restraints engage when
placing them upright. Otherwise their
protective function cannot be assured.

103 Controls in detailSeats
Head restraint tilt (rear outer seats)
Two different head restraint angle
positions are available:
Press the release button (
page 102)
and tilt the head restraint to the
desired position.
Removing and installing rear seat head
restraints (rear outer seats)
1Release button
Removing rear seat head restraints

Fold back head restraint (
page 102).

Pull head restraint to its highest
position.

Push release button1 and pull out
head restraint.
Installing rear seat head restraints

Insert head restraint and push it down
until it engages.

Push button1 and adjust head
restraint to desired position.
iAdjust the head restraint in such a way
that it is as close to the head as
possible.iThe rear center seat head restraint
cannot be removed.
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the center of
the head restraint supports the back of the
head at eye level. This will reduce the poten-
tial for injury to the head and neck in the
event of an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.
Do not interchange head restraints from
front and rear seat.

104 Controls in detailSeatsMulticontour seats*
This multicontour seat has a movable seat
cushion and inflatable air cushions built
into the backrest to provide additional
lumbar and side support.
The seat cushion movement, backrest
cushion height and curvature can be
continuously varied with switches on the
side of the seat after switching on ignition.
1Seat cushion depth
2Backrest bottom
3Backrest center
4Backrest side bolster adjustment

Switch on ignition (
page 33).
Seat cushion depth

Adjust the seat cushion depth to the
length of your upper leg using
switch1.
Backrest contour

Adjust the contour of the backrest to
the desired position using switches2
and3.
Backrest side bolsters

Adjust the backrest side bolsters so
that they provide good lateral support
using switch4.

105 Controls in detailSeats

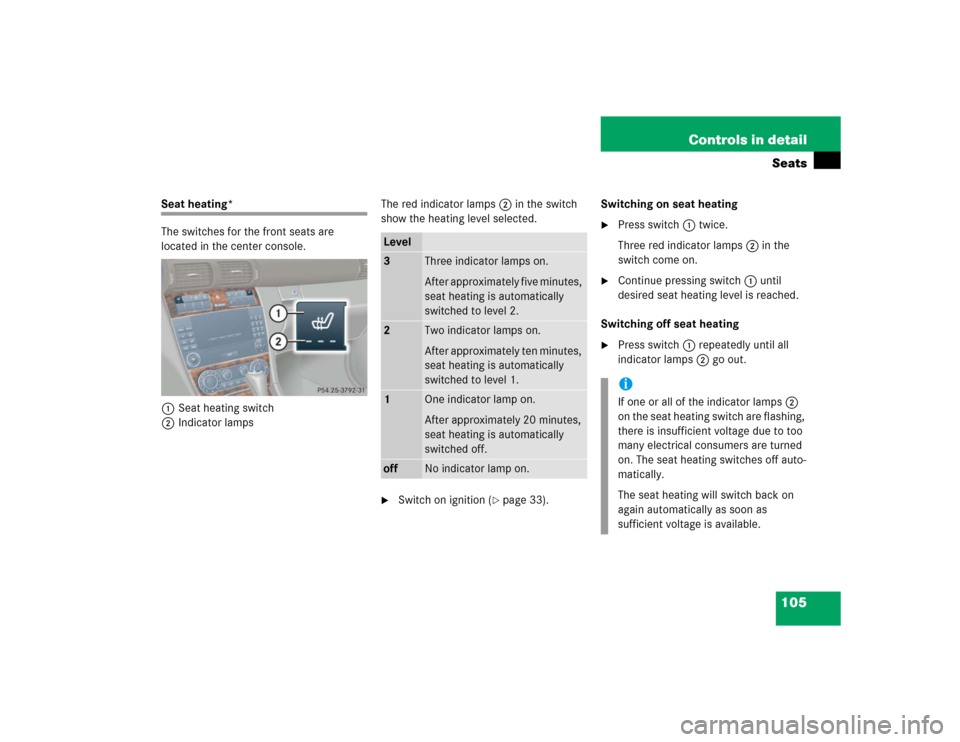

Seat heating*
The switches for the front seats are
located in the center console.
1Seat heating switch
2Indicator lampsThe red indicator lamps2 in the switch
show the heating level selected.

Switch on ignition (
page 33).Switching on seat heating

Press switch1 twice.
Three red indicator lamps2 in the
switch come on.

Continue pressing switch1 until
desired seat heating level is reached.
Switching off seat heating

Press switch1 repeatedly until all
indicator lamps2 go out.
Level3
Three indicator lamps on.
After approximately five minutes,
seat heating is automatically
switched to level 2.
2
Two indicator lamps on.
After approximately ten minutes,
seat heating is automatically
switched to level 1.
1
One indicator lamp on.
After approximately 20 minutes,
seat heating is automatically
switched off.
off
No indicator lamp on.
iIf one or all of the indicator lamps2
on the seat heating switch are flashing,
there is insufficient voltage due to too
many electrical consumers are turned
on. The seat heating switches off auto-
matically.
The seat heating will switch back on
again automatically as soon as
sufficient voltage is available.

106 Controls in detailMemory function*
You can store up to three different settings
for each SmartKey.
The following settings are stored when
using the buttons on the driver’s door:

Driver’s seat, backrest and head
restraint position


Steering wheel position


Exterior rear view mirror positions
These key-dependent memory settings
can be deactivated if desired. For informa-
tion on key-dependent memory settings,
see “Setting key-dependency”
(
page 147).The following settings are not
key-dependent. They are stored when
using the buttons on the front passenger
door:


Front passenger seat, backrest and
head restraint position
!Prior to operating the vehicle, the
driver should check and adjust the seat
height, seat position fore and aft, and
seat backrest angle if necessary, to
ensure adequate control, reach and
comfort. The head restraint should also
be adjusted for proper height. See also
the section on air bags (
page 59) for
proper seat positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, opera-
tion and comfort. Both the interior and
exterior rear view mirrors should be
adjusted for adequate rear vision.
Fasten seat belts. Infants and small
children should be seated in a properly
secured restraint system that complies
with U.S. Federal Motor Vehicle Safety
Standards 213 and 225 and Canadian
Motor Vehicle Safety Standards 213
and 210.2.
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

107 Controls in detail
Memory function*
The memory button and memory position
switch are located on the door.
1Memory button
2Memory position switch
Switch on ignition (
page 33).
or

Open the respective door.
Storing positions into memory
Adjust the seat, steering wheel and
exterior rear view mirrors to the
desired position (
page 35).

Turn memory position switch2 to the
selected memory position.

Press memory button1.

Release memory button1 and press
memory position switch2 within
three seconds.
All settings are stored to the selected
position.
Recalling positions from memory
Turn memory position switch2 to the
selected memory position.

Press and hold memory position
switch2 until the seat, steering wheel
and exterior rear view mirrors have
completely moved to the stored
positions.!Do not operate the power seats using
the memory button if the seat backrest
is in an excessively reclined position.
Doing so could cause damage to front
or rear seats.iReleasing the memory position switch
stops movement to the stored
positions immediately.

108 Controls in detailMemory function*Storing exterior rear view mirror parking position
For easier parking, you can adjust the
passenger-side exterior rear view mirror so
that you can see the right rear wheel as
soon as you engage reverse gearR.
For information on activating the parking
position feature, see “Activating exterior
rear view mirror parking position*”
(page 170).1Memory button
2Adjustment button
3Passenger-side exterior rear view
mirror button

Stop the vehicle.

Switch on ignition (
page 33).

Press button3.
The passenger-side exterior rear view
mirror is selected.

Adjust the exterior rear view mirror
with button2 so that you see the rear
wheel and the road curb.

Press memory button1.

Within three seconds, press bottom of
adjustment button2.
The parking position is stored if the
mirror does not move.
iYou can store a parking position for the
passenger-side exterior rear view
mirror for each SmartKey.
iIf the mirror does move, repeat the
above steps. After the setting is stored,
you can move the mirror again.
