Contents
Automatic central locking .............. 87
Locking and unlocking
from the inside ............................... 88
Seats.................................................... 89
Easy-entry/exit feature* ................ 89
Removing and installing
front seat head restraints ............... 90
Rear seat head restraints ............... 91
Heated seats* ................................ 93
Memory function*................................ 95
Storing positions into memory ....... 96
Recalling positions from memory ... 96
Storing exterior rear view mirror
parking position ............................. 97
Lighting ................................................ 98
Exterior lamp switch ....................... 98
Combination switch...................... 102
Hazard warning flasher................. 102
Interior lighting ............................. 103
Instrument cluster ............................. 105
Instrument cluster illumination..... 105
Coolant temperature display ........ 106
Trip odometer............................... 107
Tachometer .................................. 107
Outside temperature indicator ..... 107
Control system .................................. 109Multifunction display .................... 109
Multifunction steering wheel ........ 110
Menus .......................................... 112
Standard display menu ................ 114
AUDIO menu ................................ 114
NAVI* menu ................................. 117
Malfunction memory menu .......... 117
Settings menu .............................. 118
Trip computer menu ..................... 132
TEL menu* ................................... 134
Manual transmission ......................... 137
Shifting into reverse ..................... 138
Automatic transmission* ................... 139
One-touch gearshifting................. 140
Gear ranges.................................. 141
Gear selector lever position ......... 142
Program mode selector switch..... 144
Accelerator position ..................... 145
Emergency operation
(Limp Home Mode) ...................... 145
Good visibility .................................... 146
Rear view mirrors ......................... 146
Headlamp cleaning system* ........ 148
Sun visors .................................... 148
Rear window defroster ................. 149
Climate control .................................. 150Setting the temperature............... 153
Adjusting
air distribution and volume .......... 153
Defrosting .................................... 154
Air recirculation mode.................. 154
Deactivating the
climate control system................. 155
Air conditioning............................ 156
Ventilated storage compartment . 157
Rear passenger compartment
adjustable air vents...................... 158
Audio system ..................................... 159
Audio and telephone, operation ... 159
Operating safety .......................... 159
Operating and display elements... 160
Button and soft key operation...... 162
Operation ..................................... 162
Radio operation ........................... 165
Satellite radio (SAT)* (USA only) .. 168
Cassette operation ...................... 172
CD changer* operation ................ 175
Telephone* operation .................. 179
Power windows ................................. 186
Opening and closing the windows 186
Synchronizing power windows ..... 188
Panorama sliding/pop-up roof* ........ 189

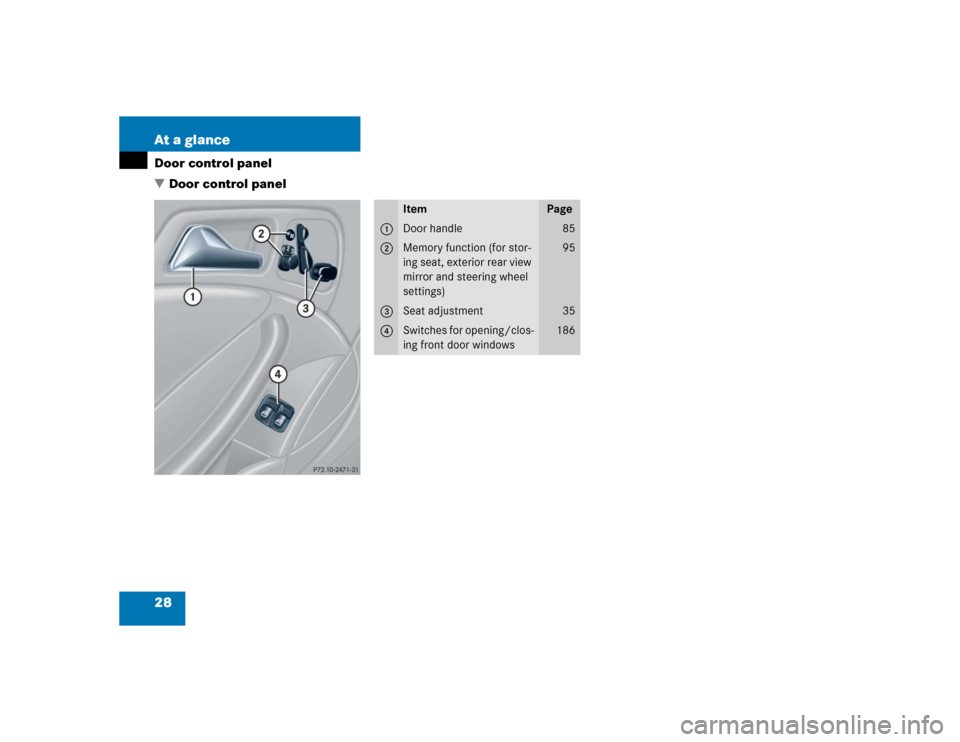

28 At a glanceDoor control panel
Door control panel
Item
Page
1
Door handle
85
2
Memory function (for stor-
ing seat, exterior rear view
mirror and steering wheel
settings)
95
3
Seat adjustment
35
4
Switches for opening/clos-
ing front door windows
186

35 Getting started
Adjusting
Power seat* adjustment
The seat adjustment switches are located
in each door.
1Head restraint height
2Seat height
3Seat cushion tilt
4Seat fore and aft adjustment
5Backrest tilt
Turn the SmartKey in the starter switch
to position1 or2 (
page 31).
or

Open the driver’s or passenger door.Seat fore and aft adjustment

Press the switch forward or backward
in the direction of arrow4.
Adjust seat to a comfortable seating
position that still allows you to reach
the accelerator / brake pedal safely.
The position should be as far to the rear
as possible, consistent with ability to
properly operate controls.Seat cushion tilt

Press the switch up or down in the
direction of arrow3 until your upper
legs are lightly supported.
Seat backrest tilt

Press the switch forward or backward
in the direction of arrow5 until your
arms are slightly angled when holding
the steering wheel.
Seat height

Press the switch up or down in the
direction of arrow2.
iWhen moving the seat, be sure that
there are no items in the footwell or be-
hind the seat. Otherwise you could
damage the seat.
The memory function* (
page 95)
lets you store the settings for the seat
position together with the setting for
the steering wheel and the exterior rear
view mirrors.

39 Getting started
Adjusting
Mirrors
Adjust the interior and exterior rear view
mirrors before driving so that you have a
good view of the road and traffic condi-
tions.Interior rear view mirror

Manually adjust the interior rear view
mirror.
For more information, see “Rear view mir-
rors” (
page 146).
iThe memory function* (
page 95) lets
you store the setting for the steering
wheel together with the setting for the
seat position and exterior rear view
mirrors.
Warning!
G
In the case of an accident, liquid electrolyte
may escape the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.

40 Getting startedAdjustingExterior rear view mirrorsThe buttons are located above the exterior
lamp switch.
1Adjustment button
2Passenger side mirror
3Driver’s side mirror

Make sure the ignition is switched on.
All the lights in the instrument cluster
come on.

Press button3 for the left mirror or
button2 for the right mirror.

Push adjustment button1 up, down,
left or right according to the setting de-
sired.For more information, see “Rear view mir-
rors” (
page 146).
Warning!
G
Exercise care when using the passenger
side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your in-
side rear view mirror or glance over your
shoulder before changing lanes. !Electrolyte drops coming into contact
with the vehicle paint finish can only be
completely removed while in their
liquid state by applying plenty of water.
iThe memory function* (
page 95) lets
you store the setting for the exterior
rear view mirrors together with the set-
tings for the steering wheel and seat
positions.
!If an exterior rear view mirror was forc-
ibly pushed forward (hit from the rear)
or forcibly pushed backward (hit from
the front), reposition it by applying firm
pressure until it snaps into place.
The mirror housing is now properly po-
sitioned and you can adjust the mirror
normally.iAt low ambient temperatures, the mir-
rors will be heated automatically.

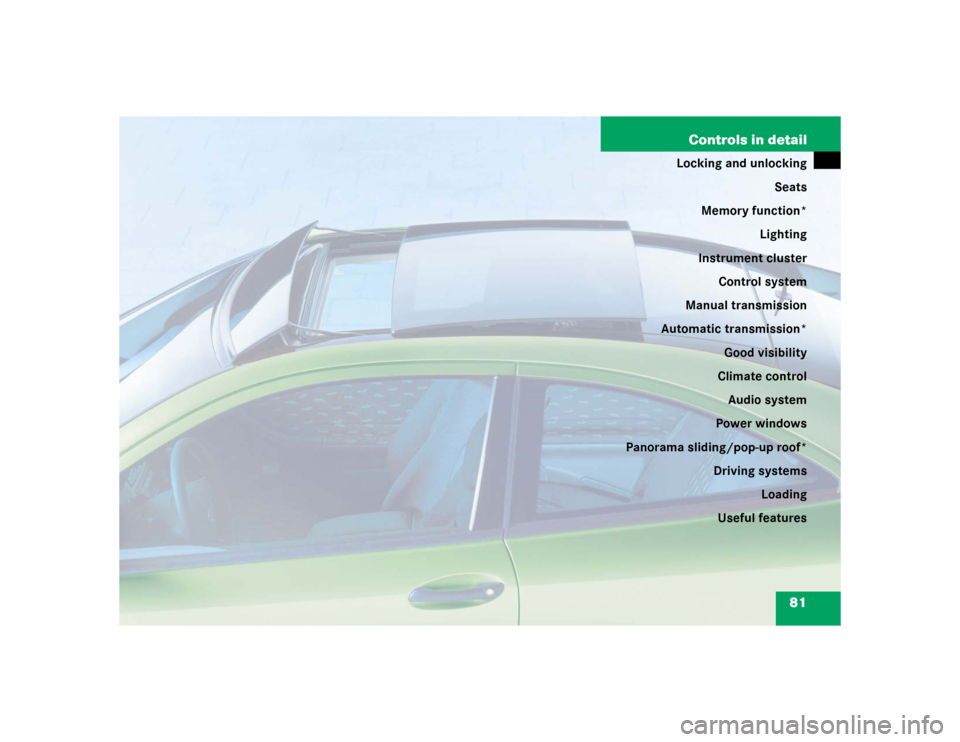

81 Controls in detail
Locking and unlocking
Seats
Memory function*
Lighting
Instrument cluster
Control system
Manual transmission
Automatic transmission*
Good visibility
Climate control
Audio system
Power windows
Panorama sliding/pop-up roof*
Driving systems
Loading
Useful features

89 Controls in detail
Seats
Seats
For information on seat adjustment, see
“Adjusting” (
page 32).
Easy-entry/exit feature*
With the easy-entry/exit feature activated,
the steering wheel tilts upwards and the
driver’s seat moves to the rear.
This allows easier entry into and exit from
the vehicle when the driver’s door is
opened. However, the engine must be
turned off.
When the SmartKey is inserted in the start-
er switch and the driver’s door is closed,
the steering wheel and the driver’s seat re-
turn to their last set position.You can activate the following functions:


Steering column:
Only the steering column is adjusted.


Steering column and seat:
The steering column and the seat are
adjusted.
The easy-entry/exit feature can be
switched on or off in the convenience sub-
menu of the control system (
page 130).
Warning!
G
You must make sure that no one can be-
come trapped or injured by the moving
steering wheel and driver’s seat when the
easy-entry / exit feature* is activated, the
driver’s door is being opened and the engine
is turned off or the SmartKey is removed
from the starter switch.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature*, which could result in an accident
and/or serious personal injury.
iTo cancel seat/steering wheel move-
ment, do one of the following:

Press the seat adjustment
switch*(
page 35).


Move the steering column stalk*
(page 38).


Press the memory button*
(page 96).

95 Controls in detail
Memory function*
Memory function*
The memory button and stored position
switch are located on the door.
You can store up to three different settings
per SmartKey.
The following settings are saved for each
stored position:

Driver’s seat and backrest position


Steering wheel position


Driver’s side exterior rear view mirror
position


Passenger side exterior rear view mir-
ror position


Front passenger seat position
These key-dependent memory settings
can be deactivated if desired
(
page 131).
!Prior to operating the vehicle, the driv-
er should check and adjust the seat
height, seat position fore and aft, and
seat backrest angle if necessary, to en-
sure adequate control, reach and com-
fort. The head restraint should also be
adjusted for proper height. See also the
section on airbags (
page 57) for
proper seat positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, opera-
tion and comfort. Both the interior and
exterior rear view mirrors should be ad-
justed for adequate rear vision.
Fasten seat belts. Infants and small
children should be seated in a properly
secured restraint system that complies
with U.S. Federal Motor Vehicle Safety
Standards 213 and 225 and Canadian
Motor Vehicle Safety Standards 213
and 210.2.
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

96 Controls in detailMemory function*1Memory button
2Stored position button
Make sure the ignition is switched on
or the relevant door is open and the
SmartKey is inserted in the starter
switch.
Storing positions into memory
Adjust the seats, steering wheel and
rear view mirrors to the desired posi-
tion (
page 32).

Turn button2 to selected memory po-
sition.

Press memory button1.

Release memory button and press
button2 within three seconds.
All the settings are stored at the select-
ed position.
Recalling positions from memory
Turn button2 to se le cte d m e mory po-
sition.

Press and hold button2 until the seat,
steering wheel and exterior rear view
mirrors have fully moved to the stored
positions.iReleasing the button immediately
stops movement to the stored posi-
tions.Warning!
G
Do not operate the power seats using the
memory button if the seat backrest is in an
excessively reclined position. Doing so
could cause damage to front or rear seats.
First move backrest to an upright position.

130 Controls in detailControl systemActivating easy-entry/exit feature*
Use this function to activate and deacti-
vate the easy-entry/exit feature. When the
feature is activated, the steering wheel and
driver’s seat will move back to facilitate ex-
iting when you

remove the SmartKey from the starter
switch


open the driver’s door
However, the engine must be turned off.After entering the vehicle, the steering
wheel and seat will move into the position
stored in memory when


the driver’s door is closed


you put the SmartKey in the starter
switch and


press the appropriate stored position
button on the memory switch
(page 96)
Warning!
G
You must make sure that no one can be-
come trapped or injured by the moving
steering wheel and the driver’s seat when
the easy-entry/exit feature is activated and
the driver’s door is being opened or the
SmartKey is removed from the starter
switch.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature*, which could result in an accident
and/or serious personal injury.
iTo cancel seat/steering wheel move-
ment, do one of the following:

Press the seat adjustment
switch*(
page 35).


Move the steering column stalk*
(page 38).


Press the memory switch*
(page 96).
